Cache Timing Attack on AES Sarani Bhattacharya, Chester Rebeiro, and Debdeep Mukhopadhyay Dept. of Computer Science and Engineering Indian Institute of Technology, Kharagpur, India sarani. bhattacharya, chester, debdeep@cse. iitkgp. ernet. in 5 February 2014 SAG, DRDO

Proposed Work �Milestone 1 ◦ Cache Attacks on AES block cipher �Milestone 2 ◦ Differential Cache attacks on Clefia �Milestone 3 ◦ Analysis of micro-architectural components in the processor.

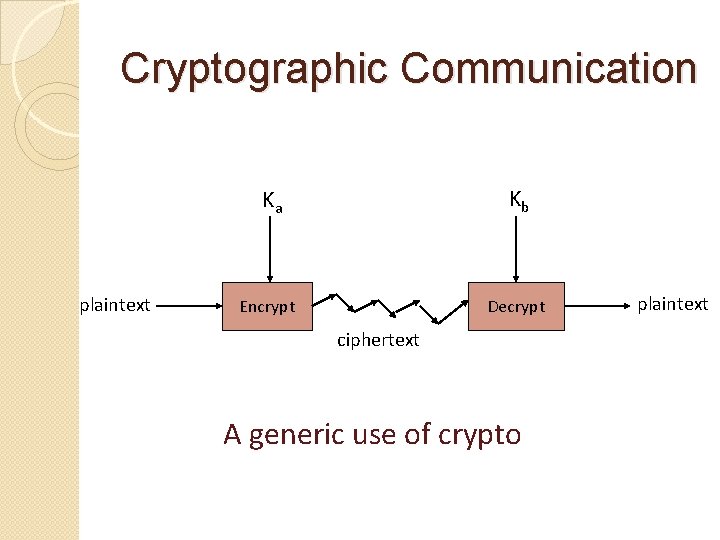

Cryptographic Communication plaintext Ka Kb Encrypt Decrypt ciphertext A generic use of crypto plaintext

Cryptographic Threat Model Message E Ka Communication Channel D Message Kb leaked Information Alice Bob Side Channels in the real world Mallory Through which a cryptographic module leaks information to its environment unintentionally Assumptions • Only Alice Knows Ka • Only Bob Knows Kb • Mallory has access to E, D and the Communication Channel but does not know the decryption key Kb

Side Channel Sources Threat Model & Security Goal Traditionally we have handled only Cryptographic Algorithms Protocols Software Human User Hardware E/D It is impossible to design a totally secure system with humans in it Key dependent Variations computation time K Real World System • Power consumption • EM Radiations • Test Methodologies • Behavior under faults Deployment & Usage

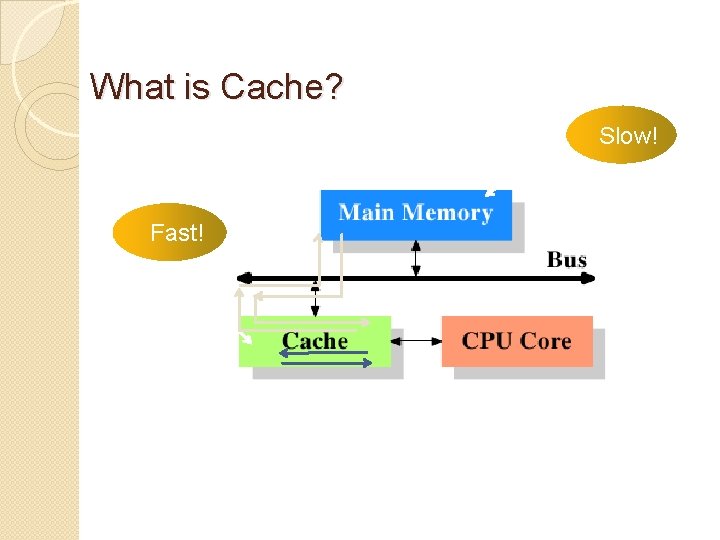

What is Cache? Slow! Fast! Figure from [1]

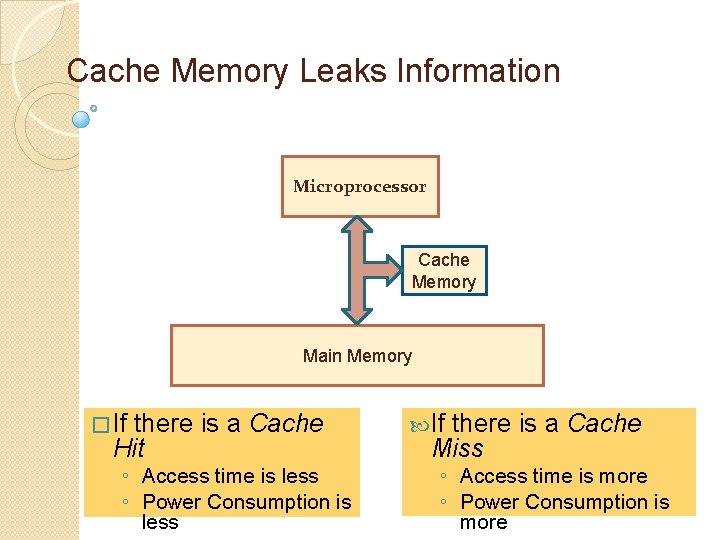

Cache Memory Leaks Information Microprocessor Cache Memory Main Memory �If there is a Cache Hit ◦ Access time is less ◦ Power Consumption is less If there is a Cache Miss ◦ Access time is more ◦ Power Consumption is more

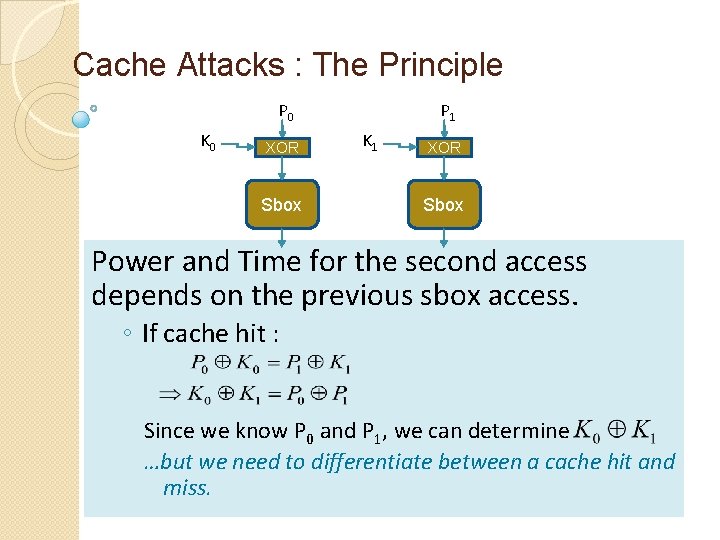

Cache Attacks : The Principle P 0 K 0 XOR Sbox P 1 K 1 XOR Sbox Power and Time for the second access depends on the previous sbox access. ◦ If cache hit : Since we know P 0 and P 1, we can determine …but we need to differentiate between a cache hit and miss.

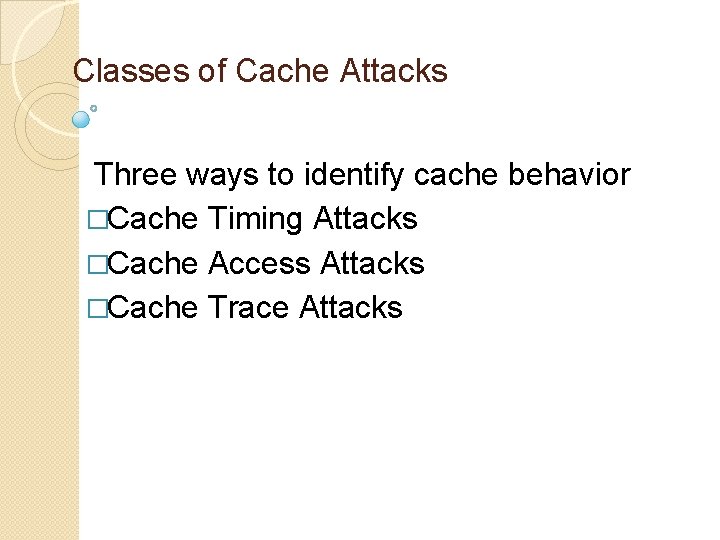

Classes of Cache Attacks Three ways to identify cache behavior �Cache Timing Attacks �Cache Access Attacks �Cache Trace Attacks

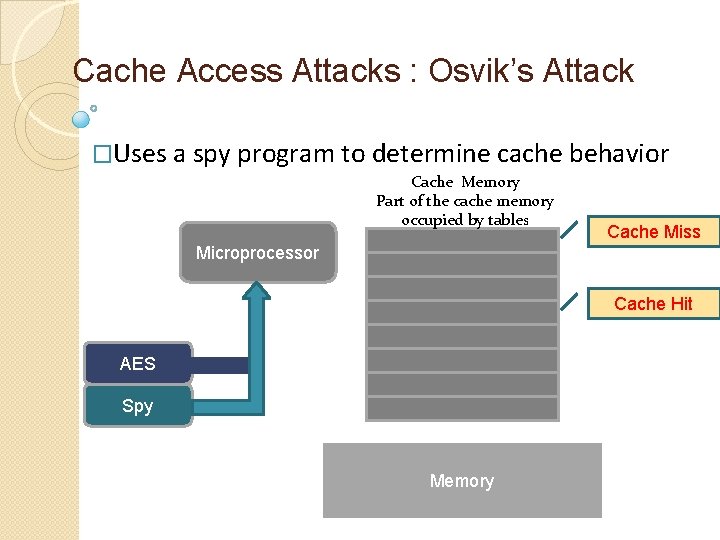

Cache Access Attacks : Osvik’s Attack �Uses a spy program to determine cache behavior Cache Memory Part of the cache memory occupied by tables Cache Miss Microprocessor Cache Hit AES Spy Memory

Cache Trace Attacks �The Power Profile of the system gives away cache behavior. Without Cache Miss With Cache Miss

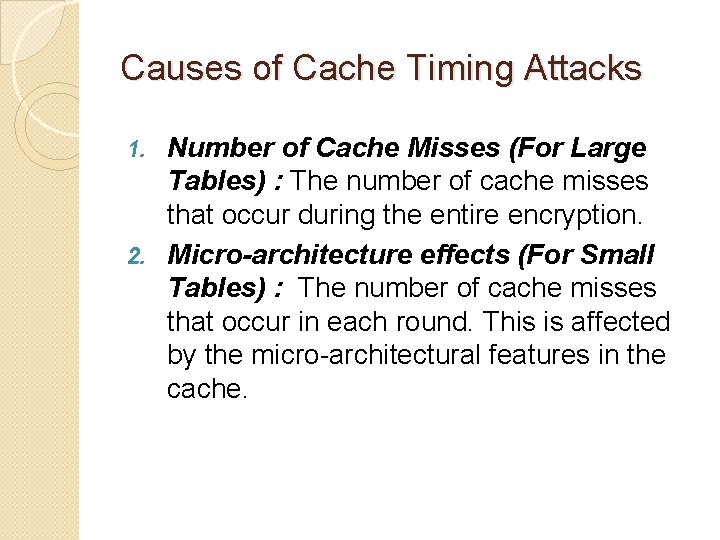

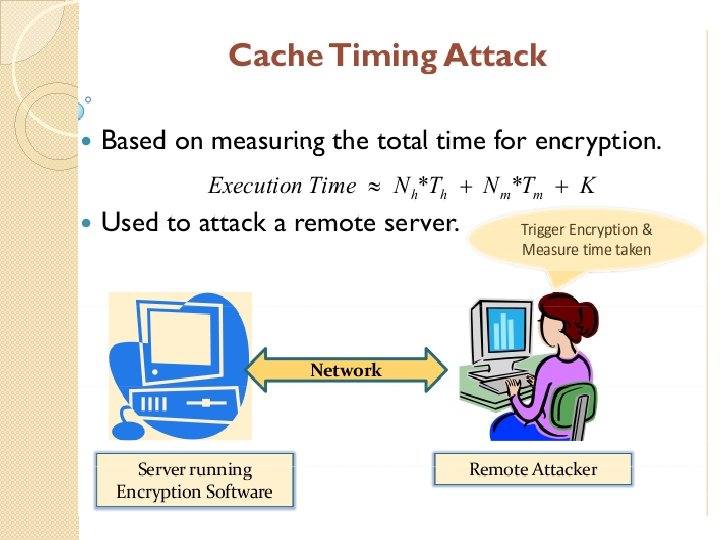

Causes of Cache Timing Attacks Number of Cache Misses (For Large Tables) : The number of cache misses that occur during the entire encryption. 2. Micro-architecture effects (For Small Tables) : The number of cache misses that occur in each round. This is affected by the micro-architectural features in the cache. 1.

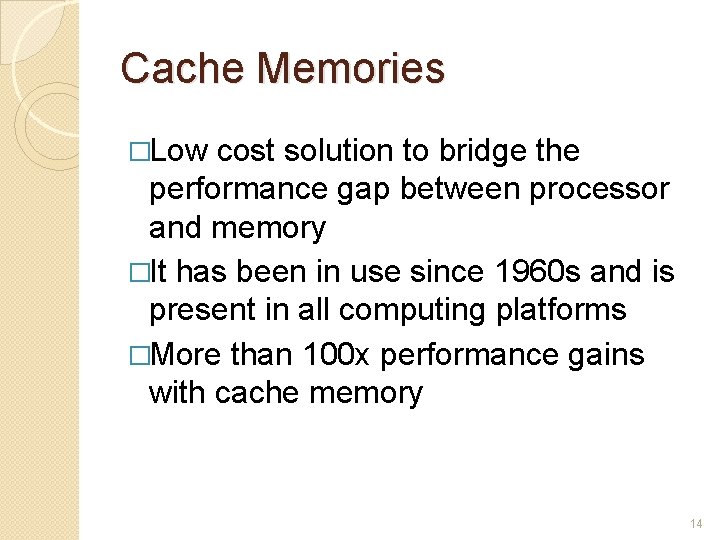

Cache Memories �Low cost solution to bridge the performance gap between processor and memory �It has been in use since 1960 s and is present in all computing platforms �More than 100 x performance gains with cache memory 14

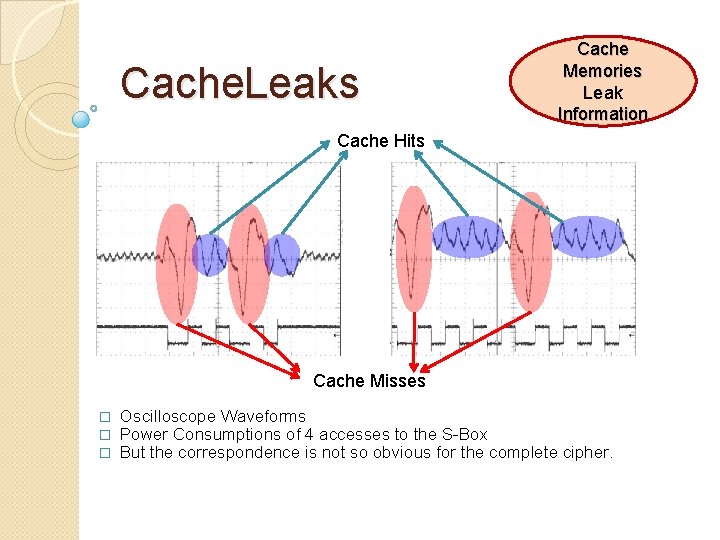

Cache. Leaks Cache Memories Leak Information Cache Hits Cache Misses � � � Oscilloscope Waveforms Power Consumptions of 4 accesses to the S-Box But the correspondence is not so obvious for the complete cipher.

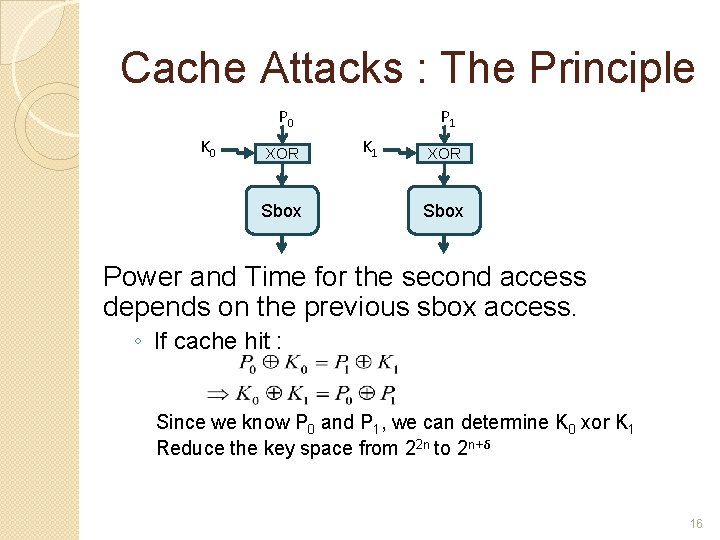

Cache Attacks : The Principle P 0 K 0 XOR Sbox P 1 K 1 XOR Sbox Power and Time for the second access depends on the previous sbox access. ◦ If cache hit : Since we know P 0 and P 1, we can determine K 0 xor K 1 Reduce the key space from 22 n to 2 n+δ 16

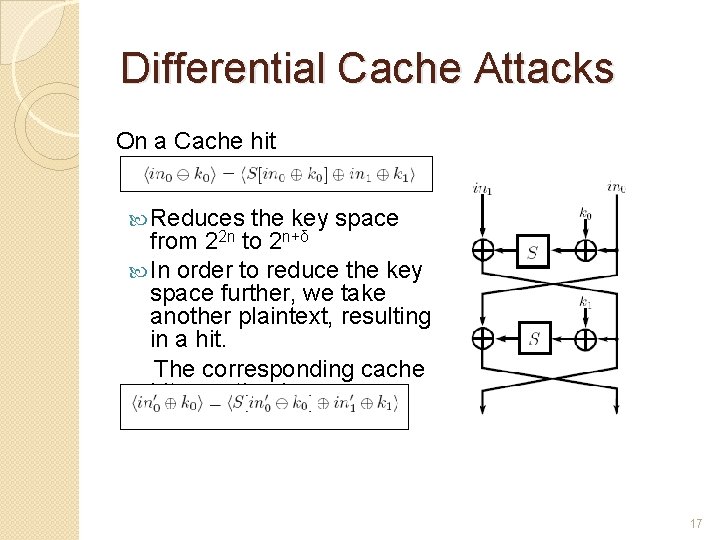

Differential Cache Attacks On a Cache hit Reduces the key space from 22 n to 2 n+δ In order to reduce the key space further, we take another plaintext, resulting in a hit. The corresponding cache hit equation is: 17

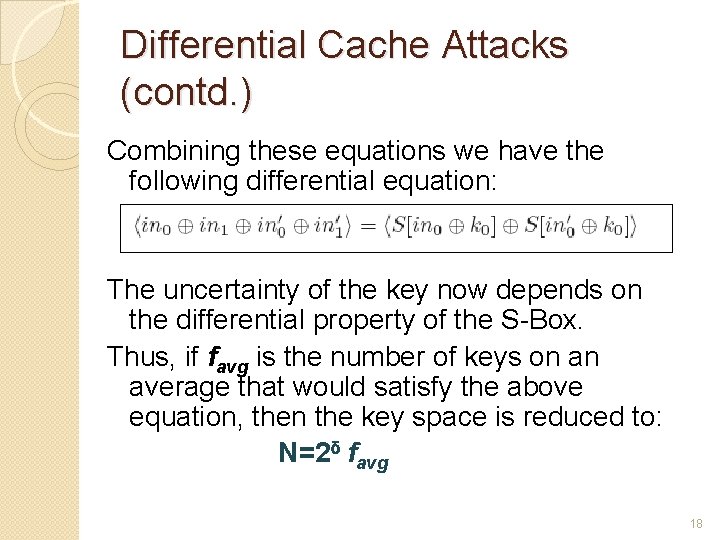

Differential Cache Attacks (contd. ) Combining these equations we have the following differential equation: The uncertainty of the key now depends on the differential property of the S-Box. Thus, if favg is the number of keys on an average that would satisfy the above equation, then the key space is reduced to: N=2δ favg 18

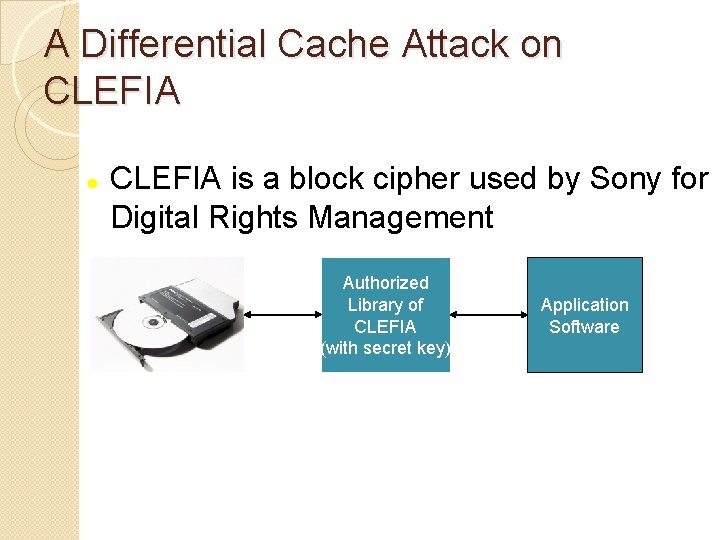

A Differential Cache Attack on CLEFIA is a block cipher used by Sony for Digital Rights Management Authorized Library of CLEFIA (with secret key) Application Software

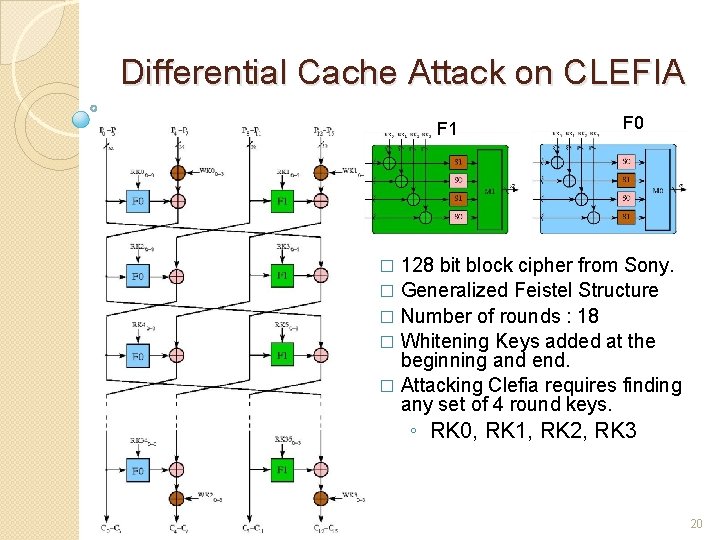

Differential Cache Attack on CLEFIA F 1 F 0 128 bit block cipher from Sony. � Generalized Feistel Structure � Number of rounds : 18 � Whitening Keys added at the beginning and end. � Attacking Clefia requires finding any set of 4 round keys. � ◦ RK 0, RK 1, RK 2, RK 3 20

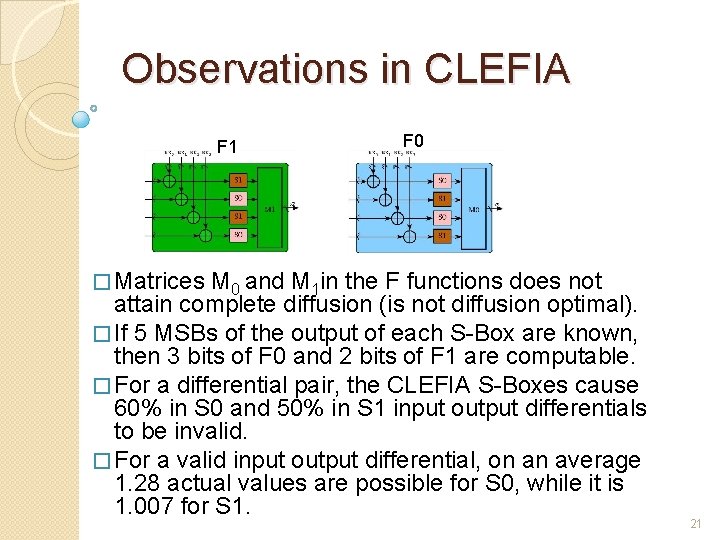

Observations in CLEFIA F 1 F 0 � Matrices M 0 and M 1 in the F functions does not attain complete diffusion (is not diffusion optimal). � If 5 MSBs of the output of each S-Box are known, then 3 bits of F 0 and 2 bits of F 1 are computable. � For a differential pair, the CLEFIA S-Boxes cause 60% in S 0 and 50% in S 1 input output differentials to be invalid. � For a valid input output differential, on an average 1. 28 actual values are possible for S 0, while it is 1. 007 for S 1. 21

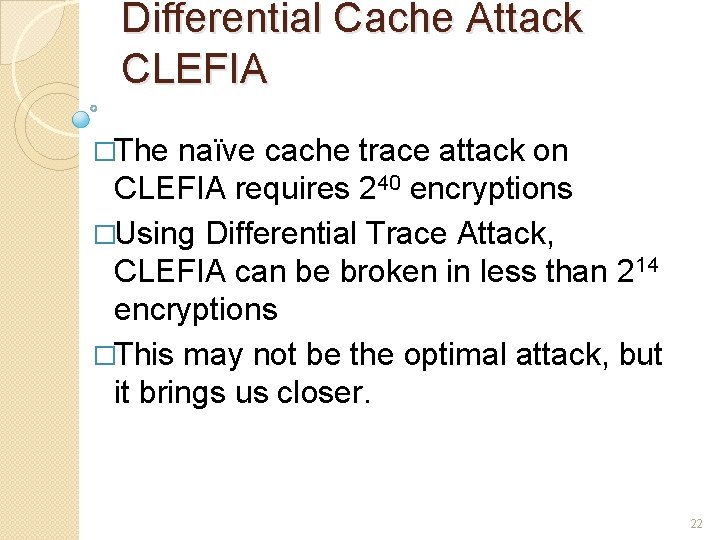

Differential Cache Attack CLEFIA �The naïve cache trace attack on CLEFIA requires 240 encryptions �Using Differential Trace Attack, CLEFIA can be broken in less than 214 encryptions �This may not be the optimal attack, but it brings us closer. 22

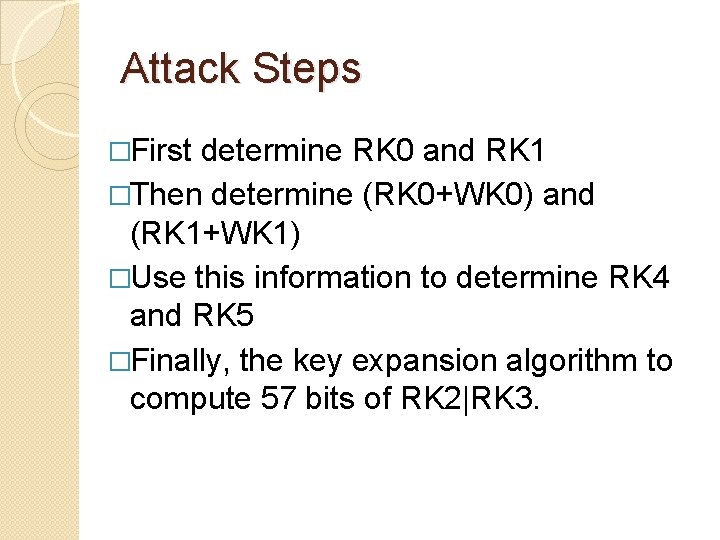

Attack Steps �First determine RK 0 and RK 1 �Then determine (RK 0+WK 0) and (RK 1+WK 1) �Use this information to determine RK 4 and RK 5 �Finally, the key expansion algorithm to compute 57 bits of RK 2|RK 3.

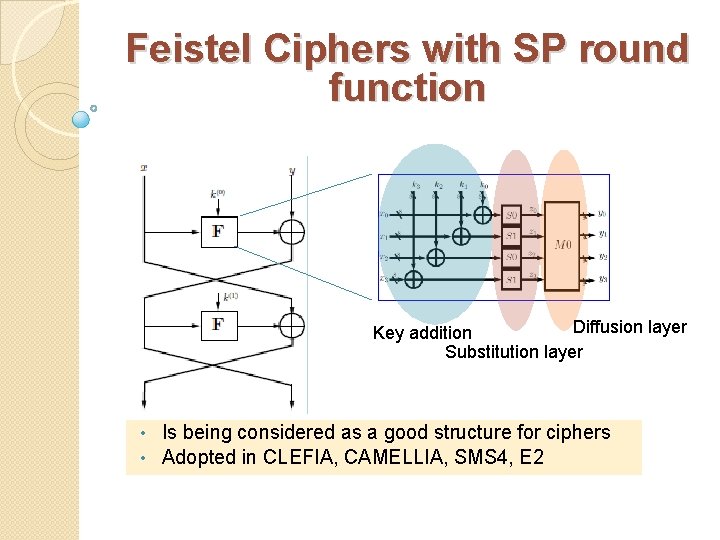

Feistel Ciphers with SP round function Diffusion layer Key addition Substitution layer Is being considered as a good structure for ciphers • Adopted in CLEFIA, CAMELLIA, SMS 4, E 2 •

Complete Differential Attack on CLEFIA

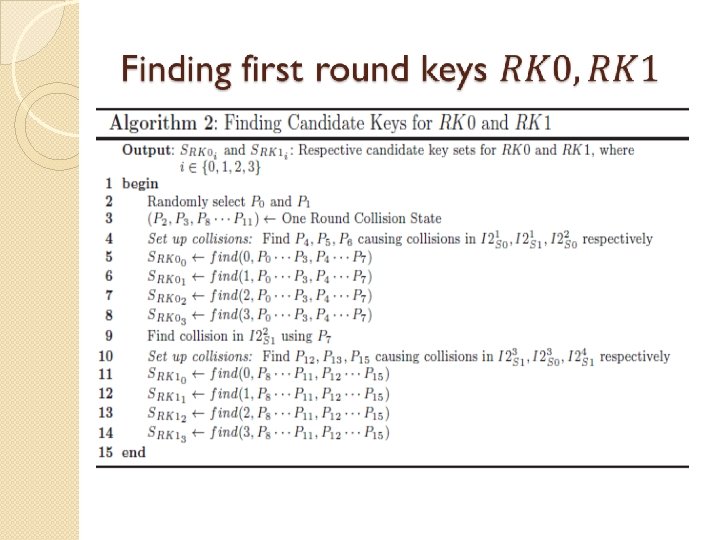

Determining RK 0 and RK 1 Choose plaintexts P and Q to obtain cache hits in the first and second rounds. � This would give the difference equations � � The complexity of finding these relations is 27.

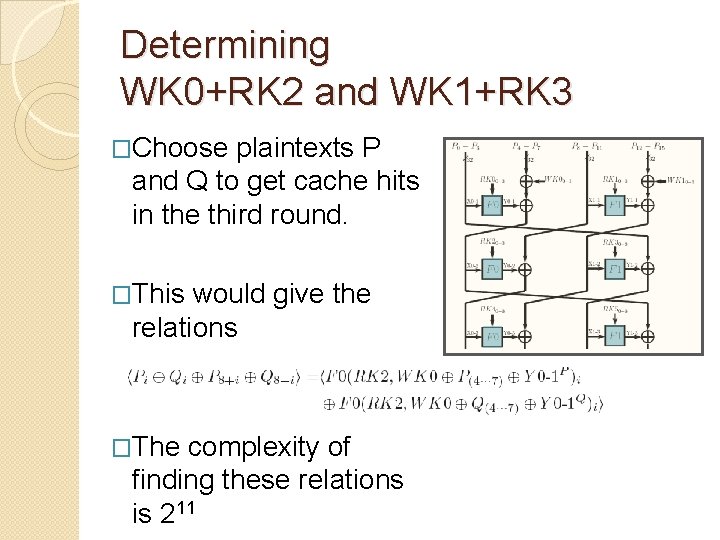

Determining WK 0+RK 2 and WK 1+RK 3 �Choose plaintexts P and Q to get cache hits in the third round. �This would give the relations �The complexity of finding these relations is 211

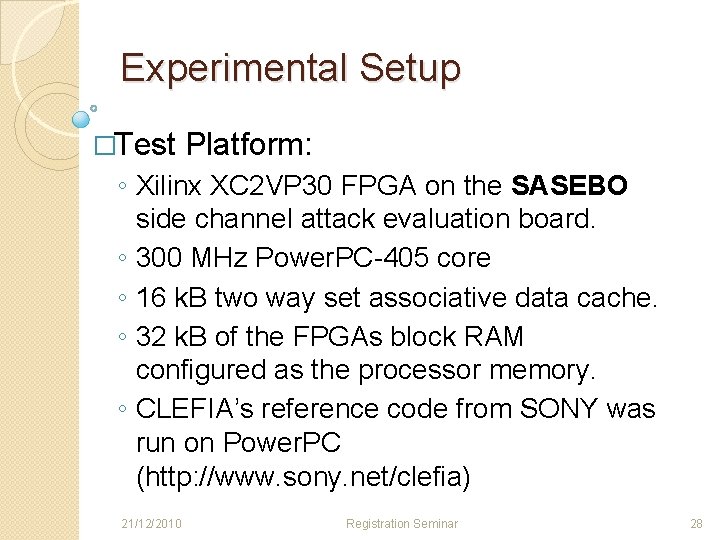

Experimental Setup �Test Platform: ◦ Xilinx XC 2 VP 30 FPGA on the SASEBO side channel attack evaluation board. ◦ 300 MHz Power. PC-405 core ◦ 16 k. B two way set associative data cache. ◦ 32 k. B of the FPGAs block RAM configured as the processor memory. ◦ CLEFIA’s reference code from SONY was run on Power. PC (http: //www. sony. net/clefia) 21/12/2010 Registration Seminar 28

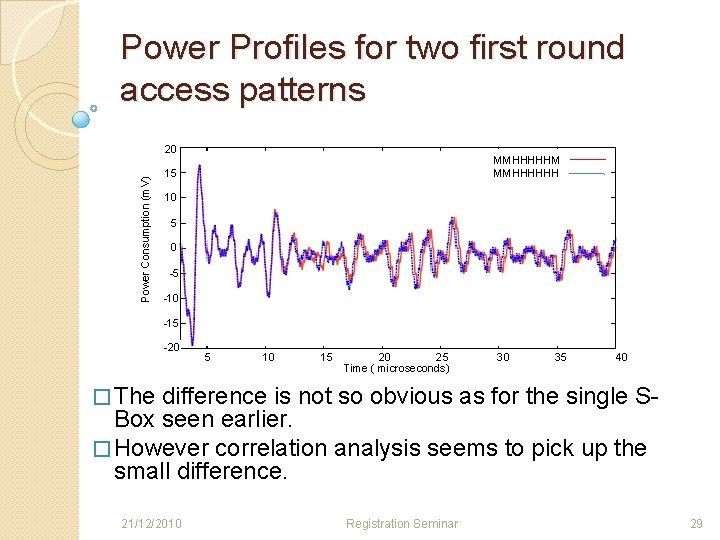

Power Profiles for two first round access patterns Power Consumption (m. V) 20 MMHHHHHM MMHHHHHH 15 10 5 0 -5 -10 -15 -20 5 10 15 20 25 Time ( microseconds) 30 35 40 � The difference is not so obvious as for the single SBox seen earlier. � However correlation analysis seems to pick up the small difference. 21/12/2010 Registration Seminar 29

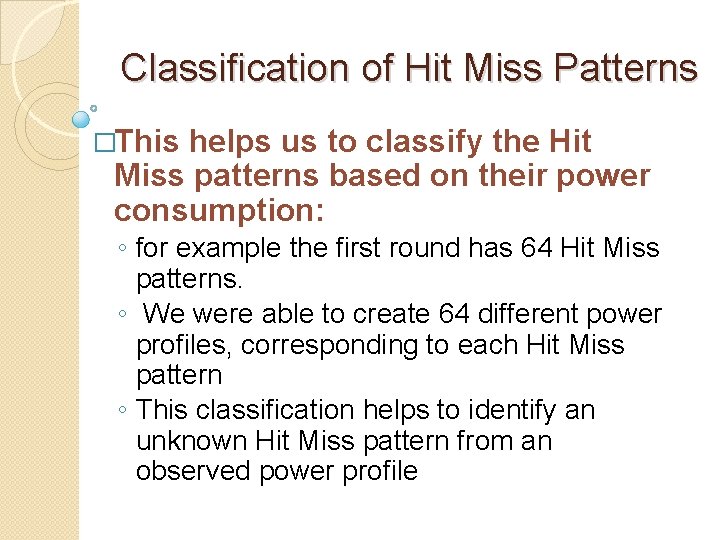

Classification of Hit Miss Patterns �This helps us to classify the Hit Miss patterns based on their power consumption: ◦ for example the first round has 64 Hit Miss patterns. ◦ We were able to create 64 different power profiles, corresponding to each Hit Miss pattern ◦ This classification helps to identify an unknown Hit Miss pattern from an observed power profile

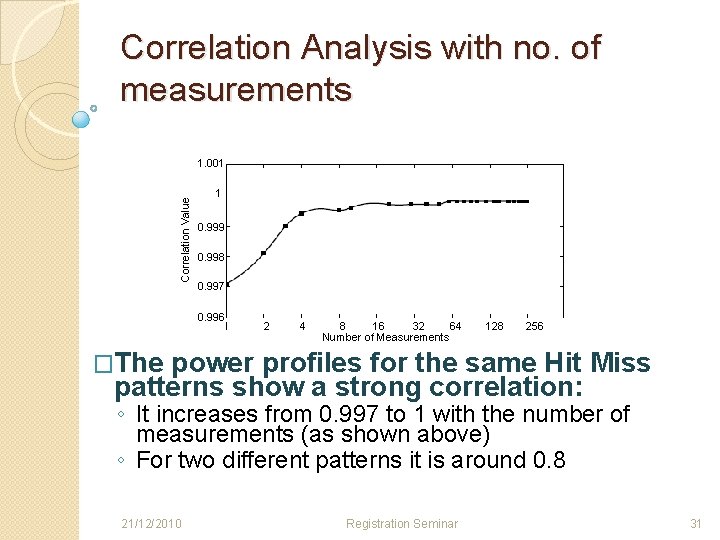

Correlation Analysis with no. of measurements Correlation Value 1. 001 1 0. 999 0. 998 0. 997 0. 996 1 2 4 8 16 32 64 Number of Measurements 128 256 �The power profiles for the same Hit Miss patterns show a strong correlation: ◦ It increases from 0. 997 to 1 with the number of measurements (as shown above) ◦ For two different patterns it is around 0. 8 21/12/2010 Registration Seminar 31

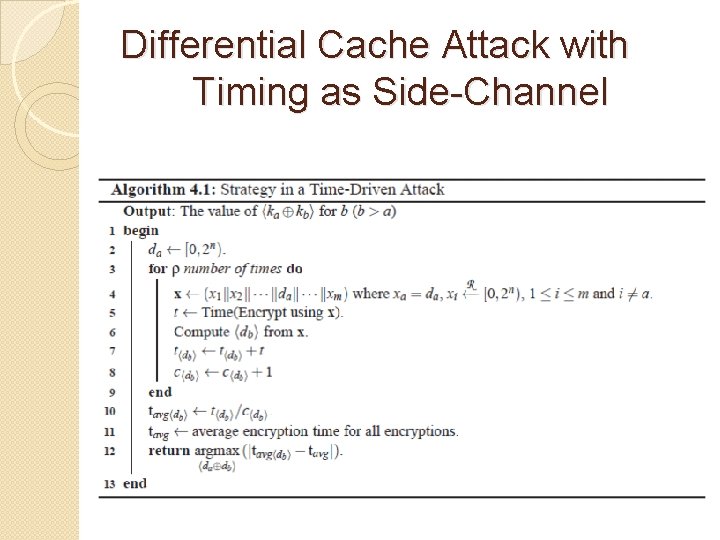

Differential Cache Attack with Timing as Side-Channel

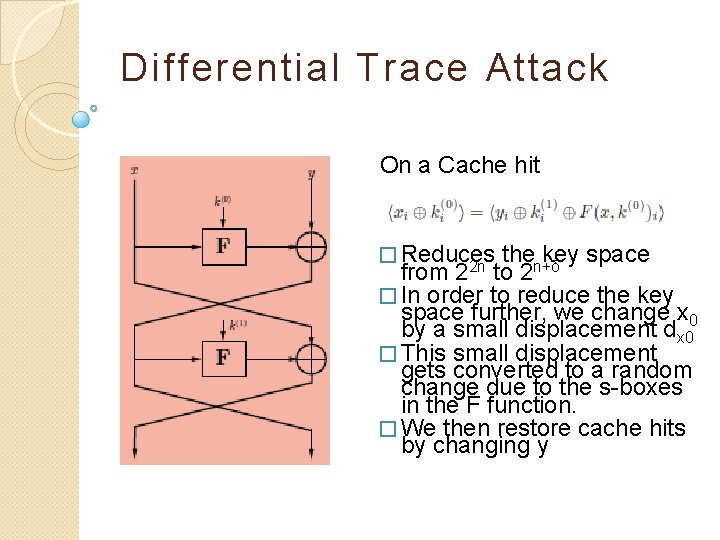

Differential Trace Attack On a Cache hit � Reduces then+δ key space from to 2 � In order to reduce the key space further, we change x 0 by a small displacement dx 0 � This small displacement gets converted to a random change due to the s-boxes in the F function. � We then restore cache hits by changing y 22 n

Differential Trace Attack contd. � � � So we now have the input difference (dx 0 ) and the output difference of the F function (dy = y – y’) From the input difference dx 0 we can determine all possible output differences of the s-box : (d 0, 0, 0 …. . , 0). Apply the transformation : (d 0, 0, 0 …. . , 0). M to get (dz 0, dz 1, …, dzn). For the correct differential ‹dz 0 = dy 0›, ‹dz 1 = dy 1› …. We thus can obtain the input and output differential for the s-box to get key candidates. dy 0 dy 1 dy 2 dx 0 S 1 d 0 dz 0 0 S 2 0 dz 1 0 S 3 0 M dz 2

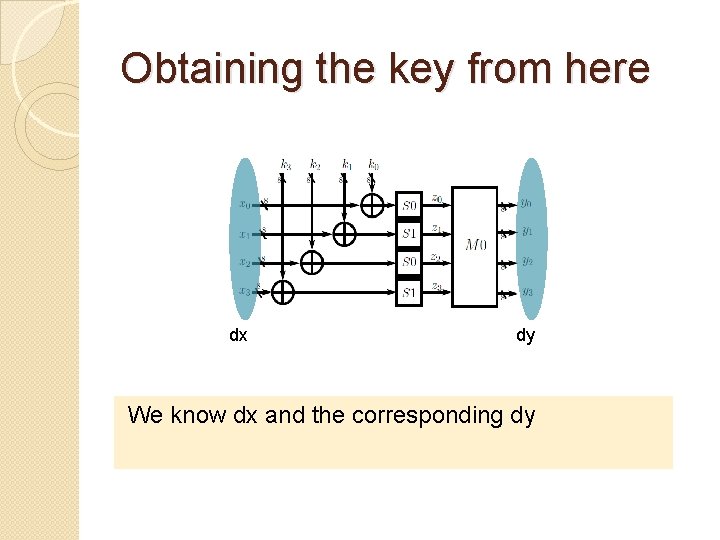

Obtaining the key from here dx dy We know dx and the corresponding dy

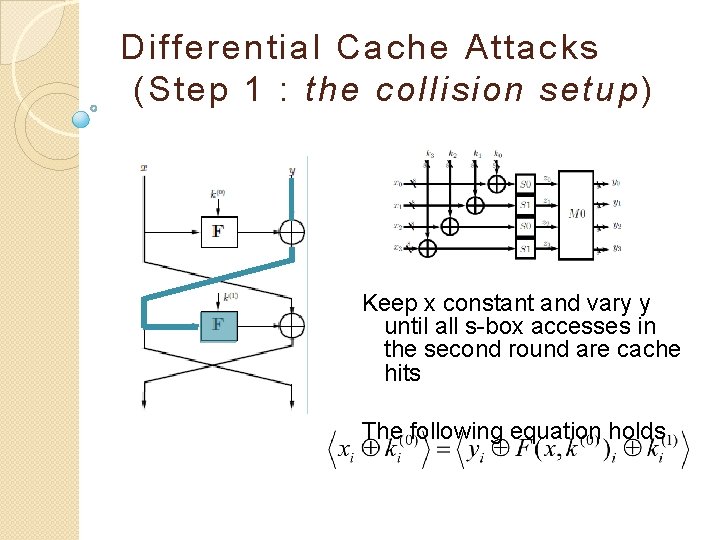

Differential Cache Attacks (Step 1 : the collision setup) Keep x constant and vary y until all s-box accesses in the second round are cache hits The following equation holds

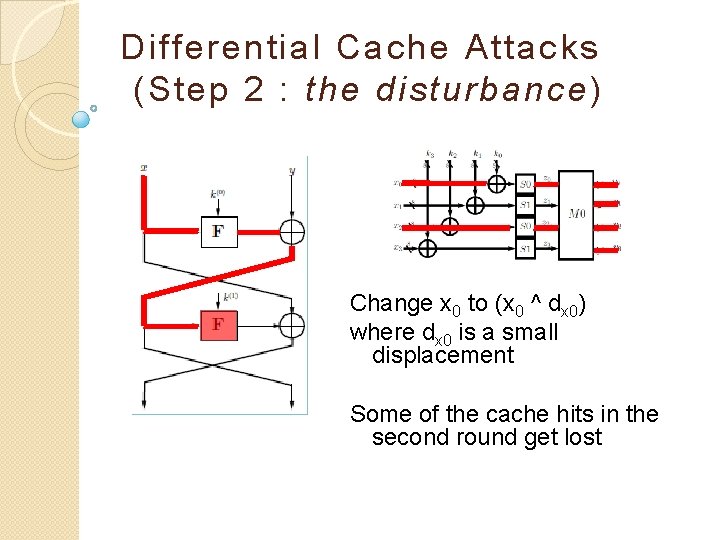

Differential Cache Attacks (Step 2 : the disturbance) Change x 0 to (x 0 ^ dx 0) where dx 0 is a small displacement Some of the cache hits in the second round get lost

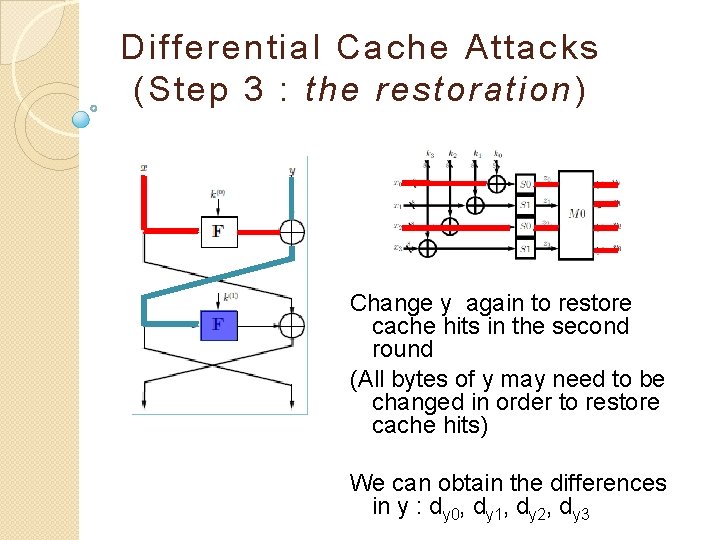

Differential Cache Attacks (Step 3 : the restoration) Change y again to restore cache hits in the second round (All bytes of y may need to be changed in order to restore cache hits) We can obtain the differences in y : dy 0, dy 1, dy 2, dy 3

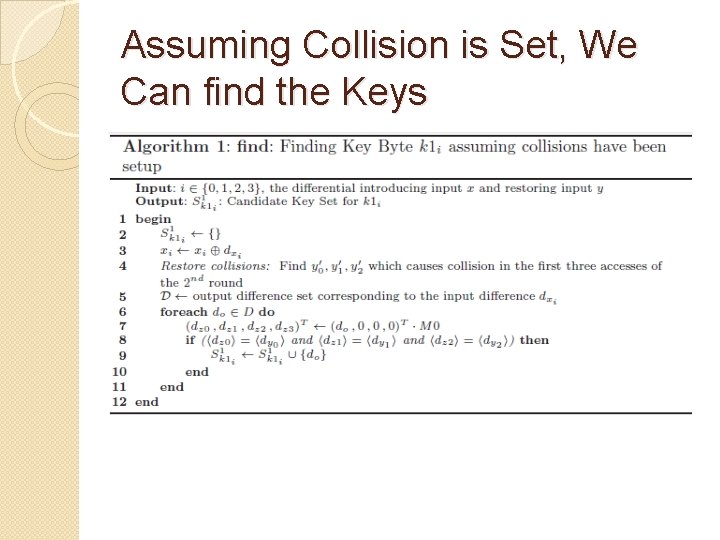

Assuming Collision is Set, We Can find the Keys

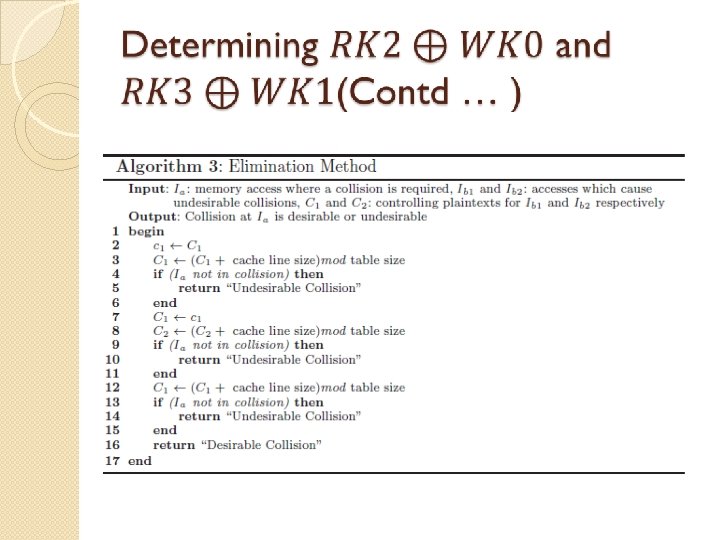

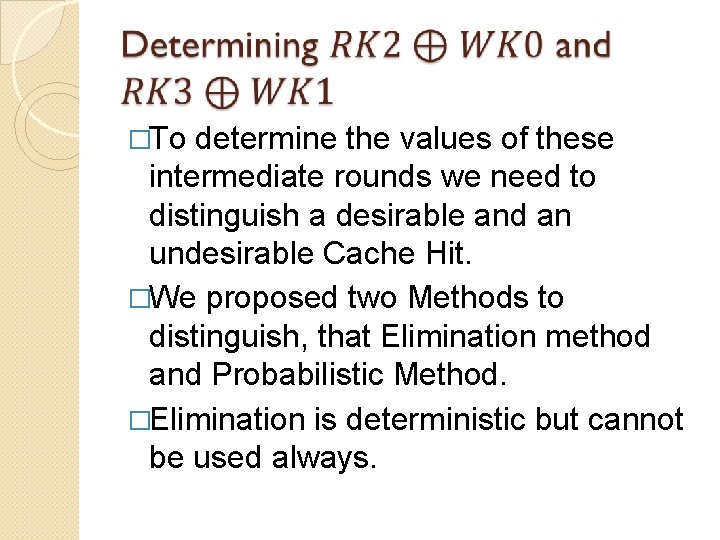

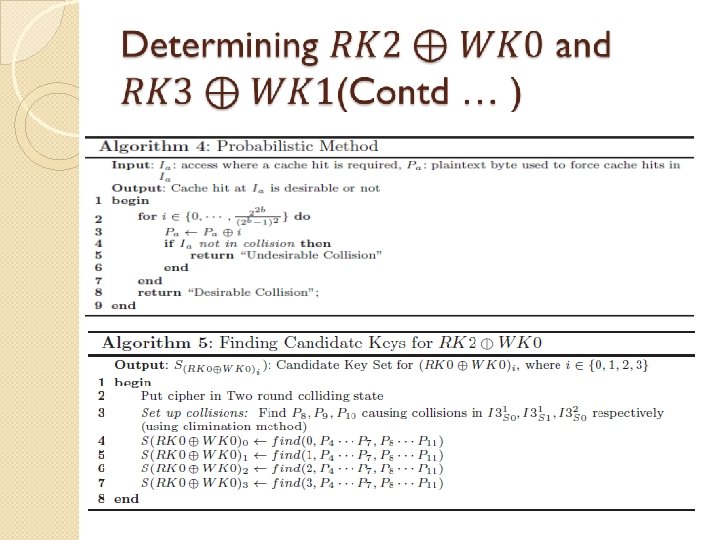

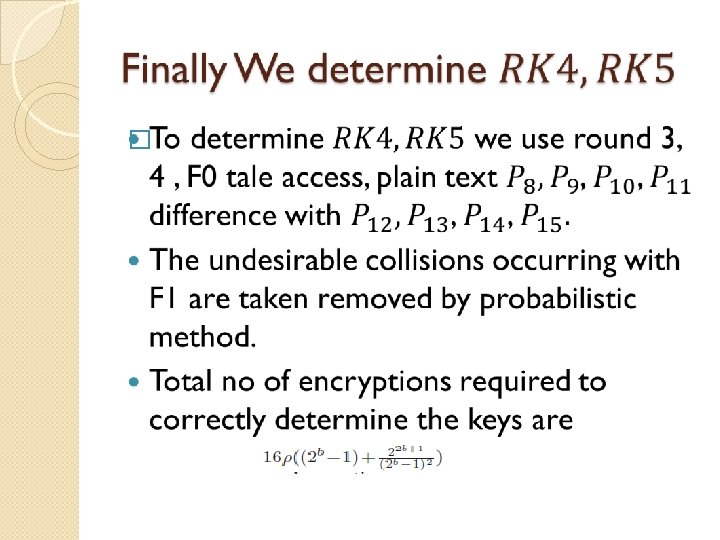

�To determine the values of these intermediate rounds we need to distinguish a desirable and an undesirable Cache Hit. �We proposed two Methods to distinguish, that Elimination method and Probabilistic Method. �Elimination is deterministic but cannot be used always.

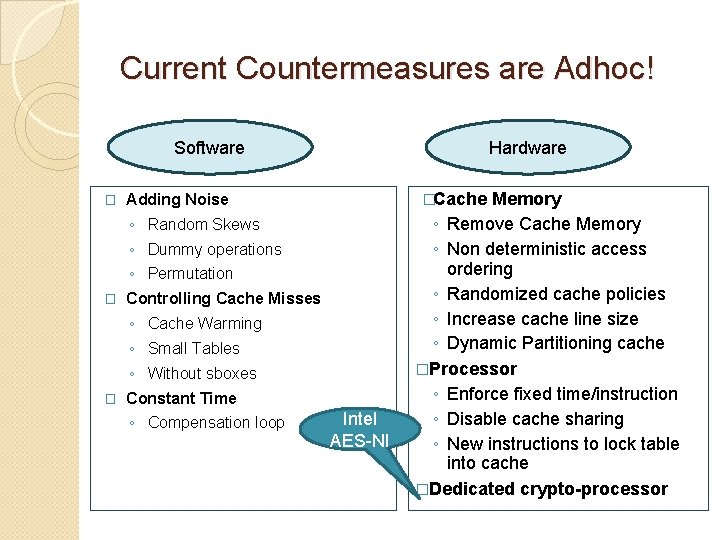

Current Countermeasures are Adhoc! Software � Hardware �Cache Adding Noise ◦ Random Skews ◦ Dummy operations ◦ Permutation � Controlling Cache Misses ◦ Cache Warming ◦ Small Tables ◦ Without sboxes � Constant Time ◦ Compensation loop Intel AES-NI Memory ◦ Remove Cache Memory ◦ Non deterministic access ordering ◦ Randomized cache policies ◦ Increase cache line size ◦ Dynamic Partitioning cache �Processor ◦ Enforce fixed time/instruction ◦ Disable cache sharing ◦ New instructions to lock table into cache �Dedicated crypto-processor

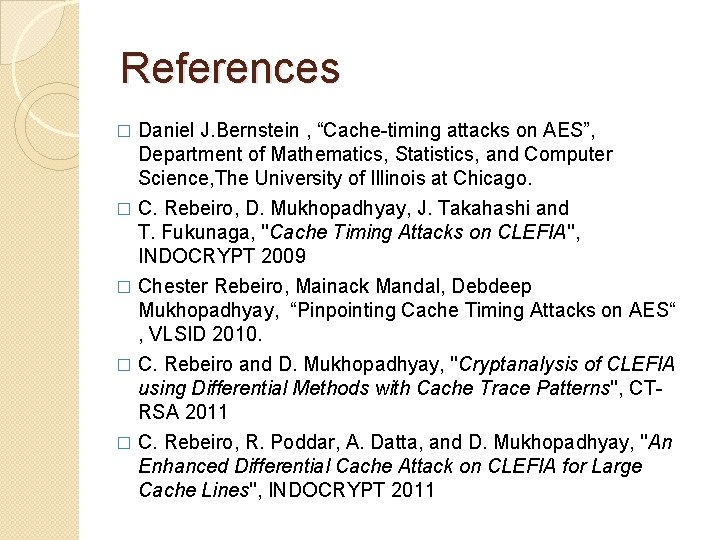

References Daniel J. Bernstein , “Cache-timing attacks on AES”, Department of Mathematics, Statistics, and Computer Science, The University of Illinois at Chicago. � C. Rebeiro, D. Mukhopadhyay, J. Takahashi and T. Fukunaga, ''Cache Timing Attacks on CLEFIA'', INDOCRYPT 2009 � Chester Rebeiro, Mainack Mandal, Debdeep Mukhopadhyay, “Pinpointing Cache Timing Attacks on AES“ , VLSID 2010. � C. Rebeiro and D. Mukhopadhyay, ''Cryptanalysis of CLEFIA using Differential Methods with Cache Trace Patterns'', CTRSA 2011 � C. Rebeiro, R. Poddar, A. Datta, and D. Mukhopadhyay, ''An Enhanced Differential Cache Attack on CLEFIA for Large Cache Lines'', INDOCRYPT 2011 �
