Cache and Scratch Pad Memory (SPM) Nasibeh Teimouri Embedded System Lab. (ESL) Department of Electrical and Computer Engineering Northeastern University, Boston (MA), USA

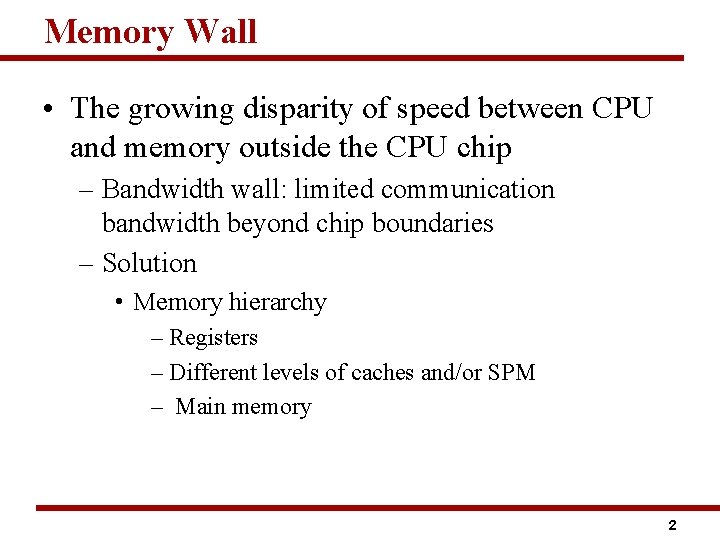

Memory Wall • The growing disparity of speed between CPU and memory outside the CPU chip – Bandwidth wall: limited communication bandwidth beyond chip boundaries – Solution • Memory hierarchy – Registers – Different levels of caches and/or SPM – Main memory 2

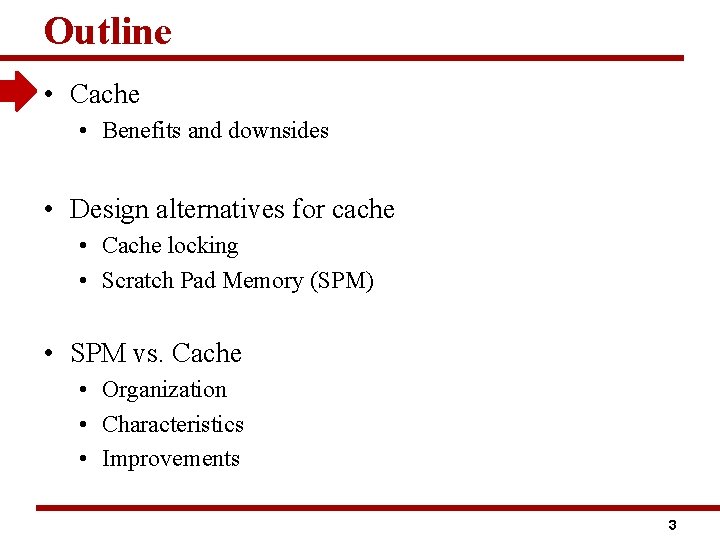

Outline • Cache • Benefits and downsides • Design alternatives for cache • Cache locking • Scratch Pad Memory (SPM) • SPM vs. Cache • Organization • Characteristics • Improvements 3
Cache • Cache as the primary solution for memory wall • Small memories on or close to the CPU • > 50% of chip area + Faster than main memory due to being transparent to the SW • 1~2 cycle access latency and imp + Improved average execution time - Unpredictable Worst Case Execution Time (WCET) - Power hungry • 25% to 45% of total chip power for caches and peripherals in embedded systems CPU Internal ROM Internal SRAM External DRAM 4

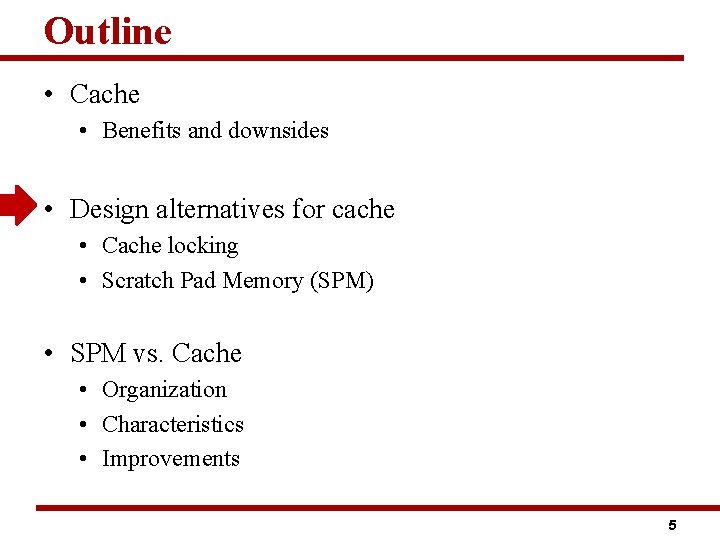

Outline • Cache • Benefits and downsides • Design alternatives for cache • Cache locking • Scratch Pad Memory (SPM) • SPM vs. Cache • Organization • Characteristics • Improvements 5
Design Alternatives for Cache with High WCET Predictability ü Solution 1: cache locking • Control over the cache contents by the SW - Power hungry caches and peripherals - Cache pollution ü Solution 2: Scratch Pad Memory (SPM) • Small and fast on chip static RAMs mapped to the processor’s address space at a predefined address range • Static : SPM locations don’t change at runtime • Dynamic : SPM locations don’t change at runtime • Data allocation under SW control • Profiling to estimate reuse and put reused data in SPM + Low power dissipation due to simple circuitry controlled by the SW 6

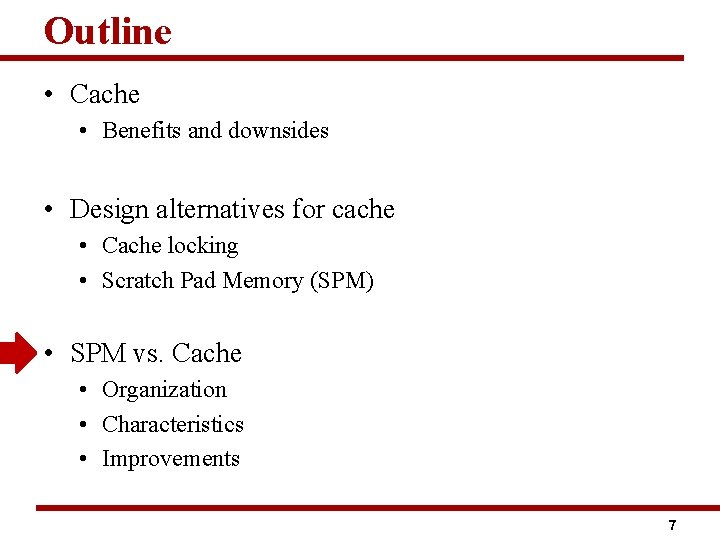

Outline • Cache • Benefits and downsides • Design alternatives for cache • Cache locking • Scratch Pad Memory (SPM) • SPM vs. Cache • Organization • Characteristics • Improvements 7
SPM Organization vs. Cache Organization • No need for address translation – The SMP memory array is statically addressed • No need for availability checking • The comparator and the signal • Similarity between cache and SPM miss/hit acknowledging • Connected to the same address and data buses circuitry • Access latency of 1 ~ 2 processor cycle 8
SPM Characteristics vs. Cache Characteristics • Cache • Indirect, hardware-managed addressing • Inefficient, cache line based storage • SPM • Not globally addressable • Not globally visible 9

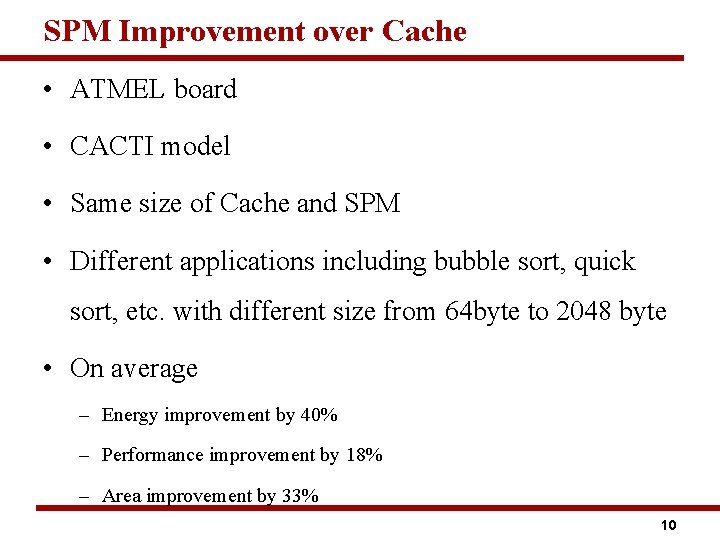

SPM Improvement over Cache • ATMEL board • CACTI model • Same size of Cache and SPM • Different applications including bubble sort, quick sort, etc. with different size from 64 byte to 2048 byte • On average – Energy improvement by 40% – Performance improvement by 18% – Area improvement by 33% 10

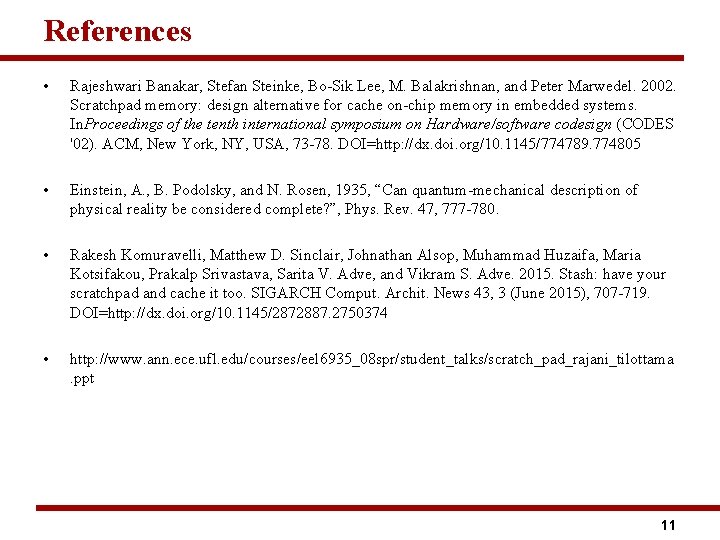

References • Rajeshwari Banakar, Stefan Steinke, Bo-Sik Lee, M. Balakrishnan, and Peter Marwedel. 2002. Scratchpad memory: design alternative for cache on-chip memory in embedded systems. In. Proceedings of the tenth international symposium on Hardware/software codesign (CODES '02). ACM, New York, NY, USA, 73 -78. DOI=http: //dx. doi. org/10. 1145/774789. 774805 • Einstein, A. , B. Podolsky, and N. Rosen, 1935, “Can quantum-mechanical description of physical reality be considered complete? ”, Phys. Rev. 47, 777 -780. • Rakesh Komuravelli, Matthew D. Sinclair, Johnathan Alsop, Muhammad Huzaifa, Maria Kotsifakou, Prakalp Srivastava, Sarita V. Adve, and Vikram S. Adve. 2015. Stash: have your scratchpad and cache it too. SIGARCH Comput. Archit. News 43, 3 (June 2015), 707 -719. DOI=http: //dx. doi. org/10. 1145/2872887. 2750374 • http: //www. ann. ece. ufl. edu/courses/eel 6935_08 spr/student_talks/scratch_pad_rajani_tilottama. ppt 11
Thank you! 12
