CABLES AND CONNECTORS TESTOUT NETWORK PRO Connect a

CABLES AND CONNECTORS TESTOUT NETWORK PRO

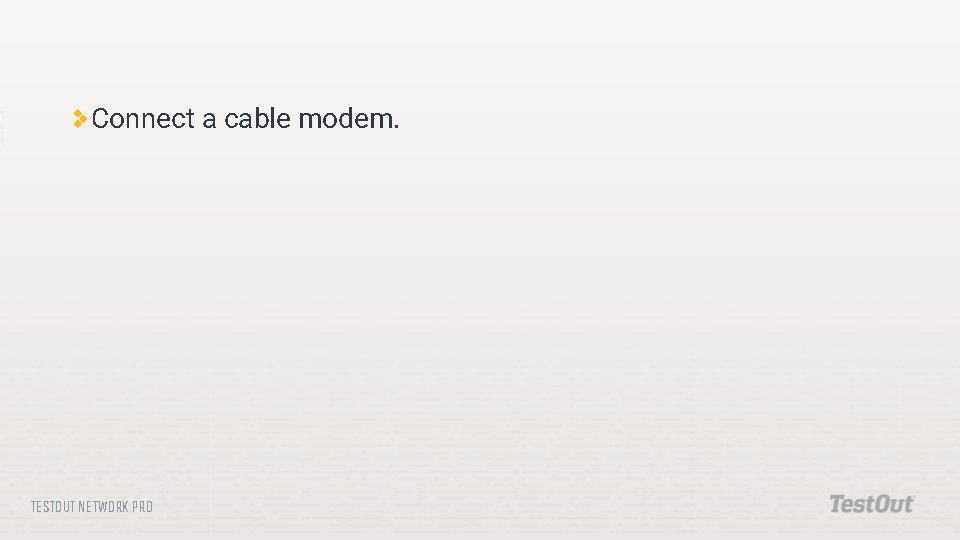

Connect a cable modem. TESTOUT NETWORK PRO

PVC EMI BNC TESTOUT NETWORK PRO

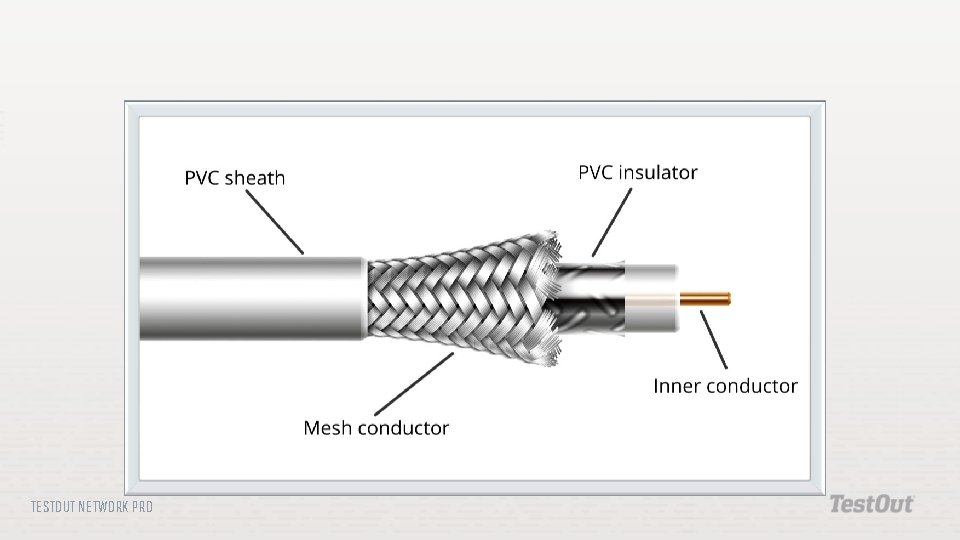

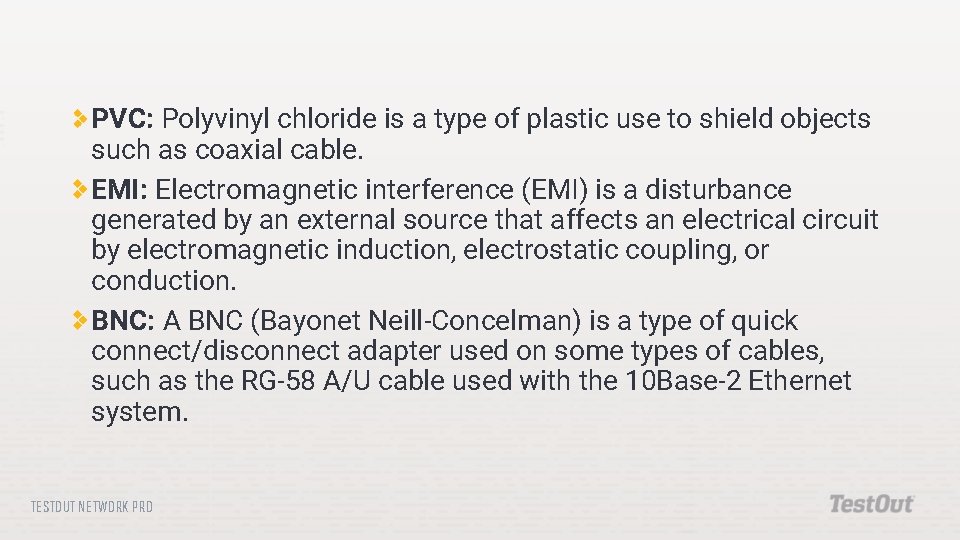

PVC: Polyvinyl chloride is a type of plastic use to shield objects such as coaxial cable. EMI: Electromagnetic interference (EMI) is a disturbance generated by an external source that affects an electrical circuit by electromagnetic induction, electrostatic coupling, or conduction. BNC: A BNC (Bayonet Neill-Concelman) is a type of quick connect/disconnect adapter used on some types of cables, such as the RG-58 A/U cable used with the 10 Base-2 Ethernet system. TESTOUT NETWORK PRO

TESTOUT NETWORK PRO

TESTOUT NETWORK PRO

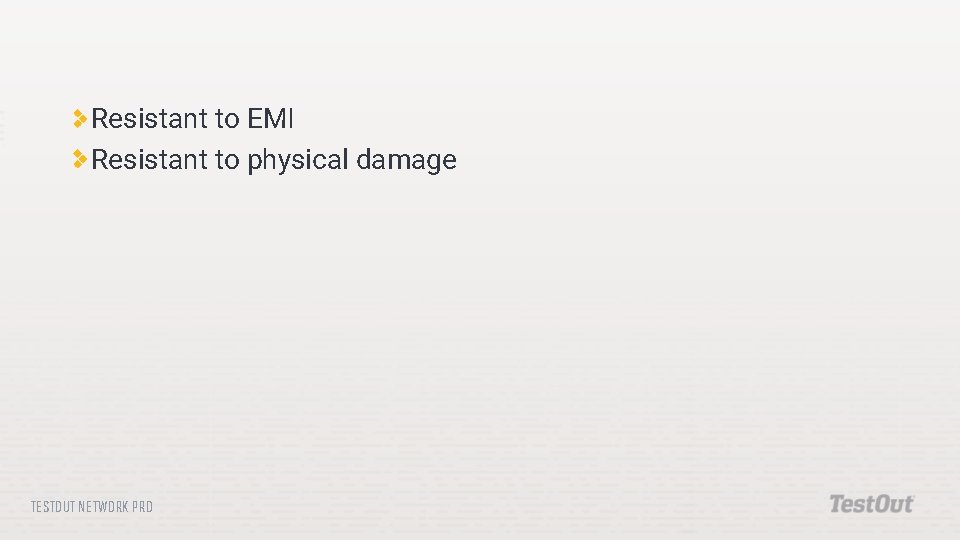

Resistant to EMI Resistant to physical damage TESTOUT NETWORK PRO

Expensive to implement Relatively thick – less flexible Harder to install TESTOUT NETWORK PRO

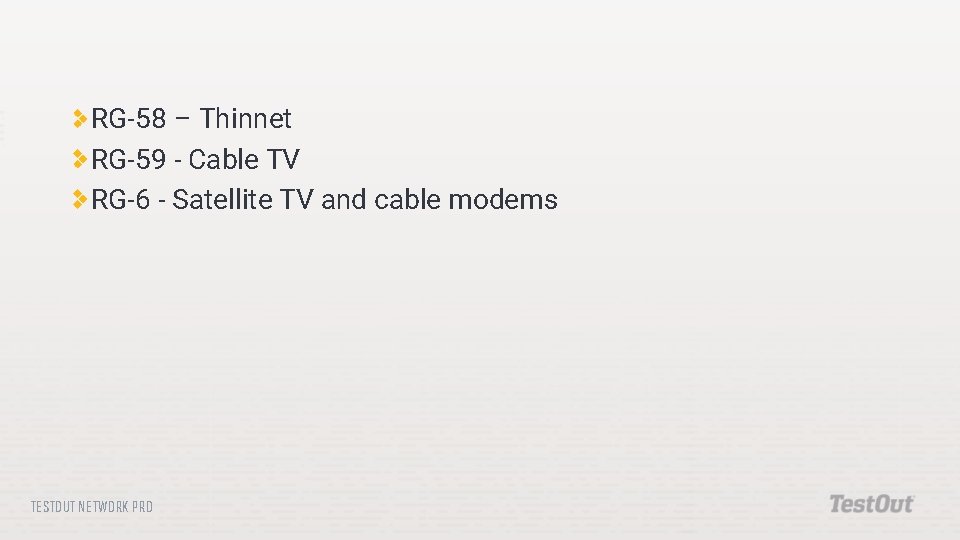

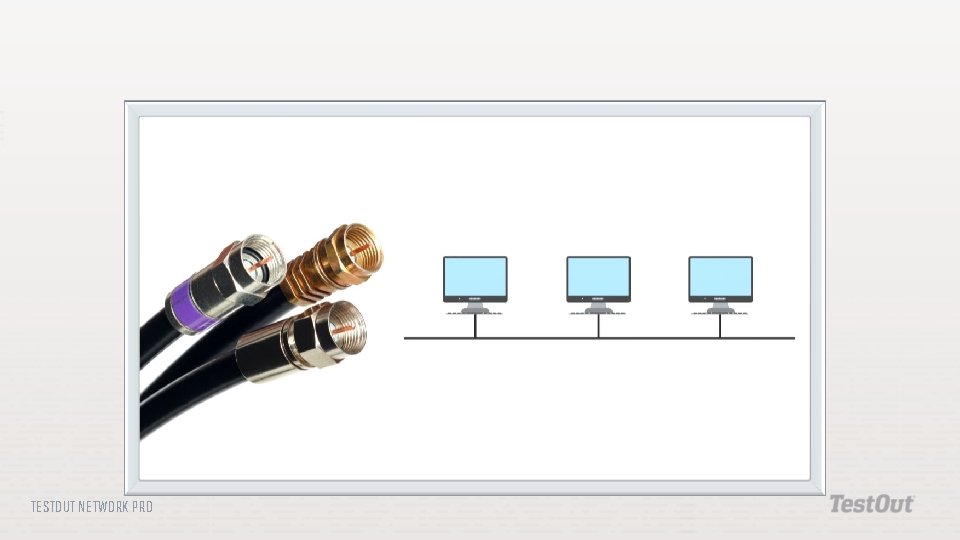

RG-58 – Thinnet RG-59 - Cable TV RG-6 - Satellite TV and cable modems TESTOUT NETWORK PRO

TESTOUT NETWORK PRO

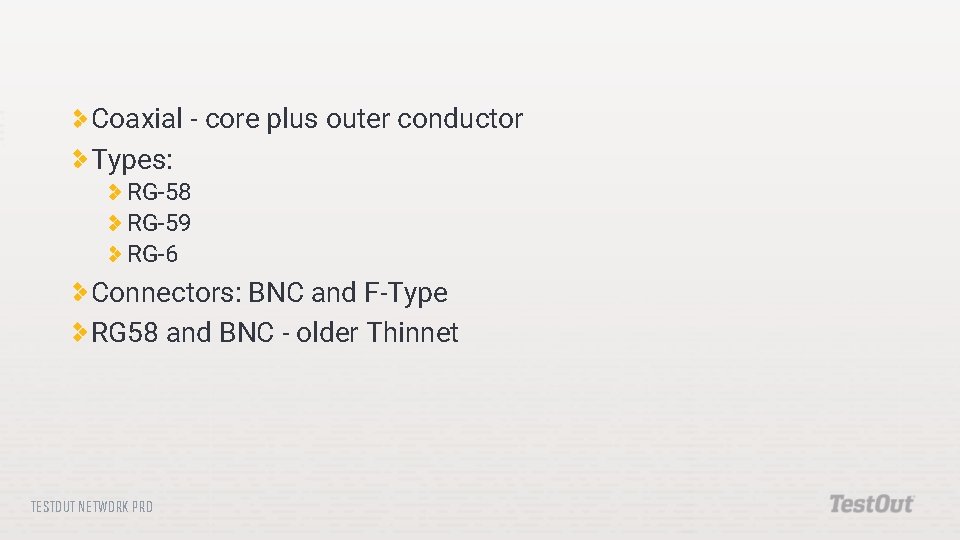

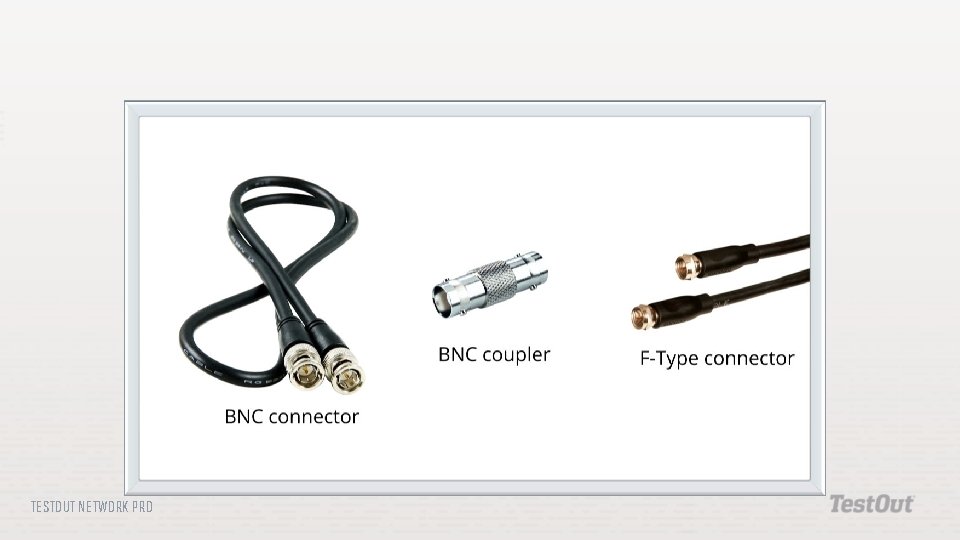

Coaxial - core plus outer conductor Types: RG-58 RG-59 RG-6 Connectors: BNC and F-Type RG 58 and BNC - older Thinnet TESTOUT NETWORK PRO

Do the following labs: 2. 2. 3 Connect a Cable Modem TESTOUT NETWORK PRO

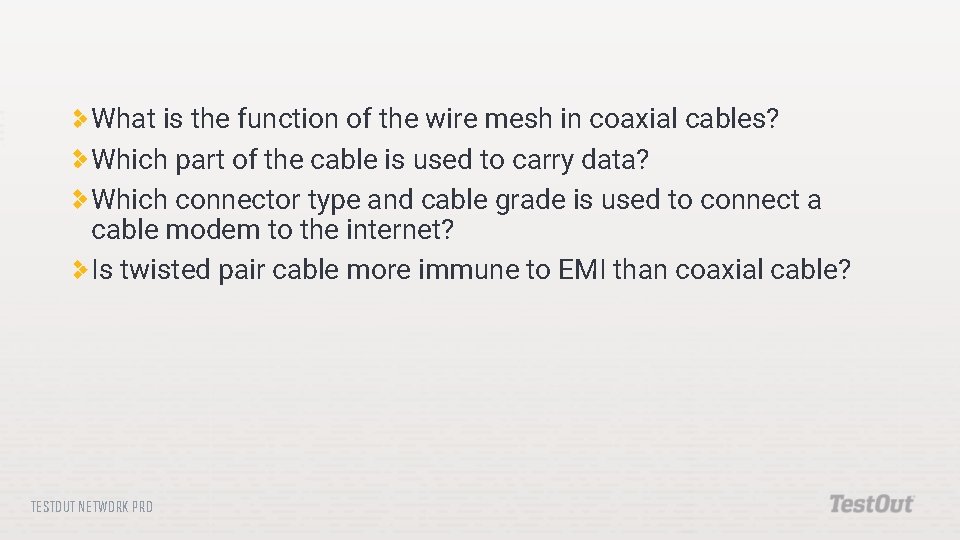

What is the function of the wire mesh in coaxial cables? Which part of the cable is used to carry data? Which connector type and cable grade is used to connect a cable modem to the internet? Is twisted pair cable more immune to EMI than coaxial cable? TESTOUT NETWORK PRO
