CA Clarity PPM Clarity Reporting Platforms Real Life

CA Clarity PPM Clarity Reporting Platforms: Real Life Successes & Challenges www. regoconsulting. com Phone: 1 -888 -813 -0444

CA Clarity Eats Like an Elephant Poops Like a Mouse 2 www. regoconsulting. com Phone: 1 -888 -813 -0444

Overview ● ● ● ● ● Introduction Reporting Platforms / Tools Ranking Categories Advantages & Disadvantages of each tool Rank by Category When To Use Outside Reporting Tools What’s New in 13. 4 Q&A 3 www. regoconsulting. com Phone: 1 -888 -813 -0444

Introduction ● Personal Bio & History ● Reporting Strategy ● People, Process & Tools 4 www. regoconsulting. com Phone: 1 -888 -813 -0444

Available Reporting Tools ● Portlets ● Crystal Reports ● WEBI Reports (Ad-Hoc) ● Xcelsius Dashboards ● Outside Reporting 5 www. regoconsulting. com Phone: 1 -888 -813 -0444

Ranking Categories Ø Ease & Speed Ø Tools Needed Ø Formatting Ø Integration Ø Export Ø Printing & Distribution Ø Performance 6 www. regoconsulting. com Phone: 1 -888 -813 -0444

Portlets: Examples 7 www. regoconsulting. com Phone: 1 -888 -813 -0444

Portlets: Advantages ● Ease & Speed: Simple portlets can be created or modified quickly and without knowledge of SQL or the Clarity data model. Even complex portlets can be created quickly compared to other reporting methods. ● Tools Needed: There is no need for additional tools. Portlets can be created and modified within the browser. ● Formatting: In addition to regular grid portlets, bar graphs, pie charts, line charts, and HTML portlets are also available. ● Integration: Portlets are integrated within Clarity, can be displayed almost anywhere within the tool, and can contain links to objects, other portlets, reports, etc. ● Export: Export nicely to Excel, “okay” to Power. Point. 8 www. regoconsulting. com Phone: 1 -888 -813 -0444

Portlets: Disadvantages ● Formatting: It is difficult to re-create reports from other tools as portlets. The formatting is standardized and not very customizable. ● Printing & Distribution: Portlets are designed to be displayed in the browser. To distribute beyond that you must print from your browser or use a screen capture tool such as Snag-It. 9 www. regoconsulting. com Phone: 1 -888 -813 -0444

Crystal Reports: Examples 10 www. regoconsulting. com Phone: 1 -888 -813 -0444

Crystal Reports: Advantages ● Formatting: Highly customizable as the arrangement of the report and the look and feel can be be tailored to specific requirements. In most cases an existing report from another system can be duplicated exactly in Crystal. ● Export: Reports can be exported to PDF, Excel, or Word. ● Printing & Distribution: Perfect for printing hard copies or PDFs (Crystal was designed with this purpose in mind). You can also schedule reports to run and have them emailed. 11 www. regoconsulting. com Phone: 1 -888 -813 -0444

Crystal Reports: Disadvantages ● Ease & Speed: The flexibility of formatting comes at a cost – Crystal Reports are time consuming to create or modify. It is not uncommon for a report to take 40 -60 hours to develop. ● Integration: Reports run from a separate Business Objects server. They can be launched from Clarity, but the reports aren’t fully integrated within the Clarity application. ● Export: Reports look slightly different in each export format, so although any format can be used, a report should be designed around one particular format. ● Tools Needed: An external tool is required to create reports. 12 www. regoconsulting. com Phone: 1 -888 -813 -0444

WEBI Reports: Examples 13 www. regoconsulting. com Phone: 1 -888 -813 -0444

WEBI Reports: Advantages ● Ease & Speed: WEBI is an ad-hoc reporting tool aimed at Clarity end users. It is the quickest and easiest reporting tool. With little training, non-technical Clarity power users can learn to quickly build reports. Technical experts will also benefit from the speed at which reports can be produced. ● Formatting: Reports are highly customizable. The look and feel can be tailored to specific requirements. ● Tools Needed: Report developers need no additional tools. Reports can be created and modified within the browser. ● Export: Reports export nicely to Excel and PDF. They will look virtually identical whether in the browser, Excel, or PDF format. ● Printing & Distribution: Reports can be exported to PDF and printed, or you can schedule reports to run and have them emailed. 14 www. regoconsulting. com Phone: 1 -888 -813 -0444

WEBI Reports: Disadvantages ● Ease & Speed: WEBI Reports have simplified data providers that do not include custom Clarity fields. The custom fields will need to be added to the data provider before being available for reporting. This requires extra effort upfront. ● Tools Needed: To modify the underlying data providers, an additional tool is required. ● Integration: Reports run from a separate Business Objects server. They can be launched from Clarity, but the reports aren’t fully integrated within the Clarity application. ● Performance: The underlying queries can be inefficient because they are generated automatically and not optimized. This means that queries can be slow when dealing with large data sets. 15 www. regoconsulting. com Phone: 1 -888 -813 -0444

Xcelsius Dashboards: Examples 16 www. regoconsulting. com Phone: 1 -888 -813 -0444

Xcelsius Dashboards: Advantages ● Integration: Xcelsius Dashboards are integrated within Clarity, like portlets. ● Formatting: Xcelsius Dashboards are highly customizable. The look and feel can be tailored to specific requirements. They are also more interactive than any of the other reporting methods. 17 www. regoconsulting. com Phone: 1 -888 -813 -0444

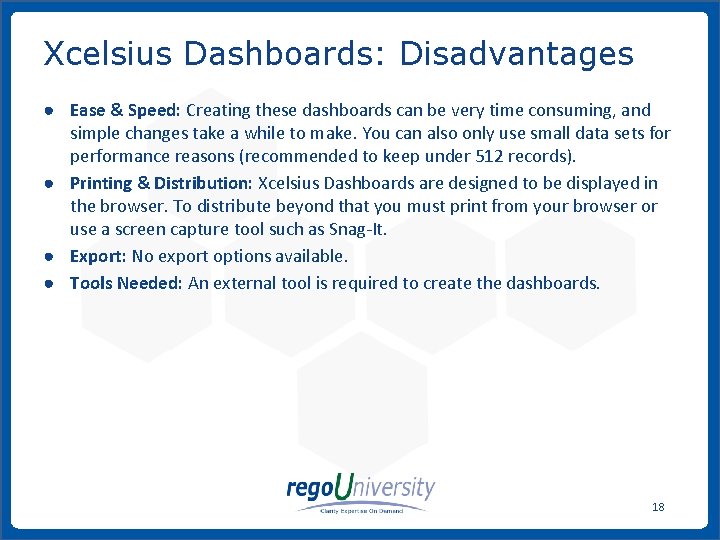

Xcelsius Dashboards: Disadvantages ● Ease & Speed: Creating these dashboards can be very time consuming, and simple changes take a while to make. You can also only use small data sets for performance reasons (recommended to keep under 512 records). ● Printing & Distribution: Xcelsius Dashboards are designed to be displayed in the browser. To distribute beyond that you must print from your browser or use a screen capture tool such as Snag-It. ● Export: No export options available. ● Tools Needed: An external tool is required to create the dashboards. 18 www. regoconsulting. com Phone: 1 -888 -813 -0444

Rank by Category (lower is better) Portlets Crystal WEBI Xcelsius Ease & Speed 2 3 1 4 Tools Needed 1 3 2 4 Formatting 4 1 3 2 Integration 1 3 4 2 Export 3 2 1 4 Printing & Distribution 3 2 1 4 Performance 1 2 3 4 19 www. regoconsulting. com Phone: 1 -888 -813 -0444

When to Use Each Reporting Tool ● Portlets ○ The target audience is Clarity users who want to view the information in the browser or export to Excel, and no specific format is required. ● Crystal Reports ○ There are very specific requirements on how the report should look, or the primary distribution method of the report is printed copies or PDFs. ● WEBI Reports ○ You want power users to build their own reports or data extracts, or you need to create a large number of reports quickly. ● Xcelsius Dashboards ○ Executive “eye candy”, high interaction needed, or it needs to be displayed within Clarity but a portlet won’t do. 20 www. regoconsulting. com Phone: 1 -888 -813 -0444

Outside Reporting Tools ● Vary depending on the tool, but remember: ○ Outside reporting tools cannot match Clarity’s integration with portlets, Crystal Reports, WEBI reports, and Xcelsius dashboards. ○ All of the above reporting tools are free with Clarity. Other tools will have a cost associated with them. ○ Only use outside reporting tools when the Clarity toolset will not meet your requirements. 21 www. regoconsulting. com Phone: 1 -888 -813 -0444

Outside Reporting Tools ● Examples ○ OBIEE (Oracle) ○ Business Analytics (CA Offering) ○ Sharepoint Integration (CA & ITROI) ○ Cognos, Qlik. View (Axis COMPASS), SSRS, Others ● When to Use ○ There is a company reporting standard or there is a tool that your developers are familiar with. ○ There is a technology or tool strongly desired by your users (Qlickview, Sharepoint, etc). 22 www. regoconsulting. com Phone: 1 -888 -813 -0444

Reporting in CA Clarity 13. 4 ● The focus of Clarity 13. 4 will be on reporting. The details are not set in stone, but right now the planned improvements are: ○ Business Objects updated to 4. 1. This will be a huge jump and include major improvements and many new features for Crystal Reports, WEBI, and Xcelsius. ○ Another ad hoc reporting tool called Jaspersoft has been introduced as a native reporting tool within Clarity. 23 www. regoconsulting. com Phone: 1 -888 -813 -0444

Questions Contact US 888. 813. 0444 Thank you. Email Contact info@regoconsulting. com Web Site www. regoconsulting. com 24 www. regoconsulting. com Phone: 1 -888 -813 -0444
