CA Call Accounting System SMDR Simple Billing Application
CA Call Accounting System SMDR & Simple Billing Application by LAN/RS 232 C Panasonic Communications Co. , Ltd. Communication Network Company Edition 1. 2 2009 1
Index 1. System anslutningsdiagram 2. Installation CA Call Accounting System 3. Ｓｅｔ-up CA Call Accounting System 4. SMDR by Web Browser 5. Enkel debiteringsfunktion 6. Emergency Call Alert 7. Wake-up Call Alert 8. Ändra / lägg till ID och password 9. Keep SMDR record 10. Notice 11. Requirement of PC Spec. 2

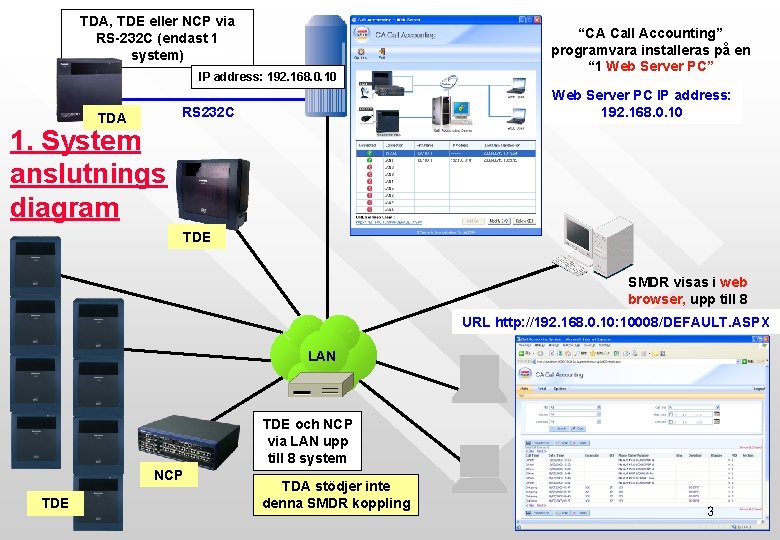

TDA, TDE eller NCP via RS-232 C (endast 1 system) IP address: 192. 168. 0. 10 TDA “CA Call Accounting” programvara installeras på en “ 1 Web Server PC” Web Server PC IP address: 192. 168. 0. 10 RS 232 C 1. System anslutnings diagram TDE SMDR visas i web browser, upp till 8 URL http: //192. 168. 0. 10: 10008/DEFAULT. ASPX LAN TDE och NCP via LAN upp till 8 system NCP TDE TDA stödjer inte denna SMDR koppling 3
2. Installation “CA Call Account System” på Web server PC -1/2 Start by double click Microsoft. NET Framework Installation “Call Account System” Installation 1/2 In case of some application is necessary (like “Microsoft. NET Framework”) to be installed in Web Server PC, its installation is started by web access (Microsoft up-date) automatically. Ulti. Dev Cassini Web Server Explorer Installation Ulti. Dev Cassini Web Server for ASP. NET 2. 0 Installation Packed in installer 4
2. Installation “CA Call Account System” på Web server PC -2/2 “Call Account System” Installation 2/2 5
3. Set-up “CA Call Account System” for RS-232 C connection PBX System SMDR Format: Type A (utan call charge information) endast 1. Välj RS 232 C 2. Tryck “Modify” knappen 3. SMDR Type A 6

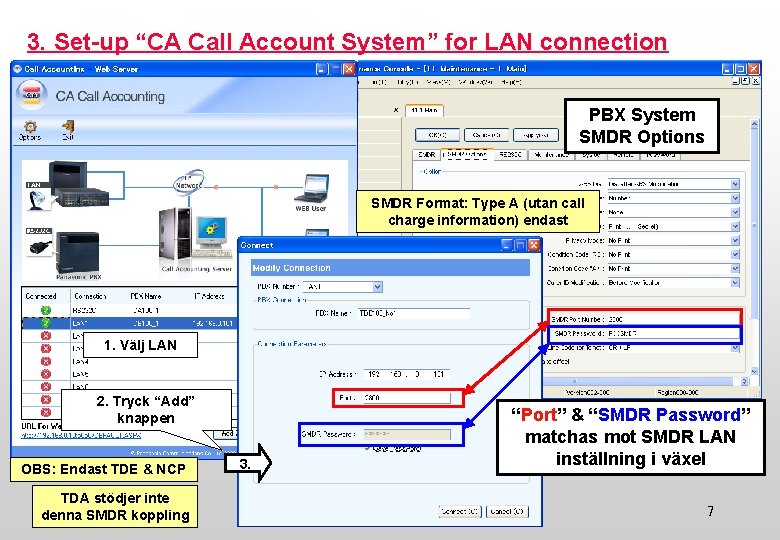

3. Set-up “CA Call Account System” for LAN connection PBX System SMDR Options SMDR Format: Type A (utan call charge information) endast 1. Välj LAN 2. Tryck “Add” knappen OBS: Endast TDE & NCP TDA stödjer inte denna SMDR koppling 3. “Port” & “SMDR Password” matchas mot SMDR LAN inställning i växel 7

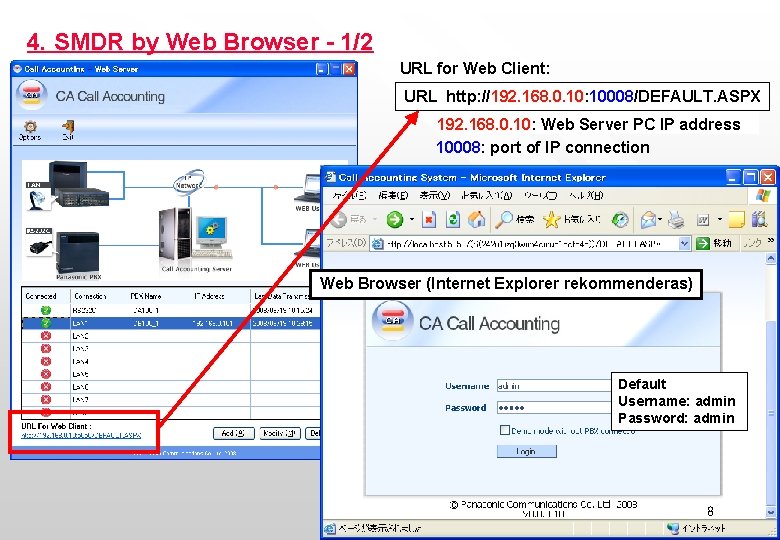

4. SMDR by Web Browser - 1/2 URL for Web Client: URL http: //192. 168. 0. 10: 10008/DEFAULT. ASPX 192. 168. 0. 10: Web Server PC IP address 10008: port of IP connection Web Browser (Internet Explorer rekommenderas) Default Username: admin Password: admin 8

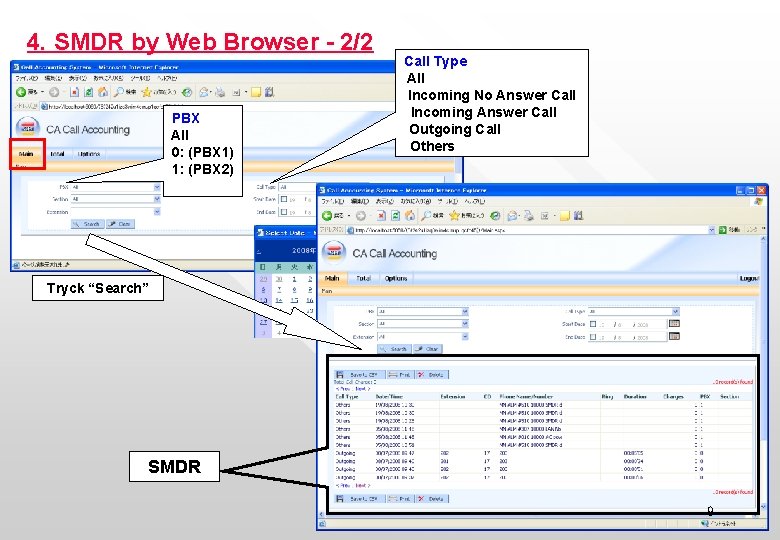

4. SMDR by Web Browser - 2/2 PBX All 0: (PBX 1) 1: (PBX 2) Call Type All Incoming No Answer Call Incoming Answer Call Outgoing Call Others Tryck “Search” SMDR 9

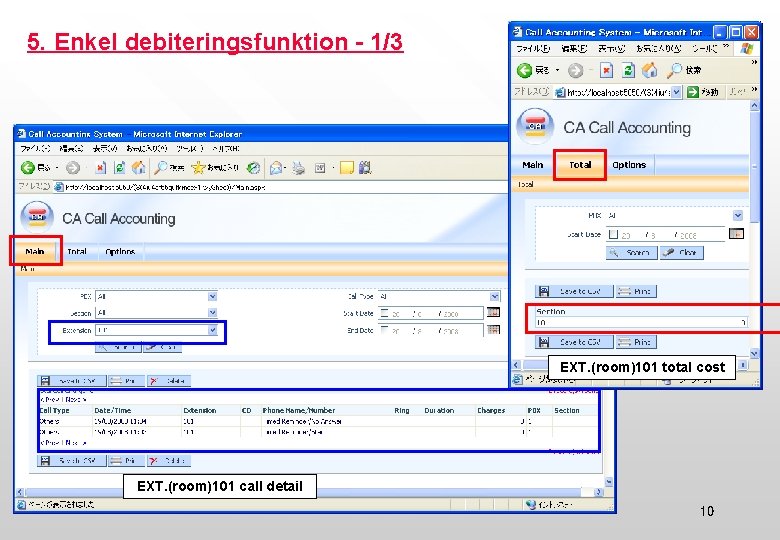

5. Enkel debiteringsfunktion - 1/3 EXT. (room)101 total cost EXT. (room)101 call detail 10
5. Enkel debiteringsfunktion - 2/3 Call Charge Settings Other Settings Go to next page Currency & Decimal place setting 11

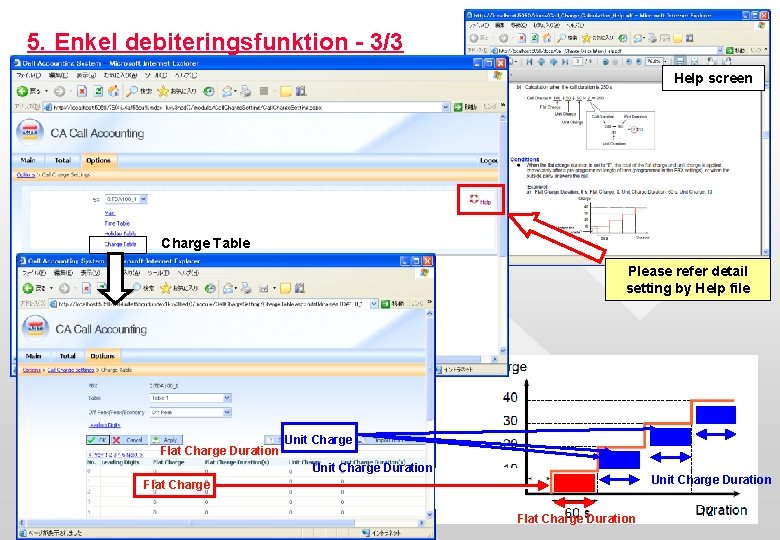

5. Enkel debiteringsfunktion - 3/3 Help screen Charge Table Please refer detail setting by Help file Flat Charge Duration Unit Charge Duration Flat Charge Duration 12
6. Emergency Call Alert In case of Assigned Emergency Number is recorded on SMDR, Emergency Call Alert screen is pop-up. Pop-up Emergency Call Alert Setting Screen Emergency Number Assignment This feature is on Web Server PC side. 13

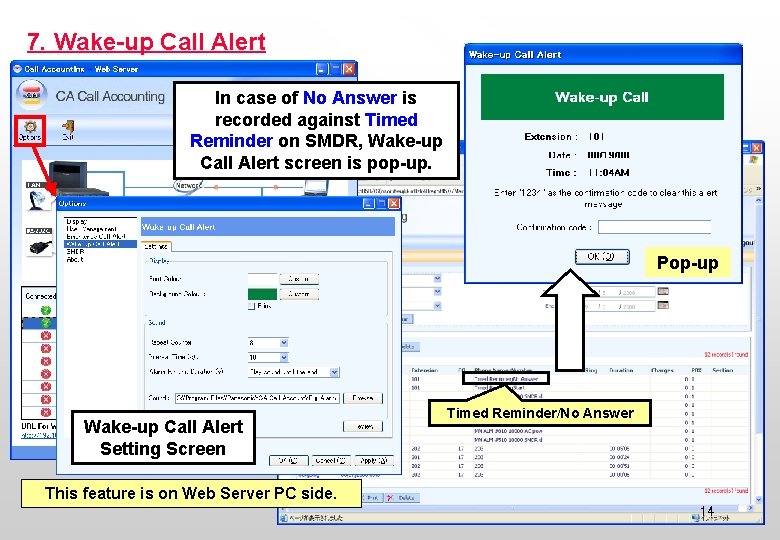

7. Wake-up Call Alert In case of No Answer is recorded against Timed Reminder on SMDR, Wake-up Call Alert screen is pop-up. Pop-up Wake-up Call Alert Setting Screen Timed Reminder/No Answer This feature is on Web Server PC side. 14

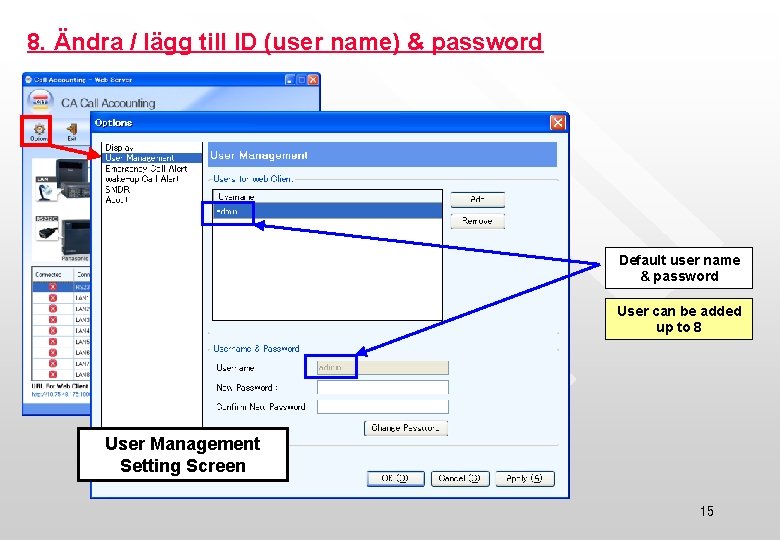

8. Ändra / lägg till ID (user name) & password Default user name & password User can be added up to 8 User Management Setting Screen 15

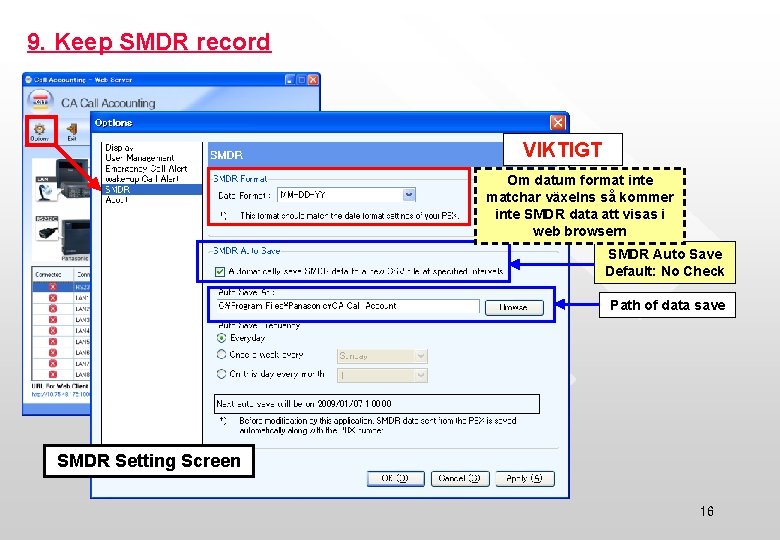

9. Keep SMDR record VIKTIGT Om datum format inte matchar växelns så kommer inte SMDR data att visas i web browsern SMDR Auto Save Default: No Check Path of data save SMDR Setting Screen 16

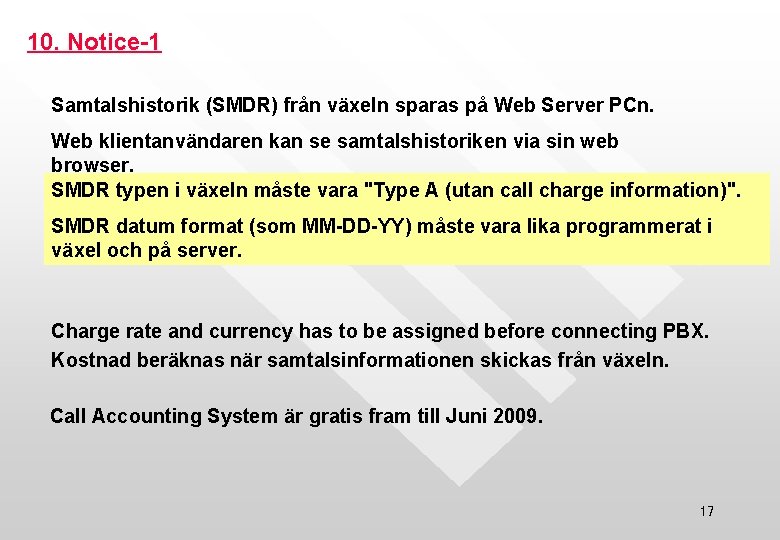

10. Notice-1 Samtalshistorik (SMDR) från växeln sparas på Web Server PCn. Web klientanvändaren kan se samtalshistoriken via sin web browser. SMDR typen i växeln måste vara "Type A (utan call charge information)". SMDR datum format (som MM-DD-YY) måste vara lika programmerat i växel och på server. Charge rate and currency has to be assigned before connecting PBX. Kostnad beräknas när samtalsinformationen skickas från växeln. Call Accounting System är gratis fram till Juni 2009. 17

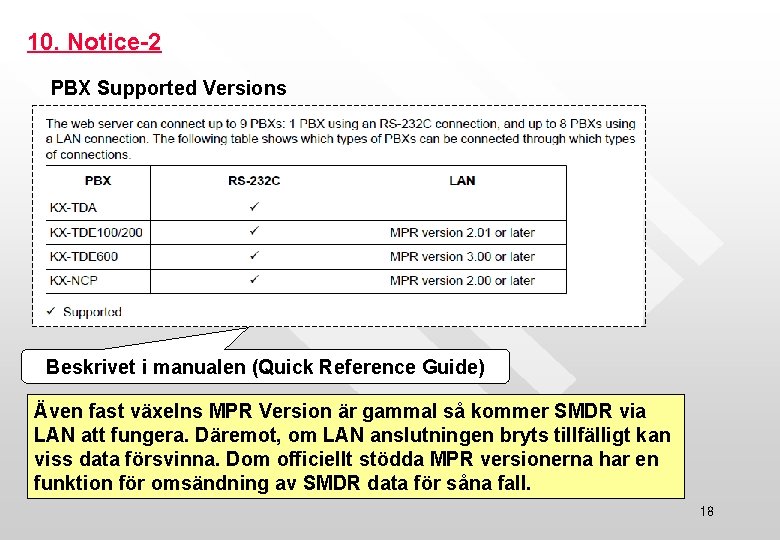

10. Notice-2 PBX Supported Versions Beskrivet i manualen (Quick Reference Guide) Även fast växelns MPR Version är gammal så kommer SMDR via LAN att fungera. Däremot, om LAN anslutningen bryts tillfälligt kan viss data försvinna. Dom officiellt stödda MPR versionerna har en funktion för omsändning av SMDR data för såna fall. 18
11. Requirements of PC Spec. Call Accounting Web Server Minimum CPU 1. 0 GHz Intel Pentium/Celeron processor or comparable CPU Recommend Intel Core 2 Duo /3. 2 GHz Pentium/Celeron processor or comparable CPU RAM 256 MB (1024 MB for Windows VISTA) 2048 MB(2 GB) OS Microsoft Windows VISTA Windows XP Professional Windows Server 2003 Standard Edition 1. 5 GB available space 10 GB available space Storage (HDD) Interface 10 Base-T, RS 232 C 100 Base-T, RS 232 C Call Accounting Web Client (Web Browsing Side) Minimum CPU RAM OS Storage (HDD) Interface 1. 0 GHz Intel Pentium/Celeron processor or comparable CPU 256 MB (1024 MB for Windows VISTA) Windows XP Home Edition Windows XP Professional Microsoft Windows VISTA 1. 5 GB available space 10 Base-T * Video Resolution: 1028 x 768 Recommend Intel Core 2 Duo /3. 2 GHz Pentium/Celeron processor or comparable CPU 2048 MB(2 GB) Windows XP Home Edition Windows XP Professional Microsoft Windows VISTA 10 GB available space 100 Base-T 19 * Video Resolution: 1028 x 768
SMDR & Simple Billing Application by LAN/RS 232 C Thank you very much ! 20
