C Fundamentals Introduction C Basics Prepared By Puttalakshmi

C ++ Fundamentals • Introduction • C++ Basics Prepared By Puttalakshmi H. R PGT(CS) KV Minambakkam Chennai-27

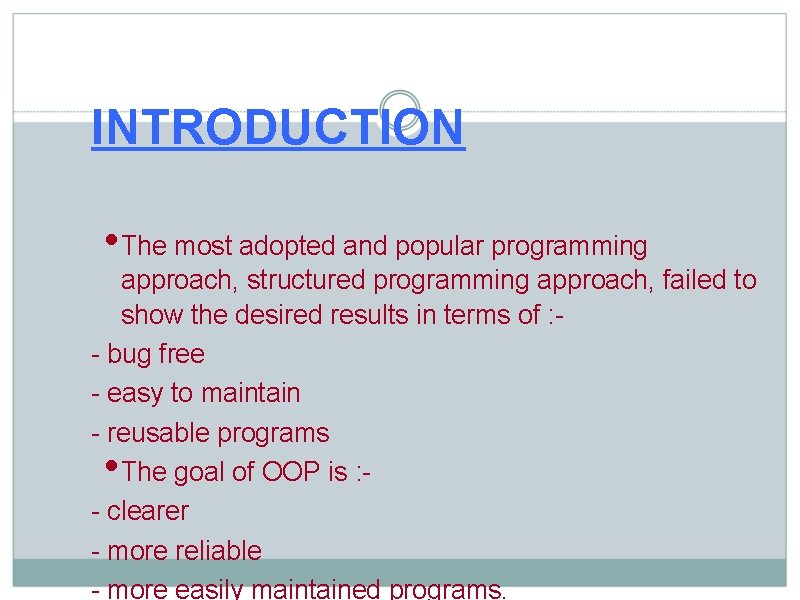

INTRODUCTION • The most adopted and popular programming approach, structured programming approach, failed to show the desired results in terms of : - bug free - easy to maintain - reusable programs The goal of OOP is : - clearer - more reliable - more easily maintained programs. •

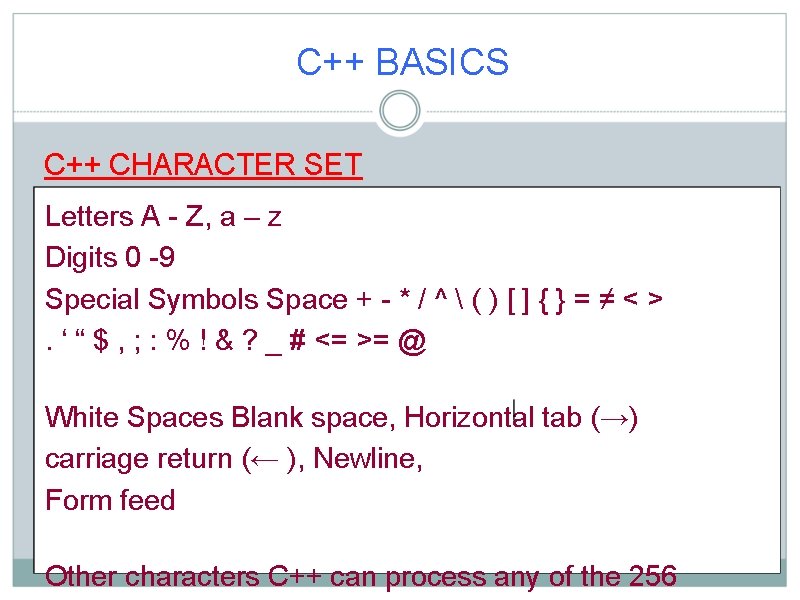

C++ BASICS C++ CHARACTER SET Letters A - Z, a – z Digits 0 -9 Special Symbols Space + - * / ^ ( ) [ ] { } = ≠ < >. ‘ “ $ , ; : % ! & ? _ # <= >= @ White Spaces Blank space, Horizontal tab (→) carriage return (← ), Newline, Form feed Other characters C++ can process any of the 256

Tokens Token are the smallest individual unit in program • Key words • Identifiers • Literals • Punctuators • Operators

KEYWORDS Keywords are the words that convey special meaning to the language compiler break case catch char class const continu e default delete else enum extern float for friend goto if inline integer new 0 perato r private protect ed public register return short struct switch template this throw try typedef union unsigned

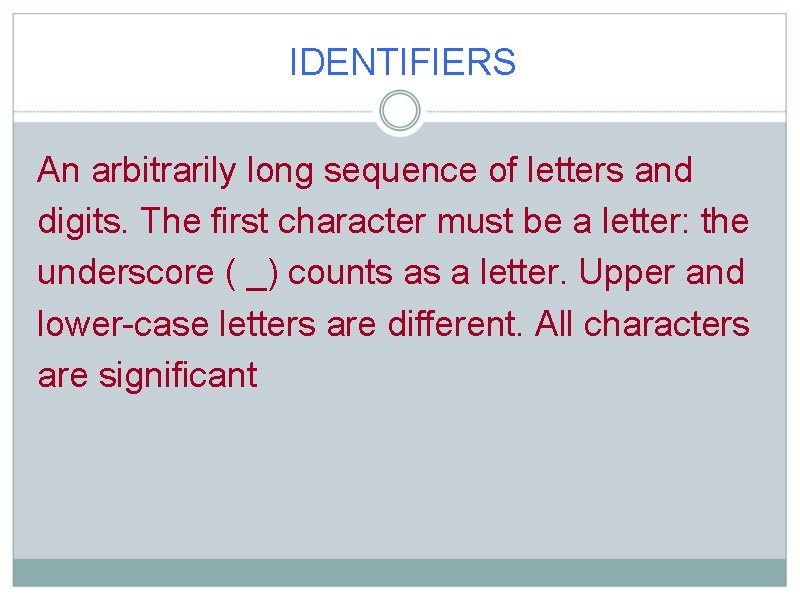

IDENTIFIERS An arbitrarily long sequence of letters and digits. The first character must be a letter: the underscore ( _) counts as a letter. Upper and lower-case letters are different. All characters are significant

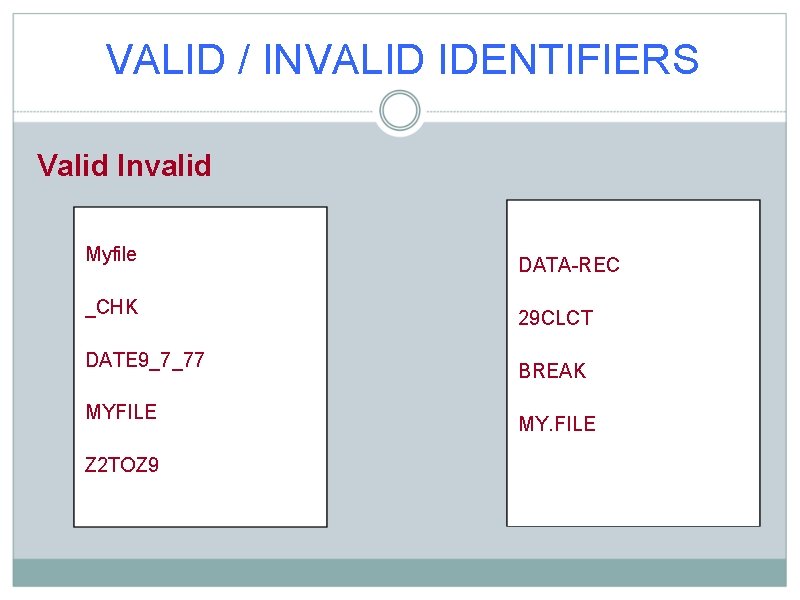

VALID / INVALID IDENTIFIERS Valid Invalid Myfile _CHK DATE 9_7_77 MYFILE Z 2 TOZ 9 DATA-REC 29 CLCT BREAK MY. FILE

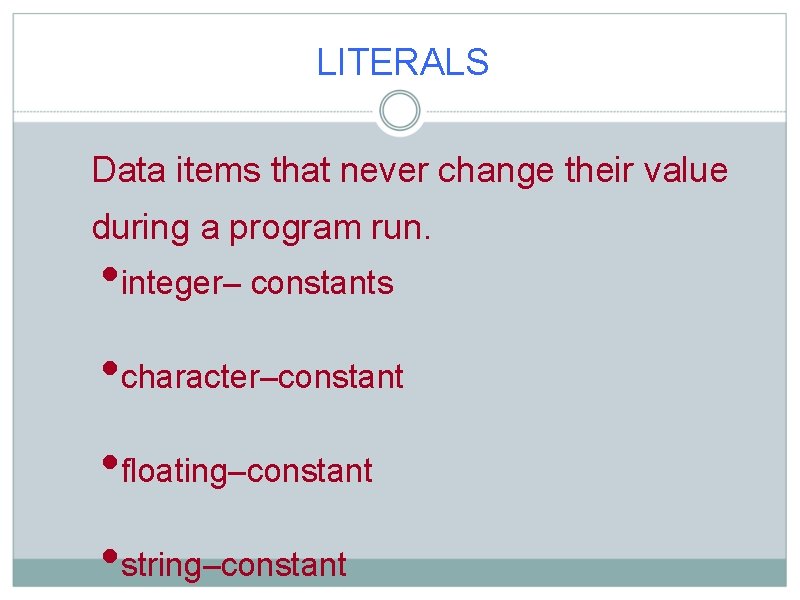

LITERALS Data items that never change their value during a program run. • integer– constants • character–constant • floating–constant • string–constant

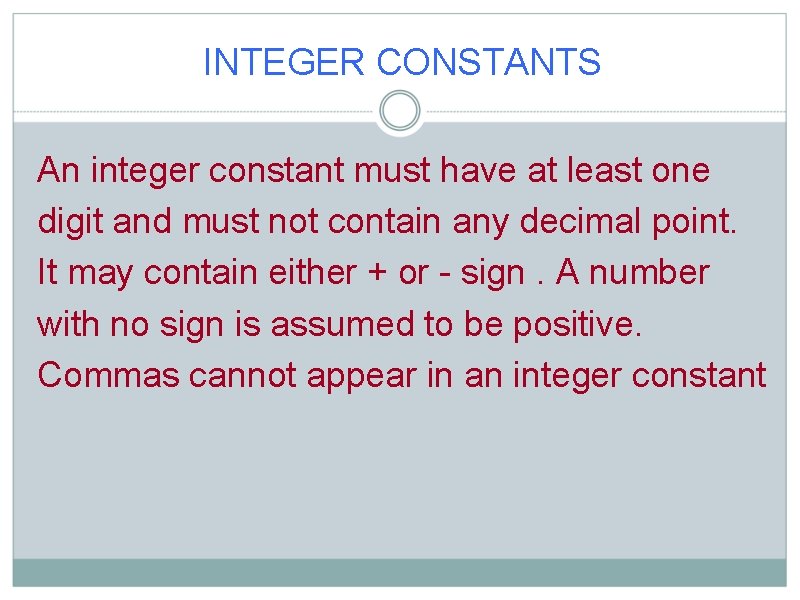

INTEGER CONSTANTS An integer constant must have at least one digit and must not contain any decimal point. It may contain either + or - sign. A number with no sign is assumed to be positive. Commas cannot appear in an integer constant

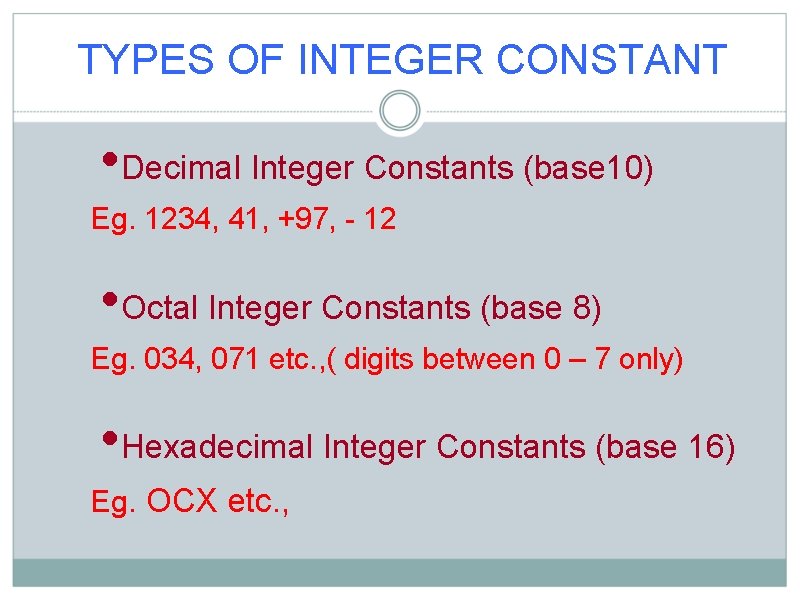

TYPES OF INTEGER CONSTANT • Decimal Integer Constants (base 10) Eg. 1234, 41, +97, - 12 • Octal Integer Constants (base 8) Eg. 034, 071 etc. , ( digits between 0 – 7 only) • Hexadecimal Integer Constants (base 16) Eg. OCX etc. ,

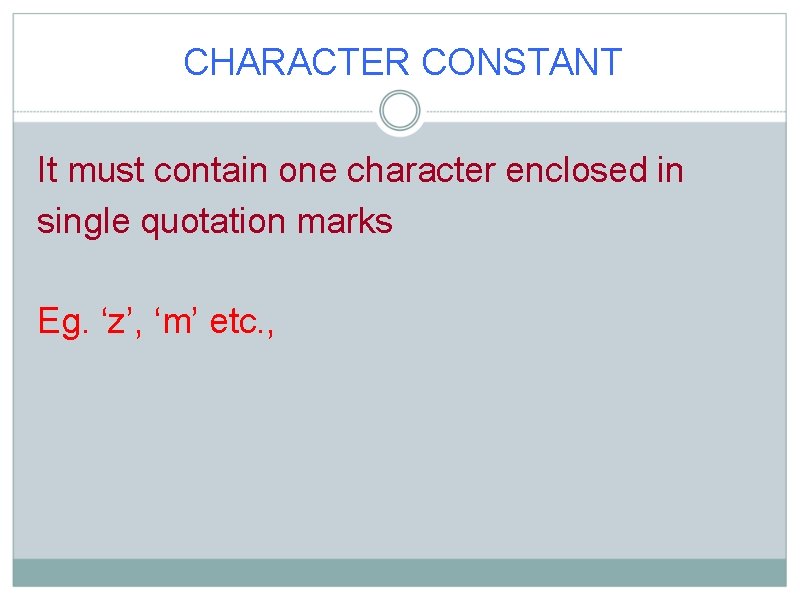

CHARACTER CONSTANT It must contain one character enclosed in single quotation marks Eg. ‘z’, ‘m’ etc. ,

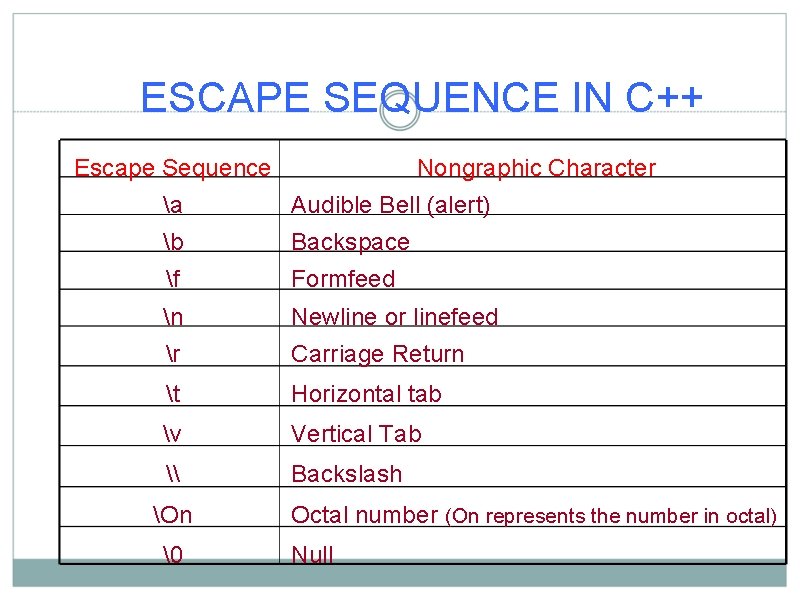

ESCAPE SEQUENCE IN C++ Escape Sequence Nongraphic Character a Audible Bell (alert) b Backspace f Formfeed n Newline or linefeed r Carriage Return t Horizontal tab v Vertical Tab \ Backslash On Octal number (On represents the number in octal) Null

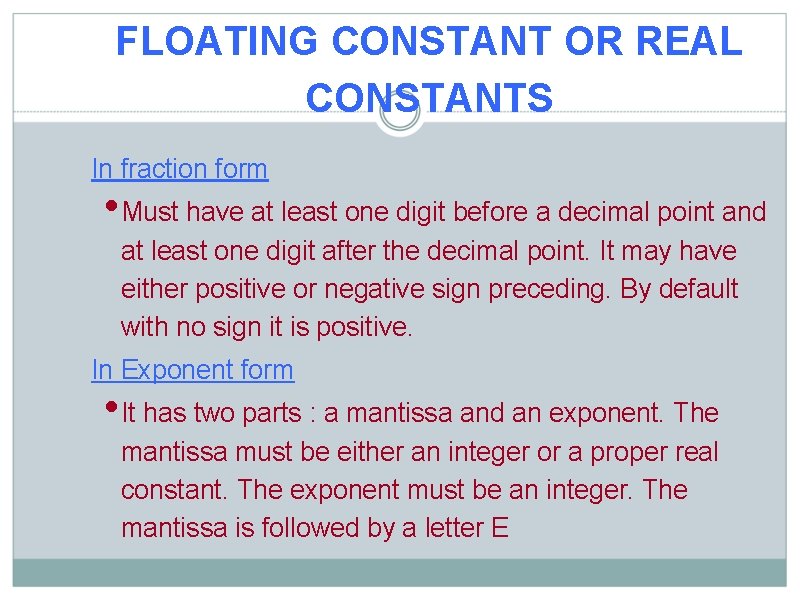

FLOATING CONSTANT OR REAL CONSTANTS In fraction form • Must have at least one digit before a decimal point and at least one digit after the decimal point. It may have either positive or negative sign preceding. By default with no sign it is positive. In Exponent form • It has two parts : a mantissa and an exponent. The mantissa must be either an integer or a proper real constant. The exponent must be an integer. The mantissa is followed by a letter E

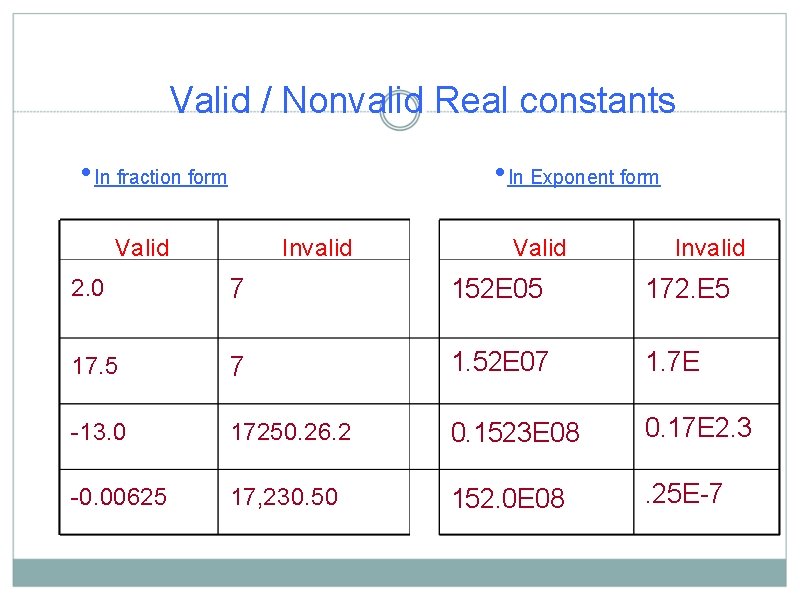

Valid / Nonvalid Real constants • In fraction form • In Exponent form Valid Invalid 2. 0 7 152 E 05 172. E 5 17. 5 7 1. 52 E 07 1. 7 E -13. 0 17250. 26. 2 0. 1523 E 08 0. 17 E 2. 3 -0. 00625 17, 230. 50 152. 0 E 08 . 25 E-7

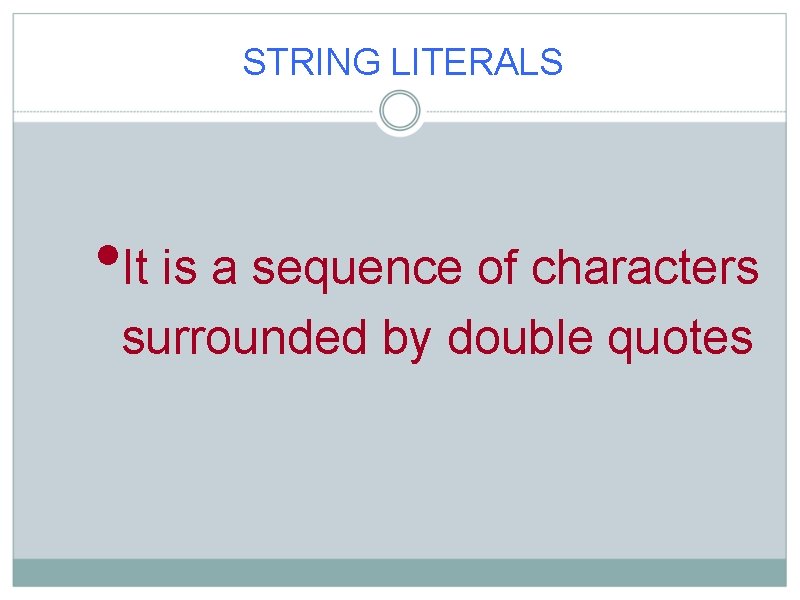

STRING LITERALS • It is a sequence of characters surrounded by double quotes

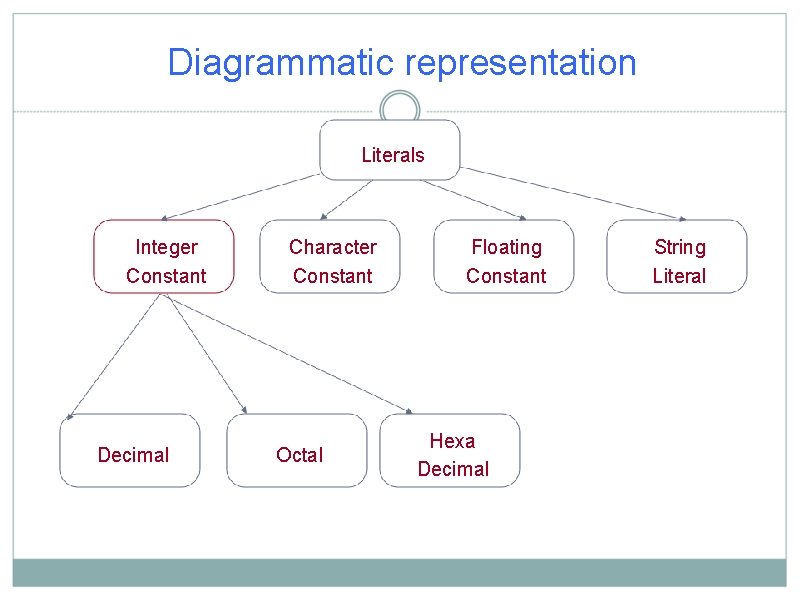

Diagrammatic representation Literals Integer Constant Decimal Character Constant Octal Floating Constant Hexa Decimal String Literal

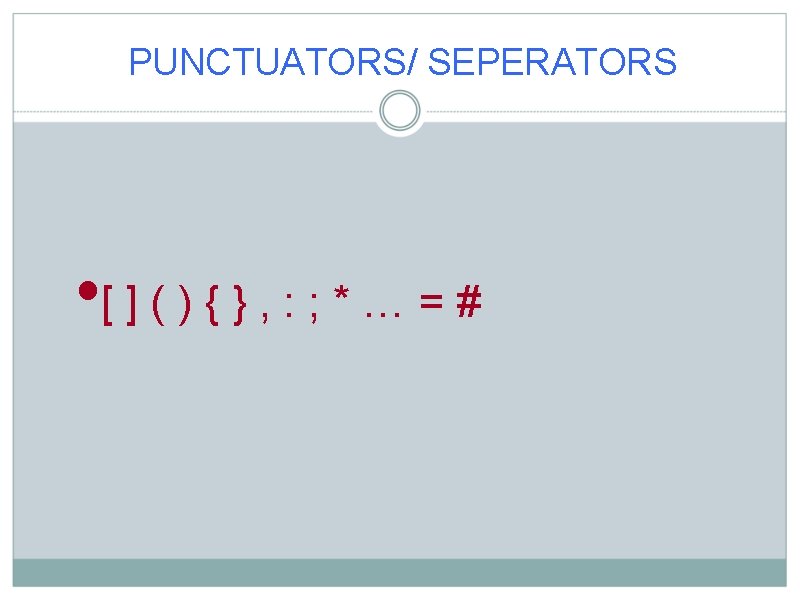

PUNCTUATORS/ SEPERATORS • [ ] ( ) { } , : ; * … = #

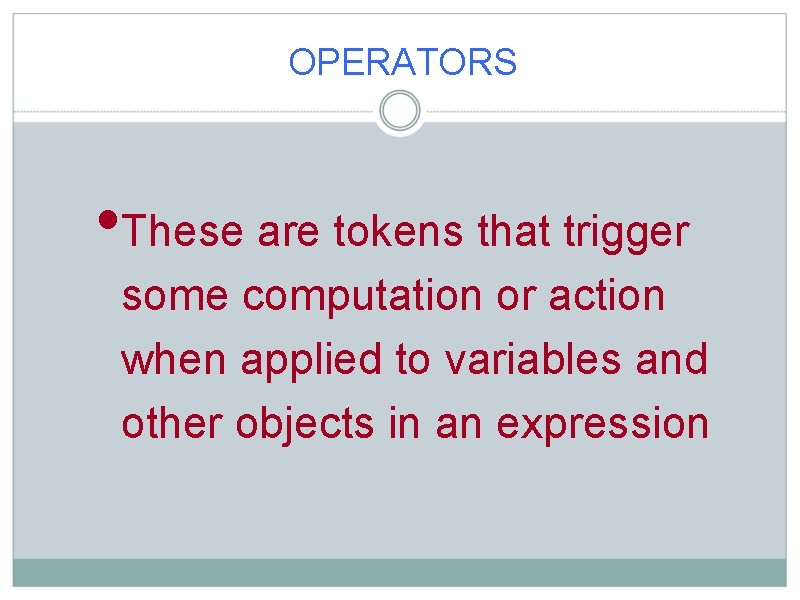

OPERATORS • These are tokens that trigger some computation or action when applied to variables and other objects in an expression
