C 4000 Select Technical product presentation DIV 02

C 4000 Select Technical product presentation DIV 02 Industrial Safety Systems Author: Brad Raven Release date: February 2008 Industrial Safety Systems. Made by SICK.

C 4000 Select Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 2 Industrial Safety Systems. Made by SICK.

C 4000 Select Content : : Representation of technology Overview Technical Facts : : : : Mechanics Electrical Connections Configuration Additional options Which are the customer benefits of the features? Accessories Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 3 Industrial Safety Systems. Made by SICK.

C 4000 Select Description of technology : : Use of reliable technologies : All variants with laser class 1 for integrated, visual alignment aid : see special “note aligment with corner mirrors” and “integrated laser-alignment aid, background info” : : Variants with extended I/O for cascading Opto-electronic protective device according sender/receiver principle (XC 40 S and XC 40 E) Variants with endcaps with integrated LEDs Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 4 Industrial Safety Systems. Made by SICK.

C 4000 Select Overview technical facts : Feature highlights : : : : : New housing profile with 3 nut grooves Swivel-mount end caps DIP Switch configuration End cap with integrated LED (optional) Integrated laser and alignment bar graph system Flexible cascading M 12 x 5 connectors for system and extended I/O Condensed diagnostics c. ULus approval Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 5 Industrial Safety Systems. Made by SICK.

C 4000 Select Housing - Mechanics : New housing profile with 3 nut grooves for the complete C 4000 family : : : profile mechanical 1: 1 compatible to M 4000 Area max. mounting flexibility variable sender/receiver position C 4000 Select/M 4000 Area 55, 5 27, 5 52 Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 6 Industrial Safety Systems. Made by SICK.

C 4000 Select Number of Beams Protective field height (mm) Beam count – 30 mm resolution 300 15 600 30 900 45 1200 60 1500 75 1800 90 : 30 mm resolution (hand guard) Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 7 Industrial Safety Systems. Made by SICK.

C 4000 Select Protective Field - Dimensions Protective field height 300 600 900 1200 1500 1800 Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 8 L 1 L 2 L 3 302 602 902 1202 1502 1802 425 725 1025 1325 1625 1925 440 740 1040 1340 1640 1940 Industrial Safety Systems. Made by SICK.

[1]) Wire colors shown in this table are in accordance with SICK C 4000 Select M 12 × 5 cable accessories. When utilizing other M 12 × 5 cable manufacturers’ cables, you may need to verify that the cond C 4000 Select System Connection M 12 x 4+FE : Economically, standardized M 12 -connection technology : Pin assignment always represented on type label Pin No. Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 9 Wire Color) Sender Receiver Description 1 Brown +24 V DC Supply voltage (+) 2 White – OSSD 1 Output Signal Switching Device 1 3 Blue 0 V DC Supply voltage (–) 4 Black – OSSD 2 Output Signal Switching Device 2 5 Gray FE FE Functional Earth Industrial Safety Systems. Made by SICK.

C 4000 Select System/Extension Connection M 12 x 5 : Pin assignment always represented on type label Pin No. Wire Sender Receiver Description Supply voltage (+) Color 6) Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 10 1 Brown +24 V DC 2 White – +24 V DC IN 1 3 Blue 0 V DC Supply voltage (–) 4 Black – IN 2 Safe input 2 5 Gray FE FE Functional Earth Safe input 1 Industrial Safety Systems. Made by SICK.

System Connection No EDM or Manual Restart : With only 5 available pins, if EDM and/or manual restart are required for the safety circuit then they need to be implemented externally : Available SICK solutions : : : UE 48 safety relay UE 410 Flexi UE 4470 safety network controller Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 11 Industrial Safety Systems. Made by SICK.

C 4000 Select Configuration Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 12 Industrial Safety Systems. Made by SICK.

Configuration Safety Field Width : : Guaranteed range : : Low 0 -6 m High 5 -19 m Typical range : High 5 -21 m Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 13 Industrial Safety Systems. Made by SICK.

Configuration Extended I/O : Available at the top or at the bottom (not both) : Cascade up to three 1800 mm C 4000 Selects : Cascade a single S 300 or S 3000 Safety Laser Scanner Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 14 Industrial Safety Systems. Made by SICK.

Configuration Beam coding Coded and uncoded cannot be mixed Beam Code 1 Sender and receiver beam code configuration must match Beam Code 1 Beam Code 2 Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 15 Industrial Safety Systems. Made by SICK.

Configuration Beam coding This implementation has no possibility for an LED end-cap The maximum cable length between the extension connector and next device is not to exceed 10 m. Beam Code 2 Beam Code 1 Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 16 Industrial Safety Systems. Made by SICK.

Configuration Floating blanking : One or two beam floating blanking with partial object detection Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 17 Industrial Safety Systems. Made by SICK.

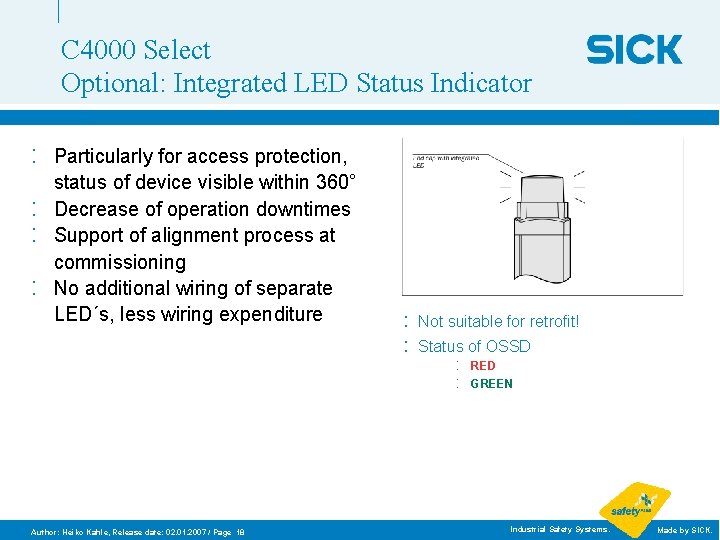

C 4000 Select Optional: Integrated LED Status Indicator : : Particularly for access protection, status of device visible within 360° Decrease of operation downtimes Support of alignment process at commissioning No additional wiring of separate LED´s, less wiring expenditure Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 18 : : Not suitable for retrofit! Status of OSSD : RED : GREEN Industrial Safety Systems. Made by SICK.

C 4000 Select Integrated Laser and Alignment Bar Graph System : : : Precise alignment of sender receiver Especially helpful for alignment between sender and receiver at long field widths No battery Always linked with device Customer can always control/adjust alignment Less service tasks for machine manufacturer Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 19 Industrial Safety Systems. Made by SICK.

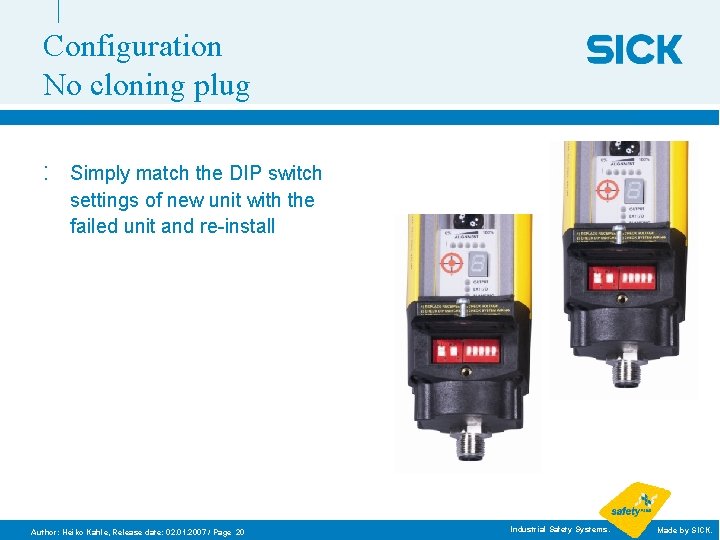

Configuration No cloning plug : Simply match the DIP switch settings of new unit with the failed unit and re-install Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 20 Industrial Safety Systems. Made by SICK.

C 4000 Select Accessories : Which accessories are available for the C 4000 Select? : Mounting brackets : Connecting cables : Additional front screens Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 21 Industrial Safety Systems. Made by SICK.

C 4000 Select Mounting Brackets : New swivel mount bracket Mounting kit 12, 4 pcs. (2 030 510) : Mounting bracket rigid Mounting kit 1 4 pcs. (7 021 352) : Side bracket pivoting Mounting kit 6 4 pcs. (2 019 506) : Mounting bracket pivoting Mounting kit 2 4 pcs. (2 017 751) Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 22 Industrial Safety Systems. Made by SICK.

C 4000 Select System Cables : M 12 -socket, 5 -pin, single-ended straight female connection with flying leads : : : 2 m (6 008 899) 5 m (6 009 868) 10 m (6 010 544) 15 m (6 029 215) 30 m (6 032 956) Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 23 Industrial Safety Systems. Made by SICK.

C 4000 Select Extension Connection Cables : M 12 -socket, 5 -pin, double-ended male and female for extended I/O connection of another C 4000 Select : : : : 1 m (6 029 280) 2 m (6 025 931) 5 m (6 029 282) M 12 -socket, 5 -pin, single-ended male connection with flying leads for extened I/O connection of S 300 or S 3000 : : : 2 m (6 026 133) 5 m (6 026 134) 10 m (6 026 135) Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 24 Industrial Safety Systems. Made by SICK.

C 4000 Select Additional Front Screens • Two additional front screens (weld spark guards) supplied for each part number. • The additional front screen fits both on the sender and on the receiver. • The additional front screen may be used only if the curved enclosure side is accessible. • An additional front screen reduces the scanning range of the system by 8%. If sender and receiver each use an additional front screen, the scanning range will be reduced by 16%. Protective field height [mm] Part number 300 2033235 600 2033237 900 2033239 1200 2033241 1500 2033243 1800 2033245 Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 25 Industrial Safety Systems. Made by SICK.

C 4000 Select T Connector 6 030 664 M 12 x 4 + FE System Connection • Can support a “home run” cable • Can provide additional wiring/installation savings Author: Heiko Kahle, Release date: 02. 01. 2007 / Page 26 Industrial Safety Systems. Made by SICK.
