C 24 Interactive Simply Connected Simply Secure Rev

C 24 Interactive Simply Connected. Simply Secure. Rev 103

C 24 adds Lifestyle to Lifesafety Security Industry Past 20+ years § Intrusion Detection § Fire/Smoke Detection § Carbon Monoxide Detection § Flood Detection Interactive Services 2012+ § § § § Security monitoring Connectivity and control Energy management Home and lifestyle management Business productivity Home health Entertainment

Traditional vs. Interactive Traditional • Interactive touch screen • Web, mobile and i. Phone access • Live video, event-triggered video clips and pictures • Email and text message alerts • Lighting, locks, and thermostat control • Security system, lighting and thermostat scheduling • Real-time home and system status reporting • Easy and intuitive to use C 24 Interactive

Communication Paths C 24 Manager Client Types Smart Phone Browser Mobile Devices HTTPS C 24 Manager i. Connect Servers Internet CUSTOMER PREMISES Broadband Modem & Router IP Cameras Home Management Devices C 24 -HUB Touchscreen Cellular Network UI Security Sensors Security Panel Contact ID or SIA POTS/ TCP/IP HOME SECURITY CENTRAL MONITORING STATION (CMS)

Power. Series Support Hybrid control panel supporting one-way wireless sensors and hardwired modules Panel Variants (Note: v 4. 50+ required) • PC 1616 (6 -16 zone) • PC 1832 (8 -32 zone) • PC 1864 (8 -64 zone) C 24 -HUB Compatible Modules (Note: v 2. 5 required) • GS 2060 -SM (GSM communicator) • IT-230 (RS-422 only to Hub)

C 24 -HUB Hub ü Broadband connection ü DSC Control Panel link ü Private Wi-Fi network ü Camera link ü Touchscreen link ü Z-Wave ü Support of analog cameras (with adapter)

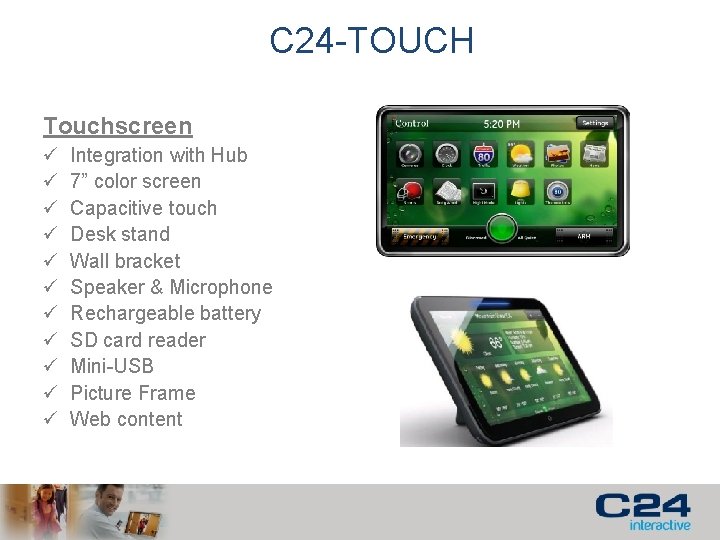

C 24 -TOUCH Touchscreen ü ü ü Integration with Hub 7” color screen Capacitive touch Desk stand Wall bracket Speaker & Microphone Rechargeable battery SD card reader Mini-USB Picture Frame Web content

C 24 -CAM 54 IR Camera ü Integration with Hub ü IP 54 rated (weather resistant) ü Day and Night Vision ü Wi-Fi 802. 11 b/g/n ü ~ 30 feet IR night range ü ~ 30 feet PIR range ü Local video recording with 10 second rolling buffer ü Video h. 264 MPEG ü Home. Plug compatible

C 24 -CAMANL Analog Converter ü Integration with Hub ü In/Out video connections for integration with existing video hardware ü NTSC signal compatibility ü Hardwired Ethernet connection to Hub ü Local video recording with 10 second rolling buffer ü Video h. 264 MPEG

Why Z-Wave? • Z-Wave Is Simple – Z-Wave control is easily added to any C 24 Interactive system within seconds. Simply connect the device as intended (i. e. thermostat) and using the C 24 Interactive device wizard, enrollment is done at the press of a button. • Z-Wave Is Versatile – With Z-Wave, you can add as much or as little home control as you want, using any manufacturer that you want. Z-Wave functionality can be added to lighting, HVAC , Deadbolts, and most any plug in device. • Z-Wave Is Reliable – Z-Wave enabled devices have the ability to receive and transmit signals, creating a reliable mesh network. Each device ‘learns and memorizes’ its network and finds the best means of communicating back to the C 24 -HUB. • Z-Wave Is Intelligent – Z-Wave devices confirm their status back to the C 24 Interactive system, ensuring all commands are received and executed.

Service Plans Feature Email Notification SMS Notification Mobile Apps Security Connect and Control C 24 -HUB C 24 -CAM 54 IR (10 max) C 24 -TOUCH (4 max) C 24 -CAMANL (10 max) Z-wave Automation (32 max) Touch Package Automation Package

Touch Package • Package requires the addition of C 24 -HUB – Allows for C 24 -TOUCH, C 24 -CAM 54 IR, and C 24 -CAMANL module support • Compatible with Power. Series – Command & Control support (arm/disarm, real time zone status) • Real time video look-in • Event based video capture (10 s pre, 20 s post) or snapshot with notification

Automation Package • Includes everything from Touch package • Adds Integration of Z-wave through C 24 -HUB • Control and monitor of compatible Z-wave devices – Thermostats – Lighting – Door Locks • Up to 32 devices (any combination, no limit) • Automation and schedule synchronization

C 24 Interactive Home Security Demo

Questions?
