Evolution of Landforming We have been landforming since agriculture began optisurface. com

Evolution of Landforming – 1900 s Dumpy & Stakes – 1970 s Laserplane – 1990 s Multiplane – 2000 s Opti. Surface* *Patent Pending optisurface. com

Benefits of Landforming Higher Yields, Quality and Profit through • Minimised water logging • Improve infiltration uniformity • Sooner trafficability • Improved crop establishment • Improved uniformity of crop maturity • Reduced weed problems optisurface. com

Opti. Surface Landforming …provides all of the benefits of traditional laser landforming only: MUCH BETTER!! • Much cheaper (up to 80%) • Much less topsoil removal • Much faster optisurface. com

Case Study C 7 • Block: C 7 Area: 92 Ha • Location: DAVCO Farming, Burdekin • Row Cropping (sugar cane) • Lateral Move Irrigation optisurface. com

optisurface. com C 7 Note: vertical scale exaggerated x 100 Existing Topography

Plane of Best Fit C 7 optisurface. com

Plane of Best Fit - CutFill Map C 7 Cut: 791 m 3/ha Cost: $1, 190/ha Max Cut: 0. 350 m optisurface. com

Opti. Surface Design Constraints Minimum Downslope: 1: Max. Downslope change: 1: Minimum Cross-slope: 1: Max. Cross-slope change: 1: 900 300 4000 -200 1000 0. 111% 0. 333% 0. 025% -0. 500% 0. 100% optisurface. com

Opti. Surface Design C 7 optisurface. com

Opti. Surface - CutFill Map C 7 Cut: 180 m 3/ha Cost: $270/ha Max Cut: 0. 270 m optisurface. com

Long Section Plot Long section plot Downslope: 0. 111% to 0. 333% C 7 optisurface. com

Long Section Plot Downslope: 0. 050% to 1. 000% C 7 optisurface. com

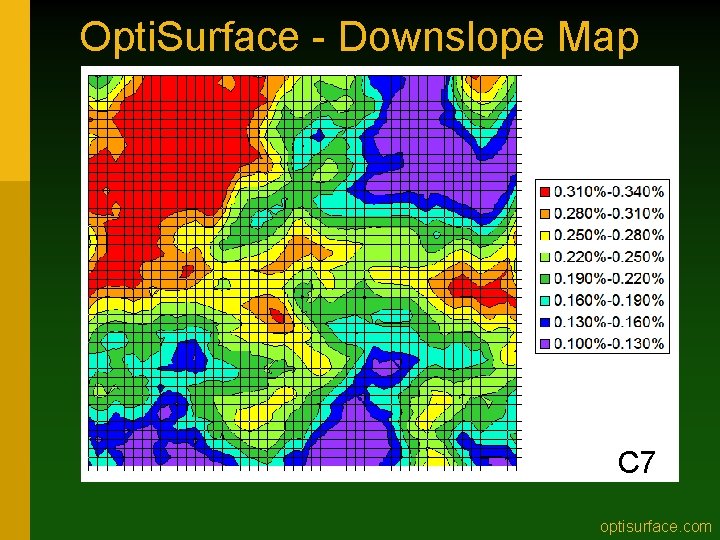

Opti. Surface - Downslope Map C 7 optisurface. com

Runoff Velocity Map FLOW DIRECTION C 7 Rainfall: 75 mm/hr Max Velocity: 0. 44 m/s optisurface. com

Runoff Depth Map FLOW DIRECTION C 7 Rainfall: 75 mm/hr Infiltration: 0 mm Max Depth: 0. 170 m optisurface. com

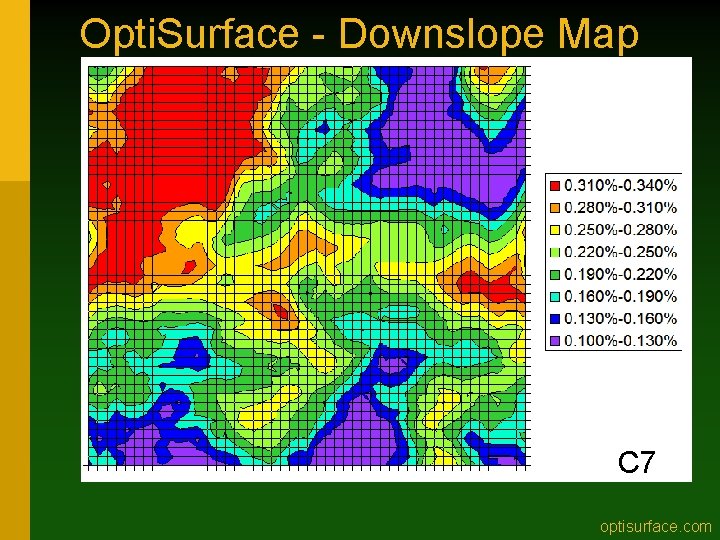

Opti. Surface - Downslope Map C 7 optisurface. com

Design Surface Options – Opti. Surface 1 D Row drainage in one direction only – Opti. Surface 2 D Row drainage in two directions – Opti. Surface 4 D Can drain in any direction as long as it leaves the field optisurface. com

Case Study C 8 – Existing LS 1 LS 2 C 8 optisurface. com

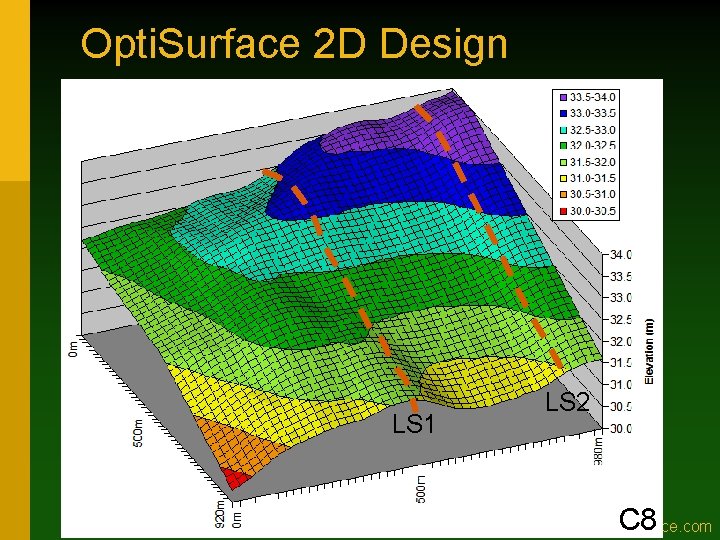

Opti. Surface 2 D Design LS 1 LS 2 C 8 optisurface. com

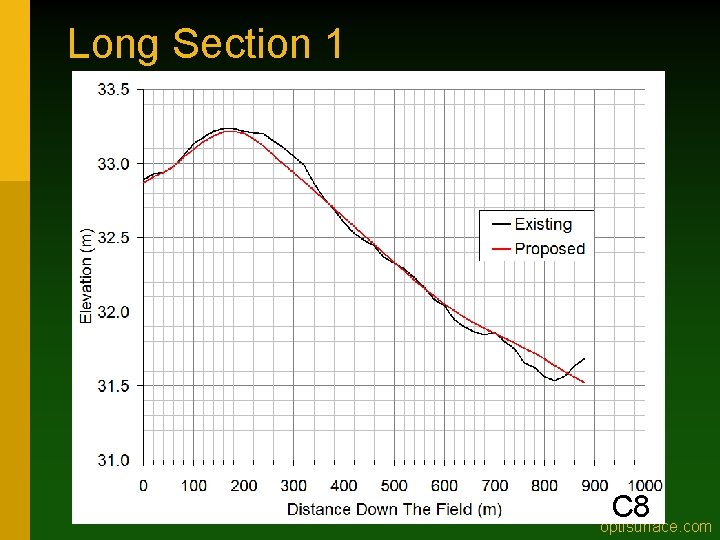

Long Section 1 C 8 optisurface. com

Long Section 2 C 8 optisurface. com

Opti. Surface 4 D Design C 8 optisurface. com

Opti. Surface 4 D Existing C 8 optisurface. com

Mass Haul Optimisation – Optimise for haul distance – Reduce cost by up to 70% – Mass haul value allows for more accurate earthmoving quotes optisurface. com

Opti. Surface - CutFill Map Cut: 95 m 3/ha Cost: $200/ha Max Cut: 0. 163 m B 8&B 9 optisurface. com

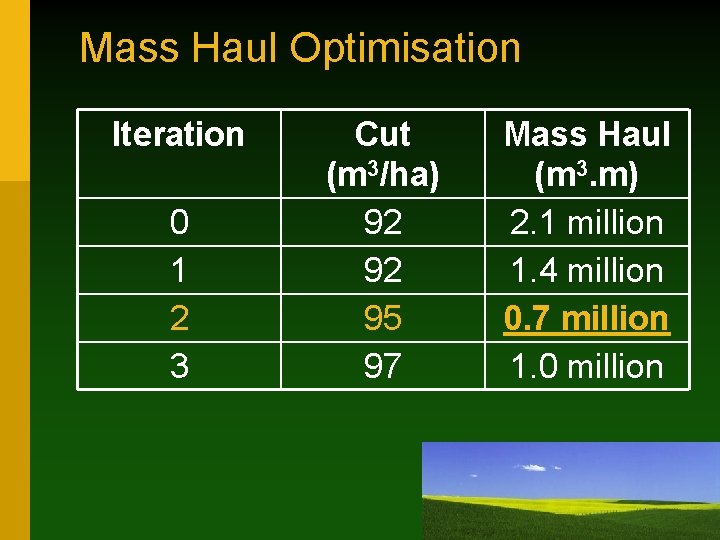

Mass Haul Optimisation Iteration 0 1 2 3 Cut (m 3/ha) 92 92 95 97 Mass Haul (m 3. m) 2. 1 million 1. 4 million 0. 7 million 1. 0 million optisurface. com
