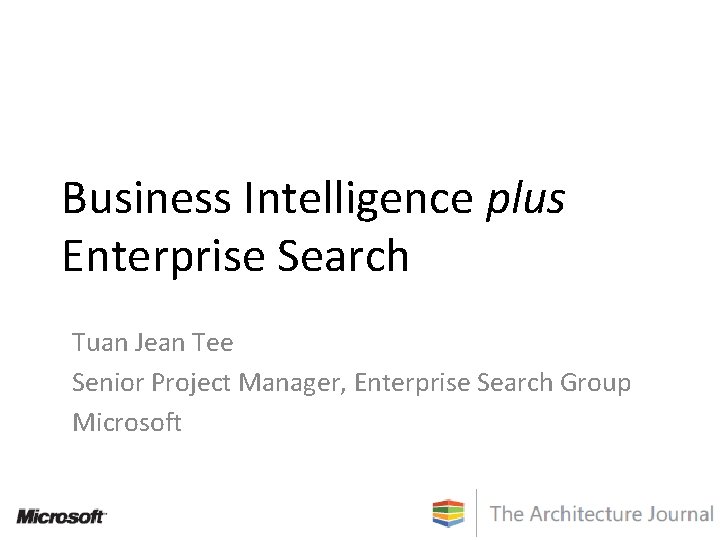

Business Intelligence plus Enterprise Search Tuan Jean Tee

Business Intelligence plus Enterprise Search Tuan Jean Tee Senior Project Manager, Enterprise Search Group Microsoft

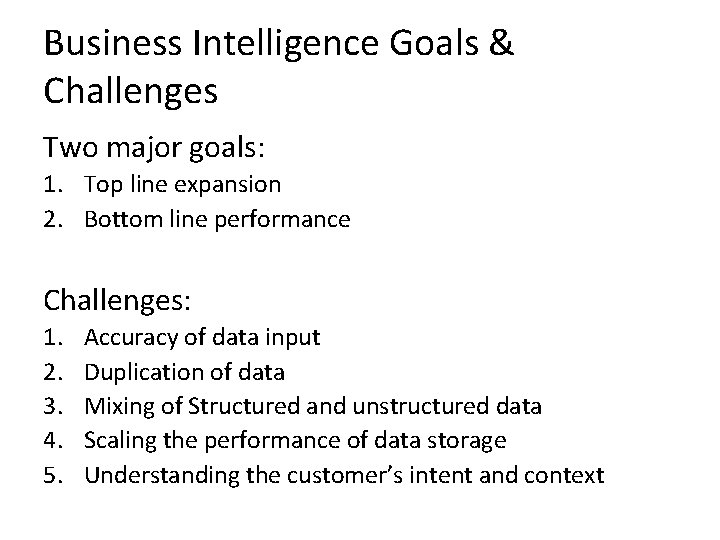

Business Intelligence Goals & Challenges Two major goals: 1. Top line expansion 2. Bottom line performance Challenges: 1. 2. 3. 4. 5. Accuracy of data input Duplication of data Mixing of Structured and unstructured data Scaling the performance of data storage Understanding the customer’s intent and context

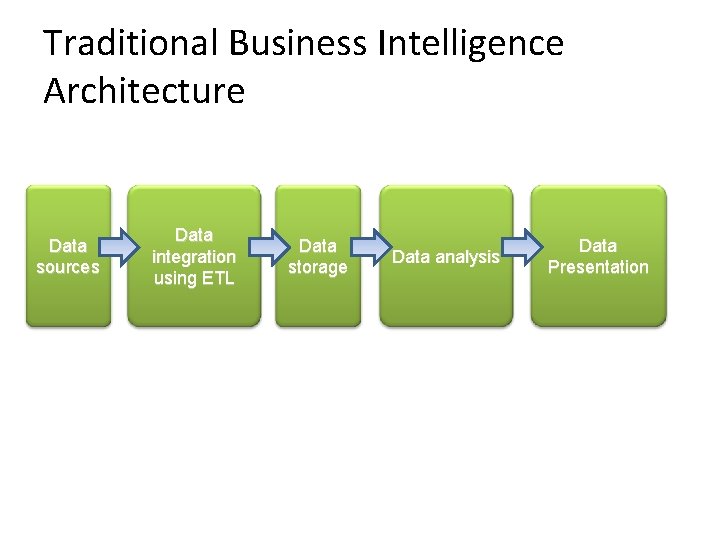

Traditional Business Intelligence Architecture Data sources Data integration using ETL Data storage Data analysis Data Presentation

Business Intelligence Architecture + Enterprise Search platform Data integration using ETL Data sources Data analysis Reporting Enterprise Search Index Search Interface Data storage Enterprise Search Data Cleansing & enrichment

Business Intelligence Architecture + Enterprise Search platform Data integration using ETL Data sources Data analysis Reporting Enterprise Search Index Search Interface Data storage Enterprise Search Performance scaling Information access using natural language

Data Cleansing & Enrichment Data sources Data integration using ETL Data storage Fuzzy Matching Linguistic Analysis Approximate Matching Data enrichment and content classification Enterprise Search Platform capabilities

Data Cleansing & Enrichment (2) Data cleansing using Fuzzy Matching and Linguistic Analysis Scenario: Are the following addresses the same house? Which is Suburb? Which is the City? Can you complete incomplete records? • • • 11/17, North Sydney, NSW 2060 Unit 11, No 17, North Sydney, NSW 2060 11 -17, North Syd. , 2060 Level 11, 17, 2000, New South Wales, North Sydney #11 -17, North Syd

Data Cleansing & Enrichment (3) Data cleansing using Approximate Matching Scenario: Could all of the following be the same person? • • • Mr. Tim Smith Mr Timothy Smith Timothy S. Tim S.

Data Cleansing & Enrichment (4) Data enrichment using Linguistic Analysis Scenario: What else can I derive from just the user name alone? Adam Smith Mr Jones A'shadieeyah binte Fatima

Data Cleansing & Enrichment (5) Data enrichment and auto-classification by linking structured data to unstructured data Twitter Internal Blog External Blog Photos Content access : . . /category/products/sports/AFL. . /category/entertainment/movie E-mails Photos Documents

Enterprise Search provides scalable performance platform for information access • An Search Index provides alternate information access layer to the data storage • This extra layer takes away the burden on data storage for data retrieval and analysis Data analysis Reporting Enterprise Search Index Search Interface Data storage Performance scaling

Enterprise Search provides information access alternatives • Enterprise Search interface provides an another channel for business user and customers to create ad-hoc queries using natural language for structured and unstructured data Data analysis Reporting Enterprise Search Index Search Interface Data storage • Enterprise Search provides relevancy model to present data in context • Enterprise Search provides mechanism to slice and dice the data to discover hidden trend within the data storage Information Access in natural language Ad-hoc query

Summary • Business Intelligence Architecture plus Enterprise Search gives business an improved architecture for business to expand the top line, and information to monitor bottom line performance: • Enterprise Search platform provides a stacks of technologies which can supplement the traditional Business Intelligence Architecture capabilities. – Enterprise Search technologies such as linguistic analysis, fuzzy matching, approximate matching, data classification can provide a mechanism to enhance and cleanse multiple, structured data repositories into an accurate master database. – Enterprise Search technologies can link structured and unstructured data more effectively to build user profiles – Enterprise Search enable information presentation with relevancy ranking.
