Business Idea Development code Operations Product Development Checkin

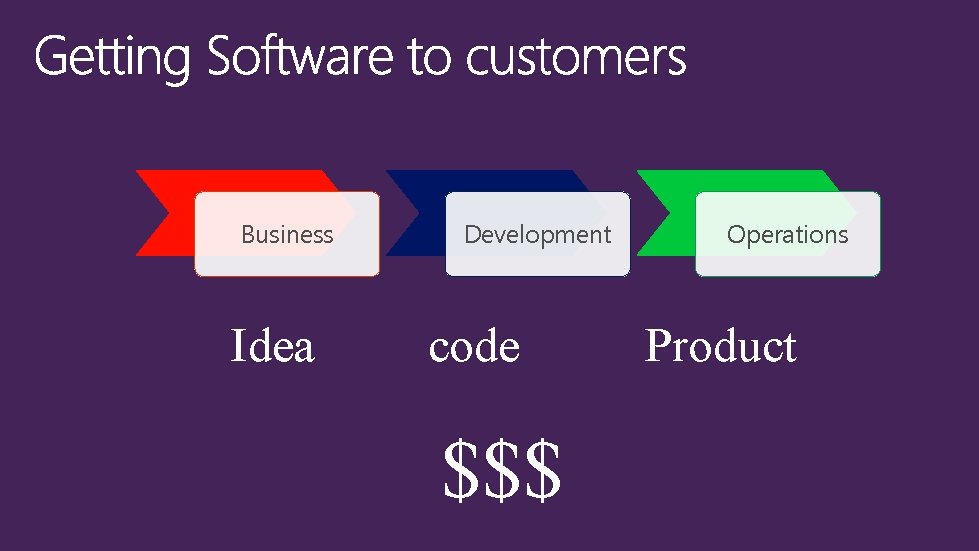

Business Idea Development code $$$ Operations Product

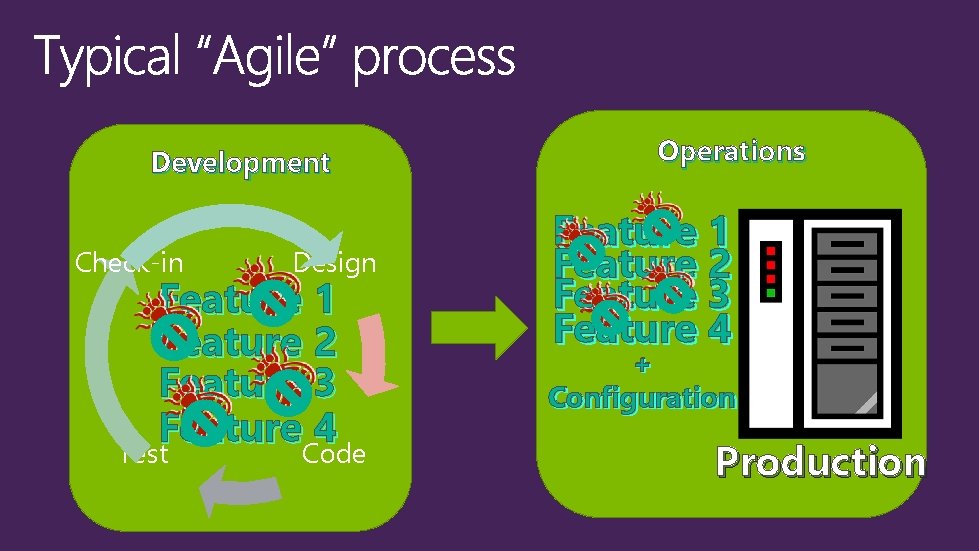

Development Check-in Design Feature 1 Feature 2 Feature 3 Feature 4 Test Code Operations Feature 1 Feature 2 Feature 3 Feature 4 + Configuration Production

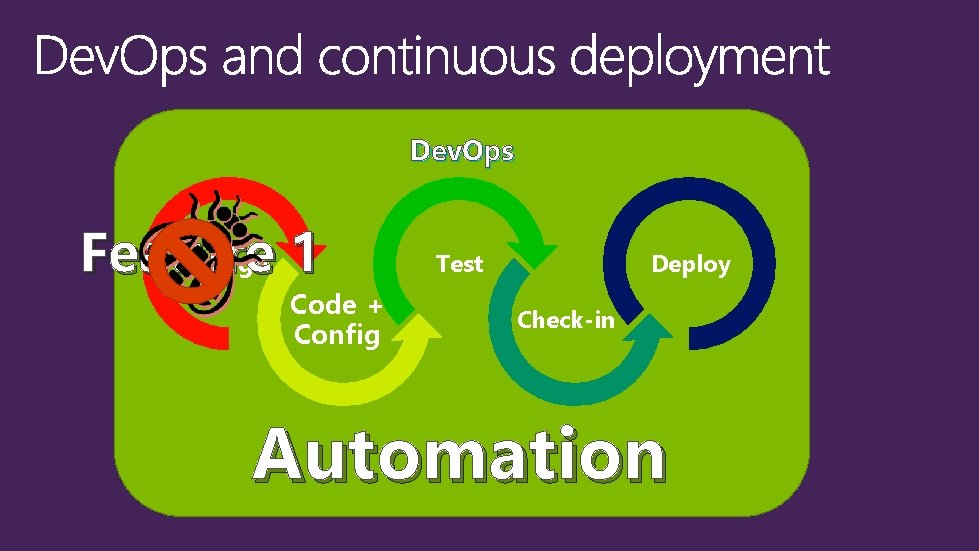

Dev. Ops Feature Design 1 Code + Config Test Deploy Check-in Automation

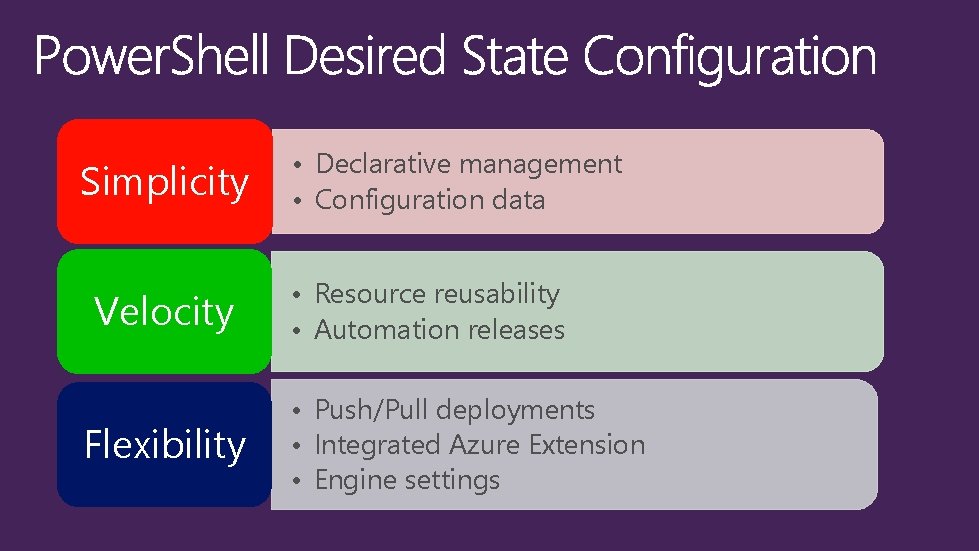

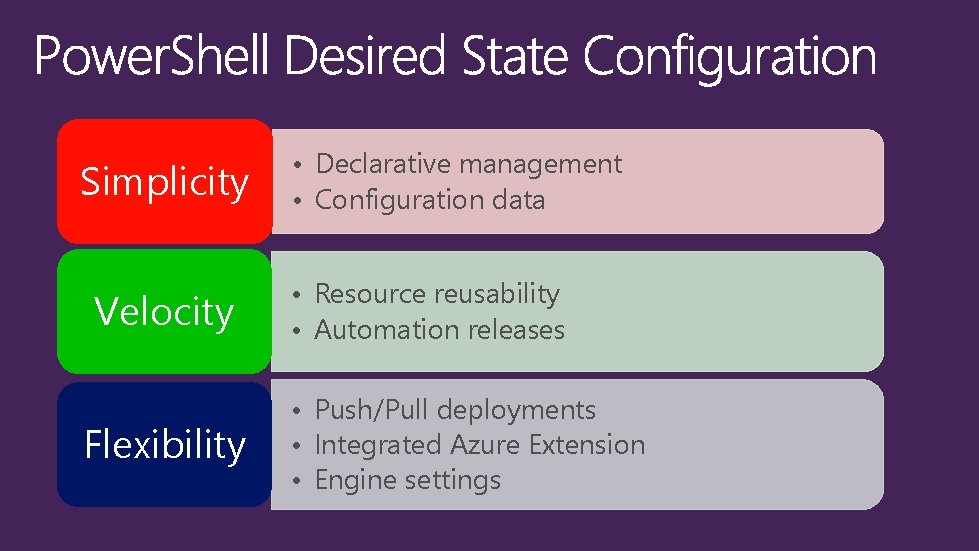

Simplicity Velocity Flexibility • Declarative management • Configuration data • Resource reusability • Automation releases • Push/Pull deployments • Integrated Azure Extension • Engine settings

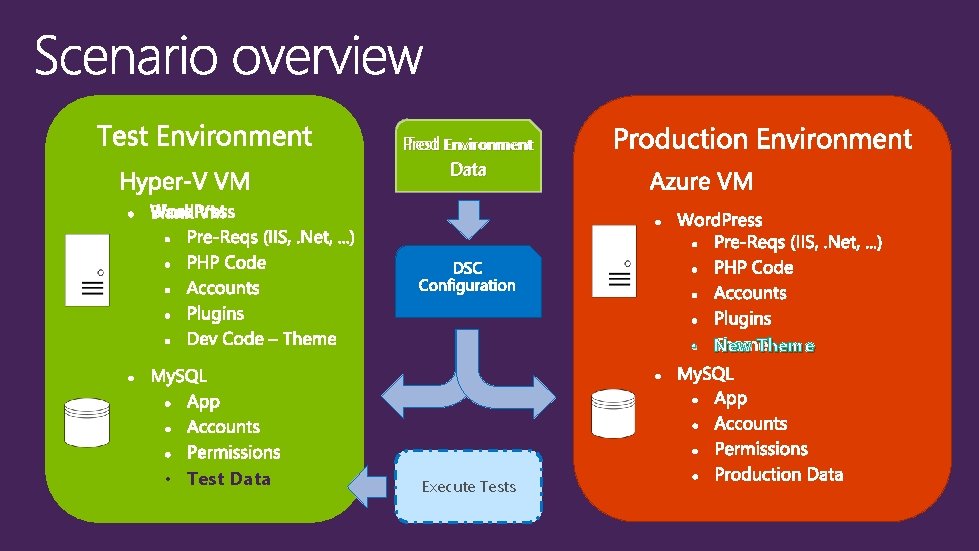

Test Environment Prod Environment Data • New Theme • Test Data Execute Tests

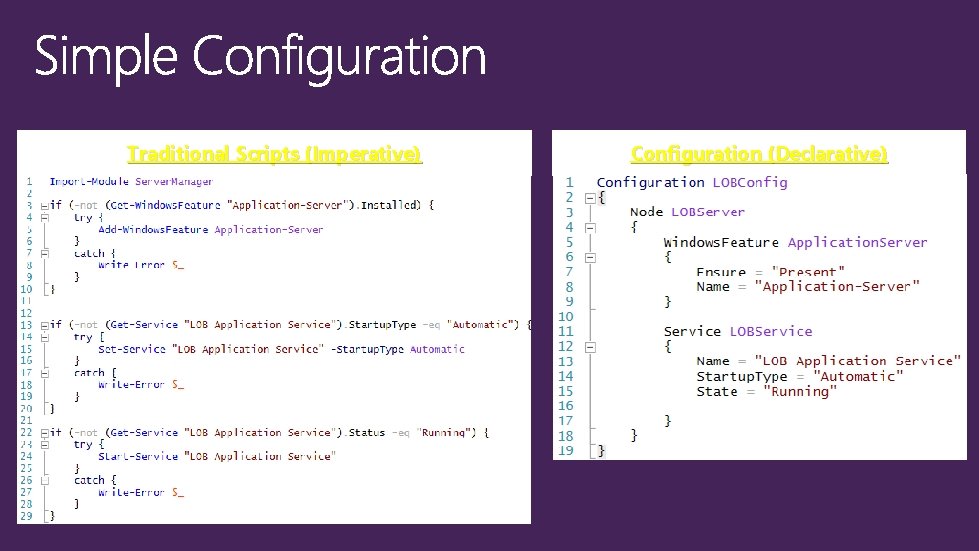

Traditional Scripts (Imperative) Configuration (Declarative)

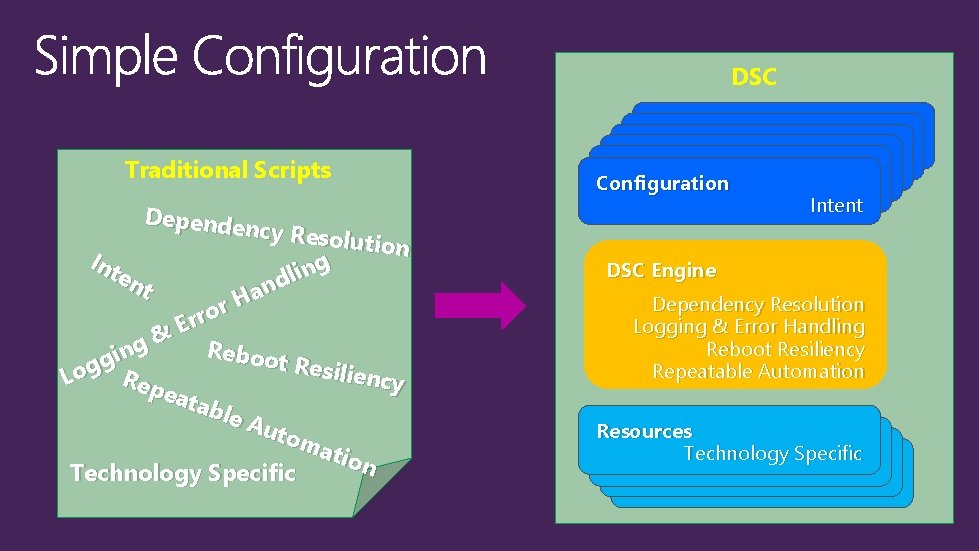

DSC Traditional Scripts Depende ncy Resol ution Int g n i en l nd t a H r rro E & R g eboot n i g Resilie ncy Log Rep eata ble Aut om atio n Technology Specific Configuration Intent DSC Engine Dependency Resolution Logging & Error Handling Reboot Resiliency Repeatable Automation Resources Technology Specific

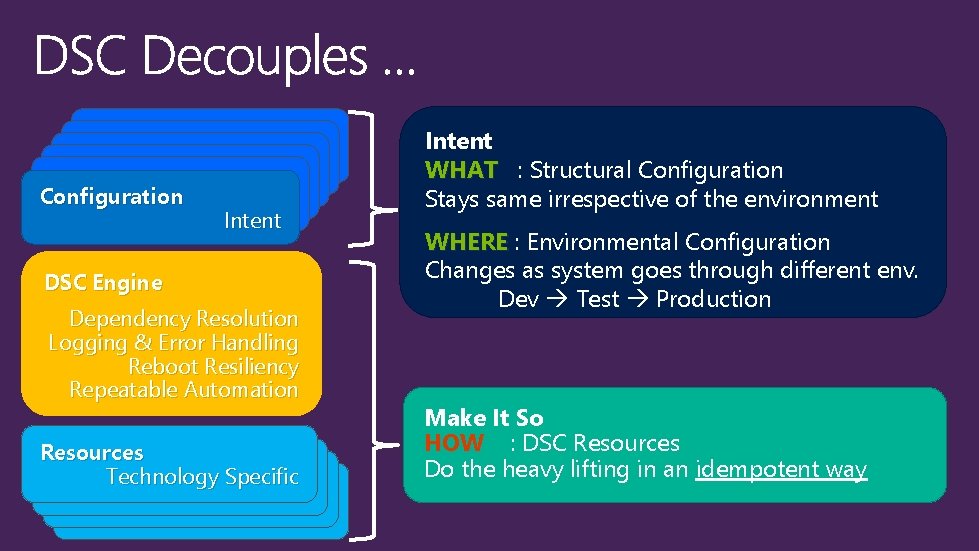

Configuration Intent DSC Engine Dependency Resolution Logging & Error Handling Reboot Resiliency Repeatable Automation Resources Technology Specific Intent WHAT : Structural Configuration Stays same irrespective of the environment WHERE : Environmental Configuration Changes as system goes through different env. Dev Test Production Make It So HOW : DSC Resources Do the heavy lifting in an idempotent way

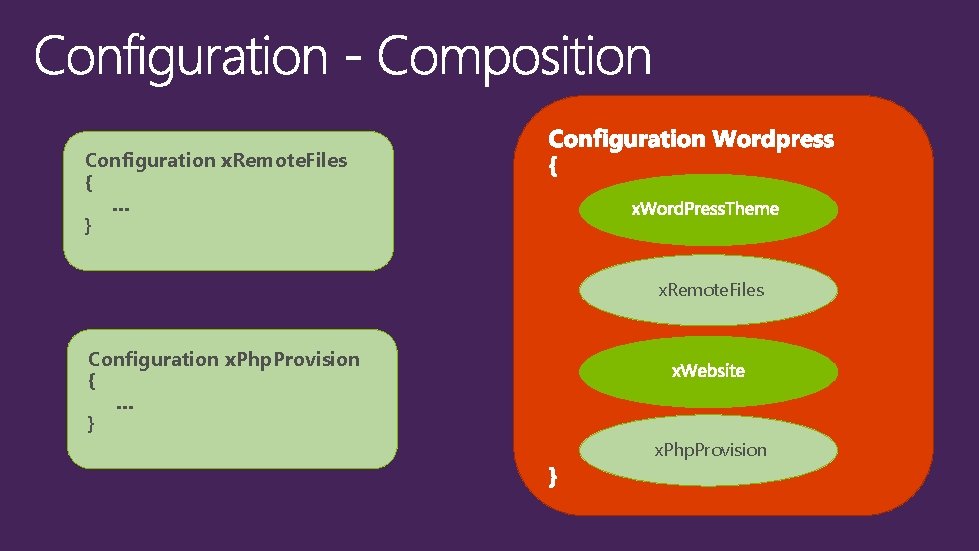

Configuration x. Remote. Files { … } x. Remote. Files Configuration x. Php. Provision { … } x. Php. Provision

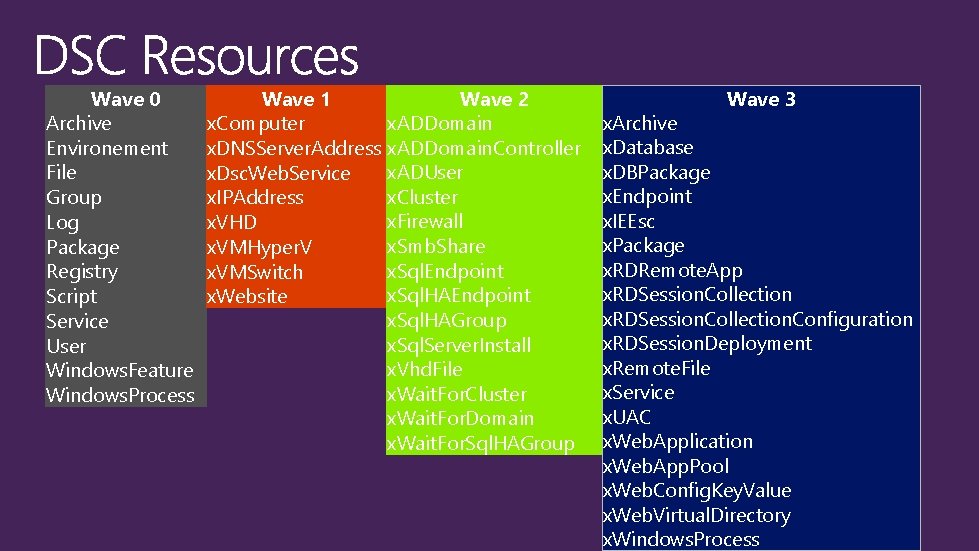

Wave 0 Archive Environement File Group Log Package Registry Script Service User Windows. Feature Windows. Process Wave 2 Wave 1 x. ADDomain x. Computer x. DNSServer. Address x. ADDomain. Controller x. ADUser x. Dsc. Web. Service x. Cluster x. IPAddress x. Firewall x. VHD x. Smb. Share x. VMHyper. V x. Sql. Endpoint x. VMSwitch x. Sql. HAEndpoint x. Website x. Sql. HAGroup x. Sql. Server. Install x. Vhd. File x. Wait. For. Cluster x. Wait. For. Domain x. Wait. For. Sql. HAGroup Wave 3 x. Archive x. Database x. DBPackage x. Endpoint x. IEEsc x. Package x. RDRemote. App x. RDSession. Collection. Configuration x. RDSession. Deployment x. Remote. File x. Service x. UAC x. Web. Application x. Web. App. Pool x. Web. Config. Key. Value x. Web. Virtual. Directory x. Windows. Process

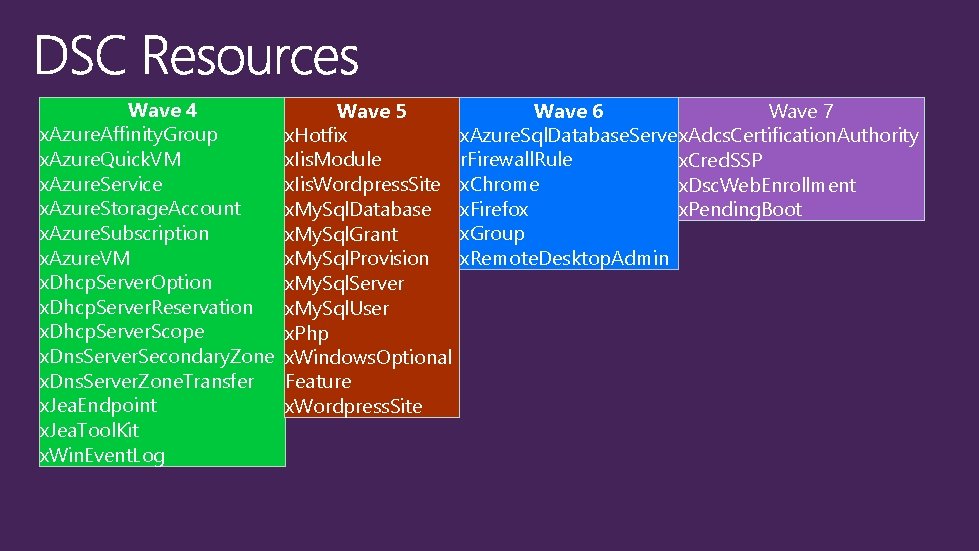

Wave 4 x. Azure. Affinity. Group x. Azure. Quick. VM x. Azure. Service x. Azure. Storage. Account x. Azure. Subscription x. Azure. VM x. Dhcp. Server. Option x. Dhcp. Server. Reservation x. Dhcp. Server. Scope x. Dns. Server. Secondary. Zone x. Dns. Server. Zone. Transfer x. Jea. Endpoint x. Jea. Tool. Kit x. Win. Event. Log Wave 5 x. Hotfix x. Iis. Module x. Iis. Wordpress. Site x. My. Sql. Database x. My. Sql. Grant x. My. Sql. Provision x. My. Sql. Server x. My. Sql. User x. Php x. Windows. Optional Feature x. Wordpress. Site Wave 6 Wave 7 x. Azure. Sql. Database. Serve x. Adcs. Certification. Authority r. Firewall. Rule x. Cred. SSP x. Chrome x. Dsc. Web. Enrollment x. Firefox x. Pending. Boot x. Group x. Remote. Desktop. Admin

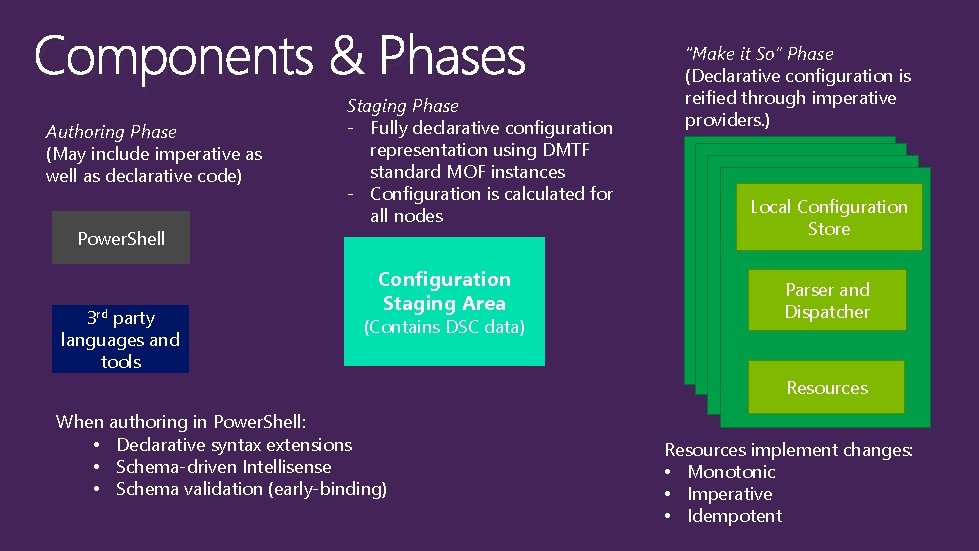

Components & Phases Authoring Phase (May include imperative as well as declarative code) Power. Shell 3 rd party languages and tools Staging Phase - Fully declarative configuration representation using DMTF standard MOF instances - Configuration is calculated for all nodes Configuration Staging Area (Contains DSC data) “Make it So” Phase (Declarative configuration is reified through imperative providers. ) Local Configuration Store Parser and Dispatcher Resources When authoring in Power. Shell: • Declarative syntax extensions • Schema-driven Intellisense • Schema validation (early-binding) Resources implement changes: • Monotonic • Imperative • Idempotent

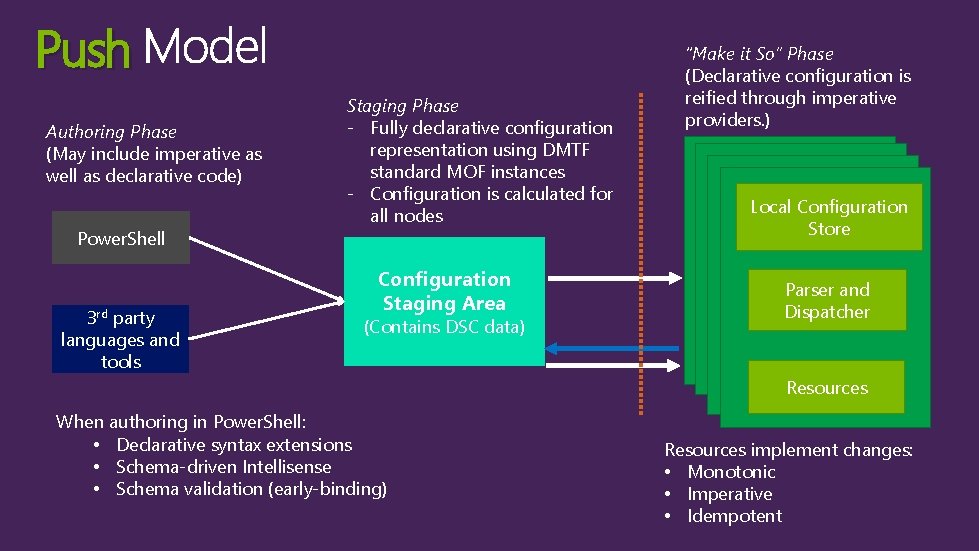

Push Authoring Phase (May include imperative as well as declarative code) Power. Shell 3 rd party languages and tools Staging Phase - Fully declarative configuration representation using DMTF standard MOF instances - Configuration is calculated for all nodes Configuration Staging Area (Contains DSC data) “Make it So” Phase (Declarative configuration is reified through imperative providers. ) Local Configuration Store Parser and Dispatcher Resources When authoring in Power. Shell: • Declarative syntax extensions • Schema-driven Intellisense • Schema validation (early-binding) Resources implement changes: • Monotonic • Imperative • Idempotent

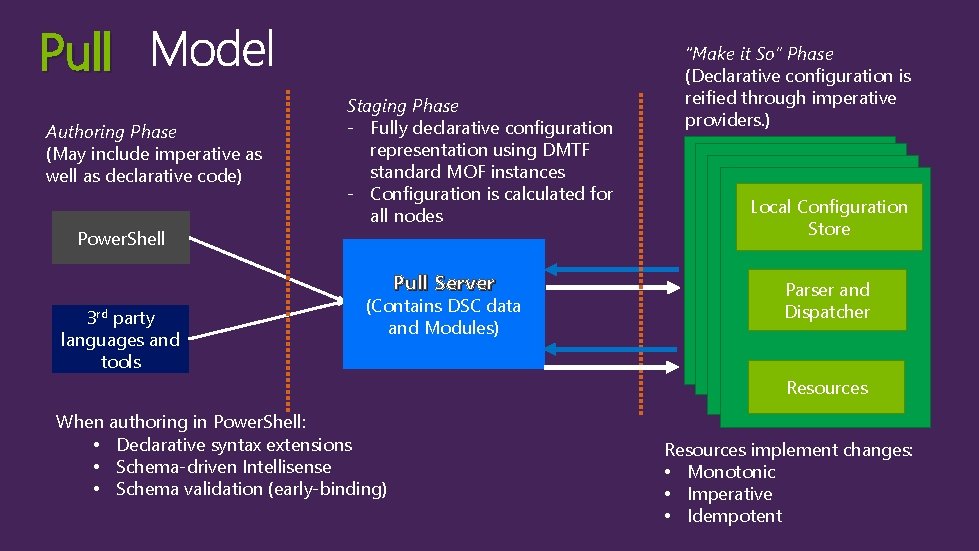

Pull Authoring Phase (May include imperative as well as declarative code) Power. Shell Staging Phase - Fully declarative configuration representation using DMTF standard MOF instances - Configuration is calculated for all nodes Pull Server 3 rd party languages and tools (Contains DSC data and Modules) “Make it So” Phase (Declarative configuration is reified through imperative providers. ) Local Configuration Store Parser and Dispatcher Resources When authoring in Power. Shell: • Declarative syntax extensions • Schema-driven Intellisense • Schema validation (early-binding) Resources implement changes: • Monotonic • Imperative • Idempotent

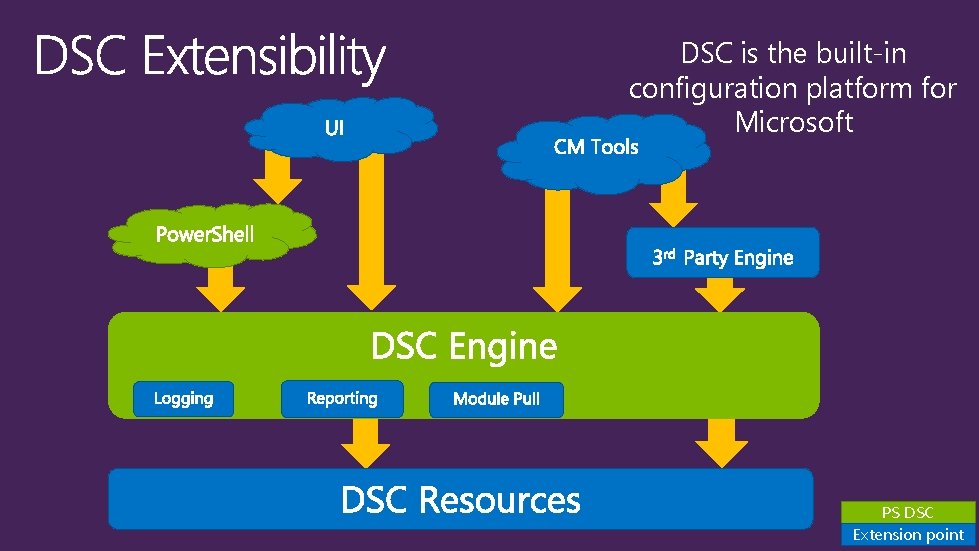

DSC is the built-in configuration platform for Microsoft PS DSC Extension point

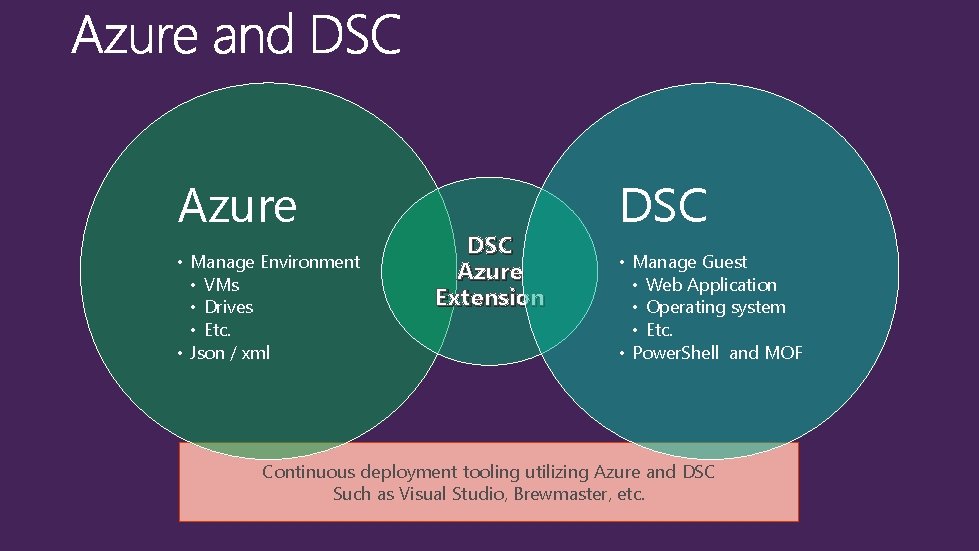

Azure • Manage Environment • VMs • Drives • Etc. • Json / xml DSC Azure Extension DSC • Manage Guest • Web Application • Operating system • Etc. • Power. Shell and MOF Continuous deployment tooling utilizing Azure and DSC Such as Visual Studio, Brewmaster, etc.

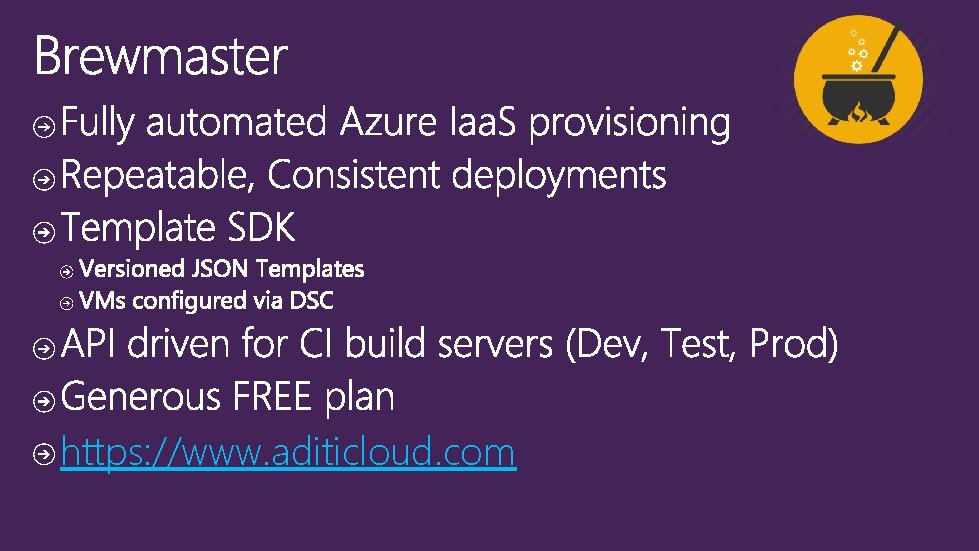

https: //www. aditicloud. com

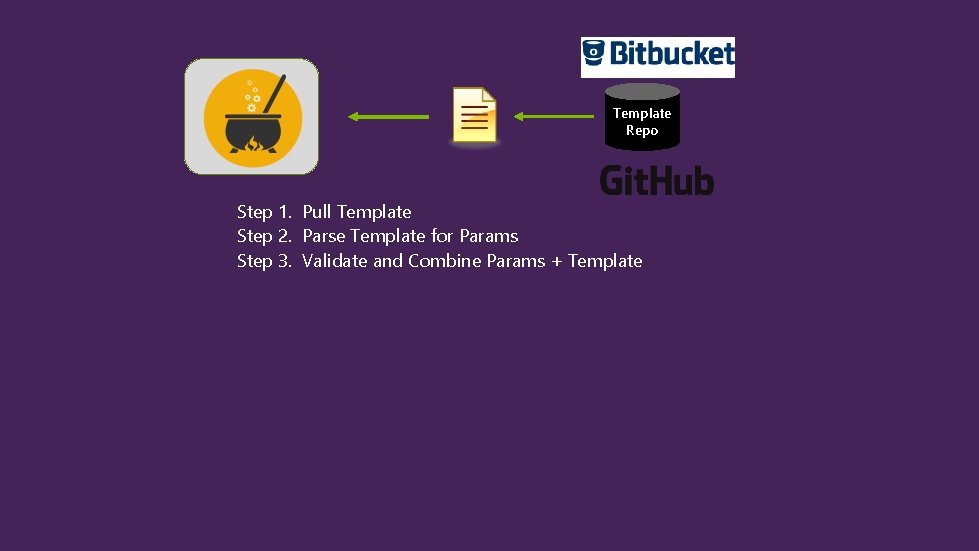

Template Repo Step 1. Pull Template Step 2. Parse Template for Params Step 3. Validate and Combine Params + Template

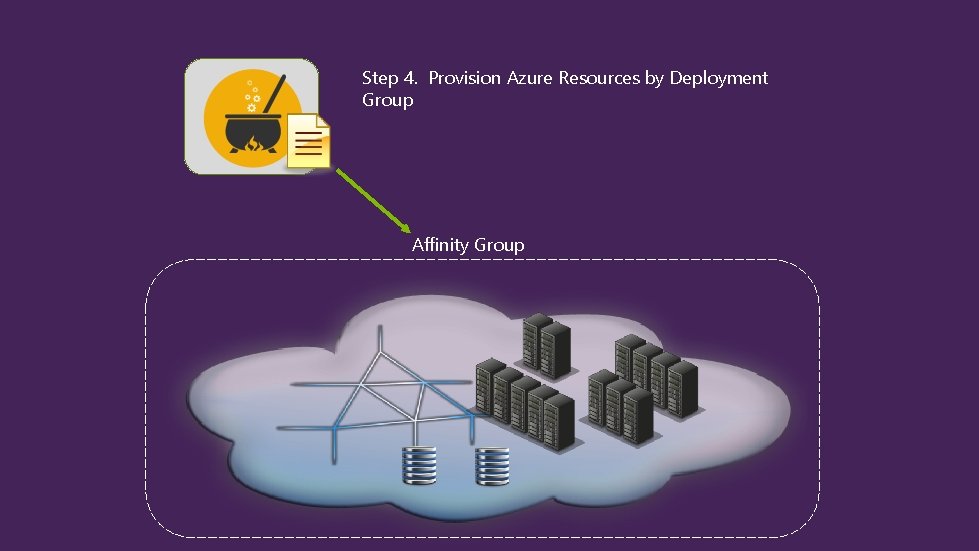

Step 4. Provision Azure Resources by Deployment Group Affinity Group

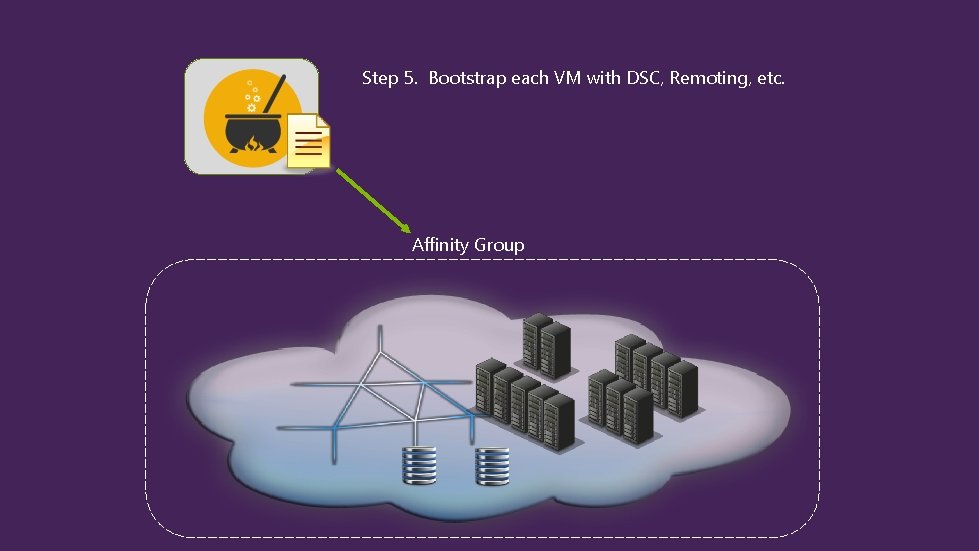

Step 5. Bootstrap each VM with DSC, Remoting, etc. Affinity Group

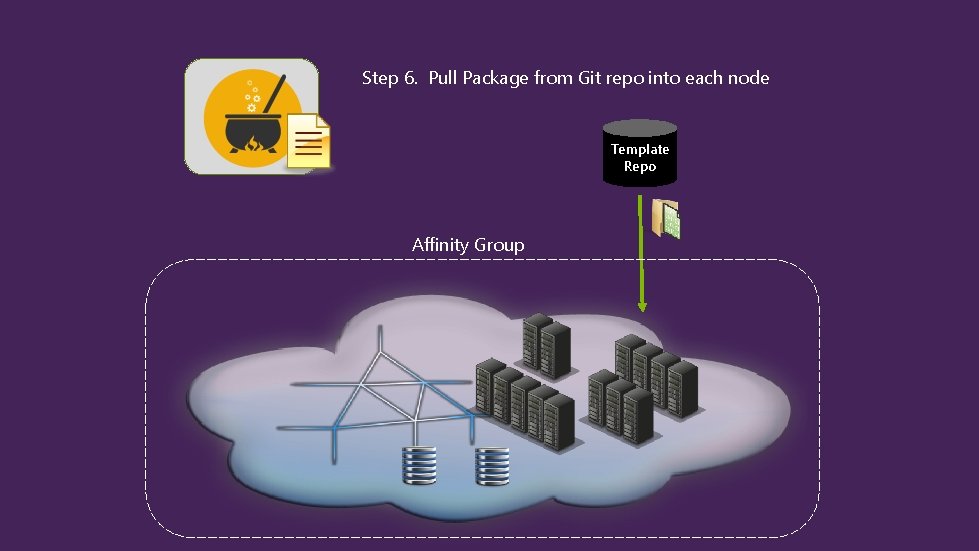

Step 6. Pull Package from Git repo into each node Template Repo Affinity Group

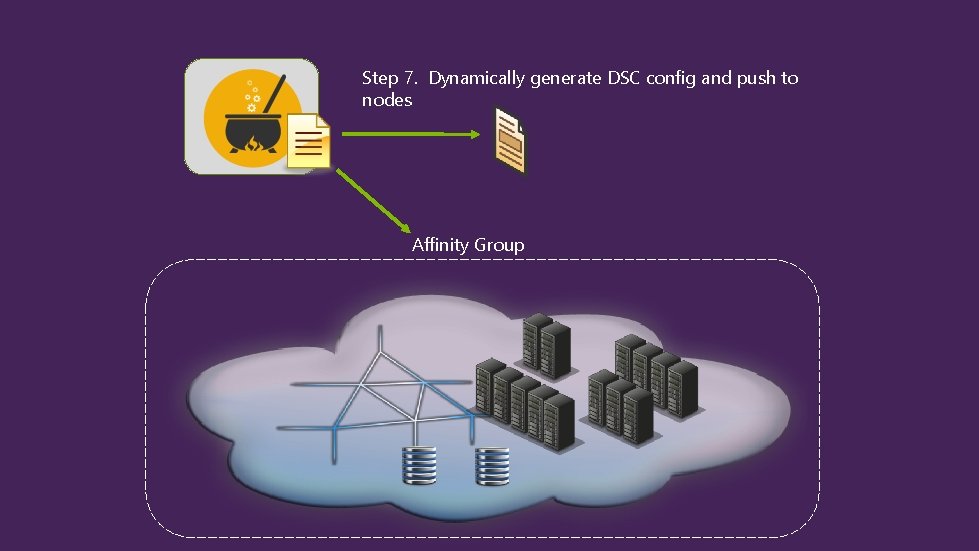

Step 7. Dynamically generate DSC config and push to nodes Affinity Group

Step 8. Poll DSC operations and report progress Affinity Group

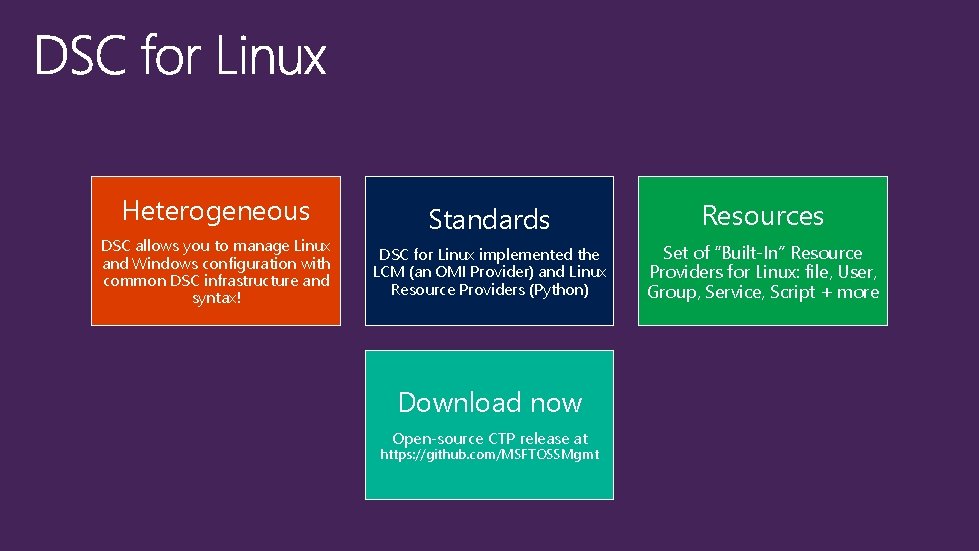

Heterogeneous DSC allows you to manage Linux and Windows configuration with common DSC infrastructure and syntax! Standards Resources DSC for Linux implemented the LCM (an OMI Provider) and Linux Resource Providers (Python) Set of “Built-In” Resource Providers for Linux: file, User, Group, Service, Script + more Download now Open-source CTP release at https: //github. com/MSFTOSSMgmt

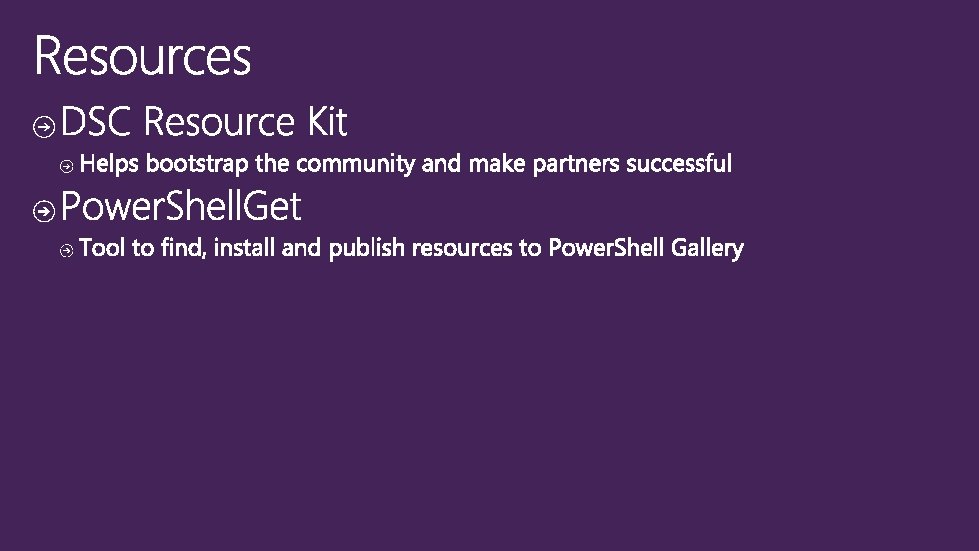

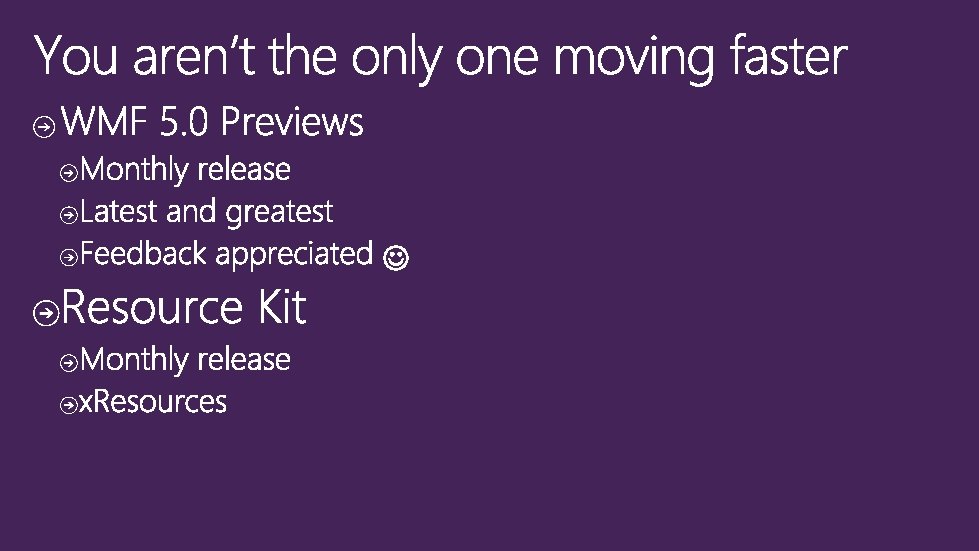

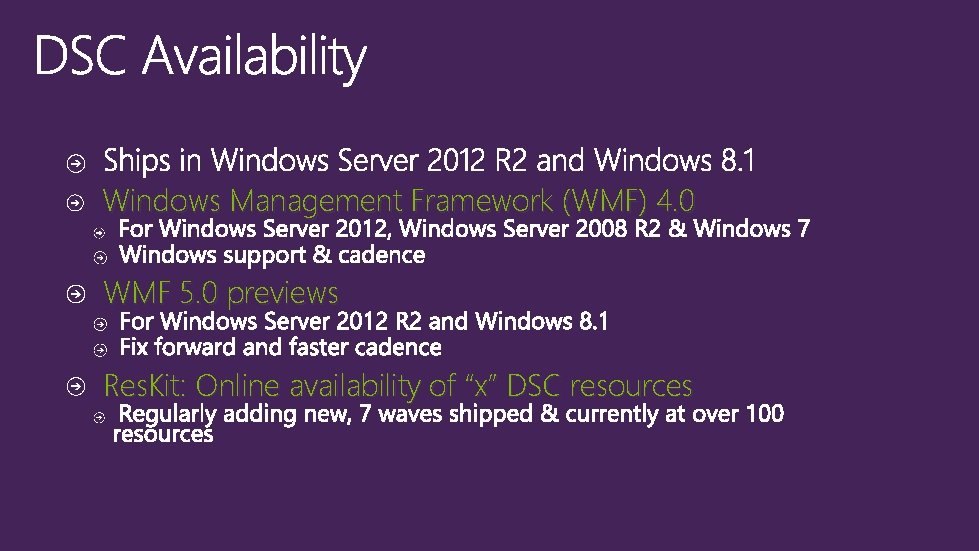

Windows Management Framework (WMF) 4. 0 WMF 5. 0 previews Res. Kit: Online availability of “x” DSC resources

Simplicity Velocity Flexibility • Declarative management • Configuration data • Resource reusability • Automation releases • Push/Pull deployments • Integrated Azure Extension • Engine settings

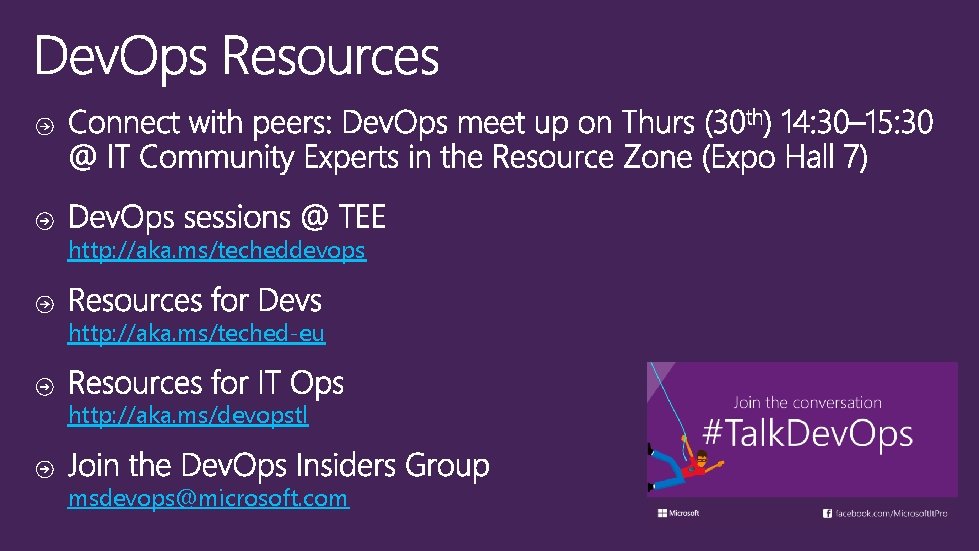

http: //aka. ms/techeddevops http: //aka. ms/teched-eu http: //aka. ms/devopstl msdevops@microsoft. com

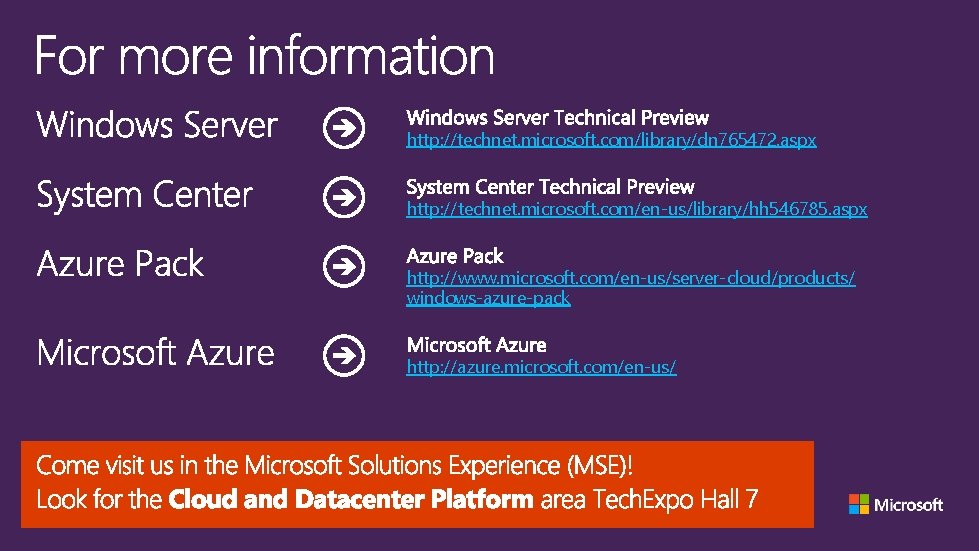

http: //technet. microsoft. com/library/dn 765472. aspx http: //technet. microsoft. com/en-us/library/hh 546785. aspx http: //www. microsoft. com/en-us/server-cloud/products/ windows-azure-pack http: //azure. microsoft. com/en-us/
