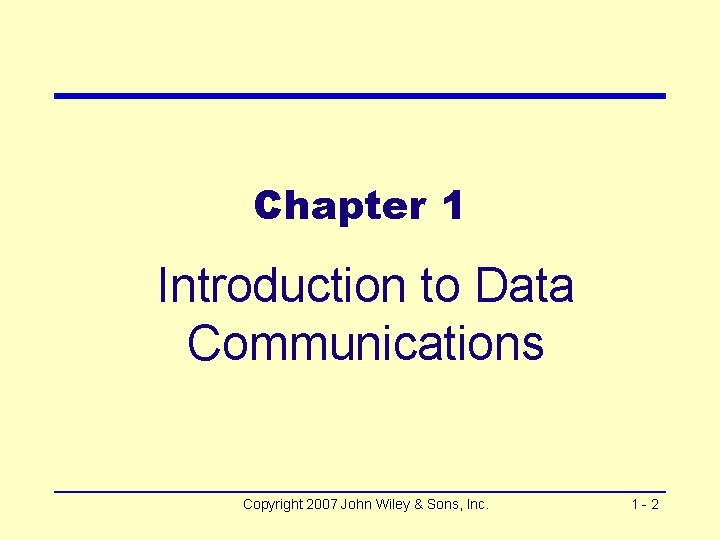

Chapter 1 Introduction to Data Communications Copyright 2007 John Wiley & Sons, Inc. 1 -2

Chapter 1 Outline • Brief history of Data Communications – Communications, Information Systems and the Internet • Data Communications Networks – Network components, network types • Network Models – OSI model, Internet model, transmission via “layers” • Network Standards – Standards making, common standards • Future Trends – Pervasive networking, integration of voice, video, and data, new information services Copyright 2007 John Wiley & Sons, Inc. 1 -3

Information Age • First Industrial Revolution – Introduction of machinery – New organizational methods – Changed the way people worked • Second Industrial Revolution – Information Age – Introduction of computers – Introduction of networking and data communication – Changed the way people worked again • Faster communication Collapsing Information lag • Brought people together Globalization Copyright 2007 John Wiley & Sons, Inc. 1 -4

The Collapsing Information Lag Historical developments in electronic communications sped up the rate and volume of transmission of information telegraph 1850 Information took days or weeks to be transmitted 1900 1950 Information transmitted in minutes or hours growth of telecommunications and especially computer networks Copyright 2007 John Wiley & Sons, Inc. 2007 large quantities of information transmitted in a fraction of a second Globalization of networks 1 -5

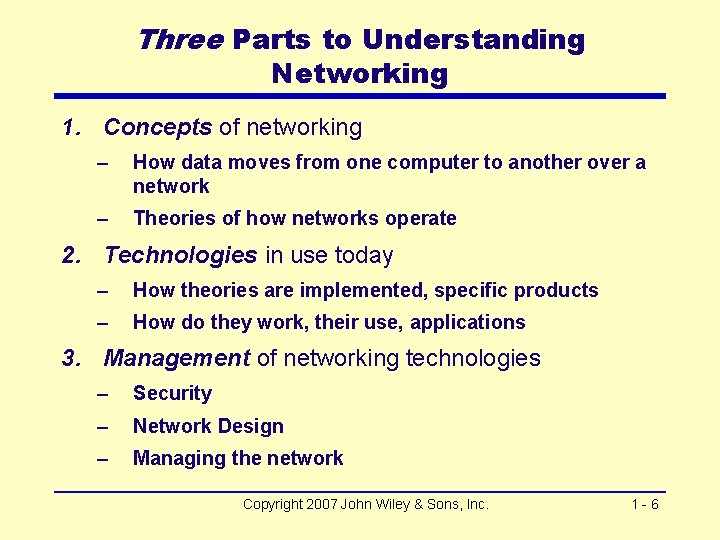

Three Parts to Understanding Networking 1. Concepts of networking – How data moves from one computer to another over a network – Theories of how networks operate 2. Technologies in use today – How theories are implemented, specific products – How do they work, their use, applications 3. Management of networking technologies – Security – Network Design – Managing the network Copyright 2007 John Wiley & Sons, Inc. 1 -6

Advances in Phone Technology first transcontinental and transatlantic Phone phone invented connections 1876 1915 Telstar (Telecommunications via satellite), Fax services, digital transmission (Tcarriers) 1948 1962 1976 1969 1919 Strowger (stepper) switch, rotary dial phones (enabling automatic connections) Packet-switched data communications Microwave trunk lines (Canada) Picturefone (failed commercially) Copyright 2007 John Wiley & Sons, Inc. 1984 Cellular telephone 1 -7

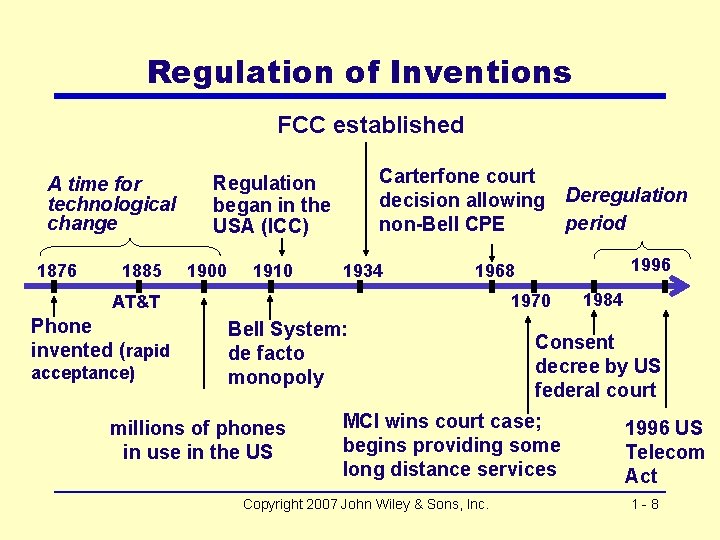

Regulation of Inventions FCC established A time for technological change 1876 1885 Carterfone court decision allowing Deregulation period non-Bell CPE Regulation began in the USA (ICC) 1900 1910 1934 1970 AT&T Phone invented (rapid acceptance) 1996 1968 Bell System: de facto monopoly millions of phones in use in the US Consent decree by US federal court MCI wins court case; begins providing some long distance services Copyright 2007 John Wiley & Sons, Inc. 1984 1996 US Telecom Act 1 -8

1984 Consent Decree Divestiture of 1/1/84: RBOC’s • AT&T broken up into one long distance company (AT&T) and 7 Regional Bell Operating Companies (RBOC’s) Deregulation: IXC’s and LEC’s • Competitive long distance (IXC) market; MCI & Sprint enter long distance telephone market (among others) • Local Exchange Carrier (LEC) service markets remained under RBOC monopoly Copyright 2007 John Wiley & Sons, Inc. 1 -9

US Telecom Act of 1996 • Replaced all current laws, FCC regulations, 1984 consent decree, and overrules state laws • Main goal: open local markets to competition • To date, though, local and long distance competition slow to take hold – Large IXCs expected to move into the local markets, happening only recently – Likewise, RBOCs expected to move into long distance markets, happening only recently Copyright 2007 John Wiley & Sons, Inc. 1 - 10

Worldwide Competitive Markets • Internet market – Extremely competitive with more than 5000 Internet Service Providers (ISPs) in the US alone. – Heavy competition in this area may lead to a shake out in the near future. • World Trade Organization (WTO) agreement (1997) – commitments by 68 countries to open, deregulate or lessen regulation in their telecom markets • Multi-national telecom companies – US companies offering services in Europe, South America – European companies offering services in USA Copyright 2007 John Wiley & Sons, Inc. 1 - 11

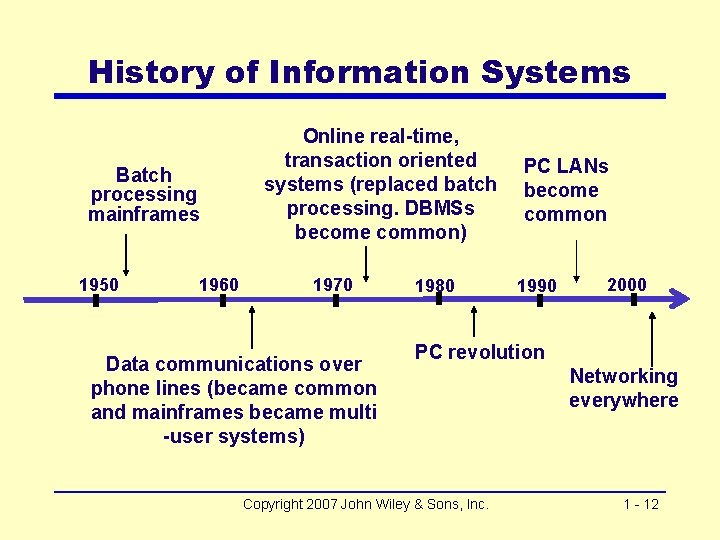

History of Information Systems Batch processing mainframes 1950 1960 Online real-time, transaction oriented systems (replaced batch processing. DBMSs become common) 1970 Data communications over phone lines (became common and mainframes became multi -user systems) 1980 PC LANs become common 1990 2000 PC revolution Copyright 2007 John Wiley & Sons, Inc. Networking everywhere 1 - 12

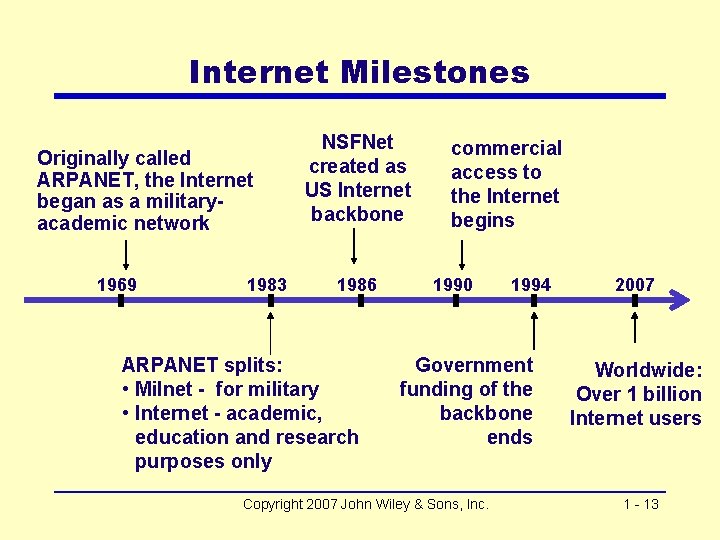

Internet Milestones Originally called ARPANET, the Internet began as a militaryacademic network 1969 1983 NSFNet created as US Internet backbone 1986 ARPANET splits: • Milnet - for military • Internet - academic, education and research purposes only commercial access to the Internet begins 1990 1994 Government funding of the backbone ends Copyright 2007 John Wiley & Sons, Inc. 2007 Worldwide: Over 1 billion Internet users 1 - 13

Datacom Basics Telecommunications = Transmission of voice, video, and/or data - Implies longer distances - Broad term Data Communications = Movement of computer information by means of electrical or optical transmission systems convergence Broadband Communications Copyright 2007 John Wiley & Sons, Inc. 1 - 14

Components of a Local Area Network To other networks (e. g. , Internet) Router Servers File Server HUB Client Web Server Computers Circuits Print Server Printer Copyright 2007 John Wiley & Sons, Inc. 1 - 15

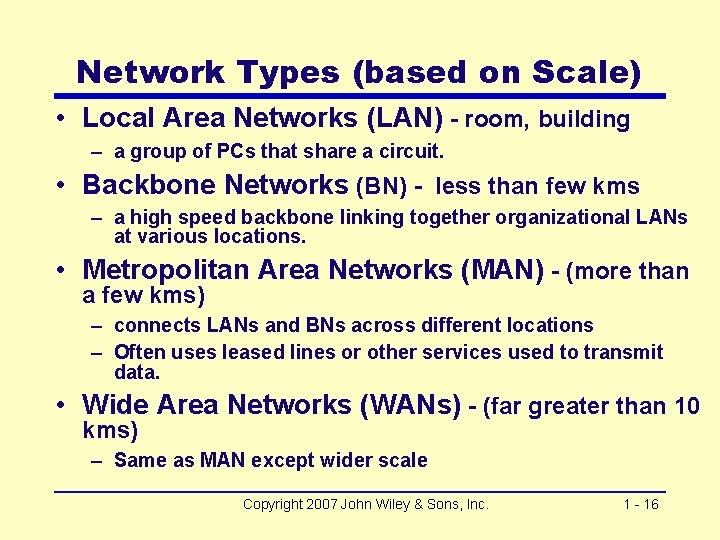

Network Types (based on Scale) • Local Area Networks (LAN) - room, building – a group of PCs that share a circuit. • Backbone Networks (BN) - less than few kms – a high speed backbone linking together organizational LANs at various locations. • Metropolitan Area Networks (MAN) - (more than a few kms) – connects LANs and BNs across different locations – Often uses leased lines or other services used to transmit data. • Wide Area Networks (WANs) - (far greater than 10 kms) – Same as MAN except wider scale Copyright 2007 John Wiley & Sons, Inc. 1 - 16

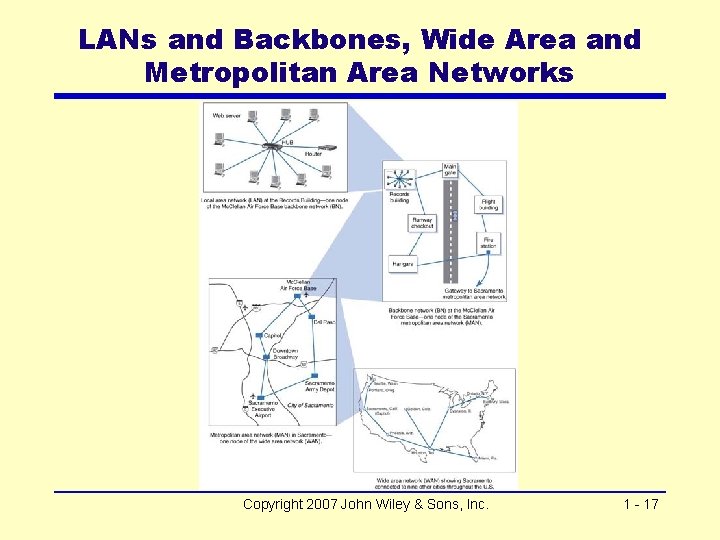

LANs and Backbones, Wide Area and Metropolitan Area Networks Copyright 2007 John Wiley & Sons, Inc. 1 - 17

Intranet vs. Extranet • Intranet – A LAN that uses the Internet technologies within an organization – Open only those inside the organization – Example: insurance related information provided to employees over an intranet • Extranet – A LAN that uses the Internet technologies across an organization including some external constituents – Open only those invited users outside the organization – Accessible through the Internet – Example: Suppliers and customers accessing inventory information in a company over an extranet Copyright 2007 John Wiley & Sons, Inc. 1 - 18

Layered Implementation of Communications Functions Communication OS Communication Applications Single layer implementation Applications -Networking with large components is complex to understand implement OS Applications OS OS Multi layer implementation -Breaking down into smaller components -Easier to implement Copyright 2007 John Wiley & Sons, Inc. 1 - 19

Multi-layer Network Models • The two most important such network models: OSI and Internet • Open Systems Interconnection Model – Created by International Standards Organization (ISO) as a framework for computer network standards in 1984 – Based on 7 layers • Internet Model – – Created by DARPA originally in early 70’s Developed to solve to the problem of internetworking Based on 5 layers Based on Transmission Control Protocol/ Internet Protocol (TCP/IP) suite Copyright 2007 John Wiley & Sons, Inc. 1 - 20

7 -Layer Model of OSI Physical Data. Link Network Transport Session Presentation Application “Please Do Not Touch Steve’s Pet Alligators” • Application Layer – set of utilities used by application programs • Presentation Layer – formats data for presentation to the user – provides data interfaces, data compression and translation between different data formats • Session Layer – initiates, maintains and terminates each logical session between sender and receiver Copyright 2007 John Wiley & Sons, Inc. 1 - 21

7 -Layer Model of OSI • Transport Layer – deals with end-to-end issues such as segmenting the message for network transport, and maintaining the logical connections between sender and receiver • Network Layer – responsible for making routing decisions • Data Link Layer – deals with message delineation, error control and network medium access control • Physical Layer – defines how individual bits are formatted to be transmitted through the network Copyright 2007 John Wiley & Sons, Inc. 1 - 22

Internet’s 5 -Layer Model Physical Data. Link Network Transport Application “Please Do Not Touch Alligators” • Application Layer – used by application program • Transport Layer – responsible for establishing end-to-end connections, translates domain names into numeric addresses and segments messages • Network Layer - same as in OSI model • Data Link Layer - same as in OSI model • Physical Layer - same as in OSI model Copyright 2007 John Wiley & Sons, Inc. 1 - 23

Comparison of Network Models Copyright 2007 John Wiley & Sons, Inc. 1 - 24

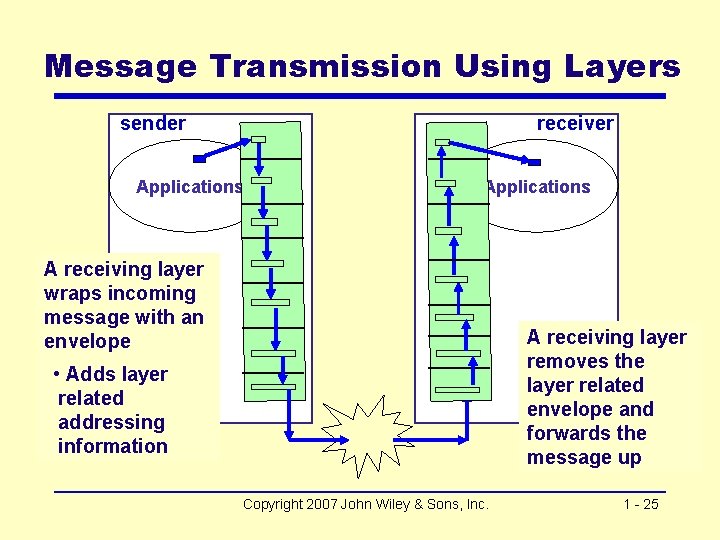

Message Transmission Using Layers sender receiver Applications A receiving layer wraps incoming message with an envelope A receiving layer removes the layer related envelope and forwards the message up • Adds layer related addressing information Copyright 2007 John Wiley & Sons, Inc. 1 - 25

Protocols • Used by Network model layers • Sets of standardized rules to define how to communicate at each layer and how to interface with adjacent layers Layer N+1 Layer N-1 sender receiver Copyright 2007 John Wiley & Sons, Inc. 1 - 26

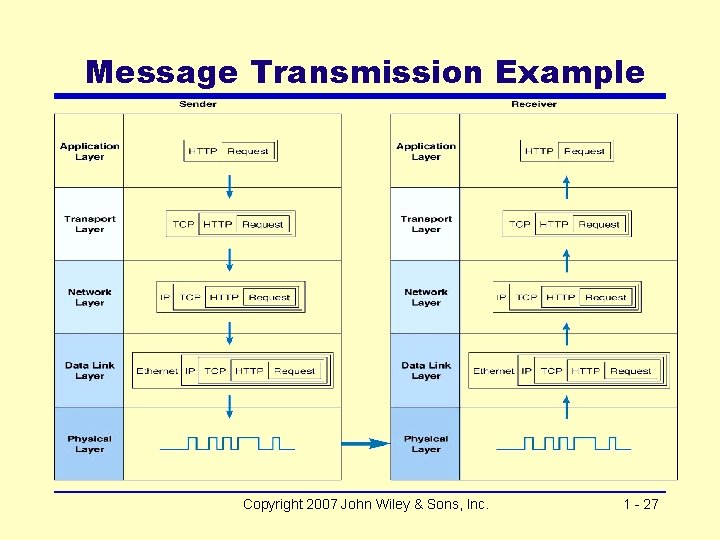

Message Transmission Example Copyright 2007 John Wiley & Sons, Inc. 1 - 27

Points about Network Layer View • Layers allow simplicity of networking in some ways – Easy to develop new software that fits each layer – Relatively simple to change the software at any level • Matching layers communicate between different computers and computer platforms – Accomplished by standards that we all agree on – e. g. , Physical layer at the sending computer must match up with the same layer in the receiving computer • Somewhat inefficient – Involves many software packages and packets – Packet overhead (slower transmission, processing time) – Interoperability achieved at the expense of perfectly streamlined communication Copyright 2007 John Wiley & Sons, Inc. 1 - 28

Standards • Importance – Provide a “fixed” way for hardware and/or software systems (different companies) to communicate – Help promote competition and decrease the price • Types of Standards – Formal standards • Developed by an industry or government standardsmaking body – De-facto standards • Emerge in the marketplace and widely used • Lack official backing by a standards-making body Copyright 2007 John Wiley & Sons, Inc. 1 - 29

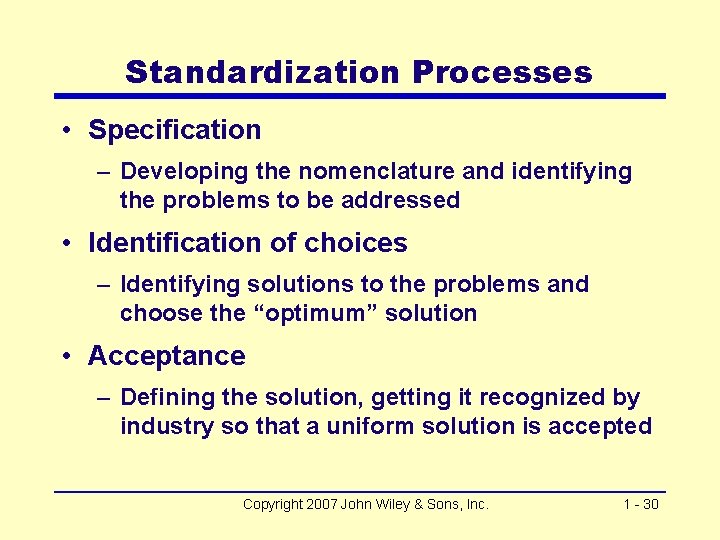

Standardization Processes • Specification – Developing the nomenclature and identifying the problems to be addressed • Identification of choices – Identifying solutions to the problems and choose the “optimum” solution • Acceptance – Defining the solution, getting it recognized by industry so that a uniform solution is accepted Copyright 2007 John Wiley & Sons, Inc. 1 - 30

Major Standards Bodies • ISO (International Organization for Standardization) – Technical recommendations for data communication interfaces – Composed of each country’s national standards orgs. – Based in Geneva, Switzerland (www. iso. ch) • ITU-T (International Telecommunications Union – Telecom Group – Technical recommendations about telephone, telegraph and data communications interfaces – Composed of representatives from each country in UN – Based in Geneva, Switzerland (www. itu. int) Copyright 2007 John Wiley & Sons, Inc. 1 - 31

Major Standards Bodies (Cont. ) • ANSI (American National Standards Institute) – Coordinating organization for US (not a standardsmaking body) – www. ansi. org • IEEE (Institute of Electrical and Electronic Engineers) – Professional society; also develops mostly LAN standards – standards. ieee. org • IETF (Internet Engineering Task Force) – Develops Internet standards – No official membership (anyone welcome) – www. ietf. org Copyright 2007 John Wiley & Sons, Inc. 1 - 32

Some Data Comm. Standards Layer Common Standards 5. Application layer HTTP, HTML (Web) MPEG, H. 323 (audio/video) IMAP, POP (e-mail) 4. Transport layer TCP (Internet) SPX (Novell LANs) 3. Network layer IP (Internet) IPX (Novell LANs) 2. Data link layer 1. Physical layer Ethernet (LAN) Frame Relay (WAN) PPP (dial-up via modem for MAN) RS-232 c cable (LAN) Category 5 twisted pair (LAN) V. 92 (56 kbps modem) Copyright 2007 John Wiley & Sons, Inc. 1 - 33

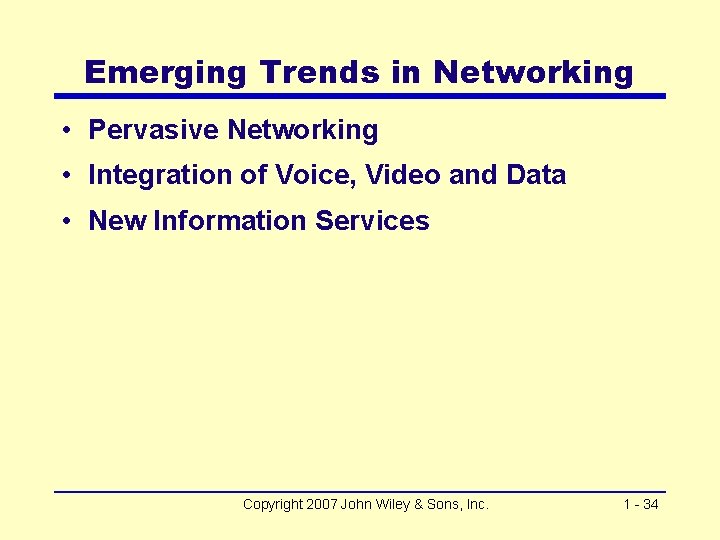

Emerging Trends in Networking • Pervasive Networking • Integration of Voice, Video and Data • New Information Services Copyright 2007 John Wiley & Sons, Inc. 1 - 34

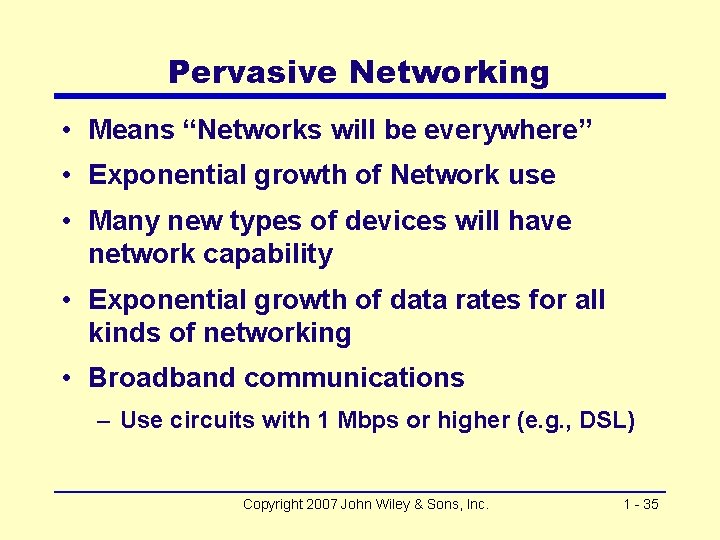

Pervasive Networking • Means “Networks will be everywhere” • Exponential growth of Network use • Many new types of devices will have network capability • Exponential growth of data rates for all kinds of networking • Broadband communications – Use circuits with 1 Mbps or higher (e. g. , DSL) Copyright 2007 John Wiley & Sons, Inc. 1 - 35

Relative Capacities of Telephone, LAN, BN, WAN, and Internet Circuits. Copyright 2007 John Wiley & Sons, Inc. 1 - 36

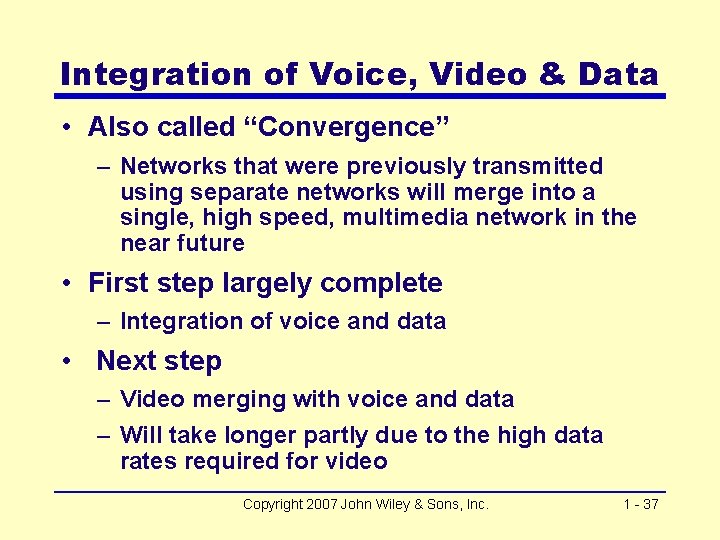

Integration of Voice, Video & Data • Also called “Convergence” – Networks that were previously transmitted using separate networks will merge into a single, high speed, multimedia network in the near future • First step largely complete – Integration of voice and data • Next step – Video merging with voice and data – Will take longer partly due to the high data rates required for video Copyright 2007 John Wiley & Sons, Inc. 1 - 37

New Information Services • World Wide Web based – Many new types of information services becoming available • Services that help ensure quality of information received over www • Application Service Providers (ASPs) – Develop specific systems for companies such as providing and operating a payroll system for a company that does not have one of its own • Information Utilities (Future of ASPs) – Providing a wide range of info services (email, web, payroll, etc. ) (similar to electric or water utilities) Copyright 2007 John Wiley & Sons, Inc. 1 - 38

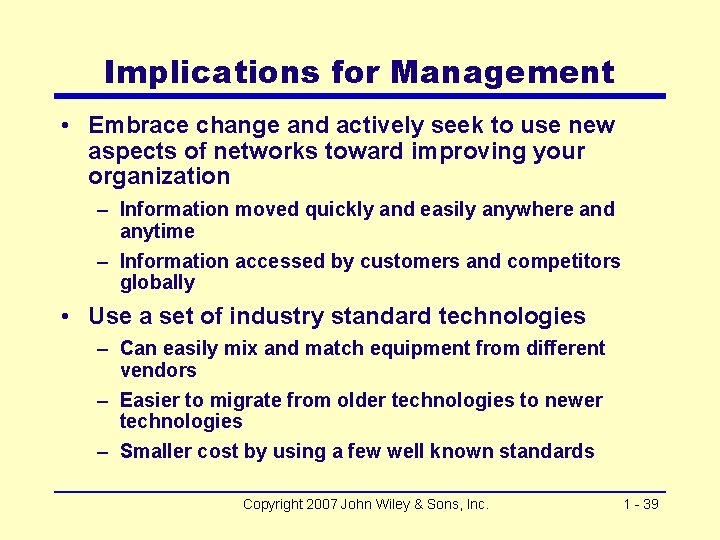

Implications for Management • Embrace change and actively seek to use new aspects of networks toward improving your organization – Information moved quickly and easily anywhere and anytime – Information accessed by customers and competitors globally • Use a set of industry standard technologies – Can easily mix and match equipment from different vendors – Easier to migrate from older technologies to newer technologies – Smaller cost by using a few well known standards Copyright 2007 John Wiley & Sons, Inc. 1 - 39
