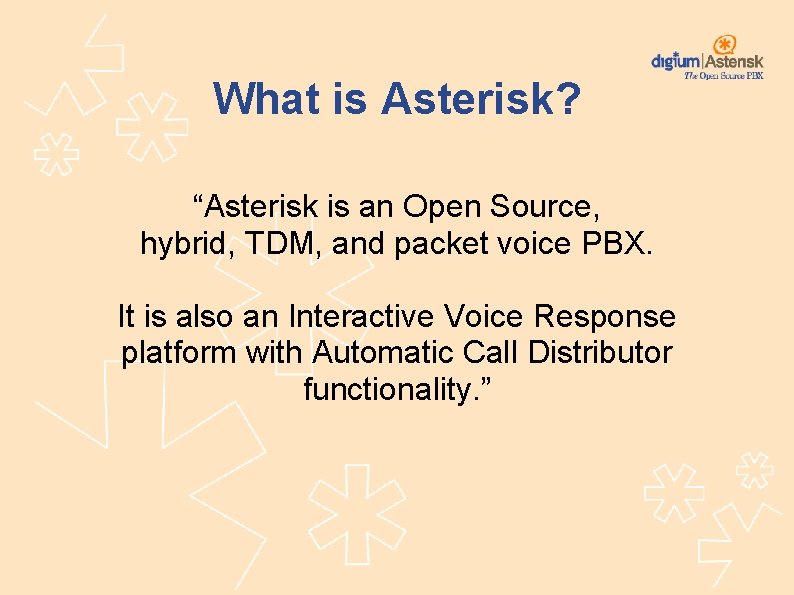

What is Asterisk? “Asterisk is an Open Source, hybrid, TDM, and packet voice PBX. It is also an Interactive Voice Response platform with Automatic Call Distributor functionality. ”
Asterisk is fully Open Source ! *
Asterisk supports TDM Technologies
Asterisk is a Private Branch Exchange (PBX)
Basic Call Features
Advanced Features
Asterisk Supports Vo. IP (Packet Voice)
Asterisk is an Interactive Voice Response (IVR) Platform

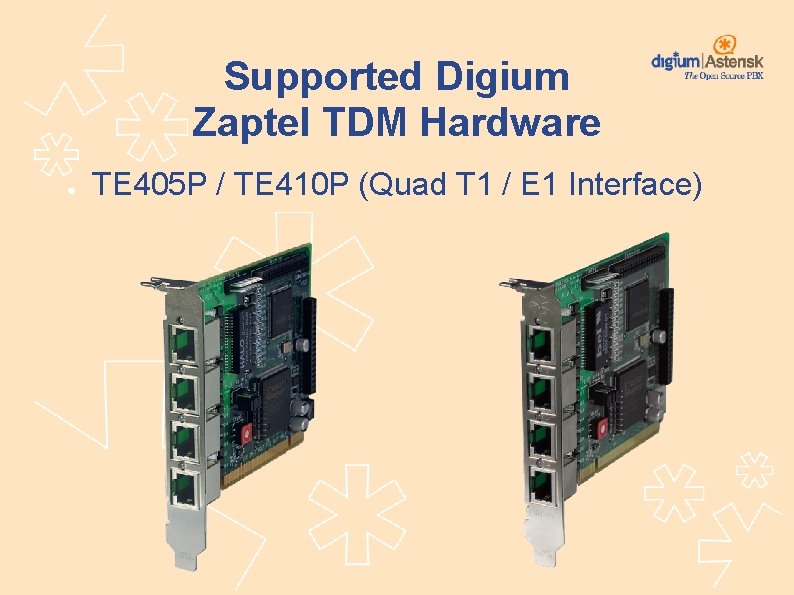

Supported Digium Zaptel TDM Hardware ● TE 405 P / TE 410 P (Quad T 1 / E 1 Interface)

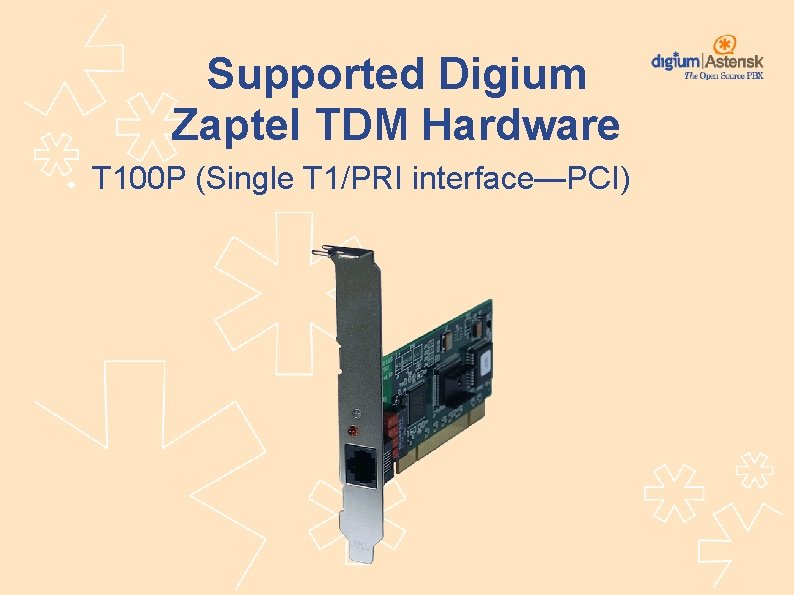

Supported Digium Zaptel TDM Hardware ● T 100 P (Single T 1/PRI interface—PCI)

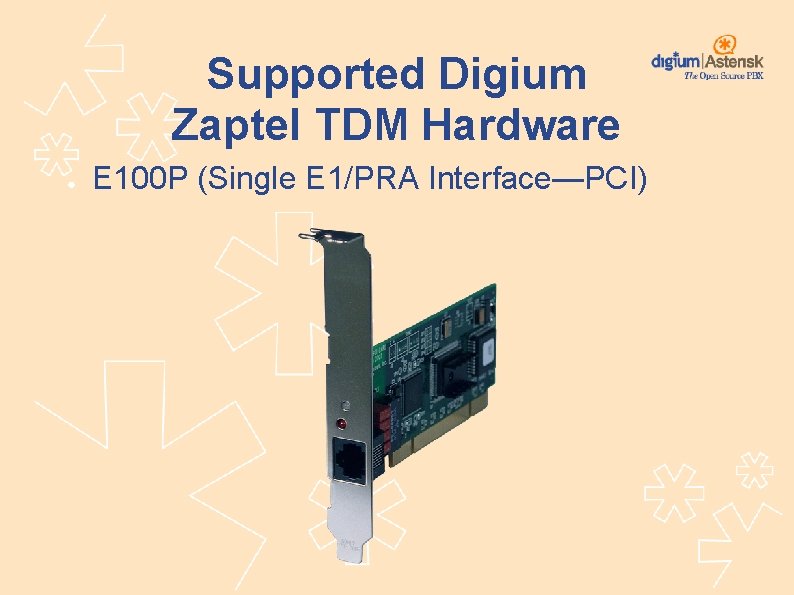

Supported Digium Zaptel TDM Hardware ● E 100 P (Single E 1/PRA Interface—PCI)

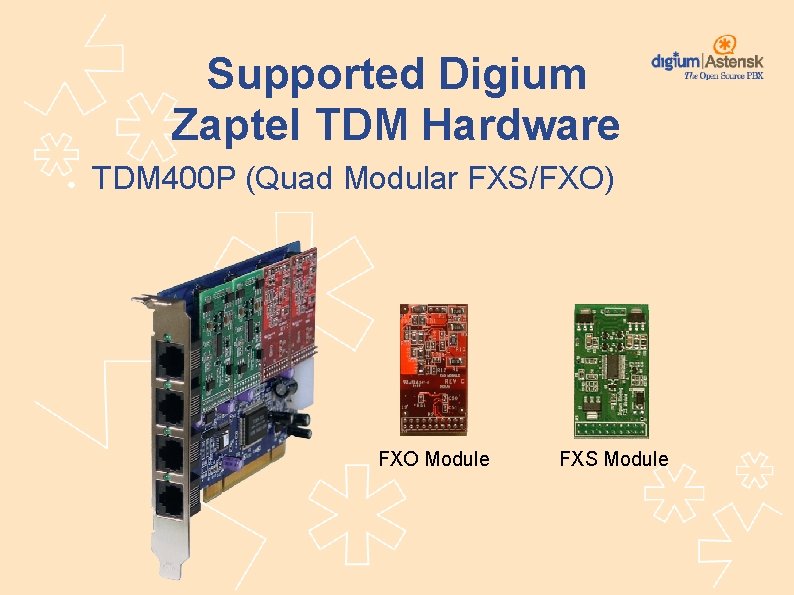

Supported Digium Zaptel TDM Hardware ● TDM 400 P (Quad Modular FXS/FXO) FXO Module FXS Module

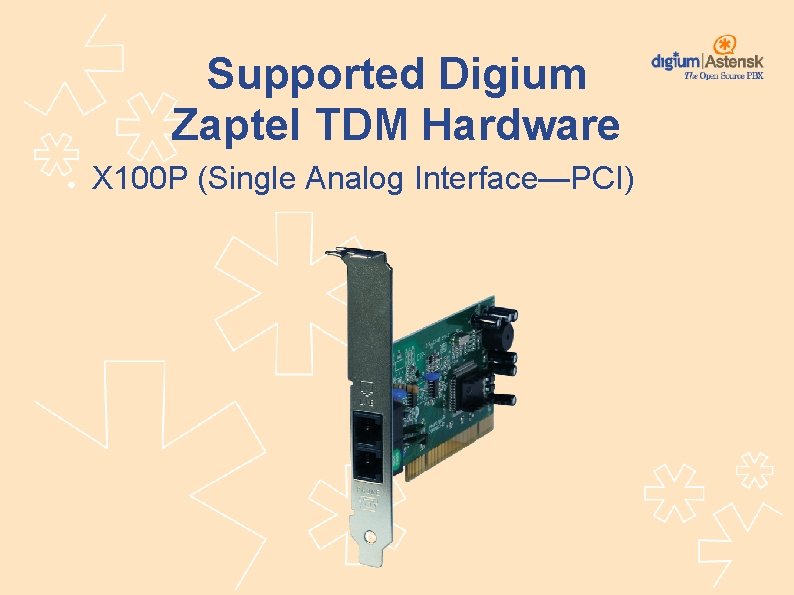

Supported Digium Zaptel TDM Hardware ● X 100 P (Single Analog Interface—PCI)

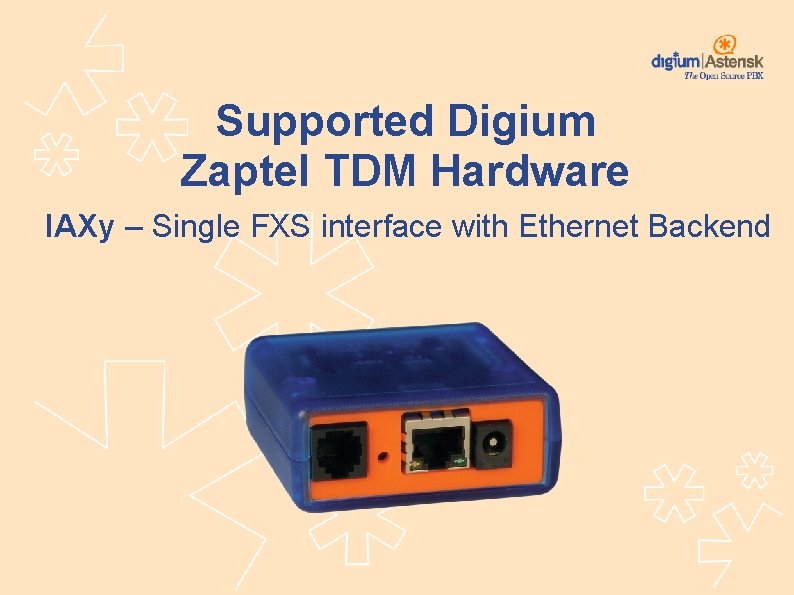

Supported Digium Zaptel TDM Hardware IAXy – Single FXS interface with Ethernet Backend

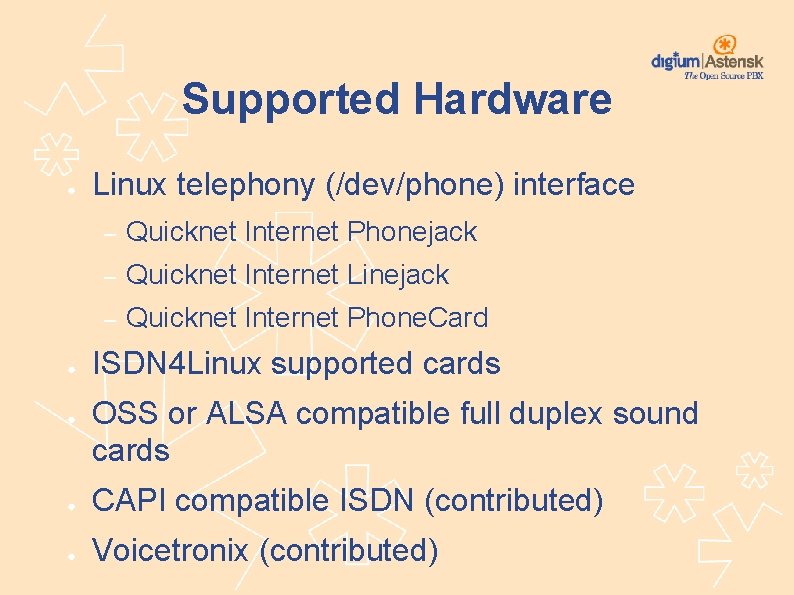

Supported Hardware ● ● ● Linux telephony (/dev/phone) interface – Quicknet Internet Phonejack – Quicknet Internet Linejack – Quicknet Internet Phone. Card ISDN 4 Linux supported cards OSS or ALSA compatible full duplex sound cards ● CAPI compatible ISDN (contributed) ● Voicetronix (contributed)
Why Asterisk for Telecom? *?
Asterisk as a Black Box

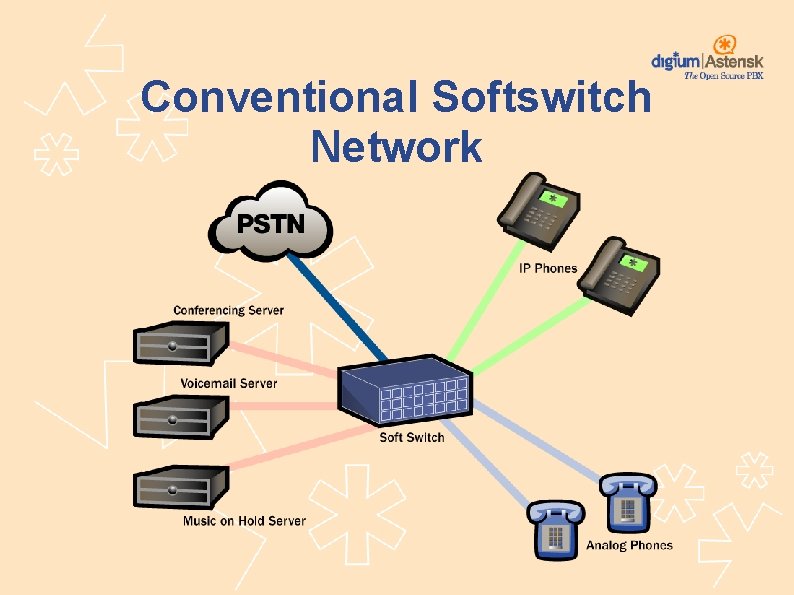

Conventional Softswitch Network

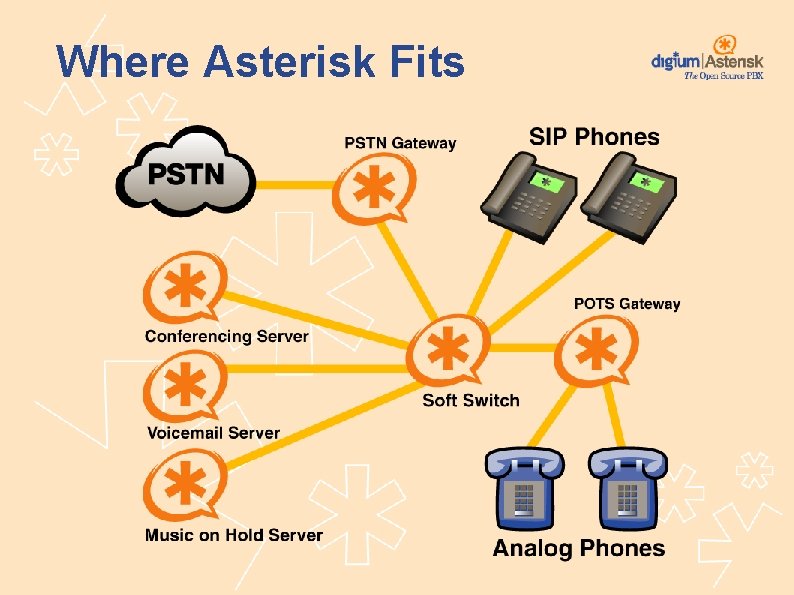

Where Asterisk Fits

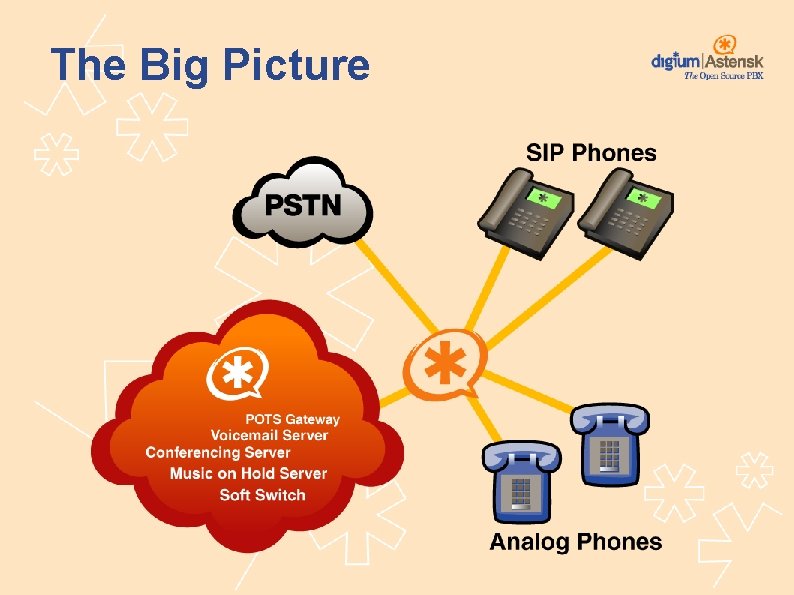

The Big Picture

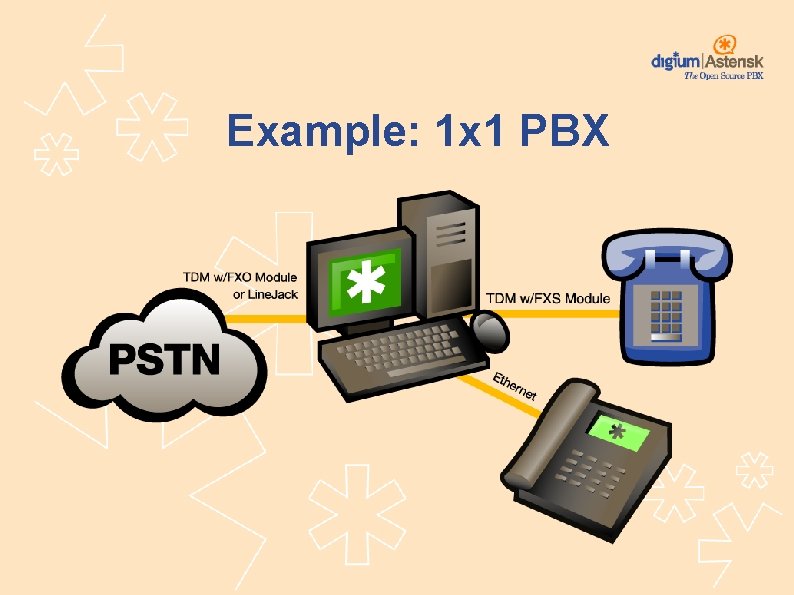

Example: 1 x 1 PBX
Example: 8 x 16 PBX

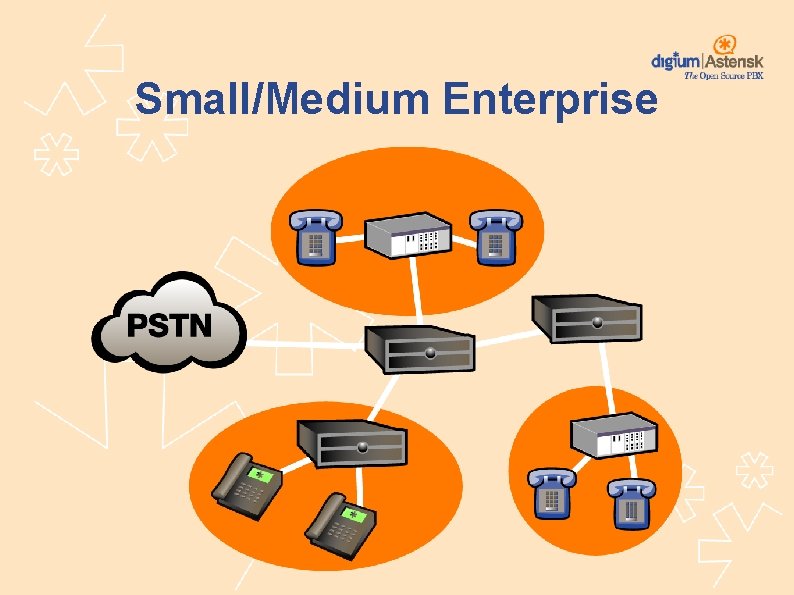

Small/Medium Enterprise

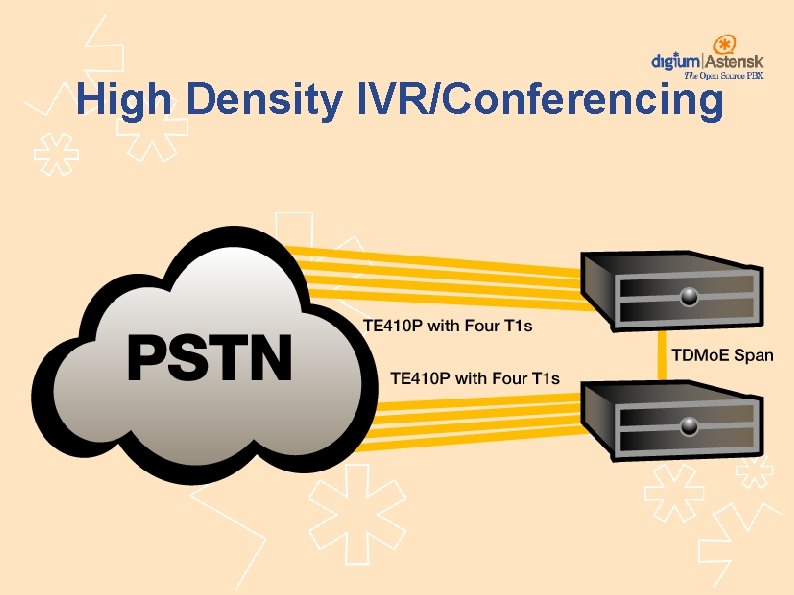

High Density IVR/Conferencing
Why Open Source— For Customers? ?
Why Open Source— For Suppliers? ?

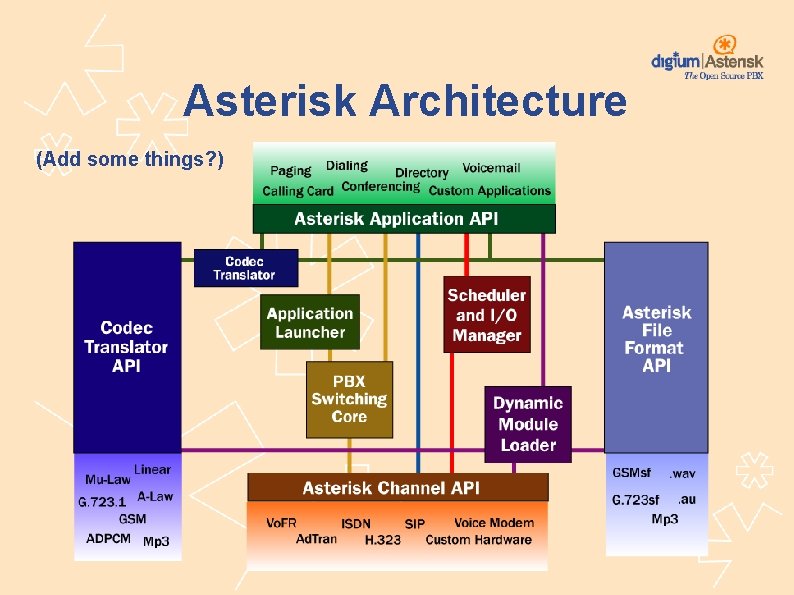

Asterisk Architecture (Add some things? )
The Asterisk Dialplan
Extension Contexts

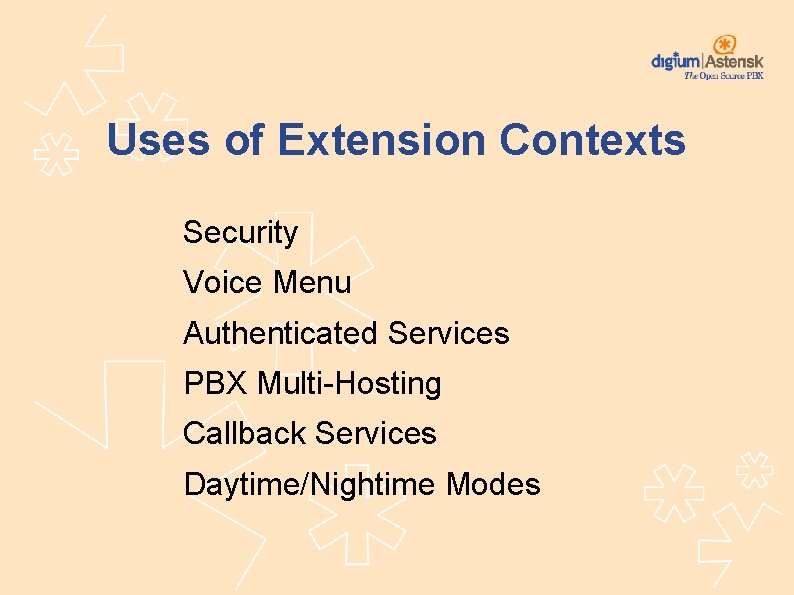

Uses of Extension Contexts Security Voice Menu Authenticated Services PBX Multi-Hosting Callback Services Daytime/Nightime Modes

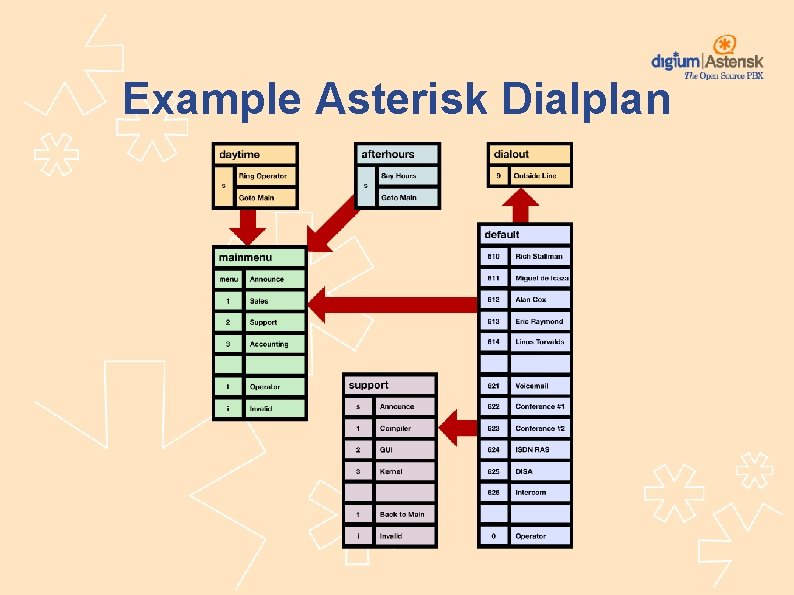

Example Asterisk Dialplan

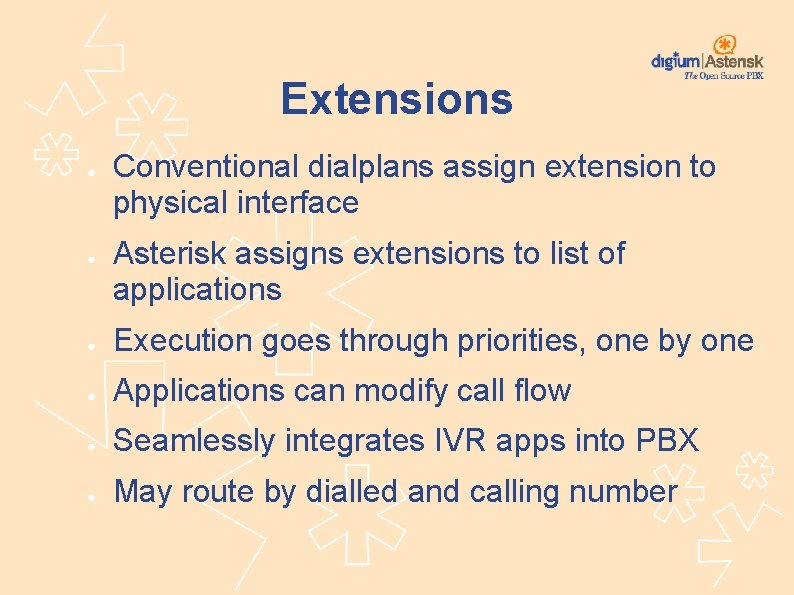

Extensions ● ● Conventional dialplans assign extension to physical interface Asterisk assigns extensions to list of applications ● Execution goes through priorities, one by one ● Applications can modify call flow ● Seamlessly integrates IVR apps into PBX ● May route by dialled and calling number

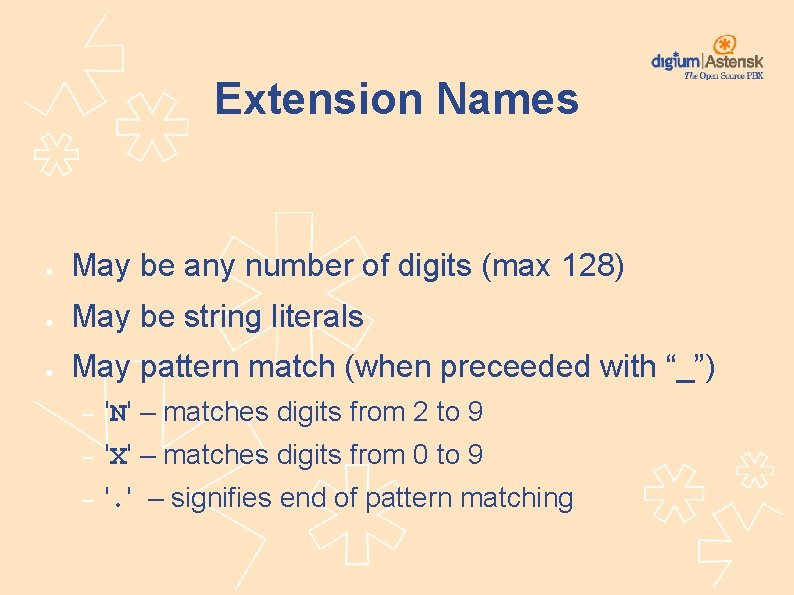

Extension Names ● May be any number of digits (max 128) ● May be string literals ● May pattern match (when preceeded with “_”) – 'N' – matches digits from 2 to 9 – 'X' – matches digits from 0 to 9 – '. ' – signifies end of pattern matching

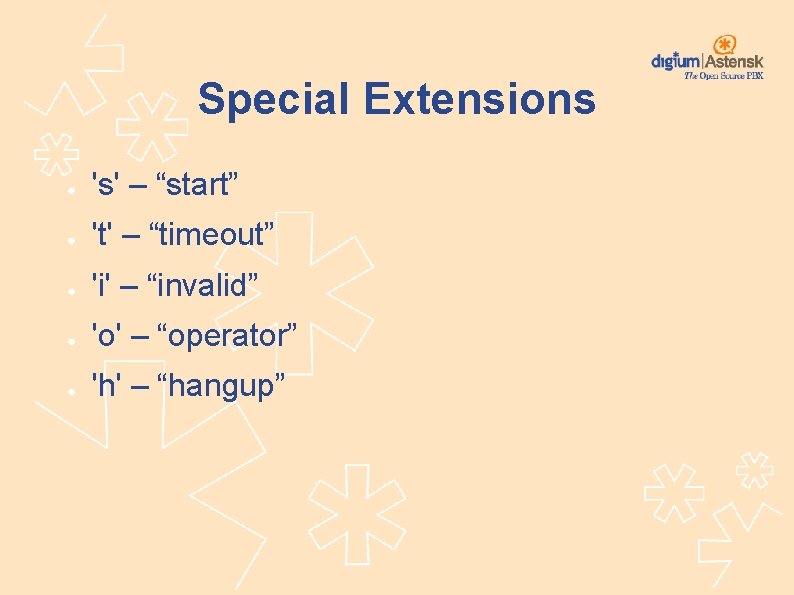

Special Extensions ● 's' – “start” ● 't' – “timeout” ● 'i' – “invalid” ● 'o' – “operator” ● 'h' – “hangup”

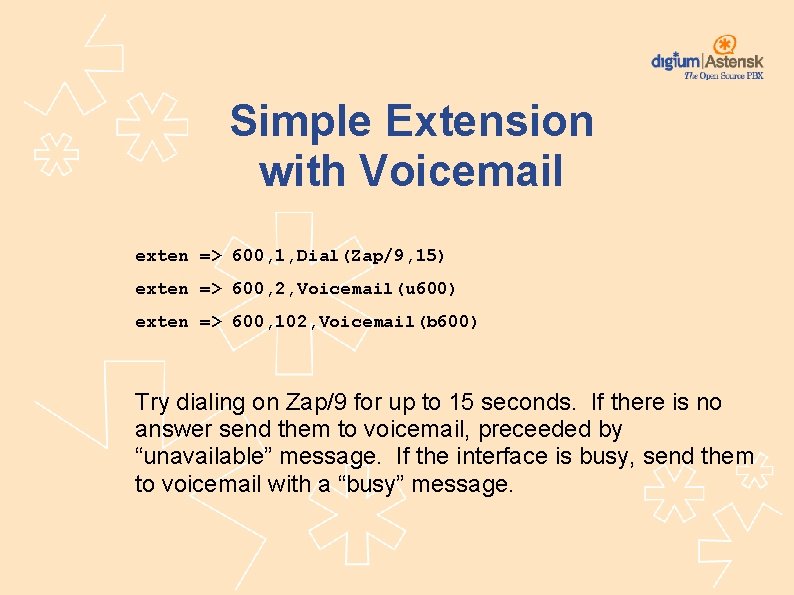

Simple Extension with Voicemail exten => 600, 1, Dial(Zap/9, 15) exten => 600, 2, Voicemail(u 600) exten => 600, 102, Voicemail(b 600) Try dialing on Zap/9 for up to 15 seconds. If there is no answer send them to voicemail, preceeded by “unavailable” message. If the interface is busy, send them to voicemail with a “busy” message.
Extension for Psycho Ex-girlfriend
Example: Operator
Example: Outgoing Line with Least Cost Routing

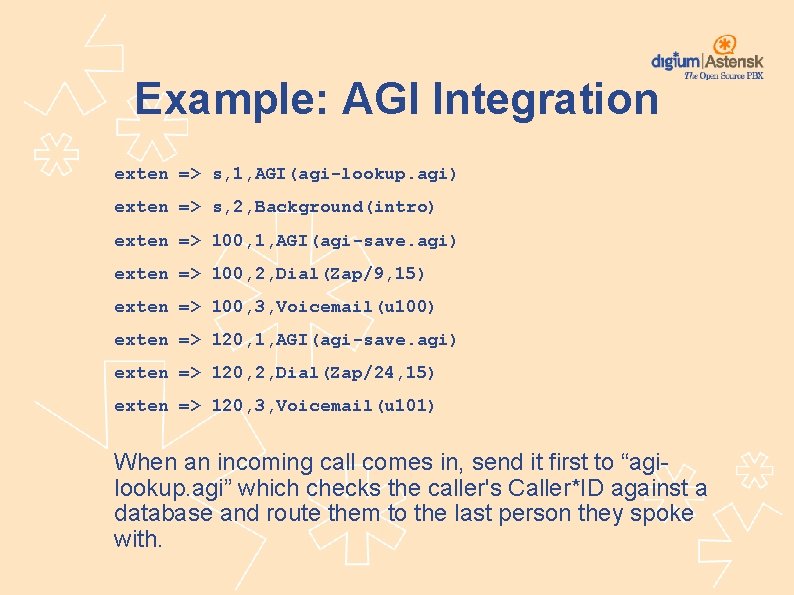

Example: AGI Integration exten => s, 1, AGI(agi-lookup. agi) exten => s, 2, Background(intro) exten => 100, 1, AGI(agi-save. agi) exten => 100, 2, Dial(Zap/9, 15) exten => 100, 3, Voicemail(u 100) exten => 120, 1, AGI(agi-save. agi) exten => 120, 2, Dial(Zap/24, 15) exten => 120, 3, Voicemail(u 101) When an incoming call comes in, send it first to “agilookup. agi” which checks the caller's Caller*ID against a database and route them to the last person they spoke with.
![Example: Ringback [ringback] exten => s, 1, Ringing exten => s, 2, Wait(1) exten](http://slidetodoc.com/presentation_image/5e57e095b2c79564f4ea48e97ae9cc00/image-41.jpg "Example: Ringback [ringback] exten => s, 1, Ringing exten => s, 2, Wait(1) exten")

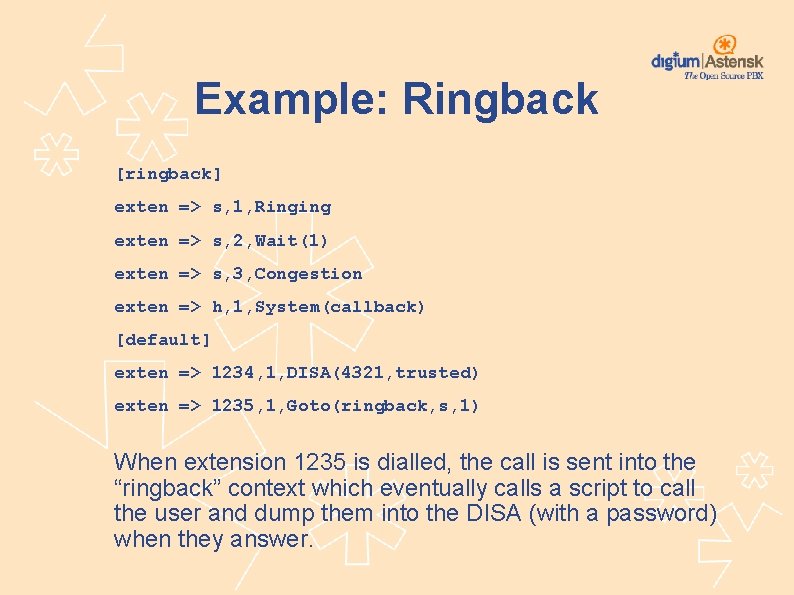

Example: Ringback [ringback] exten => s, 1, Ringing exten => s, 2, Wait(1) exten => s, 3, Congestion exten => h, 1, System(callback) [default] exten => 1234, 1, DISA(4321, trusted) exten => 1235, 1, Goto(ringback, s, 1) When extension 1235 is dialled, the call is sent into the “ringback” context which eventually calls a script to call the user and dump them into the DISA (with a password) when they answer.
![Example: Macro [macro-stdexten] exten => s, 1, Dial(${ARG 1}, 20) exten => s, 2,](http://slidetodoc.com/presentation_image/5e57e095b2c79564f4ea48e97ae9cc00/image-42.jpg "Example: Macro [macro-stdexten] exten => s, 1, Dial(${ARG 1}, 20) exten => s, 2,")

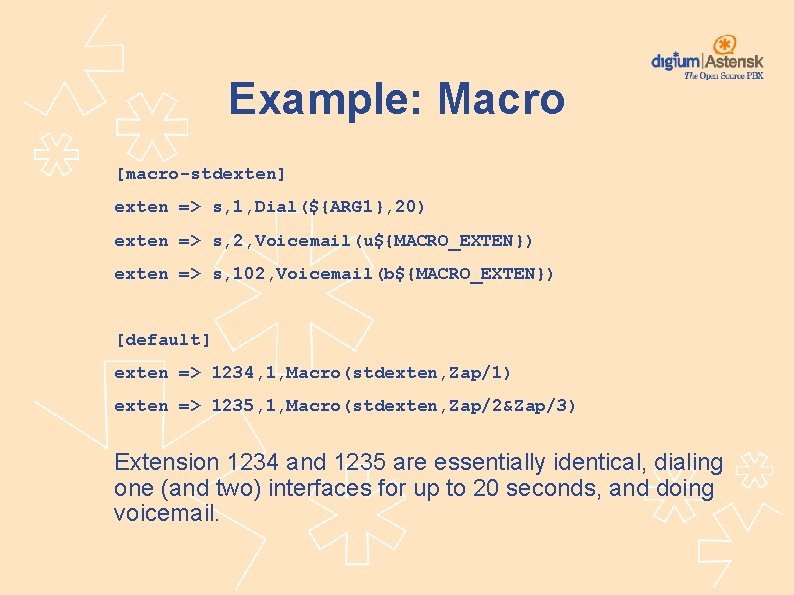

Example: Macro [macro-stdexten] exten => s, 1, Dial(${ARG 1}, 20) exten => s, 2, Voicemail(u${MACRO_EXTEN}) exten => s, 102, Voicemail(b${MACRO_EXTEN}) [default] exten => 1234, 1, Macro(stdexten, Zap/1) exten => 1235, 1, Macro(stdexten, Zap/2&Zap/3) Extension 1234 and 1235 are essentially identical, dialing one (and two) interfaces for up to 20 seconds, and doing voicemail.

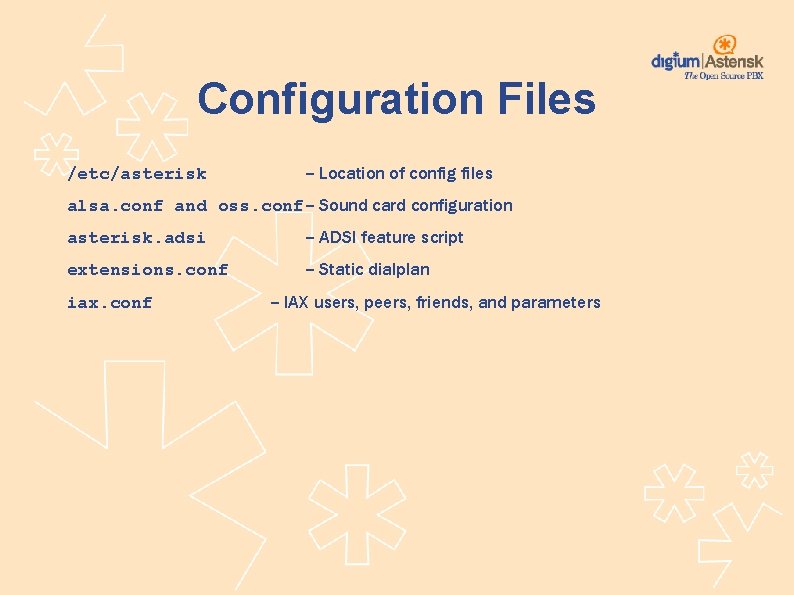

Configuration Files /etc/asterisk -- Location of config files alsa. conf and oss. conf-- Sound card configuration asterisk. adsi -- ADSI feature script extensions. conf -- Static dialplan iax. conf -- IAX users, peers, friends, and parameters

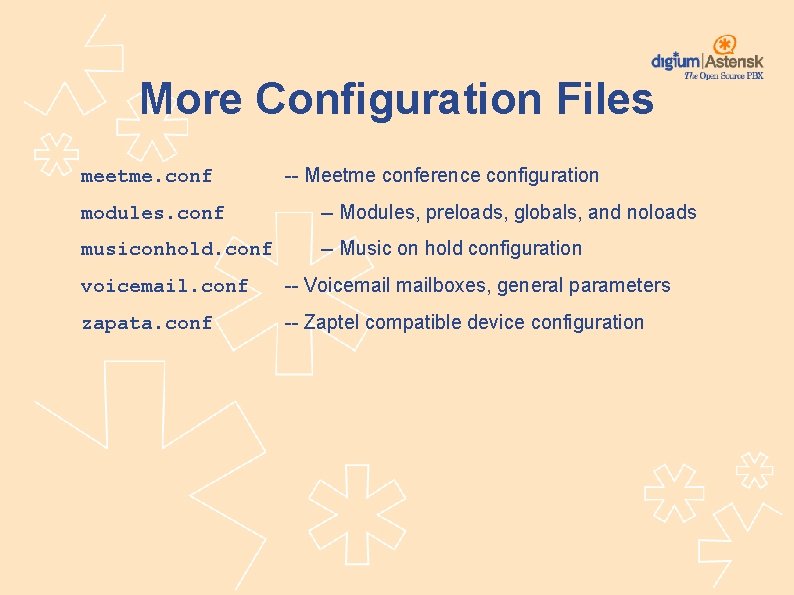

More Configuration Files meetme. conf -- Meetme conference configuration modules. conf -- Modules, preloads, globals, and noloads musiconhold. conf -- Music on hold configuration voicemail. conf -- Voicemailboxes, general parameters zapata. conf -- Zaptel compatible device configuration

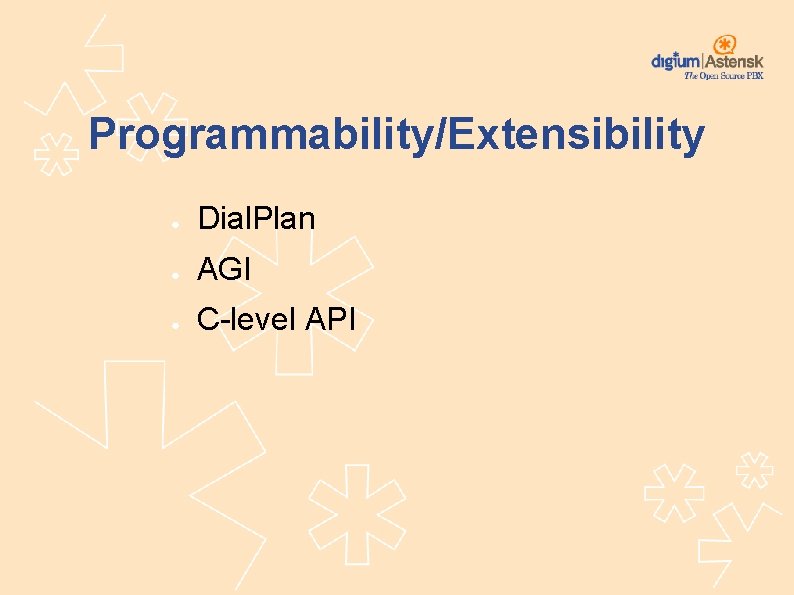

Programmability/Extensibility ● Dial. Plan ● AGI ● C-level API

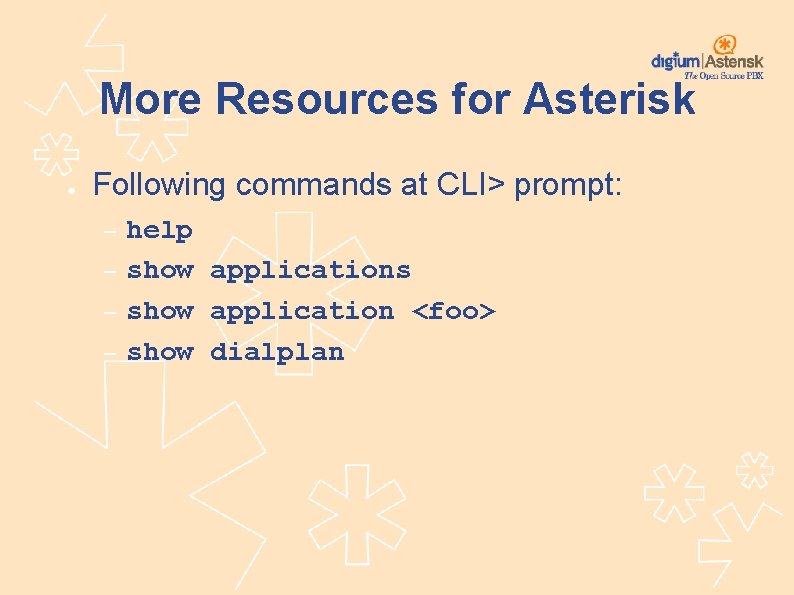

More Resources for Asterisk ● Following commands at CLI> prompt: – – help show applications show application <foo> show dialplan

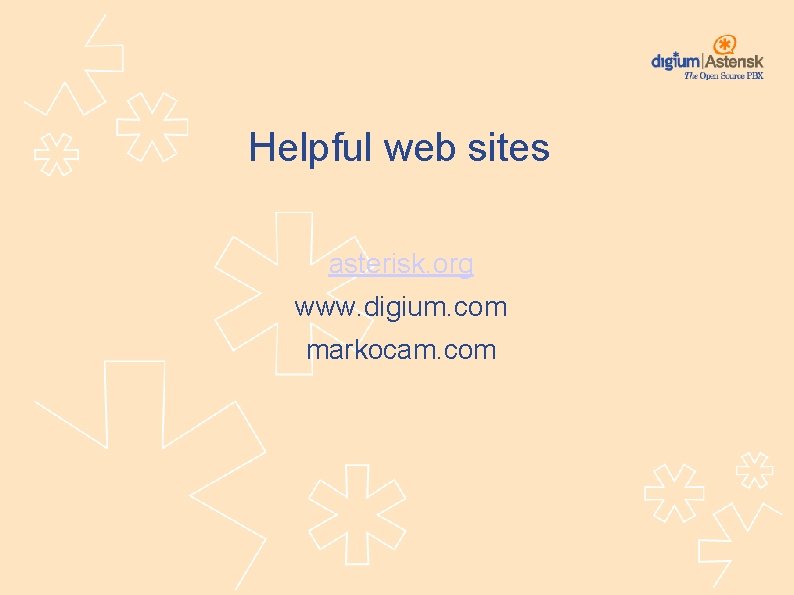

Helpful web sites asterisk. org www. digium. com markocam. com
Where do we go from here? *?
Thank you! http: //www. asterisk. org http: //www. digium. com
