Value Engineering § Systematic process to balance cost, reliability, and Performance § Must be started at same time the design is to maximize value § Analyses the functional requirements of the project to maximize the budget for the entire life cycle of the project including initial cost, operational cost and maintenance cost § The process involves five phases: Information Phase, Speculative Phase, Analytical Phase, Proposal Phase and Final Report Phase.

L - Structural Integrity K - Staging Needs J - Lead Times I - Adaptability H - Life Span G - Meets Code OBC / IBC F- Cost Efficient E - Safety of Construction D - Construction Schedule C - Aesthetics Life Cycle Cost - A A 2 A/C A 1 A/E A/F A/G A 1 A 3 A 2 A 5 A 1 Constructability - B B/C B/D B/E B/F B/G B 1 B 3 B 2 B 5 B 1 Aesthetics - C C/D C/E C C/G C 1 C 3 C 2 C 5 C 1 Construction Schedule - D E 1 D/G D 1 D 3 D 2 D 5 D 1 Safety of Construction - E E 2 E/G E 1 E 3 E 2 E 5 E 1 Cost Efficient - F G 1 F/H F 3 F 2 F 5 F 1 Meets Code OBC / IBC - G G 1 G 3 G 2 G 5 G 1 Life Span - H H 1 H 2 H 5 L 2 Adaptability - I I/J I/K L 2 Lead Times - J J 1 L 2 Staging Needs - K L 4 Structural Integrity - L A B C D E F G H I J K L 19 17 18 16 19 14 18 9 2 2 1 10 38 34 36 32 38 42 72 27 8 6 2 40 Factor Alternatives B - Constructability Criteria Scoring Matrix Factors Name A - Life Cycle Cost Example of Weighted Evaluation Weight Metal and Built-up(original) Shingles and EPDM Metal and PVC(original) 2 76 2 68 4 57 54 4 85 3 2 48 3 90 5 2 57 3 80 5 2 42 3 95 5 3 72 3 70 5 4 27 4 72 5 3 4 3 36 4 4 6 2 6 4 3 2 3 6 3 2 4 30 2 4 3 Total 3 40 4 4 375 486 641

Example of Fast Diagram

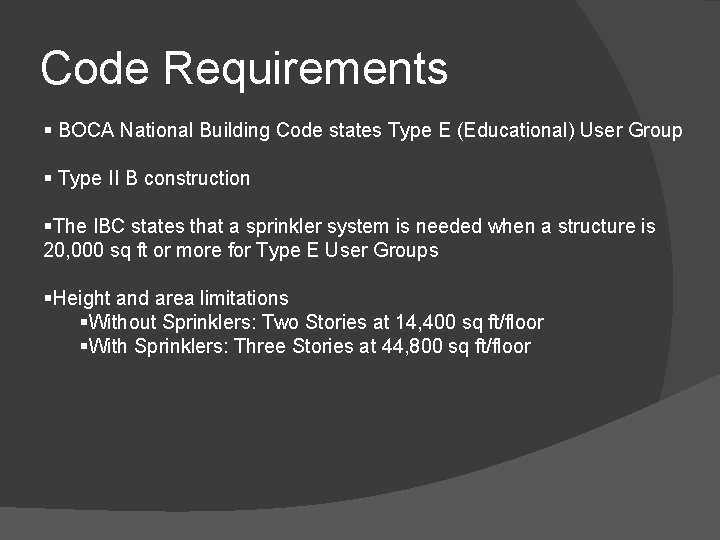

Code Requirements § BOCA National Building Code states Type E (Educational) User Group § Type II B construction §The IBC states that a sprinkler system is needed when a structure is 20, 000 sq ft or more for Type E User Groups §Height and area limitations §Without Sprinklers: Two Stories at 14, 400 sq ft/floor §With Sprinklers: Three Stories at 44, 800 sq ft/floor

Proposed Structural System Structural Steel § § § Radius Cost: $414, 192. 59 Admin Cost: $339, 066. 21 Total Cost: $753, 258. 80 Advantages § Minimized construction time for two story building § Erection of steel is very fast § Can be preformed in more adverse weather conditions Disadvantages § Lead time

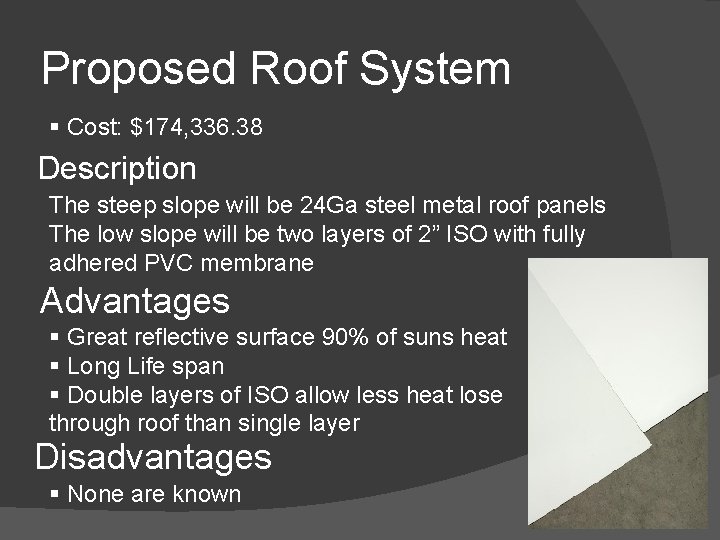

Proposed Roof System § Cost: $174, 336. 38 Description The steep slope will be 24 Ga steel metal roof panels The low slope will be two layers of 2” ISO with fully adhered PVC membrane Advantages § Great reflective surface 90% of suns heat § Long Life span § Double layers of ISO allow less heat lose through roof than single layer Disadvantages § None are known

Proposed Building Skin Brick/CMU Backup § Cost: $671, 523. 99 Advantages § Long life span § No need for replacement § Increase thermal efficiency Disadvantages § Risk of mortar cracking due to settling

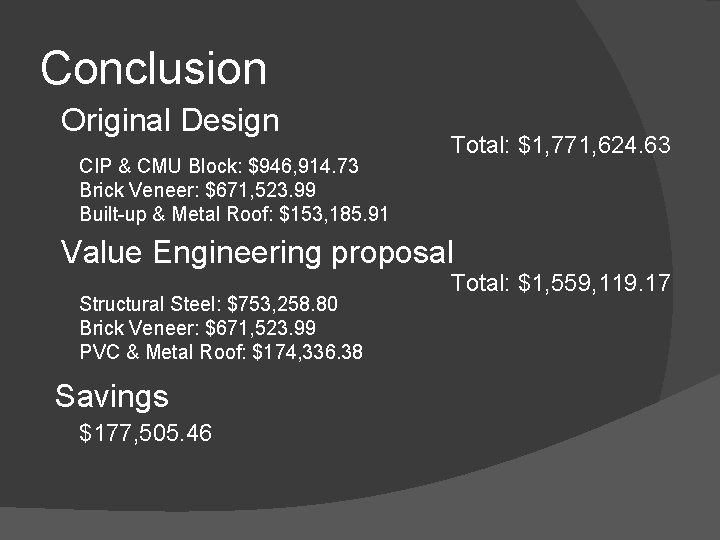

Conclusion Original Design CIP & CMU Block: $946, 914. 73 Brick Veneer: $671, 523. 99 Built-up & Metal Roof: $153, 185. 91 Total: $1, 771, 624. 63 Value Engineering proposal Structural Steel: $753, 258. 80 Brick Veneer: $671, 523. 99 PVC & Metal Roof: $174, 336. 38 Savings $177, 505. 46 Total: $1, 559, 119. 17
