Building your own Chartplotter with AIS Radar Autopilot

Building your own Chartplotter with AIS, Radar, & Autopilot Matt Brown

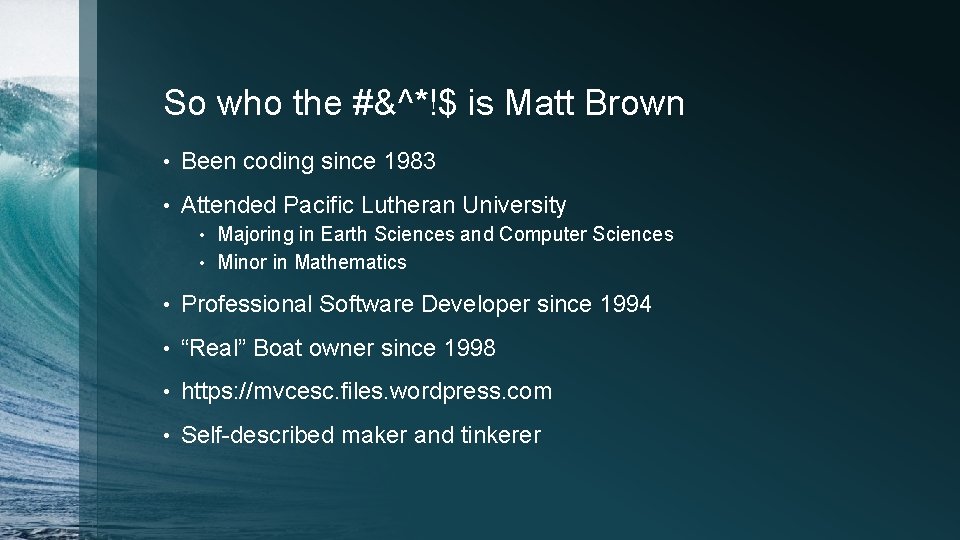

So who the #&^*!$ is Matt Brown • Been coding since 1983 • Attended Pacific Lutheran University Majoring in Earth Sciences and Computer Sciences • Minor in Mathematics • • Professional Software Developer since 1994 • “Real” Boat owner since 1998 • https: //mvcesc. files. wordpress. com • Self-described maker and tinkerer

No really, who is he? That guy!

So why are we here?

What the #&^*!$ was that? • Hardware Raspberry Pi 2 • “Puck” style GPS • d. AISy AIS receiver from Adrian Studer • Television • • Software Raspbian OS and Debian packages • Open. CPN chartplotter and navigation software • NOAA Charts • Rasp. BMC •

No. Really. What the #&^*!$ was that? • An extendable chartplotter GPS Location • AIS targets •

Can’t I just buy something and put it on my boat? • Of course you can • Simrad NSS 9 $4, 198 • NSS 8 Sport $2, 100 • • Raymarine • • Garmin • • A 78 $2, 299 92 sv $1, 999 This system • Around $500

Can’t I just buy something and put it on my boat? • Hardware • • • Raspberry Pi 2 $35 “Puck” style GPS $40 d. AISy AIS receiver from Adrian Studer $55 Keyboard, USB Wifi modules, Cables, case, etc $50 Television $100 - $300 Software Raspbian OS and Debian packages - Free • Open. CPN chartplotter and navigation software - Free • NOAA Charts - Free • Rasp. BMC - Free •

About the Raspberry Pi • It’s a credit card sized computer, that plugs into a TV (HDMI), designed to teach kids how to program • Well supported by online community • Now used by hobbyists as well as professional engineers to build integrated systems • Latest version 900 Mhz quad-core ARM Cortex-A 7 CPU • 1 GB SDRAM • 1080 p HDMI video (Video. Core IV 3 D graphics core) • Micro SD card slot • • Equivalent to a top of the line desktop computer circa 2004

Alternative SOCs to the Raspberry Pi • Banana Pi $45 1 Ghz dual core ARM Cortex-A 7 CPU • Mali-400 MP 2 GPU • 1 GB DDR 3 • • Cubie. Truck $85 1 Ghz dual core ARM Cortex-A 7 CPU • Mali-400 MP 2 GPU • 2 GB DDR 3, 8 GB NAND flash + micro. SD slot • Onboard Wifi, Bluetooth, Ethernet, 2 USB ports • • Beaglebone $60 1 Ghz ARM Cortex-A 8 CPU • Power. VR SGX 2 D/3 D GPU supporting dual displays •

Alternatives to the Raspberry Pi • i. Pad $500 • • • Laptop $300+ • • 64 bit A 8 x CPU 10” screen Bluetooth GPS receiver ~$70 Navionics Navigation Suite $10 -$149 Specs vary USB or Bluetooth GPS receiver Open. CPN capable Android devices $100+ • • • Specs vary May need Bluetooth GPS receiver ~$70 Navionics Navigation Suite $10 -$149

What Does It Do? Chartplotter GPS Location

What Does It Do? Weather Overlay AIS Data

What Does It Do? Ships & Maintenance Log Route Planning

What Else Can It Do? Autopilot Radar Overlay

What else can it do? • Fishfinder • Simple Computer Web browser • Email client • Basic business apps • Messaging Apps • • Movie and Music Player • Camera System

Building the System

Building the System • Complete step-by-step instructions at https: //mvcesc. wordpress. com/2013/09/20/detailed-raspberry-pi-setupdocumentation/ • Download OS Image from the internet • Burn OS image to micro SD Card • Install SD Card, Keyboard, Mouse, HDMI Cable, USB GPS, USB AIS • Boot Expand File System • Set to US • Boot to desktop • Reboot •

Building the System • Connect to Internet Ethernet • Wi. Fi • • Update and upgrade sudo apt-get update • sudo apt-get upgrade • • Install Tools geany • mesa-utils • git-core cmake • gpsd-clients •

Building the System • Download charts from NOAA • • Pull code down from the internet • • cmake, make Run and add charts • • git clone Compile and Install • • Raster (RNC) vs Vector (ENC) -unit_test_1 Install additional plugins Watchdog • Logbook •

AIS • d. AISy module from Adrian Struder - $55 • https: //github. com/astuder/d. AISy • Channel hops between A (161. 975 MHz) and B (162. 025 MHz) • Serial data stream (9600/8/N/1) NMEA 0183 sentences (AIVDM) • !AIVDM, 1, 1, , A, 1 CF 4 k. T 3000 Nm`Kl@BHKJC@IH 0000, 0*37 !AIVDM, 1, 1, , B, 4028 j. OQur 1 lae. Nl. MIL@<`8 O 00@JU, 0*5 F • • Open. CPN • AIS compatible, simply open serial data connection in settings to receive information

AIS

Xbee modules • Create a wireless mesh network between devices • Satellite screens • • Share NMEA data (GPS, AIS, Radar) from the main chartplotter Sensors Wind • Weather • Temperature • • Autopilot Control (planned)

Fully Functional Chartplotter System

Show & Tell Q&A
