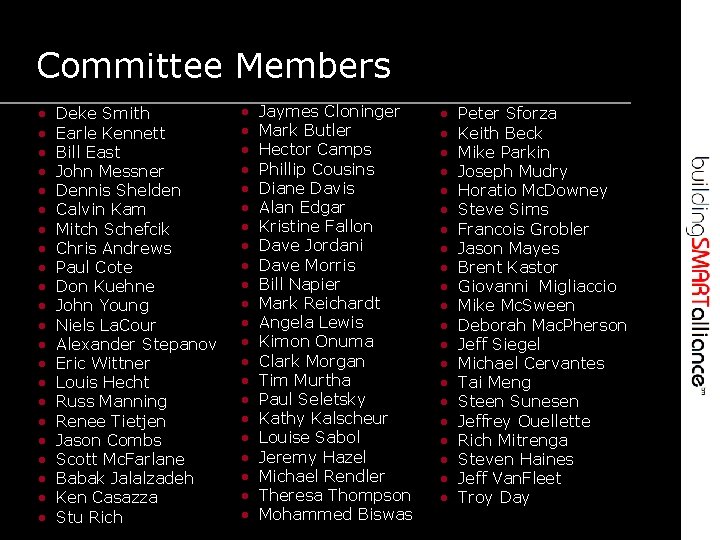

Committee Members • • • • • • Deke Smith Earle Kennett Bill East John Messner Dennis Shelden Calvin Kam Mitch Schefcik Chris Andrews Paul Cote Don Kuehne John Young Niels La. Cour Alexander Stepanov Eric Wittner Louis Hecht Russ Manning Renee Tietjen Jason Combs Scott Mc. Farlane Babak Jalalzadeh Ken Casazza Stu Rich • • • • • • Jaymes Cloninger Mark Butler Hector Camps Phillip Cousins Diane Davis Alan Edgar Kristine Fallon Dave Jordani Dave Morris Bill Napier Mark Reichardt Angela Lewis Kimon Onuma Clark Morgan Tim Murtha Paul Seletsky Kathy Kalscheur Louise Sabol Jeremy Hazel Michael Rendler Theresa Thompson Mohammed Biswas • • • • • • Peter Sforza Keith Beck Mike Parkin Joseph Mudry Horatio Mc. Downey Steve Sims Francois Grobler Jason Mayes Brent Kastor Giovanni Migliaccio Mike Mc. Sween Deborah Mac. Pherson Jeff Siegel Michael Cervantes Tai Meng Steen Sunesen Jeffrey Ouellette Rich Mitrenga Steven Haines Jeff Van. Fleet Troy Day

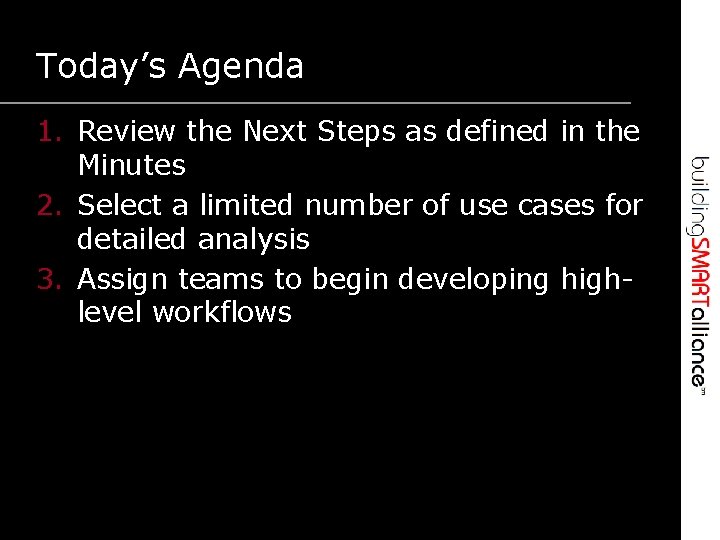

Today’s Agenda 1. Review the Next Steps as defined in the Minutes 2. Select a limited number of use cases for detailed analysis 3. Assign teams to begin developing highlevel workflows

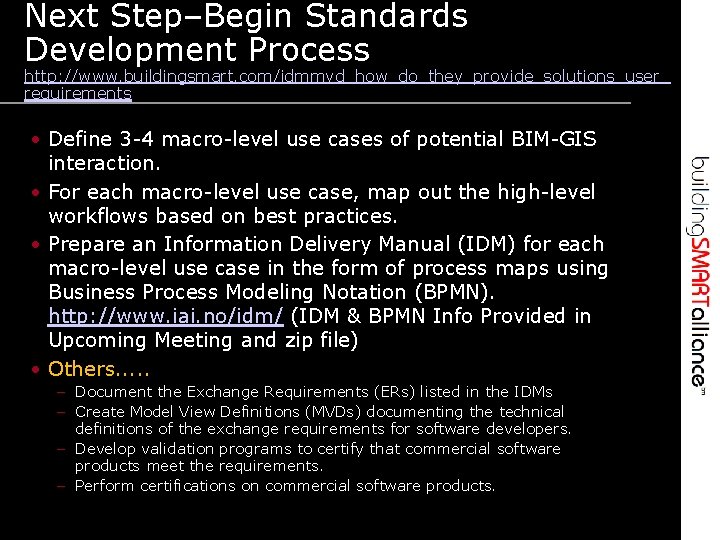

Next Step–Begin Standards Development Process http: //www. buildingsmart. com/idmmvd_how_do_they_provide_solutions_user_ requirements • Define 3 -4 macro-level use cases of potential BIM-GIS interaction. • For each macro-level use case, map out the high-level workflows based on best practices. • Prepare an Information Delivery Manual (IDM) for each macro-level use case in the form of process maps using Business Process Modeling Notation (BPMN). http: //www. iai. no/idm/ (IDM & BPMN Info Provided in Upcoming Meeting and zip file) • Others. . . – Document the Exchange Requirements (ERs) listed in the IDMs – Create Model View Definitions (MVDs) documenting the technical definitions of the exchange requirements for software developers. – Develop validation programs to certify that commercial software products meet the requirements. – Perform certifications on commercial software products.

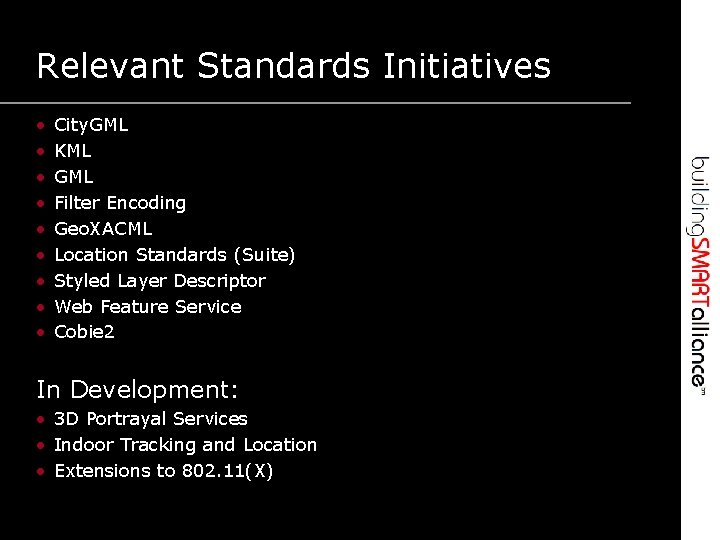

Relevant Standards Initiatives • • • City. GML KML GML Filter Encoding Geo. XACML Location Standards (Suite) Styled Layer Descriptor Web Feature Service Cobie 2 In Development: • 3 D Portrayal Services • Indoor Tracking and Location • Extensions to 802. 11(X)

Macro-level Use Cases

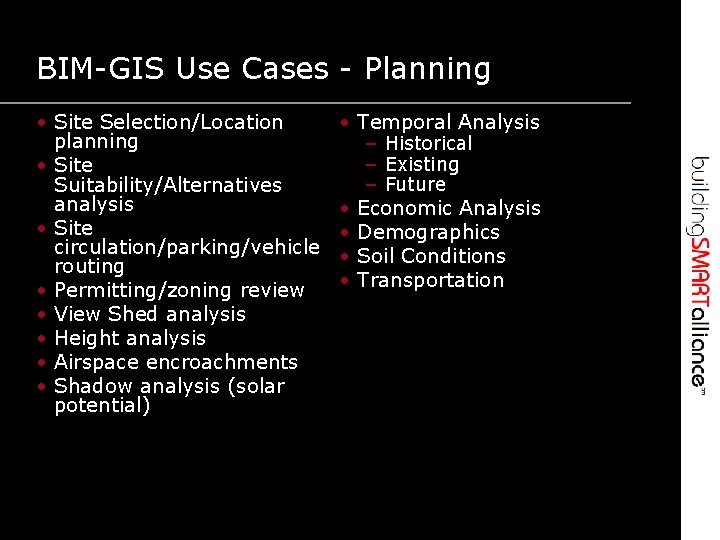

BIM-GIS Use Cases - Planning • Site Selection/Location planning • Site Suitability/Alternatives analysis • Site circulation/parking/vehicle routing • Permitting/zoning review • View Shed analysis • Height analysis • Airspace encroachments • Shadow analysis (solar potential) • Temporal Analysis – Historical – Existing – Future • Economic Analysis • Demographics • Soil Conditions • Transportation

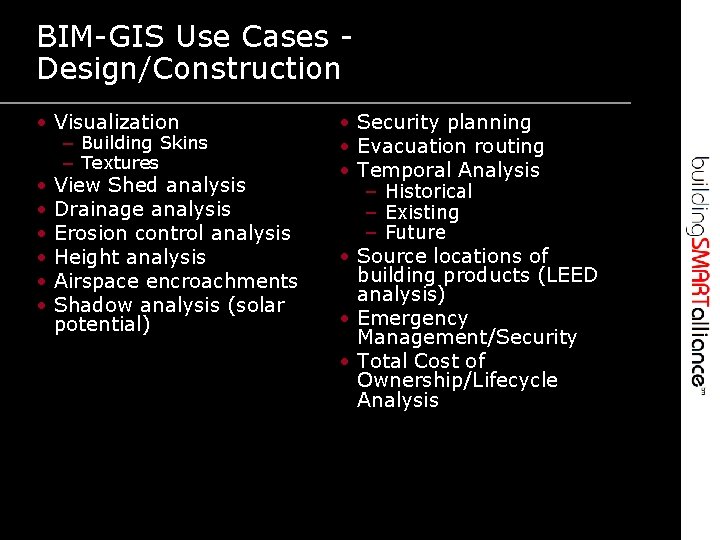

BIM-GIS Use Cases Design/Construction • Visualization • • • – Building Skins – Textures View Shed analysis Drainage analysis Erosion control analysis Height analysis Airspace encroachments Shadow analysis (solar potential) • Security planning • Evacuation routing • Temporal Analysis – Historical – Existing – Future • Source locations of building products (LEED analysis) • Emergency Management/Security • Total Cost of Ownership/Lifecycle Analysis

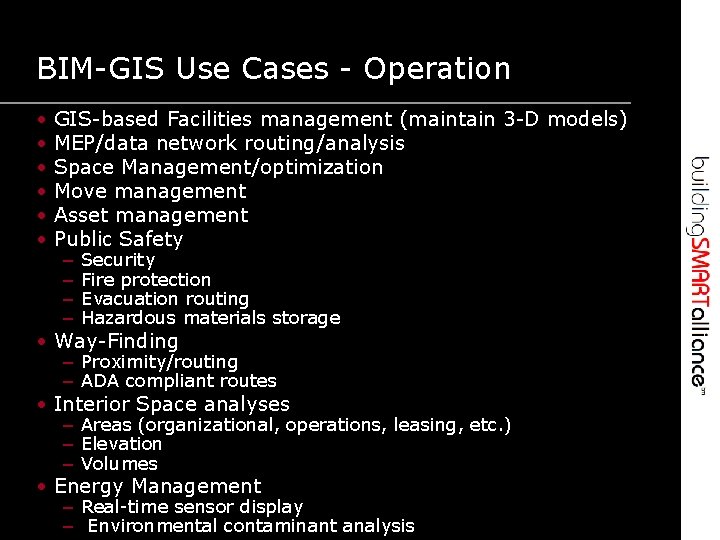

BIM-GIS Use Cases - Operation • • • GIS-based Facilities management (maintain 3 -D models) MEP/data network routing/analysis Space Management/optimization Move management Asset management Public Safety – – Security Fire protection Evacuation routing Hazardous materials storage • Way-Finding – Proximity/routing – ADA compliant routes • Interior Space analyses – Areas (organizational, operations, leasing, etc. ) – Elevation – Volumes • Energy Management – Real-time sensor display – Environmental contaminant analysis

GIS-BIM Use Cases – Renovation/Repurpose • Existing As-built architectural/structural models • Existing As-built MEP/data networks • Security planning • Evacuation routing
