Building Robust, flexible, Scalable Distributed Intrusion Detection Systems (DIDSes) Hao Che Department of Computer Science and Engineering University of Texas at Arlington CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 1

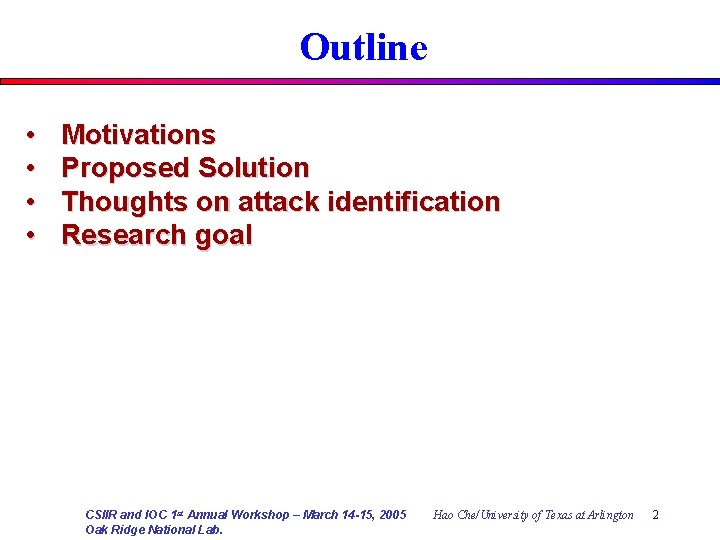

Outline • • Motivations Proposed Solution Thoughts on attack identification Research goal CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 2

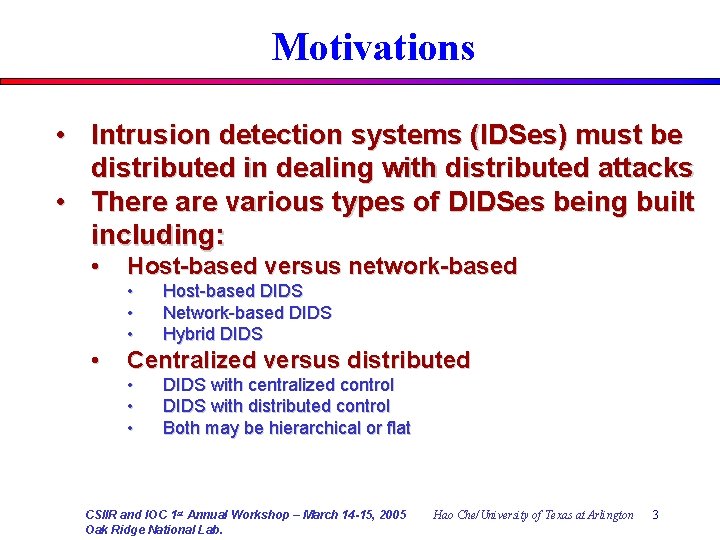

Motivations • Intrusion detection systems (IDSes) must be distributed in dealing with distributed attacks • There are various types of DIDSes being built including: • Host-based versus network-based • • Host-based DIDS Network-based DIDS Hybrid DIDS Centralized versus distributed • • • DIDS with centralized control DIDS with distributed control Both may be hierarchical or flat CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 3

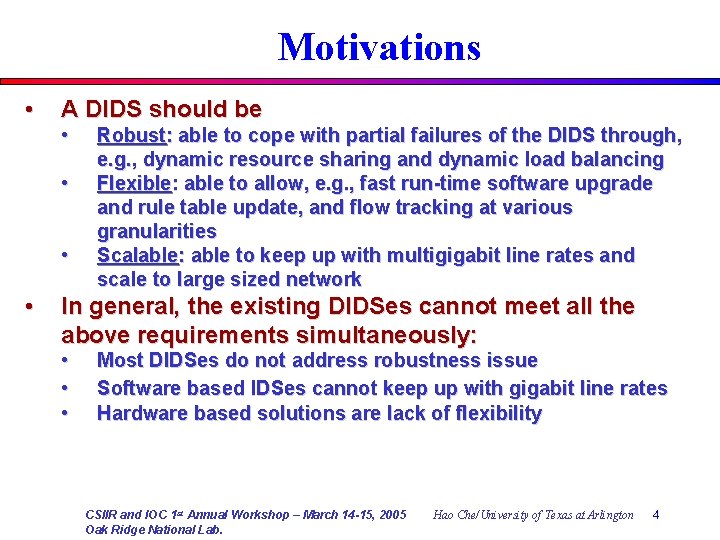

Motivations • A DIDS should be • • Robust: able to cope with partial failures of the DIDS through, e. g. , dynamic resource sharing and dynamic load balancing Flexible: able to allow, e. g. , fast run-time software upgrade and rule table update, and flow tracking at various granularities Scalable: able to keep up with multigigabit line rates and scale to large sized network In general, the existing DIDSes cannot meet all the above requirements simultaneously: • • • Most DIDSes do not address robustness issue Software based IDSes cannot keep up with gigabit line rates Hardware based solutions are lack of flexibility CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 4

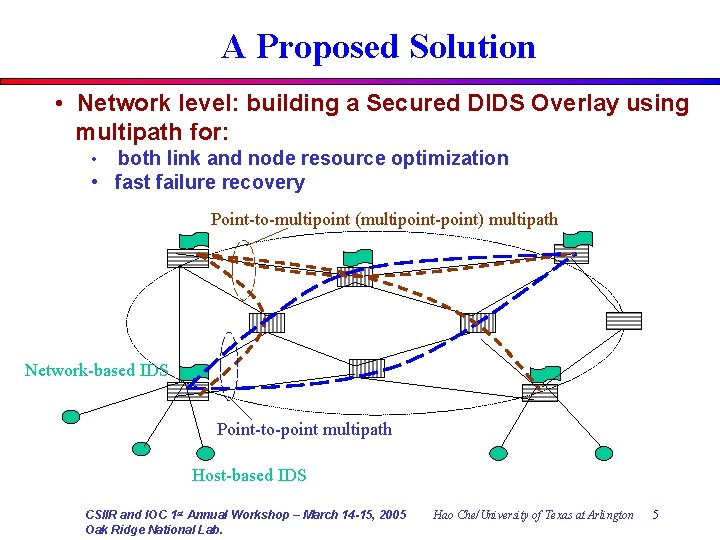

A Proposed Solution • Network level: building a Secured DIDS Overlay using multipath for: both link and node resource optimization • fast failure recovery • Point-to-multipoint (multipoint-point) multipath Network-based IDS Point-to-point multipath Host-based IDS CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 5

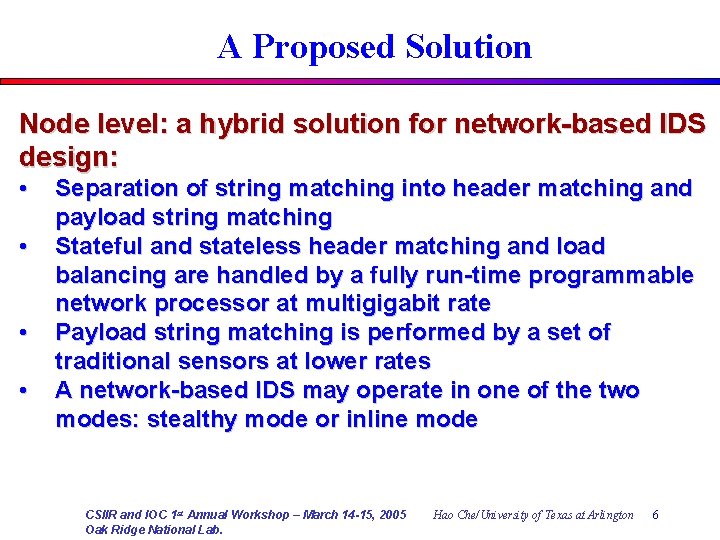

A Proposed Solution Node level: a hybrid solution for network-based IDS design: • • Separation of string matching into header matching and payload string matching Stateful and stateless header matching and load balancing are handled by a fully run-time programmable network processor at multigigabit rate Payload string matching is performed by a set of traditional sensors at lower rates A network-based IDS may operate in one of the two modes: stealthy mode or inline mode CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 6

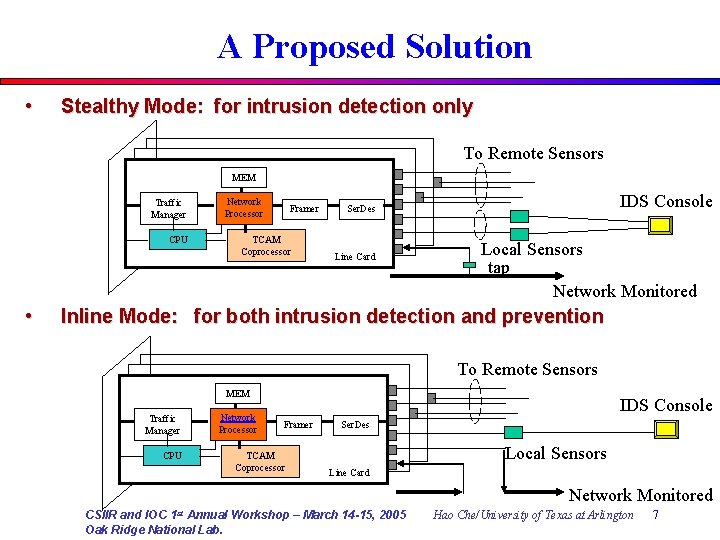

A Proposed Solution • Stealthy Mode: for intrusion detection only To Remote Sensors MEM Traffic Manager CPU • Network Processor Framer TCAM Coprocessor IDS Console Ser. Des Line Card Local Sensors tap Network Monitored Inline Mode: for both intrusion detection and prevention To Remote Sensors MEM Traffic Manager CPU Network Processor IDS Console Framer TCAM Coprocessor Ser. Des Local Sensors Line Card Network Monitored 1 st CSIIR and IOC Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 7

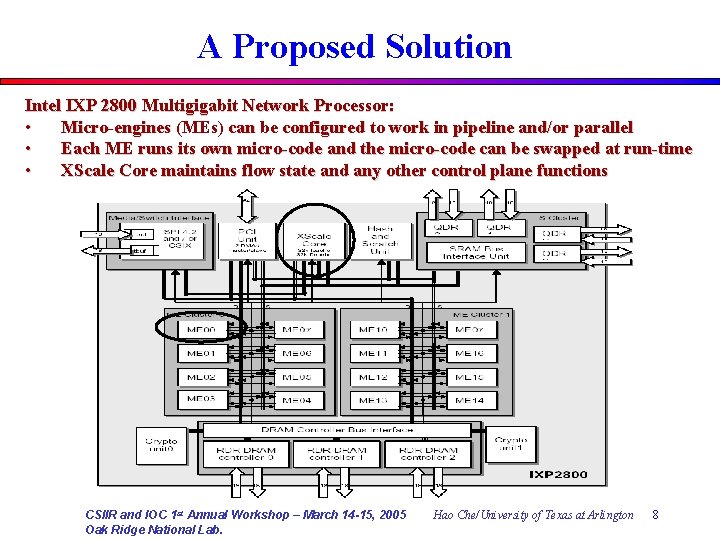

A Proposed Solution Intel IXP 2800 Multigigabit Network Processor: • Micro-engines (MEs) can be configured to work in pipeline and/or parallel • Each ME runs its own micro-code and the micro-code can be swapped at run-time • XScale Core maintains flow state and any other control plane functions CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 8

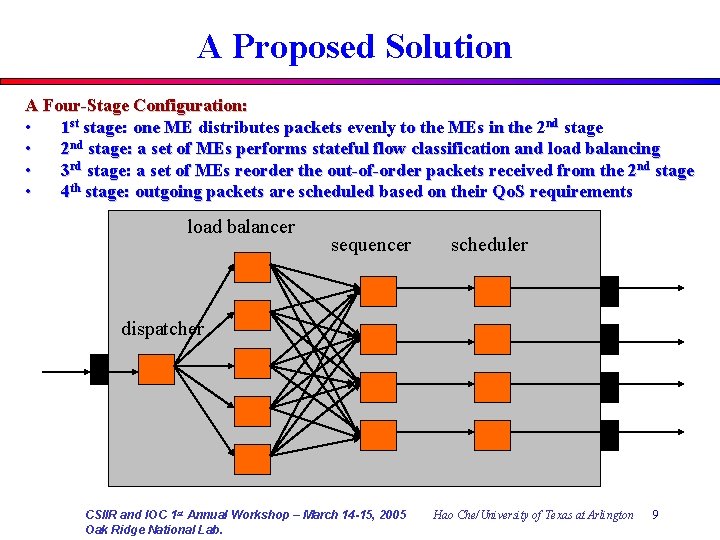

A Proposed Solution A Four-Stage Configuration: • 1 st stage: one ME distributes packets evenly to the MEs in the 2 nd stage • 2 nd stage: a set of MEs performs stateful flow classification and load balancing • 3 rd stage: a set of MEs reorder the out-of-order packets received from the 2 nd stage • 4 th stage: outgoing packets are scheduled based on their Qo. S requirements load balancer sequencer scheduler dispatcher CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 9

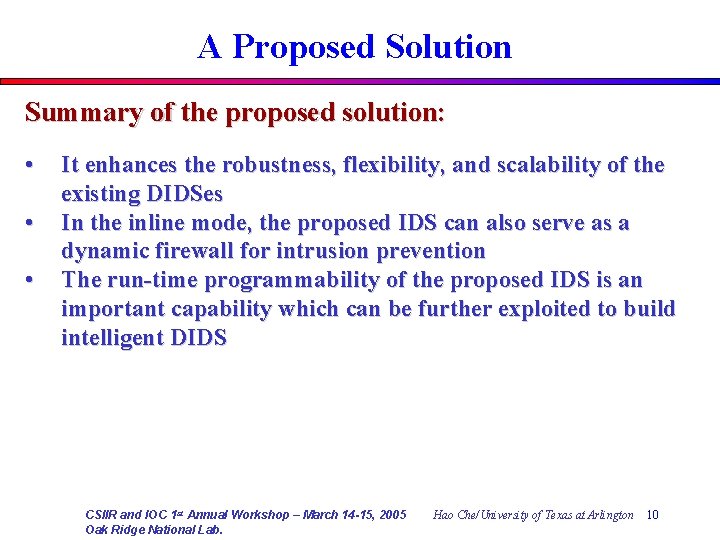

A Proposed Solution Summary of the proposed solution: • • • It enhances the robustness, flexibility, and scalability of the existing DIDSes In the inline mode, the proposed IDS can also serve as a dynamic firewall for intrusion prevention The run-time programmability of the proposed IDS is an important capability which can be further exploited to build intelligent DIDS CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 10

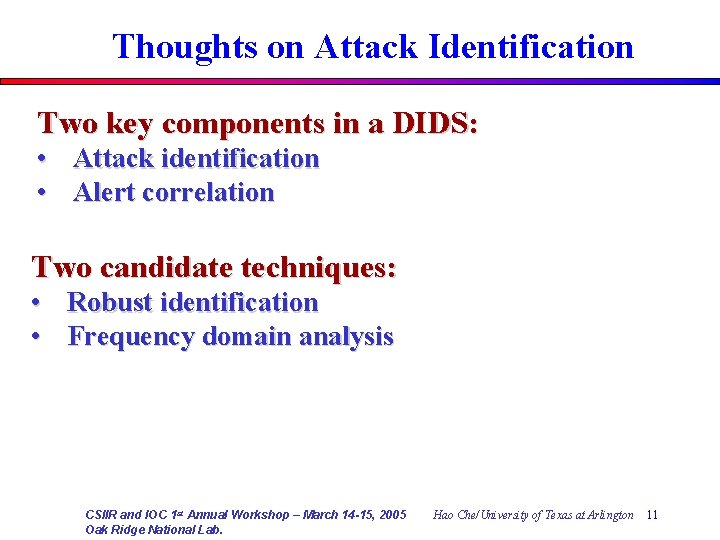

Thoughts on Attack Identification Two key components in a DIDS: • Attack identification • Alert correlation Two candidate techniques: • Robust identification • Frequency domain analysis CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 11

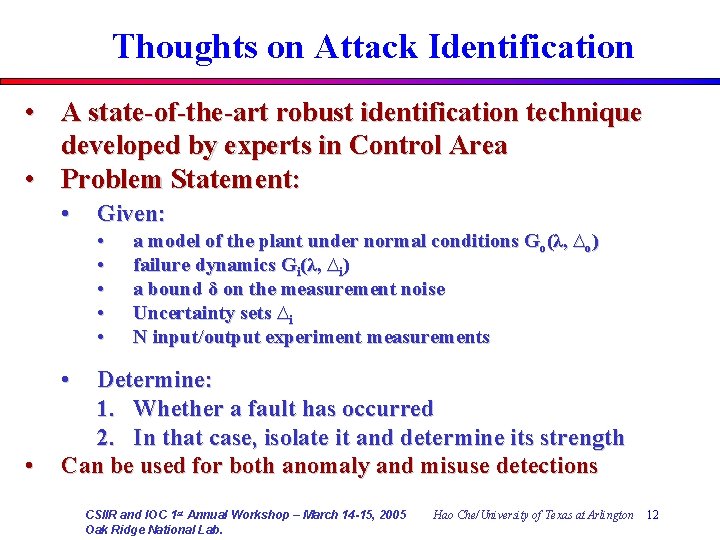

Thoughts on Attack Identification • A state-of-the-art robust identification technique developed by experts in Control Area • Problem Statement: • Given: • • • a model of the plant under normal conditions Go(λ, ∆o) failure dynamics Gi(λ, ∆i) a bound δ on the measurement noise Uncertainty sets ∆i N input/output experiment measurements • • Determine: 1. Whether a fault has occurred 2. In that case, isolate it and determine its strength Can be used for both anomaly and misuse detections CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 12

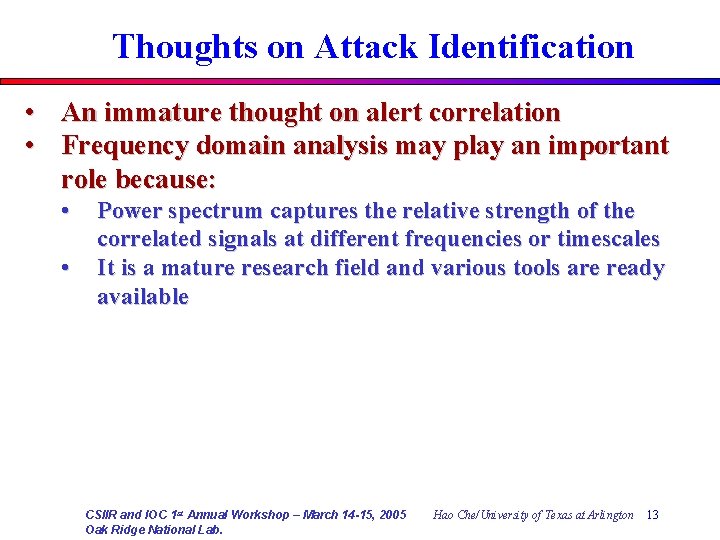

Thoughts on Attack Identification • An immature thought on alert correlation • Frequency domain analysis may play an important role because: • • Power spectrum captures the relative strength of the correlated signals at different frequencies or timescales It is a mature research field and various tools are ready available CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 13

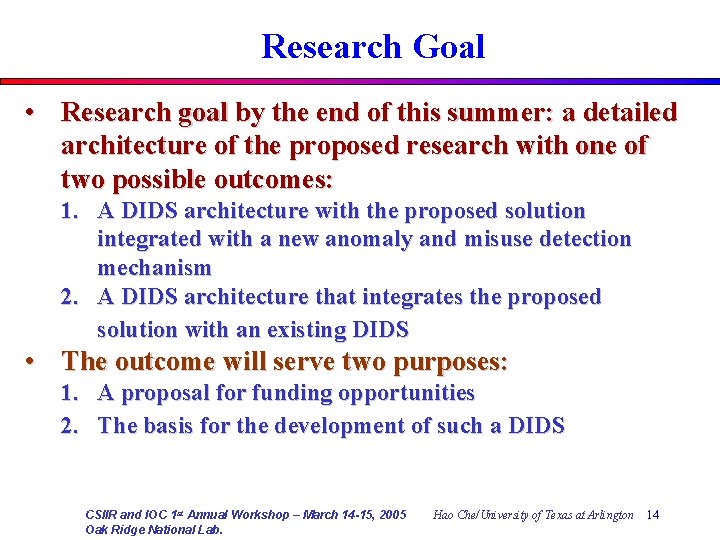

Research Goal • Research goal by the end of this summer: a detailed architecture of the proposed research with one of two possible outcomes: 1. A DIDS architecture with the proposed solution integrated with a new anomaly and misuse detection mechanism 2. A DIDS architecture that integrates the proposed solution with an existing DIDS • The outcome will serve two purposes: 1. A proposal for funding opportunities 2. The basis for the development of such a DIDS CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 14

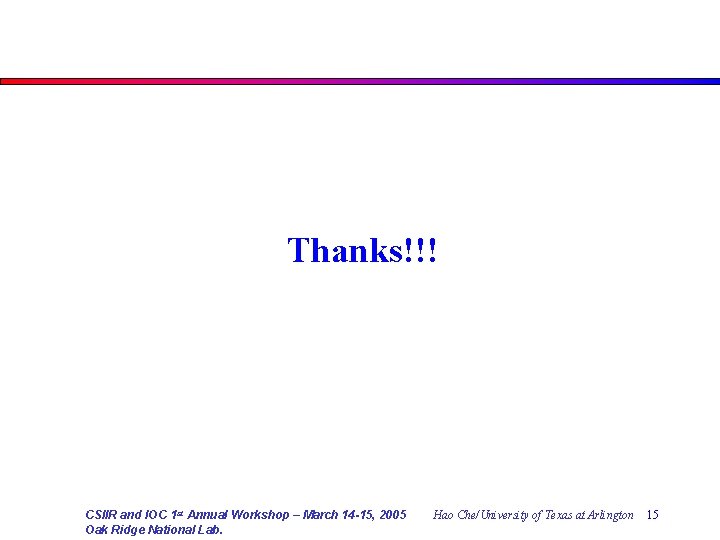

Thanks!!! CSIIR and IOC 1 st Annual Workshop – March 14 -15, 2005 Oak Ridge National Lab. Hao Che/University of Texas at Arlington 15
