Building Reach Codes Advancing safer healthier and more
Building Reach Codes Advancing safer, healthier and more affordable buildings I. III. IV. V. Reach Code Basics Building Model Codes EV Model Codes City Actions GHG Emissions Savings
Purpose • Support Cities in meeting climate goals o Encourage safer, healthier all-electric buildings within the building code o Install EV charging during building construction commensurate with local needs 2

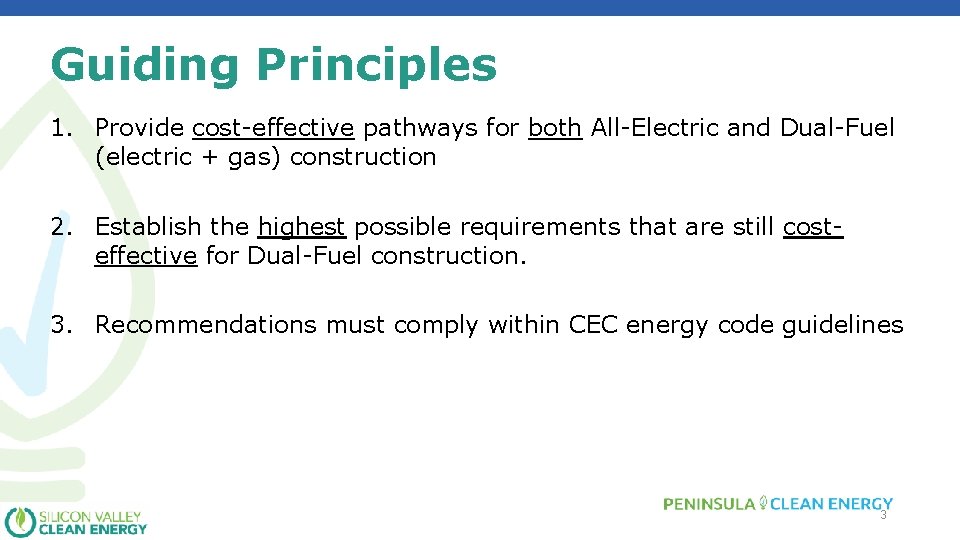

Guiding Principles 1. Provide cost-effective pathways for both All-Electric and Dual-Fuel (electric + gas) construction 2. Establish the highest possible requirements that are still costeffective for Dual-Fuel construction. 3. Recommendations must comply within CEC energy code guidelines 3
Revision History DATE BY EDITS Aug 1 B. H. Version 1 Aug 28 R. R. Corrected EV reference in summary (MUD EV Ready for all units not “spaces”), added subtitle sections and reordered building slides for clarity, added infographic and UC study cost info, slide 6: clarified language, slide 20: added “ 2019” to column, slide 33: removed confusing reference to “EV Capable being more extensive”, other minor fmt. Sept 3 R. R. Replaced infographic slide 15 for corrected construction savings (DNV GL correction). 4
I. Reach Code Introductory Slides • What are Reach Codes • Benefits • Model Code Summary • Partners for project • Timeline 5
What are Reach Codes? • Local enhancements to state code • Adopted with current building code cycle • Current PCE initiative aimed at improved economic and energy performance • Addresses: 1. Building electrification – reduced use of natural gas (methane) and associated emissions 2. Electric vehicle (EV) charging – increased EV readiness 6
Benefits of Reach Codes • Major economic value for residents now and prevents expensive future retrofits • Safer and healthier homes – no combustion • Enables greater EV adoption • Fiscal prudence – more cost effective to address at new construction • Advance climate goals 7
Model Code Summary Code Element Approach Building Electrification • • Provides 2 tracks for developers: All-Electric or Mixed-Fuel All-Electric (preferred) is less expensive, delivers more benefit Mixed-Fuel allows natural gas but has higher efficiency requirements Details vary by building segment • • • Provides “plug and play” access to vehicle charging Single family: Level 2 (dryer outlet power) and Level 1 (standard 110 v outlet) Multi-unit dwellings: one “EV Ready” space per unit* Office: 10% Level 2, 10% Level 1, and 30% EV Capable Other Commercial: 6% Level 2 installed and 5% Level 1 installed Electric Vehicle Readiness PCE will provide funding support for affordable housing to address EV measures 8
Reach Code Recommendations Cost-Effective W/in CEC Guidelines Included in SVCE recommendation Base Title 24 Yes Yes All-Electric Yes Yes – Pathway 1 Dual-Fuel Yes Yes – Pathway 2 Mostly Electric (residential only) Not as a standalone pathway Yes – Pathway 2 A Cal. Green Tier 1 or Tier 2 Not as a standalone pathway Yes No Ban on Natural Gas Yes No 1 A ban utilizes a city’s Police power, not via a local amendment to Energy Code. 9
Single Family Residence – Base Code All-Electric (1) Meet Title 24 requirements Electric & Gas (2) Meet Title 24 requirements, including: • Pre-wire water heater location for future electric heat pump 10
Single Family Residence – Base Reach Code All-Electric (1) Electric & Gas (2) s e g n a h C No Meet Title 24 requirements, including: • Pre-wire water heater for future electric heat pump • Pre-wire for future electric appliances (+$ 750) • Additional Energy Efficiency measures (+$1500) • Solar thermal or Battery Storage (+ $6000) 11
Single Family –Reach Code option All-Electric (1) Meet Title 24 requirements s e g n a h C o N Electric & Gas (2) Meet Title 24 requirements, including: • Pre-wire water heater for future electric heat pump • Pre-wire for future electric appliances (+$ 750) • Additional Energy Efficiency (+$1500) • Solar thermal or Battery Storage (+ $6000) 12 “Mostly Electric” (2 A) Meet Title 24 requirements, including: • Pre-wire for future electric heat pump • • Install Electric water and space heating (allows natural gas for cooking) Pre-wire for future electric range (+$ 250) Additional Energy Efficiency measures (+$1500) Solar thermal or Battery Storage (+ $6000)
Project Partners • Lead consultant • Technical support • Facilitation support • Regional partner • Cost benefit approvals 13
Last September, Everything Changed SB-100 All electricity is carbon free by 2045 Executive Order B-55 -18 Carbon neutral by 2045 14
Reach Code Timeline Date/Timeframe Dec. 2018 January February March April 11 and 24 April & May 15 -May June Activity PCE, SVCE and County of San Mateo initiate reach code initiative Reach Code kickoff event for city staff Statewide Cost-Effectiveness study Building Reach Code Workshops Draft Model Reach Codes Measures available City-specific stakeholder engagements Last input into model code measures Model reach code language shared June through August Outreach and adoption technical assistance July through October City Councils vote on desired reach codes (depends on City’s workplan) August through October January 1, 2020 -2022 Submit Code Packet for CEC approval Potential for reach code to go into effect at the same time as state code update Opportunities to adopt reach code throughout three year code cycle, PCE and County to provide training and support for code implementation 15

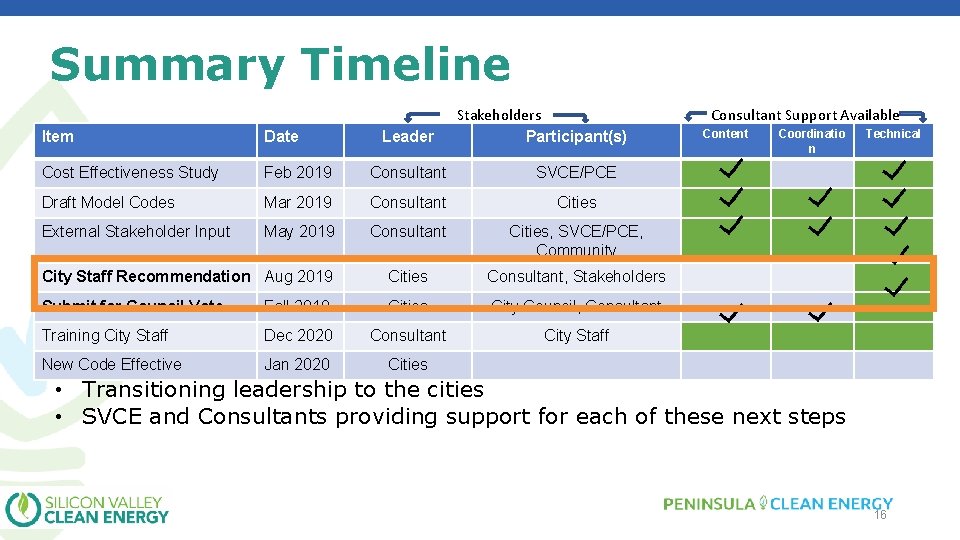

Summary Timeline Leader Stakeholders Participant(s) Item Date Cost Effectiveness Study Feb 2019 Consultant SVCE/PCE Draft Model Codes Mar 2019 Consultant Cities External Stakeholder Input May 2019 Consultant Cities, SVCE/PCE, Community City Staff Recommendation Aug 2019 Cities Consultant, Stakeholders Submit for Council Vote Fall 2019 Cities City Council, Consultant Training City Staff Dec 2020 Consultant City Staff New Code Effective Jan 2020 Cities Consultant Support Available Content Coordinatio n Technical • Transitioning leadership to the cities • SVCE and Consultants providing support for each of these next steps 16
Guiding Principles for Reach Codes • Preserve a low cost compliance option to minimize impact on construction costs • Encourage development of healthier, safer, lower emission buildings • Reflect the values of our community o Leaders in EV, solar and battery adoption rates nationwide 17
Key Terms All-Electric - buildings using electricity for space and water heating systems Mixed Fuel – buildings using natural gas for space and water heating systems Compliance Margin – how much more energy efficient than code minimum can be done in a cost effective manner, typically expressed as a percentage (e. g. 5% compliance margin) Performance Pathway – exceed code by a certain compliance margin using CEC-approved modeling software (e. g. 5%) Prescriptive Pathway – exceed code by including a list of specific cost-effective measures (e. g. drain heat recovery or batteries), see appendix for examples. Climate Zone – San Mateo county is located within Climate Zone 3. Santa Clara county is mostly Climate Zone 4, with a small portion in Climate Zone 3. 18
II. Building Model Code Details • Cost and GHG Comparisons • 2019 T 24 Code basics • EDR • Prescriptive vs Performance Pathways • Building Model Code Language 19
University of California- All-Electric New Construction 20 2017 Study
Variability in Savings Statewide Residential Building Electrification in California, E 3, April 2019 21
All-Electric New Residential Bay Area Conservative Case Residential Building Electrification in 22 California, E 3, April 2019
Why a Reach Code? What if new buildings and vehicles were powered by clean electricity during this 3 -year code cycle? Sq Ft CO 2 per year Units per year Years in Service Years in Code Cycle Total Avoided CO 2* Single Family 2, 700 2 tons X 100 X 50 X 3 = 30, 000 tons Multi-Family 1, 000 1 ton X 10, 000 X 50 X 3 = 1, 500, 000 tons 100, 000 120 tons X 20 X 3 = 2, 160, 000 tons Office Miles per Year Car 12, 000 CO 2 per year 5 tons EV’s added per year X 5, 000 Years in Service X 10 Years in Code Cycle X 3 Total Avoided CO 2 = 750, 000 tons *CO 2 impacts reflect carbon-free electricity, currently met by SVCE while PCE’s goal is GHG free by 2021
GHG Comparison Mixed fuel / All electric 2017 / All Electric 2030 grid CARBON EMISSIONS, SINGLE-FAMILY HOME (2, 100 SQFT) MT CO 2 e/yr 3. 0 2. 0 1. 0 0. 0 2. 2 0. 3 Mixed-Fuel All-electric, 2017 grid 0. 0 CARBON EMISSIONS, SINGLE-FAMILY HOME (2, 700 SQFT) MT CO 2 e/yr 3. 0 2. 0 1. 0 0. 0 44. 1 26. 3 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid 10. 0 0. 3 Mixed-Fuel All-electric, 2030 grid CARBON EMISSIONS, PROTOTYPE OFFICE MT CO 2 E/YR 60. 0 40. 0 20. 0 2. 3 CARBON EMISSIONS, MULTI-FAMILY (6, 960 SQFT) MT CO 2 e/yr All-electric, 2017 grid 0. 0 5. 0 Mixed-Fuel All-electric, 2030 grid 25. 1 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid 0. 0 All-electric, 2017 grid All-electric, 2030 grid CARBON EMISSIONS, PROTOTYPE HOTEL MT CO 2 E/YR 100. 0 13. 8 1. 0 0. 0 CARBON EMISSIONS, PROTOTYPE RETAIL MT CO 2 E/YR 30. 0 20. 0 10. 0 6. 9 93. 0 50. 0 25. 2 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid
2019 State Code Basics (Title 24 Chapter 6)

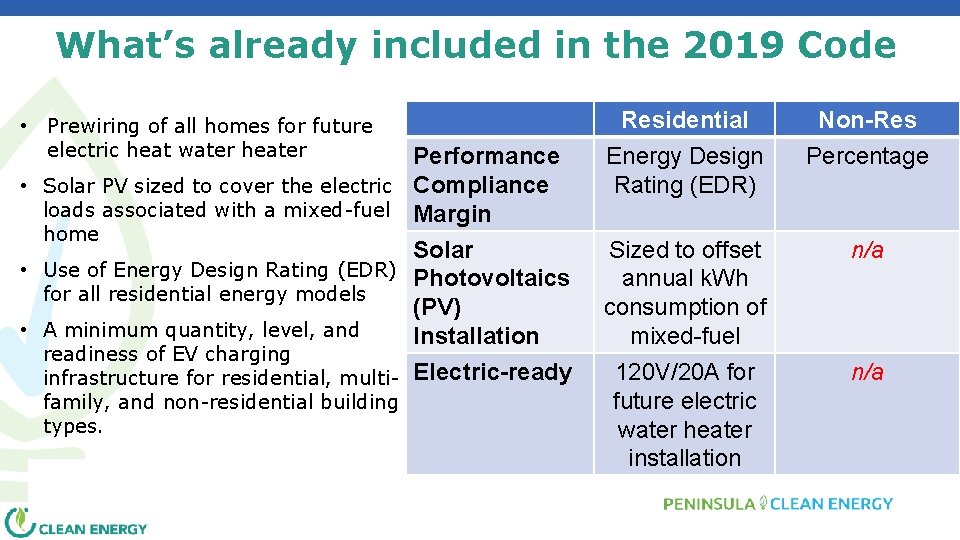

What’s already included in the 2019 Code • Prewiring of all homes for future electric heat water heater Performance • Solar PV sized to cover the electric Compliance loads associated with a mixed-fuel Margin home Solar • Use of Energy Design Rating (EDR) Photovoltaics for all residential energy models (PV) • A minimum quantity, level, and Installation readiness of EV charging infrastructure for residential, multi- Electric-ready family, and non-residential building types. Residential Energy Design Rating (EDR) Non-Res Percentage Sized to offset annual k. Wh consumption of mixed-fuel 120 V/20 A for future electric water heater installation n/a
What is EDR? • In California codes have shifted from what was being called zero net energy to the Energy Design Rating, or “EDR”. EDR allows for a range of energy performance, rather than simply targeting zero, as in Zero Net Energy. • The EDR measurement is the sum of an efficiency score and an overall score. The efficiency score is based on measures such as insulation, windows, and envelope efficiency. The overall score factors in things like onsite renewable energy and fuel sources. • A building with a score of zero (or less) has maximized energy efficiency and most likely added on-site renewable generation such as rooftop solar. • An EDR of Zero is equal to Zero Net Energy or Zero Energy. Zero or less is most easily achieved by an allelectric building design. A higher EDR score would indicate a less efficient building. 27
Mandatory + Reach Code Options for New Construction, Additions, Alterations Item 2019 Code Reads Reach Code Reads Water Heating 120 V/20 A circuit 240 V/30 A circuit* Condensate drain Clothes Drying - 240 V/40 A circuit* Cooking - 240 V/50 A circuit* Space Conditioning - - Options are formatted in green highlights Optional add-on to Reach Code Location/design addressing air source and footprint 240 V/30 A circuit* *or adequate capacity Reach Code Optional Requirements Item Reach Code Option Solar (PV) installed Require PV (non-residential only) Performance documentation Encourage building simulation and compliance forms by certified energy analysts (must include definition of what meets certified standard) 28
Building Electrification Reach Codes by Building Type Performance and Prescriptive Paths
Buildings Pathways: Performance or Prescriptive 1. Compliance Margin(s) equal to or better than Title 24 code for buildings based on fuel types • What is required for All-Electric Buildings (ex. 0% better than T 24) • What is required for Mixed Fuel Buildings (ex. Reach code 10% better than T 24) 2. Pathways for a builder to meet certain EDR requirements • Performance – use modeling software to show the proposed building meets or exceeds the compliance margin (%) established in the reach code, OR • Prescriptive – install from a list of specific technologies as defined within the reach code
Single and Two-family New Construction Performance Path 1. All Electric. Demonstrate that the proposed home will be all electric, OR 1+2 OR 1 + 2 A Prescriptive Path Build All Electric. Meet 2019 Title 24 Part 6. 2. Mixed Fuel Building. Proposed Design Building shall be at least 10 EDR points less than the Total Energy Design Rating calculated for the Standard Design Building, OR Mixed Fuel Building a. Low leakage ducts b. R-10 perimeter slab insulation c. Compact hot water distribution d. Fan efficacy of 0. 35 Watts/cfm e. Either 1) 5 k. Wh battery OR 2) A solar water heating system. 2 A. Electrically Heated Building (electric space Electrically Heating Building and water heating, gas cooking and/or clothes a. Low leakage ducts. drying). Proposed Design Building shall be at b. R-10 perimeter slab insulation. least 2 EDR points less than the Energy c. Compact hot water distribution. Efficiency Design Rating calculated for the d. Fan efficacy of 0. 35 Watts/cfm. Standard Design Building, OR 31 31 “Menu options” are formatted with green highlights

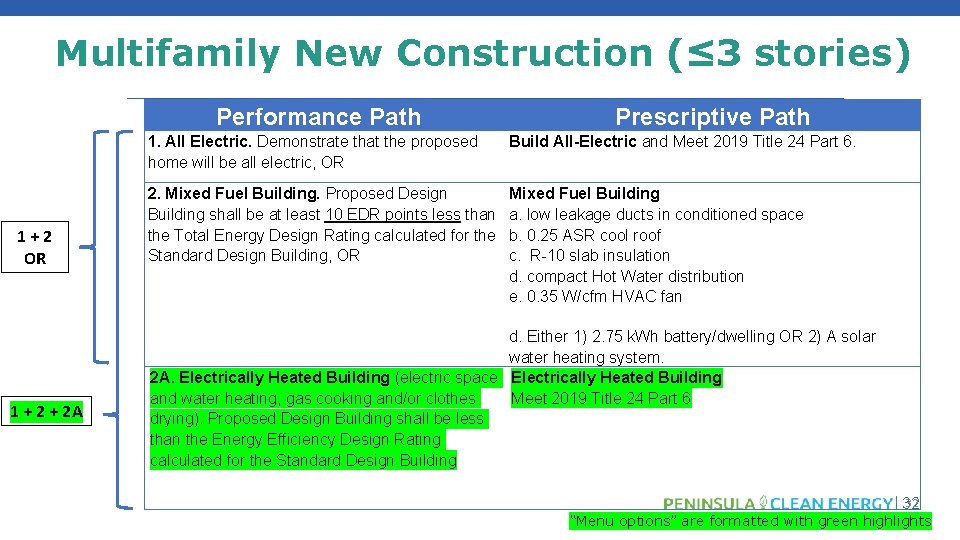

Multifamily New Construction (≤ 3 stories) Performance Path 1+2 OR 1 + 2 A Prescriptive Path 1. All Electric. Demonstrate that the proposed home will be all electric, OR Build All-Electric and Meet 2019 Title 24 Part 6. 2. Mixed Fuel Building. Proposed Design Building shall be at least 10 EDR points less than the Total Energy Design Rating calculated for the Standard Design Building, OR Mixed Fuel Building a. low leakage ducts in conditioned space b. 0. 25 ASR cool roof c. R-10 slab insulation d. compact Hot Water distribution e. 0. 35 W/cfm HVAC fan d. Either 1) 2. 75 k. Wh battery/dwelling OR 2) A solar water heating system. 2 A. Electrically Heated Building (electric space Electrically Heated Building and water heating, gas cooking and/or clothes Meet 2019 Title 24 Part 6 drying). Proposed Design Building shall be less than the Energy Efficiency Design Rating calculated for the Standard Design Building 32 32 “Menu options” are formatted with green highlights

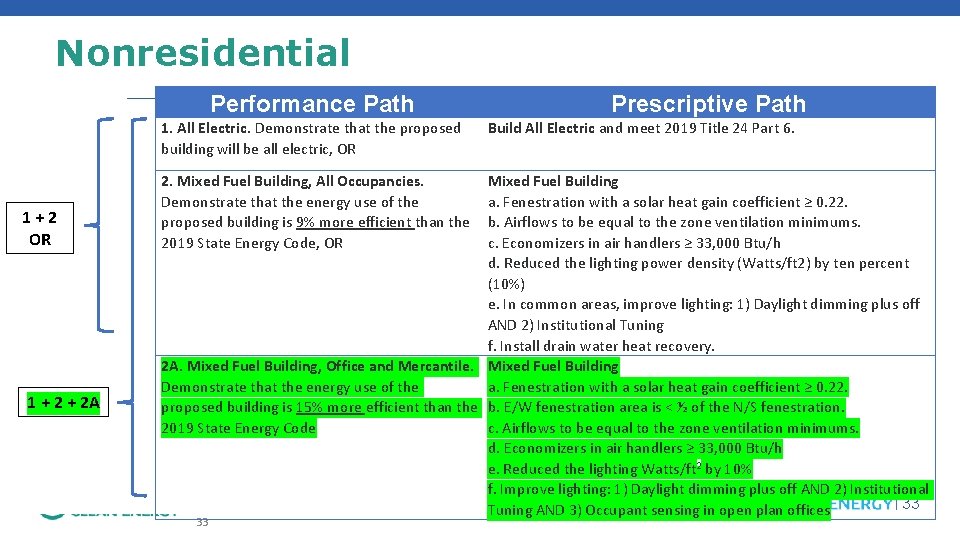

Nonresidential Performance Path 1. All Electric. Demonstrate that the proposed building will be all electric, OR 1+2 OR 1 + 2 A 2. Mixed Fuel Building, All Occupancies. Demonstrate that the energy use of the proposed building is 9% more efficient than the 2019 State Energy Code, OR Prescriptive Path Build All Electric and meet 2019 Title 24 Part 6. Mixed Fuel Building a. Fenestration with a solar heat gain coefficient ≥ 0. 22. b. Airflows to be equal to the zone ventilation minimums. c. Economizers in air handlers ≥ 33, 000 Btu/h d. Reduced the lighting power density (Watts/ft 2) by ten percent (10%) e. In common areas, improve lighting: 1) Daylight dimming plus off AND 2) Institutional Tuning f. Install drain water heat recovery. 2 A. Mixed Fuel Building, Office and Mercantile. Mixed Fuel Building Demonstrate that the energy use of the a. Fenestration with a solar heat gain coefficient ≥ 0. 22. proposed building is 15% more efficient than the b. E/W fenestration area is < ½ of the N/S fenestration. 2019 State Energy Code c. Airflows to be equal to the zone ventilation minimums. d. Economizers in air handlers ≥ 33, 000 Btu/h e. Reduced the lighting Watts/ft 2 by 10% f. Improve lighting: 1) Daylight dimming plus off AND 2) Institutional 33 Tuning AND 3) Occupant sensing in open plan offices 33
Electric Buildings - Single and Two-family New Construction 2016 Energy Code 2019 CALGreen PCE/SVCE Proposed All-Electric Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Single-Family Two-Family Townhome Solar generation ready zone in subdivisions with ten or more buildings Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Requires solar generation Mixed-Fuel Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Exceed Title 24 Energy Requirements using: • Performance (10 EDR points) • Prescriptive (additional measures) Requires solar generation + • Solar water heating • or 1. 5 k. Wh battery Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 34
Electric Buildings – Multifamily (≤ Stories)New Construction 2016 Energy Code 2019 CALGreen PCE/SVCE Proposed All-Electric Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Single-Family Two-Family Townhome Solar generation ready zone Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Requires solar generation Mixed-Fuel Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Exceed Title 24 Energy Requirements using: • Performance (10 EDR points) • Prescriptive (additional measures) Requires solar generation + • Solar water heating • or 2. 75 k. Wh battery Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 35
Electric Buildings – Nonresidential 2016 Energy Code 2019 CALGreen PCE/SVCE Proposed All-Electric Single-Family Two-Family Townhome Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Solar generation ready zone Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Mixed-Fuel Exceed Title 24 Energy Requirements using: • Performance (9% compliance margin) • Prescriptive (additional measures) Solar generation ready zone Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 36
III. EV Model Codes • EVCI Cost Retrofit vs. New • Terms and Rates • Codes 37
EVCI – Cost of New vs Retrofit Investing in EV infrastructure during new construction saves 40 -400% of costs compared to retrofitting it later. EV Ready EV Capable 38 38
Key Terms: EV Infrastructure EV Terms, Charge Rates Level 1 “Trickle Charging” Standard household outlet 15 -20 Amp, 120 v AC Driving distance provided: 3 -4 miles/hour Level 2 “Standard Charging” Equivalent to a dryer outlet. 40+ Amp, 208/240 v AC Driving distance provided (standard charging): 25 -30 miles/hour Level 3 “DC Fast Charging / Super. Charging” 24 -350 k. W Driving distance provided 72 -1, 200 miles/hour 39 39

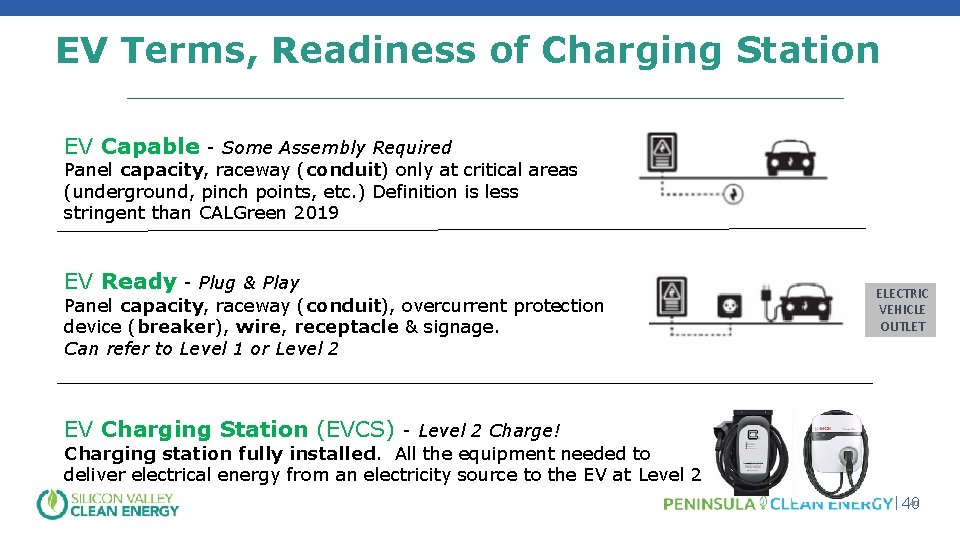

Key Terms: EV Infrastructure EV Terms, Readiness of Charging Station EV Capable - Some Assembly Required Panel capacity, raceway (conduit) only at critical areas (underground, pinch points, etc. ) Definition is less stringent than CALGreen 2019 EV Ready - Plug & Play Panel capacity, raceway (conduit), overcurrent protection device (breaker), wire, receptacle & signage. Can refer to Level 1 or Level 2 ELECTRIC VEHICLE OUTLET EV Charging Station (EVCS) - Level 2 Charge! Charging station fully installed. All the equipment needed to deliver electrical energy from an electricity source to the EV at Level 2 40 40
Electric Vehicles - Single and Two-family New Construction Single Family Two-Family Townhome 2016 CALGreen 2019 CALGreen Mandatory (1) Level 2 EV Capable for one parking space per dwelling unit PCE/SVCE Proposed 2 EV spaces total: • 1 Level 2 EV Ready circuit • 1 Level 1 EV Ready circuit ELECTRIC VEHICLE OUTLET 41
Electric Vehicles - Single and Two-family New Construction Single Family Two-Family Townhome 2016 CALGreen 2019 CALGreen Mandatory (1) Level 2 EV Capable for one parking space per dwelling unit PCE/SVCE Proposed 2 EV spaces total: • 1 Level 2 EV Ready circuit • 1 Level 1 EV Ready circuit ELECTRIC VEHICLE OUTLET 42
Electric Vehicles - Multifamily New Construction 2016 CALGreen ELECTRIC VEHICLE OUTLET 2019 CALGreen PCE/SVCE Proposed Mandatory 3% Mandatory 10% 100% ≤ 20 dwelling units Multi-Family 3% Level 2 EV Capable for buildings with ≥ 17 units 10% Level 2 EV Capable 25% 75% >20 dwelling units ≤ 20 units: One Level 2 EV Ready per dwelling >20 units: Of all dwelling units, • 25% Level 2 EV Ready (10% in affordable housing) • 75% are Level 1 EV Ready (90% in affordable housing) 43
Electric Vehicles - Non-Residential, Office & Commercial 2016 CALGreen 2019 CALGreen Mandatory ELECTRIC VEHICLE OUTLET PCE/SVCE Proposed 6% 10% 6% 5% [PERCE NTAGE] Non-Residential 6% Level 2 EV Capable (for buildings with at least 10 parking spaces) Office building: • 10% Level 2 EVSE • 10% Level 1 EV Ready • 30% EV Capable or EV Ready Commercial: Of all parking spaces, • 6% Level 2 EVSE • 5% Level 1 EV Ready • Over 100 spaces: option for 80 k. W DC Fast Charger per 100 44 spaces
Reach Code – EV Charging Cal. Green (Part 11) provides minimum requirements for each aspect of EV Charging per building type Code Building Type Quantity Readiness Charging Speed Residential 1 per dwelling unit Capable Level 2 Multi-Unit Dwelling 10% of total spaces Capable Level 2 Commercial 6% of total spaces Capable Level 2 To enact a reach code for EV charging, increase the Quantity, Readiness and/or Charging Speed. Reach Code Building Type Quantity Readiness Charging Speed Residential 1 per dwelling unit Capable Ready Level 2 Level 1 Multi-Unit Dwelling 10% 25% of total spaces Capable Ready Level 2 Commercial 6% 10% of total spaces Capable Ready Level 2 [above charts simplified for illustration purposes] Readine ss Installed Ready Capable Speed Level 3 Level 2 Level 1 45
IV. City Actions • What steps to take • What are other cities doing • Outreach Materials & Tools • Contacts 46
What can we do with Code Base Title 24 Code Dual All Fueled Electric Required Code Incremental Cost 1 Cost Effective Base Code $0 $0 Yes or Proposed Reach Code Dual All Fueled Electric or Cal. Green Reach Code Dual All Fueled Electric Reach Code Base Code $5, 500 $0 ~ $15, 000 $0 Yes None All Energy + Green Construction w/in Cal. Green None Pounds Tons Pounds Incremental Equipment 1 None Solar Thermal or Batteries Carbon Emissions Tons Pounds Tons Frequency of 1 To meet Code Use Most more Least A ban on gas would result in only All-Electric buildings but Cities would adopt the ban outside of the Building Code. 47
Action for City XXX 1. City Manager to submit Letter of Intent for $10, 000 grant for reach code adoption and implementation support 2. Direct staff to review materials, meet with consultants, and work on customizing model code language 3. Calendar Council review and action 48
Participation to-date by Agency 49
Implementation & Adoption Resources & Tools in Development • Case Studies • Website • Homeowner Flyer • FAQs • Trainings • Cost Effectiveness Presentation Tool • Carbon Emissions Savings • Ordinance Language, Staff Report • PPTs 50
Building staff/permit Tools & Resources Permitting, enforcement, and inspection resources • Permit Checklist • Inspection Checklist • Training for Building Department Staff • FAQs 51
V. GHG Emission Reductions 52
53
54
Carbon Emissions, Single. Family Home (2, 100 sqft) Carbon Emissions, Single. Family Home (2, 700 sqft) Carbon Emissions, Multi. Family (6, 960 sqft) MT CO 2 e/yr 2. 3 0. 0 Mixed-Fuel All-electric, 2017 grid 2030 grid Carbon Emissions, Prototype Retail Carbon Emissions, Prototype Hotel MT CO 2 e/yr 93. 0 25. 1 26. 3 25. 2 13. 8 . le ct ri c, . . el ed -F u Mixed-Fuel All-electric, 2017 grid 2030 grid ix Mixed-Fuel All-electric, 2017 grid 2030 grid 0. 0 M 0. 0. 44. 1 MT CO 2 e/yr c, . . MT CO 2 e/yr Mixed-Fuel All-electric, 2017 grid 2030 grid ct ri Carbon Emissions, Prototype Office 0. 0 le Mixed-Fuel All-electric, 2017 grid 2030 grid 1. 0 Al l-e 0. 3 6. 9 Al l-e 2. 2

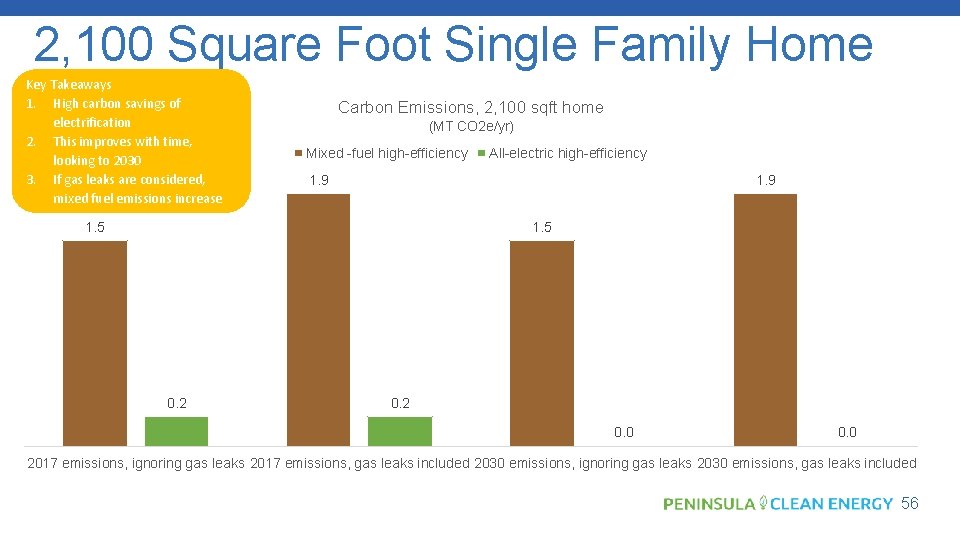

2, 100 Square Foot Single Family Home Key Takeaways 1. High carbon savings of electrification 2. This improves with time, looking to 2030 3. If gas leaks are considered, mixed fuel emissions increase Carbon Emissions, 2, 100 sqft home (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 1. 9 1. 5 0. 2 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 2030 emissions, gas leaks included 56
2, 700 Square Foot Single Family Home Carbon Emissions, 2, 700 sqft home (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 2. 0 1. 6 0. 2 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 57
6, 960 Square Foot Multi-Family Home Carbon Emissions, 6, 960 sqft Multi-Family (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 6. 8 5. 5 1. 0 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 58
Office Carbon Emissions, Prototype Office (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 45. 2 40. 8 23. 7 19. 3 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 59
Hotel Carbon Emissions, Prototype Hotel (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 20. 9 19. 1 12. 4 9. 2 7. 5 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 60
Retail Carbon Emissions, Prototype Retail (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 93. 1 81. 7 77. 9 66. 4 24. 9 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 61
Contact • Website: www. Peninsula. Reach. Codes. org • Contact: Rafael Reyes Director of Energy Programs rreyes@peninsulacleanenergy. com (650) 260 -0087 • Rachael Londer, Resource Conservation Specialist County of San Mateo rlonder@smcgov. org (650) 363 -4077 62
Thank you! 63
APPENDIX 64
Outline 1. Background & context 2. Goals 3. Where we go from here 65
Background & Context 1. New Building codes are issued every three years 2. Cities can amend the code (“reach code”) to meet local conditions 3. New Code goes into effect January 1, 2020 66
Building Codes Reach Code (amend some sections within these two parts only) Energy CALGreen Part 6 Part 11 All 11 sections must be adopted this year by Council 2019 67
Wave of Local Action Across CA • 50+ cities pursuing reach codes • On July 16, Berkeley banned gas in new construction • PG&E publicly supported the Berkeley gas ban 68
Outline 1. Background & context 2. Goals 3. Where we go from here 69
Goals for the new Code 1. 2. 3. 4. Encourage Healthier, Safer buildings Increase number of low/no pollution vehicles Pathway toward CA emission goals Fiscal responsibility 70
Healthier, Safer Buildings 1. Asthma • “Remove or reduce indoor exposures by promoting the use of building materials, consumer products, and appliances that emit little or no air pollutants. ” - Asthma and Indoor Air Quality in the Home by RAMP 1 2. General Safety • “Carbon monoxide, or ‘CO, ’ is an odorless, colorless gas that can kill. CO is found in fumes resulting from burning fossil fuels. ” - Fire Safety Topics by National Fire Safety Council 71 1 Regional Asthma Management and Prevention

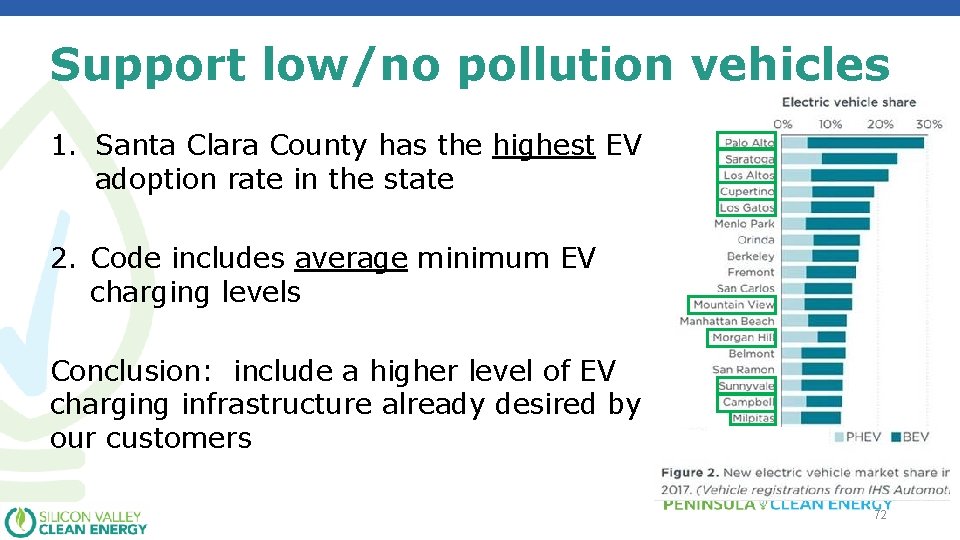

Support low/no pollution vehicles 1. Santa Clara County has the highest EV adoption rate in the state 2. Code includes average minimum EV charging levels Conclusion: include a higher level of EV charging infrastructure already desired by our customers 72
Pathway toward Goals 1. Major goals for CA 1. Electricity – via SVCE 2. Natural Gas 3. Transportation Fuels 2050 Goal - 2050 73
Fiscal Responsibility 1. If the future has less/no natural gas, any new gas service today creates a problem for tomorrow • • Adding pollution while goals require reductions Adding natural gas infrastructure while shrinking customer base 2. Installing EV charging later as a retrofit cost 2 x-5 x more than during new construction 3. All-electric homes cost less to build (no gas service/piping, 1 less appliance). If that savings is invested in solar (for example), all-electric homes cost same or less to operate. 74

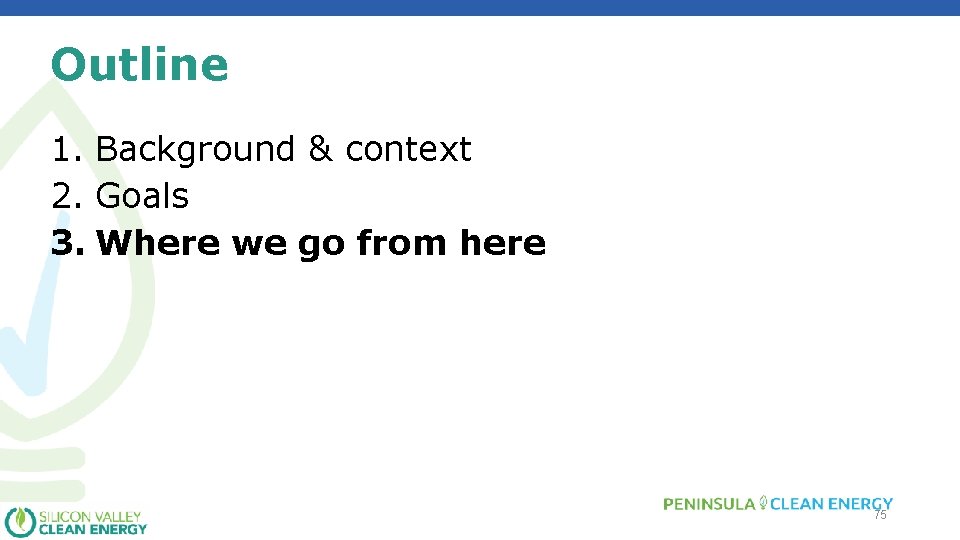

Outline 1. Background & context 2. Goals 3. Where we go from here 75
Reach Codes – inside the building Energy Part 6 All-Electric Buildings Adopt 2019 Code as is. No Reach Code. 76 Dual-Fuel Buildings Adopt 2019 Code + • Pre-wiring for Future Electric Devices • Increase Energy Efficiency • Install Solar Thermal or Battery Storage (residential only)
Reach Codes – EV Charging only CALGreen Part 11 EV Charging Base Code Single Family Residential Quantity Speed Readiness Multi-Family Residential Quantity Speed Readiness Commercial Quantity Speed Readiness 77 EV Charging Reach Code Increase the Quantity, Speed, and/or Readiness
Electric Buildings - Single and Two-family New Construction 2016 Energy Code 2019 Energy Code PCE/SVCE Proposed All-Electric Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Single-Family Two-Family Townhome Solar generation ready zone in subdivisions with ten or more buildings Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Requires solar generation Mixed-Fuel (CZ 3) Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Exceed Title 24 Energy Requirements using: • Performance (10 EDR points) • Prescriptive (additional measures) Requires solar generation + • Solar water heating OR • 5 k. Wh battery Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 78
Electric Buildings – Multifamily (≤ 3 Stories) New Construction 2016 Energy Code 2019 Energy Code PCE/SVCE Proposed All-Electric Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Single-Family Two-Family Townhome Solar generation ready zone Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Requires solar generation Mixed-Fuel (CZ 3) Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Exceed Title 24 Energy Requirements using: • Performance (10 EDR points) • Prescriptive (additional measures) Requires solar generation + • Solar water heating OR • 2. 75 k. Wh battery Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 79
Electric Buildings – Nonresidential 2016 Energy Code 2019 Energy Code PCE/SVCE Proposed All-Electric Single-Family Two-Family Townhome Meet Title 24 Energy Requirements using: • Performance (energy modelling) or • Prescriptive (measures) Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Solar generation ready zone Meet Title 24 Energy Requirements using: • Performance or • Prescriptive Requires solar generation Required adjacent outlet for Use electric appliances future electric replacement: • Gas water heaters Mixed-Fuel (CZ 3) Exceed Title 24 Energy Requirements using: • Performance (10% 15% compliance margin) • Prescriptive (additional measures) Requires solar generation Required adjacent outlet for future electric replacement: • Gas water heaters • Gas clothes dryers • Gas ranges and stoves 80
Electric Vehicles - Single and Two-family New Construction Single Family Two-Family Townhome 2016 CALGreen 2019 CALGreen Mandatory (1) Level 2 EV Capable for one parking space per dwelling unit PCE/SVCE Proposed 2 EV spaces total: • 1 Level 2 EV Ready circuit • 1 Level 1 EV Ready circuit ELECTRIC VEHICLE OUTLET 81
Electric Vehicles - Multifamily New Construction 2016 CALGreen ELECTRIC VEHICLE OUTLET 2019 CALGreen PCE/SVCE Proposed Mandatory 3% Mandatory 10% 100% ≤ 20 dwelling units Multi-Family 3% Level 2 EV Capable for buildings with ≥ 17 units 10% Level 2 EV Capable 25% 75% >20 dwelling units ≤ 20 units: One Level 2 EV Ready per dwelling >20 units: Of all dwelling units, • 25% Level 2 EV Ready (10% in affordable housing) • 75% are Level 1 EV Ready (90% in affordable housing) 82
Electric Vehicles - Non-Residential, Office & Commercial 2016 CALGreen 2019 CALGreen Mandatory ELECTRIC VEHICLE OUTLET PCE/SVCE Proposed 6% 10% 6% 5% [PERCE NTAGE] Non-Residential 6% Level 2 EV Capable (for buildings with at least 10 parking spaces) Office building: • 10% Level 2 EVSE • 10% Level 1 EV Ready • 30% EV Capable or EV Ready Other nonresidential: Of all parking spaces, • 6% Level 2 EVSE • 5% Level 1 EV Ready • Over 100 spaces: option for 80 k. W DC Fast Charger per 100 83 spaces
Tools & Resources www. Silicon. Valley. Reach. Codes. org • Model Code Language available • Staff Report templates available • Support for staff via SVCE’s consulting partner o Stakeholder meetings o Staff/Council briefings o Presentation content o Q&A 84
Call to Action • If you are currently engaged… • Inform your city staff you are looking forward to seeing their recommendations or you would like a study session • Encourage staff to utilize our support • If you are not currently engaged… • It’s not too late! www. Silicon. Valley. Reach. Codes. org 85
Contact Info John Supp Manager – Account Services 408 -721 -5301 x 1014 John. Supp@svcleanenergy. org 86
- Slides: 86
