I. Reach Code Introductory Slides • What are Reach Codes • Benefits • Model Code Summary • Partners for project • Timeline 3
What are Reach Codes? • Local enhancements to state code • Adopted with current building code cycle • Current PCE initiative aimed at improved economic and energy performance • Addresses: 1. Building electrification – reduced use of natural gas (methane) and associated emissions 2. Electric vehicle (EV) charging – increased EV readiness 4
Benefits of Reach Codes • Major economic value for residents now and prevents expensive future retrofits • Safer and healthier homes – no combustion • Enables greater EV adoption • Fiscal prudence – more cost effective to address at new construction • Advance climate goals 5
Model Code Summary Code Element Approach Building Electrification • • Provides 2 tracks for developers: All-Electric or Mixed-Fuel All-Electric (preferred) is less expensive, delivers more benefit Mixed-Fuel allows natural gas but has higher efficiency requirements Details vary by building segment • • • Provides “plug and play” access to vehicle charging Single family: Level 2 (dryer outlet power) and Level 1 (standard 110 v outlet) Multi-unit dwellings: one “EV Ready” space per unit* Office: 10% Level 2, 10% Level 1, and 30% EV Capable Other Commercial: 6% Level 2 installed and 5% Level 1 installed Electric Vehicle Readiness PCE will provide funding support for affordable housing to address EV measures 6
Project Partners • Lead consultant • Technical support • Facilitation support • Regional partner • Cost benefit approvals 7
Last September, Everything Changed SB-100 All electricity is carbon free by 2045 Executive Order B-55 -18 Carbon neutral by 2045 8
Reach Code Timeline Date/Timeframe Dec. 2018 January February March April 11 and 24 April & May 15 -May June Activity PCE, SVCE and County of San Mateo initiate reach code initiative Reach Code kickoff event for city staff Statewide Cost-Effectiveness study Building Reach Code Workshops Draft Model Reach Codes Measures available City-specific stakeholder engagements Last input into model code measures Model reach code language shared June through August Outreach and adoption technical assistance July through October City Councils vote on desired reach codes (depends on City’s workplan) August through October January 1, 2020 -2022 Submit Code Packet for CEC approval Potential for reach code to go into effect at the same time as state code update Opportunities to adopt reach code throughout three year code cycle, PCE and County to provide training and support for code implementation 9
Guiding Principles for Reach Codes • Preserve a low cost compliance option to minimize impact on construction costs • Encourage development of healthier, safer, lower emission buildings • Reflect the values of our community o Leaders in EV, solar and battery adoption rates nationwide 10

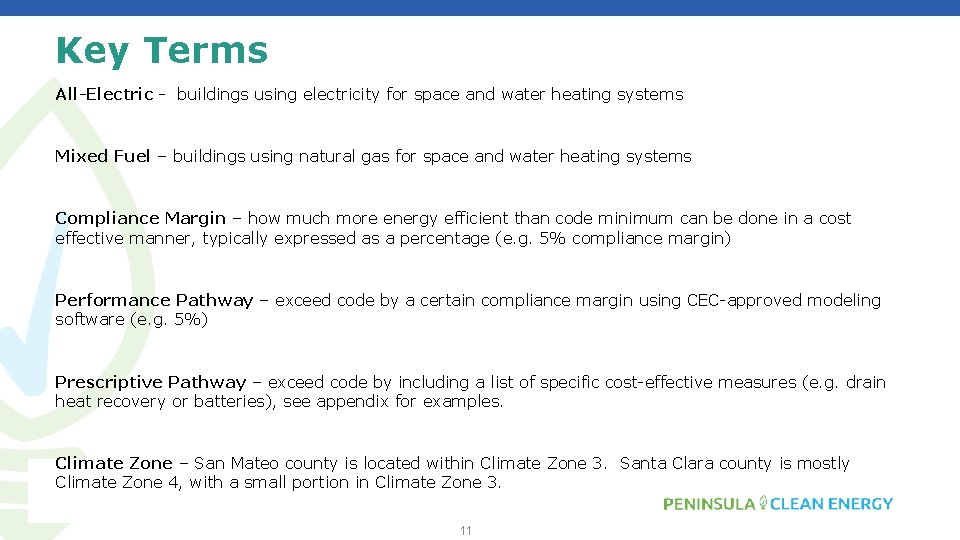

Key Terms All-Electric - buildings using electricity for space and water heating systems Mixed Fuel – buildings using natural gas for space and water heating systems Compliance Margin – how much more energy efficient than code minimum can be done in a cost effective manner, typically expressed as a percentage (e. g. 5% compliance margin) Performance Pathway – exceed code by a certain compliance margin using CEC-approved modeling software (e. g. 5%) Prescriptive Pathway – exceed code by including a list of specific cost-effective measures (e. g. drain heat recovery or batteries), see appendix for examples. Climate Zone – San Mateo county is located within Climate Zone 3. Santa Clara county is mostly Climate Zone 4, with a small portion in Climate Zone 3. 11
II. Building Model Code Details • Cost and GHG Comparisons • 2019 T 24 Code basics • EDR • Prescriptive vs Performance Pathways • Building Model Code Language 12
University of California- All-Electric New Construction 13 2017 Study
14

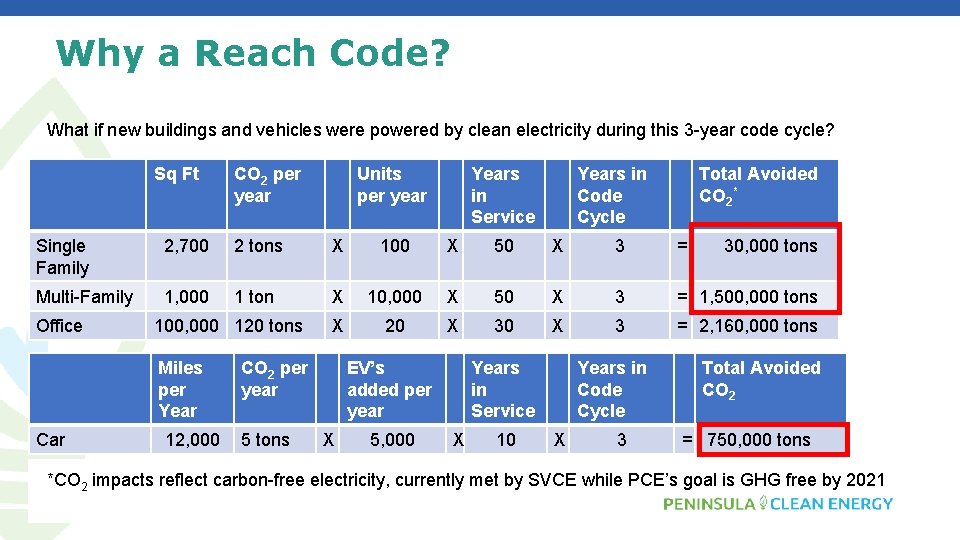

Why a Reach Code? What if new buildings and vehicles were powered by clean electricity during this 3 -year code cycle? Sq Ft CO 2 per year Units per year Years in Service Years in Code Cycle Total Avoided CO 2* Single Family 2, 700 2 tons X 100 X 50 X 3 = 30, 000 tons Multi-Family 1, 000 1 ton X 10, 000 X 50 X 3 = 1, 500, 000 tons 100, 000 120 tons X 20 X 3 = 2, 160, 000 tons Office Miles per Year Car 12, 000 CO 2 per year 5 tons EV’s added per year X 5, 000 Years in Service X 10 Years in Code Cycle X 3 Total Avoided CO 2 = 750, 000 tons *CO 2 impacts reflect carbon-free electricity, currently met by SVCE while PCE’s goal is GHG free by 2021
GHG Comparison CARBON EMISSIONS, SINGLE-FAMILY HOME (2, 100 SQFT) MT CO 2 e/yr 3. 0 2. 0 1. 0 0. 0 2. 2 0. 3 Mixed-Fuel All-electric, 2017 grid 0. 0 CARBON EMISSIONS, SINGLE-FAMILY HOME (2, 700 SQFT) MT CO 2 e/yr 3. 0 2. 0 1. 0 0. 0 44. 1 26. 3 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid 2. 3 CARBON EMISSIONS, MULTI-FAMILY (6, 960 SQFT) MT CO 2 e/yr 10. 0 0. 3 Mixed-Fuel All-electric, 2030 grid CARBON EMISSIONS, PROTOTYPE OFFICE MT CO 2 E/YR 60. 0 40. 0 20. 0 Mixed fuel / All electric 2017 / All Electric 2030 grid All-electric, 2017 grid 0. 0 5. 0 Mixed-Fuel All-electric, 2030 grid 25. 1 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid 0. 0 All-electric, 2017 grid All-electric, 2030 grid CARBON EMISSIONS, PROTOTYPE HOTEL MT CO 2 E/YR 100. 0 13. 8 1. 0 0. 0 CARBON EMISSIONS, PROTOTYPE RETAIL MT CO 2 E/YR 30. 0 20. 0 10. 0 6. 9 93. 0 50. 0 25. 2 0. 0 Mixed-Fuel All-electric, 2017 grid All-electric, 2030 grid
2019 State Code Basics (Title 24 Chapter 6)
What’s already included in the 2019 Code • Prewiring of all homes for future electric heat water heater Performance • Solar PV sized to cover the electric Compliance loads associated with a mixed-fuel Margin home Solar • Use of Energy Design Rating (EDR) Photovoltaics for all residential energy models (PV) • A minimum quantity, level, and Installation readiness of EV charging infrastructure for residential, multi- Electric-ready family, and non-residential building types. Residential Energy Design Rating (EDR) Non-Res Percentage Sized to offset annual k. Wh consumption of mixed-fuel 120 V/20 A for future electric water heater installation n/a
What is EDR? • In California codes have shifted from what was being called zero net energy to the Energy Design Rating, or “EDR”. EDR allows for a range of energy performance, rather than simply targeting zero, as in Zero Net Energy. • The EDR measurement is the sum of an efficiency score and an overall score. The efficiency score is based on measures such as insulation, windows, and envelope efficiency. The overall score factors in things like onsite renewable energy and fuel sources. • A building with a score of zero (or less) has maximized energy efficiency and most likely added on-site renewable generation such as rooftop solar. • An EDR of Zero is equal to Zero Net Energy or Zero Energy. Zero or less is most easily achieved by an allelectric building design. A higher EDR score would indicate a less efficient building. 19
Mandatory + Reach Code Options for New Construction, Additions, Alterations Item 2019 Code Reads Reach Code Reads Water Heating 120 V/20 A circuit 240 V/30 A circuit* Condensate drain Clothes Drying - 240 V/40 A circuit* Cooking - 240 V/50 A circuit* Space Conditioning - - Options are formatted in green highlights Optional add-on to Reach Code Location/design addressing air source and footprint 240 V/30 A circuit* *or adequate capacity Reach Code Optional Requirements Item Reach Code Option Solar (PV) installed Require PV (non-residential only) Performance documentation Encourage building simulation and compliance forms by certified energy analysts (must include definition of what meets certified standard) 20
Building Electrification Reach Codes by Building Type Performance and Prescriptive Paths
Buildings Pathways: Performance or Prescriptive 1. Compliance Margin(s) equal to or better than Title 24 code for buildings based on fuel types • What is required for All-Electric Buildings (ex. 0% better than T 24) • What is required for Mixed Fuel Buildings (ex. Reach code 10% better than T 24) 2. Pathways for a builder to meet certain EDR requirements • Performance – use modeling software to show the proposed building meets or exceeds the compliance margin (%) established in the reach code, OR • Prescriptive – install from a list of specific technologies as defined within the reach code
Single and Two-family New Construction Performance Path 1. All Electric. Demonstrate that the proposed home will be all electric, OR 1+2 OR 1 + 2 A Prescriptive Path Build All Electric. Meet 2019 Title 24 Part 6. 2. Mixed Fuel Building. Proposed Design Building shall be at least 10 EDR points less than the Total Energy Design Rating calculated for the Standard Design Building, OR Mixed Fuel Building a. Low leakage ducts b. R-10 perimeter slab insulation c. Compact hot water distribution d. Fan efficacy of 0. 35 Watts/cfm e. Either 1) 5 k. Wh battery OR 2) A solar water heating system. 2 A. Electrically Heated Building (electric space Electrically Heating Building and water heating, gas cooking and/or clothes a. Low leakage ducts. drying). Proposed Design Building shall be at b. R-10 perimeter slab insulation. least 2 EDR points less than the Energy c. Compact hot water distribution. Efficiency Design Rating calculated for the d. Fan efficacy of 0. 35 Watts/cfm. Standard Design Building, OR 23 23 “Menu options” are formatted with green highlights
Multifamily New Construction (≤ 3 stories) Performance Path 1+2 OR 1 + 2 A Prescriptive Path 1. All Electric. Demonstrate that the proposed home will be all electric, OR Build All-Electric and Meet 2019 Title 24 Part 6. 2. Mixed Fuel Building. Proposed Design Building shall be at least 10 EDR points less than the Total Energy Design Rating calculated for the Standard Design Building, OR Mixed Fuel Building a. low leakage ducts in conditioned space b. 0. 25 ASR cool roof c. R-10 slab insulation d. compact Hot Water distribution e. 0. 35 W/cfm HVAC fan d. Either 1) 2. 75 k. Wh battery/dwelling OR 2) A solar water heating system. 2 A. Electrically Heated Building (electric space Electrically Heated Building and water heating, gas cooking and/or clothes Meet 2019 Title 24 Part 6 drying). Proposed Design Building shall be less than the Energy Efficiency Design Rating calculated for the Standard Design Building 24 24 “Menu options” are formatted with green highlights
Nonresidential Performance Path 1. All Electric. Demonstrate that the proposed building will be all electric, OR 1+2 OR 1 + 2 A 2. Mixed Fuel Building, All Occupancies. Demonstrate that the energy use of the proposed building is 9% more efficient than the 2019 State Energy Code, OR Prescriptive Path Build All Electric and meet 2019 Title 24 Part 6. Mixed Fuel Building a. Fenestration with a solar heat gain coefficient ≥ 0. 22. b. Airflows to be equal to the zone ventilation minimums. c. Economizers in air handlers ≥ 33, 000 Btu/h d. Reduced the lighting power density (Watts/ft 2) by ten percent (10%) e. In common areas, improve lighting: 1) Daylight dimming plus off AND 2) Institutional Tuning f. Install drain water heat recovery. 2 A. Mixed Fuel Building, Office and Mercantile. Mixed Fuel Building Demonstrate that the energy use of the a. Fenestration with a solar heat gain coefficient ≥ 0. 22. proposed building is 15% more efficient than the b. E/W fenestration area is < ½ of the N/S fenestration. 2019 State Energy Code c. Airflows to be equal to the zone ventilation minimums. d. Economizers in air handlers ≥ 33, 000 Btu/h e. Reduced the lighting Watts/ft 2 by 10% f. Improve lighting: 1) Daylight dimming plus off AND 2) Institutional 25 Tuning AND 3) Occupant sensing in open plan offices 25
Residential : Single Family Electric Pathway + Mixed Fuel Pathway Option 1 Select Option 1 or Option 2 to be paired with the Electric Pathway or Mixed Fuel Pathway Option 2 (Higher Efficiency) Compliance Margin 0% 17% (CZ 3) 14% (CZ 4) 29% (CZ 3) 25% (CZ 4) Estimated Increased* Construction Cost $0 $ 6, 800 (CZ 3) $ 6, 800 (CZ 4) $10, 000 (CZ 3) $10, 000 (CZ 4) Emissions Penalty 0% +60% (CZ 3) +70% (CZ 4) +50% (CZ 3) +50% (CZ 4) Indoor Air Quality Best Worst Modest Gas connection, gas meter, gas furnace and water heater. CO monitor required, enhanced energy efficiency. Plus electrical wiring to all gas appliances Same as Mixed Fuel Option 1, plus Batteries or Solar Thermal (or equivalent) Equipment All Electric Utilized appliances and systems, no * Based on 2, 000 sq ft house CO monitor 26 26
Residential : Multi-Family Electric Pathway + Mixed Fuel Pathway Option 1 Select Option 1 or Option 2 to be paired with the Electric Pathway or Mixed Fuel Pathway Option 2 (Higher Efficiency) Compliance Margin 0% 5% (CZ 3) 8% (CZ 4) 10% (CZ 3) 15% (CZ 4) Estimated Increased Construction Cost $0 +$2, 500 (CZ 3) +$2, 650 (CZ 4) +$4, 200 (CZ 3) +$4, 350 (CZ 4) Emissions Penalty 0% +62% (CZ 3) +62% (CZ 4) +46% (CZ 3) +46% (CZ 4) Indoor Air Quality Best Worst Modest All Electric appliances and systems, no CO monitor Gas connection, gas meter, gas furnace and water heater. CO monitor required, enhanced energy efficiency. Plus electrical wiring to all gas appliances for future switch to electric Same as Mixed Fuel Option 1, plus Batteries or Solar Thermal (or equivalent) Equipment Utilized 27 27

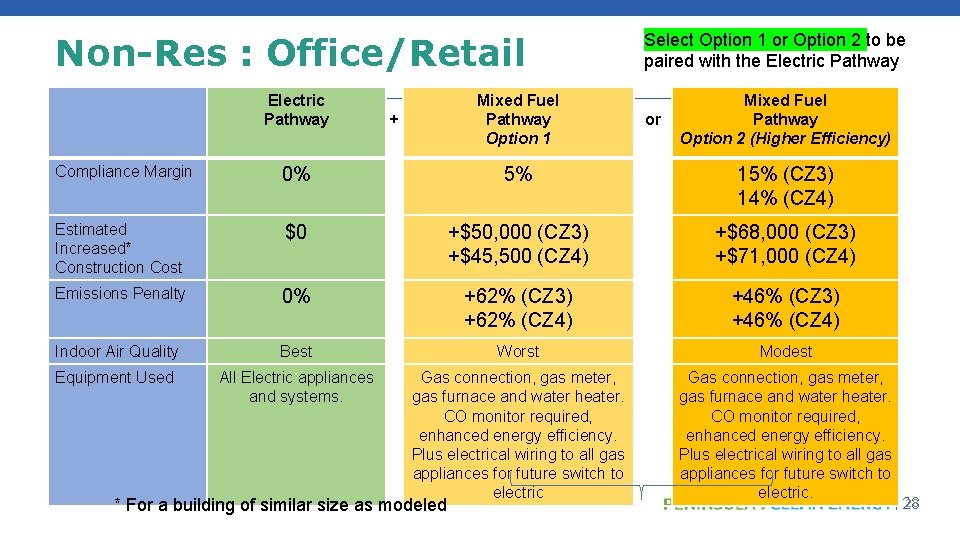

Non-Res : Office/Retail Electric Pathway Mixed Fuel Pathway Option 1 + Select Option 1 or Option 2 to be paired with the Electric Pathway or Mixed Fuel Pathway Option 2 (Higher Efficiency) Compliance Margin 0% 5% 15% (CZ 3) 14% (CZ 4) Estimated Increased* Construction Cost $0 +$50, 000 (CZ 3) +$45, 500 (CZ 4) +$68, 000 (CZ 3) +$71, 000 (CZ 4) Emissions Penalty 0% +62% (CZ 3) +62% (CZ 4) +46% (CZ 3) +46% (CZ 4) Indoor Air Quality Best Worst Modest Equipment Used All Electric appliances and systems. Gas connection, gas meter, gas furnace and water heater. CO monitor required, enhanced energy efficiency. Plus electrical wiring to all gas appliances for future switch to electric. * For a building of similar size as modeled 28 28
III. EV Model Codes • EVCI Cost Retrofit vs. New • Terms and Rates • Codes 29
EVCI – Cost of New vs Retrofit Investing in EV infrastructure during new construction saves 40 -400% of costs compared to retrofitting it later. EV Ready EV Capable 30 30
Key Terms: EV Infrastructure EV Terms, Charge Rates Level 1 “Trickle Charging” Standard household outlet 15 -20 Amp, 120 v AC Driving distance provided: 3 -4 miles/hour Level 2 “Standard Charging” Equivalent to a dryer outlet. 40+ Amp, 208/240 v AC Driving distance provided (standard charging): 25 -30 miles/hour Level 3 “DC Fast Charging / Super. Charging” 24 -350 k. W Driving distance provided 72 -1, 200 miles/hour 31 31

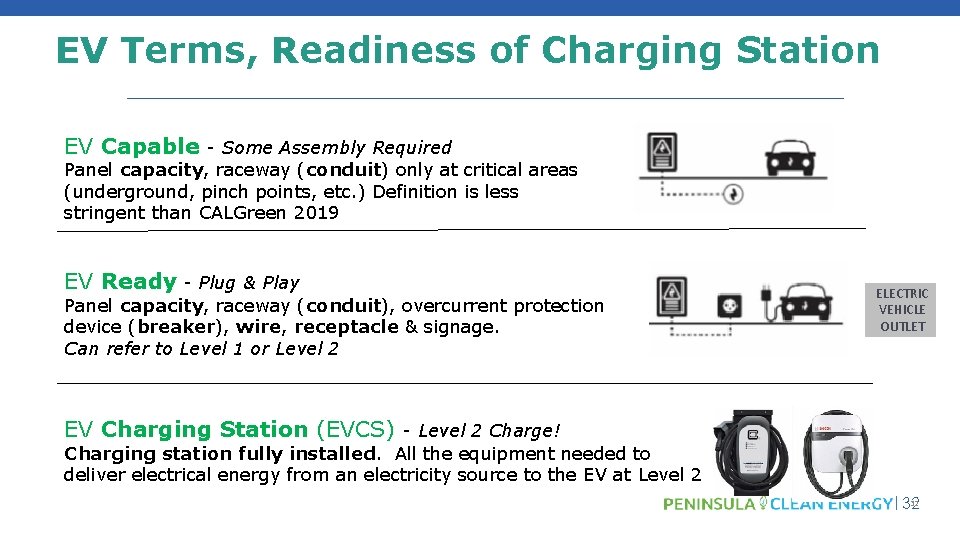

Key Terms: EV Infrastructure EV Terms, Readiness of Charging Station EV Capable - Some Assembly Required Panel capacity, raceway (conduit) only at critical areas (underground, pinch points, etc. ) Definition is less stringent than CALGreen 2019 EV Ready - Plug & Play Panel capacity, raceway (conduit), overcurrent protection device (breaker), wire, receptacle & signage. Can refer to Level 1 or Level 2 ELECTRIC VEHICLE OUTLET EV Charging Station (EVCS) - Level 2 Charge! Charging station fully installed. All the equipment needed to deliver electrical energy from an electricity source to the EV at Level 2 32 32
Single and Two-family New Construction Single Family Two-Family Townhome 2016 CALGreen 2019 CALGreen Mandatory (1) Level 2 EV Capable for one parking space per dwelling unit PCE/SVCE Proposed 2 EV spaces total: • 1 Level 2 EV Ready circuit • 1 Level 1 EV Ready circuit ELECTRIC VEHICLE OUTLET 33

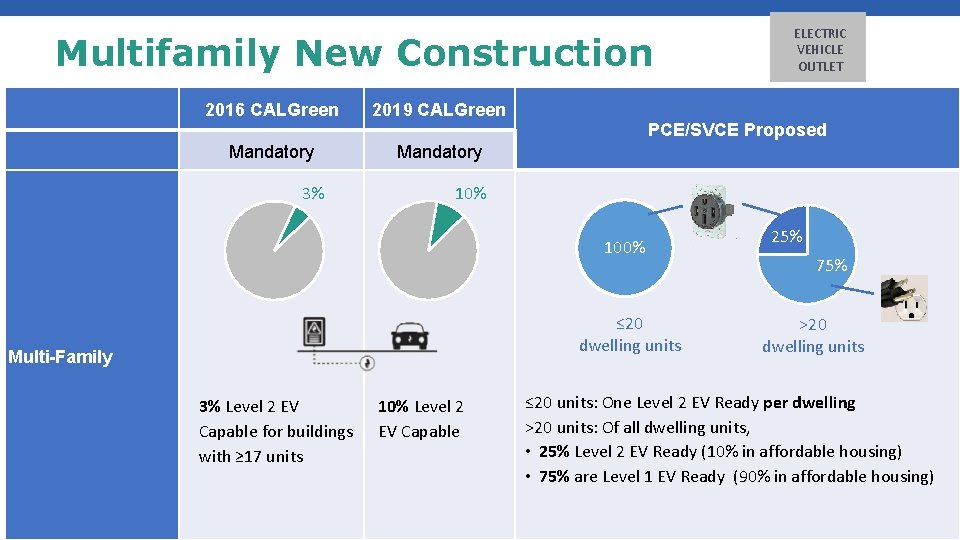

Multifamily New Construction 2016 CALGreen ELECTRIC VEHICLE OUTLET 2019 CALGreen PCE/SVCE Proposed Mandatory 3% Mandatory 10% 100% ≤ 20 dwelling units Multi-Family 3% Level 2 EV Capable for buildings with ≥ 17 units 10% Level 2 EV Capable 25% 75% >20 dwelling units ≤ 20 units: One Level 2 EV Ready per dwelling >20 units: Of all dwelling units, • 25% Level 2 EV Ready (10% in affordable housing) • 75% are Level 1 EV Ready (90% in affordable housing) 34

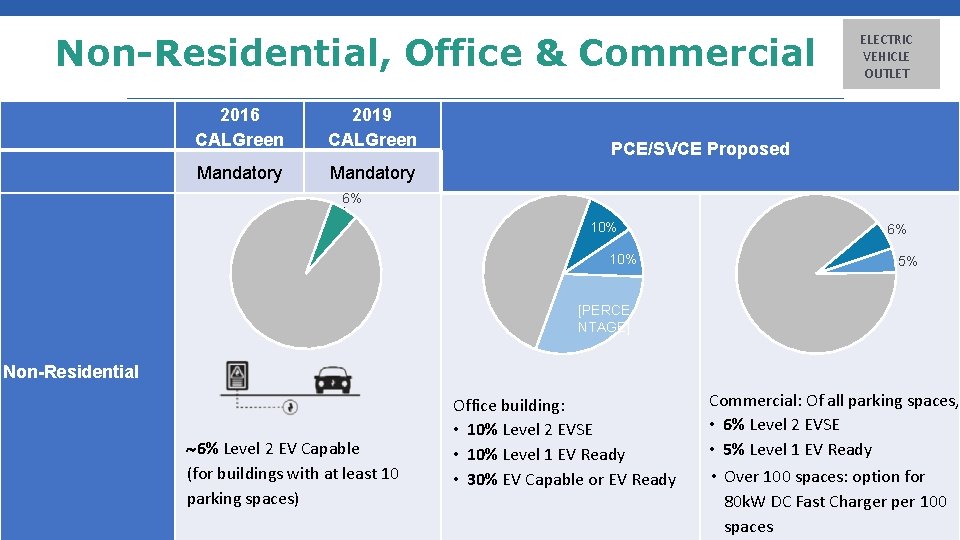

Non-Residential, Office & Commercial 2016 CALGreen 2019 CALGreen Mandatory ELECTRIC VEHICLE OUTLET PCE/SVCE Proposed 6% 10% 6% 5% [PERCE NTAGE] Non-Residential 6% Level 2 EV Capable (for buildings with at least 10 parking spaces) Office building: • 10% Level 2 EVSE • 10% Level 1 EV Ready • 30% EV Capable or EV Ready Commercial: Of all parking spaces, • 6% Level 2 EVSE • 5% Level 1 EV Ready • Over 100 spaces: option for 80 k. W DC Fast Charger per 100 35 spaces
IV. City Actions • What steps to take • What are other cities doing • Outreach Materials & Tools • Contacts 36
Action for City XXX 1. City Manager to submit Letter of Intent for $10, 000 grant for reach code adoption and implementation support 2. Direct staff to review materials, meet with consultants, and work on customizing model code language 3. Calendar Council review and action 37
Participation to-date by Agency 38
Implementation & Adoption Resources & Tools in Development • Case Studies • Website • Homeowner Flyer • FAQs • Trainings • Cost Effectiveness Presentation Tool • Carbon Emissions Savings • Ordinance Language, Staff Report • PPTs 39
Building staff/permit Tools & Resources Permitting, enforcement, and inspection resources • Permit Checklist • Inspection Checklist • Training for Building Department Staff • FAQs 40
V. GHG Emission Reductions 41
42
43
Carbon Emissions, Single. Family Home (2, 100 sqft) Carbon Emissions, Single. Family Home (2, 700 sqft) Carbon Emissions, Multi. Family (6, 960 sqft) MT CO 2 e/yr 2. 3 0. 0 Mixed-Fuel All-electric, 2017 grid 2030 grid Carbon Emissions, Prototype Retail Carbon Emissions, Prototype Hotel MT CO 2 e/yr 93. 0 25. 1 26. 3 25. 2 13. 8 . le ct ri c, . . el ed -F u Mixed-Fuel All-electric, 2017 grid 2030 grid ix Mixed-Fuel All-electric, 2017 grid 2030 grid 0. 0 M 0. 0. 44. 1 MT CO 2 e/yr c, . . MT CO 2 e/yr Mixed-Fuel All-electric, 2017 grid 2030 grid ct ri Carbon Emissions, Prototype Office 0. 0 le Mixed-Fuel All-electric, 2017 grid 2030 grid 1. 0 Al l-e 0. 3 6. 9 Al l-e 2. 2
2, 100 Square Foot Single Family Home Key Takeaways 1. High carbon savings of electrification 2. This improves with time, looking to 2030 3. If gas leaks are considered, mixed fuel emissions increase Carbon Emissions, 2, 100 sqft home (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 1. 9 1. 5 0. 2 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 2030 emissions, gas leaks included 45

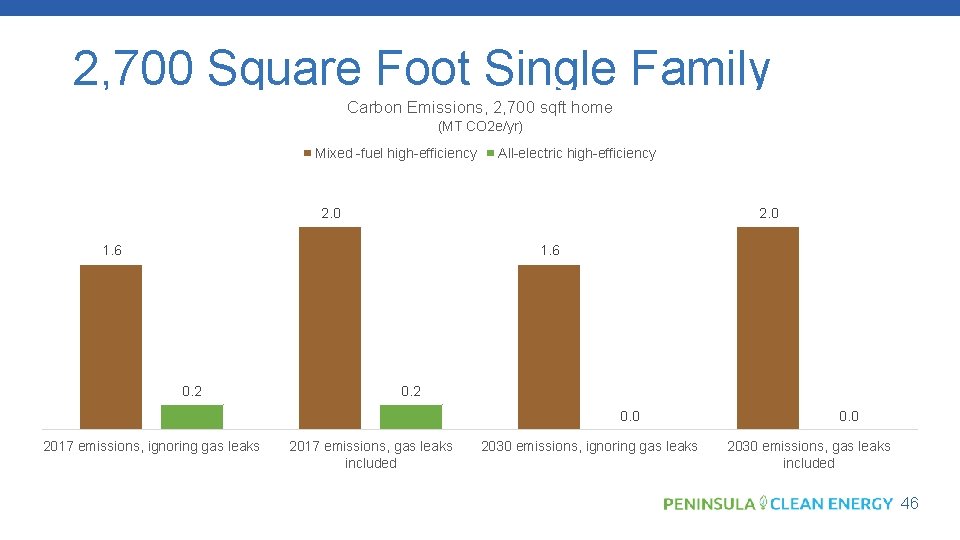

2, 700 Square Foot Single Family Home Carbon Emissions, 2, 700 sqft home (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 2. 0 1. 6 0. 2 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 46
6, 960 Square Foot Multi-Family Home Carbon Emissions, 6, 960 sqft Multi-Family (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 6. 8 5. 5 1. 0 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 47

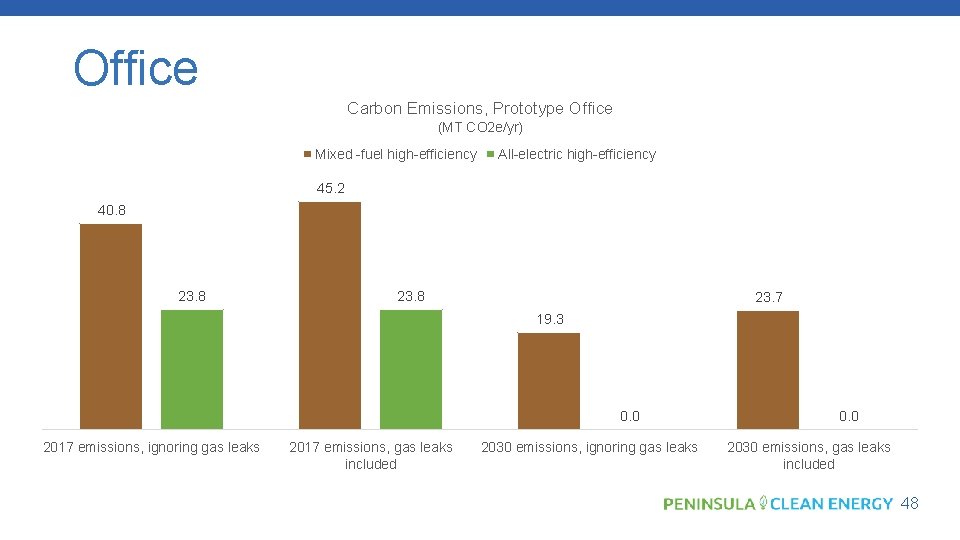

Office Carbon Emissions, Prototype Office (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 45. 2 40. 8 23. 7 19. 3 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 48

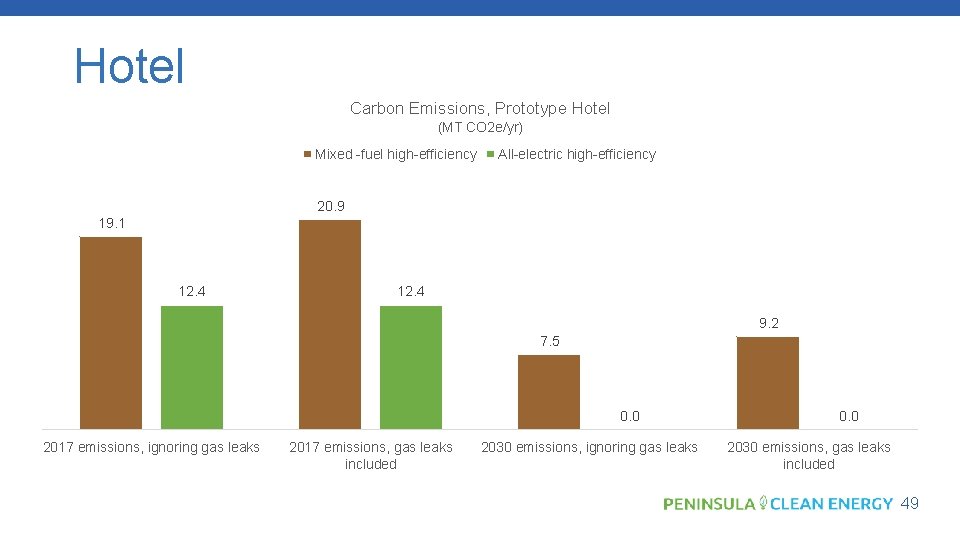

Hotel Carbon Emissions, Prototype Hotel (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 20. 9 19. 1 12. 4 9. 2 7. 5 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 49
Retail Carbon Emissions, Prototype Retail (MT CO 2 e/yr) Mixed -fuel high-efficiency All-electric high-efficiency 93. 1 81. 7 77. 9 66. 4 24. 9 0. 0 2017 emissions, ignoring gas leaks 2017 emissions, gas leaks included 2030 emissions, ignoring gas leaks 0. 0 2030 emissions, gas leaks included 50
Contact • Website: www. Peninsula. Reach. Codes. org • Contact: Rafael Reyes Director of Energy Programs rreyes@peninsulacleanenergy. com (650) 260 -0087 • Rachael Londer, Resource Conservation Specialist County of San Mateo rlonder@smcgov. org (650) 363 -4077 51
