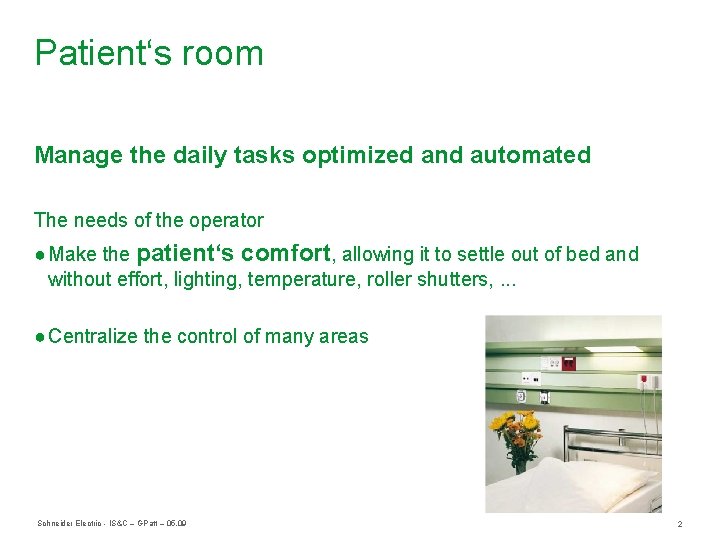

Patient‘s room Manage the daily tasks optimized and automated The needs of the operator ● Make the patient‘s comfort, allowing it to settle out of bed and without effort, lighting, temperature, roller shutters, . . . ● Centralize the control of many areas Schneider Electric - IS&C – GPatt – 05. 09 2

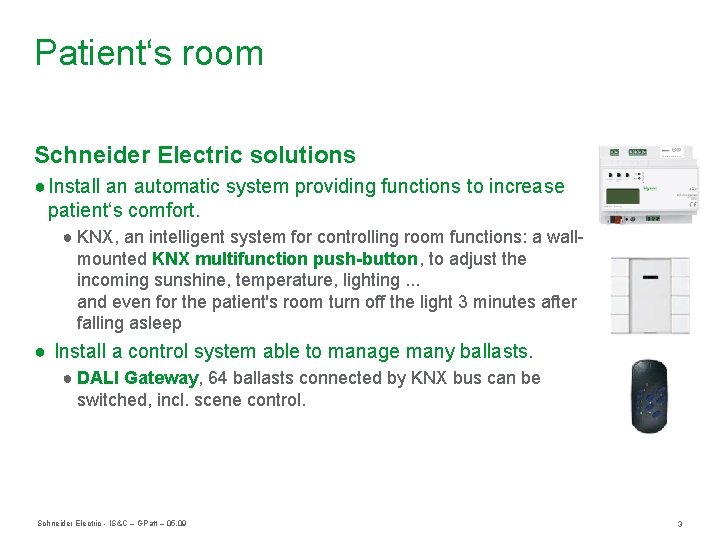

Patient‘s room Schneider Electric solutions ● Install an automatic system providing functions to increase patient‘s comfort. ● KNX, an intelligent system for controlling room functions: a wallmounted KNX multifunction push-button, to adjust the incoming sunshine, temperature, lighting. . . and even for the patient's room turn off the light 3 minutes after falling asleep ● Install a control system able to manage many ballasts. ● DALI Gateway, 64 ballasts connected by KNX bus can be switched, incl. scene control. Schneider Electric - IS&C – GPatt – 05. 09 3

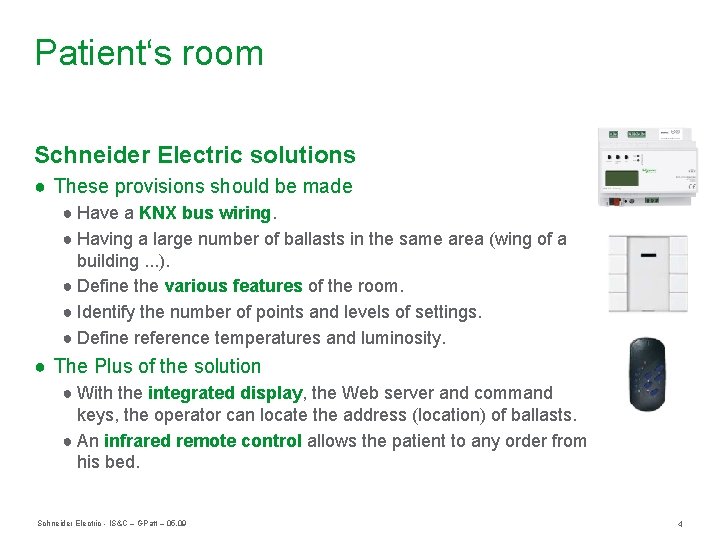

Patient‘s room Schneider Electric solutions ● These provisions should be made ● Have a KNX bus wiring. ● Having a large number of ballasts in the same area (wing of a building. . . ). ● Define the various features of the room. ● Identify the number of points and levels of settings. ● Define reference temperatures and luminosity. ● The Plus of the solution ● With the integrated display, the Web server and command keys, the operator can locate the address (location) of ballasts. ● An infrared remote control allows the patient to any order from his bed. Schneider Electric - IS&C – GPatt – 05. 09 4

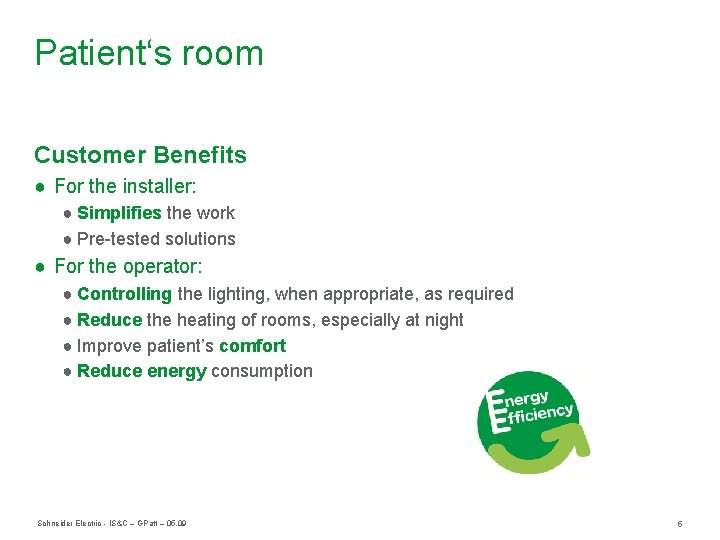

Patient‘s room Customer Benefits ● For the installer: ● Simplifies the work ● Pre-tested solutions ● For the operator: ● Controlling the lighting, when appropriate, as required ● Reduce the heating of rooms, especially at night ● Improve patient’s comfort ● Reduce energy consumption Schneider Electric - IS&C – GPatt – 05. 09 5

Patient‘s room Products used quantity Reference ● DALI Gateway ● KNX multifunction push-button with IR receiver ● KNX infrared remote control ● KNX presence detector with infrared receiver ● KNX actuator for shutters or switching ● KNX EMO heating valve drive 1 1 1 MTN 680191 MTN 628444 MTN 570222 MTN 630719 MTN 649912 MTN 639118 Schneider Electric - IS&C – GPatt – 05. 09 6
