Building Code Requirements for Structural Concrete (ACI 318 M-11) Design of Structures with High-Strength Concrete by ACI 318 David Darwin Vietnam Institute for Building Science and Technology (IBST) Hanoi and Ho Chi Minh City December 12 -16, 2011

This morning Slender columns Walls High-strength concrete

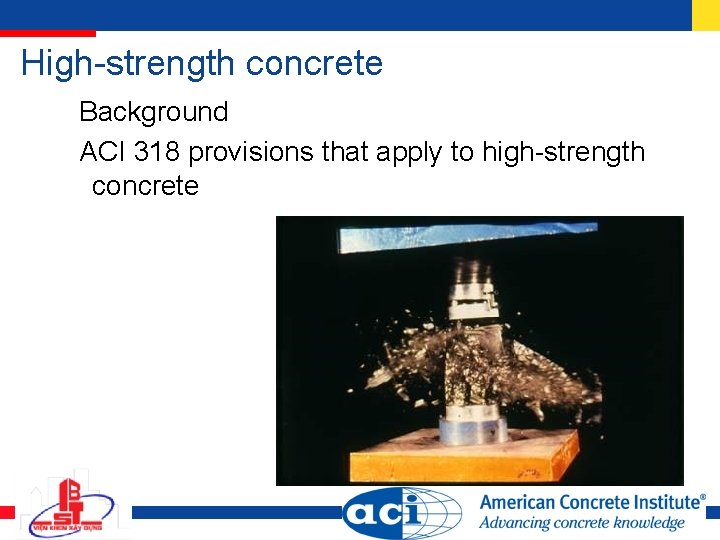

High-strength concrete Background ACI 318 provisions that apply to high-strength concrete

Background High strength concrete = ?

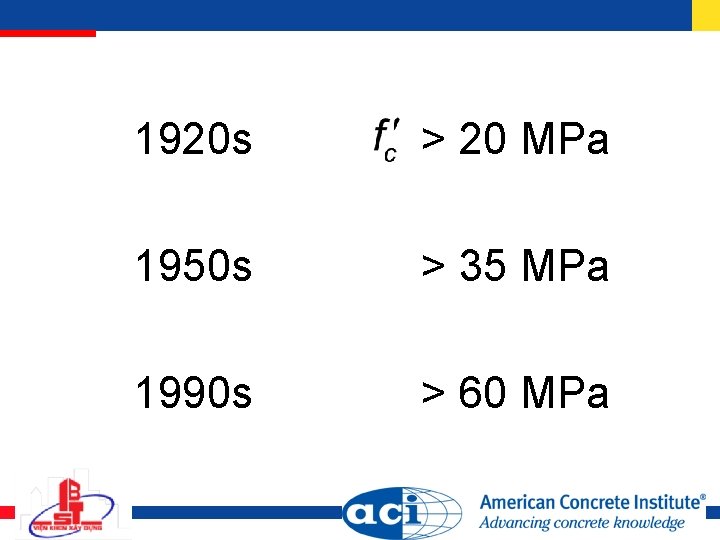

1920 s > 20 MPa 1950 s > 35 MPa 1990 s > 60 MPa

> 70 MPa

100 – 135 MPa

High-strength concrete Small % Important Columns in high-rise buildings

The tallest building in the world is constructed of reinforced concrete

Compressive behavior

cylinder size 100 x 200 mm vs. 150 x 300 mm molds

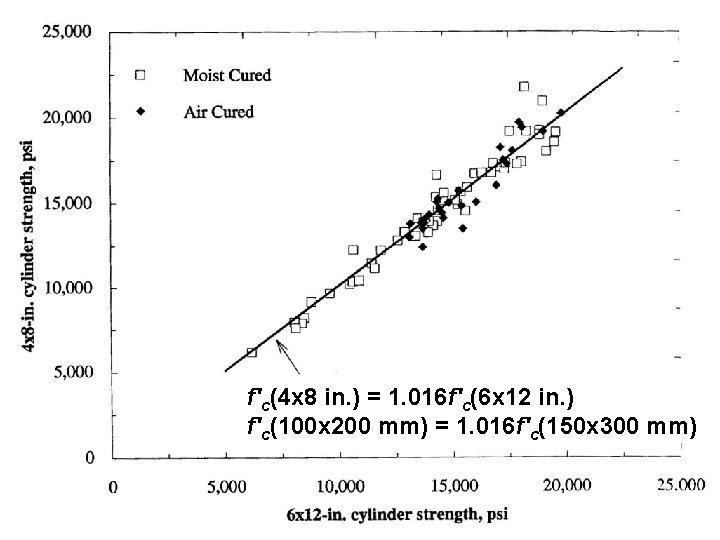

f'c(4 x 8 in. ) = 1. 016 f'c(6 x 12 in. ) f'c(100 x 200 mm) = 1. 016 f'c(150 x 300 mm)

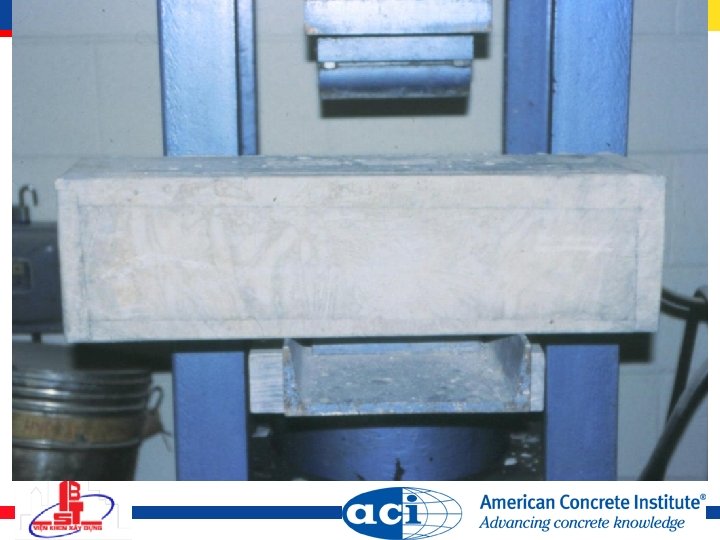

End condition

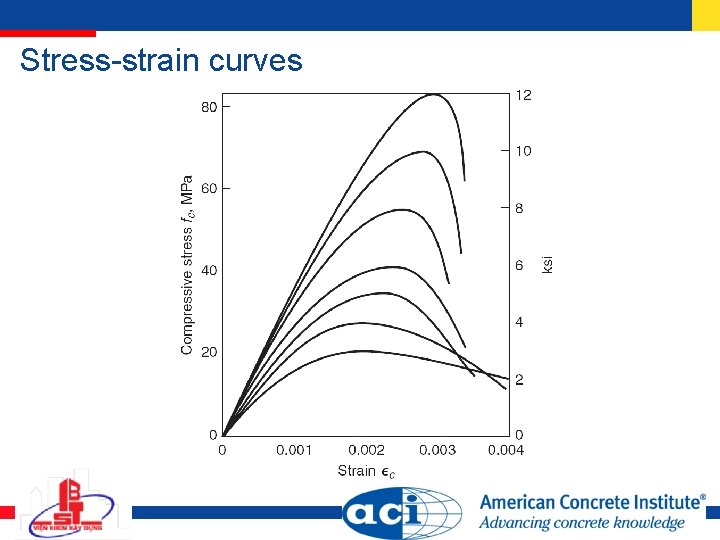

Stress-strain curves

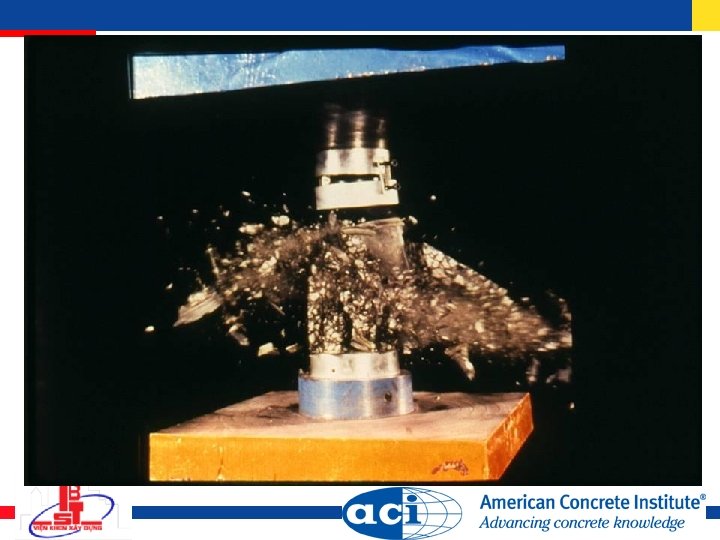

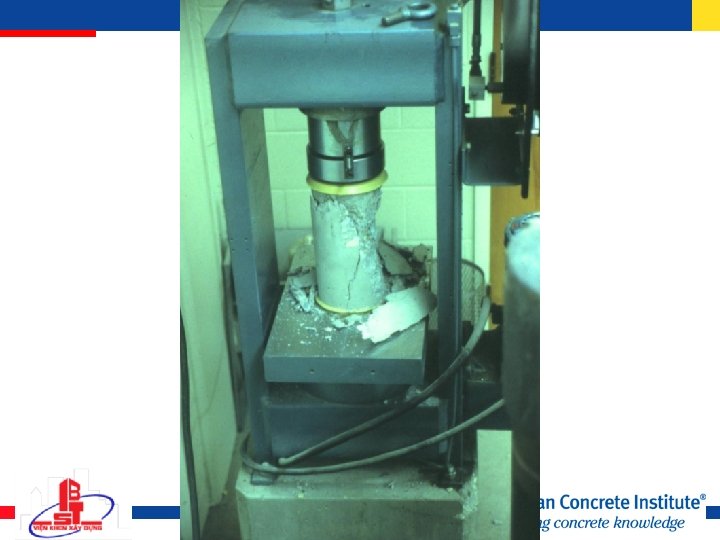

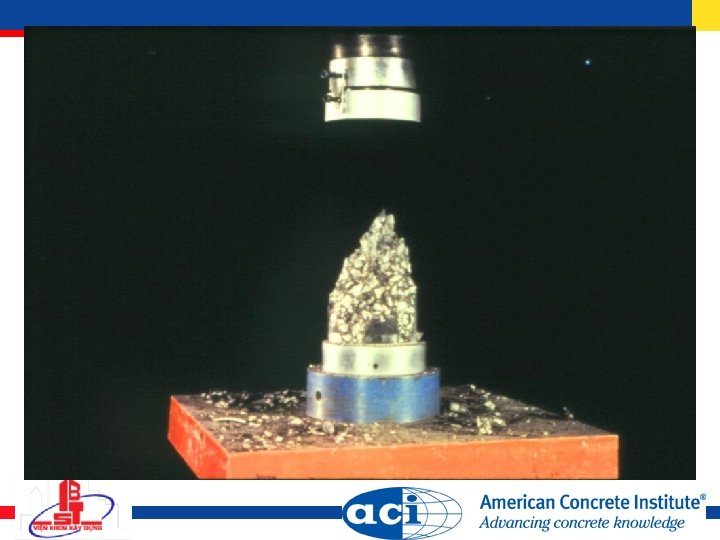

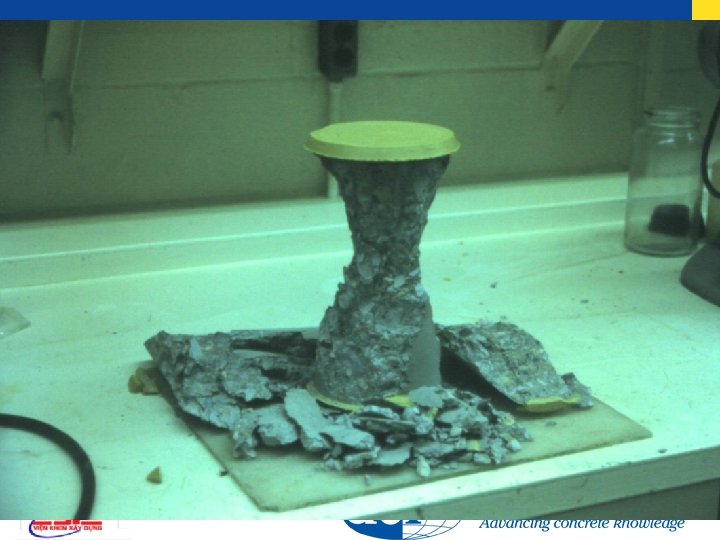

Behavior in compression tests

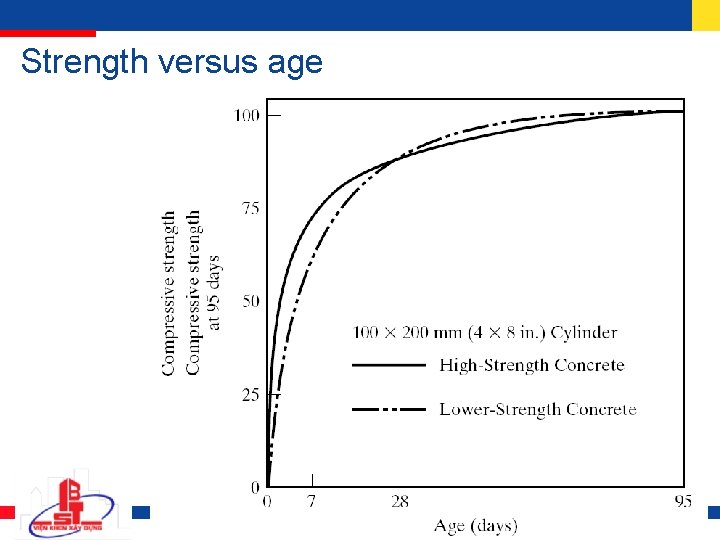

Strength versus age

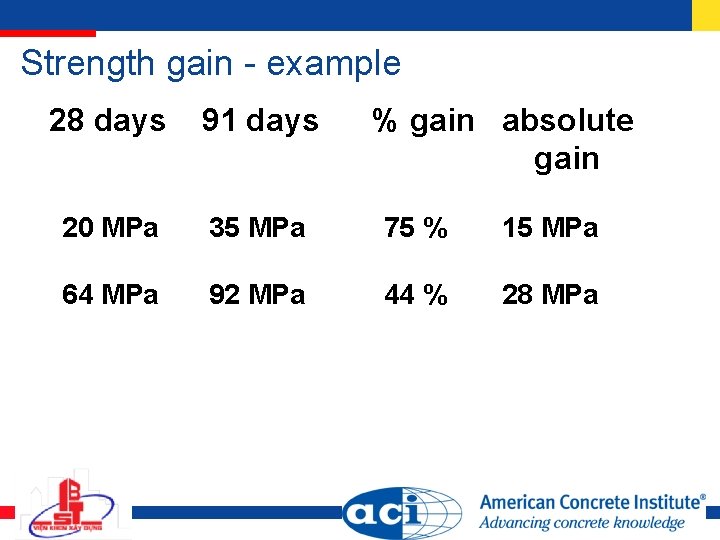

Strength gain - example 28 days 91 days % gain absolute gain 20 MPa 35 MPa 75 % 15 MPa 64 MPa 92 MPa 44 % 28 MPa

Tensile and fracture behavior

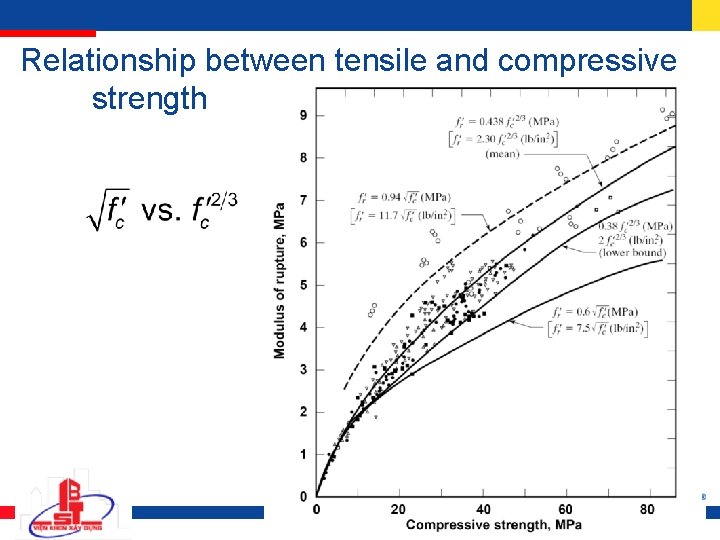

Relationship between tensile and compressive strength

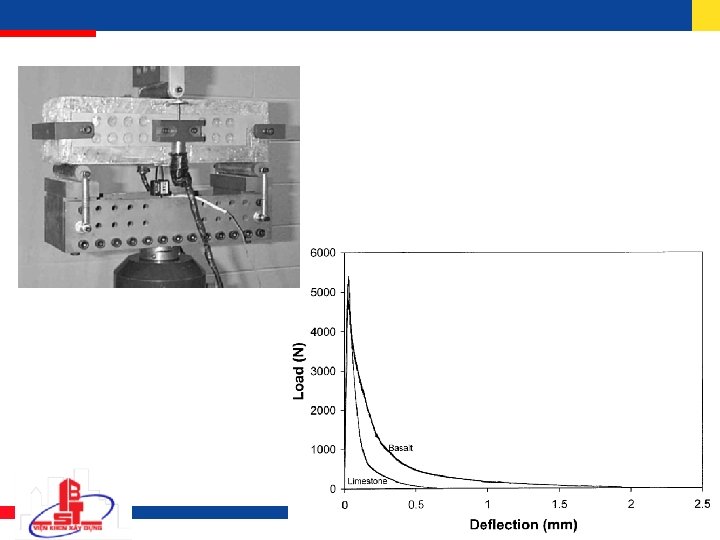

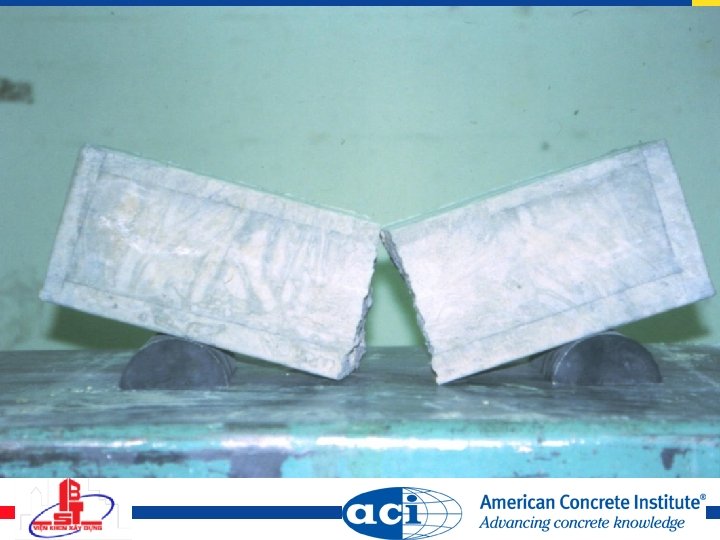

Fracture The energy required to open a crack once the tensile strength has been reached

Fracture energy vs. compressive strength

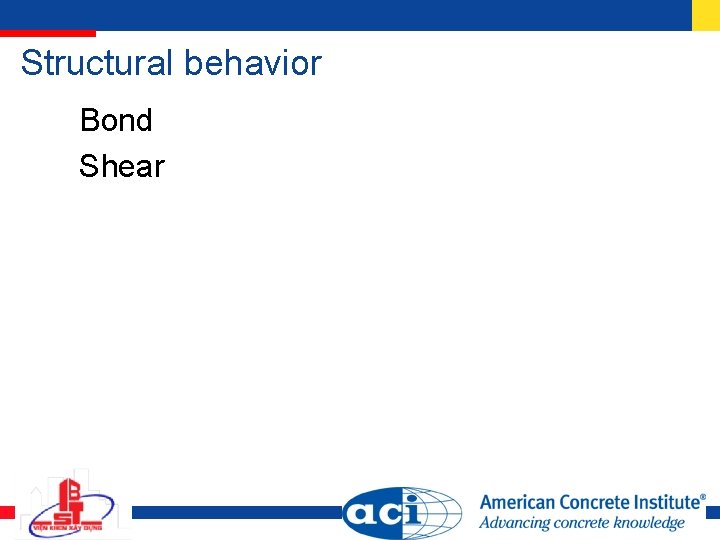

Structural behavior Bond Shear

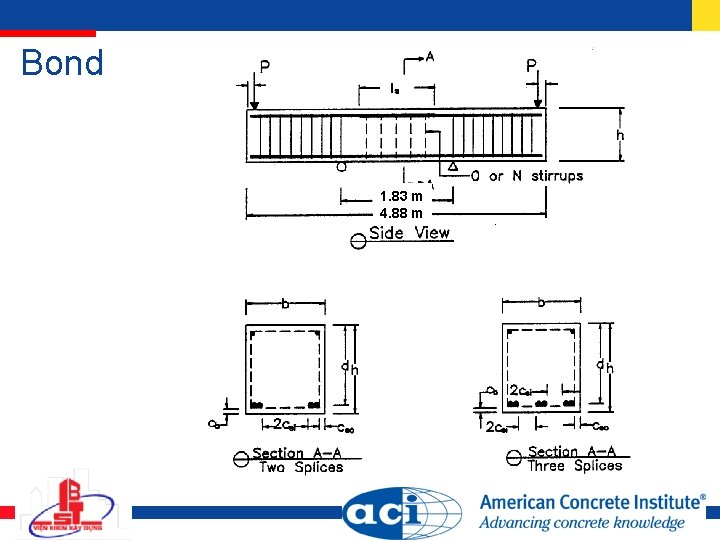

Bond 1. 83 m 4. 88 m

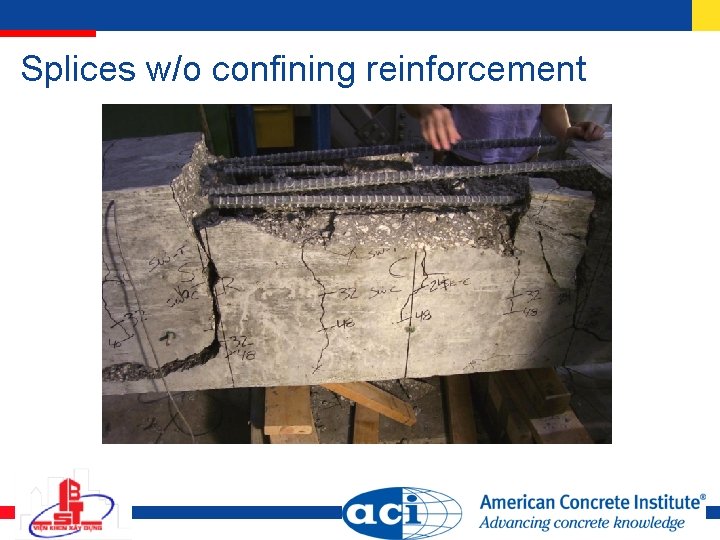

Splices w/o confining reinforcement

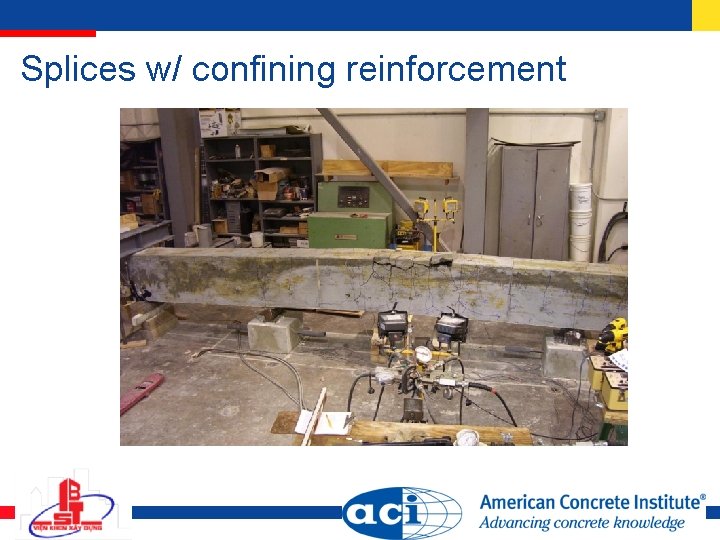

Splices w/ confining reinforcement

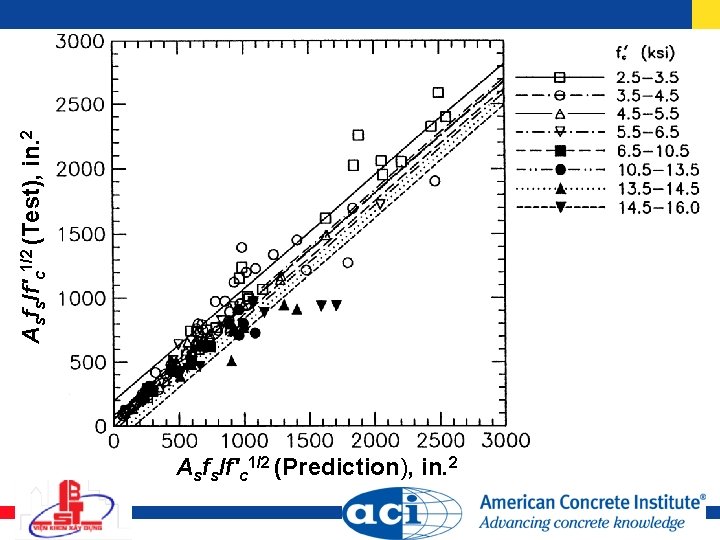

Asfs/f′c 1/2 (Test), in. 2 Asfs/f′c 1/2 (Prediction), in. 2

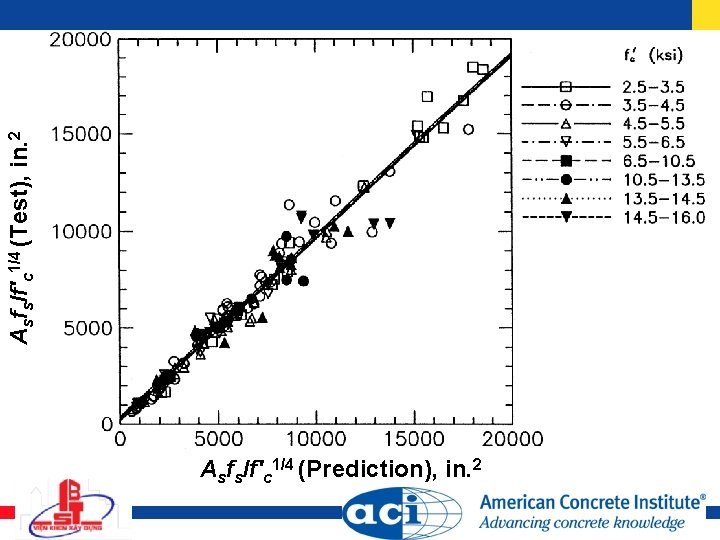

Asfs/f′c 1/4 (Test), in. 2 Asfs/f′c 1/4 (Prediction), in. 2

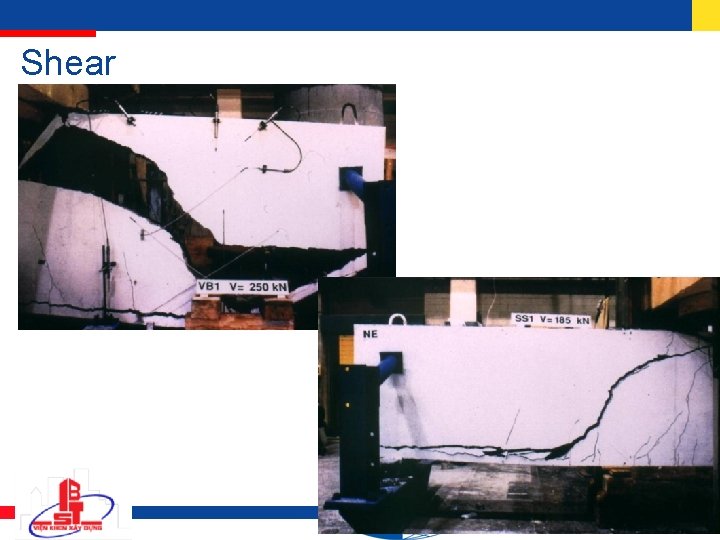

Shear

Creep and shrinkage

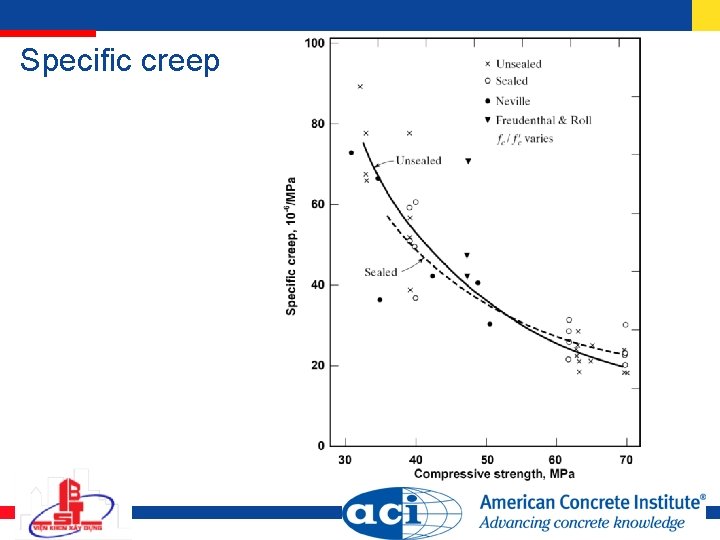

Specific creep

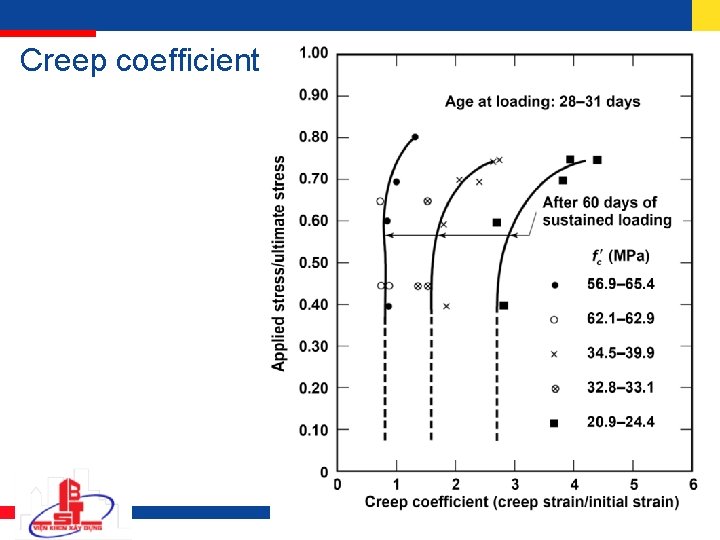

Creep coefficient

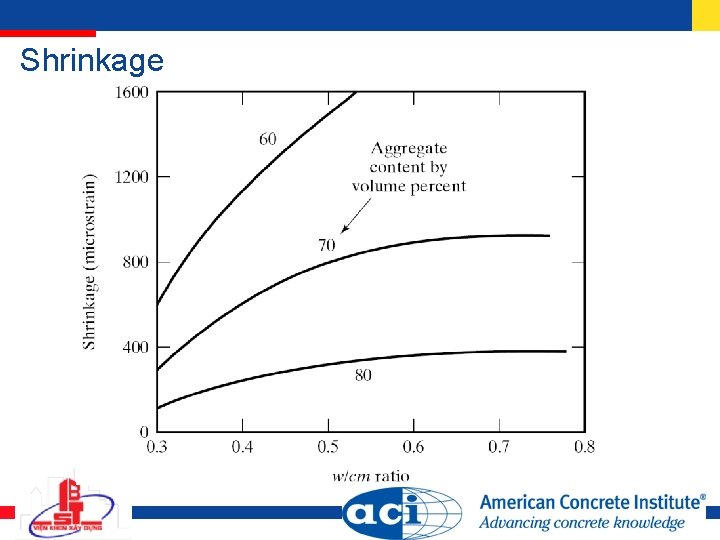

Shrinkage

ACI 318 provisions that apply to highstrength concrete Required average strength Evaluation and acceptance of concrete Stress block parameter Limits that apply to shear, torsion, and bond Transmission of column loads through floor systems

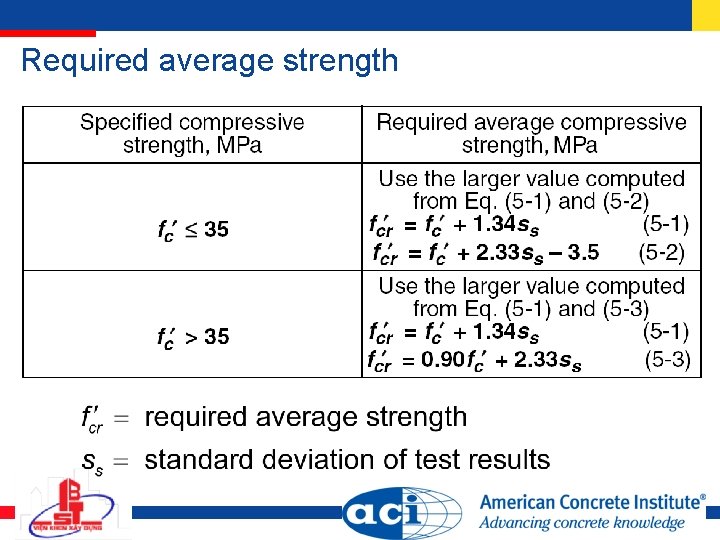

Required average strength

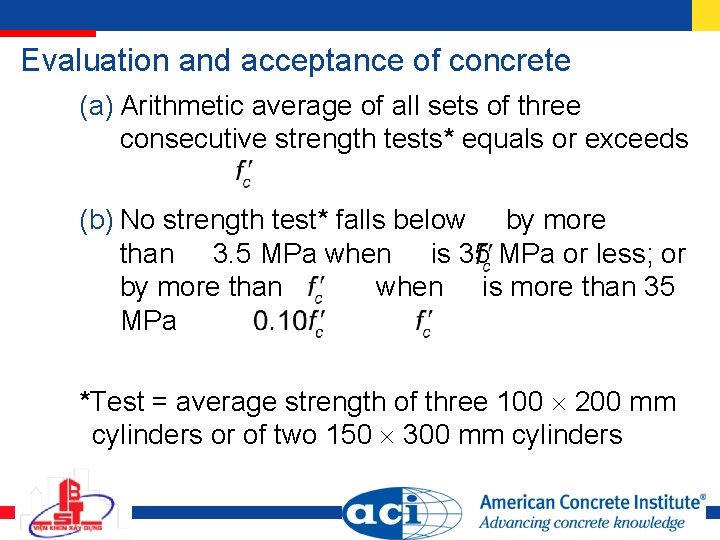

Evaluation and acceptance of concrete (a) Arithmetic average of all sets of three consecutive strength tests* equals or exceeds (b) No strength test* falls below by more than 3. 5 MPa when is 35 MPa or less; or by more than when is more than 35 MPa *Test = average strength of three 100 200 mm cylinders or of two 150 300 mm cylinders

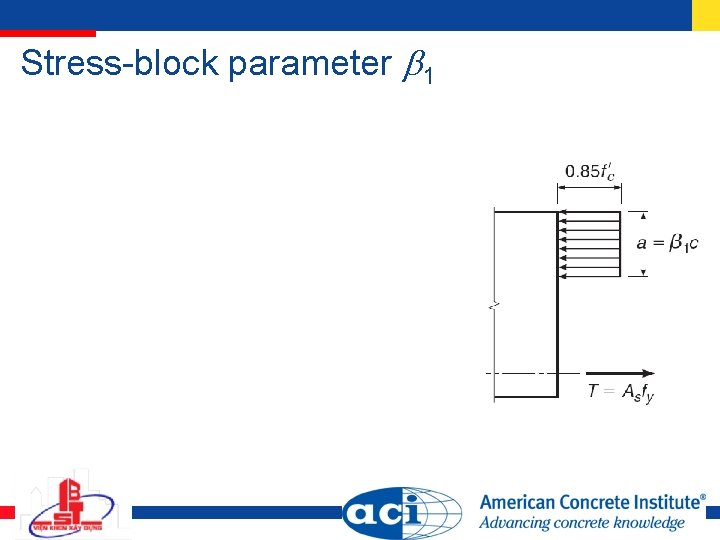

Stress-block parameter 1

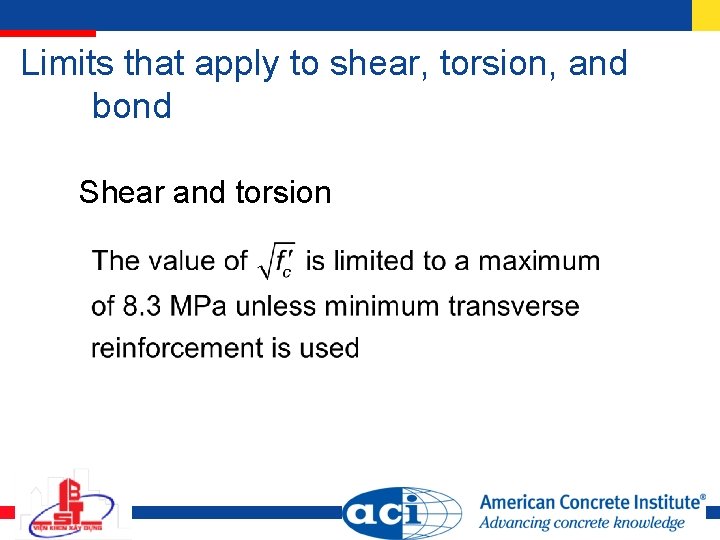

Limits that apply to shear, torsion, and bond Shear and torsion

Bond

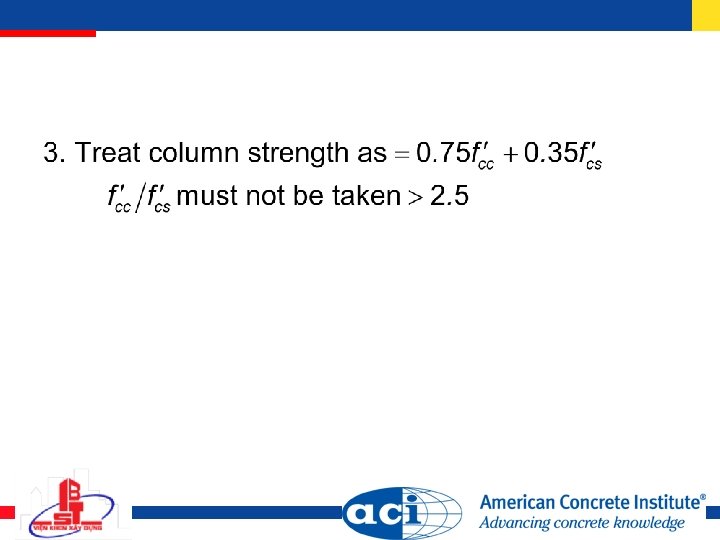

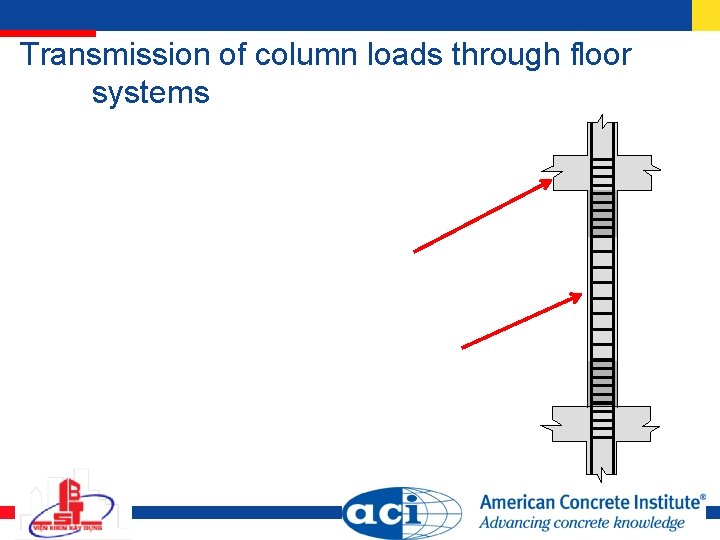

Transmission of column loads through floor systems

Summary Background ACI 318 provisions that apply to high-strength concrete
