BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS Difference between

BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS Difference between booting a PC or an Embedded System

THE BOOTING PROCESS Power On PC Embedded BIOS X-Loader Get Bootloader GRUB U-Boot Get Kernel Power On Get Kernel

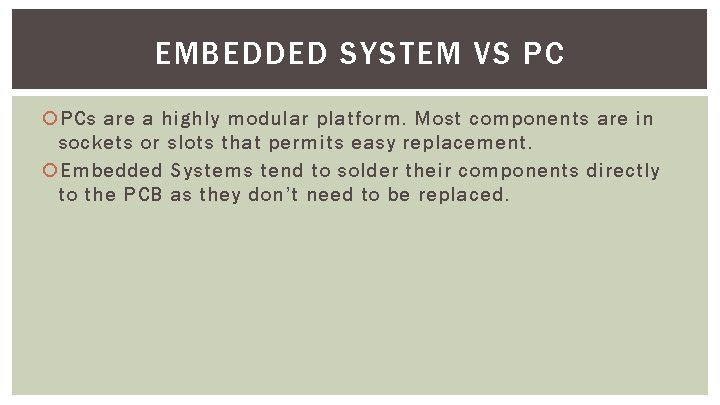

EMBEDDED SYSTEM VS PC PCs are a highly modular platform. Most components are in sockets or slots that permits easy replacement. Embedded Systems tend to solder their components directly to the PCB as they don’t need to be replaced.

EMBEDDED SYSTEM VS PC i 7 -930 i 7 -920 i 7 -940 i 7 -950 i 7 -965 X i 7 -960 i 7 -970 i 7 -980 X

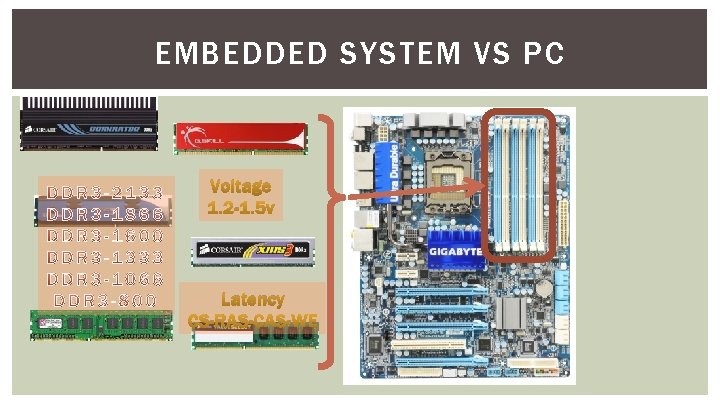

EMBEDDED SYSTEM VS PC Voltage 1. 2 -1. 5 v Latency CS-RAS-CAS-WE

EMBEDDED SYSTEM VS PC

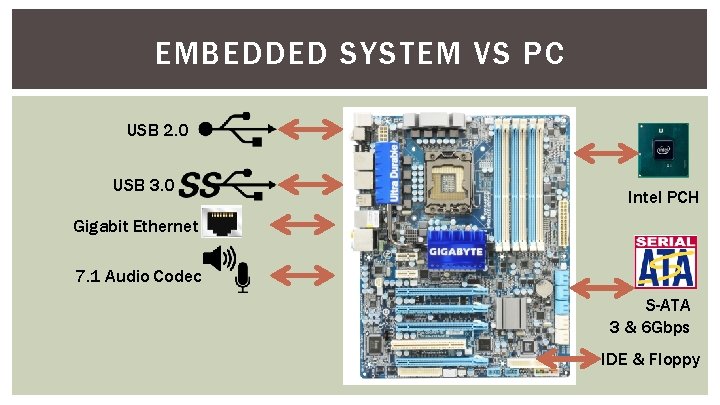

EMBEDDED SYSTEM VS PC USB 2. 0 USB 3. 0 Intel PCH Gigabit Ethernet 7. 1 Audio Codec S-ATA 3 & 6 Gbps IDE & Floppy

EMBEDDED SYSTEM VS PC TI OMAP 3730 Processor 512 MB DDR@200 MHz Power. VR SGX 530 Graphics All soldered directly to the board. Not intended for replacements.

EMBEDDED SYSTEM VS PC booting is a much longer process than for x 86 Desktop embedded systems. Desktop PCs are by far x 86 Laptop the worst due to their massive compatibility BCM 97425 issue Laptops are faster Raspberry Pi because their components are much IGEPv 2 more controlled. Time to Linux Kernel Prompt Time to Bootloader Time to POST 0 20 40 Desktop PC: Gigabyte GA-X 58 A-UD 3 R, Intel Core i 7 -950 @ 4. 2 GHz, 12 GB DDR 3 -1600, Ge. Force GTX 580, Crucial M 4 256 GB SSD Laptop PC: Dell XPS 15 L 502 x, Intel Core i 7 -2670 QM @ 2. 2 GHz, 6 GB DDR 3 -1600, Intel HD 3000 & Ge. Force GT 540 M, Western Digital Caviar Black 750 GB.

BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS BIOS and Bootloaders

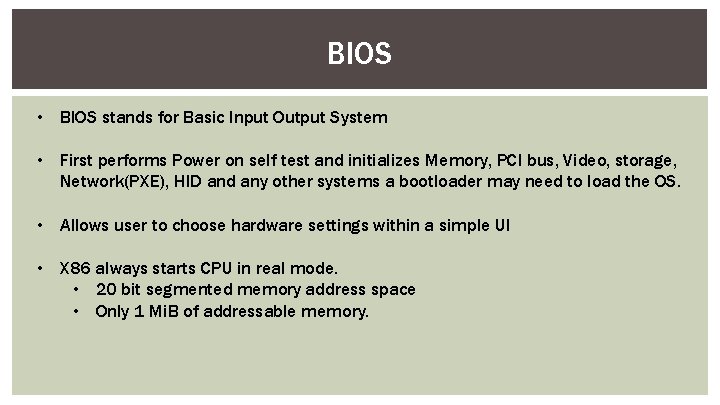

BIOS • BIOS stands for Basic Input Output System • First performs Power on self test and initializes Memory, PCI bus, Video, storage, Network(PXE), HID and any other systems a bootloader may need to load the OS. • Allows user to choose hardware settings within a simple UI • X 86 always starts CPU in real mode. • 20 bit segmented memory address space • Only 1 Mi. B of addressable memory.

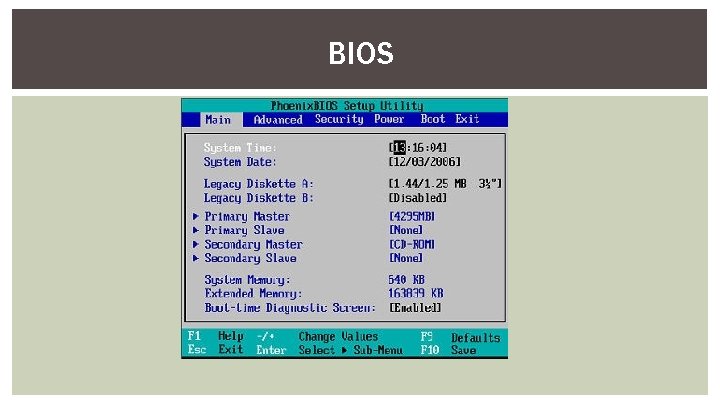

BIOS

BIOS • Post POST search for a bootable drive and copy 512 byte MBR to RAM. • This 512 bytes is the MBR • Partition table 64 b • Two byte boot signature • Optional Disk timestamps and signatures • First stage Bootstrap code takes up the rest • The BIOS yields control to the bootstrap who's only task is to locate and execute a more complex second stage bootloader (grub, BOOTMGR, NTLDR)

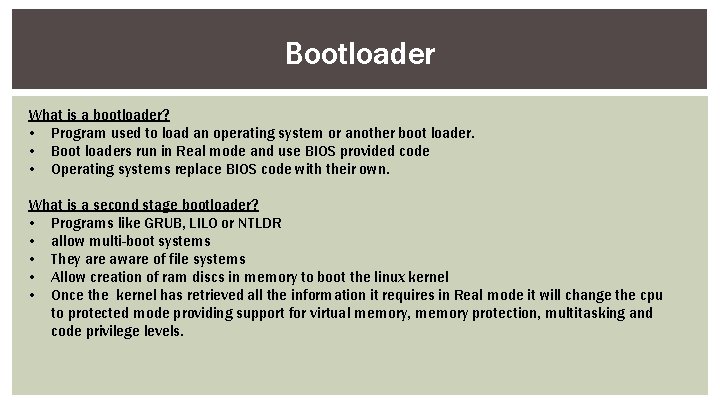

Bootloader What is a bootloader? • Program used to load an operating system or another boot loader. • Boot loaders run in Real mode and use BIOS provided code • Operating systems replace BIOS code with their own. What is a second stage bootloader? • Programs like GRUB, LILO or NTLDR • allow multi-boot systems • They are aware of file systems • Allow creation of ram discs in memory to boot the linux kernel • Once the kernel has retrieved all the information it requires in Real mode it will change the cpu to protected mode providing support for virtual memory, memory protection, multitasking and code privilege levels.

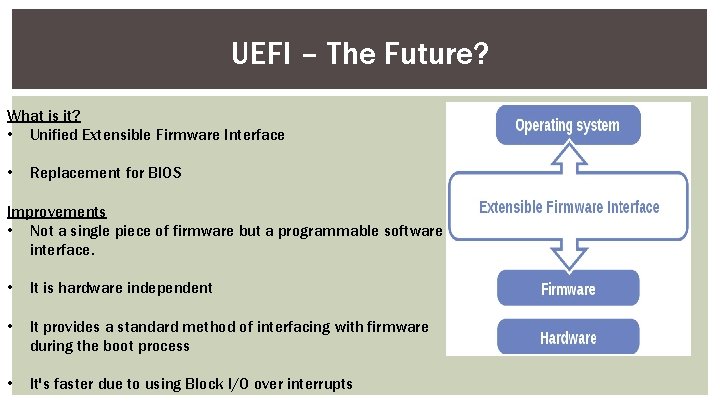

UEFI – The Future? What is it? • Unified Extensible Firmware Interface • Replacement for BIOS Improvements • Not a single piece of firmware but a programmable software interface. • It is hardware independent • It provides a standard method of interfacing with firmware during the boot process • It's faster due to using Block I/O over interrupts

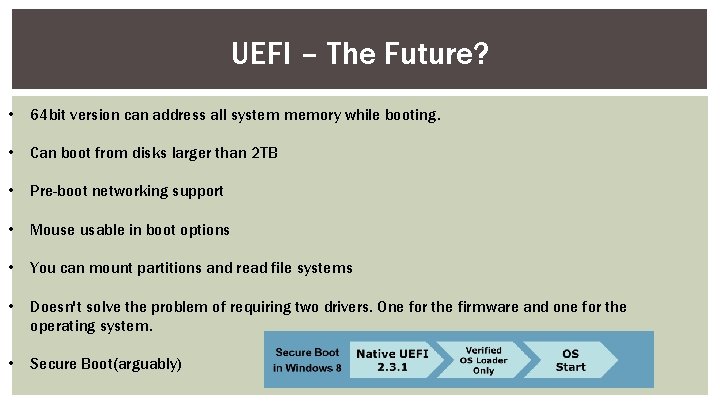

UEFI – The Future? • 64 bit version can address all system memory while booting. • Can boot from disks larger than 2 TB • Pre-boot networking support • Mouse usable in boot options • You can mount partitions and read file systems • Doesn't solve the problem of requiring two drivers. One for the firmware and one for the operating system. • Secure Boot(arguably)

BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS IGEPv 2 framework

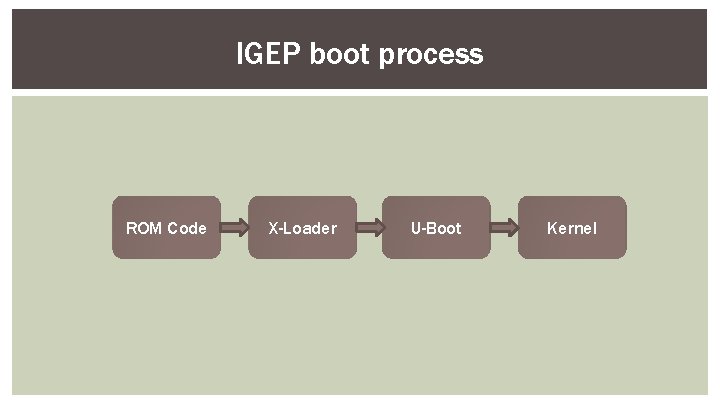

IGEP boot process ROM Code X-Loader U-Boot Kernel

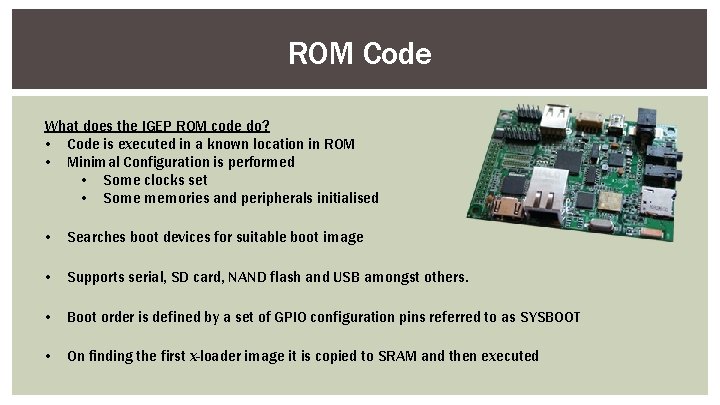

ROM Code What does the IGEP ROM code do? • Code is executed in a known location in ROM • Minimal Configuration is performed • Some clocks set • Some memories and peripherals initialised • Searches boot devices for suitable boot image • Supports serial, SD card, NAND flash and USB amongst others. • Boot order is defined by a set of GPIO configuration pins referred to as SYSBOOT • On finding the first x-loader image it is copied to SRAM and then executed

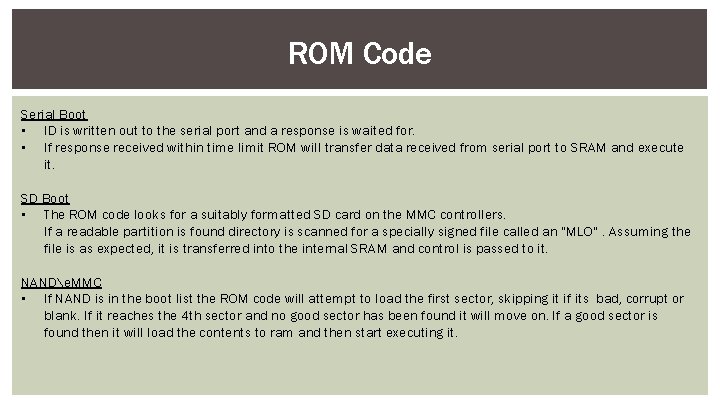

ROM Code Serial Boot • ID is written out to the serial port and a response is waited for. • If response received within time limit ROM will transfer data received from serial port to SRAM and execute it. SD Boot • The ROM code looks for a suitably formatted SD card on the MMC controllers. If a readable partition is found directory is scanned for a specially signed file called an "MLO". Assuming the file is as expected, it is transferred into the internal SRAM and control is passed to it. NANDe. MMC • If NAND is in the boot list the ROM code will attempt to load the first sector, skipping it if its bad, corrupt or blank. If it reaches the 4 th sector and no good sector has been found it will move on. If a good sector is found then it will load the contents to ram and then start executing it.

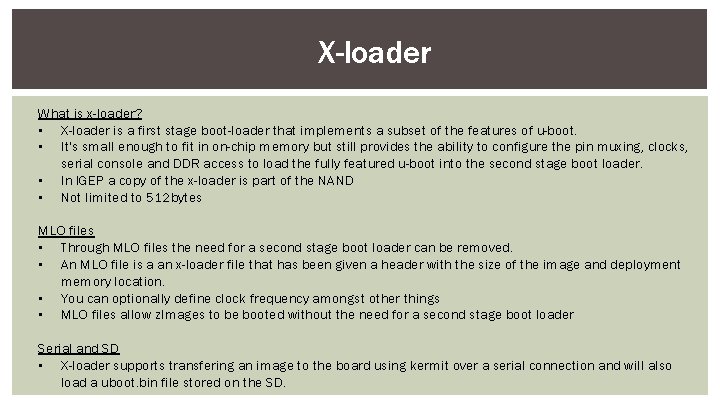

X-loader What is x-loader? • X-loader is a first stage boot-loader that implements a subset of the features of u-boot. • It's small enough to fit in on-chip memory but still provides the ability to configure the pin muxing, clocks, serial console and DDR access to load the fully featured u-boot into the second stage boot loader. • In IGEP a copy of the x-loader is part of the NAND • Not limited to 512 bytes MLO files • Through MLO files the need for a second stage boot loader can be removed. • An MLO file is a an x-loader file that has been given a header with the size of the image and deployment memory location. • You can optionally define clock frequency amongst other things • MLO files allow z. Images to be booted without the need for a second stage boot loader Serial and SD • X-loader supports transfering an image to the board using kermit over a serial connection and will also load a uboot. bin file stored on the SD.

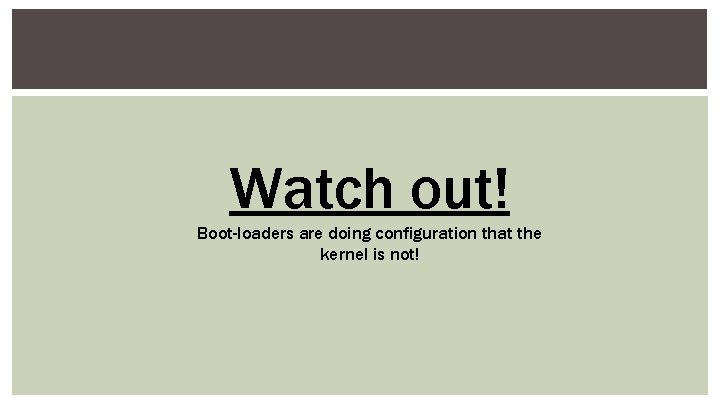

Watch out! Boot-loaders are doing configuration that the kernel is not!

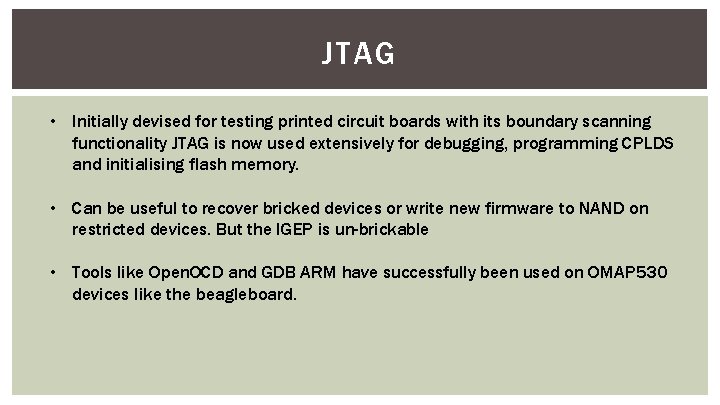

JTAG • Initially devised for testing printed circuit boards with its boundary scanning functionality JTAG is now used extensively for debugging, programming CPLDS and initialising flash memory. • Can be useful to recover bricked devices or write new firmware to NAND on restricted devices. But the IGEP is un-brickable • Tools like Open. OCD and GDB ARM have successfully been used on OMAP 530 devices like the beagleboard.

BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS Das U-Boot

BUILDING AND PORTING EMBEDDED OPERATING SYSTEMS OS/Bootloader Coupling in:

QNX? QNX is a Canadian microkernel-based RTOS. Device drivers are all run as userspace applications outside the kernel. Used in many applications, mainly automotive systems. HAM (High Availability Manager). Adaptive Partitioning Scheduler. Safety critical certification. QNX owned by RIM. Tightly coupled bootloader and kernel. Transparent distributed networking.

BOOTLOADER/OS INTERACTION Most general purpose operating systems (such as linux) avoid becoming too tightly coupled with their bootloaders. This has led to bootloaders which support a multitude of functions. An RTOS developer can take advantage of this by using the generic bootloader (and it’s more advanced capabilities (NFS, ping) to ensure hardware works, and easily bring it to life. During development this general purpose bootloader can be effectively used as a “bootloader”. The high-functionality (and easy to hack!) bootloader (i. e. U-Boot) can then be removed from a shipped product, leaving behind only a basic tightly-coupled version.

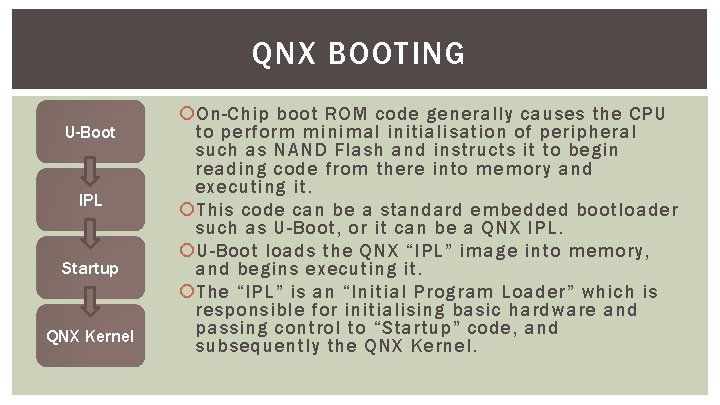

QNX BOOTING U-Boot IPL Startup QNX Kernel On-Chip boot ROM code generally causes the CPU to perform minimal initialisation of peripheral such as NAND Flash and instructs it to begin reading code from there into memory and executing it. This code can be a standard embedded bootloader such as U-Boot, or it can be a QNX IPL. U-Boot loads the QNX “IPL” image into memory, and begins executing it. The “IPL” is an “Initial Program Loader” which is responsible for initialising basic hardware and passing control to “Startup” code, and subsequently the QNX Kernel.

QNX IPL Begins in assembly, performs initialisation for HLL. CODE Initialises CPU/(some) Peripheral Clocks. Initialises basic I/O (serial). Minimal pin multiplexing for required peripherals (i. e. SDHC hardware). Reads in and decompresses “IFS” image (ramdisk + kernel). Includes basic (FAT) filesystem drivers for SDHC reading. Passes control to “Startup” Can start “minidrivers” for device interaction before OS/Kernel even begins booting. CODE

QNX STARTUP Startup begins in C language, initialises most peripherals, and sets up important kernel structures. The QNX kernel expects a “syspage” structure to exist at a predefined location in memory. This structures provides important information about the host system. Enables CPU SMP operation (multiple-cores). Often re-does initialisation done by IPL (such as serial I/O) to enable more advanced functionality. Informs minidrivers of new environment before passing control to kernel. CODE

SYSPAGE Indicates CPU type (e. g. ARM) and vital information (e. g. number of cores), and other supported features such as NEON extensions. Provides access to hardware-specific function callouts made available to the system before the Kernel was running. Provides information about the memory environment in which the kernel is running. Information about bus devices, IRQs. Information about connected peripherals and device trees for /dev population.

MINIDRIVERS Prevents need for auxillary processors for instant-on peripheral ineraction. Linked against bootloader code. Called periodically during startup, initially with polling and then interrupts when they become available. Full drivers are allowed access to minidriver memory once the kernel has loaded so they can take over without data loss. Make use of I/O hardware within 10 ms of power-on.

SUMMARY QNX Implements its own FS-aware bootloader (IPL). This bootloader is tightly coupled with its own system initialisation and kernel. This bootloader is only configurable via source code, unlike UBoot or Grub. Source code for bootloader and startup is freely available for a variety of hardware (kernel is not): http: //community. qnx. com/sf/wiki/do/view. Page/projects. bsp /wiki/BSPAnd. Drivers Questions?
