Building an eBusiness Ecosystem TIBCO Software Korea The

Building an e-Business Ecosystem TIBCO Software Korea

The e-Business Economy Today Suppliers & Distributors 4 Workflow of Sub-processes Within Domains 4 Loose Connection of Sub-processes Customers Tomorrow Orders Inventory Customer Care Functional Domains Within Companies EAI Product Development Billing B 2 B Portals Enterprise Hubs & Marketplaces 4 End-to-End Integration of Processes 4 XML-enabled Business Services 4 Dynamic and fine-grained directory services 4 Completely Ubiquitous wireless access

Meeting the Challenge of e-Business The challenge of e-business is the real-time integration of end-to-end business processes. The challenge is met through: 4 EAI – Integration of internal systems – Management of internal business processes 4 Portals – Personalized interactivity – Anytime anywhere access 4 B 2 B Integration – Document Exchange – Management of cross-company business processes

TIBCO Software’s Mission “To become total business integrator that helps companies become -businesses. ” e

The Infrastructure for e-Business Customers Your Business Extend Integrate Partners Connect B 2 B B 2 C B 2 A TIBCO

TIBCO’s e-Business Strategy TIBCO Active. Enterprise 4 Integrate internal systems and business processes TIBCO Active. Portal 4 Extend systems to people via personalized portals TIBCO Active. Exchange 4 Connect with other businesses through B 2 B integration

Fundamental Requirements Reliability Flexibility Scalability • Must operate in real-time • Must enable the appropriate type of communications for each interaction • • 4 Publish/Subscribe, Request/Reply, Multicast 4 Reliable, Guaranteed, Certified, Transactional Must bring together systems across heterogeneous environments 4 Across geographic and organizational boundaries 4 Operating Systems, Databases, Networks Must be based on a flexible architecture 4 Single point-of-contact for each application 4 Location independence 4 Service-oriented

TIBCO Architecture Point-to-point integration works for simple systems but is not practical for distributed enterprise scale deployments. • TIBCO’s “Information Bus” Architecture 4 Network-centric and Service-oriented 4 Event-driven and Demand-driven 4 Real-time 4 Extremely Flexible and Scalable The Information Bus

TIBCO Active. Enterprise 4 Integrate internal systems and business processes • Application Integration • Process Management • System Monitoring

Application Integration • Messaging • Application-specific Adapters • Data Transformation Existing Network Lines Messaging System Adapters

Messaging • TIBCO Active. Enterprise provides a common messaging platform with one connection to each application and no central server 4 Locally enables applications to send and receive messages 4 Extremely high degrees of flexibility and scalability 4 Event-driven communications or traditional request/reply Existing Network Lines Messaging System

Adapting Applications into the Bus • TIBCO Active. Enterprise provides adapters that connect applications by converting internal events into messages 4 Off-the-shelf adapters for ERP, CRM and B 2 B applications and databases 4 Adapters for development models and other messaging technologies 4 Development kit for quickly creating custom adapters Existing Network Lines SAP R/3 Peoplesoft ERP and CRM Oracle Applications Databases Siebel Baan Billing & Provisioning Domain-specific Apps Clarify I 2 COM, CORBA, EJB JD Edwards Lotus Notes Vantive Oracle MQSeries DB 2 MSMQ Informix E-mail ODBC Web SQL Server Fax Sybase GSM

Data Transformation • TIBCO Active. Enterprise transforms messages so applications can send and receive messages in their native format 4 Increases efficiency and reduces errors 4 XML provides common structure for metadata Customer Record in Billing System Customer Record in CRM System First Name Last Name Billing Address Shipping Address Invoice Number Order Date Sales Rep Reference Number Customer Name Phone Number Address Contact Info Date Status Reference Order History

Process Integration • TIBCO Active. Enterprise integrates end-to-end business processes 4 Automated sequencing of operations performed by applications and databases 4 Management of the workflow of tasks performed by people

System Monitoring and Management • TIBCO Active. Enterprise provides monitoring and management capabilities that keep e-business systems running smoothly at all times 4 Automated responses to system problems 4 Instant alerting of system administrators 4 Remote management of applications and network resources Existing Network Lines

TIBCO Active. Portal 4 Extend systems to people via personalized portals • Integration of Content & Services • Personalization • Anytime Anywhere Access

Integration of Content and Services • TIBCO Active. Portal integrates content and services from inside and outside the enterprise 4 Information from and interaction with business systems and processes 4 Real-time feeds of external content to improve stickiness Web & Wireless Interactivity Portal Server

Personalization and Customization • TIBCO Active. Portal gives each user a unique experience 4 Role-based end-user view of portal 4 Flexible customization of look and feel of categories using templates 4 Portal Services Syndication 4 Providers can control user accounts and access rights

Anytime Anywhere Access • TIBCO Active. Portal enables gives users anytime anywhere access to content and services 4 Access via wireless devices like pagers, mobile phones, etc. (via WAP, SMS and others) 4 Distribution of alerts to multiple touchpoints (email, SMS, voice)

Event-driven Alerting • Personalized Event-driven Notification 4 Personal triggers tracking high volume external and enterprise data 4 Integrated profile and distribution management via portal Data Sources Listen/Track Inventory Data Gateways Alert Server Personal Profile Add Alert Inventory < 5% Fire Alert Inventory < 5%

Powering the World’s Leading Portals

TIBCO Active. Exchange 4 Connect with other businesses through B 2 B integration • Management of Cross-company Processes • Exchange of Documents • Interaction with Trading Partners of all Sizes • Security and Standards

Management of Cross-company Processes • TIBCO Active. Exchange manages end-to-end and cross-company business processes • Automatic routing of messages to ensure rapid interactions and responses Company A Company B ü ü ü Internet ü

Integration with All Size Trading Partners Large Business Enterprise or Marketplace Backend Systems Any B 2 B Server Medium Business Internet TIB/Business. Partner TIB/Business. Connect HTTP/S FTP SMTP EDI Small Business TIB/Partner. Express

Standards and Security • TIBCO Active. Exchange supports leading B 2 B standards and security technologies 4 Full Encryption, Authentication and Non-repudiation (SSL, x. 509 Digital Certificates, Public Key Infrastructure) 4 Leading provider of fully-compliant Rosetta. Net solutions 4 Open architecture and strategic partnerships enable connections with B 2 B servers from other vendors and leading B 2 B networks

TIBCO’s e-Business Strategy TIBCO Active. Enterprise 4 Integrate internal systems and business processes TIBCO Active. Portal 4 Extend systems to people via personalized portals TIBCO Active. Exchange 4 Connect with other businesses through B 2 B integration

TIBCO in TMF(Telecommunication Management Forum)

Broadband Cable Services Management(BCSM) Pn. P Catalyst BCSM Phase I

BCSM Phase I Data Flow Diagram

Broadband Cable Services Management(BCSM) Pn. P Catalyst BCSM Phase II

BCSM Phase II Data Flow Diagram

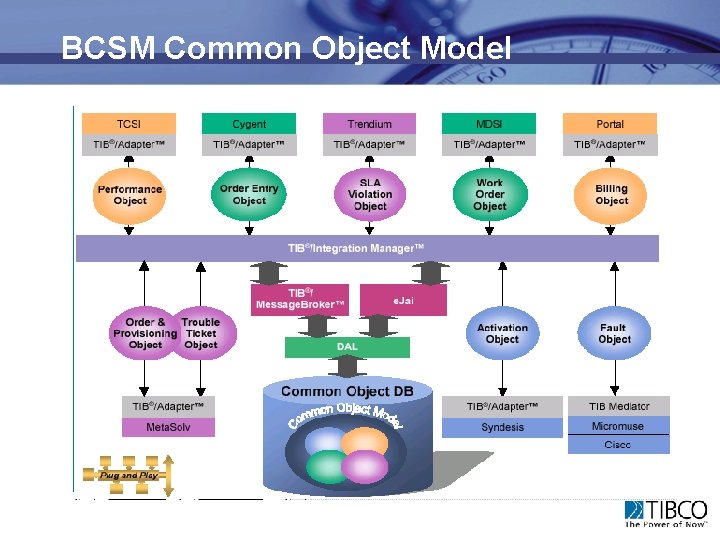

BCSM Common Object Model

BCSM catalyst is now available The BCSM Catalyst is now available and is designed with the flexibility to accommodate all Broadband Cable Providers, regardless of infrastructure.
