Building a Great GUI using Eclipse RCP Choices
Building a Great GUI using Eclipse RCP Choices and Consequences Boris Bokowski Kevin Mc. Guire IBM Ottawa Lab 16 September 2020 Confidential | Date | Other Information, if necessary © 2002 IBM Corporation
Agenda § Rich Client Applications vs. Rich Client Platform § UI building blocks § Major UI decisions for RCP apps § How this results in typical patterns, examples § Advantages specific to building RCP apps § (Not about UI design in general, or how to layout widgets) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Eclipse Rich Client Application § Client application with rich user experience § Eclipse technology enables picking and choosing of components § Select those UI features which are appropriate for your problem domain and user Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Eclipse Rich Client Platform § Standard packaging of plug-ins, platform for rich client apps § Component model, extensible § 9. 7 MB as of Eclipse 3. 2. 1 § Smaller footprint is achievable (you lose extensibility) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Eclipse Platform Architecture Other Tools (CDT etc. ) Rich Client Platform Rich Client Application Help Update Text (Optional) PDE IDE Compare Debug Search Text IDE Generic Workbench (UI) Workspace (Optional) JFace SWT Platform Runtime (OSGi) Java VM Copyright © 2005 Dr. Frank Gerhardt, Made available under the Eclipse Public License v 1. 0 JDT Team/ CVS
Workbench: Views, Editors, Perspectives Menu Toolbar View Editor Trim (Status, Progress, …) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0 Perspective Switcher
Wizards, Dialogs, Preferences, Progress Export Wizard Preferences Dialog Progress View Progress Area Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
UI Forms – Flat look Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Welcome, Help, Cheat Sheets Welcome Page Cheat Sheet Help Browser Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

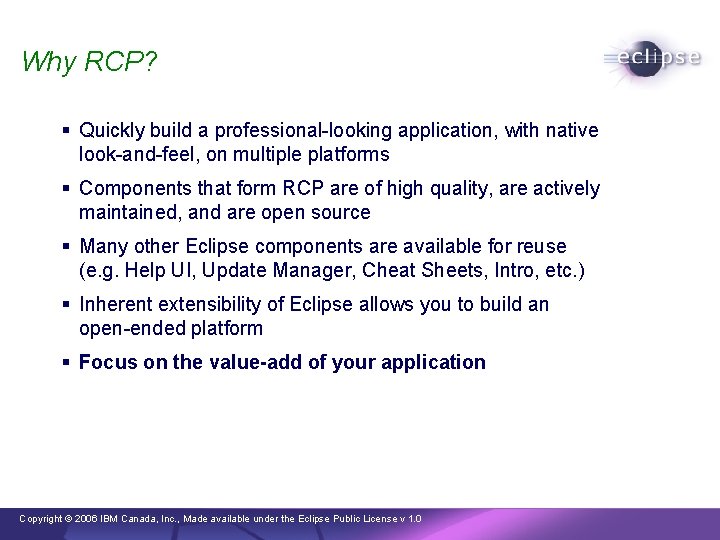

Why RCP? § Quickly build a professional-looking application, with native look-and-feel, on multiple platforms § Components that form RCP are of high quality, are actively maintained, and are open source § Many other Eclipse components are available for reuse (e. g. Help UI, Update Manager, Cheat Sheets, Intro, etc. ) § Inherent extensibility of Eclipse allows you to build an open-ended platform § Focus on the value-add of your application Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

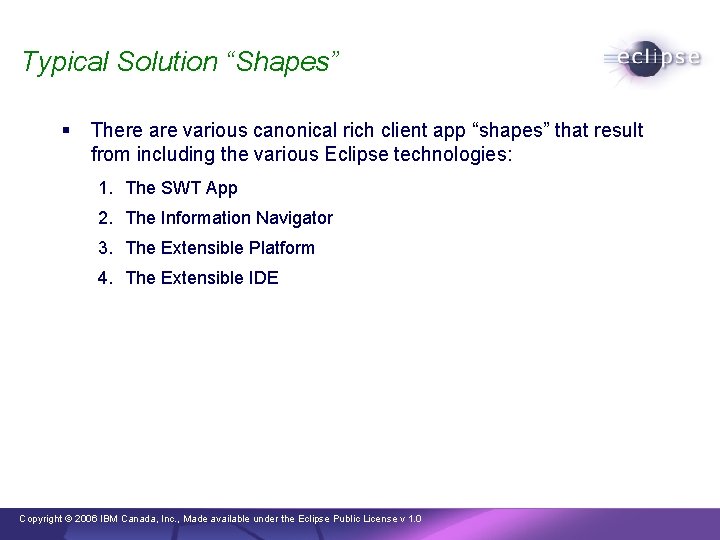

Typical Solution “Shapes” § There are various canonical rich client app “shapes” that result from including the various Eclipse technologies: 1. The SWT App 2. The Information Navigator 3. The Extensible Platform 4. The Extensible IDE Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Type 1: The SWT App § Best for: § Lightweight applications with little navigation and no need for extensibility § Usually includes: § SWT, JFace (Wizards, Dialogs, Preferences) § Sometimes includes: § OSGi, Help, Update, Forms § Usually does not include § Workbench § Views and Editors, including standard views such as Navigator, Outline Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Examples: Sudoku, Azureus Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

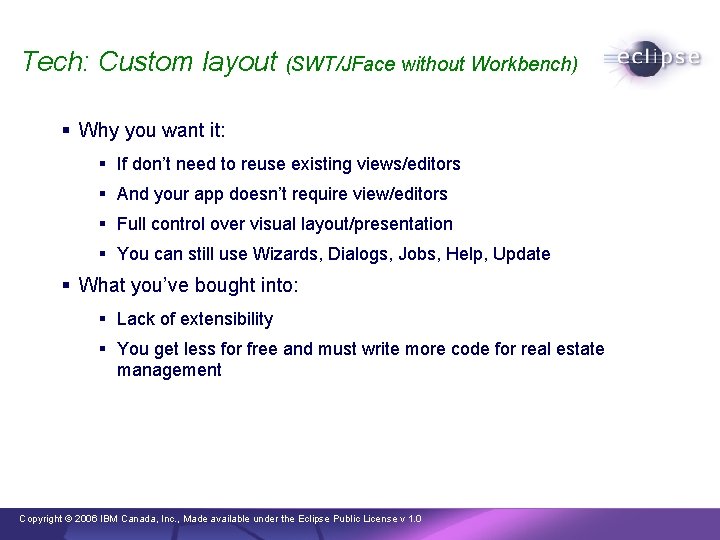

Tech: Custom layout (SWT/JFace without Workbench) § Why you want it: § If don’t need to reuse existing views/editors § And your app doesn’t require view/editors § Full control over visual layout/presentation § You can still use Wizards, Dialogs, Jobs, Help, Update § What you’ve bought into: § Lack of extensibility § You get less for free and must write more code for real estate management Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

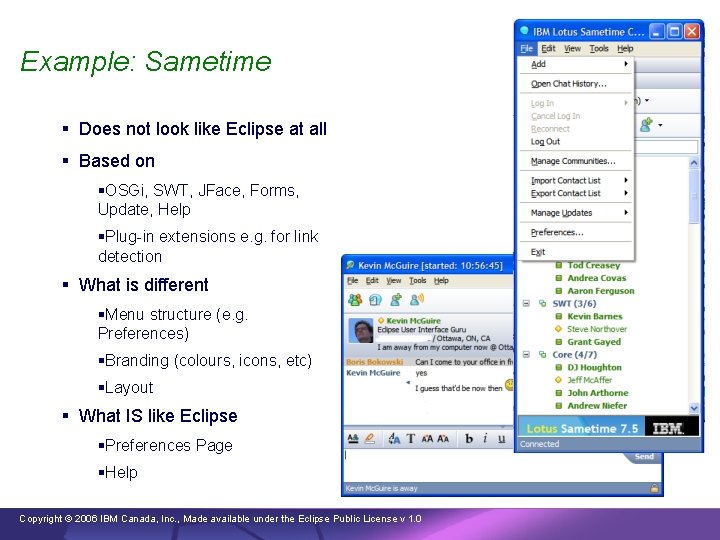

Example: Sametime § Does not look like Eclipse at all § Based on §OSGi, SWT, JFace, Forms, Update, Help §Plug-in extensions e. g. for link detection § What is different §Menu structure (e. g. Preferences) §Branding (colours, icons, etc) §Layout § What IS like Eclipse §Preferences Page §Help Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Type 2: The Information Navigator § Best for: § Information intensive applications with some degree of focus § Management of remote information/services § Usually includes: § (All from Type 1) § Workbench, Views, OSGi plug-in support § Sometimes includes: § Perspectives, Editors, Help, Update, Forms § Usually does not include § Hooks for contributing views, menus, etc. Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

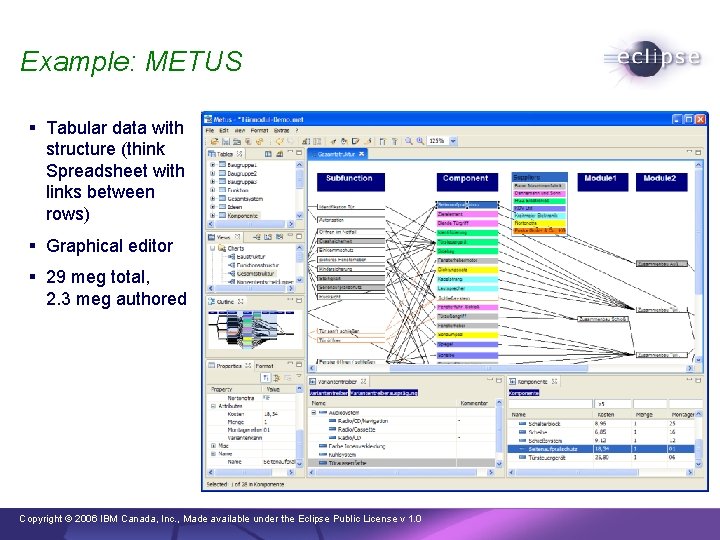

Example: METUS § Tabular data with structure (think Spreadsheet with links between rows) § Graphical editor § 29 meg total, 2. 3 meg authored Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

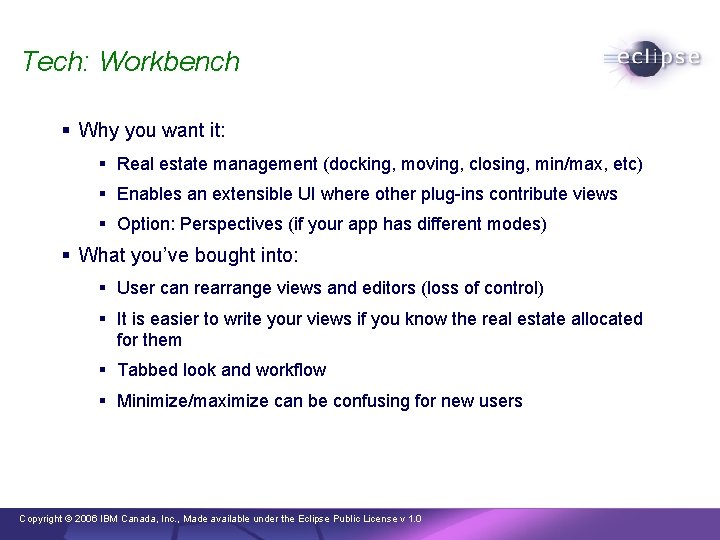

Tech: Workbench § Why you want it: § Real estate management (docking, moving, closing, min/max, etc) § Enables an extensible UI where other plug-ins contribute views § Option: Perspectives (if your app has different modes) § What you’ve bought into: § User can rearrange views and editors (loss of control) § It is easier to write your views if you know the real estate allocated for them § Tabbed look and workflow § Minimize/maximize can be confusing for new users Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Selection Service § Why you want it: § Every view/editor can provide selection, or respond to selection § What you’ve bought into: § Since selection service is global, all views must be prepared for selection of unrelated types § No privileged relationships between certain editors / views § Switching between views may change the selection § Wayne says, Tight integration with loose coupling is good! Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Type 3: The Extensible Platform § Best for: § “Workbench” type information apps encouraging 3 rd party plug-ins § Usually includes: § (All from Type 1&2) § Editors, Help, Update, Welcome § Sometimes includes: § Forms, Cheat Sheets § Standard views such as Navigator, Outline, Properties § Usually does not include § Resources Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Making your UI Extensible § Why you want it: § Let plug-ins contribute views, editors, perspectives, menu items, preference pages, wizards, … § Be an open platform § As an RCP app, you define where the UI is extensible and where it isn’t § What you’ve bought into: § Complexity of open systems § Overflowing menus, preferences, etc. § Loss of control Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Example: UDig § Spatial data viewer/editor § Emphasis on the Open. GIS standards for internet GIS, the Web Map Server and Web Feature Server standards § Common Java platform for building spatial applications with open source components Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Type 4: The Extensible IDE § Best for: § Rich development environments with many views, editors § Data models with complex dependencies that must be maintained § Usually includes: § The whole enchilada! § Including resources (workspace) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

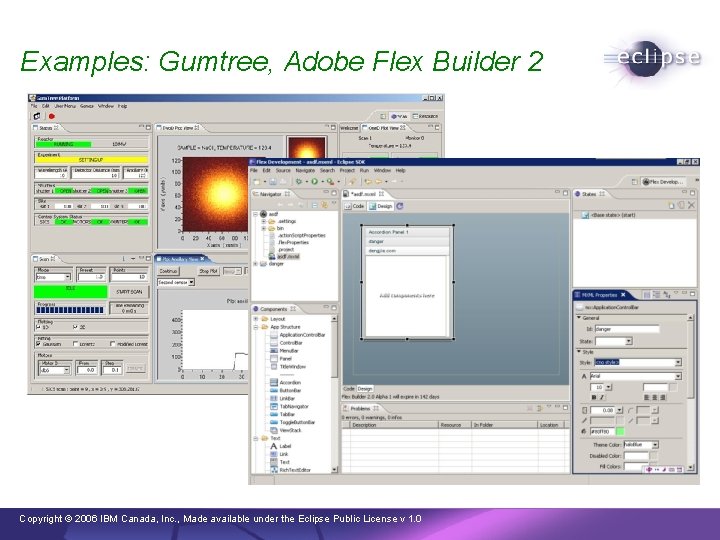

Examples: Gumtree, Adobe Flex Builder 2 Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

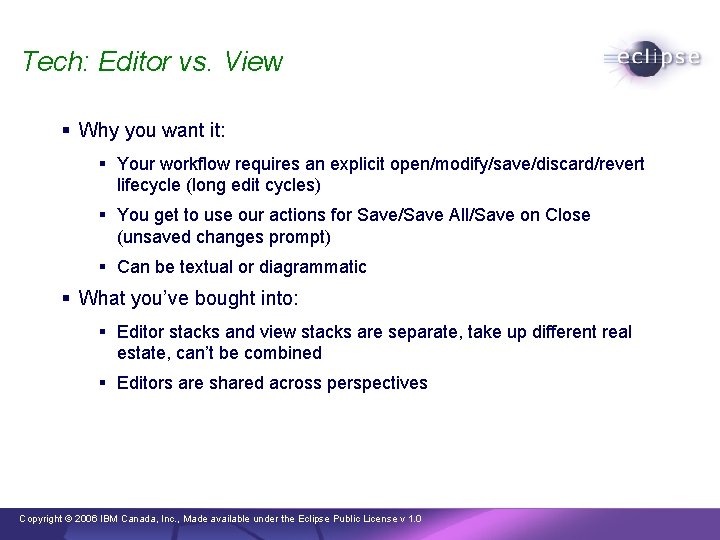

Tech: Editor vs. View § Why you want it: § Your workflow requires an explicit open/modify/save/discard/revert lifecycle (long edit cycles) § You get to use our actions for Save/Save All/Save on Close (unsaved changes prompt) § Can be textual or diagrammatic § What you’ve bought into: § Editor stacks and view stacks are separate, take up different real estate, can’t be combined § Editors are shared across perspectives Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
RCP Specific Advantages Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
RCP is “On Top” § With SDK plug-ins, there is no concrete notion of “product” since 3 rd party plug-ins can be added by consumer/repackager § But in RCP apps, everything that happens is under your control as the RCP app writer § RCP allows you to precisely control UI interaction: § Can carefully orchestra task flow § Can prevent contributions to UI (menus, views, etc) § Can provide limited extensions in a controlled manner § Can specialize through branding configuration § You can know exactly what the user is looking at Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Branding Copyright © 2006 Eclipse Foundation, Inc. , Made available under the Eclipse Public License v 1. 0

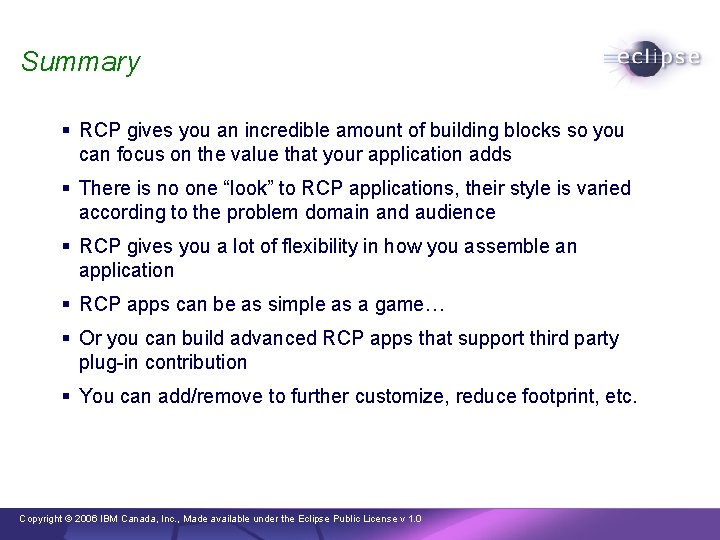

Summary § RCP gives you an incredible amount of building blocks so you can focus on the value that your application adds § There is no one “look” to RCP applications, their style is varied according to the problem domain and audience § RCP gives you a lot of flexibility in how you assemble an application § RCP apps can be as simple as a game… § Or you can build advanced RCP apps that support third party plug-in contribution § You can add/remove to further customize, reduce footprint, etc. Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Technology Choices § When you pick from the list of technologies to use, you enable new features or ways or working/presenting in Eclipse § However, you also buy into certain workflows or interactions § You need to be aware of these implications Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Recommended Reading § Eclipse Rich Client Platform § By Jeff Mc. Affer and Jean-Michel Lemieux § Addison-Wesley Professional § ISBN: 0321334612 § Official Eclipse 3. 0 FAQs § by John Arthorne, Chris Laffra § Addison-Wesley Professional § ISBN: 0321268385 § Contributing to Eclipse: Principles, Patterns, and Plugins § By Erich Gamma, Kent Beck § Addison-Wesley Professional § ISBN: 0321205758 Copyright © 2006 Eclipse Foundation, Inc. , Made available under the Eclipse Public License v 1. 0
Advanced Topics Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Other Technology (Eclipse Projects) § Nebula – Supplemental Custom Widgets for SWT § Graphical Editor Framework (GEF) § Graphical framework (boxes, lines, attachments) § 1. 2 meg § Eclipse Modeling Framework (EMF) § Property change events § Default serialization/deserialization § 1. 3 meg § BIRT § Data Tools Platform (DTP) § Eclipse Communication Framework (ECF) § Embedded Rich Client Platform (e. RCP) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Perspective § Why you want it: § Where distinct tasks groupings require different information (e. g. develop/debug) § Good for mode changes (e. g. Outlook calendar vs. mail) § What you’ve bought into: § Editors are shared between perspectives § User can modify perspective, add their own, change the look of your application (maybe detracting from branding) § You can no longer be sure for a given task the set of views the user has before them § (Using a fixed perspective, or non-closable / non-moveable views, you can maintain a certain level of control) Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: How to make it not look like Eclipse § Use your own icons § Themes (colors and fonts) § Custom presentation § SWT custom controls § Owner draw in tables and trees Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0

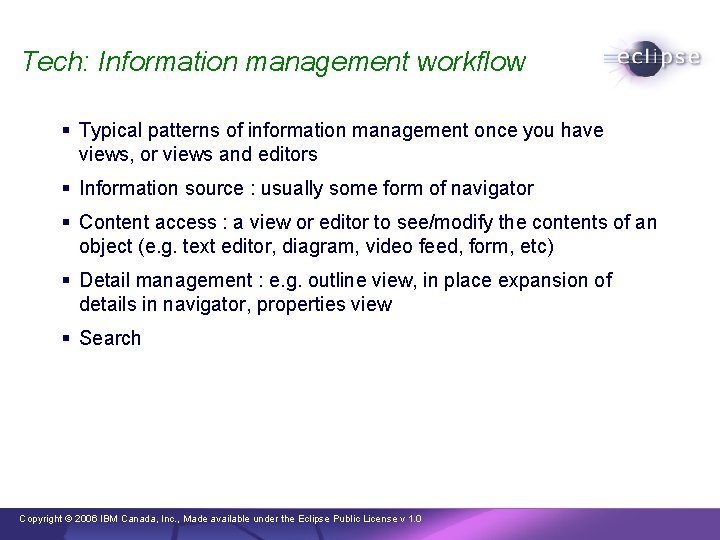

Tech: Information management workflow § Typical patterns of information management once you have views, or views and editors § Information source : usually some form of navigator § Content access : a view or editor to see/modify the contents of an object (e. g. text editor, diagram, video feed, form, etc) § Detail management : e. g. outline view, in place expansion of details in navigator, properties view § Search Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Common Navigator § Framework for defining navigator-like views § Extensible – other plug-ins can contribute content § In the IDE as “Project Explorer” Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Page Book View § Why you want it: § Certain views are tightly coupled with editor, enhance editing capabilities, e. g. Outline, Properties, Palette § Don’t want to end up with a Java outline view, C++ outline view (proliferation of views) § Solution: “Page Book View” has abstract function but not concrete implementation, editors contribute current page § Reuse benefits development but also user since simplifies user learning § What you’ve bought into: § More framework to understand Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Tech: Workspace § Why you want it: § Deltas, Builders § Otherwise must generate “by hand” § Very powerful if source resources have complex dependencies § CVS support for sharing § Tasks, markers § Local History § What you’ve bought into: § Larger footprint § Users can turn builders off § “Hard wired” task flow of resource modification triggering builds § This may be too indirect or magical for some users Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Example: Eclipse Trader § 20 meg total, 4. 3 meg authored Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
Example: Maestro & Ensemble § NASA Mars rover planning tool § Tells the rover where to go, how many pictures to take § Now working on Ensemble Framework for NASA tool integration Copyright © 2006 IBM Canada, Inc. , Made available under the Eclipse Public License v 1. 0
