Budgeting of Optical Systems A Tutorial on Optomechanical

“Budgeting” of Optical Systems A Tutorial on Optomechanical Tolerancing and a Synopsis of the Economics Involved Ezra Milby OPTI 521 – Optomechanical Engineering Fall 2009 – Prof. J. H. Burge

Overview Defining a System Performance Characteristic Defining the Variable Parameters of the System Creating a Tolerance Budget Analyze Production Costs Iterate the Design Process for Optimization 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 2

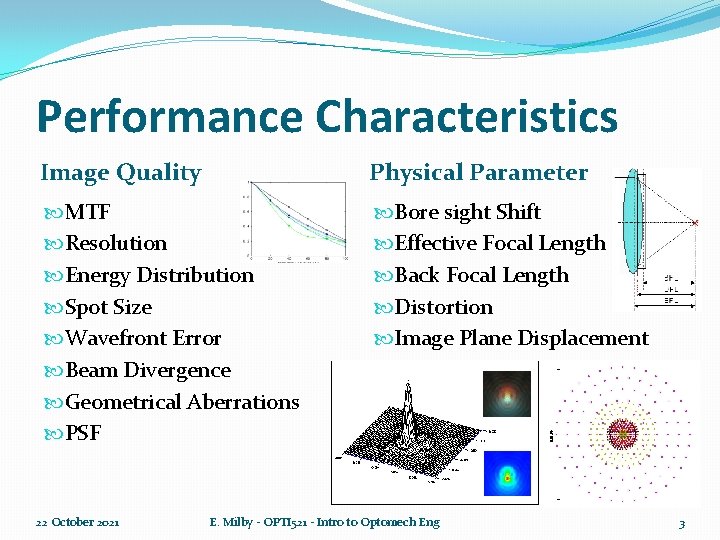

Performance Characteristics Image Quality Physical Parameter MTF Resolution Energy Distribution Spot Size Wavefront Error Beam Divergence Geometrical Aberrations PSF Bore sight Shift Effective Focal Length Back Focal Length Distortion Image Plane Displacement 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 3

MTF WRT Defocus Error Source: Smith (1985) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 4

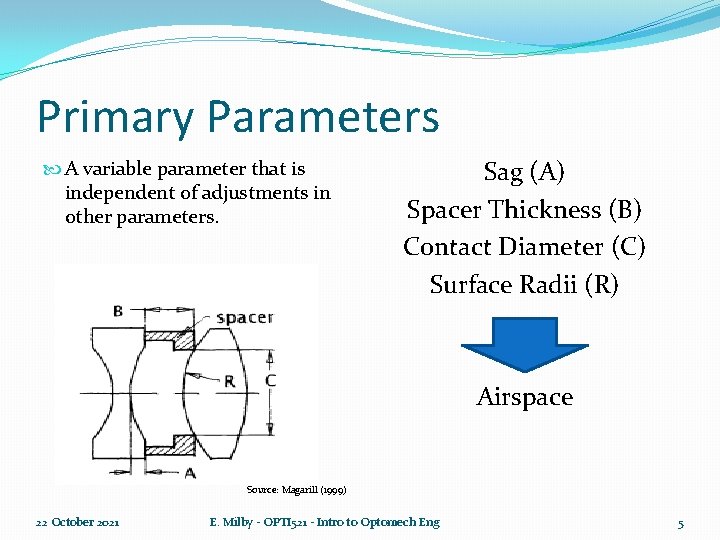

Primary Parameters A variable parameter that is independent of adjustments in other parameters. Sag (A) Spacer Thickness (B) Contact Diameter (C) Surface Radii (R) Airspace Source: Magarill (1999) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 5

Primary Parameters Center Thickness Surface Sag Index of Refraction Contact Diameter Axial Seat Position Clearance Wedge Seat Tilt Contact Diameter Eccentricity Surface to Surface Displacement Base Diameter Eccentricity Second Barrel Clearance Source: Magarill (1999) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 6

Common Variable Parameters Optics Assembly Index of Refraction Radius Irregularity Thickness Sag Diameter Wedge Surface Roughness Airspace Decenter – Axially Decenter – Laterally Tilt Lens Roll 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 7

Assign Tolerances Base Cost

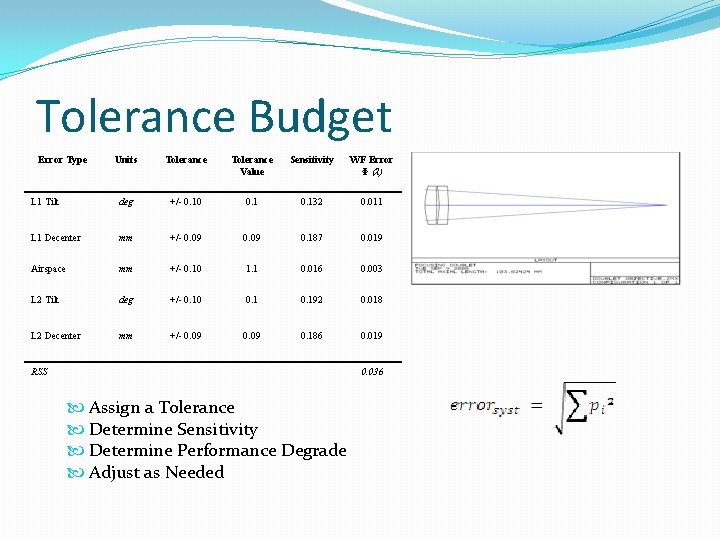

Tolerance Budget Error Type Units Tolerance Value Sensitivity WF Error Φ (λ) L 1 Tilt deg +/- 0. 10 0. 132 0. 011 L 1 Decenter mm +/- 0. 09 0. 187 0. 019 Airspace mm +/- 0. 10 1. 1 0. 016 0. 003 L 2 Tilt deg +/- 0. 10 0. 192 0. 018 L 2 Decenter mm +/- 0. 09 0. 186 0. 019 RSS 0. 036 Assign a Tolerance Determine Sensitivity Determine Performance Degrade Adjust as Needed

Cost Assign a cost sensitivity in tolerance budget C = P·T + B Adjust tolerances to minimize cost in the same way Source: Willey (1984) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 10

Glass Costs Source: Willey (1992) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 11

The Cost of Computing Engineering Salary Cost Savings Mass Production Source: Willey (1983) High Cost Materials 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 12

The Iterative Tolerancing Process Source: Ginsberg (1981) 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 13

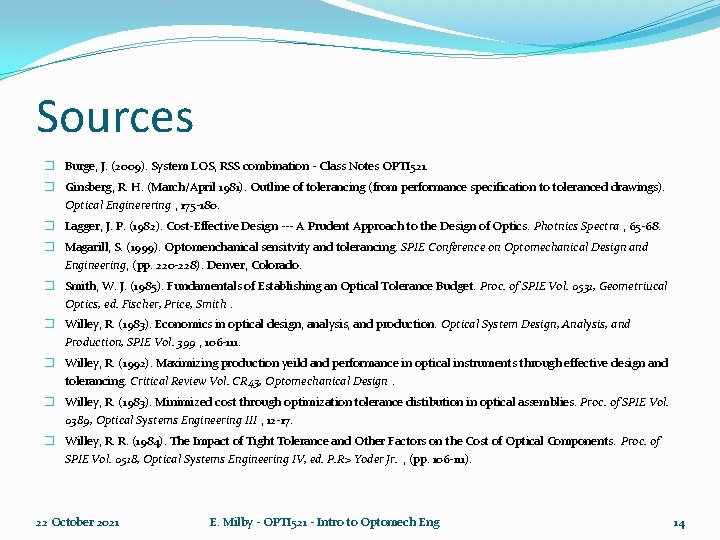

Sources � Burge, J. (2009). System LOS, RSS combination - Class Notes OPTI 521. � Ginsberg, R. H. (March/April 1981). Outline of tolerancing (from performance specification to toleranced drawings). Optical Enginerering , 175 -180. � Lagger, J. P. (1982). Cost-Effective Design --- A Prudent Approach to the Design of Optics. Photnics Spectra , 65 -68. � Magarill, S. (1999). Optomenchanical sensitvity and tolerancing. SPIE Conference on Optomechanical Design and Engineering, (pp. 220 -228). Denver, Colorado. � Smith, W. J. (1985). Fundamentals of Establishing an Optical Tolerance Budget. Proc. of SPIE Vol. 0531, Geometriucal Optics, ed. Fischer, Price, Smith. � Willey, R. (1983). Economics in optical design, analysis, and production. Optical System Design, Analysis, and Production, SPIE Vol. 399 , 106 -111. � Willey, R. (1992). Maximizing production yeild and performance in optical instruments through effective design and tolerancing. Critical Review Vol. CR 43, Optomechanical Design. � Willey, R. (1983). Minimized cost through optimization tolerance distibution in optical assemblies. Proc. of SPIE Vol. 0389, Optical Systems Engineering III , 12 -17. � Willey, R. R. (1984). The Impact of Tight Tolerance and Other Factors on the Cost of Optical Components. Proc. of SPIE Vol. 0518, Optical Systems Engineering IV, ed. P. R> Yoder Jr. , (pp. 106 -111). 22 October 2021 E. Milby - OPTI 521 - Intro to Optomech Eng 14
