Buchanan County Communications Public Safety Radio System Fire Station Base Radio Operation Kenwood TK-7180

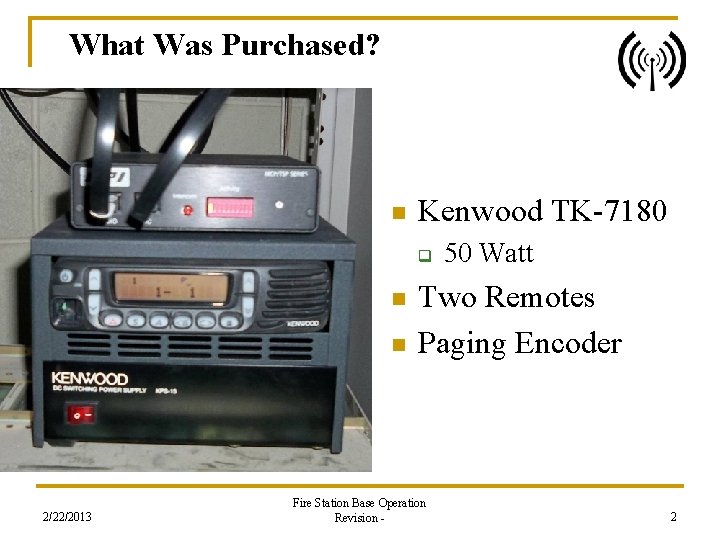

What Was Purchased? n Kenwood TK-7180 q n n 2/22/2013 50 Watt Two Remotes Paging Encoder Fire Station Base Operation Revision - 2

Remote & Paging Encoder 2/22/2013 Fire Station Base Operation Revision - 3

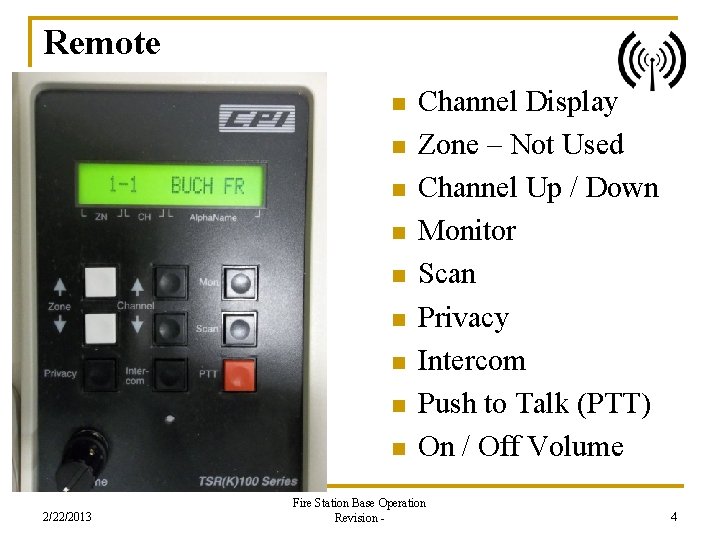

Remote n n n n n 2/22/2013 Channel Display Zone – Not Used Channel Up / Down Monitor Scan Privacy Intercom Push to Talk (PTT) On / Off Volume Fire Station Base Operation Revision - 4

Channel Selection n 2/22/2013 Select channel you want to transmit on Fire Station Base Operation Revision - 5

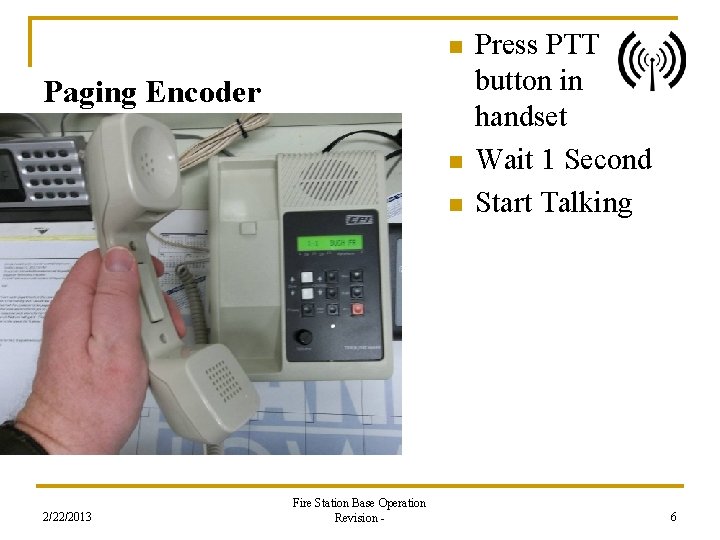

n Paging Encoder n n 2/22/2013 Fire Station Base Operation Revision - Press PTT button in handset Wait 1 Second Start Talking 6

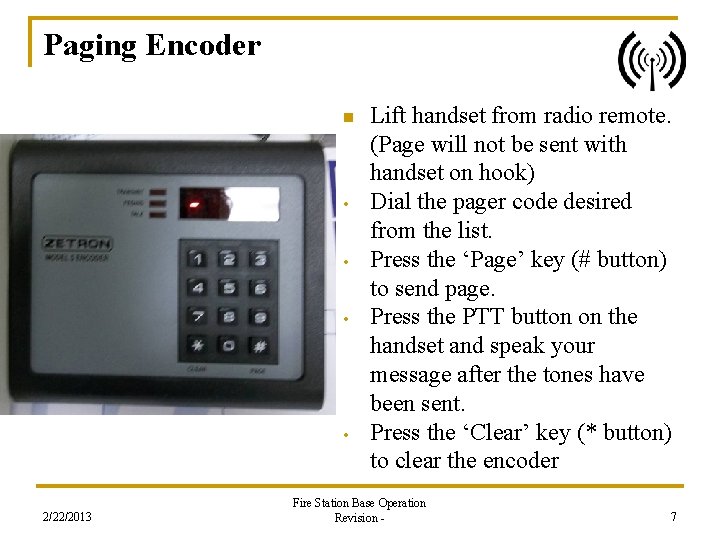

Paging Encoder n • • 2/22/2013 Lift handset from radio remote. (Page will not be sent with handset on hook) Dial the pager code desired from the list. Press the ‘Page’ key (# button) to send page. Press the PTT button on the handset and speak your message after the tones have been sent. Press the ‘Clear’ key (* button) to clear the encoder Fire Station Base Operation Revision - 7

Pager Codes 2/22/2013 Fire Station Base Operation Revision - 8

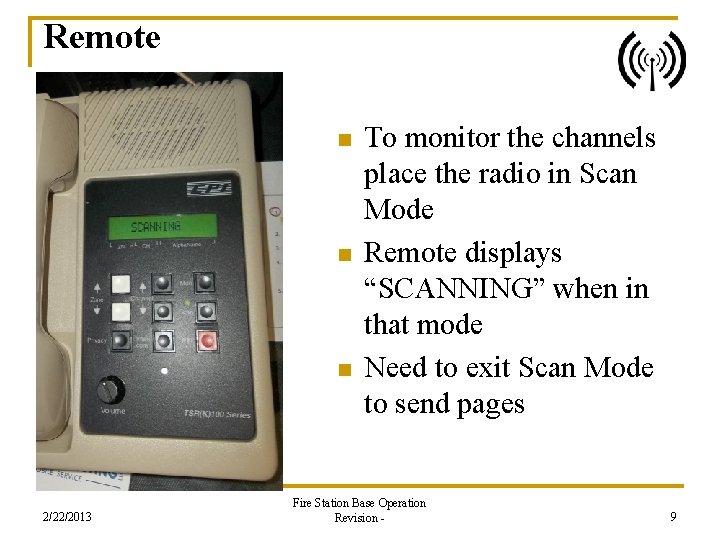

Remote n n n 2/22/2013 To monitor the channels place the radio in Scan Mode Remote displays “SCANNING” when in that mode Need to exit Scan Mode to send pages Fire Station Base Operation Revision - 9

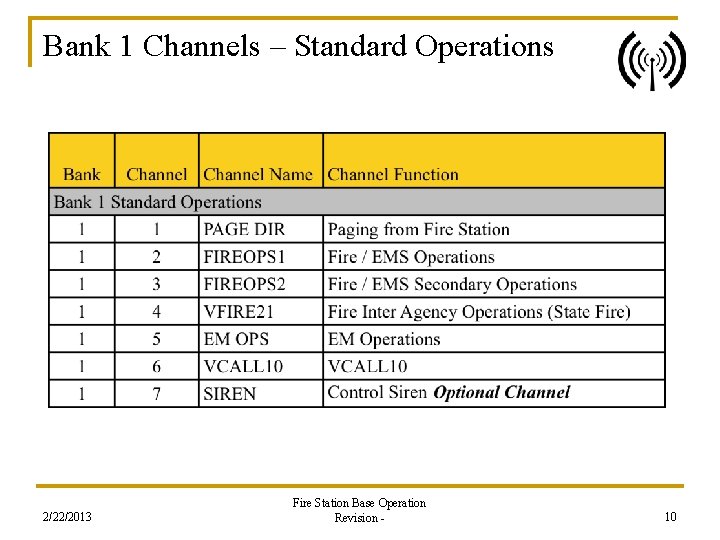

Bank 1 Channels – Standard Operations 2/22/2013 Fire Station Base Operation Revision - 10

Bank 2 Channels – Emergency Operations 2/22/2013 Fire Station Base Operation Revision - 11
