BU MEASUREMENT AND ANALYTICS Lasers for level measurement
BU MEASUREMENT AND ANALYTICS Lasers for level measurement: Applications and benefits Josée Labrecque and Nicolas Hô
Lasers for level measurement: Applications and benefits Speakers Nicolas Hô Josée Labrecque – Global Product Manager, guided wave radar & laser level measurement – Global Business Development Manager, guided wave radar & laser level measurement – ABB Photo – ABB – Based in Quebec City, Canada Quebec City factory – Laser level products – Guided wave radar – FTIR analyzers – ICOS analyzers – Transformer monitoring products December 5, 2020 Slide 2
Family of Laser Level Transmitters Laser level measurement products ABB has been using lasers for level measurement for more than 10 years LLT 100 Latest addition to the product line Device made for specifically for industrial applications LM 80 Bulk solids applications LM 80 LM 200 Long range, for positioning applications December 5, 2020 Slide 3 LM 200 LLT 100
Lasers are changing level measurement A new way to perform level measurement Laser level solves many pains by its new way of performing level measurement – Flexible installation – No echo mapping – No onsite calibration – Detects any liquid or solid December 5, 2020 Slide 4
The Laser Level Transmitter Technology advantage Laser pulse time of flight is measured to determine distance The sensor has a narrow field of view: it only detects returns from the surface The laser beam is narrow, it doesn’t interfere with surrounding objects The real target is the last target, which makes it easy to detects Liquid or solid surface December 5, 2020 Slide 5
Lasers are changing level measurement A new way to perform level measurement – Up to 30 m (100 ft. ) for liquid level applications – Up to 100 m (330 ft. ) for solid level applications – Up to 200 m (650 ft. ) for positioning applications – Operating temperature – 40 °C to +65 °C (– 40 °F to +140 °F) – Outputs in the form of a 4 -20 m. A current loop with HART 7 – Powered from the 4 -20 m. A loop – Certified for potentially explosive atmospheres (dust and gas atmospheres) – 5 cm (2 in. ) aperture only for performing measurement – 0. 3° beam divergence December 5, 2020 Slide 6
Configurations A few models cover a wide range of applications Base models High pressure models Hygienic models Any solids and liquids level at normal pressures Pressure rated flanges: 4” triclover clamp interface with hygienic certifications Flange fits ASME 150 and DN 50 PN 16 bolt patterns – DN 50 PN 16, PN 40 Affordable cost and versatile December 5, 2020 Slide 7 – 2 in. class 150, 300 For zone rated areas, forming a barrier between zone 0 and zone 1 Ideal for food and beverage and pharmaceutical applications
LLT 100 Laser level transmitter accessories Accessories – – – – Dust tube Purge ring Cooling tubes Flange adapters Pointing/alignment device Rotating bracket Swivel flange December 5, 2020 Slide 8 Dust tube Pivot bracket Protects optics For flexible setup Swivel flange Purge ring For precise beam alignment For increased optics protection
A wide array of applications Process control December 5, 2020 Slide 9 Inventory monitoring Positioning & proximity detection
Product benefits Easy installation Save on installation No need to modify vessel or site – Install anywhere, from the edge of the silo to the middle – Shoot the laser beam at an angle if required (on solids) – No echo mapping, no need to empty vessel – Shoot the laser beam through an existing window Long measurement range allows installing product away from falling materials or dangerous conditions Easy configuration can be replicated in several identical vessels Can aim beam at angle to measure all the way down vessel cone December 5, 2020 Slide 10
Product benefits Measure any material A single product for any material Solids: – Any type, even mix of solids and liquids Liquids: – Any type, from clear to dark – Measures in the presence of waves, turbulence, bubbles Laser beam can detect low-dielectric constant materials – Oils – Plastics – Low-density materials in general December 5, 2020 Slide 11
Product benefits Measuring foam Application When foam is present, LLT 100 will measure the top of the foam Laser level measurement is not suitable for interface measurement or measuring solids under water However, foam won’t make the signal unreliable. The foam will be measured. LLT 100 benefits Possible to measure foam layer using laser for top of foam level and magnetostrictive or differential pressure for liquid level December 5, 2020 Slide 12
Product benefits Measuring through narrow spaces Applications Measuring in stilling wells Measuring through pipes Measuring though ball valves Measuring between agitator blade and vessel wall Measuring through grid LLT 100 Benefits No echo mapping – no false echoes due to environment Reliable measurements – no need to remap when environment changes Reduced cost of ownership due to high reliability December 5, 2020 Slide 13
Product benefits Added safety Applications In many cases, laser level measurement increases application safety: – Increased measurement distance allows placing product away from hot or dangerous process – Certified SIL 2 device – Can easily be isolated from process with ball valve – Can be placed above grid December 5, 2020 Slide 14 Measuring in a pipe, through a grid Measuring hot metal from a distance
Product benefits Added reliability Applications Laser beams are very narrow (0. 3° divergence) and do not interact with surrounding objects Lasers are also immune from several factors, increasing reliability Immune from: – Process temperature changes – Pressure changes – Changing measured materials / dielectric constants – Ambient noise – Vessel material – Environment changes such as buildup – Falling materials December 5, 2020 Slide 15
LLT 100 is used in a wide range of industries Industries and applications Chemicals Mining, power, metal Plastic pellets level Polymer tanks Agitated tank level Lube oil level Oil & gas Food & beverages Floating roof level API separator level Drilling mud level December 5, 2020 Crusher control Tripper car position Bin level monitoring Slide 16 Water & waste water Lift station level Deep wet well Sludge level Biogas volume monitoring Pulp & paper and aggregates Agitated tank level Bulk material inventory Pulper control Impregnation tower level control Roofing granules level Wood chips level
Plastic pellets, nylon pellets, and polymers Typical users Polypropylene manufacturers Plastic object manufacturers Laser level benefits Non-contact measurement means low maintenance, lower cost of ownership Works well even for low-dielectric constant Very little dust in typical application December 5, 2020 Slide 17
Mining application Crusher Level Control Laser level measurement benefits Crusher level must stay at optimal level, to increase performance and equipment lifetime LM 80 reliably detects the level in the crusher to control the speed of the conveyer belt. Advanced software features allow the laser to measure within falling rocks and dusty environment. Easy to align due to laser pointer Surface angle has no impact December 5, 2020 Slide 18

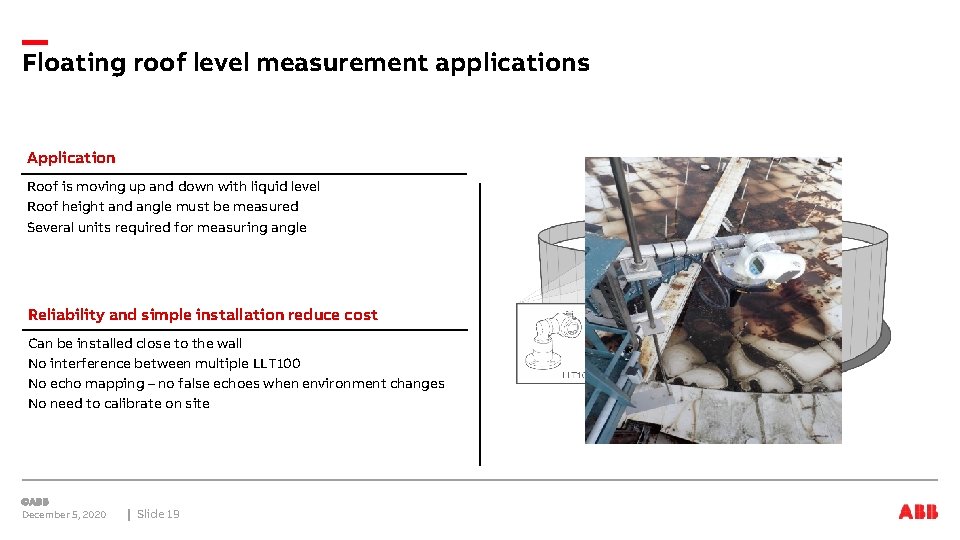

Floating roof level measurement applications Application Roof is moving up and down with liquid level Roof height and angle must be measured Several units required for measuring angle Reliability and simple installation reduce cost Can be installed close to the wall No interference between multiple LLT 100 No echo mapping – no false echoes when environment changes No need to calibrate on site December 5, 2020 Slide 19
Liquid storage tanks Application Measurement of liquids such as solvents or acids Fused glass configurations provide good barrier to tank Pressurize tanks LLT 100 Benefits Easy and flexible installation Can be installed on top of ball valve for isolation Can be installed on long pipe or spool piece Can measure in stilling well December 5, 2020 Slide 20
Waste water process automation made easy Measuring solids, muds, or liquids Biomass level monitoring Sludge monitoring Deep water wet well Efficient solids level detection, not affected by build-up on walls Solid/liquid ratio is not an issue Positioned at the top of the wet well allowing easy maintenance. Laser technology unaffected by sewer gas Easy to aim in deep and narrow spaces After successful installation, no need to reconfigure product: high uptime and low maintenance cost December 5, 2020 Slide 21 LLT 100 not affected by material composition changes, can detect solids or liquids even low-dielectric constant materials
Positioning applications Applications Precise positioning of moving objects Tripper cars, wagon used for moving materials Must be well positioned to prevent spills Laser measurement benefits Alternative: switches – high rate of wear and tear LM 200: up to 400 m [1300 ft. ] Laser measurement leads to much higher lifetime – Instrument away from moving objects, no contact – Continuous measurement December 5, 2020 Slide 22
Summary Laser technology has unique advantages Measure all liquids Measures any solid at any angle Non-contact, maintenance free No vessel mapping Narrow beam Easy installation, configuration One device addresses wide array of applications December 5, 2020 Slide 23
Contact information Nicolas Hô Josée Labrecque nicolas. ho@ca. abb. com josee. n. labrecque@ca. abb. com www. abb. com/laserlevel www. youtube. com/ABBMeasurement. Expert December 5, 2020 Slide 24
