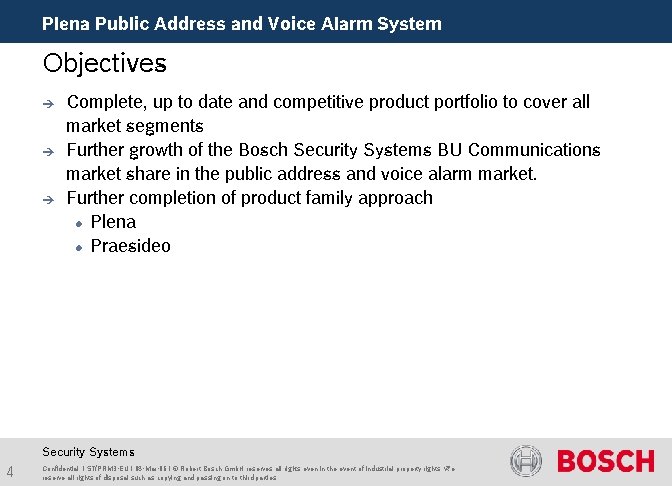

Plena Public Address and Voice Alarm System Objectives è è è Complete, up to date and competitive product portfolio to cover all market segments Further growth of the Bosch Security Systems BU Communications market share in the public address and voice alarm market. Further completion of product family approach Plena Praesideo Security Systems 4 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Market trends è è Demand for IEC 60849 compliant systems is increasing In next 3 -4 years IEC 60849 mandatory in more European countries Growth of market share IEC 60849 compliant systems Voice Alarm systems with combined PA functionality increasingly important Security Systems 5 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Key features Complete Voice Alarm & Public Address solution è è è IEC 60849 Certified Full Public Address Functionality Easy to install Easy to expand Easy to operate Economic solution for small to medium sized applications. Security Systems 6 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System IEC 60849 Certified è Certified by TÜV one of Europe’s leading the independent authorities Security Systems 7 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System IEC 60849 Certified è è è Fully supervised including emergency microphone on front panel system interconnections loudspeaker line supervision except call stations Spare amplifier switching Built-in supervised message manager with unique message merge functionality alternating messages in multiple zones Security Systems 8 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System IEC 60849 Certified è Unique message merge functionality Trigger input 1 Trigger input 2 Attention Messages Template 1 Mess A Mess 1 Mess B Repeated Security Systems 9 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. t

Plena Public Address and Voice Alarm System IEC 60849 Certified è Unique message merge functionality Trigger input 1 Trigger input 2 Attention Messages Template 1 Mess A Mess 1 Mess 2 Mess B Repeated Security Systems 10 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. t

Plena Public Address and Voice Alarm System IEC 60849 Certified è Alternating messages Up to 2 messages routed alternated to pre-configured zones Started from multiple Emergency trigger inputs with same priority Message merge functionality supported Note maximum silence within EVAC messages is 10 sec. Alert in Zone 1, 2 and 5 EVAC in Zone 3 and 4 Template 1 (e. g. alert) Mess A Mess 1 Mess B Template 2 (e. g. evac) Mess C Mess 2 Mess D t MAX 10 seconds! Repeated Security Systems 11 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System IEC 60849 Certified è Pre Emergency Message One time message + delay prior to EVAC message Template 1 Pre Message Delay Mess A Mess 1 Mess B t Repeated Security Systems 12 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System IEC 60849 Certified è è Up to 60 emergency trigger inputs (6 per controller / router) 19 priority levels 24 V battery back-up input Fireman’s panel user interface Customized fireman’s panel with remote control panel kits Security Systems 13 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Full public address functionality è è Paging people Up to 8 paging call stations Flexible background music routing Pre-recorded messages, announcements and chimes Ideal combination with Plena Timer Scheduled messages / chimes Scheduled BGM levels Security Systems 14 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Easy to expand è è è Out of the box supervised 6 zone Voice Alarm System Expandable up to 60 zones using additional Routers Additional power or 2 channel operation by adding Plena Power Amplifiers Up to 1000 Watt per 6 zones (700 Watt per zone) Up to 8 call stations and 32 keypads Up to 2 Remote Control Panels Easily integrate with third party systems Praesideo Fire detection panels Security Systems 15 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Easy to install è è Out of the box 6 zone system Quick settings via DIP switches at the back of the controller More advanced settings via software tool delivered with controller LBB 1990 connection via serial USB port System elements Interconnects easily via standard CAT 5 cables and RJ 45 connectors (included) Security Systems 16 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Easy system design Security Systems 17 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Easy to use è è Clear user interface on front panels Customized label for EVAC button on Controller / Remote Control Panel Clear Call, Fault and Zone indication on call station Zone selection Call status Fault Call station key labeling as on the LBB 1946/00 Security Systems 18 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System A complete family Security Systems 19 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è LBB 1990/00 Plena Voice Alarm Controller Complete stand-alone 6 zone Voice Alarm unit Built-in booster amplifier (240 W) Built-in intelligent message manager with up to 255 messages Fully supervised including loudspeaker line supervision 1 -channel or 2 -channel operation (with external booster) EMG microphone on front panel (included) BGM volume control per zone Security Systems 20 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è LBB 1992/00 Plena Voice Alarm Router Same output functionality as controller except BGM volume control Add 6 additional zones to a system Use the Controller booster or any booster in the Plena range Security Systems 21 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è LBB 1956/00 Call Station 6 Programmable keys and an all-call button Fault-, EMG-, power OK and Zone indication Built-in Limiter, selectable gain and speech filter Up to 8 Call Stations in a system Business calls only (not supervised) è LBB 1957/00 Call Station keypad Add 7 programmable keys to Call Station Up to 8 keypads on a Call Station Up to 32 keypads in a system Security Systems 22 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

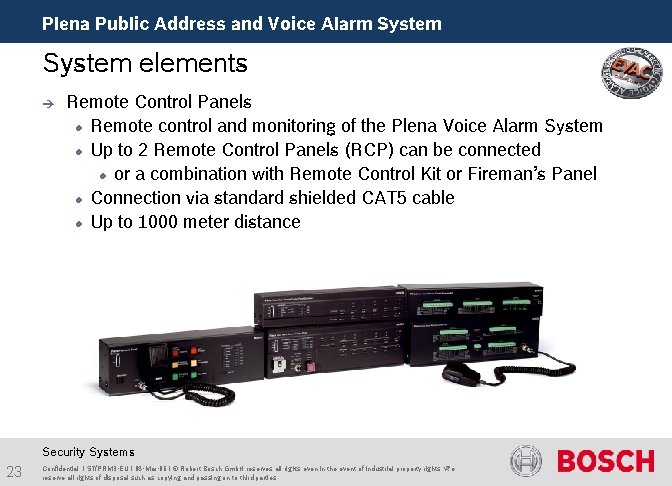

Plena Public Address and Voice Alarm System elements è Remote Control Panels Remote control and monitoring of the Plena Voice Alarm System Up to 2 Remote Control Panels (RCP) can be connected or a combination with Remote Control Kit or Fireman’s Panel Connection via standard shielded CAT 5 cable Up to 1000 meter distance Security Systems 23 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è LBB 1996/00 RCP / LBB 1997/00 RCP Extension RCP with up to 9 RCP extensions Fireman’s panel user interface Fault and status indicators Indicator test button EMG Microphone on front panel (included) Same user interface and functionality as the Controller / Router (except BGM volume control) 24 Vdc power Security Systems 24 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è LBB 1998/00 RC kit / LBB 1998/00 RC Extension kit RC kits with up to 9 RC extension kits can be connected For customized fireman’s panel Connection of indicators and buttons via standard connectors on front panel EMG Microphone + extension connector included Mounting in 19” rack or within 19” cabinet 24 Vdc power Security Systems 25 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

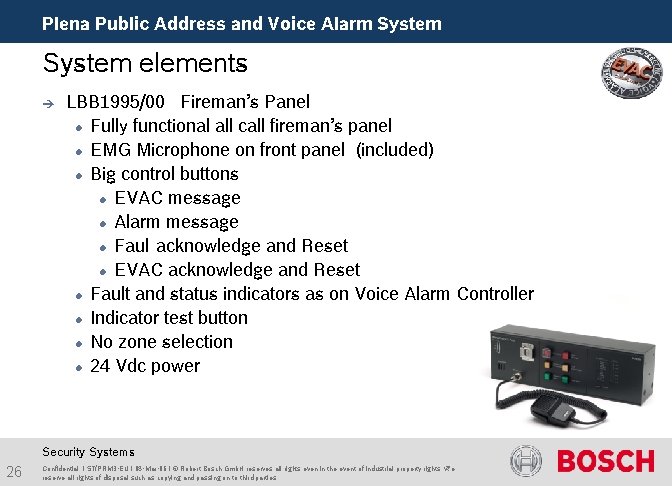

Plena Public Address and Voice Alarm System elements è LBB 1995/00 Fireman’s Panel Fully functional all call fireman’s panel EMG Microphone on front panel (included) Big control buttons EVAC message Alarm message Faul acknowledge and Reset EVAC acknowledge and Reset Fault and status indicators as on Voice Alarm Controller Indicator test button No zone selection 24 Vdc power Security Systems 26 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

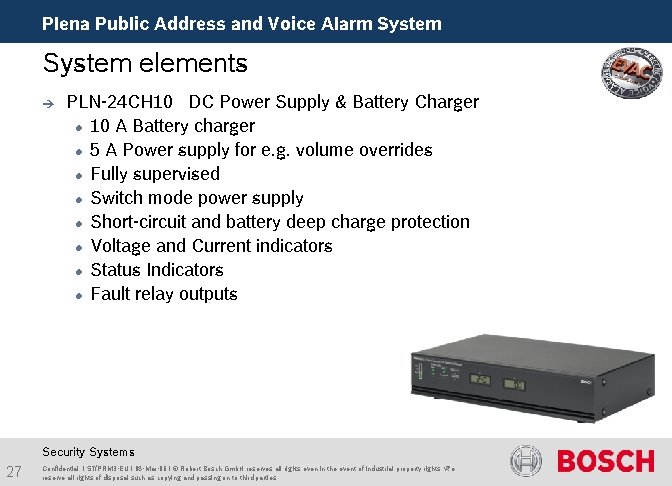

Plena Public Address and Voice Alarm System elements è PLN-24 CH 10 DC Power Supply & Battery Charger 10 A Battery charger 5 A Power supply for e. g. volume overrides Fully supervised Switch mode power supply Short-circuit and battery deep charge protection Voltage and Current indicators Status Indicators Fault relay outputs Security Systems 27 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è PLN-24 CH 10 DC Power Supply & Battery Charger Two 24 Vdc / 3 A output connector for Remote Control Panels One 24 Vdc / 3 A output connector for volume overrides Voice Alarm System 24 Vdc back-up connection through charger Automatic disconnection of system in case of deep discharge 70 A current limiter Volume overrides System back-up power Mains Remote Control Panels Security Systems 28 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System elements è PLN-1 EOL End-of-Line supervision board 20 k. Hz pilot tone detection on 100 V loudspeaker line Failsafe fault output contact LED indicator Daisy chain configuration possible è PLN-DMY 60 Dummy load 60 W Improve accuracy of EOL detection at impedance measurement More speakers on loudspeaker line Longer cable length Selectable power setting (8 / 20 / 60 Watt) Security Systems 29 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Tools Dummy Load calculator è Calculate maximum number of loudspeakers è Calculate maximum cable length è Determines the jumper setting of the dummy load Security Systems 30 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Tools Power Requirement Calculator è Calculates the required battery capacity Security Systems 31 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Product positioning è è è Small systems where compliance to IEC 60849 standard is required Systems with many small zones (e. g. schools) Medium-sized systems where 1 call channel is enough Security Systems 32 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

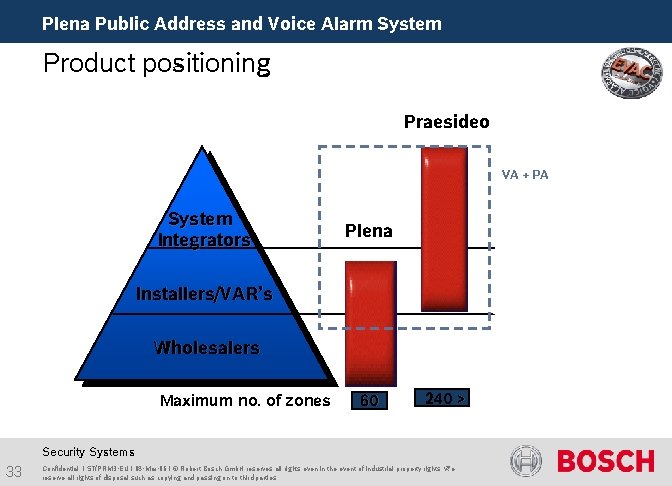

Plena Public Address and Voice Alarm System Product positioning Praesideo VA + PA System Integrators Plena Installers/VAR’s Wholesalers Maximum no. of zones 60 240 > Security Systems 33 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Product positioning versus Praesideo Main differences Analog audio 100 V line switching 1 or 2 channel operation Up to 60 zones Up to 480 Watt per 6 zones Fully digital system Digital matrix switching 28 audio channels Up to 240 zones per system Unlimited power per zone Security Systems 34 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Product positioning versus Praesideo Main differences Loudspeaker line supervision Call stations not supervised Fireman’s panel interface panels only CAT 5 cable Line and Loudspeaker WLS Fully supervised Custom made Optical fiber cable Security Systems 35 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Product positioning Praesideo is the best choice if è è è Audio routing over long distances is required (Praesideo: Cobra. Net ) Decentralized evacuation systems need to be connected (Praesideo: Cobranet) Routing of more audio channels / BGM channels is required (Praesideo: 28 digitale audio kanalen ) Automatic Volume Control for call and BGM is required More then 8 call stations or more then 2 fireman’s panels or more then 60 zones are required Security Systems 36 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Application areas Recreation facilities Typical Requirements: è Up to 6 zones è IEC 60849 compliant è High power requirement in noisy areas è Call station in reception and office è Paging and BGM functionality Security Systems 37 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Application areas Hotels Typical Requirements: è 10 – 20 zones è IEC 60849 compliant è High power requirement per zone è Call station in reception and office è Fireman’s panel by exit è Paging and BGM functionality Security Systems 38 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

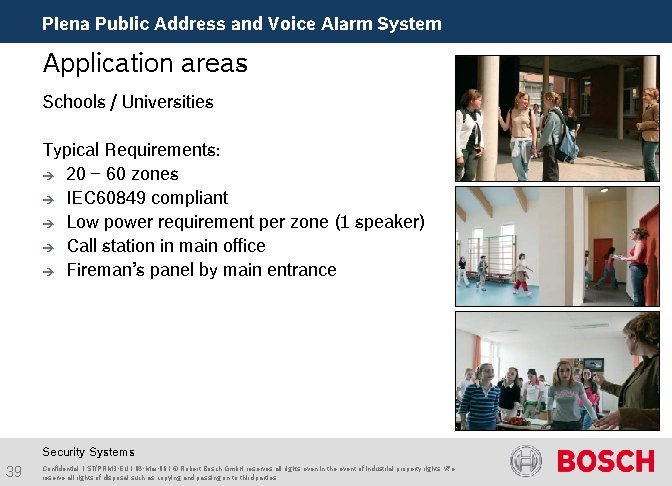

Plena Public Address and Voice Alarm System Application areas Schools / Universities Typical Requirements: è 20 – 60 zones è IEC 60849 compliant è Low power requirement per zone (1 speaker) è Call station in main office è Fireman’s panel by main entrance Security Systems 39 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

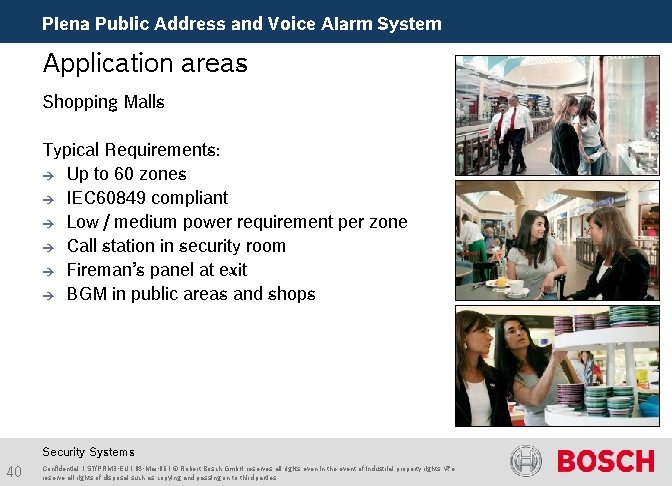

Plena Public Address and Voice Alarm System Application areas Shopping Malls Typical Requirements: è Up to 60 zones è IEC 60849 compliant è Low / medium power requirement per zone è Call station in security room è Fireman’s panel at exit è BGM in public areas and shops Security Systems 40 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Application areas Office Buildings Typical Requirements: è 20 to 60 zones è IEC 60849 compliant è Low power requirement per zone quiet environment è Call station in central office or reception è Fireman’s panel by exit Security Systems 41 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.

Plena Public Address and Voice Alarm System Support è è è è 3 Year Warranty Technical Training Application Support Service Extranet with Tools Full Marcom package Quick deliverytime by forecasting Security Systems 42 Confidential | ST/PRM 3 -EU | 08 -Mar-06 | © Robert Bosch Gmb. H reserves all rights even in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties.
