BT MPLS Enhanced UK Access Ian Lyon Product

BT MPLS (Enhanced UK Access) Ian Lyon Product Management 7 th June 06

Agenda MPLS Networks today UK MPLS Coverage BT MPLS (UK) Coverage Product BT MPLS Enhanced UK Access (EUKA) Process BT Retail IBU Managed Customers - UK RCE Process UK RCE - Launch BT MPLS EUKA - Sales order process BT MPLS Ethernet Access - outside UK

MPLS networks in BT today UK Rest of World Gateway Customer VPN Reach Gateway IP enabled Customer VPN Gateway Frame/cell stream UK MPLS IP enabled BT MPLS UK Gateway BT Frame/ATM BT MPLS Dial Gateway Internet Dial Remote access

Physical coverage (UK)

UK MPLS (IP Clear) : Points Of Presence Nationwide: – 49 service points in UK (IP Clear) – 80+ MSIP nodes (Ethernet Access) – Ethernet Access: 20 - 25 Km radial limits – Additional Lease Line resilience – Supports DSL access * For coverage detail: http: //globalservices. intra. bt. com/products/ipclear/library. html#service

MPLS GPo. Ps & APo. P coverage • 2 GPo. Ps • 11 APo. Ps • Leased Line Access only Living ston Edinburgh Renfrew Belfast Kennedy Leeds Dublin Riverside Dublin Beaumont Manchester Nottingham IRELAND UK Birmingham Bedford Bristol Swindon Newbury Tufnell Park London Switch

Products

BT MPLS Enhanced UK Access (Reach In) BT MPLS (Reach In) - planned launch for UK BT Channels June 12 th. To deliver UK Sites via UK MPLS platform (IP Clear) Bundled or Unbundled offer Features supported via BT MPLS Enhanced UK Access - subset of IP Clear (DSL(Prem, Plus), 100 M Ethernet, Leased Line*) Single Customer Service centre (BT Channel) - as per BT MPLS Sales submit BT MPLS DCA (DIET) for sites - BT Channel raises Orion Order / workflow Paths order to UK RCE who ‘Translate’ DCA into UK Order (IO CRF) Priced via BT MPLS Pricing Tools - APE not required A single price that includes both Port & Access. Included as part of a global contract where global discounting applies. Ethernet distance based price. Customer signs one contract - BT MPLS * Supports BT Onevoice

Service Delivery - Order Entry BT CHANNEL UK RCE (GS) 1. Account Manager Sales team Diet DCA Multi-Site Convert the Diet DCA to IO CRF (multi-site) using Translation guide and pass it to GS Front Office Order Management Customer Inventory IS 3/Remedy BT MPLS Pricing Tool PIP COSMOSS Raise Orders IO CRF ORION Order Entry Diet DCA Multi Site Order Entry Order UK VPN, UK Interconnect Order and UK Access Information Exchange Entry Interconnect Order 1. 2. 3. 4. Channel/Distributor Sales/Operations submits single Pass DCA to appropriate Order Entry Hub performs DCA audit – acceptance/rejection within 2 business days. Order Entry Hub performs Order Entry & Processing – DCA attached within Orion –Service Reference Number is emailed to originator and submitted to GNUK (Work Group in Orion). Order Entry Hub creates workflow.

Current Process UK RCE Solution Provided Reach

UK RCE Solution Provided Reach - Service Delivery Order Account Manager Process Sales team DCA Single Site Multi. Site e. CRF Global Services Front Office Order Management IS 3 / Ordent G GLOBAL SUPPLIERS PIP UK RCE (GS) Order non-UK VPN, Interconnect and non-UK Access Raise Orders ICS-e. CRF Multi-Site ORION Provision access and CPE in non-UK sites COSMOSS Order Entry Order UK VPN, UK Interconnect and UK Access Information Exchange Interconnect Order and inventory details. Order Entry

Replaced by - BT MPLS Enhanced UK Access

Enhanced UK Access - Service Delivery Order Process Account Manager MPLS Pricing Tool Sales team Diet DCA Multiple Sites (< 10) Global Services Front Office Order Management IS 3 / Ordent G GLOBAL SUPPLIERS PIP UK RCE (GS) Order non-UK VPN, Interconnect and non-UK Access Raise Orders IO CRF Multi-Site ORION Provision access and CPE in non-UK sites COSMOSS Order Entry Order UK VPN, UK Interconnect and UK Access Information Exchange Interconnect Order and inventory details. Order Entry

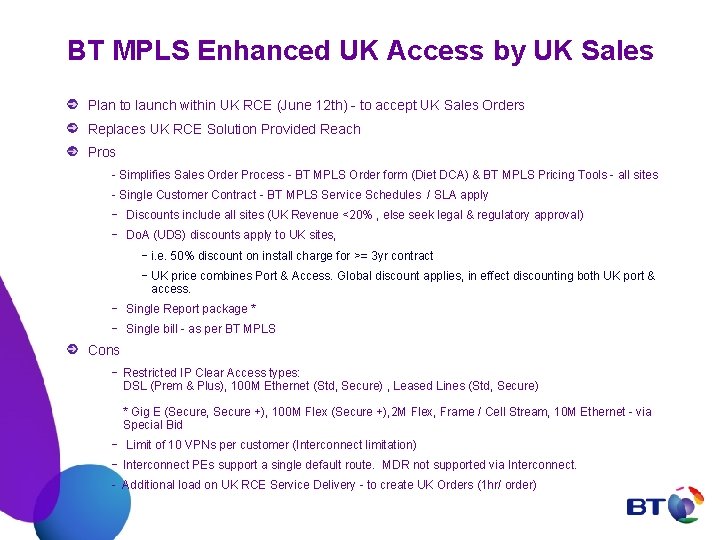

BT MPLS Enhanced UK Access by UK Sales Plan to launch within UK RCE (June 12 th) - to accept UK Sales Orders Replaces UK RCE Solution Provided Reach Pros - Simplifies Sales Order Process - BT MPLS Order form (Diet DCA) & BT MPLS Pricing Tools - all sites - Single Customer Contract - BT MPLS Service Schedules / SLA apply - Discounts include all sites (UK Revenue <20% , else seek legal & regulatory approval) Do. A (UDS) discounts apply to UK sites, - i. e. 50% discount on install charge for >= 3 yr contract - UK price combines Port & Access. Global discount applies, in effect discounting both UK port & access. - Single Report package * Single bill - as per BT MPLS Cons - Restricted IP Clear Access types: DSL (Prem & Plus), 100 M Ethernet (Std, Secure) , Leased Lines (Std, Secure) * Gig E (Secure, Secure +), 100 M Flex (Secure +), 2 M Flex, Frame / Cell Stream, 10 M Ethernet - via Special Bid - Limit of 10 VPNs per customer (Interconnect limitation) Interconnect PEs support a single default route. MDR not supported via Interconnect. - Additional load on UK RCE Service Delivery - to create UK Orders (1 hr/ order)

Enhanced UK Access - pricing Find distance to Po. P from site postcode at: http: //beat. nat. bt. com/ (see next slide)

3 1 2 6 4 5

BT MPLS Diet DCA - Select UK Access types Select UK MPLS Access type UK. - DSL - IP Clear Ethernet - IP Clear Leased Line

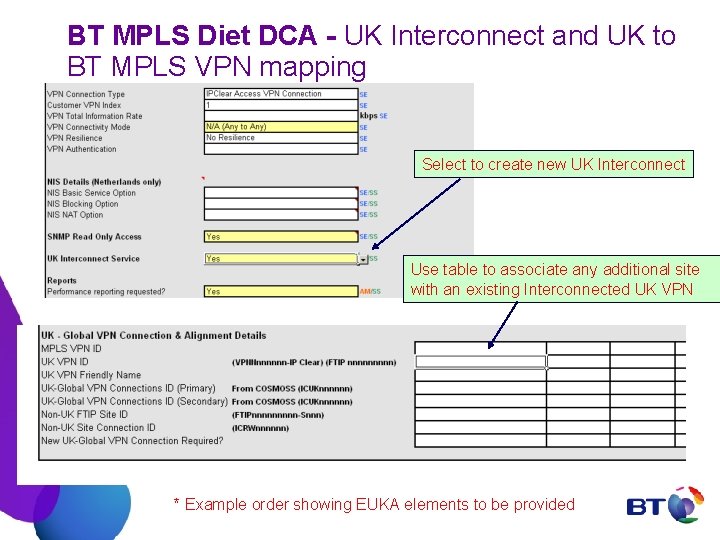

BT MPLS Diet DCA - UK Interconnect and UK to BT MPLS VPN mapping Select to create new UK Interconnect Use table to associate any additional site with an existing Interconnected UK VPN * Example order showing EUKA elements to be provided

IP Clear Access types as defined by BT MPLS Enhanced UK Access

BT MPLS - Ethernet update

Ethernet access to BT MPLS outside UK Two solutions for Ethernet access initially supported: Ø Direct fibre/point to point delivery over dedicated infrastructure. Similar to dedicated access line with no contention. Ethernet interface presentation. Ø Ethernet access over SONET/SDH 100 M , GE Ethernet Access initially supported Ethernet Access will only support DSCP Co. S (6 Level). Multiple VPN for BT Managed CPE will not be supported initially, planned for later release Resiliency: failover port supported via Special bid All MPLS ports are considered as ICB (Individual Case Basis) to allow capacity planning to adequately plan-out core network bandwidth and access port availability. Unbundled and bundled (Unisys / Cisco 7304) Leadtime ICB - this is currently assumed to be 90 days.

Ethernet access to BT MPLS – where? Strategy is to be able to support Ethernet access worldwide. Countries/Cities will be rolled out as Ethernet suppliers are found, supply commercial agreements are signed and PE routers deployed (73 xx on very limited locations and 10 k PE planned to start deployment in Q 1 2006 calendar). No capacity will be pre-provisioned therefore a special Bid approval is needed. Only Bids within the following countries will be analyzed (ability to deliver to individual customer building will be dependant upon individual supplier capabilities which may be restricted in certain cities): Australia Hong Kong Spain Belgium Ireland Sweden Denmark Japan Switzerland France Netherlands US, NY Germany Singapore

Ethernet access to BT MPLS – cost? Access prices: given the nature of the service, pricing is expected to be largely through the access bid process. Where 3 rd party Ethernet Access pricing is available as standard, Ethernet access prices will be obtained via APE. MPLS Port prices: same port prices independent on access type (I. e. 8 meg MPLS port is the same even if access is T 3/E 3 or 100 meg) Ethernet via dedicated fibre, where available, is significantly more cost effective than traditional circuits. Ethernet over SDH is similar price to SDH circuit. HOWEVER end to end solution to customer is cheaper as no extra interface card has to be built in the customer CPE to support Ethernet interface. ØTypical basic 7304 CE with 2 built in Ethernet interfaces is approx. 27 k USD ØExtra 17 k. USD would need to be added to basic CE router to support STM-1 access. ØExtra 25 k. USD to be added to basic CE router to support STM-4 access. ØAbove prices are assuming Cisco list prices.

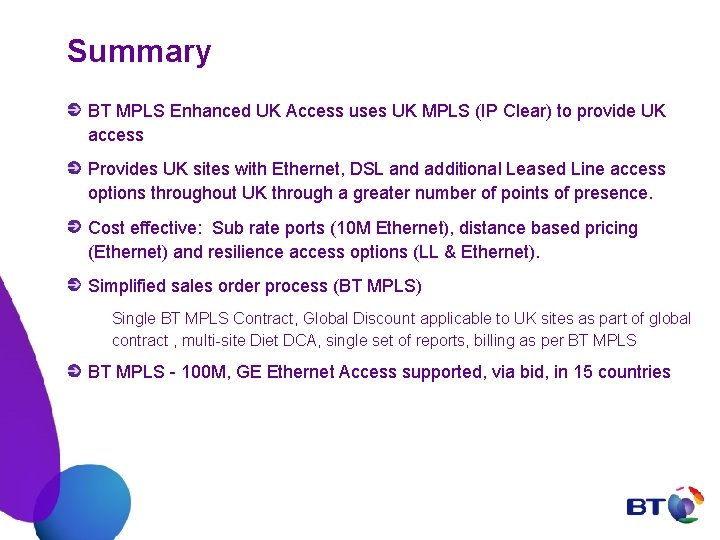

Summary BT MPLS Enhanced UK Access uses UK MPLS (IP Clear) to provide UK access Provides UK sites with Ethernet, DSL and additional Leased Line access options throughout UK through a greater number of points of presence. Cost effective: Sub rate ports (10 M Ethernet), distance based pricing (Ethernet) and resilience access options (LL & Ethernet). Simplified sales order process (BT MPLS) Single BT MPLS Contract, Global Discount applicable to UK sites as part of global contract , multi-site Diet DCA, single set of reports, billing as per BT MPLS - 100 M, GE Ethernet Access supported, via bid, in 15 countries

Additional information / Contacts Further details on BT MPLS Product Intranet site, under library, CPE & Access: http: //globalservices. intra. bt. com/products/mpls/library. html#cpe# Enhanced UK Access: Enhanced UK Access via DSL: http: //globalservices. intra. bt. com/products/mpls/docs/BTMPLSUKReachin. DSLOnepager 2 c. doc Enhanced UK Access via Ethernet Access: http: //globalservices. intra. bt. com/products/mpls/docs/BTMPLSUKReachin. Ethernet%20 Accessonepager 2 c. doc Enhanced UK Access via Leased Lines: http: //globalservices. intra. bt. com/products/mpls/docs/BTMPLSUKReachin. LLOnepager 2 c. doc MPLS Ethernet Access: http: //globalservices. intra. bt. com/products/mpls/docs/MPLS%20 Ethernet%20 access%20 brief. doc MPLS Pricing Tool: http: //globalservices. intra. bt. com/products/pricing/mpls/index. html UK Ethernet Po. P distance calculator: http: //beat. nat. bt. com/beat/quicklinks/Ro. WDist. Calc. htm Contacts Tony Pateman: T. 01977 597 928, e-mail: tony. pateman@bt. com Pete Hills: T. 07860 305 752, e-mail: pete. d. hills@bt. com Bill Greatwood: T. 0207 777 7460. e-mail: william. greatwood@bt. com

Thank you Offices worldwide Telecommunications services described are subject to availability and may be modified from time to time. Services and equipment are provided subject to British Telecommunications plc's respective standard conditions of contract. Nothing in this publication forms any part of any contract. © British Telecommunications plc 2005

Back Up slides - IP Clear Reach

IP Clear Reach IP Clear VPN + Int’l Reach Predominantly UK based VPN / Sites + few Int’l sites Unbundled offer Reach Features - sub set of BT MPLS. Not always equivalent to those of IP Clear Single Customer Service Centre - as per IP Clear (Global Services UK Front Office ) Sales submit UK Order form for UK Sites (IO CRF) and BT MPLS Order forms for ‘Reach’ sites - to GS Front Desk Order management (Sales@bt. net) UK Order management back off SD & SA of Int’l Reach Sites via UK RCE Single Inventory for Customer held on UK Systems Pricing via Quick Quote or IP Clear Pricing + BT MPLS Price book - No charge for Interconnect Customer signs IP Clear contract (IP Clear T&Cs) + IP Clear Reach contract (BT MPLS T&Cs)

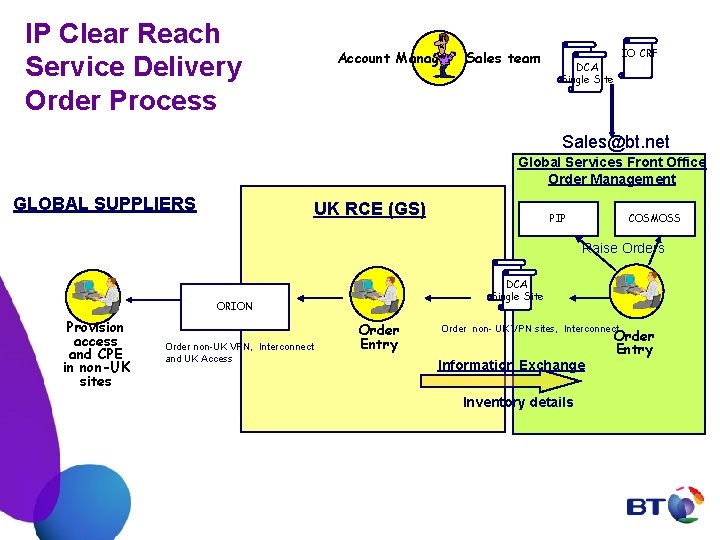

IP Clear Reach Service Delivery Order Process Account Manager Sales team DCA Single Site IO CRF Sales@bt. net Global Services Front Office Order Management GLOBAL SUPPLIERS UK RCE (GS) PIP COSMOSS Raise Orders DCA Single Site ORION Provision access and CPE in non-UK sites Order non-UK VPN, Interconnect and UK Access Order Entry Order non- UK VPN sites, Interconnect Information Exchange Inventory details Order Entry

IBU Managed Customers - UK RCE Solution Provided Reach A Draft process developed before BT MPLS Enhanced UK Access (Reach In) was developed Three ‘flavours’ of Solution Provided Reach , depending upon WHO manages the customer/ signed contract. UK RCE Solution Provided Reach - predominantly Int’l sites, part in UK CPE & Convergent Solutions (Secure VPN Matrix) - predominantly UK Sites, part Int’l Global Solutions Provided Reach - multi-domestic VPNs, bespoke solns. . . Principle here for Solution provided Reach orders IP Clear + Interconnect via UK Channel/ Order Entry (IO CRF/ Multi-Site CRF) and BT MPLS (plus Interconnect) via UK RCE Order Management (BT MPLS DCA) Bundled or Unbundled Feature support (where compatibility allows) IP Clear (UK) BT MPLS (non UK) Incompatible features : Multiple Default Gateways, Internet Access, m. VPN in part Priced separately IP Clear & BT MPLS - no charge for Interconnect Customer signs ‘Solns’ contract
