BS EN 10204 2004 Metallic Products Types of

BS EN 10204: 2004 Metallic Products – Types of inspection documents

The purpose of BS EN 10204 is to specify the different types of inspection documents to be supplied to the purchaser

Key Definitions Non-Specific Inspection: Inspection carried out by the manufacturer according to his own procedures. The products inspected are not necessarily the products supplied. Specific Inspection: Inspection carried out according to product specification on the parts that are being supplied.

Inspection documents based on non-specific inspection Declaration of Compliance “Type 2. 1”. n n Document in which the manufacturer declares that the products supplied are in compliance with the order. No test results required. Test Report “Type 2. 2”. n n Document in which the manufacturer declares that the products supplied are in compliance with the order. Non-specific test report included

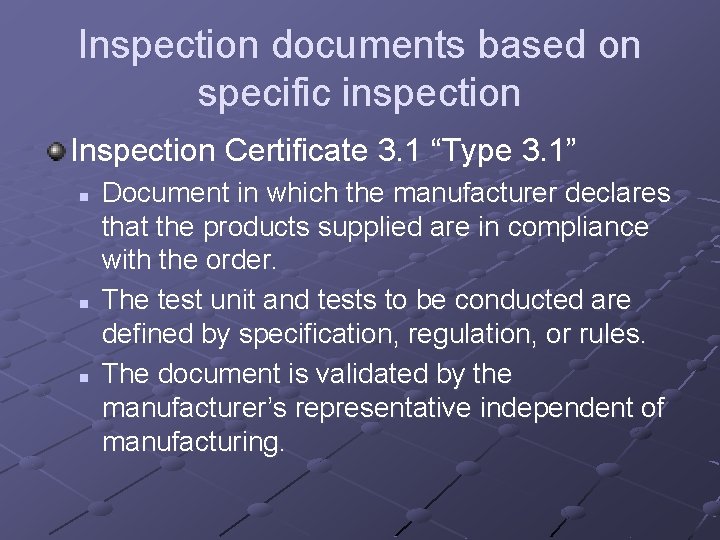

Inspection documents based on specific inspection Inspection Certificate 3. 1 “Type 3. 1” n n n Document in which the manufacturer declares that the products supplied are in compliance with the order. The test unit and tests to be conducted are defined by specification, regulation, or rules. The document is validated by the manufacturer’s representative independent of manufacturing.

Inspection Certificate 3. 2 “Type 3. 2” n n Document prepared by BOTH the manufacturer's authorized inspection representative, independent of manufacturing, AND either the purchaser’s authorized inspection representative or the inspector designated by regulations, declaring that the products are in compliance with the order. Test results are supplied.
