Today’s topics • Intro to Fractures • Faults and Fault classification
Fractures are the main structures associated with “Brittle” deformation. Found almost everywhere at solid Earth’s surface. Most characteristic of deformation in upper crust. Important for reconstructing tectonic evolution of Joints geologic areas, and impact fluid flow (e. g. , water, oil, gas) in the subsurface can act has permeable channels or impermeable barriers depending on nature of host rocks and fault rocks lt u Fa
Fractures What is a fracture? Subplanar surface or discontinuity across which cohesion has been lost (although cohesion can be later healed) Typically very localized (narrow) but they all have some finite thickness. Two main families of fractures Extensional fractures • joints, fissures, veins • displacement perpendicular to walls Shear fractures • displacement parallel to walls • if displacement is large, we call these FAULTS
Fracture Types Extensional fractures • joints, fissures, veins • displacement perpendicular to walls Shear fractures • displacement parallel to walls • if displacement is large, we call these FAULTS

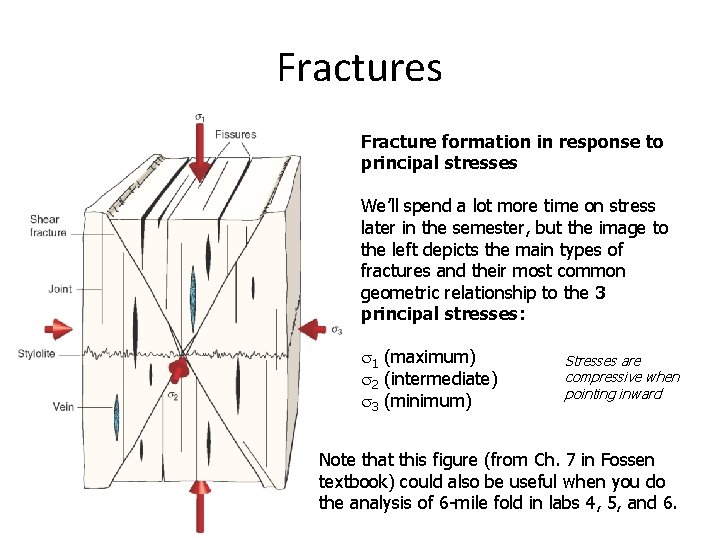

Fractures Fracture formation in response to principal stresses We’ll spend a lot more time on stress later in the semester, but the image to the left depicts the main types of fractures and their most common geometric relationship to the 3 principal stresses: s 1 (maximum) s 2 (intermediate) s 3 (minimum) Stresses are compressive when pointing inward Note that this figure (from Ch. 7 in Fossen textbook) could also be useful when you do the analysis of 6 -mile fold in labs 4, 5, and 6.

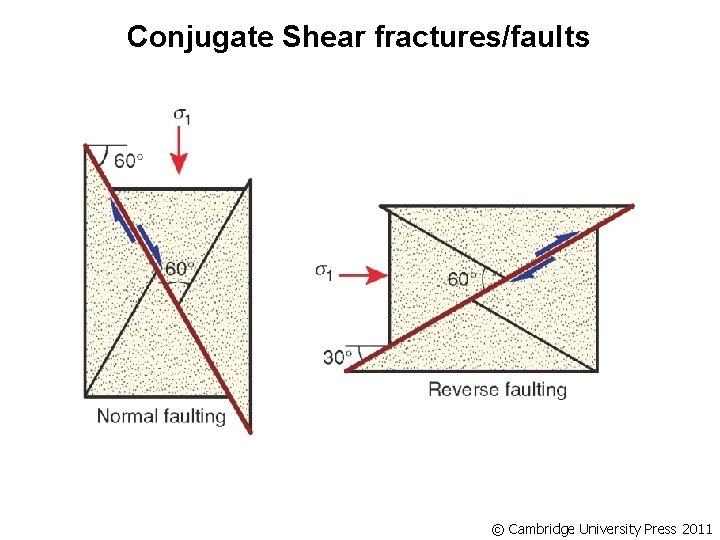

Conjugate Shear fractures/faults © Cambridge University Press 2011
Areal Photograph of high angle joints in Permian Cedar Mesa Sandstone from Canyonlands National Park, UT
Joint planes in Esplanade Sandstone
Intro. to Faults
Fault classification Based on two basic observations: 1) Orientation of the fault surface (strike/dip of the surface) 2) Nature of the relative displacement across the fault (sense of shear) (trend/plunge of slip or displacement vector)
Fault terms and classification For non-vertical faults , there is a “footwall” and a “hanging wall” A brief note on stereonets. This is a graphical method for projecting 3 -D orientation for planes and lines onto a 2 -D plane (paper). You will much more with sterenets in lab, but you could get a head start by looking at Appendix B in your textbook or Fossen’s e-module on stereographic projection (http: //folk. uib. no/nglhe/Structural. Geo. Book Emodules. html). © Cambridge University Press 2011

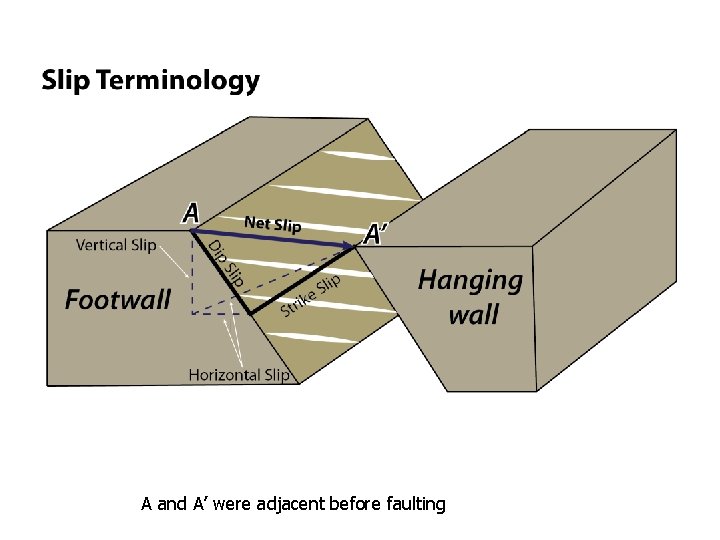

Net slip of a fault Net slip (or displacement) The line on the fault surface that connects two points that were together before deformation Footwall Hangingwall It is a vector (direction and magnitude), and within the fault plane has strike-slip and dip-slip components
A and A’ were adjacent before faulting

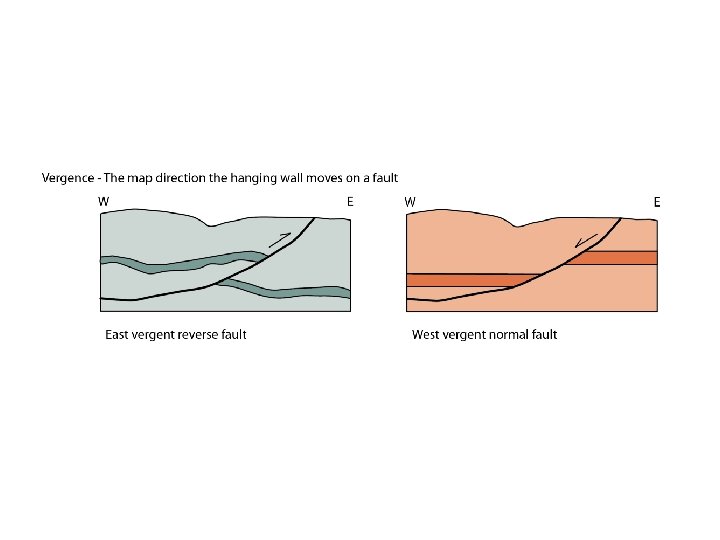

Fault Types Dip-slip Oblique-slip Normal Reverse Strike-slip Rotational 2 endmember classes: Dip-slip (2 types) Strike-slip (2 types) 2 other special classes:
Fault systems in the Western U. S. Cenoz t faults Active thrus ic zo so Me ults rust fa oic Th Cenozoic & active normal faults overprinting Mesozoic thrust faults st ru Th fau ic zo no lts Ce & e tiv Ac ip Sl e- rik St ts ul fa
Normal faults -hatches or balls on “downthrown side” If dip unknown, U-up, D-down Reverse/Thrust faults “teeth” on hanging wall Common map symbols for faults Strike-slip faults -arrows indicate Sense of slip
Black Mountains, Death Valley East West
Black Mountains, Death Valley East West Footwall Hanging Wall

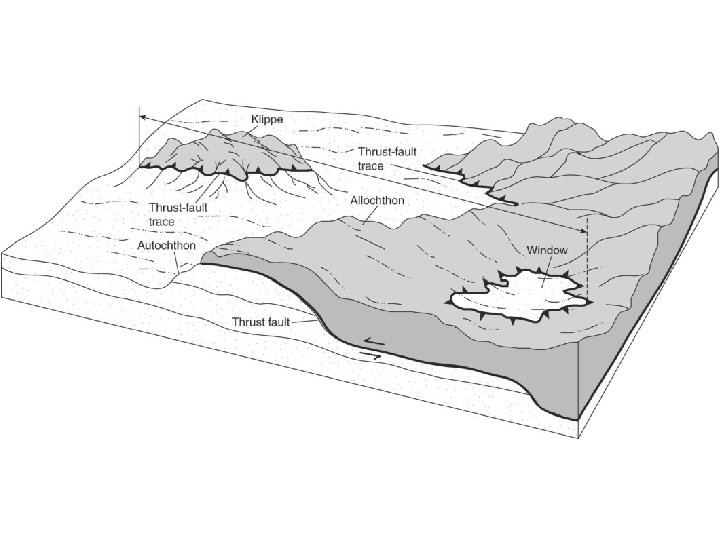

Chief Mountain, Glacier National Park klippe “allochthonous” “autochthonous”

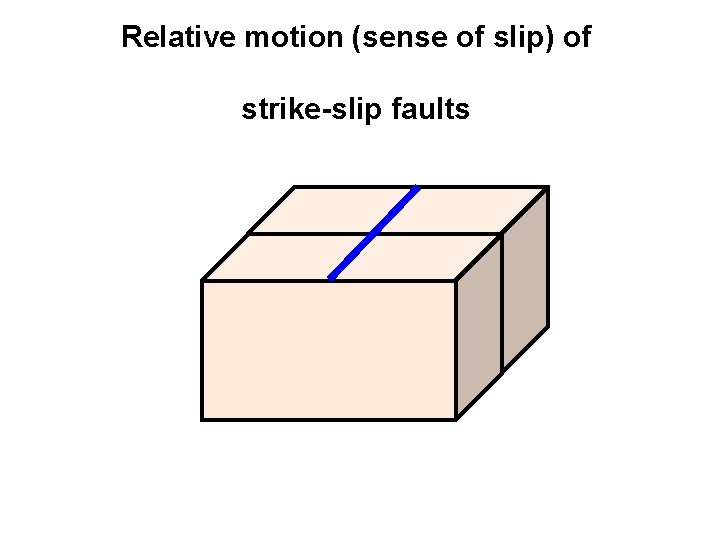

Relative motion (sense of slip) of strike-slip faults
Right-Lateral (Dextral)
Left-Lateral (Sinistral)
Arrow Heads ( ) and Tails ( ) Block moving toward you like an arrowheading towards you Block moving away from you like seeing the feathers of an arrow
Arrow Heads ( ) and Tails ( ) n Right-lateral or left-lateral?
Arrow Heads ( ) and Tails ( ) n Left-lateral

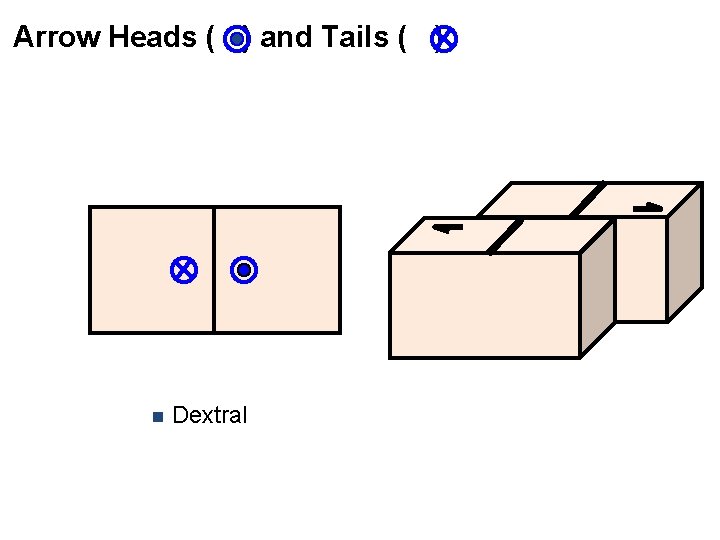

Arrow Heads ( ) and Tails ( ) n Sinistral or Dextral?
Arrow Heads ( ) and Tails ( ) n Dextral
Basic Fault Types Right-lateral (dextral) strike-slip fault Izmit, Turkey Left-lateral (sinistral) strike-slip fault Guatemala

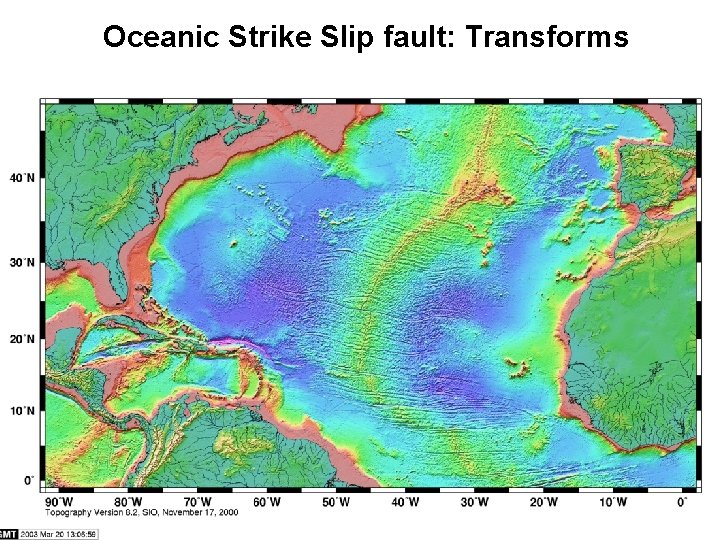

Oceanic Strike Slip fault: Transforms
Some other general characteristics of faults (of all types)
