Brodmanns Functional Map Cortical Layers Vision Illusions Gallery

Brodmann’s Functional Map

Cortical Layers

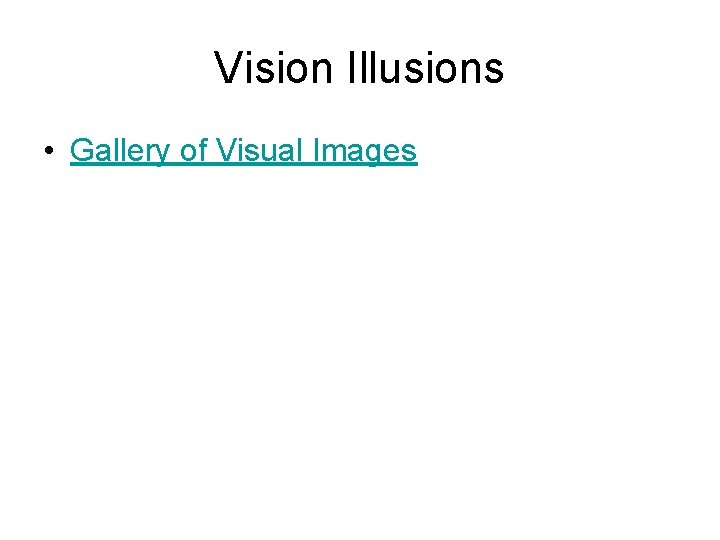

Vision Illusions • Gallery of Visual Images

Visual Pathway Visual Cortex physiology

Retinotopic Map Daniel L. Adams and Jonathan C. Horton , 2003

Retinotopic Map

Occipital Cortex • VISION – Primary visual cortex – initial processing – Visual association cortex -- higher order processing of visual information. Visual Cortex overview

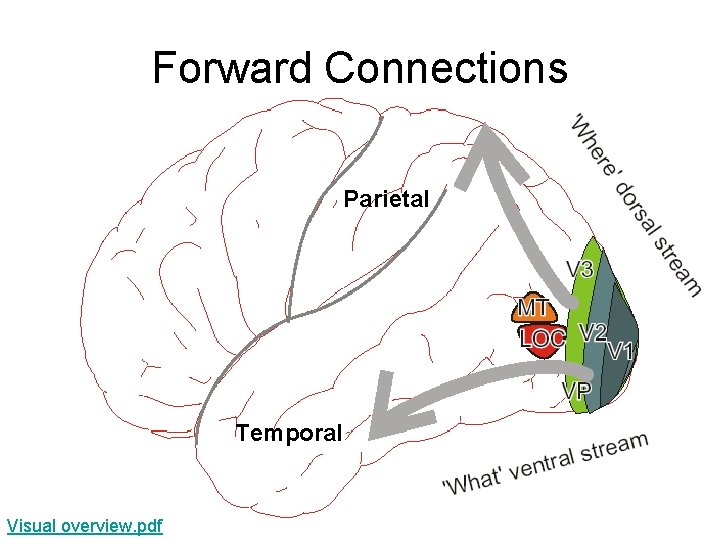

Forward Connections Parietal Temporal Visual overview. pdf

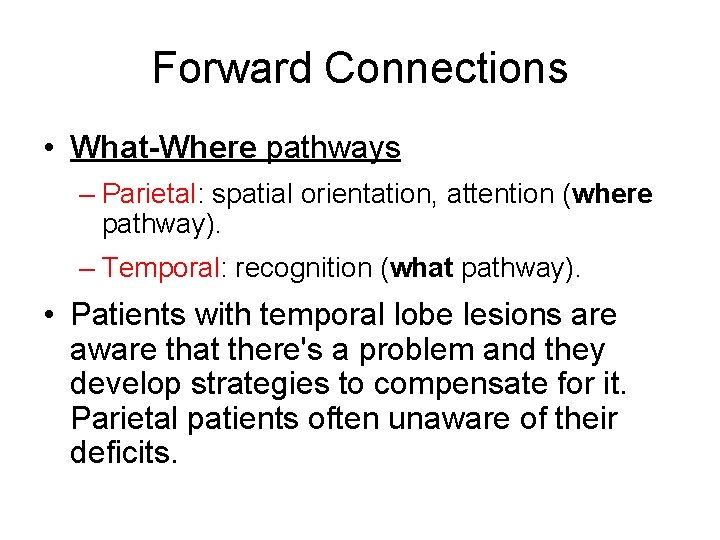

Forward Connections • What-Where pathways – Parietal: spatial orientation, attention (where pathway). – Temporal: recognition (what pathway). • Patients with temporal lobe lesions are aware that there's a problem and they develop strategies to compensate for it. Parietal patients often unaware of their deficits.

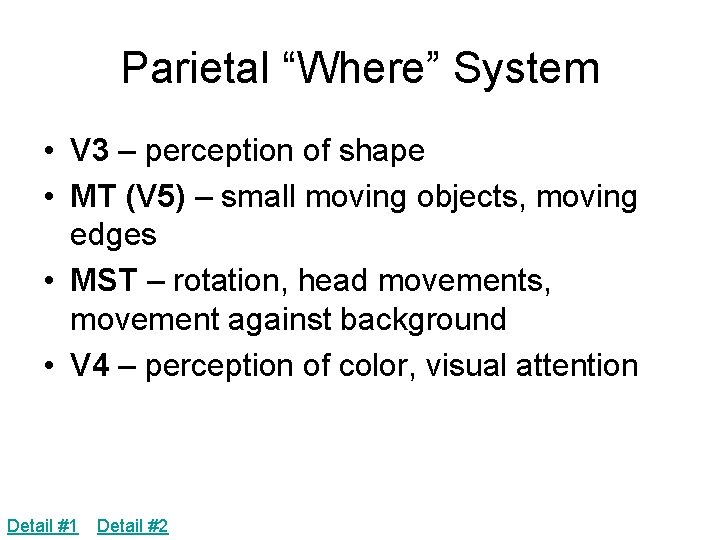

Parietal “Where” System • V 3 – perception of shape • MT (V 5) – small moving objects, moving edges • MST – rotation, head movements, movement against background • V 4 – perception of color, visual attention Detail #1 Detail #2

Parietal Lobe

Parietal Lobe • PERCEPTION: Complex aspects of spatial orientation and perception. • TOUCH: Primary somatosensory cortex -initial cortical processing of tactile information. • LANGUAGE: The inferior parietal lobule of the left hemisphere (w/ temporal lobe) -comprehension of language.

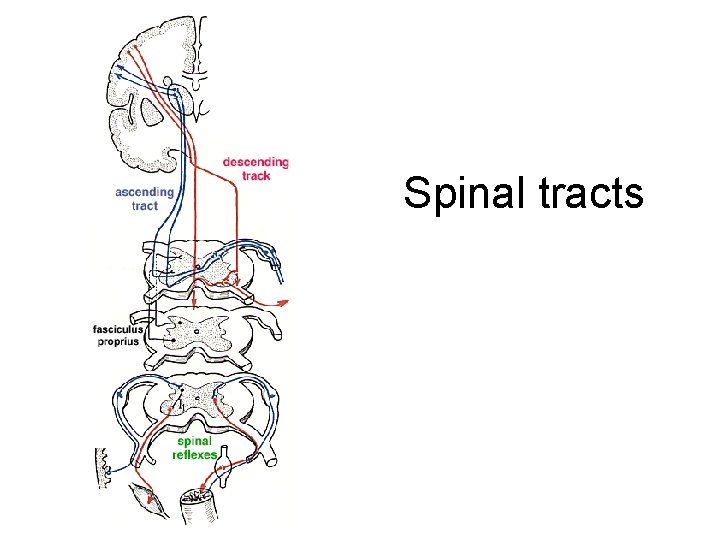

Spinal tracts

Homunculus

Homunculus Weird map Experiment

Primary motor cortex motor detail. pdf

Motor Pathways

Parietal Lobe • PERCEPTION: Complex aspects of spatial orientation and perception. • TOUCH: Primary somatosensory cortex -initial cortical processing of tactile information. • LANGUAGE: The inferior parietal lobule of the left hemisphere (w/ temporal lobe) -comprehension of language.

Wernicke’s Area • Rear of the parietal lobe (combined with temporal lobe) • Important for understanding the sensory (auditory and visual) information associated with language. • Damage to this area of the brain produces "sensory aphasia. ”

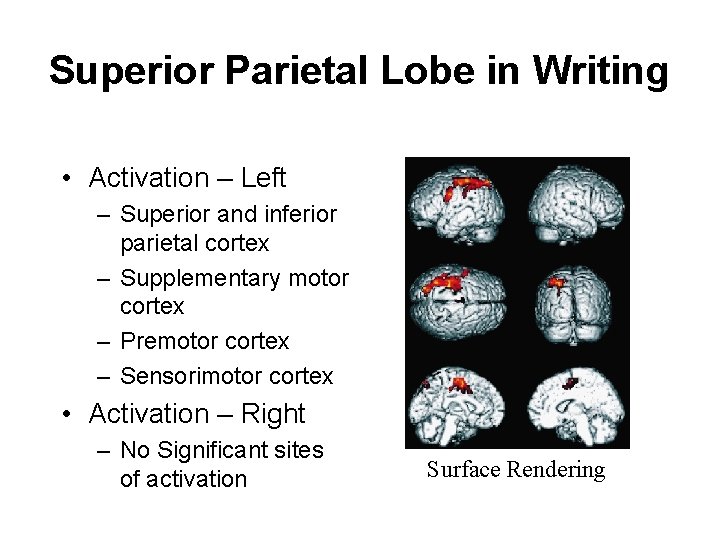

Superior Parietal Lobe in Writing • Activation – Left – Superior and inferior parietal cortex – Supplementary motor cortex – Premotor cortex – Sensorimotor cortex • Activation – Right – No Significant sites of activation Surface Rendering

Keep in Mind… • How was brain structure formed – Developmentally – Evolutionarily • How does circuit create the human experience – System level – Neuron level

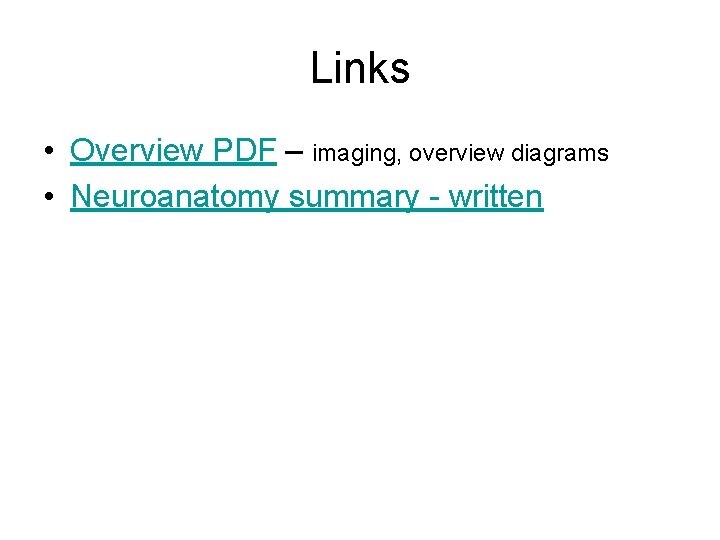

Links • Overview PDF – imaging, overview diagrams • Neuroanatomy summary - written
