Brocade Silk Worm Series Administrators Guide 2005 4
Brocade Silk. Worm Series Administrator’s Guide 2005. 4 Brocade Korea 0
브로케이드 한국지사 서울 강남구 대치동 983 -10 대경빌딩 6층 전화 : 02 -3453 -8779 팩스 : 02 -3453 -5655 Email: webmaster@brocade. co. kr Corporate Headquarters 1745 Technology Drive San Jose, CA 95110 T: (408) 487 -8000 F: (408) 487 -8101 Email: info@brocade. com Asia-Pacific Headquarters 9/F, One International Finance Center, 1 Harbour View Street, Central, Hong Kong Tel: +852 2539 0600 Fax: +852 2539 0613 Email: apac-info@brocade. com European Headquarters 29, route de l’Aeroport Case Postale 105 CH-1211 Geneva 15, Switzerland T: +41 22 799 56 40 F: +41 22 799 56 41 Email: europe-info@brocade. com Latin America Headquarters 5201 Blue Lagoon Drive Miami, FL 33126 T: (305) 716 -4165 Email: latinam-sales@brocade. com 2 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 3 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

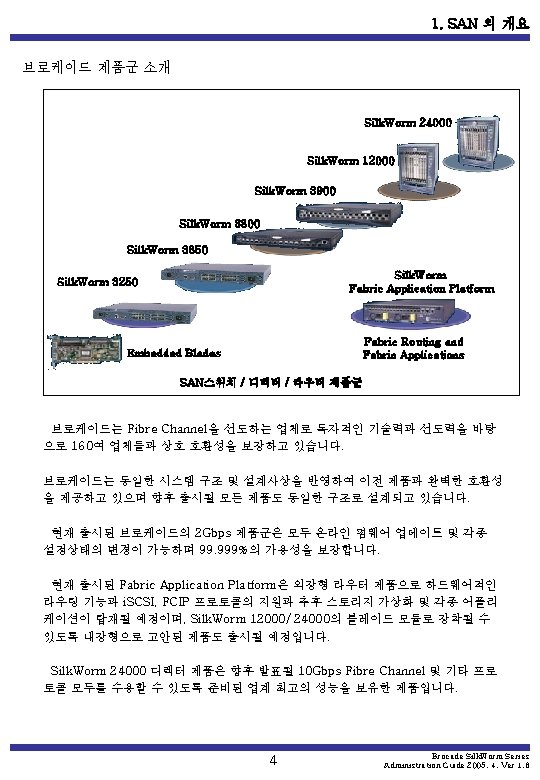

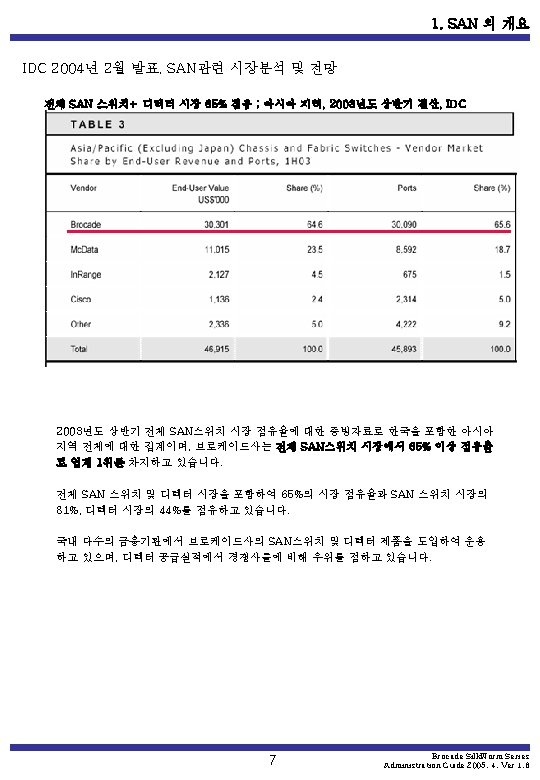

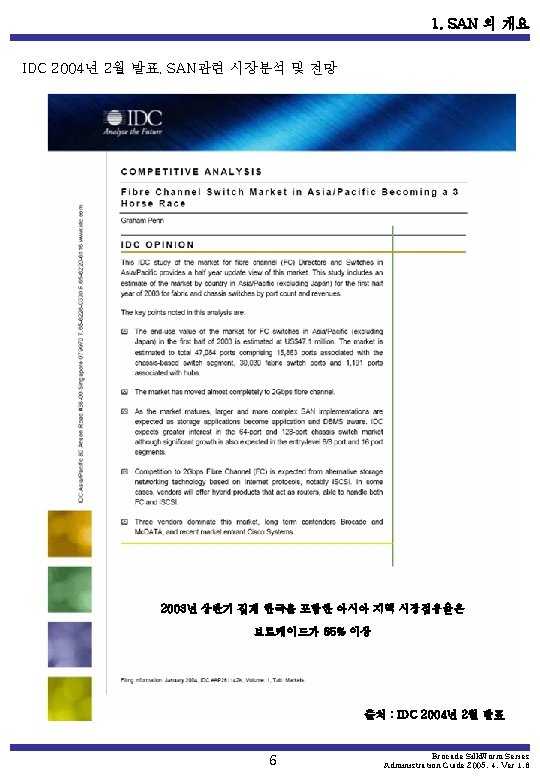

1. SAN 의 개요 Gartner 2004년 5월 발표, SAN 시장의 지배력 5 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
빛의 스팩트럼 자외선과 적외선의 차이점 8 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 SFP와 XFP의 비교 SFP (Small Form Factor Pluggable Media) XFP (10 Gbit Small Form Factor Pluggable Media) www. xfpmsa. org 참조 9 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 광통신모듈의 형태 및 전송거리 SWL SFP (Short Wave Length / Small Form Factor Pluggable Media) 일반적으로 1 Gbps / 550 m 이내의 거리에서 데이터 전송가능 가시광선 - 850 nm의 파장간격 LWL SFP (Long Wave Length / Small Form Factor Pluggable Media) 일반적으로 1 Gbps / 수십 Km 이내의 거리에서 데이터 전송가능 적외선 Laser - 1310 nm / 1550 nm의 파장간격 10 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 SAN 기반 장거리 데이터 전송 형태별 전송거리 SWL : Short Wave Length – 1 Gbps / 550 m LWL : Long Wave Length – 1 Gbps / 10 Km ELWL : Extended LWL – 1 Gbps / 80 Km DWDM : 장비별 응답지연 시간에 따라 전송거리의 차이 FCIP : FC over IP 11 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 케이블 사양 및 규격 Glass Core Glass Cladding Coating Single-mode Fiber Multimode Fiber SC MIA LC A ferrule 12 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 참고사항 케이블 Connector 형태에 따른 구분 LC : Lucent Low-Profile Connector SC : Siemens Simplify Connector * LC to SC, SC to LC connector 형태의 케이블을 사용할 수 있는가? 광 케이블 규격에 따른 광통신모듈의 선택 MMF (Multi-Mode Fiber) & SWL (Short Wave Length) SMF (Single Mode Fiber) & LWL (Long Wave Length) * Fiber와 Fibre의 차이점은 무엇인가? 데이터 전송 프레임 구조 56바이트 보다 작을 경우 Frame Error 2148바이트 보다 클 경우 Frame Error, EOF (End of Frame) Error 일반적인 프레임의 크기 Control Frame = 256 Byte Data Frame = 1024 / 2048 Byte (HBA 설정 값의 확인) * Benchmark Test시 성능저하의 원인이며 HBA의 설정을 변경할 경우 전송속도 개선 전송속도 vs. IOPS vs. 대기시간 1 Gbps 전송속도 = 50, 000 IOPS * 2, 148 Byte ; 20㎲ Fibre Channel 표준은 7 Hop을 보장 ( 2㎲ * 7 = 14㎲), Frame 전송지연 6㎲ * SAN 구성시 전송지연이 발생하거나 느려진다 는 것은 잘못된 이해 * 2 Gbps 일 경우 100, 000 IOPS * 2, 148 Byte 또는 10㎲ 당 1 Frame 전송 4 Gbps / 10 Gbps는? 13 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
1. SAN 의 개요 SAN 구축시 유의사항 SAN스위치 및 디렉터 설정 Switch Firmware Version 및 각종 설정 값 Port Speed & Negotiation, Connection Mode & Type Date HBA 설정 HBA Driver, Firmware Version Link Speed Topology (Loop -> Fabric, P to P Only, Loop Only) Class of Service Frame Size FDMI Option * SUN Solaris의 경우 SUNWsan Package 필수 설치 재해복구시스템 구축방안 (DWDM or IP Gateway) 이중화 데이터 전송경로 케이블의 길이 및 접속모드 (SMF & LWL / MMF & SWL) 14 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
2. 접속 및 관리 15 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

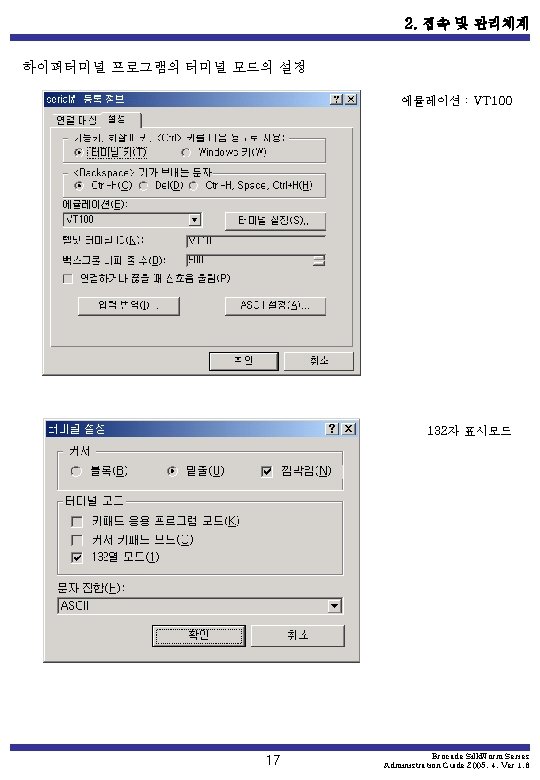

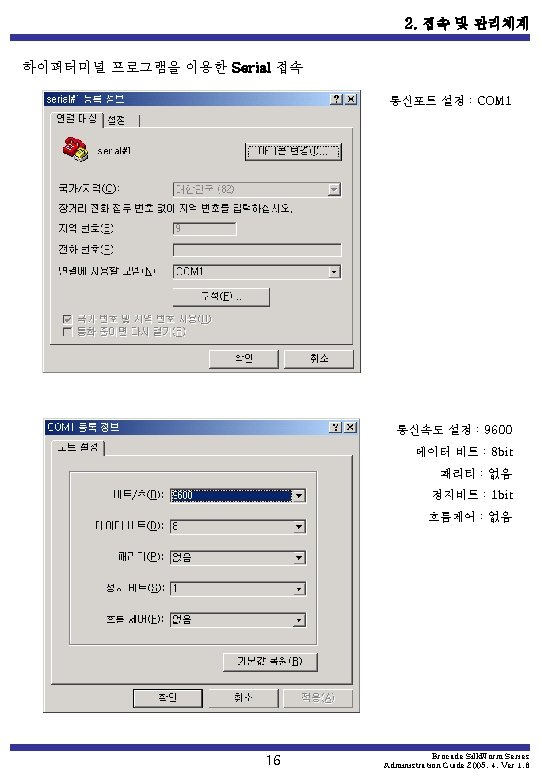

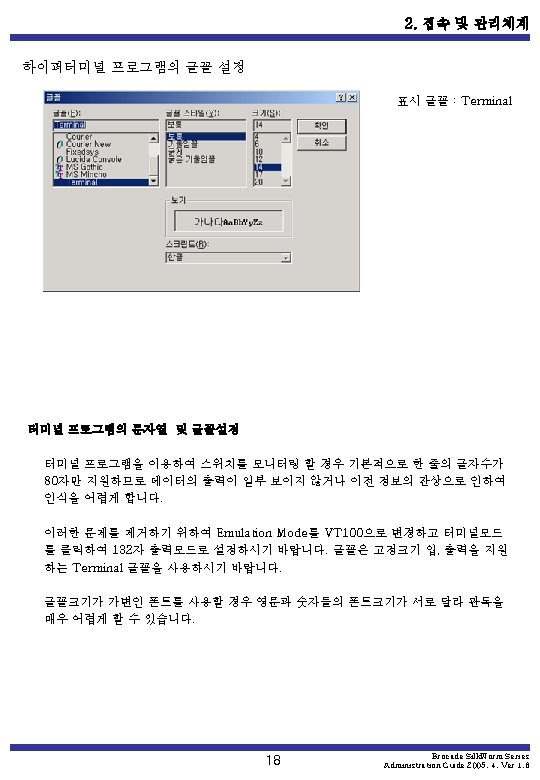

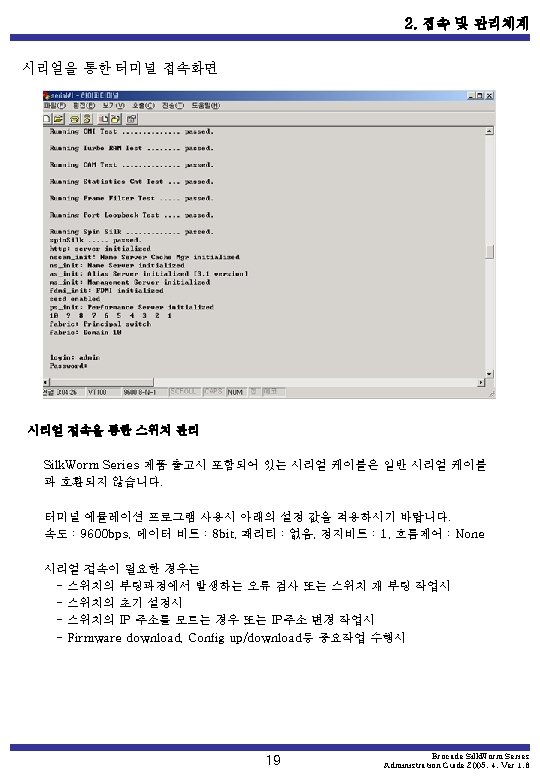

2. 접속 및 관리체계 스위치 RS-232 시리얼포트 핀 사양 Pin 번호 Signal 1 Not use 6 Not use 2 Transmitted Data (송신) 7 Clear to Send (송신요구) 3 Received Data (수신) 8 Not use 4 Not use 9 Not use 5 Signal Ground (V. G) 시리얼통신 케이블 접속 PC Side Switch Side Pin No. Signal Name Pin No. 1 DCD (Not Use) 1 2 Rx. D Tx. D 2 3 Tx. D Rx. D 3 4 DTR (Not Use) 4 5 S. G 5 6 DSR (Not Use) 6 7 RTS CTS 7 8 CTS (Not Use) 8 9 RI (Not Use) 9 20 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

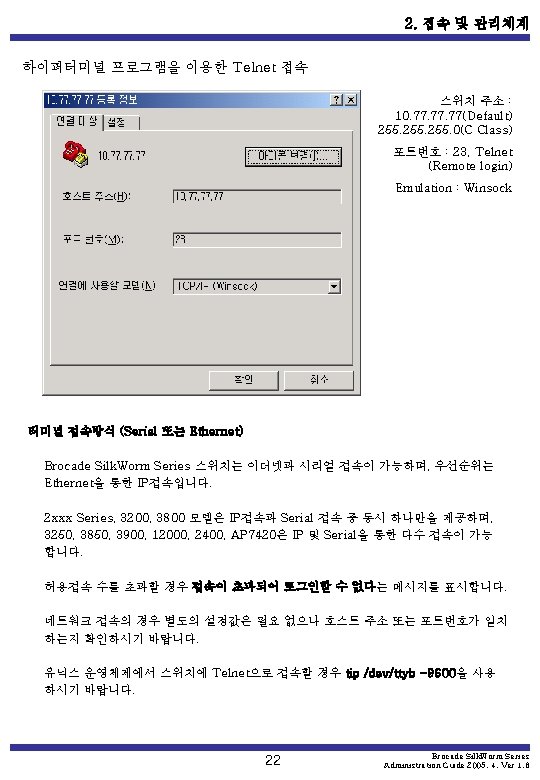

2. 접속 및 관리체계 Telnet 접속을 위한 기본 네트워크의 설정 관리용 컴퓨터의 기본 네트워크 설정시 Brocade Silk. Worm Series 스위치는 이더넷 접속을 위하여 고유한 IP 주소값을 가지 고 있습니다. 스위치에 로그인하여 ipaddrshow 명령을 수행하면 현재 IP주소를 확인 하실 수 있으며 기본 설정 값은 아래와 같습니다. switch: admin> ipaddrshow Ethernet IP Address: 10. 77. 77 Ethernet Subnetmask: 255. 0 Fibre Channel IP Address: 0. 0 Fibre Channel Subnetmask: 0. 0 21 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

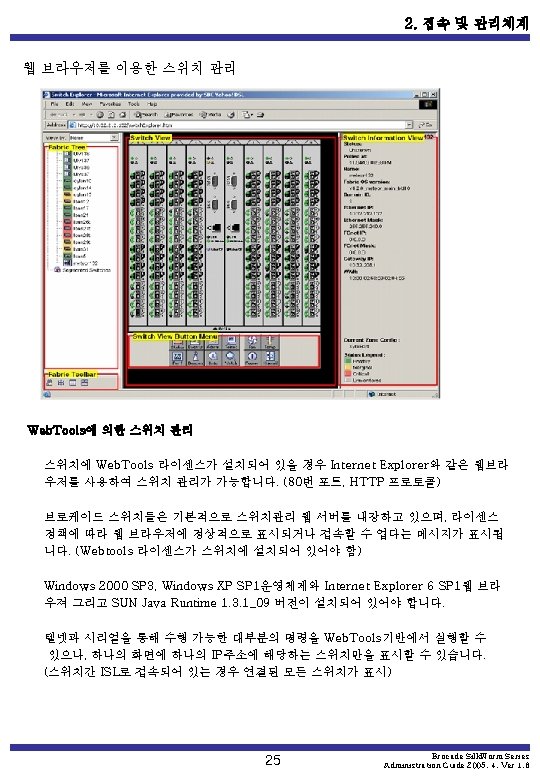

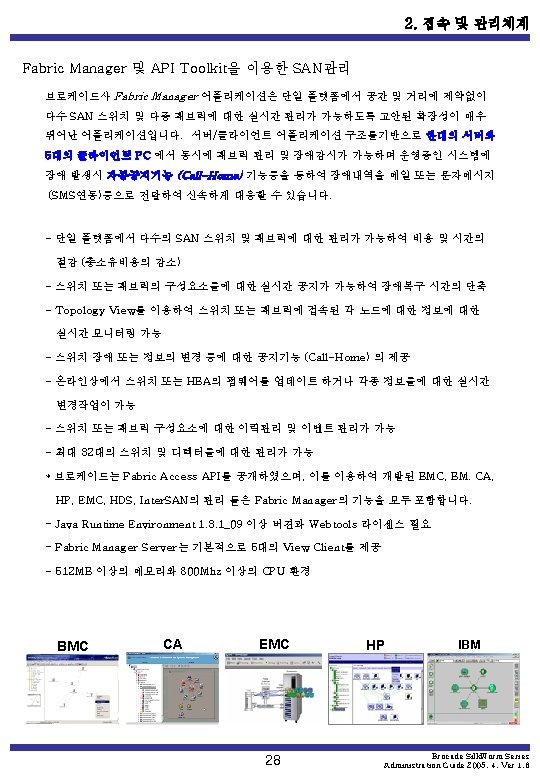

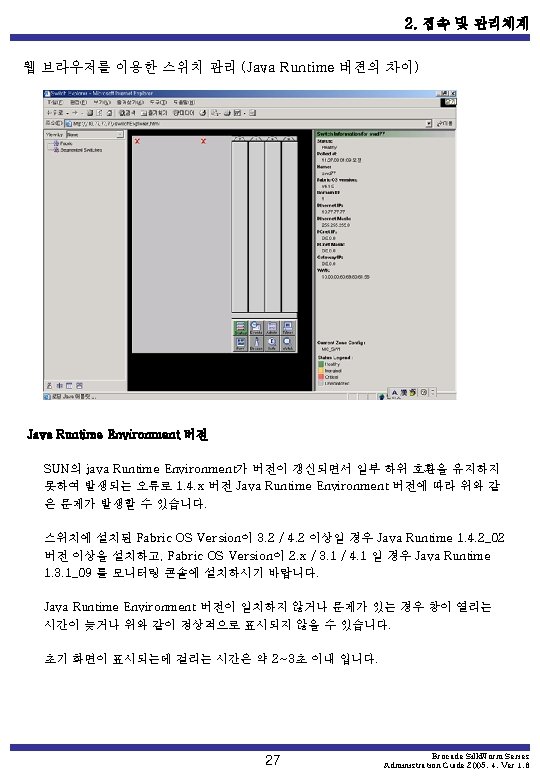

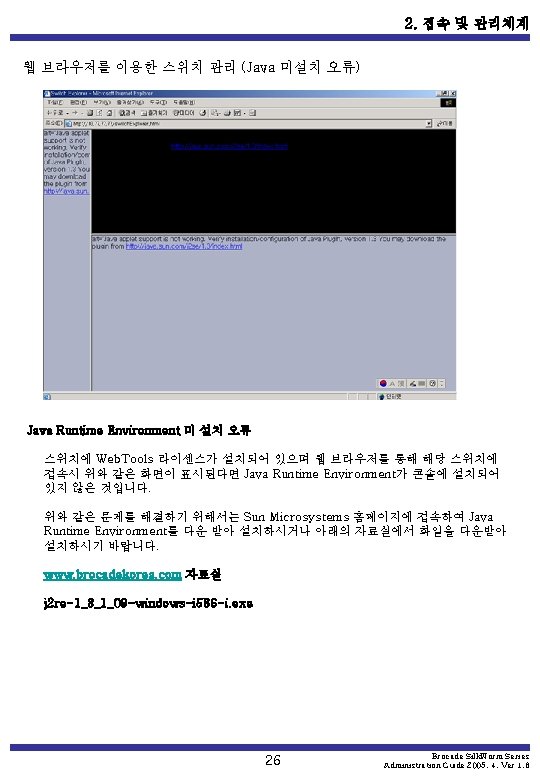

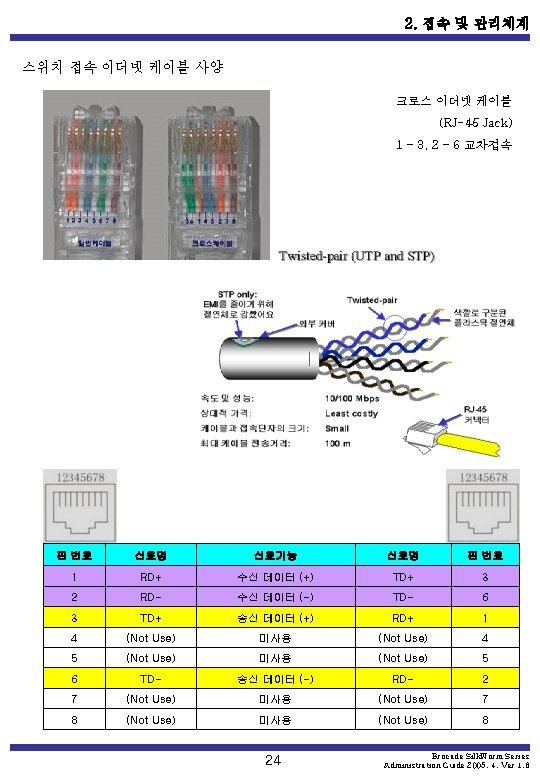

2. 접속 및 관리체계 Fabric Manager의 구성 Fabric Manager 및 API Tools을 이용한 SAN관리 29 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
2. 접속 및 관리체계 Fabric Manager 주요기능 / Fabric View 30 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
2. 접속 및 관리체계 Fabric Manager 주요기능 / Detail View 31 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
2. 접속 및 관리체계 Fabric Manager 주요기능 / Firmwaredownload 상태창 32 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
2. 접속 및 관리체계 FTP Server 의 설정 유저 ID 및 Password, Firmware 디렉토리 설정 33 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

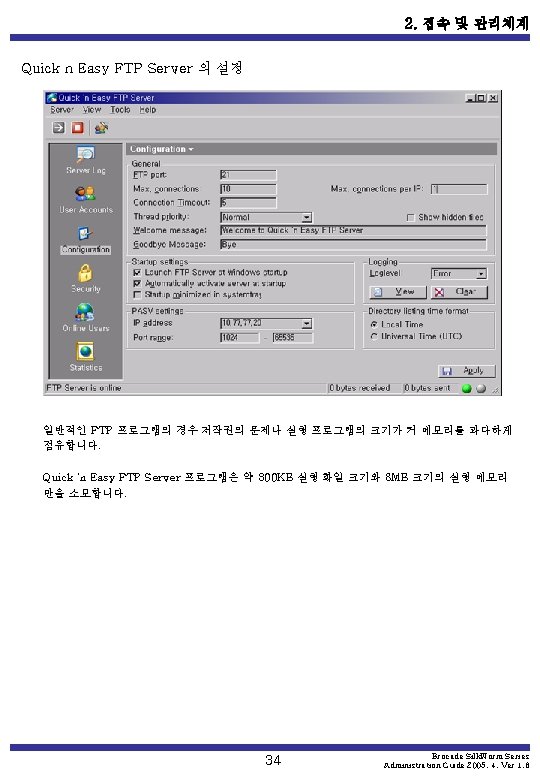

2. 접속 및 관리체계 Firmware 변경을 위한 디렉토리 구조 Firmware 2. x, 3. x의 경우 파일구조 35 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

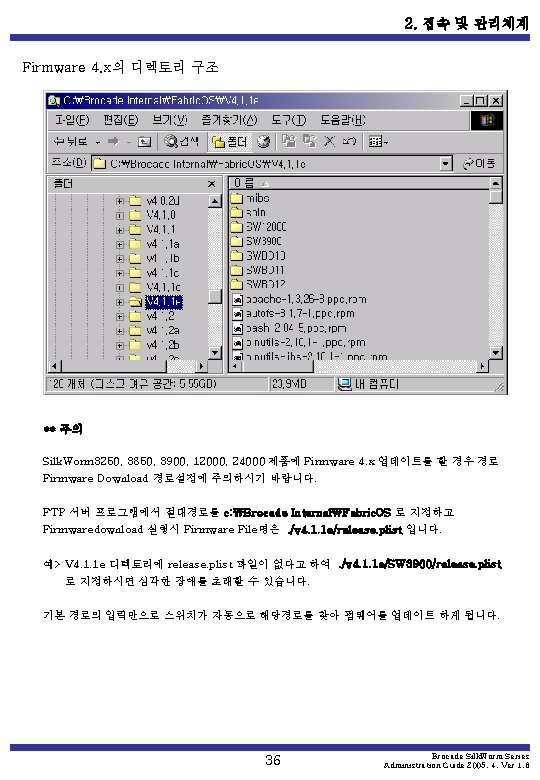

3. 설치 및 기능설정 37 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
제품군 소개 및 로그인 절차 38 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 제품군 상세 Silk. Worm 2000 Series 와 6400 모델 (V 2. 6. 2 b) - LTO-2 접속기능 추가 Silk. Worm 3000 Series (V 3. 1. 1 f / V 3. 1. 2 a) - V 3. 0. 2 q 다수 HBA의 오동작시 스위치 Hang 문제 해결 Silk. Worm 3250, 3850, 3900, 4100, 12000, 24000 모델 (V 4. 2. 2 b / V 4. 4. 0 b) - V 4. 1. 0 소프트웨어 부분의 Watchdog, Memory Overflow Bug 발생 하드웨어 부분의 FAN, Power Supply의 상태인식 관련 문제 - V 4. 1. 1 ~ V 4. 1. 1 a는 V 4. 1. 0과 동일한 Bug를 포함, Memory Overflow 패치 적용 - V 4. 1. 1 b Connection Log의 누적으로 인한 Memory Overflow Bug 해결 - V 4. 2. 0 b 소프트웨어 부분의 FDMI 및 497. 1일 Bug 발생 - V 4. 2. 2 HP Superdome 접속 후 Zone 구성 멤버가 일부 보이지 않는 문제 해결 - V 4. 2. 2 b 스위치 Reboot 이후 497. 1일 시점의 서비스 중단문제 해결 Watchdog 문제로 인한 서비스 중단문제 해결 - V 4. 4. 0 b 4 Gbps 인터페이스 LTO-3 접속 지원 Error Message 표시방식의 표준화 FDMI, SMI-S 표준의 지원 - 4. 4. 1 3250/3850/3900/4100 제품의 온라인 서비스 중 Firmware 변경기능 제공 * Silk. Worm 3250 / 3850 모델의 경우 V 4. 2 이상, 4100모델의 경우 V 4. 4 이상 설치가능 39 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3200 / 2 Gbps – 8포트 Fabric OS (tm) Release v 3. 1. 1 f login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3200: admin> 이더넷 포트-10/100 시리얼 포트 40 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3800 / 2 Gbps – 16포트 Fabric OS (tm) Release v 3. 1. 1 f login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3200: admin> 이더넷 포트-10/100 시리얼 포트 41 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3900 / 2 Gbps – 32포트 Fabric OS (tm) Release v 4. 2. 2 b login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3900: admin> 시리얼 포트 이더넷 포트-10/100 42 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3250 / 2 Gbps – 8포트 Fabric OS (tm) Release v 4. 2. 2 b login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3250: admin> * 설치가 가능한 Firmware Version은 4. 2. x 이상 입니다 43 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3850 / 2 Gbps – 16포트 Fabric OS (tm) Release v 4. 2. 2 b login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3850: admin> * 설치가 가능한 Firmware Version은 4. 2. x 이상 입니다 44 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 4100 / 4 Gbps 지원 Fabric OS (tm) Release v 4. 4. 0 b login: admin Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Passwords were not changed. Will prompt again at next login until passwords for root, factory and admin accounts are changed. Silk. Worm 3900: admin> 시리얼 포트 이더넷 포트-10/100 45 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 12000 / Fabric #1 Fabric OS (cp 0) cp 0가 Active CP입니다. cp 0 console login: admin Enter Switch Number to Login <0 or 1>: 0 Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Password was not changed. Will prompt again at next login until password is changed. swd 77: admin> Active CP : 10. 77. 77 SW 0 10. 77. 76 SW 1 Active CP Standby CP SWD 77 -64포트 Blade 1, 2, 3, 4 SWD 76 -64포트 Blade 1, 2, 3, 4 46 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 12000 / Fabric #2 Fabric OS (cp 0) cp 0가 Active CP입니다. cp 0 console login: admin Enter Switch Number to Login <0 or 1>: 1 Password: **** Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Ctrl+C를 눌러주세요 Password was not changed. Will prompt again at next login until password is changed. swd 76: admin> Ethernet 접속시 Active CP에 연결하여 아래와 같이 IP주소를 입력할 경우 왼쪽 64개 포트 : 10. 77. 77 SW 0 오른쪽 64개 포트 : 10. 77. 76 SW 1 RS 232(Modem) SW 1200 Console (Hyper Terminal) Ethernet 47 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 12000 / Standby CP Fabric OS (cp 1) cp 1은 Standby CP입니다. cp 1 console login: admin Enter Switch Number to Login <0 or 1>: 0 or 1 Password: ************************************ Logging into STANDBY CP, not all commands are fully supported !! ******************************** swd 77: admin> Active CP Standby CP SWD 77 -64포트 Blade 1, 2, 3, 4 SWD 76 -64포트 Blade 1, 2, 3, 4 48 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

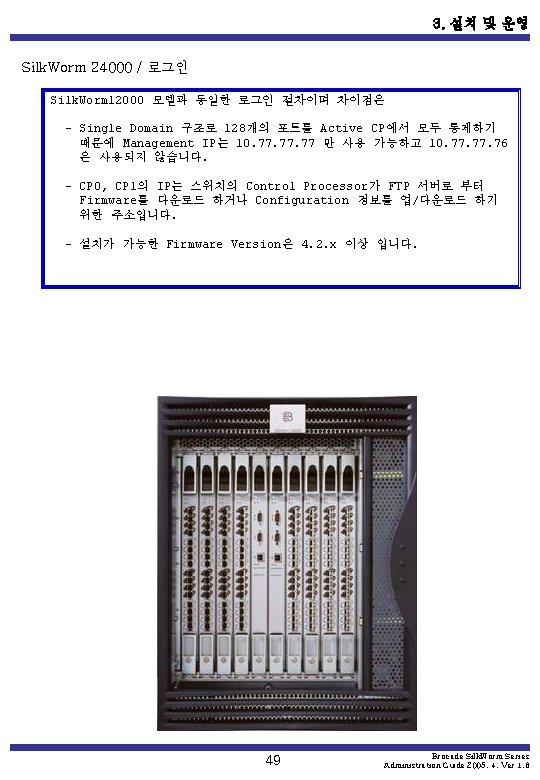

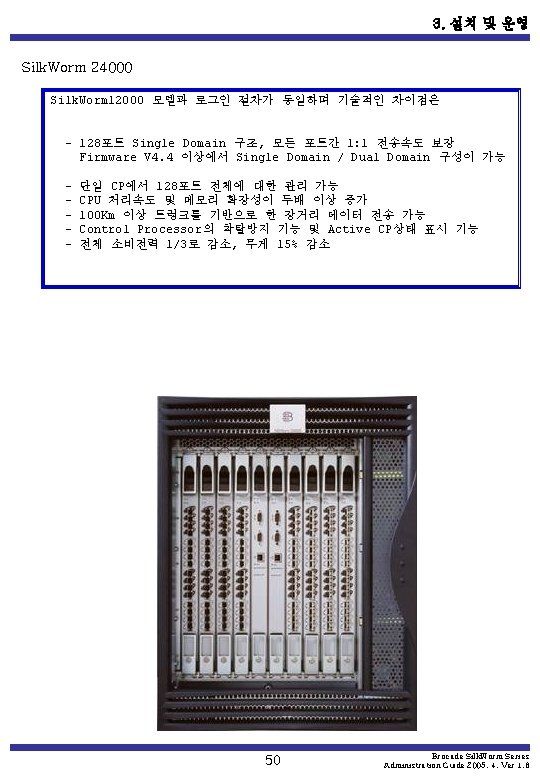

3. 설치 및 운영 Silk. Worm AP 7420 / Multi. Protocol Router XPath OS AP 7420 login: admin Password: Please change your passwords now. Use Control-C to exit or press 'Enter' key to proceed. Password was not changed. Will prompt again at next login until password is changed. AP 7420: admin> 51 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
설치 절차 및 명령어 설명 52 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

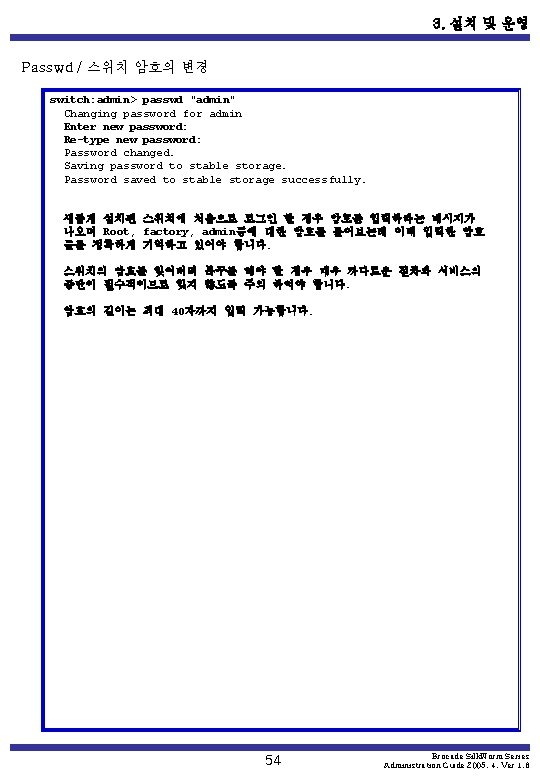

3. 설치 및 운영 스위치 설치 및 장애분석 절차 1. Passwd ; 암호의 변경 2. switchdisable 3. Configupload ; 각종 설정 값 및 Zone 정보의 백업 4. Configdefault ; 공장 출고상태로 초기화 5. Zone Configuration ; Zone의 생성 및 적용 6. Firmwaredownload ; 새로운 Firmware 의 적용 7. Ipaddrset ; IP 주소의 변경 8. Switchname 9. Date ; 스위치 이름의 변경 10. Configure ; Domain ID, Core PID 수정 11. Port. Log. Show, Port. Log. Clear ; 포트별 로그 값 보기 및 삭제 12. Configdownload ; 각종 설정 값 및 Zone 정보의 적용 13. License ; License 추가 및 삭제 14. ISL/Trunk ; 스위치간 로컬 접속 15. Portcfg command ; 포트 상태 변경 및 초기화 Portcfg. Longdistance ; DWDM, 광코어를 이용한 장거리 전송 Portcfg. Islmode ; ATM Gateway를 이용한 장거리 전송 18. Errshow / Porterrshow ; 스위치 및 포트의 장애검지 19. I ; Process Information 20. Supportshow ; 스위치 로그에 의한 장애분석 절차 ; 날짜, 시간의 변경 53 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

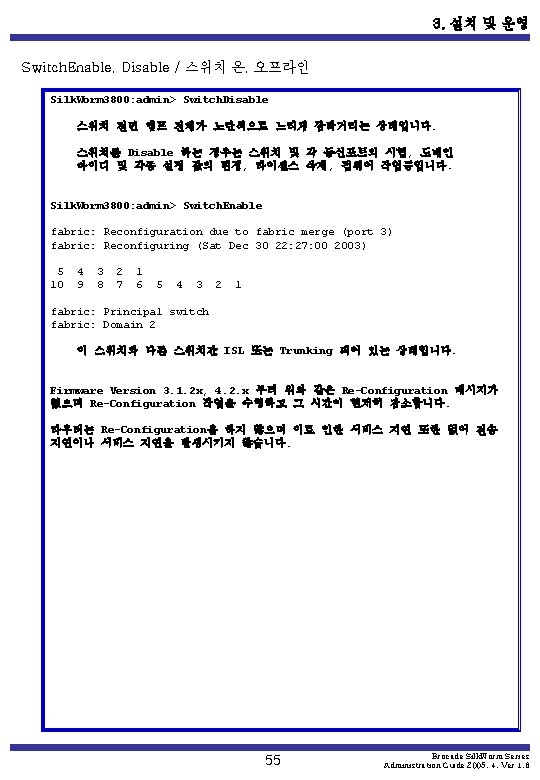

3. 설치 및 운영 Config. Upload / 각종 설정값 및 Zone 정보의 백업 switch: admin> Configupload “ 10. 77. 20", “admin", “cfg. txt“, "password" upload complete switch: admin> Configupload Server Name or IP Address [host]: 10. 77. 20 User Name [None]: admin File Name [config. txt]: config. txt Password: xxxx upload complete 스위치 내부 구성정보 및 Zone 정보를 관리콘솔로 백업하기 위한 명령입니다. Zone의 변경이나 스위치 포트 구성정보가 변경된 경우 관리콘솔에 백업을 받아 보관할 경우 추후 장애복구 작업 또는 환경변경 작업시 시간을 단축할 수 있습니다. 56 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Zone 구성 Create Members switch: admin> aliadd "array 1", "1, 2" switch: admin> aliadd "array 2", "21: 00: 20: 37: 0 c: 72: 51" switch: admin> aliadd "loop 1", "0 x 02; 0 x. EF“ switch: admin> alicreate "array 1", "2, 32; 2, 33; 2, 34" switch: admin> alicreate "array 2", "21: 00: 20: 37: 0 c: 66: 23" switch: admin> alicreate "loop 1", "0 x 02; 0 x. EF; 5, 4" switch: admin> alidelete "array 2“ switch: admin> aliremove "array 1", "3, 5" switch: admin> aliremove "array 1", "21: 00: 20: 37: 0 c: 76: 8 c" switch: admin> aliremove "array 1", "0 x. EF“ Create Zones switch: admin> zoneadd "Blue_Zone", "array 3; array 4; array 5“ switch: admin> zonecreate "Red_zone", "1, 0; loop 1" switch: admin> zonecreate "Blue_zone", "1, 1; array 1; 1, 2; array 2" switch: admin> zonecreate "Green_zone", "1, 0; loop 1; 1, 2; array 2“ switch: admin> zonedelete "Blue_zone“ switch: admin> zoneremove "Blue_zone", "array 2" switch: admin> zoneremove "Blue_zone", "2, 20“ switch: admin> zoneshow "[A-C]*" zone: Blue_zone 1, 1; array 1; 1, 2; array 2 Create Configuration switch: admin> cfgadd "Test_cfg", "redzone; bluezone“ switch: admin> cfgremove "Test_cfg", "redzone" switch: admin> cfgcreate "Test_cfg", "redzone; bluezone; greenzone" switch: admin> cfgdelete “Test_cfg” switch: admin> cfgshow "Test*" cfg: Test 1 Blue_zone cfg: Test_cfg Red_zone; Blue_zone Enable Configuration switch: admin> cfgenable "Test_cfg" zone config "Test_cfg" is in effect 57 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 Zone 구성정보 Eng. Host Mkt. Host 3 9 Switch 1 7 s 5 s 1 s 4 s 2 s 3 1. Plan zoning to meet objectives 2. Create Members >ali. Create “Eng. Host 1”, “ 1, 3” >ali. Create “Eng. Stor”, “s 1 wwn; s 2 wwn” >ali. Create “Mkt”, “ 1, 9; s 5 wwn; s 4 wwn; s 3 wwn” 3. Create Zones >zone. Create “Zone. Eng”, “Eng. Host 1; Eng. Stor” >zone. Create “Zone. Mkt”, “Mkt” 4. Create Configuration >cfg. Create “cfg. Eng. Mkt”, “Zone. Eng; Zone. Mkt” 5. Enable Configuration >cfg. Enable “cfg. Eng. Mkt” 58 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 Zone 구성정보 Eng. Host Mkt. Host 3 9 Switch 1 7 s 5 s 1 s 4 s 2 s 3 Silk. Worm 3800: admin> cfg. Show Defined configuration: cfg. Eng. Mkt Zone. Eng; Zone. Mkt zone: Zone. Eng. Host; Eng. Stor; zone: Zone. Mkt alias: Eng. Stor 21: 00: 20: 37: 87: 48: e 7; 21: 00: 20: 37: 87: 23: e 2 alias: Eng. Host 1, 3 alias: Mkt 21: 00: 20: 37: 87: 49: 29; 21: 00: 20: 37: 87: e 5: 20; 1, 9; 21: 00: 20: 37: 87: 20: c 5 Effective configuration: cfg. Eng. Mkt zone: Zone. Eng 1, 3; 21: 00: 20: 37: 87: 23: e 2; 21: 00: 20: 37: 87: 48: e 7; zone: Zone. Mkt 1, 9; 21: 00: 20: 37: 87: e 5: 20; 21: 00: 20: 37: 87: 49: 29; 21: 00: 20: 37: 87: 20: c 5 59 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Zone의 실행 및 삭제 Zone의 생성과정 WWN or Port ID -> Ali. Create -> Zone. Create -> Cfg. Enable Zone의 삭제과정 cfgdisable -> Cfg. Clear -> Cfg. Save (멤버에 대한 중복 Zone 구성) Purple Zone Green Zone WWN 1 0 1 4, 4 2 3 4 5 Quad 6 7 Quad Domain 4 Quad 8 9 10 Quad 11 12 13 14 15 WWN 2 60 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Silk. Worm 3250/3850/3900/4100/12000/24000 Firmware 갱신 Silk. Worm 12000: admin> firmwaredownload -s Server Name or IP Address: 10. 77. 20 User Name: admin File Name: . /v 4. 1. 1 b/release. plist <- 주의 Password: **** Full Install (Otherwise upgrade only) [Y]: Do Auto-Commit after Reboot [Y]: Reboot system after download [N]: Y 또는 N Firmwaredownload has started. Start to install packages. . . 중간생략 Write kernel image into flash. . . . Verification SUCCEEDED All packages have been downloaded successfully. Firmwaredownload has completed successfully. 펌웨어 다운로드 후 fastboot 실행시 재부팅 시간을 단축할 수 있음 Silk. Worm 3200/3800 Firmware 갱신 Switch: admin> firmwaredownload Server Name or IP Address [host]: 10. 77. 20 User Name [user]: admin File Name [/usr/switch/firmware]: . /v 3. 1. 1 b Protocol (RSHD or FTP) [rshd]: ftp Password: **** 110528+6408+131228, csum 7156 . . DO NOT power cycle the switch! writing flash 0. . . . . writing flash 1. . . . . download complete Switch: admin> fastboot 61 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Ipaddrset / 스위치 IP 주소 확인 및 변경 Silk. Worm 12000은 4개의 IP주소를 가지고 있으며 확인하는 방법은 Silk. Worm 12000: admin> ipaddrshow 0 (0~4) Ethernet IP Address: 123 Ethernet Subnetmask: 123. 124 Fibre Channel IP Address: 0. 0 Fibre Channel Subnetmask: 0. 0 Silk. Worm 12000: admin> 0=display information for switch 0. 1=display information for switch 1. 2=display information for cp 0. 3=display information for cp 1. 4=display information all IP addresses in the system. Silk. Worm 12000을 제외한 모든 스위치의 IP주소를 확인하는 방법은 Silk. Worm 3800: admin> ipaddrshow Ethernet IP Address: 123 Ethernet Subnetmask: 123. 124 Fibre Channel IP Address: 0. 0 Fibre Channel Subnetmask: 0. 0 Gateway Address: 123. 125 Silk. Worm 3800: admin> Silk. Worm Series의 IP주소를 변경하는 방법은 Silk. Worm 3800: admin> ipaddrset Ethernet IP Address [10. 77. 77]: 10. 32. 53. 47 Ethernet Subnetmask [255. 0. 0. 0]: 255. 240. 0 Fibre Channel IP Address [0. 0]: Fibre Channel Subnetmask [0. 0]: Gateway IP Address [0. 0]: 10. 32. 48. 1 Set IP address now? [y = set now, n = next reboot]: y IP address being changed. . . Committing configuration. . . Done. Fabric OS (tm) Release v 3. 1. 1 b login: IP주소의 변경은 데이터 전송에 아무런 영향을 미치지 않으나 Webtools, Fabric Manager 또는 기타 SAN 관리툴을 사용하고 있을 경우 관리툴에 등록된 스위치의 IP 주소 또한 변경하여야 합니다. 62 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Ipaddrset / 스위치 IP 주소 확인 및 변경 Silk. Worm 12000은 4개의 IP주소를 가지고 있으며 확인하는 방법은 Silk. Worm 12000: admin> ipaddrshow 0 (0~4) Ethernet IP Address: 123 Ethernet Subnetmask: 123. 124 Fibre Channel IP Address: 0. 0 Fibre Channel Subnetmask: 0. 0 Silk. Worm 12000: admin> 0=display information for switch 0. 1=display information for switch 1. 2=display information for cp 0. 3=display information for cp 1. 4=display information all IP addresses in the system. Silk. Worm 12000을 제외한 모든 스위치의 IP주소를 확인하는 방법은 Silk. Worm 3800: admin> ipaddrshow Ethernet IP Address: 123 Ethernet Subnetmask: 123. 124 Fibre Channel IP Address: 0. 0 Fibre Channel Subnetmask: 0. 0 Gateway Address: 123. 125 Silk. Worm 3800: admin> Silk. Worm Series의 IP주소를 변경하는 방법은 Silk. Worm 3800: admin> ipaddrset Ethernet IP Address [10. 77. 77]: 10. 32. 53. 47 Ethernet Subnetmask [255. 0. 0. 0]: 255. 240. 0 Fibre Channel IP Address [0. 0]: Fibre Channel Subnetmask [0. 0]: Gateway IP Address [0. 0]: 10. 32. 48. 1 Set IP address now? [y = set now, n = next reboot]: y IP address being changed. . . Committing configuration. . . Done. Fabric OS (tm) Release v 3. 1. 1 b login: IP주소의 변경은 데이터 전송에 아무런 영향을 미치지 않으나 Webtools, Fabric Manager 또는 기타 SAN 관리툴을 사용하고 있을 경우 관리툴에 등록된 스위치의 IP 주소 또한 변경하여야 합니다. 63 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

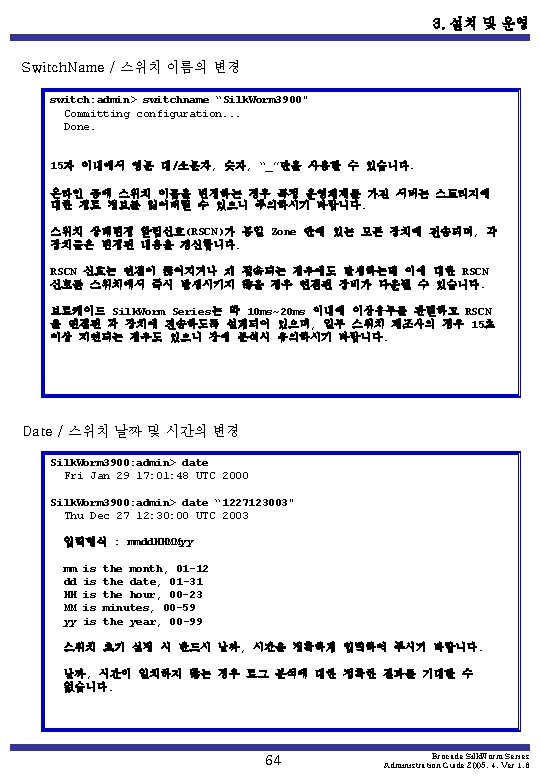

3. 설치 및 운영 Configure / 스위치 도메인 ID 및 설정 값 변경 switch: admin> switchdisable switch: admin> configure Configure. . . Fabric parameters (yes, y, no, n): [no] yes Domain: (1. . 239) [3] 5 R_A_TOV: (4000. . 120000) [10000] E_D_TOV: (1000. . 5000) [2000] Data field size: (256. . 2112) [2112] Sequence Level Switching: (0. . 1) [0] Disable Device Probing: (0. . 1) [0] Suppress Class F Traffic: (0. . 1) [0] VC Encoded Address Mode: (0. . 1) [0] Per-frame Route Priority: (0. . 1) [0] Long Distance Fabric: (0. . 1) [0] BB credit: (1. . 16) [16] Virtual Channel parameters (yes, y, no, n): [no] y VC Priority 2: (2. . 3) [2] VC Priority 3: (2. . 3) [2] VC Priority 4: (2. . 3) [2] VC Priority 5: (2. . 3) [2] VC Priority 6: (2. . 3) [3] VC Priority 7: (2. . 3) [3] Switch Operating Mode (yes, y, no, n): [no] Zoning Operation parameters (yes, y, no, n): [no] RSCN Transmission Mode (yes, y, no, n): [no] Arbitrated Loop parameters (yes, y, no, n): [no] System services (yes, y, no, n): [no] Portlog events enable (yes, y, no, n): [no] Committing configuration. . . done. switch: admin> Switchenable 65 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Portlog. Show 및 Port. Log. Clear / 포트별 전송 정보보기 및 삭제 switch: admin> portlogdump 41 time task event port cmd args ------------------------ 16: 44: 21. 490 PORT Rx 41 40 02 fffffd, 0005 ffff, 14000000 16: 44: 21. 490 PORT Tx 41 0 c 0 fffffd, 00050541 16: 44: 32. 503 PORT Tx 41 40 02 fffffd, 00 fffffd, 0542 ffff, 14000000 16: 44: 32. 506 PORT Rx 41 0 c 0 fffffd, 05420006 16: 44: 42. 340 PORT Rx 41 40 02 fffffd, 0009 ffff, 14000000 16: 44: 42. 340 PORT Tx 41 0 c 0 fffffd, 00090545 --- <output truncated> --switch: admin> portlogshow 또는 portlogshowport 16 Port. Log. Dump와 동일하나 22줄 단위로 표시하며 특정포트의 로그만 확인가능 switch: admin> portlogclear switch: admin> portlogshow port log is empty 66 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 `Config. Default / 공장 출고상태로 초기화 Silk. Worm 3800: admin> Configdefault Committing Configuration. . . done. 공장 출고 상태로 초기화 하더라도 아래와 같은 정보는 유지 됩니다. • • Ethernet MAC address, IP address, and subnetmask IP gateway address License keys OEM customization SNMP configuration System name World Wide Name Brocade Advanced Zoning configuration 초기화 되는 내용은 도메인아이디, 기본 설정 값, 포트설정 상태 등 입니다. 67 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Config. Download / 각종 설정 값 및 Zone 정보의 적용 switch: admin> configdownload Server Name or IP Address [host]: 10. 77. 20 User Name [None]: admin File Name [config. txt]: config-switch. txt Password: xxxxx download complete FTP 서버의 Root Directory에 config-switch. txt 라는 화일이 생성됩니다. 68 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 License / License 추가 및 삭제 switch: admin> licenseshow a. Bc. De. FGh 12345: Web license Zoning license Remote Switch license Remote Fabric license Extended Fabric license Fabric Watch license Performance Monitor license Trunking license Security license switch: admin> licenseadd "a. Bc. De. FGh 12345" adding license key "a. Bc. De. FGh 12345" done. switch: admin> licenseremove "a. Bc. De. FGh 12345" removing license-key "a. Bc. De. FGh 12345" Committing configuration. . . done. For license to take effect, Please reboot switch now. . switch: admin> licenseidshow a 4: f 8: 69: 33: 22: 00: ea: 18 스위치 동작을 위해 필요한 각종 라이선스는 기본 설치항목과 별도구매 항목으로 나뉘어지며, 강 공급채널에 따라 라이선스 정책이 서로 다릅니다. Silk. Worm 2 x 00 Series, 3200, 3800 모델에는 Licenseidshow 라는 명령이 없고 WWN이 라이센스를 획득하기 위한 ID가 됩니다. Silk. Worm 3900, 12000 모델에서 Licenseidshow 명령을 수행할 수 있습니다. 라이선스 키 값은 16 글자로 대, 소문자를 구분하여 입력하여야 합니다. 잘못된 입력은 스위치에서 인식하지 않습니다. 69 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 ISL & Trunk / 스위치간 로컬 접속 Silk. Worm 12000: admin> switchcfgtrunk 1 done. Silk. Worm 12000: admin> trunkshow 1: 2 -> 60 10: 00: 69: 80: 4 f: 85 deskew 16 MASTER 3 -> 61 10: 00: 69: 80: 4 f: 85 deskew 15 2: 7 -> 39 10: 00: 69: 80: 4 f: 85 deskew 17 MASTER 6 -> 38 10: 00: 69: 80: 4 f: 85 deskew 16 5 -> 36 10: 00: 69: 80: 4 f: 85 deskew 16 4 -> 37 10: 00: 69: 80: 4 f: 85 deskew 15 3: 24 -> 56 10: 00: 69: 80: 4 f: 85 deskew 16 MASTER 25 -> 57 10: 00: 69: 80: 4 f: 85 deskew 15 4: 29 -> 33 10: 00: 69: 80: 4 f: 85 deskew 16 MASTER 28 -> 32 10: 00: 69: 80: 4 f: 85 deskew 15 Silk. Worm 12000: admin> portcfgtrunkport 1/3, 1 done. 70 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Port. Cfg. Show / 각 포트의 설정상태 보기 Port. Cfg. Speed x[포트], y[0, 1, 2] Port. Cfg. Gport x[포트], y[0, 1] Port. Cfg. Trunk. Port x[포트], y[0, 1] 71 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Port. Cfg command / 다양한 영태의 포트 설정 포트 서비스 형태 정의 switch: admin> portcfgdefault 1/3 ; 포트 설정의 초기화 done. switch: admin> portcfgeport 2/3, 0 ; 스위치간 연결만 허용 Committing configuration. . . done. switch: admin> portcfggport 2/3, 1 ; Fabric Login만 허용 done. switch: admin> portcfglport 2/3, 1 ; Loop 접속만 허용 done. switch: admin> portcfgislmode 2/3, 1 ; IP Gateway 접속모드 Committing configuration. . . done. ISL R_RDY Mode is enabled for port 3. Please make sure the PID formats are consistent across the entire fabric. switch: admin> portcfglongdistance 4/15 L 2 1 ; FC 장거리 접속 done. switch: admin> portcfgspeed 2/5, 2 ; 전송속도의 설정 done. switch: admin> portcfgtrunkport 1/3, 1 ; ISL Trunking 설정 done. 72 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

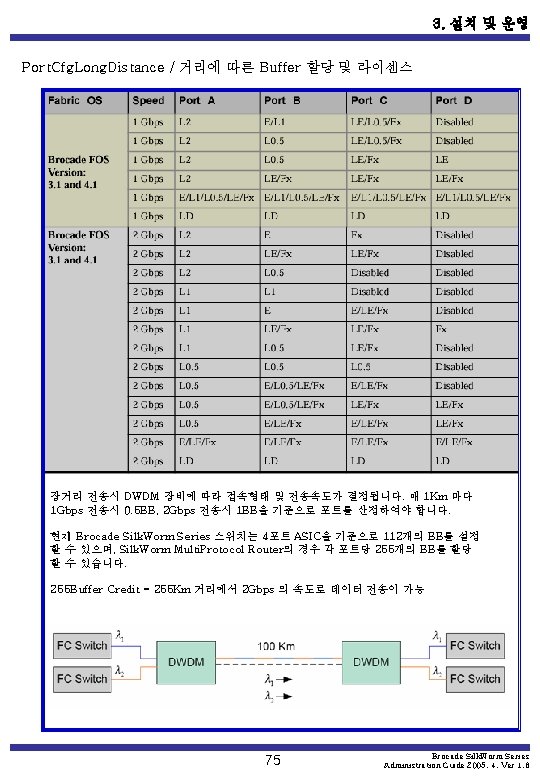

3. 설치 및 운영 Port. Cfg. Long. Distance / DWDM, 광코어를 이용한 스위치간 장거리 전송 switch: admin> portcfglongdistance 4/15 L 2 1 done. switch: admin> portshow 4/15 port. CFlags: 0 x 1 port. Flags: 0 x 20001 PRESENT LED port. Type: 1. 1 port. State: 2 Offline port. Phys: 4 No_Light port. Scn: 0 port. Id: 013 f 00 port. Wwn: 20: 3 f: 00: 69: 00: 02: 48 Distance: super long <= 100 km port. Speed: 2 Gbps Interrupts: 9 Link_failure: 0 Unknown: 0 Loss_of_sync: 0 Lli: 9 Loss_of_sig: 9 Proc_rqrd: 0 Protocol_err: 0 Timed_out: 0 Invalid_word: 0 Rx_flushed: 0 Invalid_crc: 0 Tx_unavail: 0 Delim_err: 0 Free_buffer: 0 Address_err: 0 Overrun: 0 Lr_in: 0 Suspended: 0 Lr_out: 0 Parity_err: 0 Ols_in: 0 2_parity_err: 0 Ols_out: 0 CMI_bus_err: 0 Frjt: 0 Fbsy: 0 장거리 전송을 위한 옵션 • L 0 normal <= 1 Gbps / 10 Km, 2 Gbps / 2 Km • LE standard <= 10 km • LM medium long <= 25 km • L 1 long <= 50 km • L 2 super long <= 100 km • L 3 super long <= 250 km / 일부 Firmware 버전에서 설정가능 • LD auto-detect <= 500 Km 73 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Port. Cfg. Long. Distance / DWDM, 광코어를 이용한 스위치간 장거리 전송 장거리 데이터 전송을 위한 설정 원격지 스위치의 설정 1. Switch. Disable 2. Configure ; Domain ID, Long Distance Parameter 0, 3. Cfg. Disable, Cfg. Clear, Cfg. Save 4. Switch. Enable 로컬 및 원격지 스위치의 설정 1. Switch. Disable 또는 Port. Disable 4 <- 장거리 데이터 전송포트는 4번 2. Switch. Cfg. Trunk 0 또는 Port. Cfg. Trunk. Port 4, 0 <- Trunk 기능의 제거 3. Port. Cfg. Speed 4, 1 <- DWDM 인터페이스가 1 Gbps인 경우 4. Port. Cfg. Long. Distance 4, “L 2”, 1 <- 전송거리의 설정 5. Switch. Enable 또는 Port. Enable 4 sw 2: admin> port. Cfg. Show Ports 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 --------+--+--+----+--+--+--+----+--+--+-Speed AN AN 1 G AN AN AN AN Trunk Port ON ON . . ON ON ON ON Long Distance . . . . L 2. . . VC link init . . . . 1. . . Locked L_Port . . . . Locked G_Port . . . . Disabled E_Port. . . . where AN: Auto. Negotiate, . . : OFF, ? ? : INVALID. 74 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Port. Cfg. ISLmode / Gateway를 이용한 장거리 전송 switch: admin> portcfgislmode 2/3, 1 Committing configuration. . . done. ISL R_RDY Mode is enabled for port 3. Please make sure the PID formats are consistent across the entire fabric. switch: admin> portcfgislmode 2/3, 0 Committing configuration. . . done. 포트의 ISL R_RDY Mode를 Enable 하거나 Disable하는 명령으로 장거리 전송을 지원하는 명령입니다. ATM, SONET 망 접속을 지원하는 라우터를 사용하여 장거리 데이터 통신을 가능 하게 합니다. CNT Ultra. Edge Router, SAN Valley SL-1 x 00 모델등이 국내 적용사례를 가지고 있으며, IP 라우팅 장비들이 FC 포트를 가지고 있어 SAN스위치와 직접 연결할 수 있습니다. Firmware 버전에 따라 Remote Switch License 의 차이가 있습니다. 3. 1 x, 4. 1 x 버전의 Firmware에서는 별도의 License 없이 CNT Ultra. Edge 장비와 연결하여 장거리 데이터 전송이 가능합니다. 76 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Err. Show, Porterr. Show / 스위치 및 포트의 장애검사 switch: admin> errshow Error 14 -------0 x 304 (fabos): Jun 14 11: 57: 52 Switch: 0, Warning FW-STATUS_SWITCH, 3, Switch status changed from HEALTHY/OK to Marginal/Warning Type <CR> to continue, Q<CR> to stop: Switch: admin> errdump -a: Error 15 -------0 x 22 c (fabos): Dec 29 13: 28: 38 Switch: 0, Info FABRIC-FAB_VAL_DOM, 4, fabric: principal switch -- Domain 1 Error 14 -------0 x 0 (fabos): Dec 29 13: 28: 27 Switch: 0, Warning PORT-LINK_FAULT, 3, Port 4 Faulted because of many Link Failures Error 13 -------0 x 22 c (fabos): Dec 29 13: 28: 22 Switch: 0, Info FABRIC-FAB_BF, 4, fabric: Reconfiguration due to Rcv BF(port 4) Switch: admin> porterrshow frames enc crc too bad enc disc link loss frjt fbsy tx rx in err shrt long eof out c 3 fail sync sig =================================== 0: 0 0 0 3 0 0 1: 0 0 0 0 2: 0 0 0 0 3: 0 0 0 0 4: 625 590 47 13 2 1 0 15 k 0 73 196 3 0 0 5: 0 0 0 0 6: 0 0 0 0 7: 0 0 0 0 8: 0 0 0 0 9: 0 0 0 0 10: 0 0 0 0 11: 0 0 0 0 12: 0 0 4 0 0 0 3 0 0 13: 0 0 0 0 14: 0 0 0 0 15: 0 0 0 0 77 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Err. Show, Porterr. Show / 스위치 및 포트의 장애검사 Port. Err. Show 이벤트 값 frames tx Frames transmitted frames rx Frames received 받은 데이터 프레임에 대한 문제 발생시 값의 증가 enc in Encoding errors inside frames crc err Frames with CRC errors too shrt Frames shorter than minimum. 38 byte too long Frames longer than maximum. 2148 byte bad eof Frames with bad end-of-frame delimiters 보낸 데이터 프레임에 대한 회신 여부 및 접속상태 이상시 값의 증가 enc out Encoding error outside of frames disc c 3 Class 3 frames discarded link fail Link failures (LF 1 or LF 2 states) loss sync Loss of synchronization loss sig Loss of signal frjt Frames rejected with F_RJT fbsy Frames busied with F_BSY Err. Show 의 상태 값 Fabric. Watch 또는 Fabric OS 자체적인 Error Message 표시에 대한 규정 Critical Error Warning Info Debug 1 2 3 4 5 78 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 I / Process Information NAME ENTRY TID PRI STATUS PC SP ERRNO DELAY ------------ --------t. Exc. Task _exc. Task 103 fc 5 f 0 0 PEND 108 ce 9 b 0 103 fc 950 3 d 0001 0 t. Log. Task _log. Task 103 fa 660 0 PEND 108 ce 9 b 0 103 fa 9 c 0 0 0 t. Restart _restart. Task 102 dc 1 f 0 0 PEND+T 108 ce 9 b 0 102 dc 580 3 d 0004 51 t. Shell _shell. Task 102 d 71 b 0 1 READY 10889050 102 d 7430 3 d 0001 0 t. Rlogind _rlogind 1034 c 1 a 0 2 PEND 1087 fea 8 1034 c 760 0 0 t. Telnetd _telnetd 103484 e 0 2 PEND 1087 fea 8 10348 e 70 0 0 t. Telnet. Out. T_telnet. Out. Ta 11 e 4 c 480 2 READY 1087 fea 8 11 e 4 ca 90 0 0 t. Telnet. In. Ta_telnet. In. Tas 11 e 487 c 0 2 READY 1087 fd 30 11 e 48 e 50 0 0 t. Timers _timer. Task 10337 a 50 10 PEND 108 ce 9 b 0 10337 de 0 0 0 t. Err. Log _err. Log. Task 10339000 20 PEND 108 ce 9 b 0 103393 a 0 0 0 t. Net. Task _net. Task 10396 a 50 50 READY 108866 a 8 10396 e 30 0 0 t. Switch _switch. Task 1033 d 460 80 READY 1087 a 11 c 1033 d 7 a 0 30065 0 t. Response _response. Tas 101 cee 90 80 READY 108 ce 9 b 0 101 cf 260 3 d 0004 0 t. PBmenu _menu. Task 1032 dcf 0 90 PEND 108 ce 9 b 0 1032 e 0 c 0 0 0 t. Receive _port. Rx. Task 10311000 95 PEND 108 ce 9 b 0 103113 a 0 3 d 0002 0 t. Transmit _port. Tx. Task 1030 d 340 95 PEND 108 ce 9 b 0 1030 d 6 e 0 0 0 t. Portmapd _portmapd 10340 d 90 100 PEND 1087 fea 8 103411 f 0 36 0 t. Fabric _fabric. Task 101 e 17 a 0 100 PEND 108 ce 9 b 0 101 e 1 b 80 3 d 0004 0 t. Fspf _fspf. Task 101 d 0440 100 PEND 108 ce 9 b 0 101 d 07 e 0 3 d 0002 0 t. PTest. D _port. Test. D 11 ebb 8 a 0 100 READY 1087 a 11 c 11 ebbba 0 0 0 t. Rcs 104 f 4510 10291 c 10 105 PEND 108 ce 9 b 0 102920 a 0 3 d 0002 0 t. SLAP 10809810 101 e 2 d 50 105 PEND 108 ce 9 b 0 101 e 30 e 0 0 0 t. FDMIis _fdmi_is 11 ef 5260 105 PEND 108 ce 9 b 0 11 ef 55 f 0 0 0 t. Rtwr 104 ff 5 e 0 102934 f 0 110 PEND 108 ce 9 b 0 10293880 0 0 t. Rt _rt. Task 10036850 110 PEND 108 ce 9 b 0 10036 be 0 0 0 t. QL _ql. Task 10034940 110 PEND 108 ce 9 b 0 10034 cd 0 0 0 t. Fcph _fcph. Task 102 affc 0 120 READY 108 ce 9 b 0 102 b 0350 3 d 0004 0 t. RTZone _cfg. Real. Time 11 f 6 f 6 c 0 128 PEND 108 ce 9 b 0 11 f 6 fae 0 0 0 t. Zone _cfg. Task 11 f 70 c 70 130 PEND 108 ce 9 b 0 11 f 71080 0 0 t. Fcp _fcp. Task 102 ad 160 150 READY 108 ce 9 b 0 102 ad 4 f 0 3 d 0004 0 t. NSd _ns_svr 11 faf 190 150 PEND 108 ce 9 b 0 11 fafb 20 3 d 0002 0 t. TSd 106 a 1940 11 f 6 a 550 150 PEND 108 ce 9 b 0 11 f 6 a 900 0 0 t. ASd _as_svr 11 f 683 f 0 150 PEND 108 ce 9 b 0 11 f 68780 0 0 t. Security _sec. Svr 11 ef 0000 150 PEND 108 ce 9 b 0 11 ef 0390 0 0 t. PSrqm _psrqmgr_svr 11 eed 6 d 0 150 PEND 108 ce 9 b 0 11 eeda 60 0 0 t. PSd _ps_svr 11 eeada 0 150 PEND 108 ce 9 b 0 11 eeb 130 0 0 t. NSCAM _ns_cam 11 f 7 c 990 151 PEND 108 ce 9 b 0 11 f 7 cd 20 0 0 t. FDMId _fdmi_svr 11 ef 2930 151 PEND 108 ce 9 b 0 11 ef 2 cc 0 0 0 --- 이하 생략 스위치 내 프로세스 전체에 대한 덤프를 받는 명령으로 Supportshow와 함께 장애를 분석하기 위한 필수적인 내용이 포함되어 있습니다. 79 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Supportshow / 스위치 로그에 장애분석 절차 80 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Supportshow / 스위치 로그에 장애분석 절차 Supportshow 명령은 아래 27개의 명령을 수행하여 그 내용을 화면에 표시합니다 1) version 2) uptime 3) temp. Show 4) ps. Show 5) license. Show 6) diag. Show 7) err. Dump 8) switch. Show 9) port. Flags. Show 10) port. Err. Show 11) mq. Show 12) port. Sem. Show 13) port. Show 14) port. Reg. Show 15) port. Route. Show 16) fabric. Show 17) topology. Show 18) ql. Show 19) fa. Show 20) port. Cfg. Lport 21) ns. Show 22) ns. All. Show 23) cfg. Show 24) config. Show 25) fault. Show 26) trace. Show 27) port. Log. Dump * i Command 를 실행하여 Support. Show Dump 화일에 포함 하이퍼터미널등을 이용하여 Supportshow 의 내용을 덤프화일로 저장합니다. 1. 12 k-402 d_3800 -311 a_80 km. txt 1. 3800 -311 a_12 k-402 d_80 km. txt 저장된 덤프화일과 정보들을 메일로 브로케이드코리아 또는 공급사에 전송합니다. Supportshow 덤프화일과 구성도, 간략한 시스템 구성현황, 장애내역등을 기록하여 브로케이드코리아로 보내주시면 세부적 장애원인에 대한 분석과 해결책을 알려 드립 니다. 분석기간은 상황에 따라 다르나 일반적으로 2~3일 이내 결과를 통보 받으실 수 있고 국내 및 본사에서 분석이 동시 진행됩니다. 81 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
상태 점검 및 장애 복구 82 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 상태 값 보기 Silk. Worm 3900: admin> switchshow switch. Name: Silk. Worm 3900 switch. Type: 12. 4 switch. State: Online switch. Mode: Native switch. Role: Principal switch. Domain: 1 switch. Id: fffc 01 switch. Wwn: 10: 00: 69: 90: 1 a: a 2 zoning: ON (Tech_CONFIG) switch. Beacon: OFF Port Media Speed State ============= 0 id N 2 Online L-Port 1 public 1 id N 2 Online L-Port 1 public 2 id N 2 Online L-Port 1 public 3 id N 2 Online L-Port 1 public 4 id N 2 Online L-Port 1 public 5 id N 2 Online L-Port 1 public 6 id N 2 Online L-Port 1 public 7 id N 2 Online L-Port 1 public 8 id N 2 No_Light 9 id N 2 No_Light 10 id N 2 No_Light 11 id N 2 Online F-Port 50: 06: 0 b: 00: 22: 95: e 6 12 id N 2 Online F-Port 50: 06: 0 b: 00: 22: 98: 54 13 id N 2 Online F-Port 50: 06: 0 b: 00: 22: 95: e 0 14 id N 2 Online F-Port 50: 06: 0 b: 00: 22: 0 d: a 0 15 id N 2 Online F-Port 50: 06: 0 b: 00: 21: 89: 8 e … Tip] Silk. Worm 3900: admin> portname 11, “HPSRVR_ERP_CL 1“ 스위치 포트에 이름을 부여하면 추후 분석시 용이합니다. 83 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 상태 값 보기 – 항목 설명 switch. Name - The switch’s name switch. Type - model. motherboard-rev, where the model number is as follows: 1=Silk. Worm 1000, 2=Silk. Worm 2800, 3=Silk. Worm 2400, 4=Silk. Worm 20 x 0 5=Silk. Worm 22 x 0, 9=Silk. Worm 3800, 16=Silk. Worm 3200, 12=Silk. Worm 3900 10=Silk. Worm 12000, 26=Silk. Worm 3250, 21=Silk. Worm 24000, 27=Silk. Worm 3850, 30=Silk. Worm 4100 switch. State - Online, Offline, Testing or Faulty switch. Mode – The addressing mode, Native or Compatibility switch. Role - The switch role: principal, subordinate or disabled switch. Domain - The domain ID of this switch: 0 to 31 or 1 to 239 switch. ID - The domain ID of this switch's embedded port: hex fffc 00 to fffcef. switch. Wwn - The World Wide Name of this switch. Beacon - Indicates if the beacon is turned on or not Zoning – zoning status Port Number - Each line shows the port number: 0 to 15, the GBIC type, the port state and a comment field Port module type - The GBIC/SFP or other type follows the port number. The four types include (--= none; sw=short wave; lw – long wave; cu – copper; id - intelligent) Port speed - The speed of the port (1 G, 2 G, N 1, N 2, AN) Long distance level - L 0 (default), L 0. 5, L 1, L 2, LE Port state - The possible port states include: No_Card - no card present in this switch slot No_Module - no GBIC module in this port No_Light - the module is not receiving light No_Sync - the module is receiving light but is out of sync In_Sync - the module is receiving light and is in sync Laser_Flt - the module is signaling a laser fault , GBIC Port_Flt - the port has been marked faulty (defective GBIC, cable, or device) Diag_Flt - the port failed diagnostics (defective G_Port or FL_Port card or motherboard) Online - the port is up and running Lock_Ref - the port is locking to the reference signal Testing - running diagnostics Comment field - Some possible comments include: Disabled, Loopback 84 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 디바이스 연결상태의 확인 Silk. Worm 3900: admin> nsshow The Local Name Server has 6 entries { Type Pid COS Port. Name Node. Name TTL(sec) ================================== *N 021 a 00; 2, 3; 20: 00: e 0: 69: f 0: 07: c 6; 10: 00: e 0: 69: f 0: 07: c 6; 895 Fabric Port Name: 20: 0 a: 00: 69: 10: 8 d: fd NL 051 edc; 3; 21: 00: 20: 37: d 9: 77: 96; 20: 00: 20: 37: d 9: 77: 96; na FC 4 s: FCP [SEAGATE ST 318304 FC 0005] Fabric Port Name: 20: 0 e: 00: 69: 10: 9 b: 5 b NL 051 ee 0; 3; 21: 00: 20: 37: d 9: 73: 0 f; 20: 00: 20: 37: d 9: 73: 0 f; na FC 4 s: FCP [SEAGATE ST 318304 FC 0005] Fabric Port Name: 20: 0 e: 00: 69: 10: 9 b: 5 b NL 051 ee 1; 3; 21: 00: 20: 37: d 9: 76: b 3; 20: 00: 20: 37: d 9: 76: b 3; na FC 4 s: FCP [SEAGATE ST 318304 FC 0005] Fabric Port Name: 20: 0 e: 00: 69: 10: 9 b: 5 b NL 051 ee 2; 3; 21: 00: 20: 37: d 9: 77: 5 a; 20: 00: 20: 37: d 9: 77: 5 a; na FC 4 s: FCP [SEAGATE ST 318304 FC 0005] Fabric Port Name: 20: 0 e: 00: 69: 10: 9 b: 5 b N 051 f 00; 2, 3; 50: 06: 04: 82: bc: 01: 9 a: 0 c; na FC 4 s: FCP [EMC SYMMETRIX 5267] Fabric Port Name: 20: 0 f: 00: 69: 10: 9 b: 5 b Silk. Worm 3900: admin> nsallshow 6 Nx_Ports in the Fabric { 021 a 00 051 edc 051 ee 0 051 ee 1 051 ee 2 051 f 00 } Silk. Worm 3900: admin> nsallshow 8 <-FCP Device만 보여줌 6 FCP Ports { 021 a 00 051 edc 051 ee 0 051 ee 1 051 ee 2 051 f 00} Silk. Worm 3900: admin> nsallshow 5 <-FCIP Device만 보여줌 0 FC-IP Ports in the Fabric { } 85 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 License 정보 Silk. Worm 3800: admin> licenseshow Se. Qed. Re. QRSbf. Rfe. B: Trunking license Seb. Sey. Qy 9 cafc. Tft: Web license Zoning license Quick. Loop license Fabric license <- 없으면 Value Line 제품 Remote Switch license Remote Fabric license Extended Fabric license Fabric Watch license Performance Monitor license 스위치 Version 정보 Silk. Worm 3900: admin> version Kernel: 2. 4. 2 Fabric OS: v 4. 0. 2 c Made on: Wed Jan 22 04: 17: 54 2003 Flash: Tue Dec 2 01: 25: 49 2003 Boot. Prom: 3. 1. 18 - Silk. Worm 2 x 00 용 Firmware는 현재 V 2. 6. 2 b - Silk. Worm 3200, 3800 용 Firmware는 현재 V 3. 2. 0 - Silk. Worm 3250, 3850, 3900, 12000, 24000 용 Firmware는 현재 V 4. 4. 0 - Silk. Worm Multi. Protocol Router 용 Firmware는 현재 V 7. 3. 0 * Firmware는 각 스토리지, 백업, 서버제조사에서 호환하는 버전으로 통일하는 것이 원칙 86 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 Zone 구성정보 switch: admin> cfgshow Defined configuration: cfg: SEOUL Blue_zone cfg: SUWON_cfg Red_zone; Blue_zone zone: Blue_zone 1, 1; array 1; 1, 2; array 2 zone: Red_zone 1, 0; loop 1 alias: array 1 21: 00: 20: 37: 0 c: 76: 8 c; 21: 00: 20: 37: 0 c: 71: 02 alias: array 2 21: 00: 20: 37: 0 c: 76: 22; 21: 00: 20: 37: 0 c: 76: 28 alias: loop 1 21: 00: 20: 37: 0 c: 76: 85; 21: 00: 20: 37: 0 c: 71: df Effective configuration: cfg: SUWON_cfg zone: Blue_zone 1, 1 21: 00: 20: 37: 0 c: 76: 8 c 21: 00: 20: 37: 0 c: 71: 02 1, 2 21: 00: 00: 20: 37: 0 c: 76: 28 zone: Red_zone 1, 0 21: 00: 20: 37: 0 c: 76: 85 21: 00: 20: 37: 0 c: 71: df Zone 구성시 단일 Zone에 하나 이상의 서버가 존재할 경우 장애를 유발할 수 있는 확률이 있으며, 특히 서버에 장착된 HBA가 Public 또는 Private Loop 모드로 동작할 경우 다른 서버에 영향을 미칠 수 있으므로 Zone에는 하나의 서버만 등록 하시기 바랍니다. 87 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 내부 동작상태 - Switch. Status. Show switch: admin> switchstatusshow The overall switch status is Marginal/Warning Contributing factors: * 1 missing power supply triggered the Marginal/Warning status * 1 bad fans, 2 good fans triggered the Marginal/Warning status * 1 missing SFP triggered the Marginal/Warning status switch: admin> switchstatusshow The overall switch status is HEALTHY/OK Internal Switch Status Faulty Ports Missing SFPs Power Supplies Fans Temperatures Port Status The overall status can be one of the following: Healthy/OK - every contributor is healthy Marginal/Warning - one or more components are causing Down/Failed - one or more contributors have failed Silk. Worm 12000 / 24000 내부 온도센서 Silk. Worm 12 K: admin> tempshow ; Fabric 0 Index Slot State Centigrade Fahrenheit =========================== 1 1 Ok 41 105 2 2 Ok 40 104 3 3 Ok 41 105 4 4 Ok 42 107 5 5 Ok 29 84 6 6 Ok 29 84 Silk. Worm 12 K: admin> tempshow ; Fabric 1 Index Slot State Centigrade Fahrenheit =========================== 1 5 Ok 31 87 2 6 Ok 31 87 3 7 Absent 4 8 Absent 5 9 Absent 6 10 Absent 88 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 내부 동작상태 Silk. Worm 3900: admin> fanshow ; 내부 냉각팬 Fan #1 is OK, speed is 3183 RPM Fan #2 is OK, speed is 3276 RPM Fan #3 is OK, speed is 3125 RPM Fan #4 is OK, speed is 3308 RPM Fan #5 is OK, speed is 3154 RPM Fan #6 is OK, speed is 3341 RPM Silk. Worm 3900: admin> psshow ; 전원공급장치 Power Supply #1 is OK 0327, FF 2 H 0010084, 60 -0000739 -02, A, , SP 467, H, FF 2 H 0010084 Power Supply #2 is OK 0327, FF 2 H 0010086, 60 -0000739 -02, A, , SP 467, H, FF 2 H 0010086 Silk. Worm 3900: admin> tempshow ; 내부 온도센서 Index State Centigrade Fahrenheit ====================== 1 Ok 55 131 2 Ok 50 122 3 Ok 31 87 4 Ok 54 129 5 Ok 50 122 Silk. Worm 3900: admin> sfpshow ; 광통신 모듈 Area 0: id (sw) Vendor: FINISAR CORP. Serial No: P 11 S 5 N 8 Area 1: id (sw) Vendor: FINISAR CORP. Serial No: P 4701 KM Area 2: id (sw) Vendor: FINISAR CORP. Serial No: H 11 YK 3 H Area 3: id (sw) Vendor: FINISAR CORP. Serial No: P 470 C 77 Area 4: id (sw) Vendor: FINISAR CORP. Serial No: P 4701 VL Area 5: id (sw) Vendor: FINISAR CORP. Serial No: P 470 CMF Area 6: id (sw) Vendor: FINISAR CORP. Serial No: P 11 CCTR Area 7: id (sw) Vendor: FINISAR CORP. Serial No: P 118 B 39 Area 8: id (sw) Vendor: FINISAR CORP. Serial No: P 470 CA 3 Area 9: id (sw) Vendor: FINISAR CORP. Serial No: P 450 EYL Area 10: id (sw) Vendor: FINISAR CORP. Serial No: P 11 BCZH Area 11: id (sw) Vendor: FINISAR CORP. Serial No: P 4701 V 1 Area 12: id (sw) Vendor: FINISAR CORP. Serial No: P 470 C 75 Area 13: id (sw) Vendor: FINISAR CORP. Serial No: P 11 NECU Area 14: id (sw) Vendor: FINISAR CORP. Serial No: P 470 CH 4 Area 15: id (sw) Vendor: FINISAR CORP. Serial No: P 114 S 21 Area 16: id (sw) Vendor: FINISAR CORP. Serial No: P 4701 J 8 89 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 슬롯 동작상태 (Silk. Worm 12000 / 24000) Silk. Worm 12000: admin> slotshow Slot Blade Type ID Status ----------------1 SW BLADE 2 FAULTY 2 SW BLADE 2 DISABLED 3 SW BLADE 2 ENABLED 4 SW BLADE 2 DIAG RUNNING POST 2 5 CP BLADE 1 ENABLED 6 CP BLADE 1 ENABLED 7 UNKNOWN VACANT 8 SW BLADE 2 DIAG RUNNING POST 1 9 SW BLADE 2 INSERTED, NOT POWERED ON 10 UNKNOWN VACANT 90 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치/디렉터의 Rebooting 명령어 Switch Model Fabric OS Version Reboot Command Silk. Worm 2 xxx Fabric OS 2. 6. 1 이상 Reboot Fastboot Silk. Worm 3200 Fabric OS 3. 1 이상 Reboot Fastboot Silk. Worm 3800 Fabric OS 3. 1 이상 Reboot Fastboot Silk. Worm 3250 Fabric OS 4. 2 이상 Reboot Fastboot Silk. Worm 3850 Fabric OS 4. 2 이상 Reboot Fastboot Silk. Worm 3900 Fabric OS 4. 1 이상 Reboot Fastboot Silk. Worm 4100 Fabric OS 4. 4 이상 Reboot Fastboot Silk. Worm 12000 Fabric OS 4. 1 이상 Reboot Fastboot Switch. Reboot Silk. Worm 24000 Fabric OS 4. 2 이상 Reboot Fastboot Switch. Reboot Silk. Worm 12000: admin> switchreboot Silk. Worm 12000: admin> Selecting i 2 c bus. . . Done. Stopping all switch daemons. . . Done. Releasing i 2 c bus. . . Done. Powering off slot 7. . . Done. Powering off slot 8. . . Done. Powering off slot 9. . . Done. Powering off slot 10. . . Done. Checking all slots are powered off. . Done. Cleaning up kernel modules. . . Done. Powering on slot 7. . . Done. Powering on slot 8. . . Done. Powering on slot 9. . . Done. Powering on slot 10. . . Done. Checking diagnostics. . . . . Done. 10 9 8 fabric: Subordinate switch fabric: Reconfiguration due to Fabric Merge(port 47) fabric: Reconfiguring at Tue Mar 25 06: 48: 15 2003 5 4 3 2 1 fabric: Subordinate switch fabric: Domain 64 91 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8

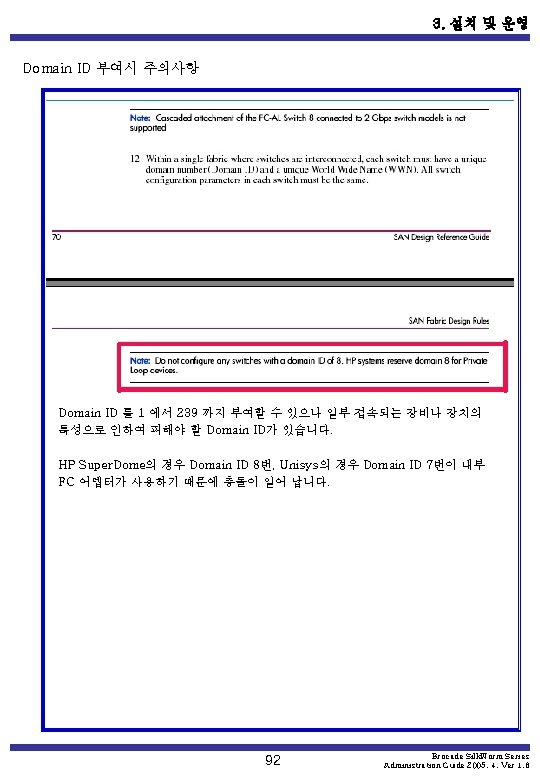

3. 설치 및 운영 SUN Solaris SAN관련 패치의 적용 93 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 특정 데이터 경로의 전송량 측정 / Advanced Performance Monitoring 94 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 특정 데이터 경로의 전송량 측정 / Advanced Performance Monitoring 95 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 각 스위치 모델별 / 버전별 Telnet 접속 허용 범위 Number of Telnet Sessions Silk. Worm Switch Model Silk. Worm 2 xxx series 1 Silk. Worm 3200 (Fabric OS 3. x) 1 Silk. Worm 3800 (Fabric OS 3. x) 1 Silk. Worm 325 x, 385 x, 3900 (Fabric OS 4. x) 2 Silk. Worm 12000 (Fabric OS 4. x) 4 (2 per logical switch) Silk. Worm 24000 (Fabric OS 4. x) 2 AP 7420 2 Silk. Worm 3800: admin> timeout 10 Committing configuration. . . done. Time. Out is now 10 minutes Silk. Worm 3800: admin> timeout Time. Out is 10 minutes Silk. Worm 3800: admin> timeout 0 Committing configuration. . . done. Time. Out is now Disabled Timeout 값을 변경할 경우 4. X 이상 Firmware Version에서는 아래와 같은 메시지가 출력됩니다. IDLE Timeout Changed to 10 minutes The modified IDLE Timeout will be in effect after NEXT login 96 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 Telnet Demon의 Enable / Disable 스위치/디렉터가 온라인 서비스 중인 상태에서 Silk. Worm 3900: admin> configure Not all options will be available on an enabled switch. To disable the switch, use the "switch. Disable" command. Configure. . . System services (yes, y, no, n): [no] y rstatd (on, off): [off] rusersd (on, off): [off] telnetd (on, off): [on] off Broadcast message from root (pts/0) Thu Apr 17 17: 39: 11 2003. . . Security policy change: TTY pts on switch instance 0 will be logged out. Connection closed. . . Enabling a disabled telnet daemon: To enable a disabled telnet daemon connect to the switch serial port and follow the procedure below. Silk. Worm 3900: admin> configure Not all options will be available on an enabled switch. To disable the switch, use the "switch. Disable" command. Configure. . . System services (yes, y, no, n): [no] y rstatd (on, off): [off] rusersd (on, off): [off] telnetd (on, off): [off] on Silk. Worm 3900: admin> 0 x 2 b 2 (fabos): Switch: 0, Warning FWSTATUS_SWITCH, 3, Switch status changed from Marginal/Warning to HEALTHY/OK Telnet Demon이 정상적으로 동작하지 않을 경우 온라인 서비스 중 Demon을 중지 시킨 후 다시 서비스를 재개할 수 있는 방법입니다. 단, Firmware Version 4. 1 이상에서 지원하는 기능입니다. 97 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 스위치 이더넷 전송모드의 설정 스위치에 설정되어 있는 IP주소의 확인을 위하여 시리얼 접속으로 스위치에 로그인 한 후 ip. Addr. Show 명령을 이용하여 현재 설정되어 있는 IP주소를 확인합니다. ip. Addr. Set 명령으로 IP주소를 변경할 수 있습니다. 스위치에 로그인한 후 “ifmodeshow” 명령을 사용하여 전송모드설정 상태를 확인하실 수 있습니다. Silk. Worm 3800: admin> ifmodeshow “fei 0” or ifmodeshow “eth 0” Link mode: no autonegotiation, 10 base. T-HD, link ok 이더넷 포트의 전송모드 설정시 “ifmodeset” 명령으로 설정이 가능한 모드는 “Auto, 100 Mbps Full / 100 Mbps Half / 10 Mbps Full / 10 Mbps Half”가 있 습니다. Silk. Worm 3250, 3850, 3900, 12000의 경우 전송모드 설정은 Silk. Worm 3900: admin> if. Mode. Set "eth 0“ Auto-negotiate (yes, y, no, n): [yes] n ; 자동 Force 100 Mbps / Full Duplex (yes, y, no, n): [no] n ; 100 Mbps Full Force 100 Mbps / Half Duplex (yes, y, no, n): [no] n ; 100 Mbps Half Force 10 Mbps / Full Duplex (yes, y, no, n): [no] n ; 10 Mbps Full Force 10 Mbps / Half Duplex (yes, y, no, n): [no] y ; 10 Mbps Half Committing configuration. . . done. Silk. Worm 20 x 0, 22 x 0, 2400, 2800, 3200, 3800 모델의 경우 전송모드 설정은 Silk. Worm 3200: admin> if. Mode. Set "fei 0" Auto-negotiate (yes, y, no, n): [no] 100 Mbps / Full Duplex (yes, y, no, n): [no] 100 Mbps / Half Duplex (yes, y, no, n): [no] 10 Mbps / Full Duplex (yes, y, no, n): [no] 10 Mbps / Half Duplex (yes, y, no, n): [no] yes Committing configuration. . . done. 98 ; 자동 ; 100 Mbps Full ; 100 Mbps Half ; 10 Mbps Full ; 10 Mbps Half Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 서비스 방식별 접속포트 상세 Port Service Incoming Outgoing 21/tcp FTP Yes 22/tcp SSH V 2 (FOS 4. 1) Yes No 23/tcp Telnet Yes No 25/tcp SMTP TCP No Yes 80/tcp http-webtools Yes No 111/tcp rcp / API Yes No 161/udp SNMP Yes No 162/udp SNMP Traps No Yes 206/tcp FCIP (AP 7420) Yes 600 -1023/tcp API remap Yes No 162/udp SNMP Traps No Yes 23600 /tcp Fabric Manager Yes 99 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 IEEE WWN 등록정보 확인 100 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 SAN스위치 운용환경 / 케이블링 방법 <변경 전 사진> <변경 후 사진> 101 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 지원부문 103 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade Firmware 및 자료 다운로드 폴더 (www. webhard. co. kr) ID : silkworm PW : brcdonly 104 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
3. 설치 및 운영 브로케이드 기술문서 (영문) Brocade Fabric OS documentation - Brocade Diagnostic and System Error Message Reference - Brocade Fabric OS Procedures Guide Brocade Fabric OS optional features documentation - Brocade Advanced Performance Monitoring User's Guide - Brocade Advanced Web Tools User's Guide - Brocade Advanced Zoning User's Guide - Brocade Distributed Fabrics User's Guide - Brocade Fabric Watch User’s Guide - Brocade ISL Trunking User's Guide - Brocade Quick. Loop User's Guide (v 3. x only) - Brocade Secure Fabric OS User's Guide - Secure Fabric OS Quick. Start Guide Brocade Hardware documentation - Brocade Silk. Worm 24000 Hardware Reference(for v. 4. x software) - Brocade Silk. Worm 12000 Quick. Start Guide (for v 4. x software) - Brocade Silk. Worm 4100 Hardware Reference (for v. 4. x software) - Brocade Silk. Worm 3900 Hardware Reference (for v. 4. x software) - Brocade Silk. Worm 3850 Hardware Reference (for v. 4. x software) - Brocade Silk. Worm 3800 Hardware Reference (for v. 3. x software) - Brocade Silk. Worm 3250 Hardware Reference (for v. 4. x software) - Brocade Silk. Worm 3200 Hardware Reference (for v. 3. x software) 105 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 SAN 성능 및 장애분석을 위한 SAN+Health Tools(Mc. DATA 제품 지원) 106 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 SAN 성능 및 장애분석을 위한 SAN+Health Tools(Mc. DATA 제품 지원) 107 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade 홈페이지 www. brocade. com www. brocadekorea. com www. brocadeconnectapac. com/kr 108 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade Korea 홈페이지 109 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade Korea 자료실 및 Q&A 110 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade Connect 홈페이지 가입 등록시 Silk. Worm 스위치에 대한 WWN이 필요합니다. 111 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
4. 기타지원 Brocade 파트너 홈페이지 각 OEM/파트너사 분들은 Partner. brocade. com 의 가입절차를 읽어 보시 고 등록하시기 바랍니다. 112 Brocade Silk. Worm Series Administration Guide 2005. 4, Ver 1. 8
