Broadcast Handovers Tutorial Overview IEEE 802 16 Presentation

Broadcast Handovers Tutorial Overview IEEE 802. 16 Presentation Submission Template (Rev. 9) Document Number: IEEE C 802. 16 -08/020 Date Submitted: 2008 -07 -17 Source: Juan Carlos Zuniga Inter. Digital Communications, LLC E-mail: j. c. zuniga@ieee. org Venue: IEEE 802. 16 Plenary, Session #56, Denver CO Base Contribution: Broadcast Handovers Tutorial (http: //ieee 802. org/21/Tutorials/21 -08 -0199 -03 -0000 -broadcast-handovers-tutorial. pdf) Purpose: Tutorial overview Notice: This document does not represent the agreed views of the IEEE 802. 16 Working Group or any of its subgroups. It represents only the views of the participants listed in the “Source(s)” field above. It is offered as a basis for discussion. It is not binding on the contributor(s), who reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor grants a free, irrevocable license to the IEEE to incorporate material contained in this contribution, and any modifications thereof, in the creation of an IEEE Standards publication; to copyright in the IEEE’s name any IEEE Standards publication even though it may include portions of this contribution; and at the IEEE’s sole discretion to permit others to reproduce in whole or in part the resulting IEEE Standards publication. The contributor also acknowledges and accepts that this contribution may be made public by IEEE 802. 16. Patent Policy: The contributor is familiar with the IEEE-SA Patent Policy and Procedures: <http: //standards. ieee. org/guides/bylaws/sect 6 -7. html#6> and <http: //standards. ieee. org/guides/opman/sect 6. html#6. 3>. Further information is located at <http: //standards. ieee. org/board/pat-material. html> and <http: //standards. ieee. org/board/pat >.

Key Messages to Take Away (1) • 802. 21 Already provides support for handovers between bidirectional link technologies (e. g. 802. 16, 802. 11, Cellular) • New SG created in 802. 21 to address the case when handover is made from/to unidirectional (e. g. downlink only) technologies 2

Possible Approach for 802. 21 Higher Layer Transport MIH Users Higher Layer Transport MIH Function DL-only Interface (e. g. DVB) 3 GPP/ 3 GPP 2 Interface MGMT MIH Users DATA 802 Interface Mobile Node DATA MGMT Higher Layer Transport MIH Users MIH Function 3 GPP/3 GPP 2 Network 802 Interface Higher Layer Transport MIH Users MIH Function DL-only Network (e. g. DVB) 802 Network Legend MIH Message Transport MIH Local Interface 3

Key Messages to Take Away (2) • Converged devices including both types of technologies already exist • This is a market opportunity for 802. 16 – Wi. MAX !! • E. g. SK Telecom in Korea has both Wi. Bro and DMB networks 4

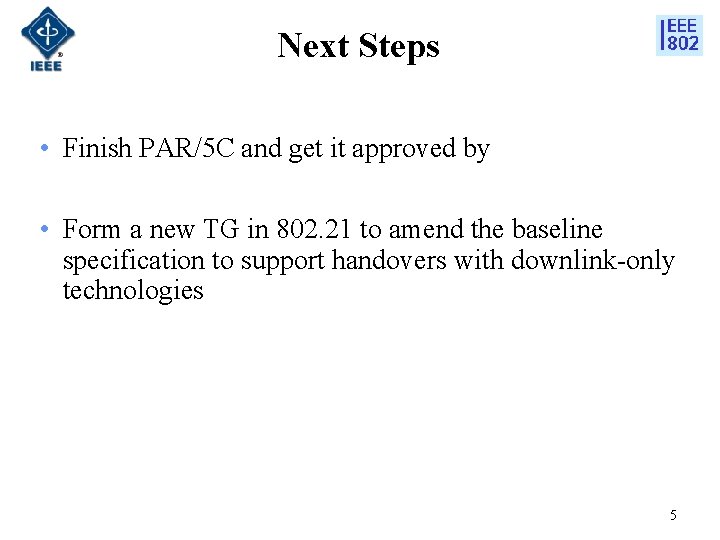

Next Steps • Finish PAR/5 C and get it approved by • Form a new TG in 802. 21 to amend the baseline specification to support handovers with downlink-only technologies 5
