Broadband Wireless David Aeschbacher 4/6/2007 What is Broadband Wireless? 802. 16 Wi. MAX Motorola Canopy 802. 11 Star. OS Summary of Current Solutions Obstacles to Starting and Maintaining a WISP Future of Broadband Wireless

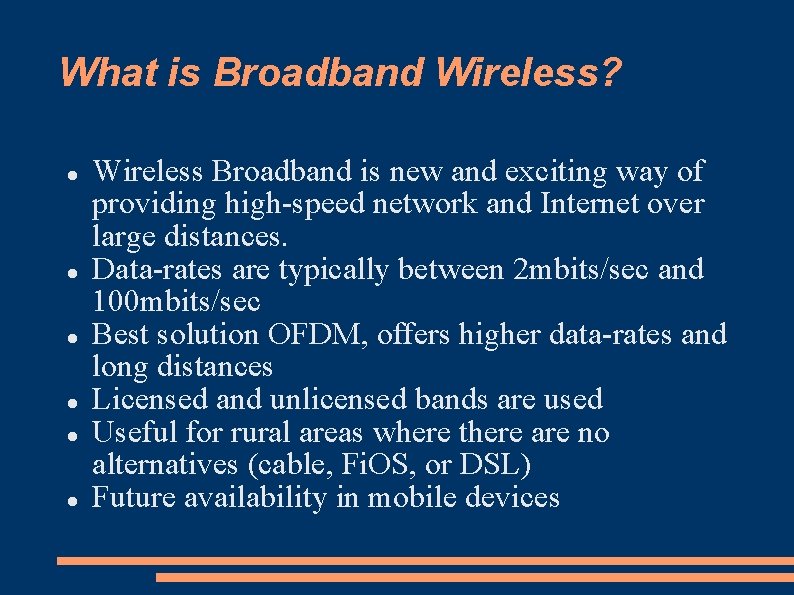

What is Broadband Wireless? Wireless Broadband is new and exciting way of providing high-speed network and Internet over large distances. Data-rates are typically between 2 mbits/sec and 100 mbits/sec Best solution OFDM, offers higher data-rates and long distances Licensed and unlicensed bands are used Useful for rural areas where there are no alternatives (cable, Fi. OS, or DSL) Future availability in mobile devices

Broadband Wireless (cont. ) A typical WISP set-up consists of an access point (AP) placed on a tall building, water tower, guyed lattice towers. APs can be set up in a sector, with an omni directional antenna, or as a point to point connection A wireless bridge is used to receive and transmit to the AP LOS is desired but not required for all wireless broadband technologies.

The IEEE 802. 16 Standard IEEE 802. 16 working group for wireless metropolitan area networks 802. 16 has been dubbed “Wi. MAX” (akin to 802. 11 Wi. Fi) 802. 16 e “Mobile Wi. MAX” 802. 16 h - Improved Coexistence Mechanisms for License-Exempt Operation 802. 16 m “Advanced air interface” - increased data -rates The standard may advertise itself as a metropolitan area solution but certainly has applications in nonmetro areas

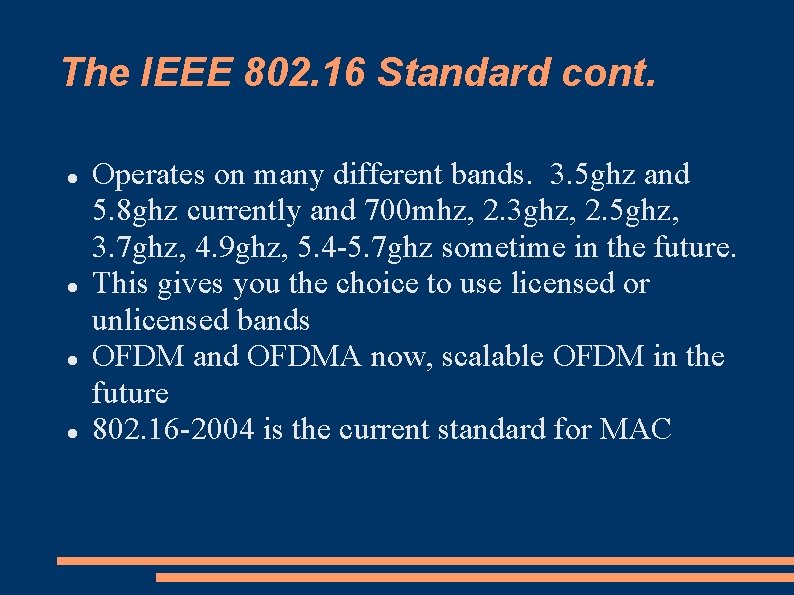

The IEEE 802. 16 Standard cont. Operates on many different bands. 3. 5 ghz and 5. 8 ghz currently and 700 mhz, 2. 3 ghz, 2. 5 ghz, 3. 7 ghz, 4. 9 ghz, 5. 4 -5. 7 ghz sometime in the future. This gives you the choice to use licensed or unlicensed bands OFDM and OFDMA now, scalable OFDM in the future 802. 16 -2004 is the current standard for MAC

What is Wi. MAX Good For? Telephone networks, A/V multicast, IP services, Back-haul Nomadic mobile devices “Last-mile” delivery of service – this is what you are most likely to see in St. Lawrence County. Other means of broadband Internet access rarely reach outside of villages leaving many people to depend on poor phone lines to deliver already slow dial-up service. Wi. MAX offers a standard that will ensure interoprability between devices/networks/regions

Wi. MAX Devices

Motorola Canopy Motorola's proprietary solution to broadband wireless Operates on 900 mhz, 2. 4 ghz, and 5. 8 ghz unlicensed frequency bands Data-rates depend on the level of a license that is purchased with the subscriber module (bridge) and can be configured from the device interface Can work at distances greater than 40 miles using less that 28 dm of power, depending on antenna type FSK for SMs, OFDM for Back-hauls

Examples of Canopy Equipment

802. 11 as a Broadband Wireless Solution The advantages of using 802. 11 a/b/g are that it is cheap and readily available Unfortunately the popularity of the standard makes it easier for people gain unauthorized access to the network 802. 11 a/b/g typically has a range of only 300' but using high gain directional antennas a LOS connection can be made at 1 to 2 miles or farther using <400 mw of transmit power

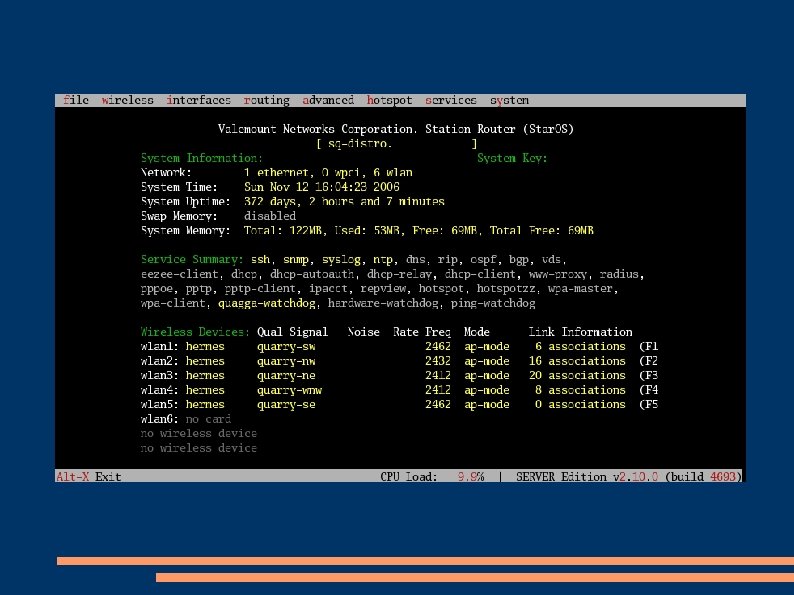

Star. OS Valemount Networks Runs on “warboards” A warboard is a computer (think itx size) that acts a router/bridge/access point. A warboard has slots for 1 -4 slots for mini-pci wireless cards, 900 mhz or 2. 4 ghz (a/b/g) Star. OS allows you to configure the device in many different ways, mac filtering, PPPo. E, bandwidth management

Summary of Current Solutions Wi. MAX – Still rather new and working its way into the marketplace, could revolutionize wireless communications Motorola Canopy – Currently available and in use, serves multiple purposes 802. 11 – Very affordable, can be used for short to medium distances, maybe a little too common

Obstacles of Starting and Maintaining a WISP Cost – High quality APs cost many thousands of dollars and SMs range from $200 -$1000 each. Bandwidth in rural areas costs more than in a metropolitan area. (10 mbit $1000/month) A typical cable Internet connection can reach upwards of 5 mbit, so it is hard to deliver comparable speeds at reasonable prices. Geography – Hills and trees greatly affect the range and speed of the connection. 40 miles LOS is easy to accomplish in some areas whereas 6 miles non-LOS is extremely difficult in some parts of St. Lawrence.

Future of Broadband Wireless 802. 20 MBWA – Mobile Braodband Wireless Access, potential competitor to mobile Wi. MAX Larger companies moving – Verizon and Cingular can use their vast existing infrastructure to deliver BWA into peoples homes
