Broadband Communication Solution Broadband Solution u Passive Optical

Broadband Communication Solution

Broadband Solution u Passive Optical Network (GEPON) u VDSL Ø Ø u u VDSL 2 ADSL Ø Ø Ø (Very-high-data-rate Digital Subscriber Line) (Asymmetric Digital Subscriber Line) ADSL 2+ SHDSL (Symmetric High-speed Digital Subscriber Line) Ø Ø G. SHDSL. bis 2

Product Features Passive Optical Network (GEPON)

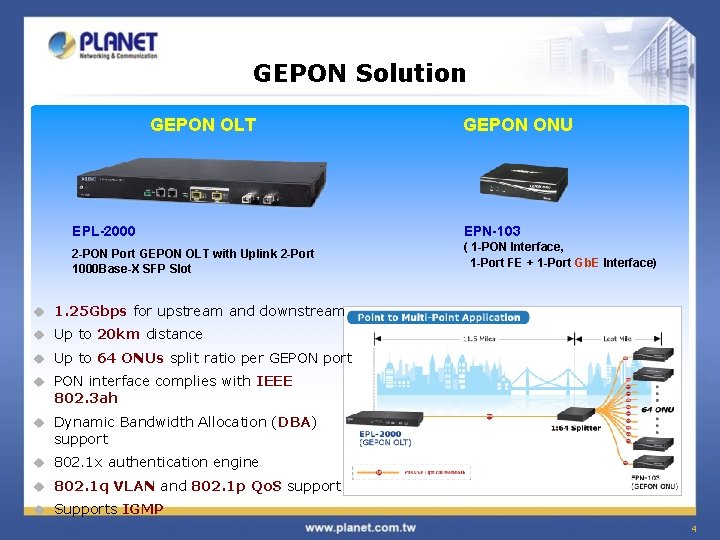

GEPON Solution GEPON OLT GEPON ONU EPL-2000 EPN-103 2 -PON Port GEPON OLT with Uplink 2 -Port 1000 Base-X SFP Slot ( 1 -PON Interface, 1 -Port FE + 1 -Port Gb. E Interface) u 1. 25 Gbps for upstream and downstream u Up to 20 km distance u Up to 64 ONUs split ratio per GEPON port u PON interface complies with IEEE 802. 3 ah u Dynamic Bandwidth Allocation (DBA) support u 802. 1 x authentication engine u 802. 1 q VLAN and 802. 1 p Qo. S support u Supports IGMP 4

GEPON Application u FTTH 5

Product Features VDSL Products

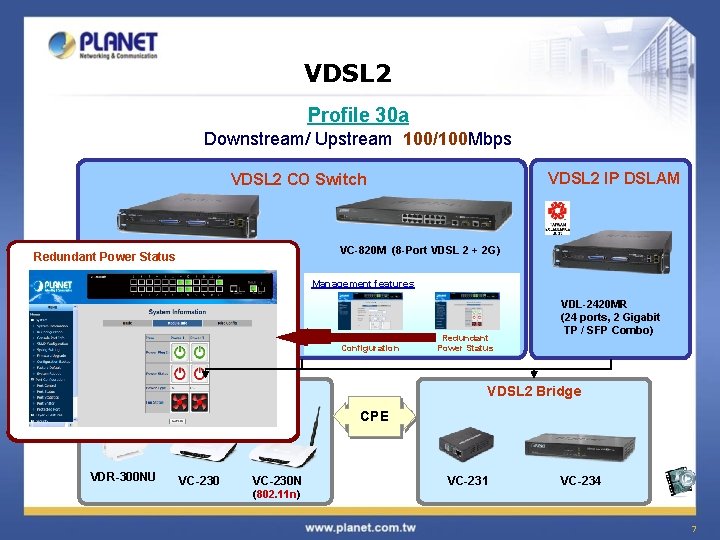

VDSL 2 Profile 30 a Downstream/ Upstream 100/100 Mbps VDSL 2 IP DSLAM VDSL 2 CO Switch VC-2400 MR (24 -Port VDSL 2 + 2 G) Redundant Status VDSL 2 Port. Power Configuration VC-2400 MR Rear Panel MC-RPS 48 MC-RPS 200 (100~240 V AC) (48 VDC) Power Slot 2 VC-820 M (8 -Port VDSL 2 + 2 G) Management features Power Slot 1 VDSL 2 Port Configuration VDSL 2 Router Redundant Power Status VDL-2420 MR (24 ports, 2 Gigabit TP / SFP Combo) VDSL 2 Bridge CPE VDR-300 NU VC-230 N VC-231 VC-234 (802. 11 n) 7

Features VDL-2420 MR u u High-Performance of Ethernet over VDSL 2 Solution ü ü Up to 100/100 Mbps symmetric data rate within 300 m ü 2 10/1000 Mbps TP and SFP shared combo interfaces ü ü ü Built-in POTS Splitters flexible link option 24 Full-Duplex VDSL links via RJ-21(Telco-50) connector 30 a profile 100~240 V AC / 48 V DC Dual power redundant (Optional) Delivers High-Demand Services Connectivity for ISP / Triple Play Devices ü ü ü VOD (Video on Demand) Voice over IP Video phone VDL-2420 MR IPTV Distance education 8

VDL-2420 MR Application FTTB FTTH Speed up to 100/100 Mbps Distance up to 1. 4 Km 9

Features VDR-300 NU 802. 11 n Wireless VDSL 2 Router u VDSL 2 G. Vector / ADSL 2+ in one solution, up to 100/100 Mbps up/downstream u 300 Mbps 2. 4 GHz or 5 GHz Dual-band Wireless Connectivity u 2 x USB ports for 3 G WAN, Printer and Storage Sharing u Supports IPv 6/IPv 4 Dual Stack Network, DLNA, DMZ, IGMP, Qo. S, Virtual Server u Supports IPsec to implement VPN u TR-069 and SNMP Remote Management VDR-300 NU 10

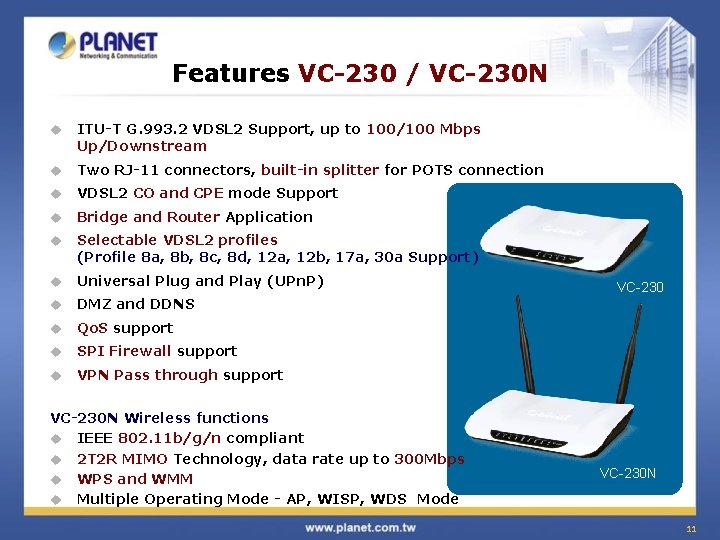

Features VC-230 / VC-230 N u ITU-T G. 993. 2 VDSL 2 Support, up to 100/100 Mbps Up/Downstream u Two RJ-11 connectors, built-in splitter for POTS connection u VDSL 2 CO and CPE mode Support u Bridge and Router Application u Selectable VDSL 2 profiles (Profile 8 a, 8 b, 8 c, 8 d, 12 a, 12 b, 17 a, 30 a Support) u Universal Plug and Play (UPn. P) u DMZ and DDNS u Qo. S support u SPI Firewall support u VPN Pass through support VC-230 N Wireless functions u IEEE 802. 11 b/g/n compliant u 2 T 2 R MIMO Technology, data rate up to 300 Mbps u WPS and WMM u Multiple Operating Mode - AP, WISP, WDS Mode VC-230 N 11

VC-230 / VC-230 N Application 12

Product Features ADSL 2/2+ Products

ADSL 2/2+ IP DSLAM IDL-4802 (48 ports, IP / Hardware Stacking) IDL-2402 (24 ports, IP Stacking) ADSL 2/2+ Router 11 n ADSL 2/2+ VPN Router ADN-4100 11 n ADSL 2/2+ Router ADN-4101 ADSL 2/2+ Router ADE-3400 ADSL Profile VLAN 802. 1 x Security SNMP 14

Features IP DSLAM u u SNMPProfile 802. 1 x Security VLAN ADSL 15

Features IP DSLAM Model IDL-2402 IDL-4802 24 48 1 Gb. E 2 Gb. E Combo 25 M / 3 M 5. 6 km Web Management V V Hardware Stackable - Up to 4 Units V V Feature DLS ports Ethernet ports Max. Speed (Downstream/ Upstream) Max. Distance IP Stacking Co-existing with Voice 16

Features ADN-4100 802. 11 n Wireless ADSL 2+ Broadband VPN Router u IEEE 802. 11 n 300 Mbps wireless network capability u IPv 6 connection supported u Built-in ADSL 2/2+ Modem u WDS / WPS for easy wireless connection u 802. 1 p Qo. S compatible u Firewall with NAT and IP/MAC /Application/URL filtering u UPn. P and DDNS function u PPTP and IPSec VPN security tunnel ADN-4100 17

ADN-4100 Application 18

Features ADN-4101 150 Mbps 802. 11 n Wireless ADSL 2/2+ Router u Built-in ADSL 2/2+ Modem u WDS / WPS for easy wireless connection u 802. 1 p Qo. S compatible u UPn. P and DDNS function u VPN Passthrough support u Firewall with NAT and IP/MAC /Application/URL filtering ADN-4101 19

Features ADE-3400 802. 11 n ADSL 2/2+ Router u Up to 24 Mbps downstream and 3. 5 Mbps upstream u Supports NAT, DHCP server, DMZ, virtual server and IPv 6 u Palm size u VPN Passthrough support u Remotely manages routers via SNMP u Supports Qo. S 74 mm 78 mm ADE-3400 20

Product Features G. SHDSL

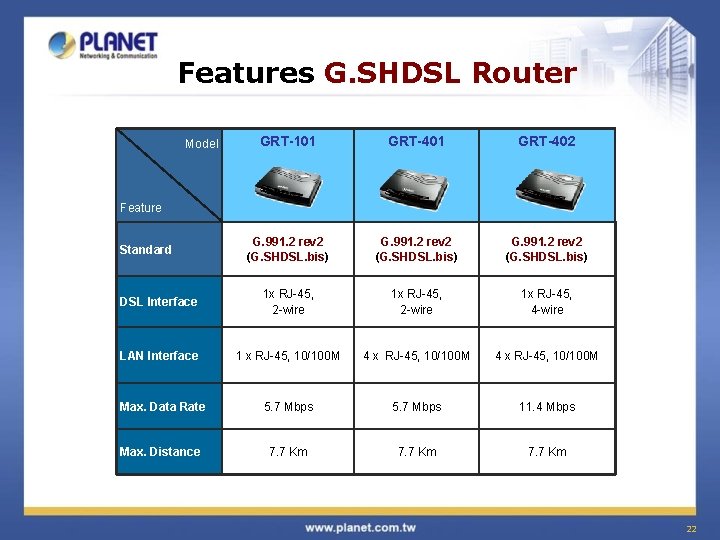

Features G. SHDSL Router GRT-101 GRT-402 G. 991. 2 rev 2 (G. SHDSL. bis) DSL Interface 1 x RJ-45, 2 -wire 1 x RJ-45, 4 -wire LAN Interface 1 x RJ-45, 10/100 M 4 x RJ-45, 10/100 M Max. Data Rate 5. 7 Mbps 11. 4 Mbps Max. Distance 7. 7 Km Model Feature Standard 22

G. SHDSL Router Application ü Extend network distance over existing telephone wires ü High speed symmetrical Internet connections for MB and SOHO users 23

u View PLANET Broadband Communication solution online 24
