BRIGHT LED ELECTRONICS CORP Brighter World Brighter Life

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Brighter World Brighter Life 更明亮的世界、更璀璨的人生 BRIGHT LED

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP

Milestones 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP PLCC Products Development (PLCC 產品發展) 2005 ~ 10, LED Street Light (LED路燈/照明燈) 2003 LED Display (LED顯示管) 2002 PCBA Products (PBCA產品) 1998 Invisible LEDs (紅外線 LEDs) 1995 Chip LED (貼片LEDs) 1993 High Power Products (高亮度產品 Establishment )of China plant in 1990 (中國建廠) 1988 Back Light (背光廠) 1983 Display LEDs (數碼管) 1981 Lamp LEDs (指示燈) 1981~1985 1986~1990 1991~1995 1996~2000 2001~2005~2015…

佰鴻 業股份有限公司 General Assembly Flow Chart BRIGHT LED ELECTRONICS CORP (Die mounting) (Taping) (Wire bonding) (BIN test) (Molding) (Sawing) (Curing)

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Production capability

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Optoelectronics Solutions LED Lamp Assembly DISPLAY Infrared (IR) Components Photo coupler Surface Mount LEDs High Power LEDs Light Bar Flash LEDS

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP SMD LED 1206 0805 0603 TOP View AXIAL Type Gull wing PLCC 2 TOP View Dual & Full color 1204 1210 0605 AXIAL TYPE York PLCC 4 TOP View Side View 1204 0802 0603 AXIAL Type Z-band EMC TOP View 3030 3535 PD PTR TOP View Side View

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP LAMP LED Lamp 3 mm 5 mm Rectangular Lamp + Holder Round type RP Customized Cylindrical Tower Customized

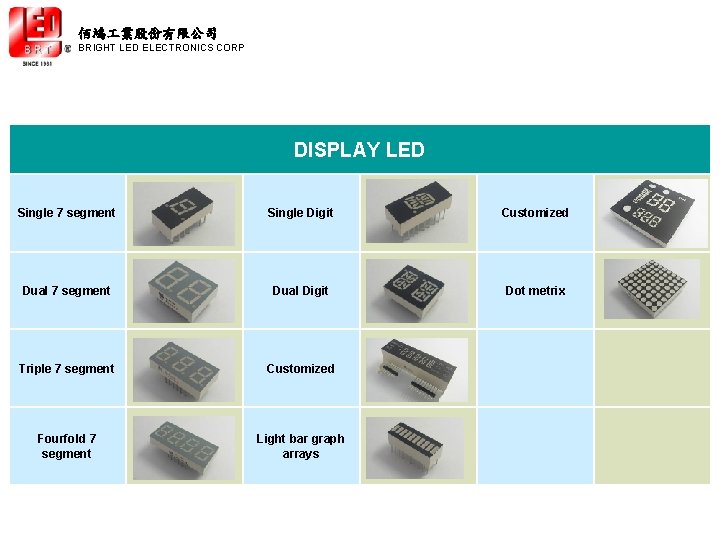

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP DISPLAY LED Single 7 segment Single Digit Customized Dual 7 segment Dual Digit Dot metrix Triple 7 segment Customized Fourfold 7 segment Light bar graph arrays

Lighting 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP 2835 0. 2 W IF=60 m. A 3030 0. 5 W IF=150 m. A 1512 7 W IF=400 m. A 3528 0. 1 W IF=30 m. A 3535 1 W IF=300 m. A 1919 21 W IF=600 m. A 5730 0. 2 W IF=65 m. A 3030 1 W IF=300 m. A Argus 5~20 W 2016 IFP=1 A 2016 IFP=1. 5 A

2835 0. 2 W /0. 5 W 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Features -Dimension: 3. 5*2. 8*0. 65 mm -Features Ultra high color rendering High CRI High efficiency Long life > 50, 000 hours - Application: LED bulb, T 8, light bar, down light, spot light Luminous Flux (lm) Efficiency (lm/w) Correlated Color Temperature (K) Emitting Color min ave max 0. 2 W White 22 ---- 110 ---- 2700 ---- 6500 0. 5 W White 50 ---- 100 --- 2700 --- 6500

COB Type 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Features 1. High lumen output. 2. High light output efficiency (lm/w). 3. Excellent thermal management: Self-mounted on Al MCPCB. 4. Easy to be assemblies with heat sink. 5. This product do not contain restricted substance, compliance to ROHS standard. Electro-Optical Characteristics Luminous Flux (lm) Efficiency (lm/w) Correlated Color Temperature (K) Emitting Color min ave max White 620 ---- 1795 90 ---- 110 2700 ---- 6500

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Flash LED

2016 Package EMC Type 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Features -Dimension: 2. 04*1. 64 * 0. 6 mm -Suitable for all SMT assembly methods. Compatible with infrared and vapor phase reflow solder process. -Compatible with automatic placement equipment. -This product doesn’t contain restriction Substance, comply ROHS standard. Electro-Optical Characteristics (TA=25°C, PW. =50 m. S) Emitting Color White Condition Luminous Flux( (lm) Forward Voltage (VF) Correlated Color Temperature (K) min ave max 350 m. A 40 70 100 3. 4 3. 8 4. 2 5000 --- 6300 500 m. A 80 110 160 3 3. 4 3. 8 5000 --- 6300

2016 Ceramics Type 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Features -Dimension: 2. 04*1. 64 * 0. 75 mm -Suitable for all SMT assembly methods. Compatible with infrared and vapor phase reflow solder process. -Compatible with automatic placement equipment. -This product doesn’t contain restriction Substance, comply ROHS standard. Electro-Optical Characteristics (TA=25°C, PW. =50 m. S) Emitting Color Condition White 1000 m. A Luminous Flux( (lm) Forward Voltage (VF) Correlated Color Temperature (K) min ave max 160 200 240 3. 4 3. 8 4. 2 5000 --- 6300

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP Infrared LED Photo Diode IRM Photo Interrupter Photo coupler Photo Link Photo Transistor ALS Infrared LED

Infrared LED 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP ㅇ IR LED Product Photo Size (mm) 3 mm, 5 mm, 8 mm 3 C 1, 3 C 2, 3 C 3, 3 C 4 1206 3535, 3030 LED TYPE Endlook Sidelook SMD HI-POWER Driver Current(m. A) IF=50 m. A IFP=600 m. A IF=50 m. A IF=150 m. A~350 m. A IFP=500 m. A Application Remote controller CCTV Interrupter Remote controller Touch screen CCTV

Infrared LED 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP ㅇ PT/PD LED Product Photo Size (mm) 3 mm, 5 mm, 8 mm 3 C 1, 3 C 2, 3 C 3, 3 C 4 Rectangular 1206 LED TYPE End. Look Sidelook SMD Light current 4. 5~16 m. A 0. 6~14 m. A Typ : 0. 45 m. A 0. 3~5 m. A Application Automatic door sensor Light detector Smoke Detector Printer Game machine Camera Automatic door sensor

Infrared LED 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP ㅇ RCM Product Photo DIP type with customed shielding Dip type with inside shielding SMD 33, 36, 38 40, 56 k Hz Supply voltage 2. 7~5. 0 V Receiving Distance 12 M 12 M 6 M LED TYPE DIP Center Frequency Application Use with remote control for home appliance

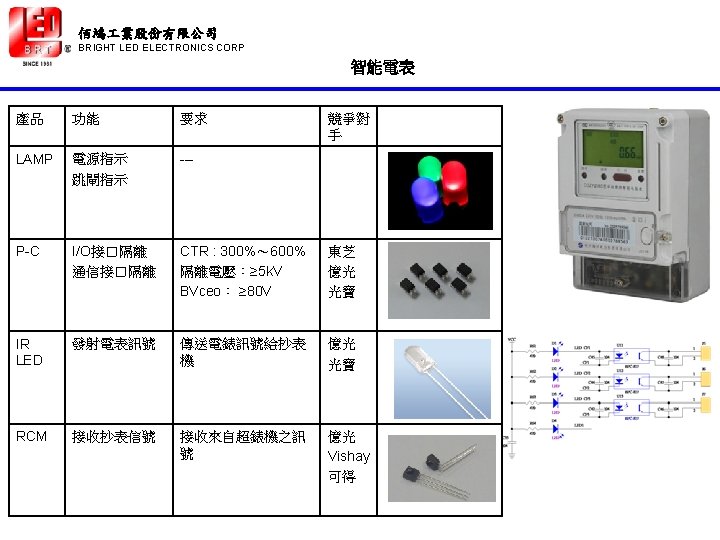

Infrared LED 佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP ㅇ P-C Product Photo LED TYPE BPC-817 M BPC-817 S BPC-718 CTR 80~600% Viso 6000 V Driver Current(m. A) IF=5 m. A Application Power Supplier Power Meter

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP 手機使用的LED 1. Remote contral (遙控器) 2. Indicator (指示燈) 3. ALS (環境光偵測器) 4. Flash. LED (閃光燈) 5. Backlight (背光) 6. Keypad (按鍵燈)

佰鴻 業股份有限公司 BRIGHT LED ELECTRONICS CORP 報告完畢� TKS! Page 25
