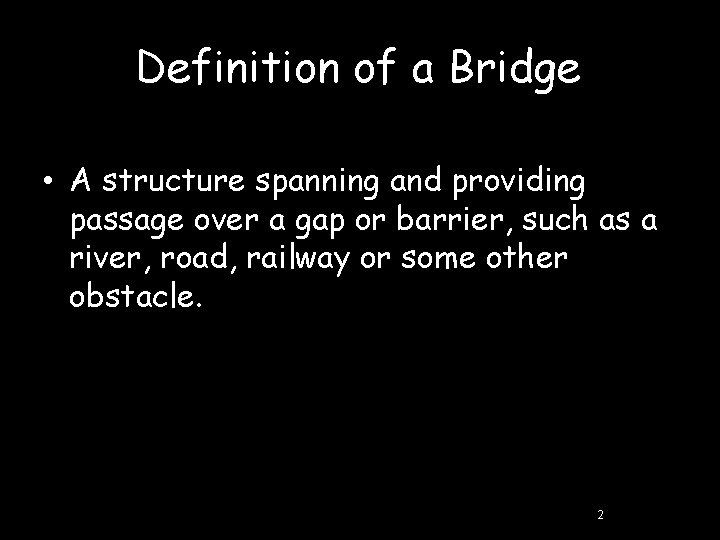

Definition of a Bridge • A structure spanning and providing passage over a gap or barrier, such as a river, road, railway or some other obstacle. 2

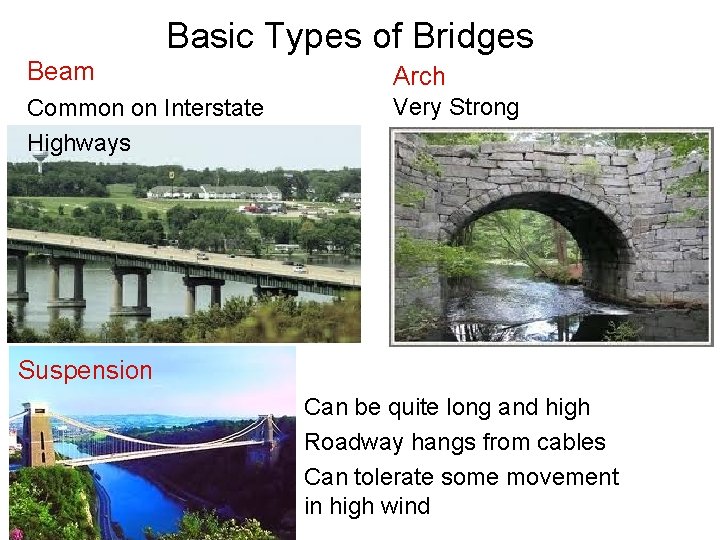

Basic Types of Bridges Beam Arch Common on Interstate Highways Very Strong Suspension Can be quite long and high Roadway hangs from cables Can tolerate some movement in high wind

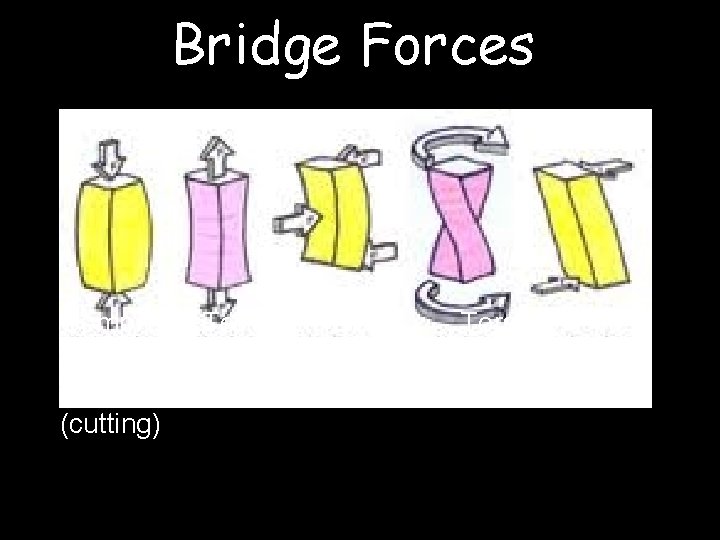

Bridge Forces Compress Tension Shear (squeeze) (stretch) (cutting) Bend Torsion (twisting)

What kind of Forces? Tension, Pulling Apart Compression, Squeeze

Bending, Tension, Compression Tension

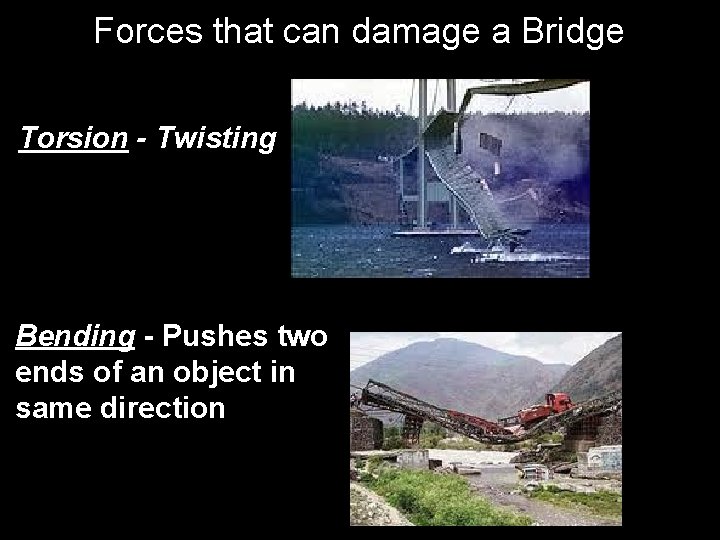

Forces that can damage a Bridge Torsion - Twisting Bending - Pushes two ends of an object in same direction

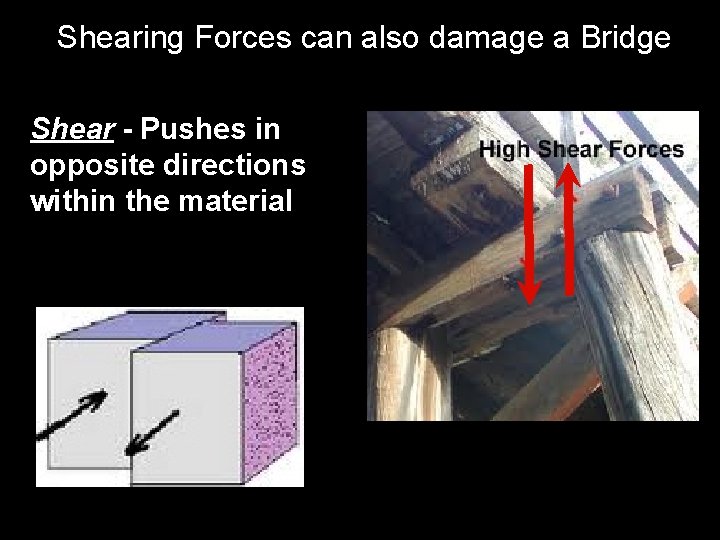

Shearing Forces can also damage a Bridge Shear - Pushes in opposite directions within the material

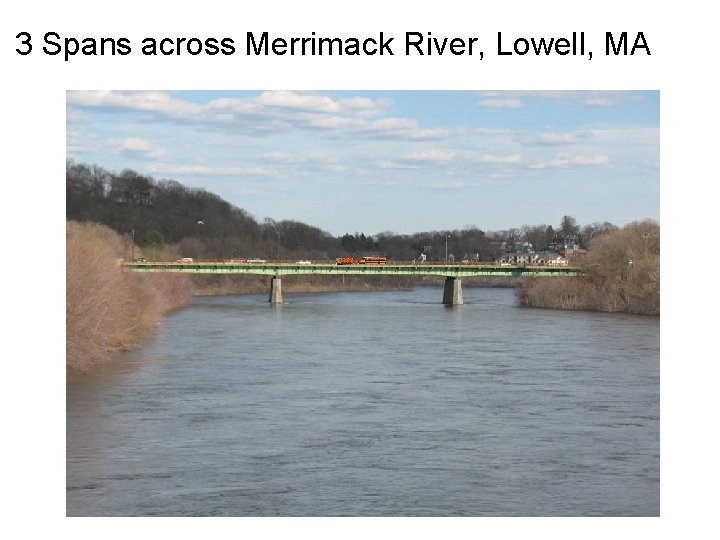

3 Spans across Merrimack River, Lowell, MA

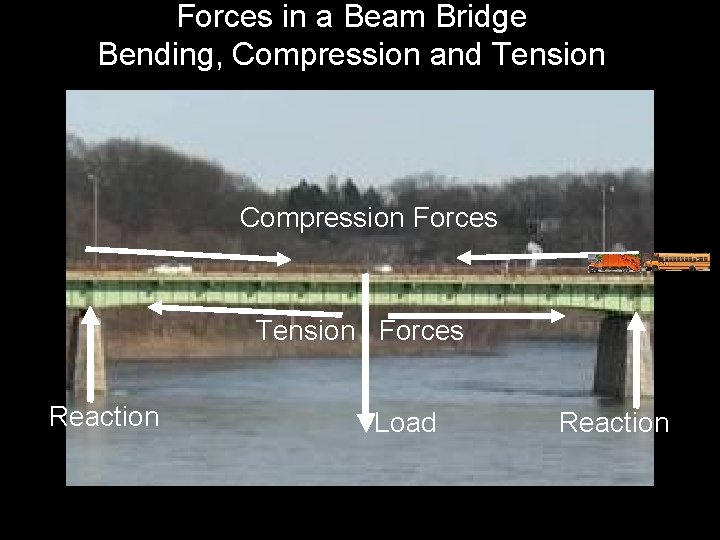

Forces in a Beam Bridge Bending, Compression and Tension Compression Forces Tension Forces Reaction Load Reaction

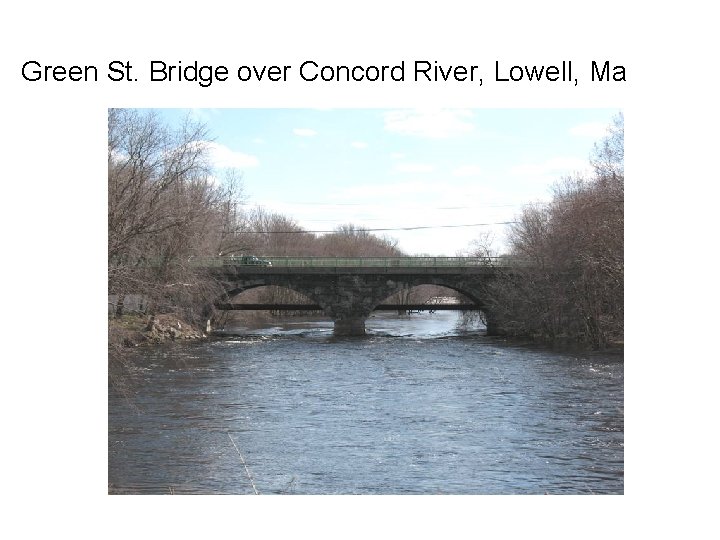

Green St. Bridge over Concord River, Lowell, Ma

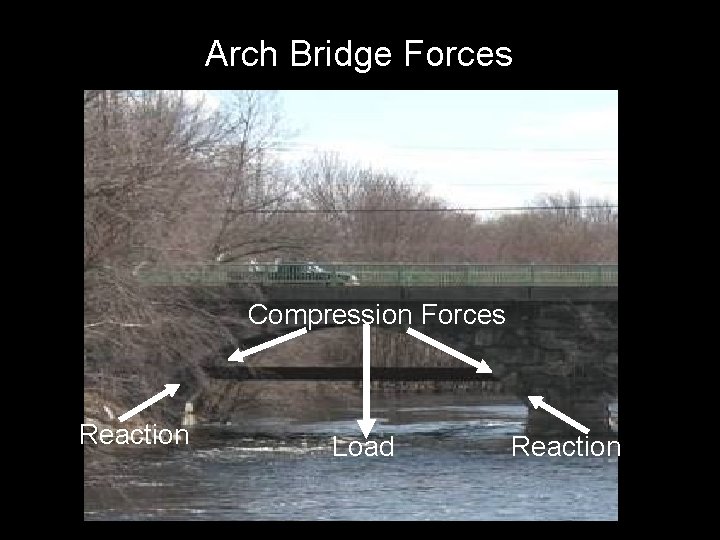

Arch Bridge Forces Compression Forces Reaction Load Reaction

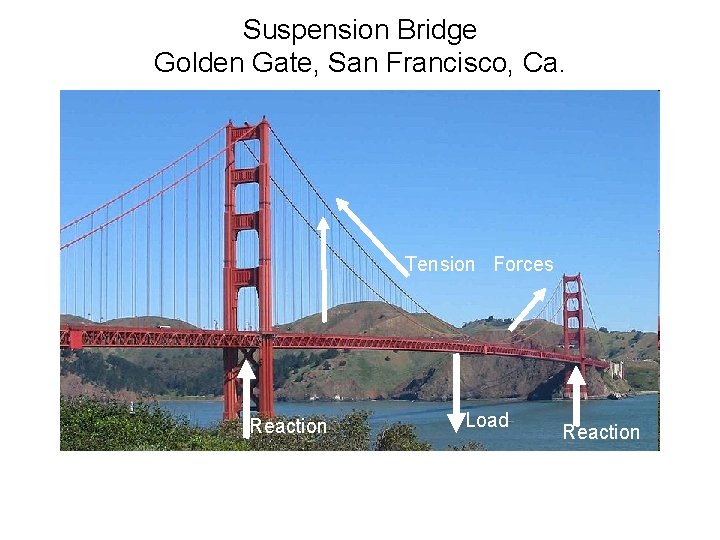

Suspension Bridge Golden Gate, San Francisco, Ca. Tension Forces Reaction Load Reaction

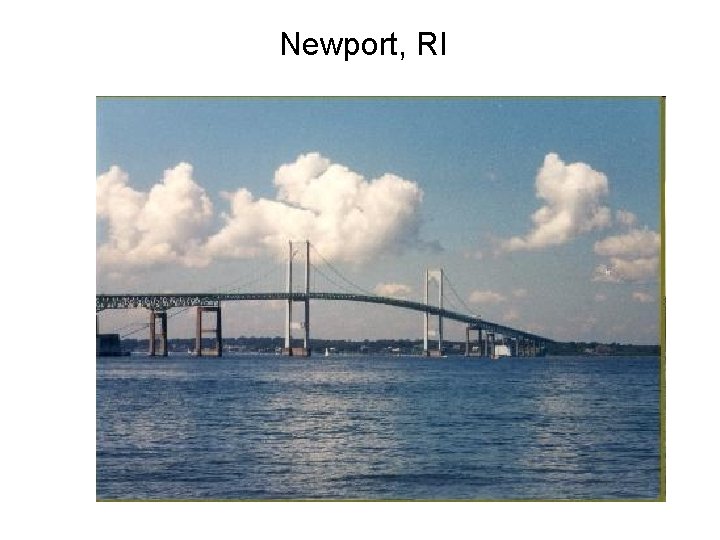

Newport, RI

Tyngsborough, Ma. Merrimack River

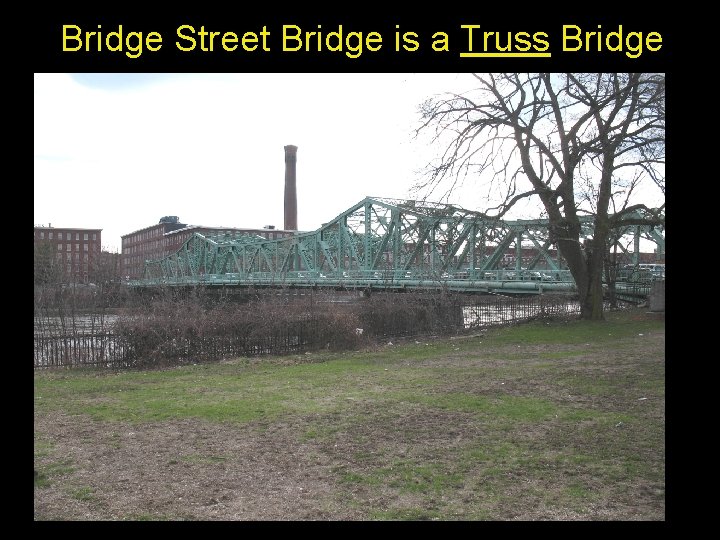

Bridge Street Bridge is a Truss Bridge

Bridge Street Bridge, Lowell, Ma Which geometric shape is most noticeable and why?

Triangle vs Rectangle Rigid Flexible (can change its shape)

University Ave Bridge, Lowell Ma Summer April 9, 2009

Paper Bridge Challenge Make a Bridge using 4 sheets of paper and a little tape
