BREAKSAFE PORTABLE LOAD BREAK LOAD PICKUP TOOL UTILITY

BREAK-SAFE™ PORTABLE LOAD BREAK & LOAD PICK-UP TOOL UTILITY SOLUTIONS, INC.

OVERVIEW • DIMENSIONS & RATINGS • SAFETY FEATURES • PORTABILITY • OPTIONS UTILITY SOLUTIONS, INC.

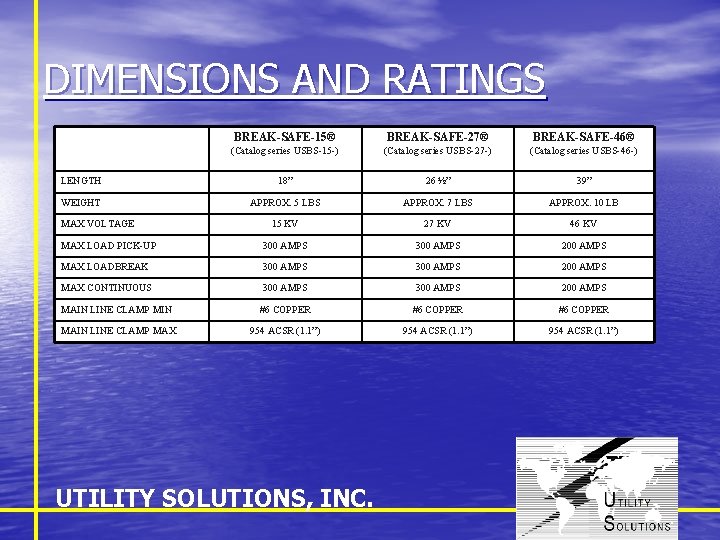

DIMENSIONS AND RATINGS BREAK-SAFE-15® BREAK-SAFE-27® BREAK-SAFE-46® (Catalog series USBS-15 -) (Catalog series USBS-27 -) (Catalog series USBS-46 -) LENGTH 18” 26 ½” 39” WEIGHT APPROX. 5 LBS APPROX. 7 LBS APPROX. 10 LB 15 KV 27 KV 46 KV MAX LOAD PICK-UP 300 AMPS 200 AMPS MAX LOADBREAK 300 AMPS 200 AMPS MAX CONTINUOUS 300 AMPS 200 AMPS MAIN LINE CLAMP MIN #6 COPPER MAIN LINE CLAMP MAX 954 ACSR (1. 1”) MAX VOLTAGE UTILITY SOLUTIONS, INC.

SAFETY FEATURES • VISIBLE GAP • SAFETY LOCK FEATURE • REMOTE HOT STICK OPERATION TO MAXIMIZE OPERATOR SAFETY DURING LOAD BREAK & PICK UP UTILITY SOLUTIONS, INC.

• VISIBLE OPEN GAP PREVENTS OPERATOR CONFUSION VISIBLE GAP SAFETY FEATURE • GIVES INSTANT RECOGNITION IF TOOL IS IN OPEN OR CLOSED POSITION UTILITY SOLUTIONS, INC.

VISIBLE GAP SAFETY FEATURE OPEN GAP CLOSED GAP UTILITY SOLUTIONS, INC.

SAFETY LOCKS • SAFETY PIN PROVIDES A POSITIVE LOCKING DEVICE TO PREVENT AN OPERATOR FROM INADVERTENTLY BREAKING OR PICKING UP LOAD UTILITY SOLUTIONS, INC.

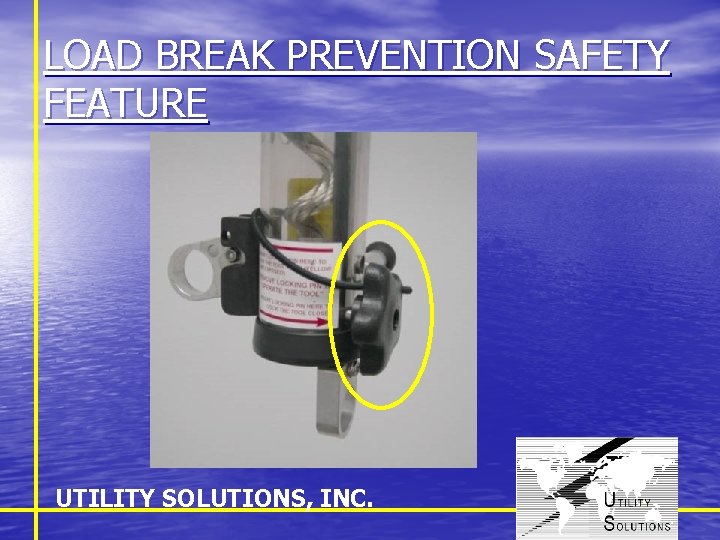

LOAD BREAK PREVENTION SAFETY FEATURE UTILITY SOLUTIONS, INC.

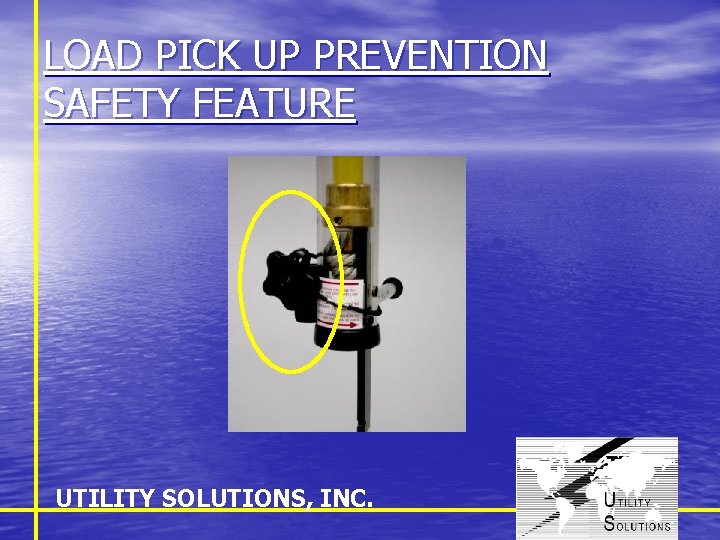

LOAD PICK UP PREVENTION SAFETY FEATURE UTILITY SOLUTIONS, INC.

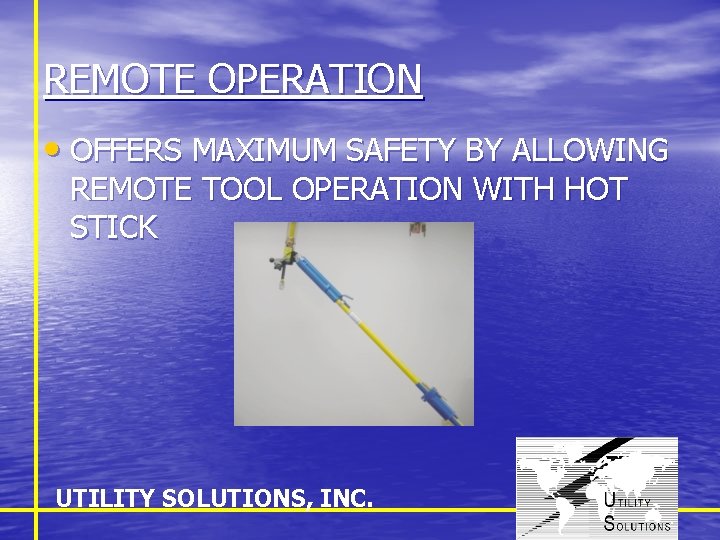

REMOTE OPERATION • OFFERS MAXIMUM SAFETY BY ALLOWING REMOTE TOOL OPERATION WITH HOT STICK UTILITY SOLUTIONS, INC.

PORTABILITY • PARKING STAND PROVIDED FOR UNSURPASSED PORTABILITY UTILITY SOLUTIONS, INC.

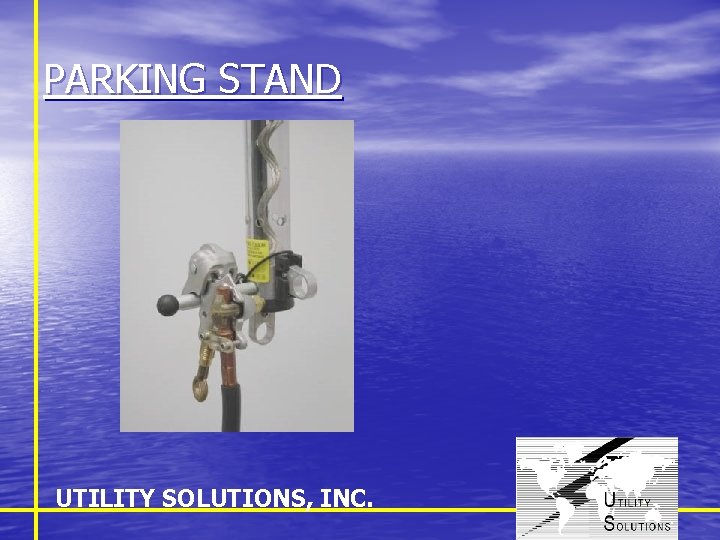

PARKING STAND UTILITY SOLUTIONS, INC.

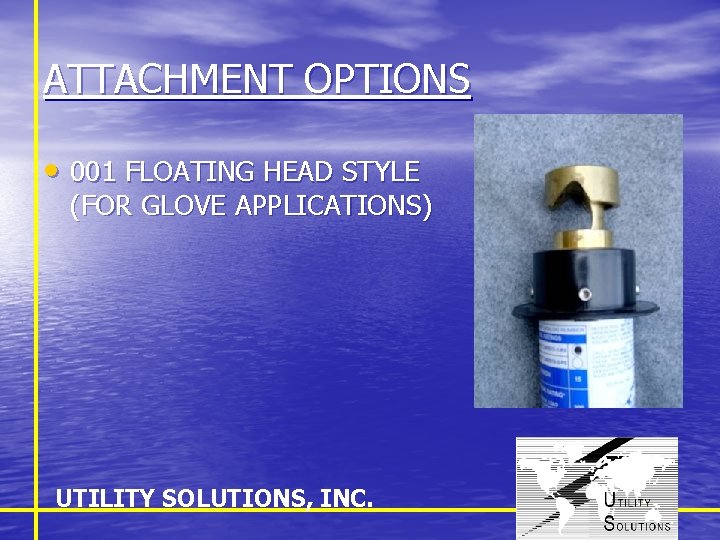

ATTACHMENT OPTIONS • 001 FLOATING HEAD STYLE (FOR GLOVE APPLICATIONS) UTILITY SOLUTIONS, INC.

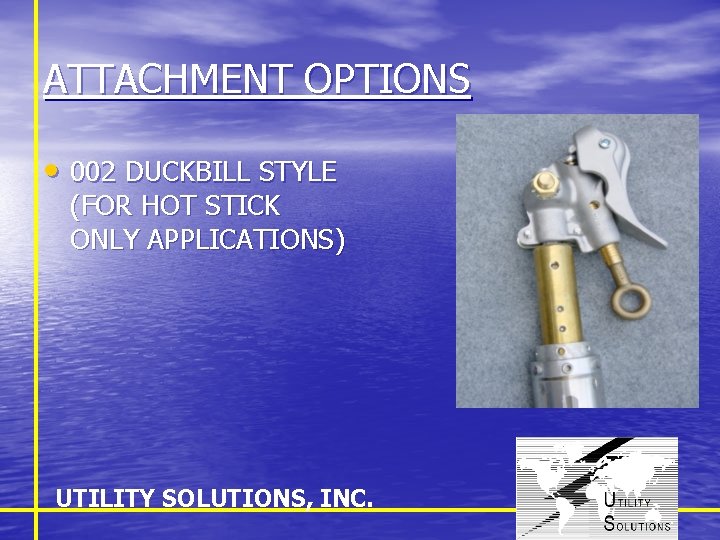

ATTACHMENT OPTIONS • 002 DUCKBILL STYLE (FOR HOT STICK ONLY APPLICATIONS) UTILITY SOLUTIONS, INC.

BREAK-SAFE™ PORTABLE LOAD BREAK & LOAD PICK-UP TOOL UTILITY SOLUTIONS, INC.
