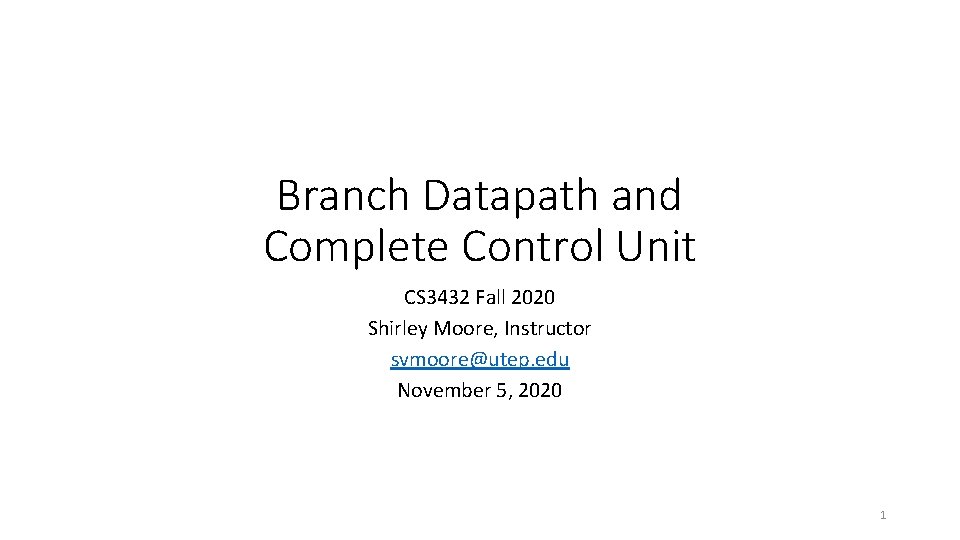

Branch Datapath and Complete Control Unit CS 3432 Fall 2020 Shirley Moore, Instructor svmoore@utep. edu November 5, 2020 1

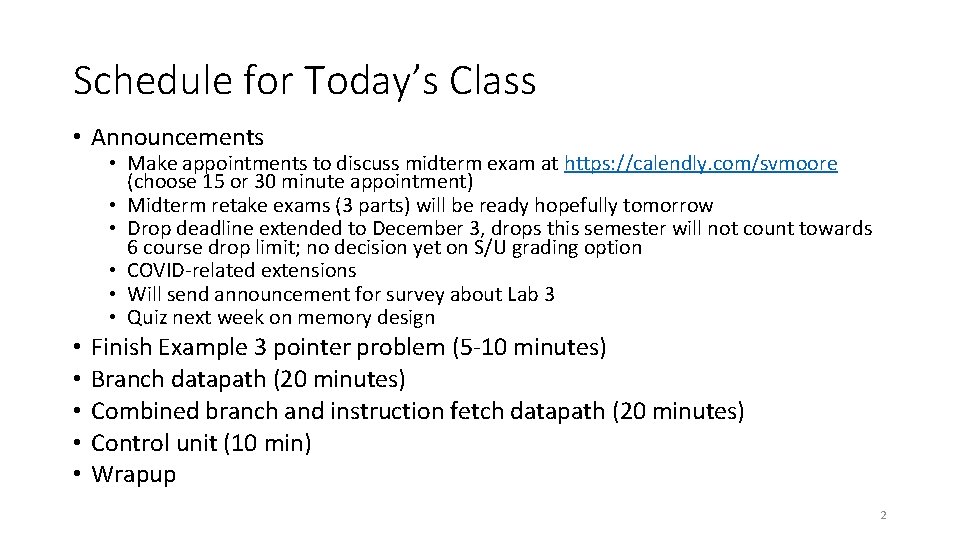

Schedule for Today’s Class • Announcements • Make appointments to discuss midterm exam at https: //calendly. com/svmoore (choose 15 or 30 minute appointment) • Midterm retake exams (3 parts) will be ready hopefully tomorrow • Drop deadline extended to December 3, drops this semester will not count towards 6 course drop limit; no decision yet on S/U grading option • COVID-related extensions • Will send announcement for survey about Lab 3 • Quiz next week on memory design • • • Finish Example 3 pointer problem (5 -10 minutes) Branch datapath (20 minutes) Combined branch and instruction fetch datapath (20 minutes) Control unit (10 min) Wrapup 2

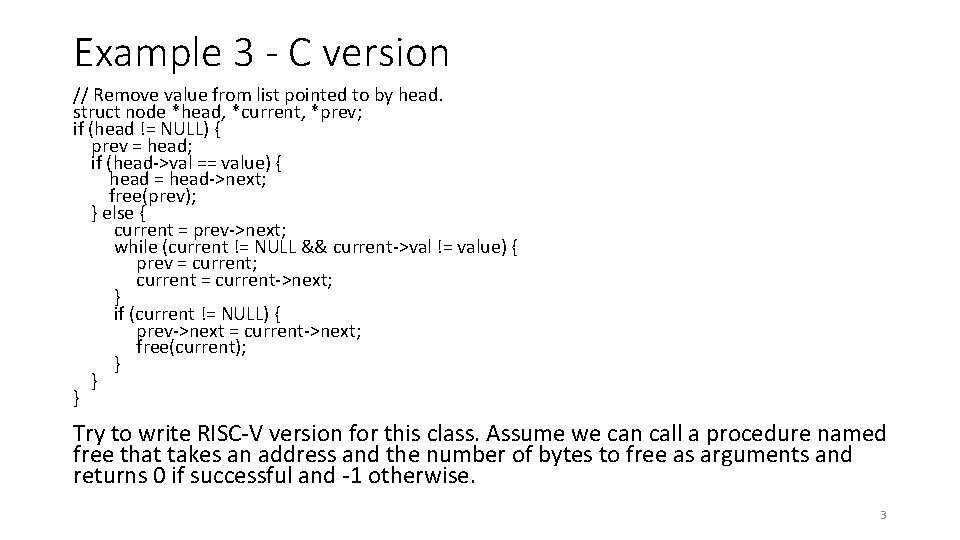

Example 3 - C version // Remove value from list pointed to by head. struct node *head, *current, *prev; if (head != NULL) { prev = head; if (head->val == value) { head = head->next; free(prev); } else { current = prev->next; while (current != NULL && current->val != value) { prev = current; current = current->next; } if (current != NULL) { prev->next = current->next; free(current); } } } Try to write RISC-V version for this class. Assume we can call a procedure named free that takes an address and the number of bytes to free as arguments and returns 0 if successful and -1 otherwise. 3

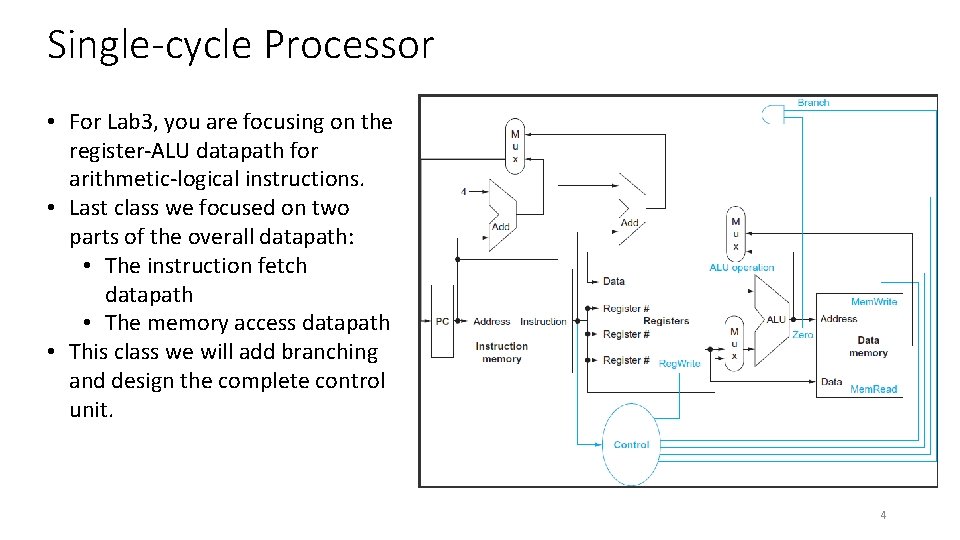

Single-cycle Processor • For Lab 3, you are focusing on the register-ALU datapath for arithmetic-logical instructions. • Last class we focused on two parts of the overall datapath: • The instruction fetch datapath • The memory access datapath • This class we will add branching and design the complete control unit. 4

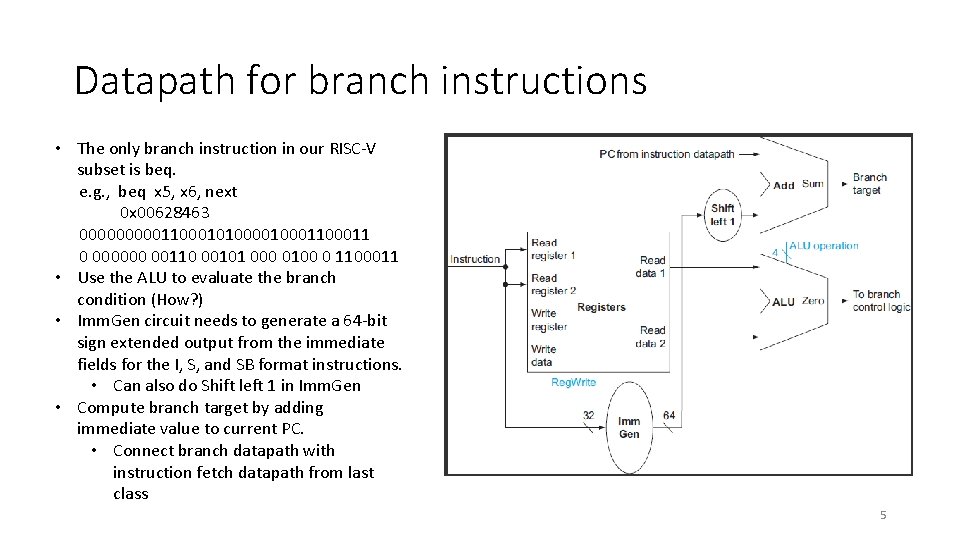

Datapath for branch instructions • The only branch instruction in our RISC-V subset is beq. e. g. , beq x 5, x 6, next 0 x 00628463 00000110001010001100011 0 000000 00110 00101 000 0100 0 1100011 • Use the ALU to evaluate the branch condition (How? ) • Imm. Gen circuit needs to generate a 64 -bit sign extended output from the immediate fields for the I, S, and SB format instructions. • Can also do Shift left 1 in Imm. Gen • Compute branch target by adding immediate value to current PC. • Connect branch datapath with instruction fetch datapath from last class 5

Recall instruction formats R format: add, sub, and, or I format: addi, andi, ori, ld S format: sd SB format: beq Why is the imm field split into parts in the S and SB formats? 6

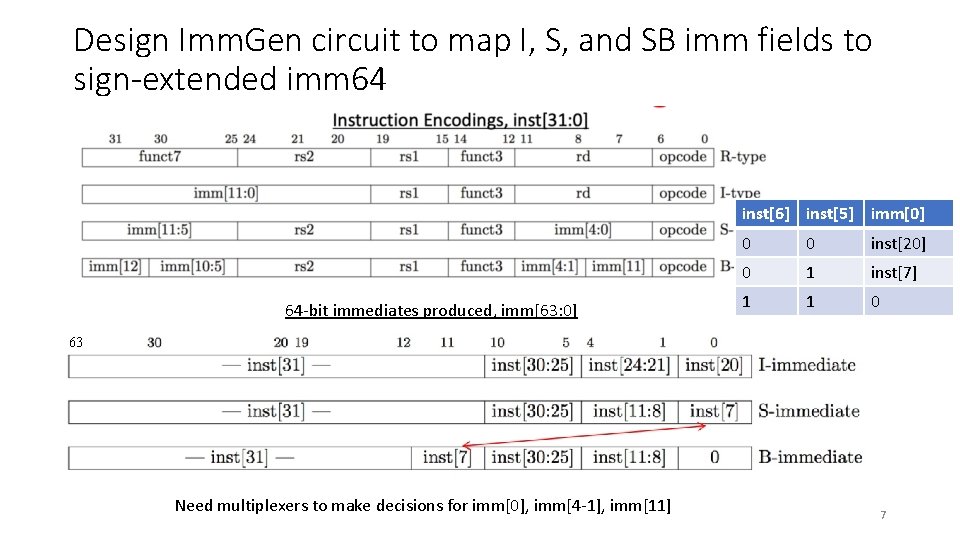

Design Imm. Gen circuit to map I, S, and SB imm fields to sign-extended imm 64 inst[6] inst[5] imm[0] 64 -bit immediates produced, imm[63: 0] 0 0 inst[20] 0 1 inst[7] 1 1 0 63 Need multiplexers to make decisions for imm[0], imm[4 -1], imm[11] 7

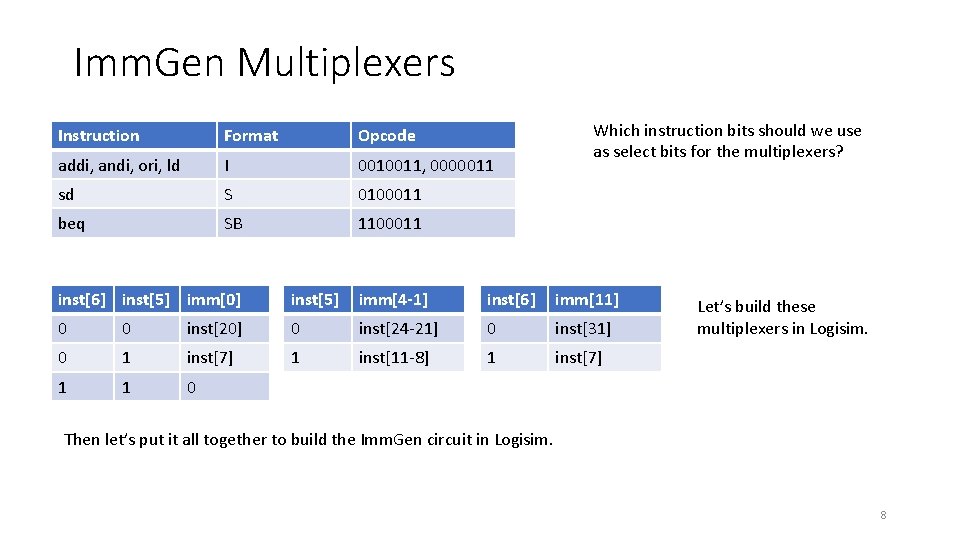

Imm. Gen Multiplexers Instruction Format Opcode addi, andi, ori, ld I 0010011, 0000011 sd S 0100011 beq SB 1100011 Which instruction bits should we use as select bits for the multiplexers? inst[6] inst[5] imm[0] inst[5] imm[4 -1] inst[6] imm[11] 0 0 inst[20] 0 inst[24 -21] 0 inst[31] 0 1 inst[7] 1 inst[11 -8] 1 inst[7] 1 1 0 Let’s build these multiplexers in Logisim. Then let’s put it all together to build the Imm. Gen circuit in Logisim. 8

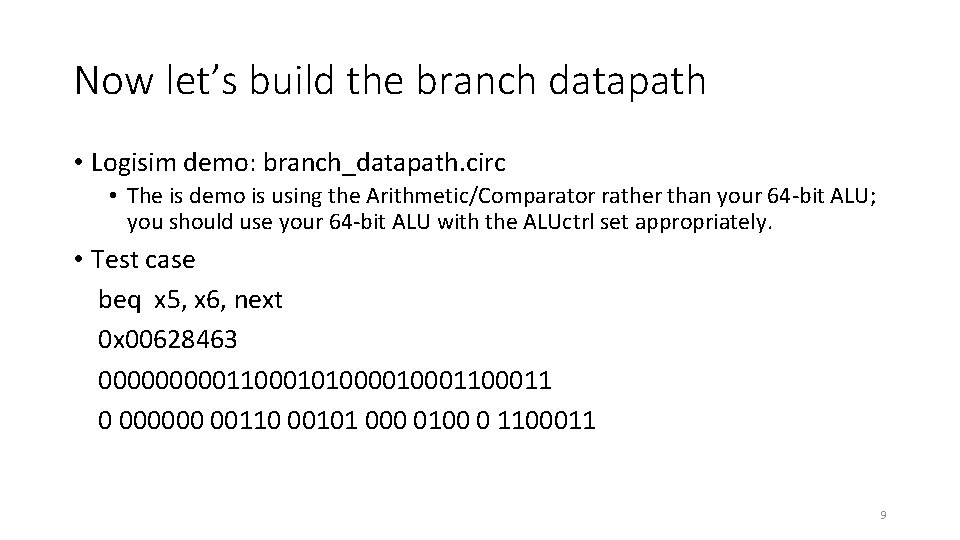

Now let’s build the branch datapath • Logisim demo: branch_datapath. circ • The is demo is using the Arithmetic/Comparator rather than your 64 -bit ALU; you should use your 64 -bit ALU with the ALUctrl set appropriately. • Test case beq x 5, x 6, next 0 x 00628463 00000110001010001100011 0 000000 00110 00101 000 0100 0 1100011 9

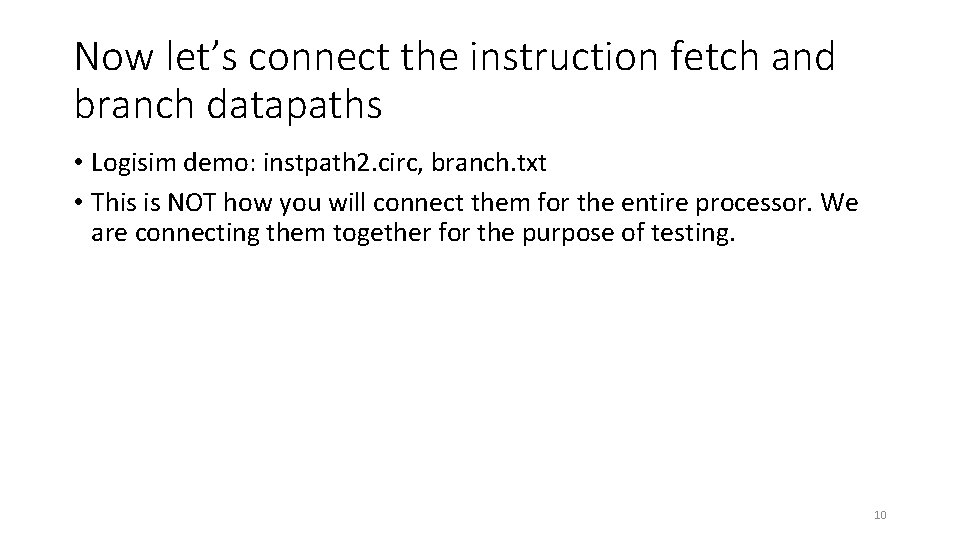

Now let’s connect the instruction fetch and branch datapaths • Logisim demo: instpath 2. circ, branch. txt • This is NOT how you will connect them for the entire processor. We are connecting them together for the purpose of testing. 10

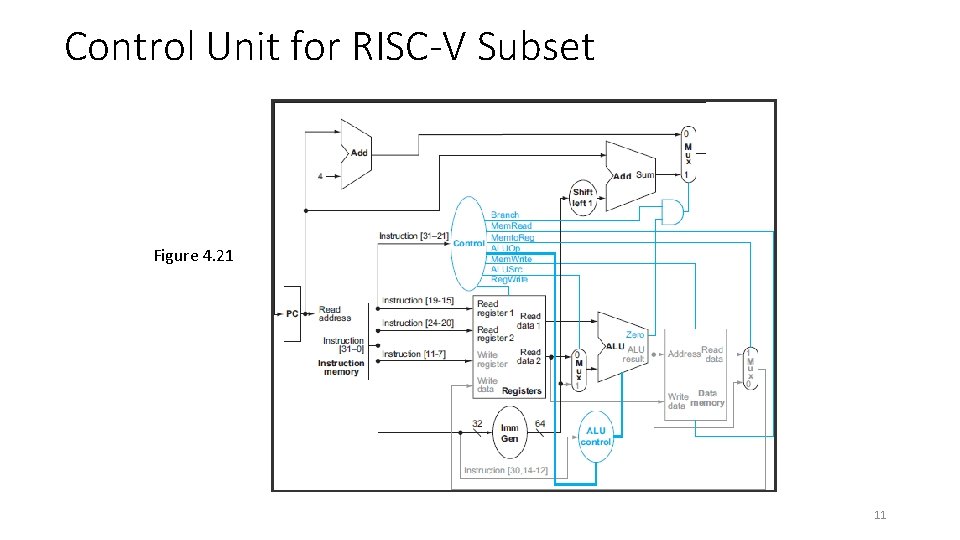

Control Unit for RISC-V Subset Figure 4. 21 11

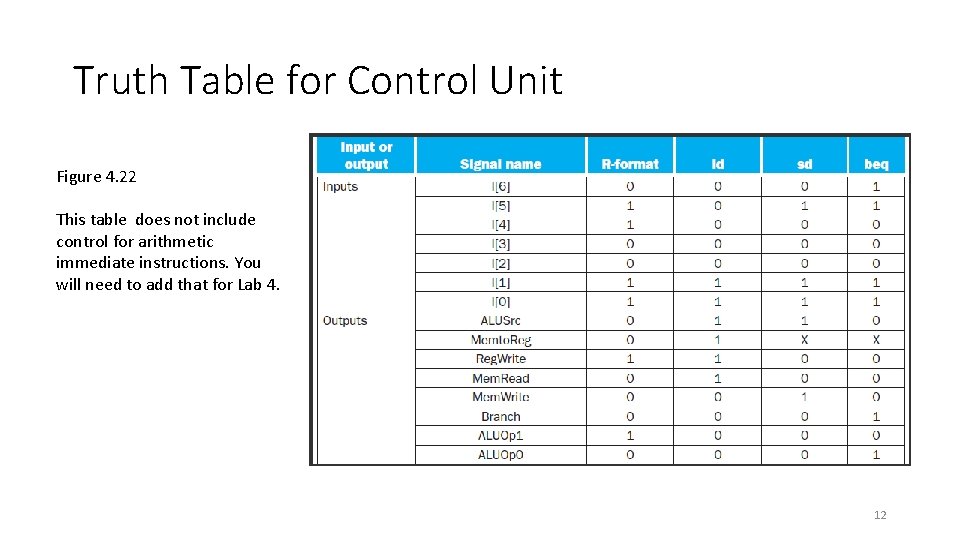

Truth Table for Control Unit Figure 4. 22 This table does not include control for arithmetic immediate instructions. You will need to add that for Lab 4. 12
