Brain Parenchyma Cerebrum frontal lobe temporal lobe parietal

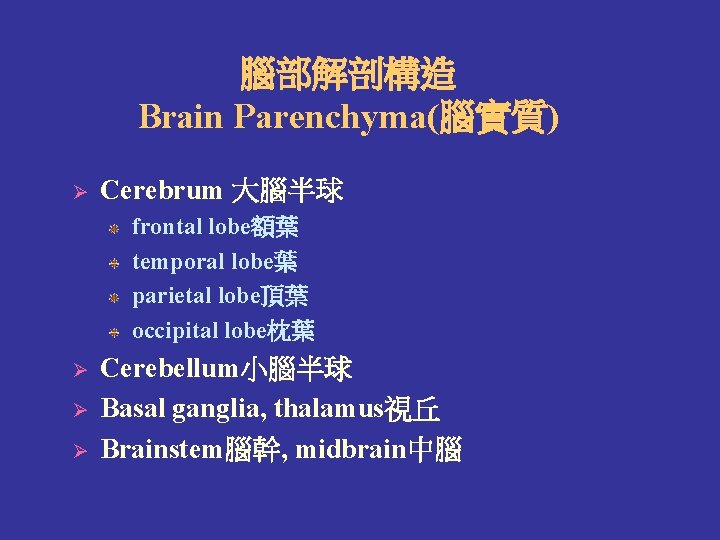

腦部解剖構造 Brain Parenchyma(腦實質) Ø Cerebrum 大腦半球 frontal lobe額葉 temporal lobe葉 parietal lobe頂葉 occipital lobe枕葉 Ø Ø Ø Cerebellum小腦半球 Basal ganglia, thalamus視丘 Brainstem腦幹, midbrain中腦

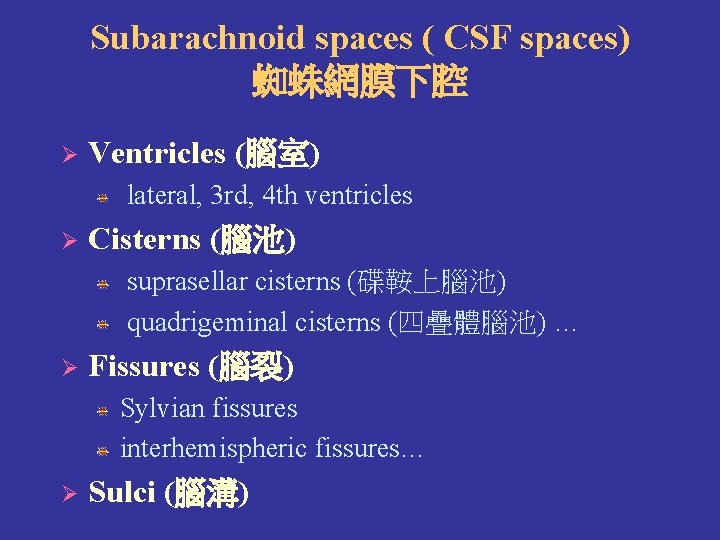

Subarachnoid spaces ( CSF spaces) 蜘蛛網膜下腔 Ø Ventricles (腦室) lateral, 3 rd, 4 th ventricles Ø Cisterns (腦池) suprasellar cisterns (碟鞍上腦池) quadrigeminal cisterns (四疊體腦池) … Ø Fissures (腦裂) Sylvian fissures interhemispheric fissures… Ø Sulci (腦溝)

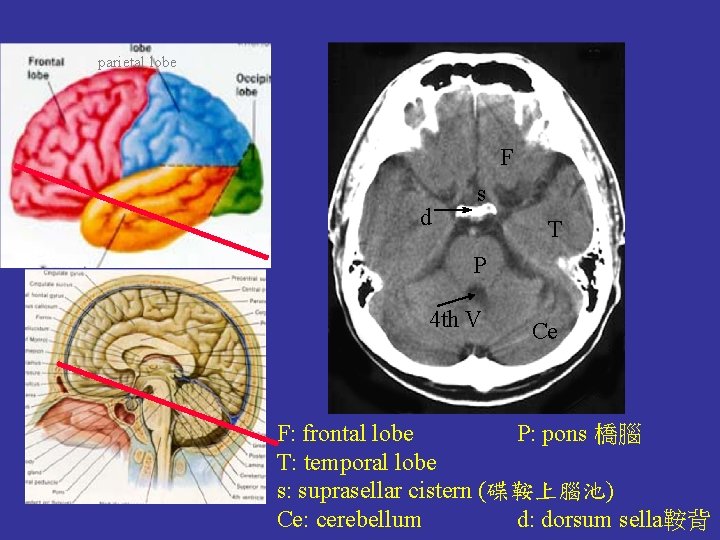

parietal lobe F d s T P 4 th V Ce F: frontal lobe P: pons 橋腦 T: temporal lobe s: suprasellar cistern (碟鞍上腦池) Ce: cerebellum d: dorsum sella鞍背

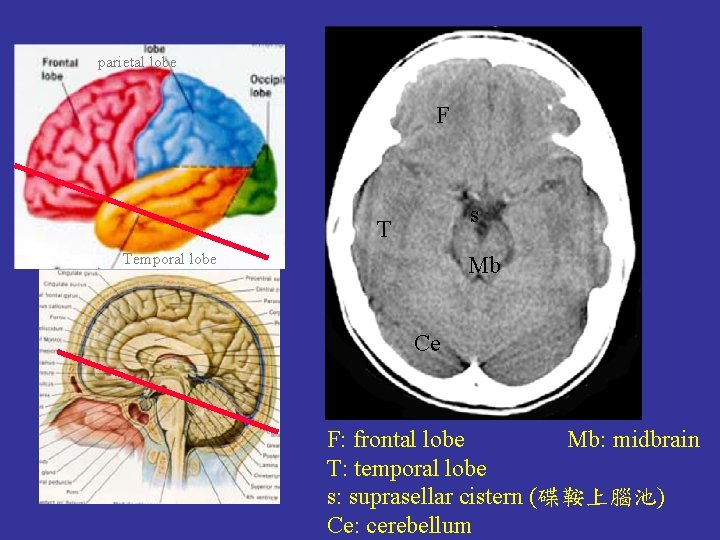

parietal lobe F s T Temporal lobe Mb Ce F: frontal lobe Mb: midbrain T: temporal lobe s: suprasellar cistern (碟鞍上腦池) Ce: cerebellum

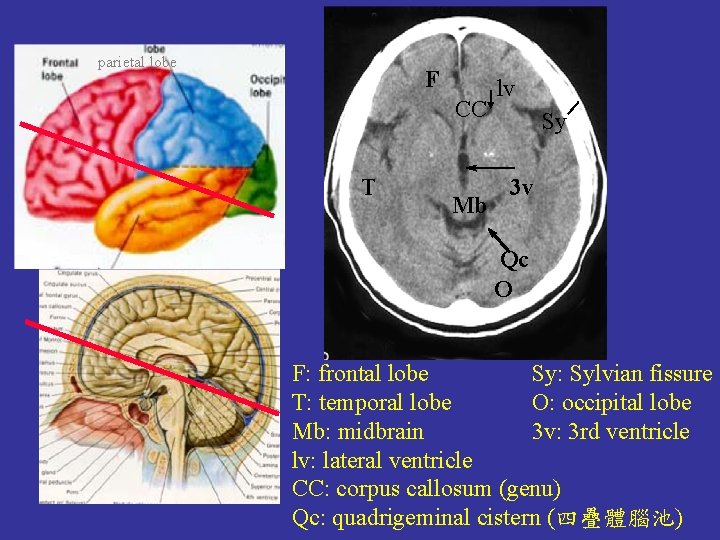

parietal lobe F CC T Mb lv Sy 3 v Qc O F: frontal lobe Sy: Sylvian fissure T: temporal lobe O: occipital lobe Mb: midbrain 3 v: 3 rd ventricle lv: lateral ventricle CC: corpus callosum (genu) Qc: quadrigeminal cistern (四疊體腦池)

parietal lobe F CC s lv Sp P s O F: frontal lobe P: parietal lobe O: occipital lobe s: sulcus CC: corpus callosum Sp: splenium of CC lv: lateral ventricle

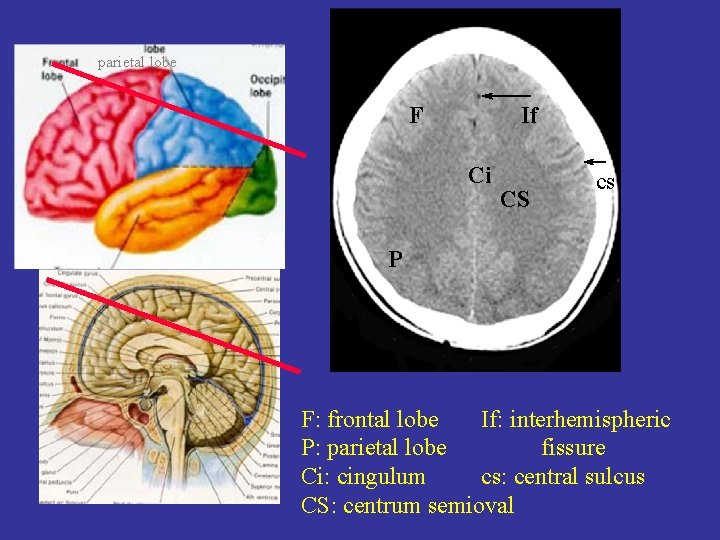

parietal lobe F If Ci CS cs P F: frontal lobe If: interhemispheric P: parietal lobe fissure Ci: cingulum cs: central sulcus CS: centrum semioval

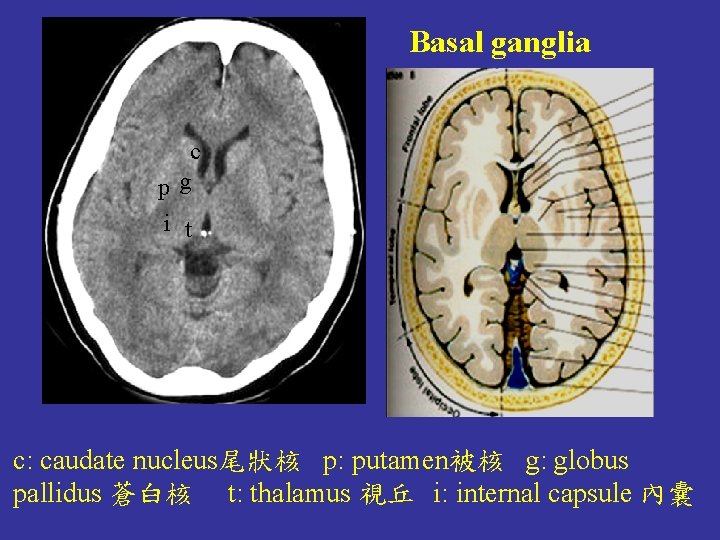

Basal ganglia c pg i t c: caudate nucleus尾狀核 p: putamen被核 g: globus pallidus 蒼白核 t: thalamus 視丘 i: internal capsule 內囊

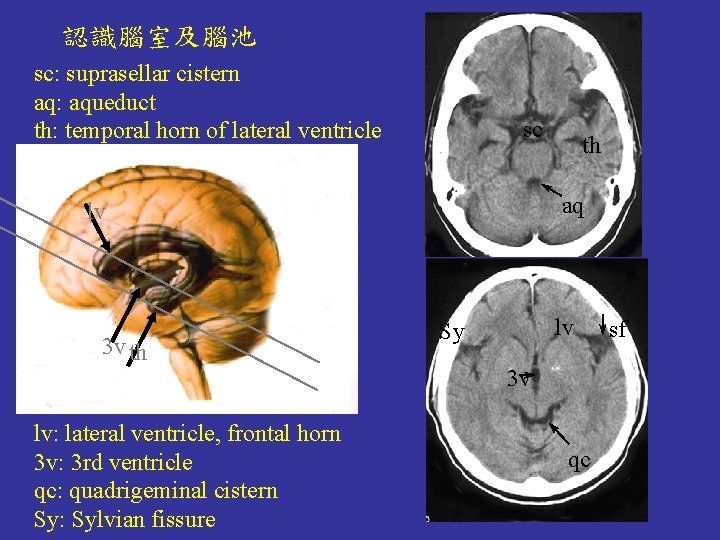

認識腦室及腦池 sc: suprasellar cistern aq: aqueduct th: temporal horn of lateral ventricle sc aq lv 3 v th lv: lateral ventricle, frontal horn 3 v: 3 rd ventricle qc: quadrigeminal cistern Sy: Sylvian fissure th lv Sy 3 v qc sf
