Brain Death Anatomy and Physiology Joel S Cohen

Brain Death Anatomy and Physiology Joel S. Cohen, M. D. Associate Professor of Clinical Neurology Albert Einstein College of Medicine

Historical Perspective Prior to the advent of mechanical respiration, death was defined as the cessation of circulation and breathing

Historical Perspective n n 1959 Coma de’passe’ Mollaret and Goulon 1968 Irreversible Coma/Brain Death Harvard Medical School Ad Hoc Committee n 1981 Uniform Determination of Death Act - President’s Commission for the Study of Ethical Problems in Medicine n 1994 American Academy of Neurology Guidelines for the determination of Brain Death n 2005 NYS Guidelines for Determining Brain Death

Brain Death Current Consensus n Absent Cerebral Function n Absent Brainstem Function n Apnea

Normal Brain Anatomy

Normal Brain Anatomy Cerebral Cortex Brain Stem Reticular Activating System

Cerebral Cortex n n n Cognition Voluntary Movement Sensation

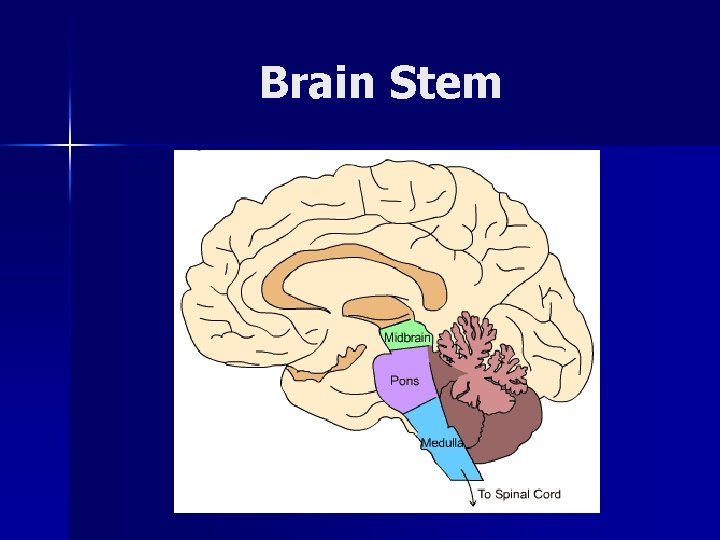

Brain Stem

Brain Stem Midbrain Cranial Nerve III n pupillary function n eye movement

Brain Stem Pons Cranial Nerves IV, V, VI n conjugate eye movement n corneal reflex

Brain Stem Medulla Cranial Nerves IX, X n Pharyngeal (Gag) Reflex n Tracheal (Cough) Reflex Respiration

Reticular Activating System n Receives multiple sensory inputs n Mediates wakefulness

Causes of Brain Death Normal Cerebral Anoxia

Causes of Brain Death Normal Cerebral Hemorrhage

Causes of Brain Death Normal Subarachnoid Hemorrhage

Causes of Brain Death Normal Trauma

Causes of Brain Death Normal Meningitis

Mechanism of Cerebral Death Neuronal Swelling Neuronal Injury ICP>MAP is incompatible with life Decreased Intracranial Blood Flow Increased Intracranial Pressure

Conditions Distinct From Brain Death n Persistent Vegetative State n Locked-in Syndrome n Minimally Responsive State

Persistent Vegetative State n Normal Sleep-Wake Cycles n No Response to Environmental Stimuli n Diffuse Brain Injury with Preservation of Brain Stem Function

Locked-in Syndrome Ventral Pontine Infarct n Complete Paralysis n Preserved Consciousness n Preserved Eye Movement

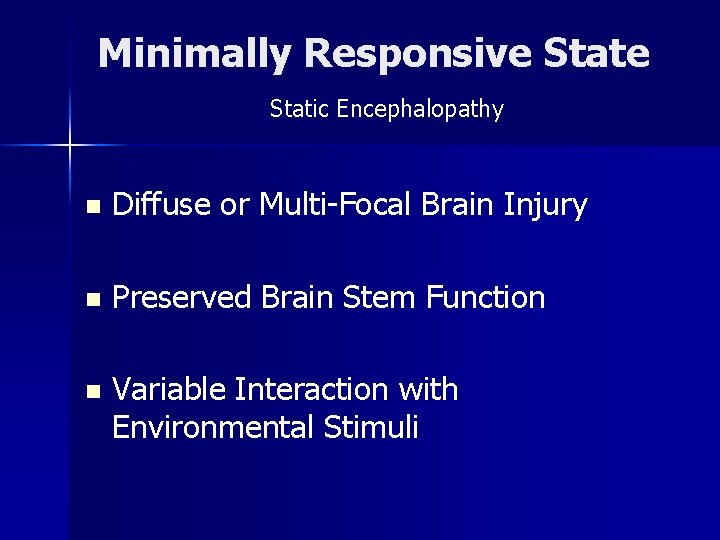

Minimally Responsive Static Encephalopathy n Diffuse or Multi-Focal Brain Injury n Preserved Brain Stem Function n Variable Interaction with Environmental Stimuli

Brain Death Neurological Examination Clinical Prerequisites: n Known Irreversible Cause n Exclusion of Potentially Reversible Conditions n Drug Intoxication or Poisoning n Electrolyte or Acid-Base Imbalance n Endocrine Disturbances n Core Body temperature > 32° C

Brain Death Neurological Examination n Coma n Absent Brain Stem Reflexes n Apnea

Coma No Response to Noxious Stimuli n Nail Bed Pressure n Sternal Rub n Supra-Orbital Ridge Pressure

Absence of Brain Stem Reflexes n Pupillary Reflex n Eye Movements n Facial Sensation and Motor Response n Pharyngeal (Gag) Reflex n Tracheal (Cough) Reflex

Pupillary Reflex Pupils dilated with no constriction to bright light

Eye Movements Occulo-Cephalic Response “Doll’s Eyes Maneuver”

Eye Movements Oculo-Vestibular Response “Cold Caloric Testing”

Facial Sensation and Motor Response n Corneal Reflex n Jaw Reflex Grimace to Supraorbital or Temporo-Mandibular Pressure n

Apnea Testing Prerequisites n Core Body Temperature > 32° C n Systolic Blood Pressure ≥ 90 mm Hg n Normal Electrolytes n Normal PCO 2

Apnea Testing 1. Pre-Oxygenation n 100% Oxygen via Tracheal Cannula n PO 2 = 200 mm Hg 2. Monitor PCO 2 and PO 2 with pulse oximetry 3. Disconnect Ventilator 4. Observe for Respiratory Movement until PCO 2 = 60 mm Hg 5. Discontinue Testing if BP < 90, PO 2 saturation decreases, or cardiac dysrhythmia observed

Confounding Clinical Conditions n Facial Trauma n Pupillary Abnormalities n CNS Sedatives or Neuromuscular Blockers n Hepatic Failure n Pulmonary Disease

Observations Compatible with Brain Death n Sweating, Blushing n Deep Tendon Reflexes n Spontaneous Spinal Reflexes- Triple Flexion n Babinski Sign

Confirmatory Testing Recommended when the proximate cause of coma is not known or when confounding clinical conditions limit the clinical examination

Confirmatory Testing EEG Normal Electrocerebral Silence

Confirmatory Testing Cerebral Angiography Normal No Intracranial Flow

Confirmatory Testing Technetium-99 Isotope Brain Scan

Confirmatory Testing MR- Angiography

Confirmatory Testing Transcranial Ultrasonography

Confirmatory Testing Somatosensory Evoked Potentials

Concern for man and his fate must always form the chief interest of all technical endeavors. Never forget this in the midst of your diagrams and equations. Albert Einstein
