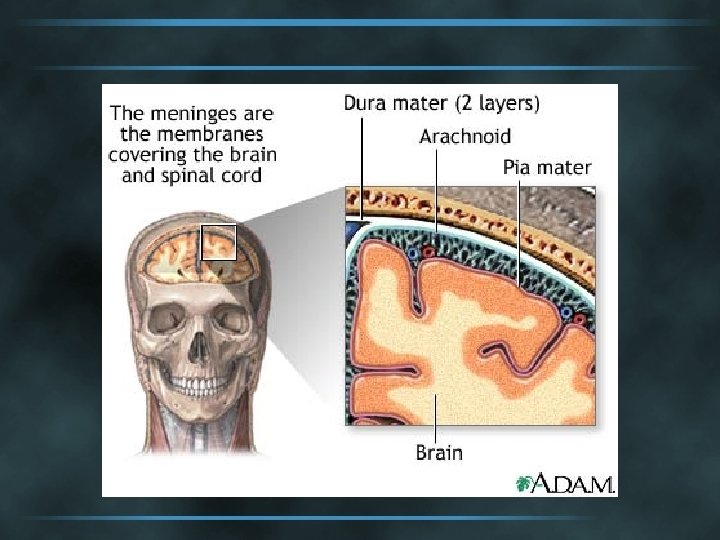

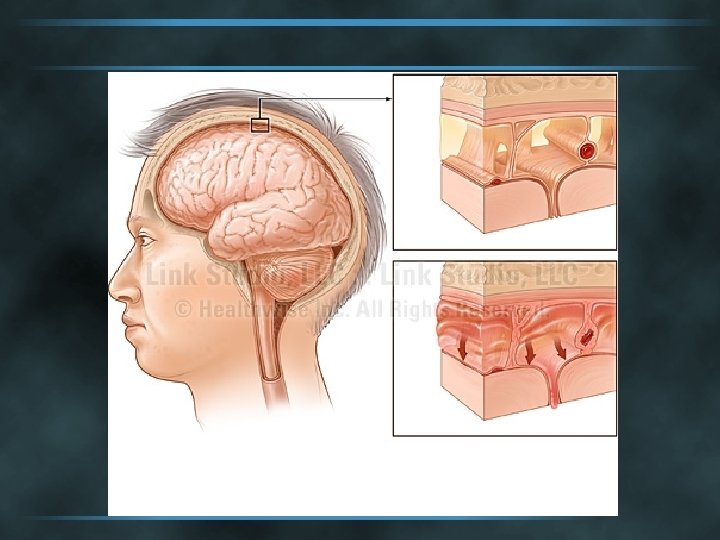

Brain Meninges • 3 layer system of membranes which envelops the central nervous system. • Layers are: – Dura mater – Arachnoid mater – Pia mater

Cisterns • Cisterns are openings in the subarachnoid space of the brain created by a separation of the arachnoid and pia mater. These spaces are filled with CSF.

Brain Cisterns There are many cisterns in the brain, but the notable ones include: • • • Cisterna magna (cerebellomedullary). Cisterna pontis (pontine cistern). Interpeduncular cistern. Quadrigeminal cistern (superior cistern). Ambient cistern. Cistern of the velum interpositum. Suprasellar/Chiasmatic cistern. Cistern of lamina terminalis. Supracallosal cistern. Sylvian cistern.

Brain Cisterns

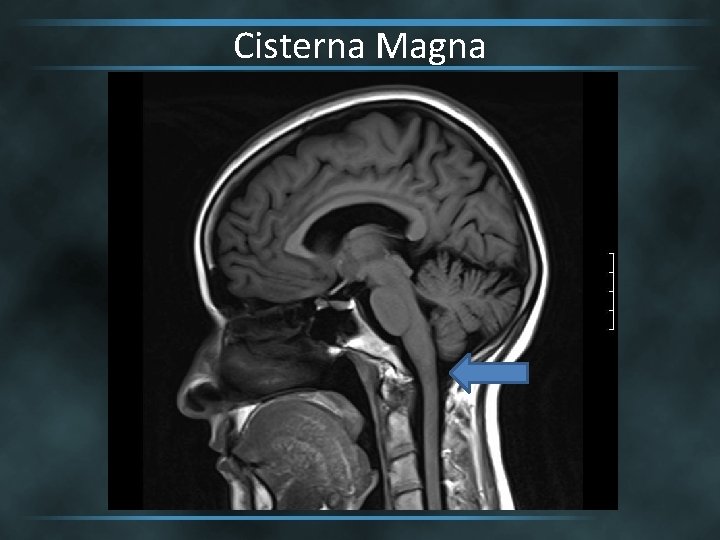

Cisterna Magna • Lies behind the medulla and below the cerebellar hemispheres. • Continuos with 4 th ventricle through median aperture of Magendie. • Its lateral part contains the vertebral artery and its posterior inferior cerebellar branch.

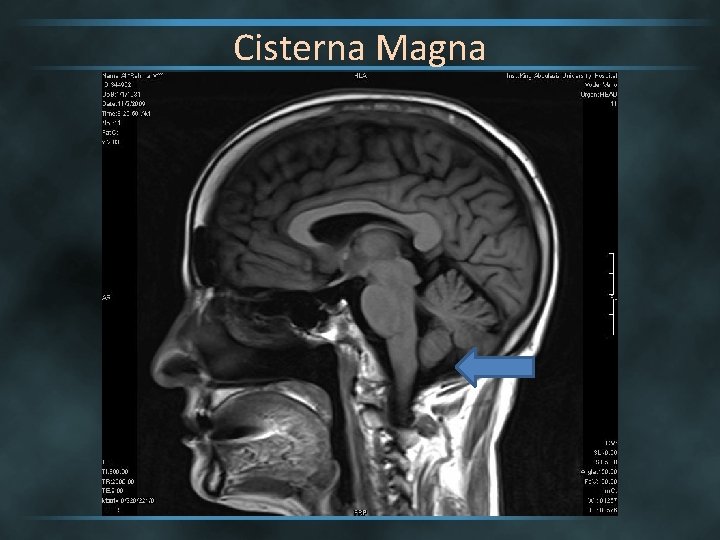

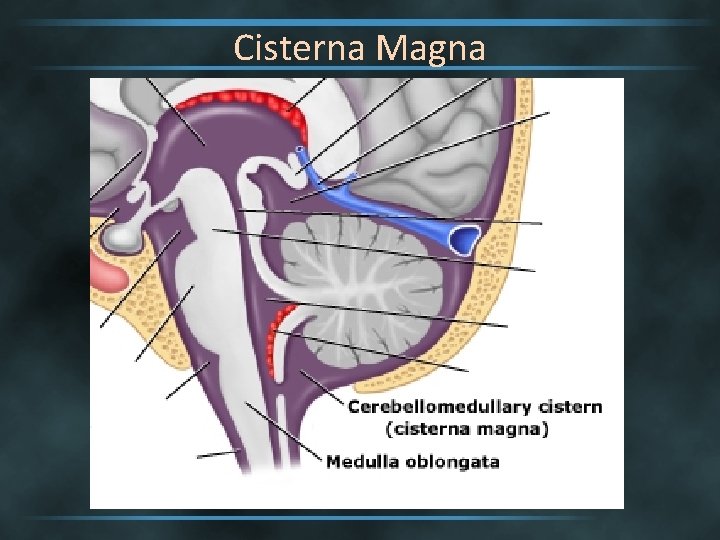

Cisterna Magna

Pontine Cistern • Lies between the pons and the clivus. • Receives CSF from lateral apertures of 4 th ventricle (Luschka). • Continuous above with the interpeduncular cistern. • It contains the basilar artery and its pontine and labyrinthine branches.

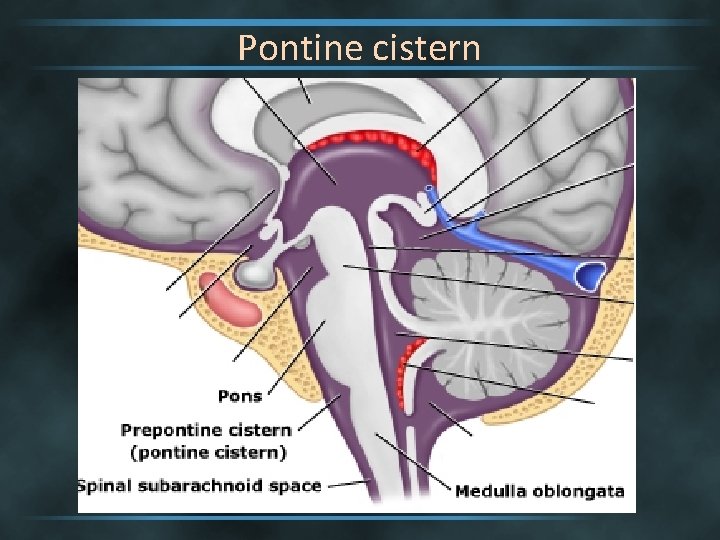

Pontine cistern

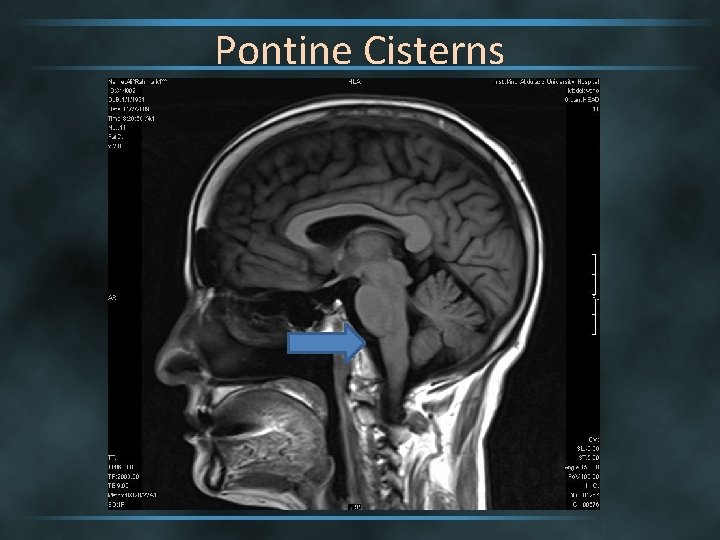

Pontine Cisterns

Pontine Cistern

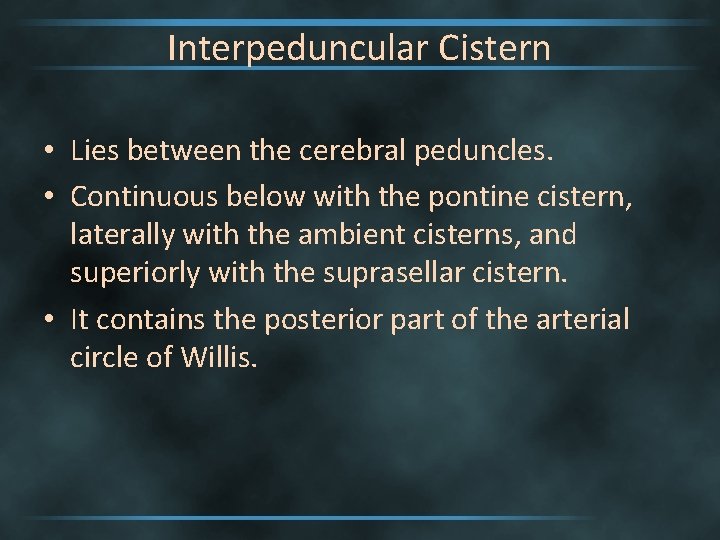

Interpeduncular Cistern • Lies between the cerebral peduncles. • Continuous below with the pontine cistern, laterally with the ambient cisterns, and superiorly with the suprasellar cistern. • It contains the posterior part of the arterial circle of Willis.

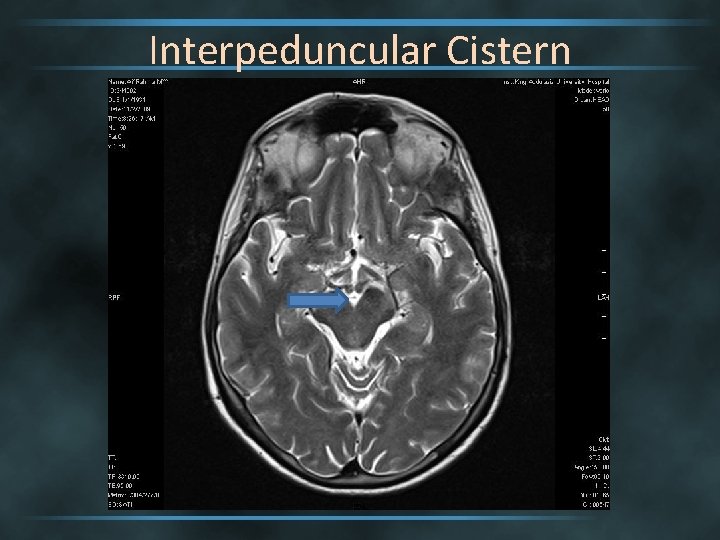

Interpeduncular Cistern

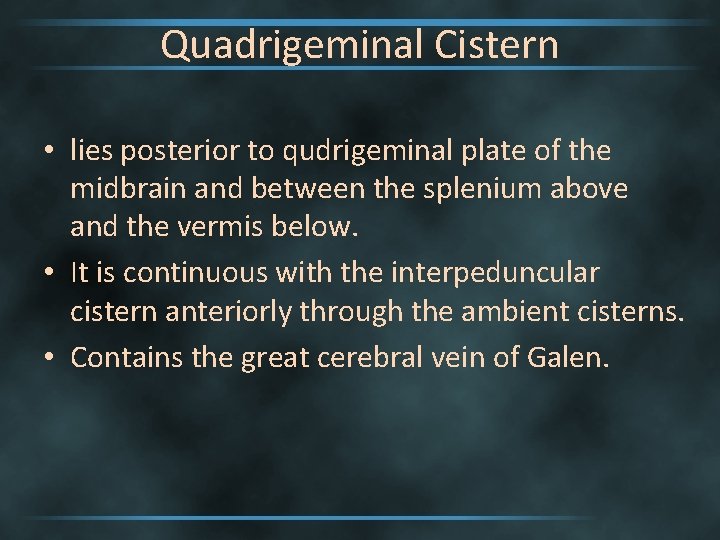

Quadrigeminal Cistern • lies posterior to qudrigeminal plate of the midbrain and between the splenium above and the vermis below. • It is continuous with the interpeduncular cistern anteriorly through the ambient cisterns. • Contains the great cerebral vein of Galen.

Quadrigeminal Cistern

Ambient Cistern • sheet like cistern that extend around both sides of midbrain between the interpeduncular cistern anteriorly and the qudrigeminal cistern posteriorly. • the posterior cerebral artery and the basal vein lie in the anterior part of each ambient cistern.

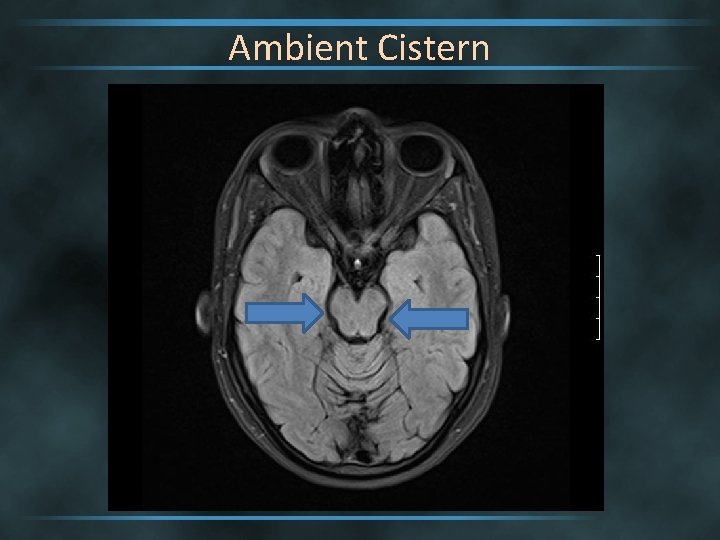

Ambient Cistern

Suprasellar / Chiasmatic Cisterns • Suprasellar cistern lies above the pituitary fossa and is continuous posteriorly with the interpeduncular cistern and laterally with the sylvian cistern. • It contains the anterior part of the circle of Willis and the optic nerve as it passes to the chiasm. • Chiasmatic cistern is the part of suprasellar cistern that is anterior to the optic nerve.

Suprasellar / Chiasmatic Cisterns

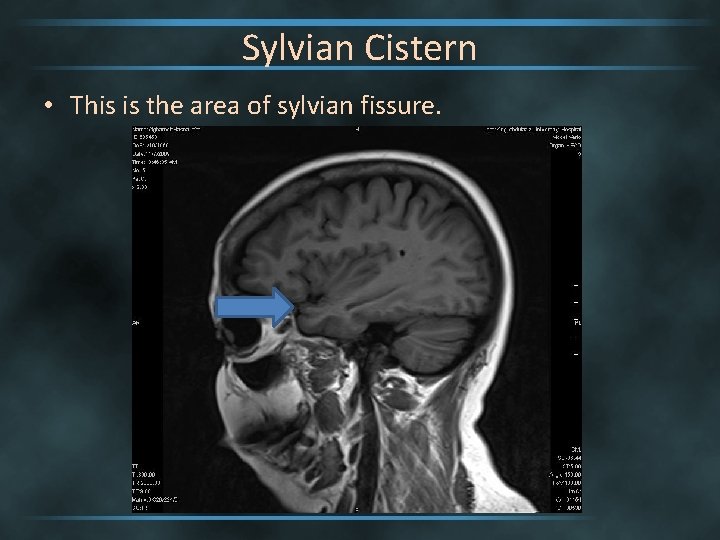

Sylvian Cistern • This is the area of sylvian fissure.

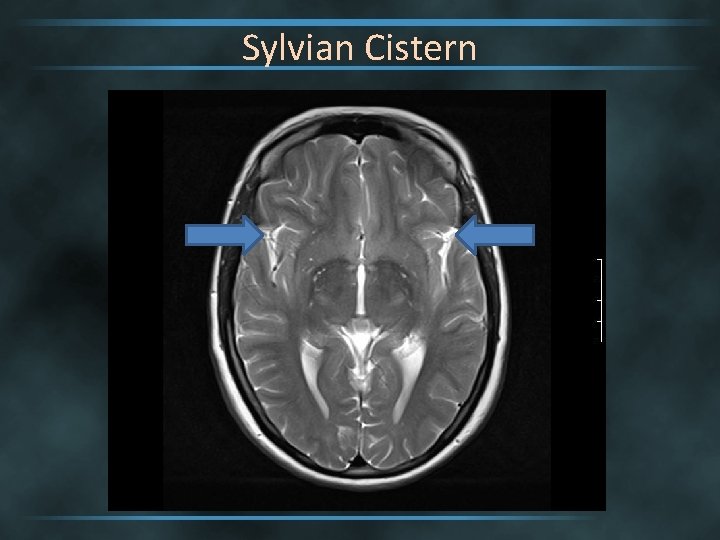

Sylvian Cistern

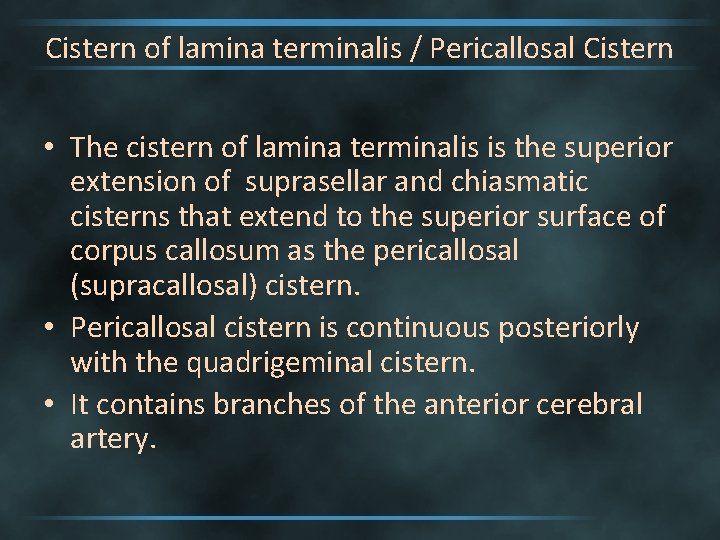

Cistern of lamina terminalis / Pericallosal Cistern • The cistern of lamina terminalis is the superior extension of suprasellar and chiasmatic cisterns that extend to the superior surface of corpus callosum as the pericallosal (supracallosal) cistern. • Pericallosal cistern is continuous posteriorly with the quadrigeminal cistern. • It contains branches of the anterior cerebral artery.

Cistern of lamina terminalis / Pericallosal Cistern
