ELECTRONIC TAPE FEEDER (Tape and Reel Input) BPM Microsystems Training Course # TAPF-001 Rev. A

Teaching Method of the Course • Covers the fundamentals – More details in BPWin Help • Step by Step – Broken down to steps – Start with Installation – Continue through complete operation • Examples – Photos – Diagrams • Self taught or a taught course. • When complete, trainee should be able to install and operate the Tape Feeder.

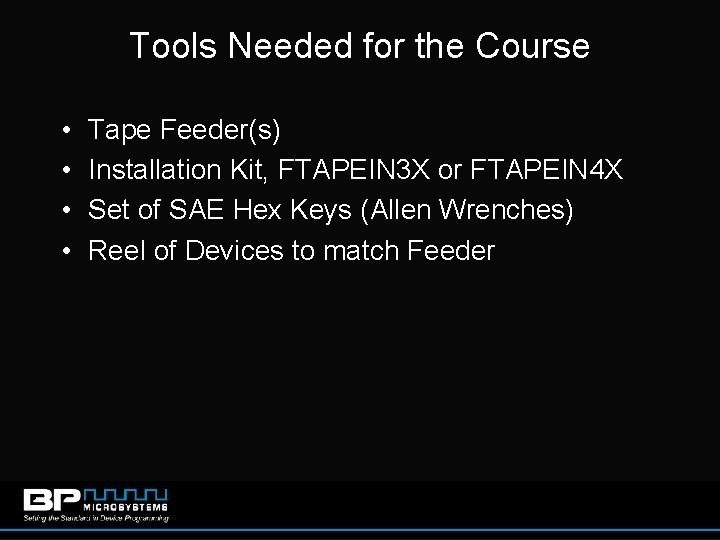

Tools Needed for the Course • • Tape Feeder(s) Installation Kit, FTAPEIN 3 X or FTAPEIN 4 X Set of SAE Hex Keys (Allen Wrenches) Reel of Devices to match Feeder

Tape Feeder Training Chapters 1. 2. 3. 4. 5. 6. 7. 8. Identification of parts Installing and removing individual Feeders Loading and Unloading the Tape Feeder Programming the Tape Feeder Teaching the Tape Feeder Clearing Jams Tape Feeder Maintenance Installing the Tape Feeder Option

Chapter 1 Identification of Parts Training Seminar # TAPF-001 Revision A

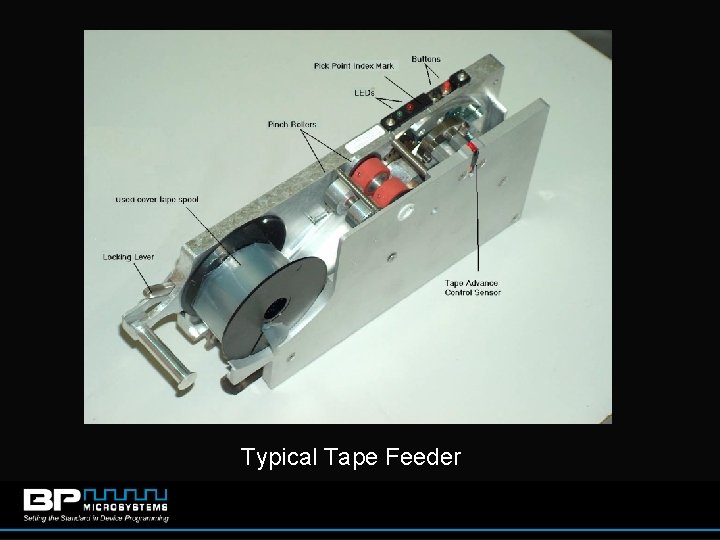

Typical Tape Feeder

Tape Feeder Sizes Part Number FQUAFDR 008 FQUAFDR 012 FQUAFDR 016 FQUAFDR 024 FQUAFDR 032 FQUAFDR 044 FQUAFDR 056 Size 8 mm 12 mm 16 mm 24 mm 32 mm 44 mm 56 mm Size refers to the width of the carrier tape that the Tape Feeder can handle.

Tape Feeder Power Base

Chapter 2 Installing and Removing Individual Tape Feeders Training Seminar # TAPF-001 Revision A

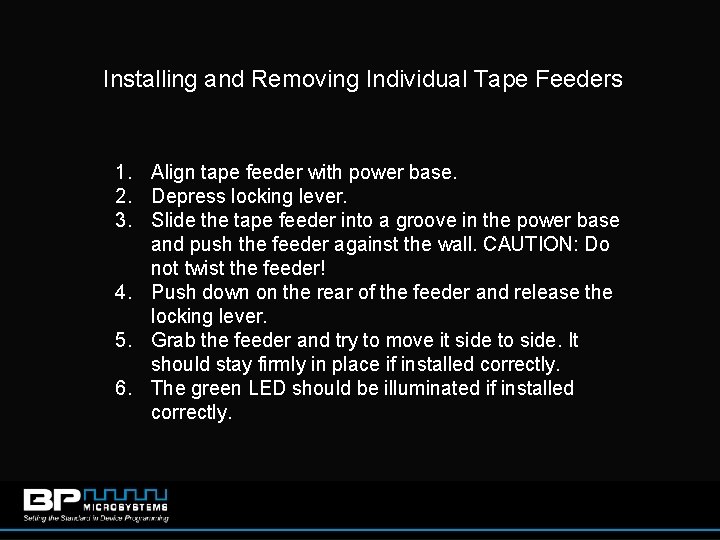

Installing and Removing Individual Tape Feeders 1. Align tape feeder with power base. 2. Depress locking lever. 3. Slide the tape feeder into a groove in the power base and push the feeder against the wall. CAUTION: Do not twist the feeder! 4. Push down on the rear of the feeder and release the locking lever. 5. Grab the feeder and try to move it side to side. It should stay firmly in place if installed correctly. 6. The green LED should be illuminated if installed correctly.

Chapter 3 Loading and Unloading Tape Feeders Training Seminar # TAPF-001 Revision A

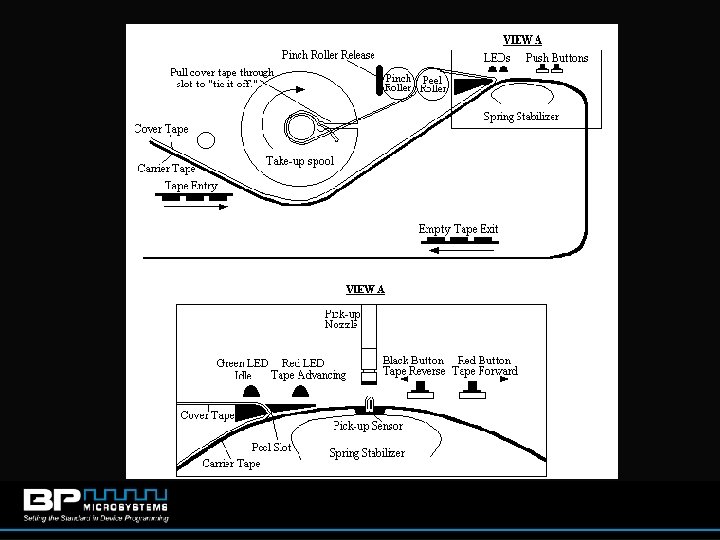

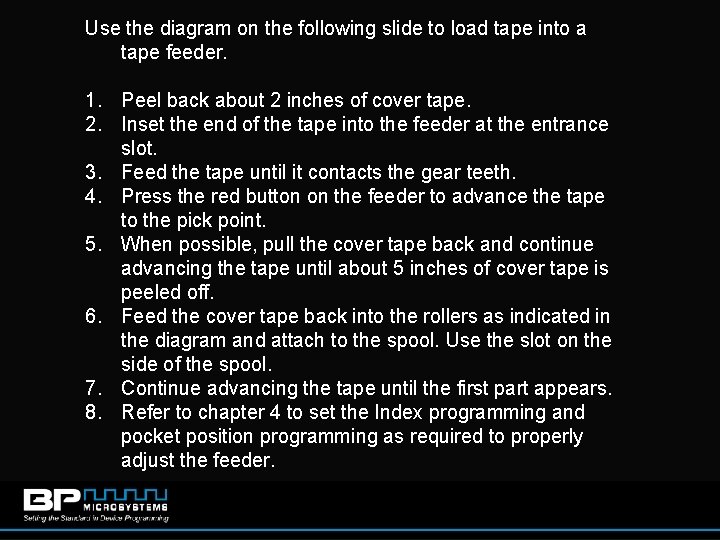

Use the diagram on the following slide to load tape into a tape feeder. 1. Peel back about 2 inches of cover tape. 2. Inset the end of the tape into the feeder at the entrance slot. 3. Feed the tape until it contacts the gear teeth. 4. Press the red button on the feeder to advance the tape to the pick point. 5. When possible, pull the cover tape back and continue advancing the tape until about 5 inches of cover tape is peeled off. 6. Feed the cover tape back into the rollers as indicated in the diagram and attach to the spool. Use the slot on the side of the spool. 7. Continue advancing the tape until the first part appears. 8. Refer to chapter 4 to set the Index programming and pocket position programming as required to properly adjust the feeder.

Chapter 4 Programming a Tape Feeder Training Seminar # TAPF-001 Revision A

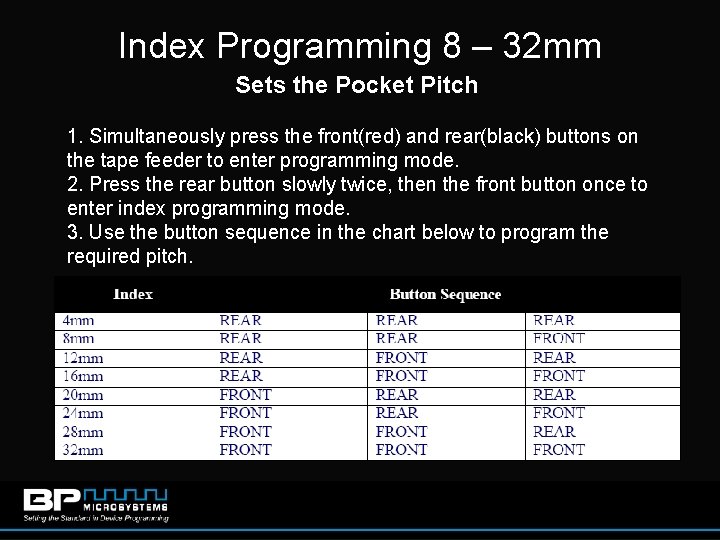

Index Programming 8 – 32 mm Sets the Pocket Pitch 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder to enter programming mode. 2. Press the rear button slowly twice, then the front button once to enter index programming mode. 3. Use the button sequence in the chart below to program the required pitch.

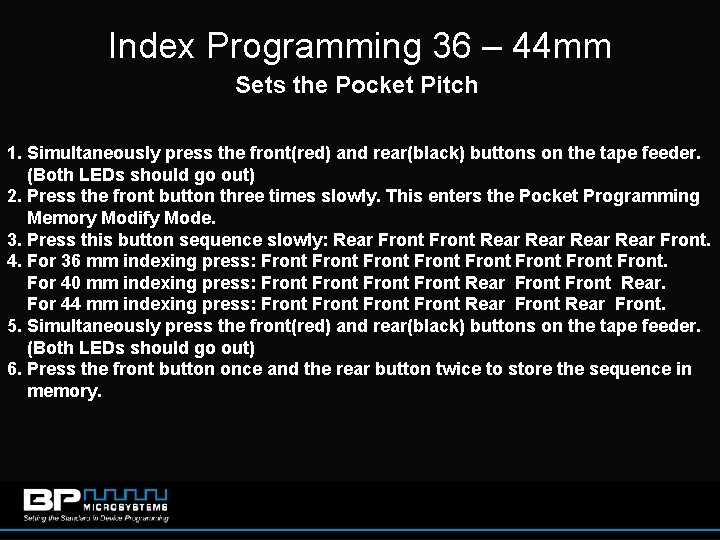

Index Programming 36 – 44 mm Sets the Pocket Pitch 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. (Both LEDs should go out) 2. Press the front button three times slowly. This enters the Pocket Programming Memory Modify Mode. 3. Press this button sequence slowly: Rear Front Rear Front. 4. For 36 mm indexing press: Front Front. For 40 mm indexing press: Front Rear Front Rear. For 44 mm indexing press: Front Rear Front. 5. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. (Both LEDs should go out) 6. Press the front button once and the rear button twice to store the sequence in memory.

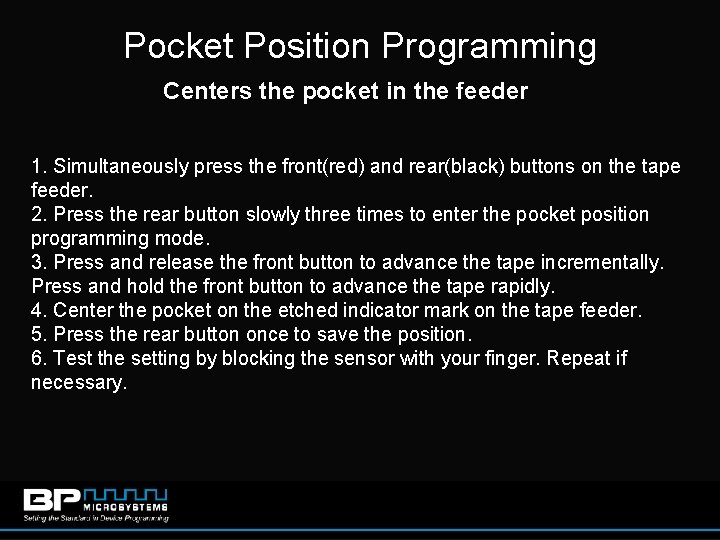

Pocket Position Programming Centers the pocket in the feeder 1. Simultaneously press the front(red) and rear(black) buttons on the tape feeder. 2. Press the rear button slowly three times to enter the pocket position programming mode. 3. Press and release the front button to advance the tape incrementally. Press and hold the front button to advance the tape rapidly. 4. Center the pocket on the etched indicator mark on the tape feeder. 5. Press the rear button once to save the position. 6. Test the setting by blocking the sensor with your finger. Repeat if necessary.

Chapter 5 Teaching a Tape Feeder Training Seminar # TAPF-001 Revision A

Start BPWin software and allow the handler to initialize. In the Workflow window, locate the “Sources” box. Give the Tape Feeder teach a valid name. NOTE: The teach name must begin with TAPEIN. In this example, TAPEIN_TSOP 48

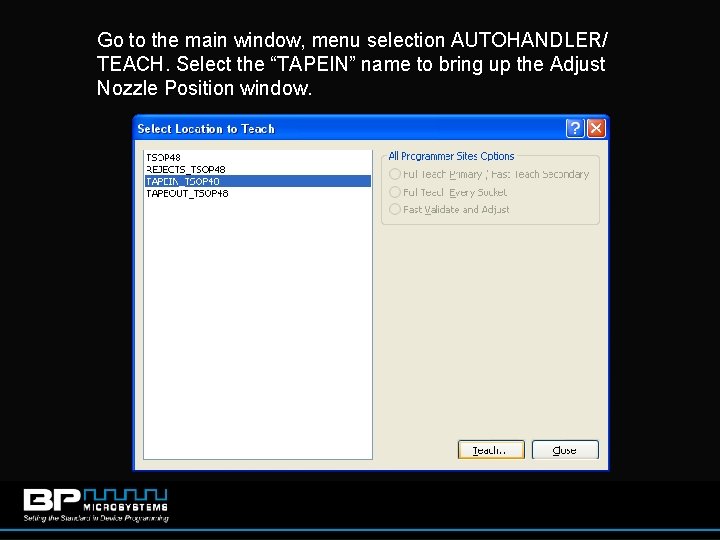

Go to the main window, menu selection AUTOHANDLER/ TEACH. Select the “TAPEIN” name to bring up the Adjust Nozzle Position window.

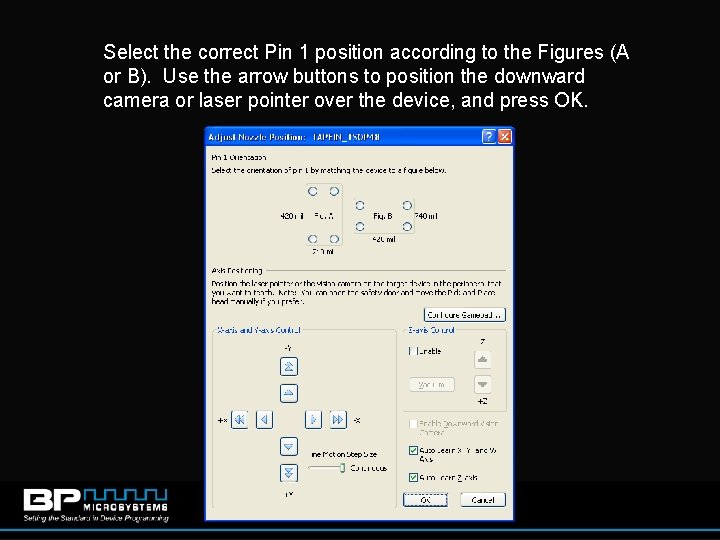

Select the correct Pin 1 position according to the Figures (A or B). Use the arrow buttons to position the downward camera or laser pointer over the device, and press OK.

Chapter 6 Clearing Jams Training Seminar # TAPF-001 Revision A

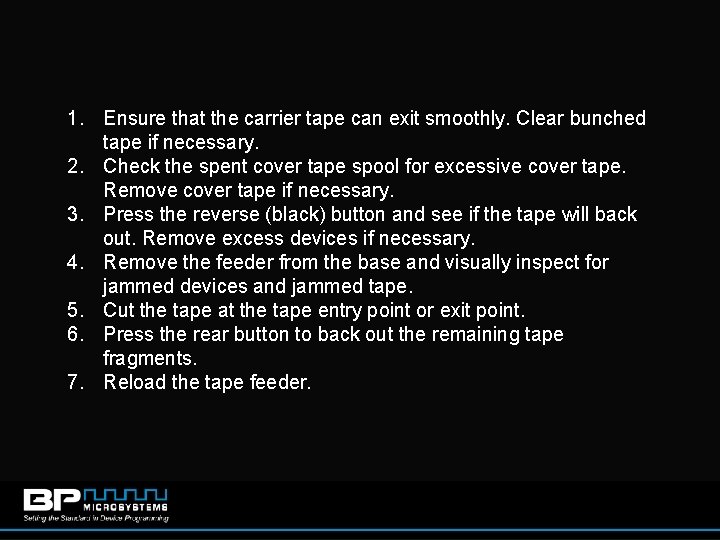

1. Ensure that the carrier tape can exit smoothly. Clear bunched tape if necessary. 2. Check the spent cover tape spool for excessive cover tape. Remove cover tape if necessary. 3. Press the reverse (black) button and see if the tape will back out. Remove excess devices if necessary. 4. Remove the feeder from the base and visually inspect for jammed devices and jammed tape. 5. Cut the tape at the tape entry point or exit point. 6. Press the rear button to back out the remaining tape fragments. 7. Reload the tape feeder.

Chapter 7 Tape Feeder Maintenance Training Seminar # TAPF-001 Revision A

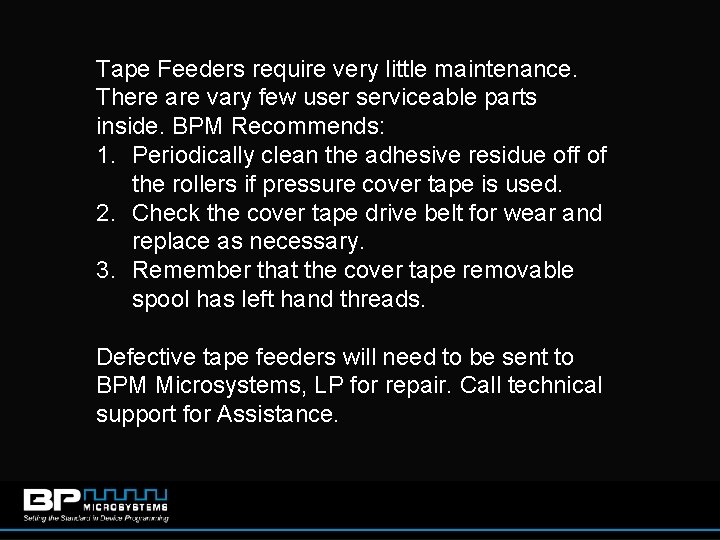

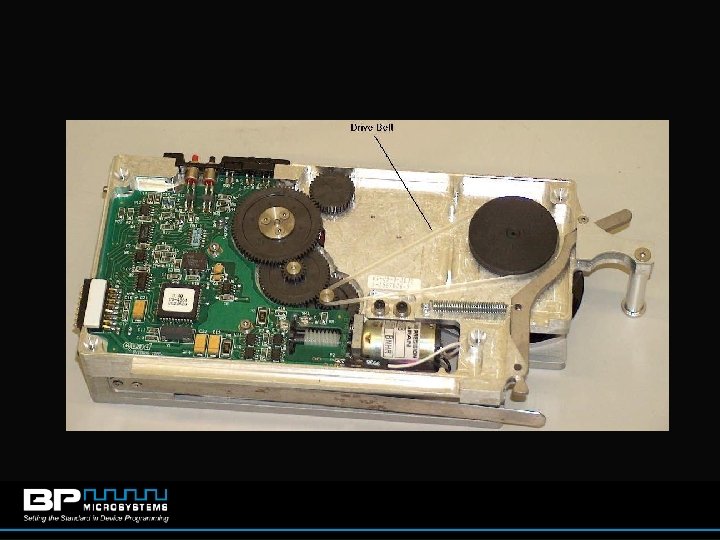

Tape Feeders require very little maintenance. There are vary few user serviceable parts inside. BPM Recommends: 1. Periodically clean the adhesive residue off of the rollers if pressure cover tape is used. 2. Check the cover tape drive belt for wear and replace as necessary. 3. Remember that the cover tape removable spool has left hand threads. Defective tape feeders will need to be sent to BPM Microsystems, LP for repair. Call technical support for Assistance.

Chapter 8 Installing the Tape Feeder Option Training Seminar # TAPF-001 Revision A

List of installation parts for Tape Feeder Option

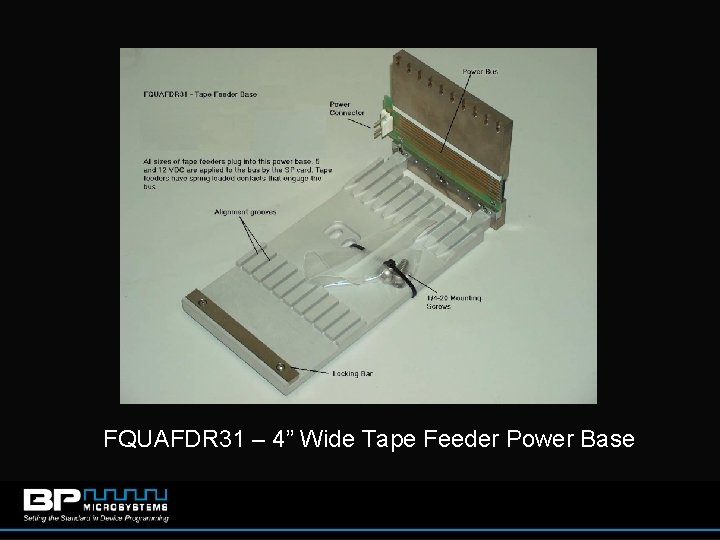

FQUAFDR 31 – 4” Wide Tape Feeder Power Base

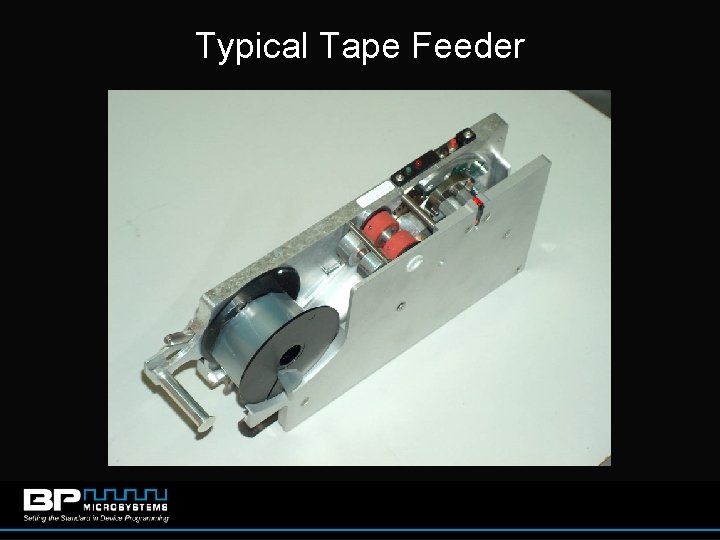

Typical Tape Feeder

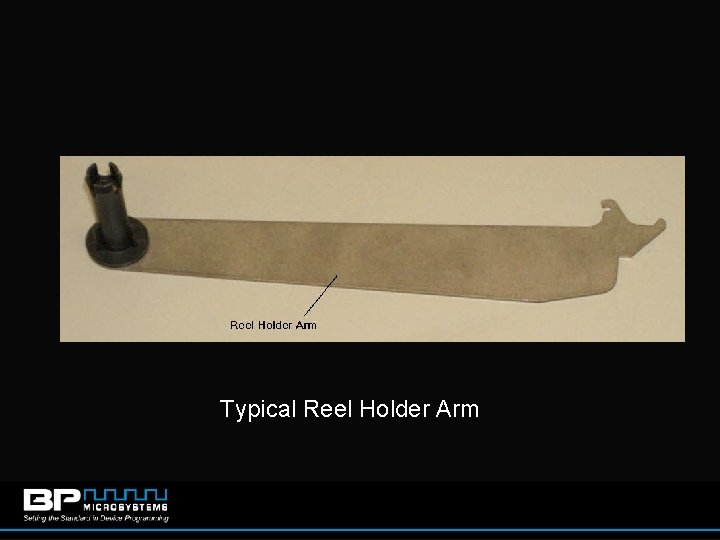

Typical Reel Holder Arm

WGRDFINGERCEFDR – Serves as both a finger guard and a bracket to attach the reel holder arm.

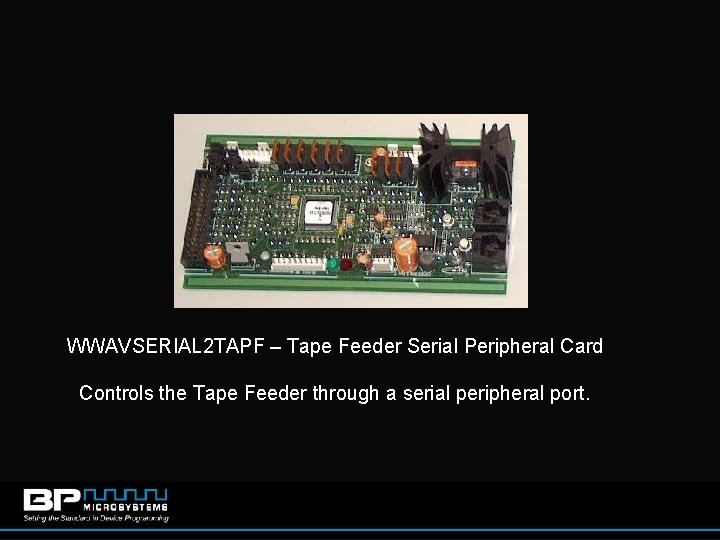

WWAVSERIAL 2 TAPF – Tape Feeder Serial Peripheral Card Controls the Tape Feeder through a serial peripheral port.

CCHAPLA 3 XTUBE – SP Card Mounting Plate Used on 3 x 00 systems as a safe way to mount the SP card to the inside of the machine.

WCAB 4 XTAPFPWR – Power Cable Connects the tape feeder base to the SP card.

WCABSHUTLPWRCOM – Communication Cable Connects the SP card to the control port.

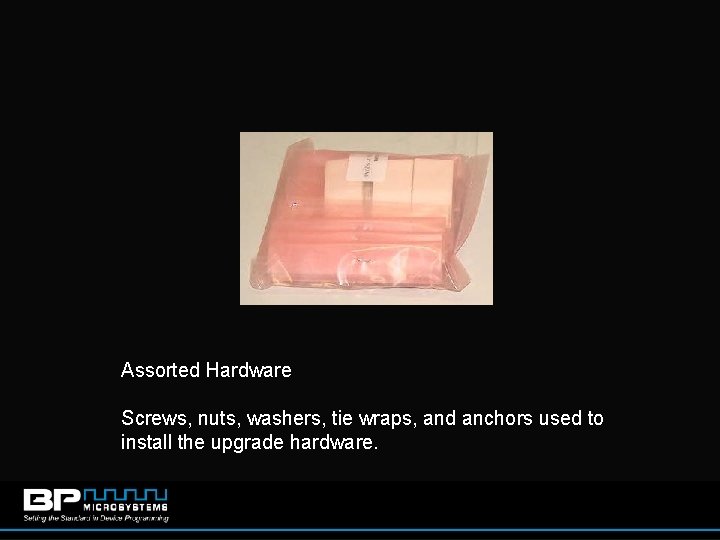

Assorted Hardware Screws, nuts, washers, tie wraps, and anchors used to install the upgrade hardware.

4 x 00 Tape Feeder Installation -Hardware-

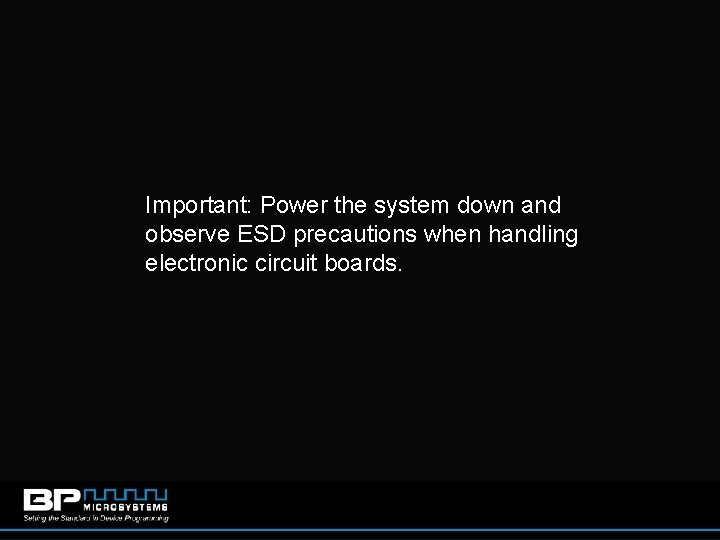

Important: Power the system down and observe ESD precautions when handling electronic circuit boards.

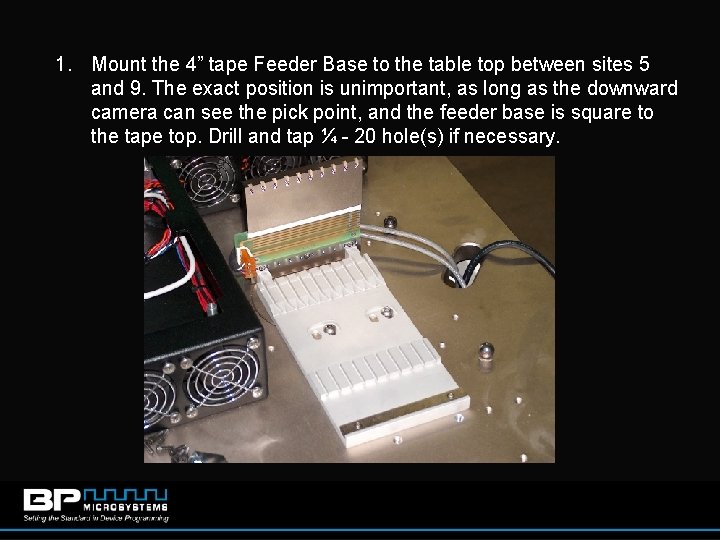

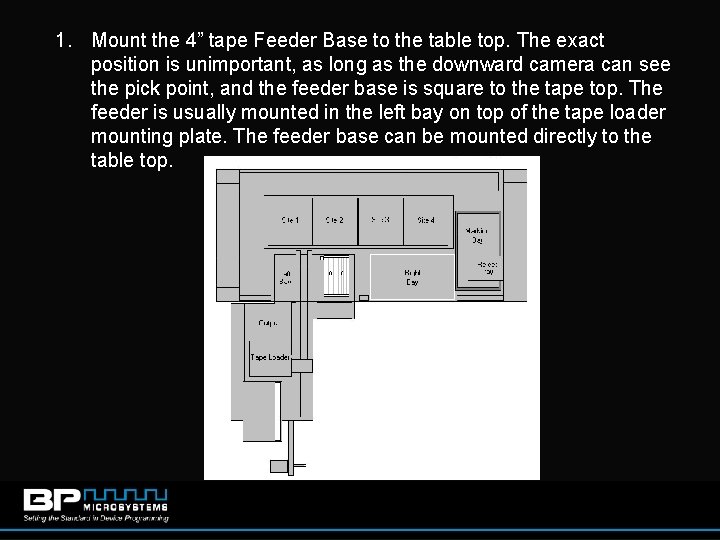

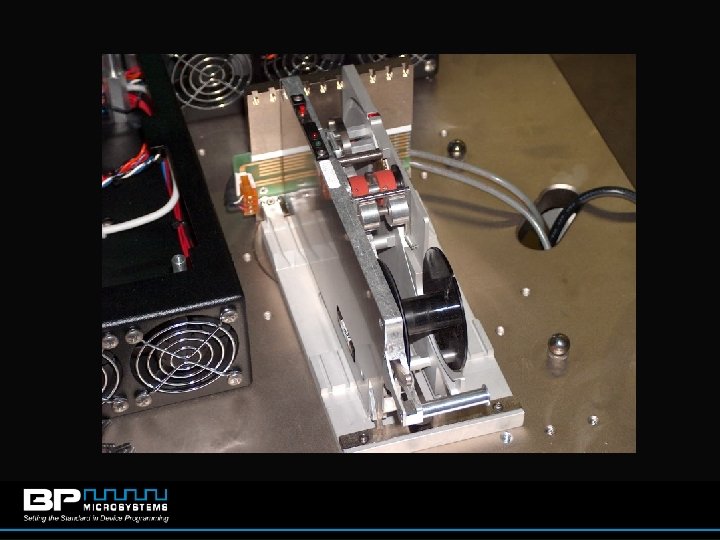

1. Mount the 4” tape Feeder Base to the table top between sites 5 and 9. The exact position is unimportant, as long as the downward camera can see the pick point, and the feeder base is square to the tape top. Drill and tap ¼ - 20 hole(s) if necessary.

2. Mount the 4” Finger guard to the table top behind the feeder base. The guard will hang off the back of the machine.

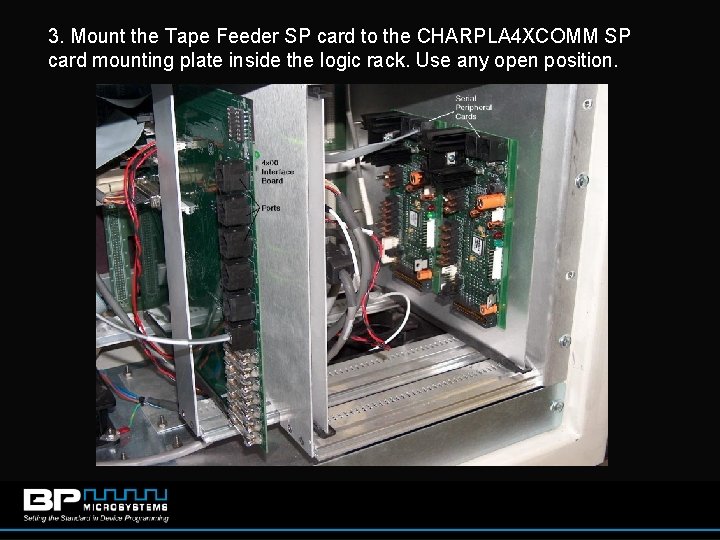

3. Mount the Tape Feeder SP card to the CHARPLA 4 XCOMM SP card mounting plate inside the logic rack. Use any open position.

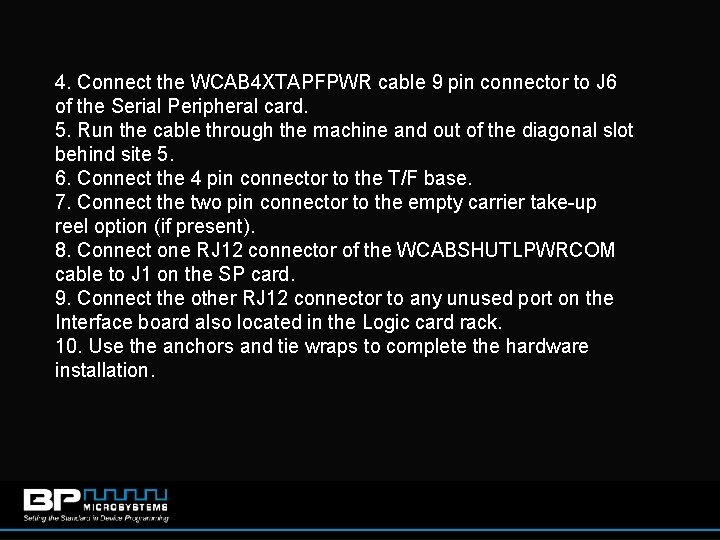

4. Connect the WCAB 4 XTAPFPWR cable 9 pin connector to J 6 of the Serial Peripheral card. 5. Run the cable through the machine and out of the diagonal slot behind site 5. 6. Connect the 4 pin connector to the T/F base. 7. Connect the two pin connector to the empty carrier take-up reel option (if present). 8. Connect one RJ 12 connector of the WCABSHUTLPWRCOM cable to J 1 on the SP card. 9. Connect the other RJ 12 connector to any unused port on the Interface board also located in the Logic card rack. 10. Use the anchors and tie wraps to complete the hardware installation.

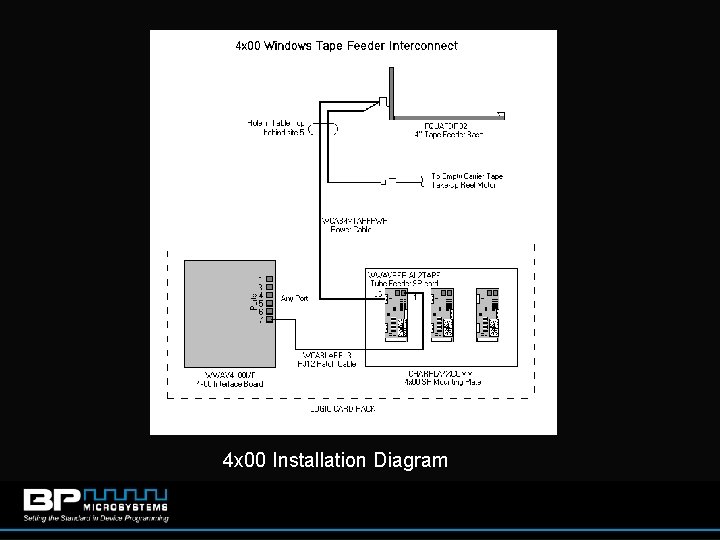

4 x 00 Installation Diagram

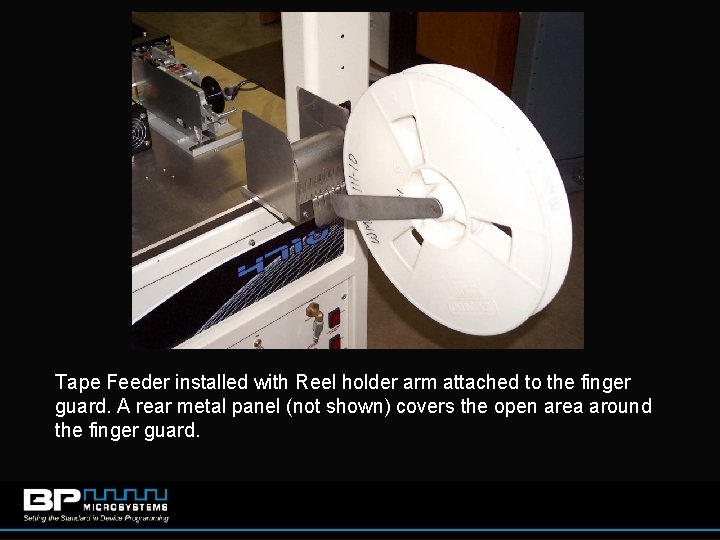

Tape Feeder installed with Reel holder arm attached to the finger guard. A rear metal panel (not shown) covers the open area around the finger guard.

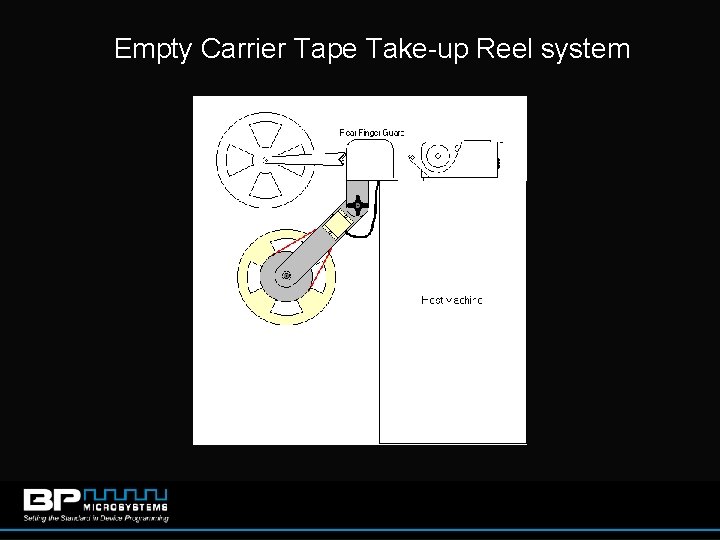

Empty Carrier Tape Take-up Reel system

3 x 00 Tape Feeder Installation -Hardware-

Important: Power the system down and observe ESD precautions when handling electronic circuit boards.

1. Mount the 4” tape Feeder Base to the table top. The exact position is unimportant, as long as the downward camera can see the pick point, and the feeder base is square to the tape top. The feeder is usually mounted in the left bay on top of the tape loader mounting plate. The feeder base can be mounted directly to the table top.

2. Mount the finger guard to the mounting plate behind the feeder base.

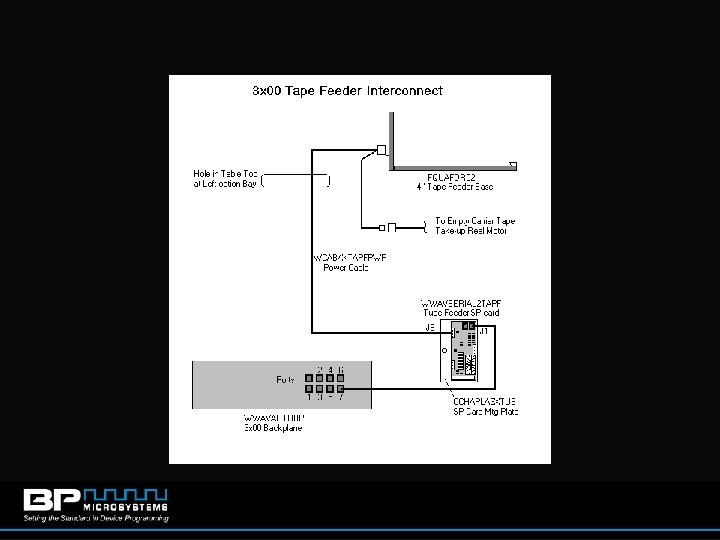

3. Screw the SP card to the SP card mounting plate. 4. Bolt the mounting plate and SP card assembly to the inside of the machine. Drill and tape a hole if necessary. 5. Connect the WCAB 4 XTAPFPWR cable 9 pin connector to J 6 of the Serial Peripheral card. 6. Run the other end of the cable up through the slot in the table top closest to the base. 7. Connect the 4 pin connector to the base. 8. Connect the two pin connector to the empty carrier take-up reel option (if present). 9. Connect one RJ 12 connector of the WCABSHUTLPWRCOM cable to J 1 on the SP card. 10. Connect the other RJ 12 connector to any unused port on the backplane. 11. Use the anchors and tie wraps to complete the hardware installation.

Chapter 9 Tape Feeder Upgrade Kit (FUPGTPFDRD-W) BPDOS to BPWin Upgrade, 4 x 00 systems only

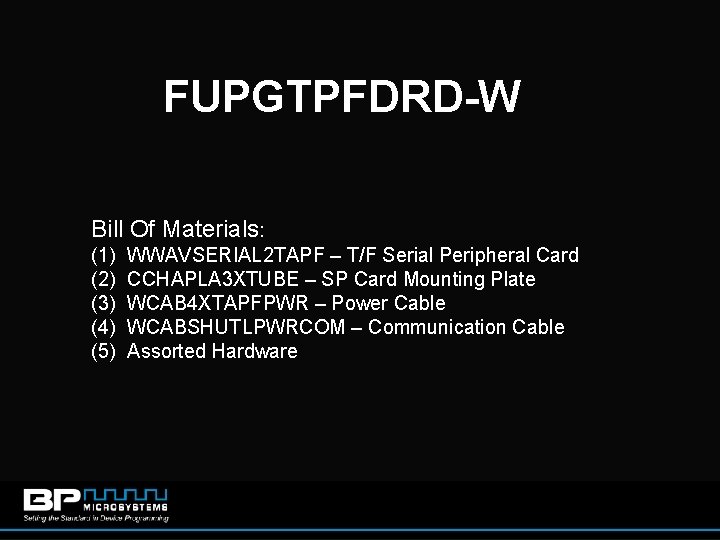

FUPGTPFDRD-W Bill Of Materials: (1) (2) (3) (4) (5) WWAVSERIAL 2 TAPF – T/F Serial Peripheral Card CCHAPLA 3 XTUBE – SP Card Mounting Plate WCAB 4 XTAPFPWR – Power Cable WCABSHUTLPWRCOM – Communication Cable Assorted Hardware

Installing the DOS to Windows Upgrade Kit Refer to Chapter 8 for installation instructions.

Review Questions: Yes, No answers, 2 minutes 1. What determines the size of a tape feeder? 2. What is a valid name for a tape feeder teach? 3. What is “pitch”? 4. How can you determine if a tape feeder is installed correctly in the power base? Chapter 5: Turning On and Off

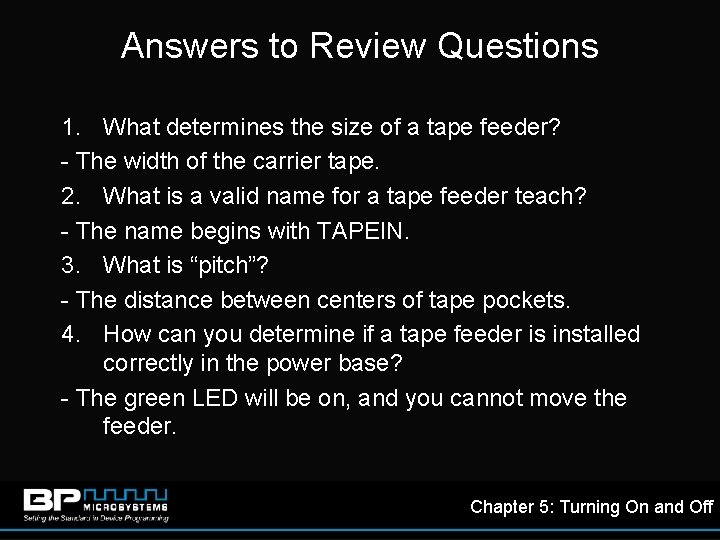

Answers to Review Questions 1. What determines the size of a tape feeder? - The width of the carrier tape. 2. What is a valid name for a tape feeder teach? - The name begins with TAPEIN. 3. What is “pitch”? - The distance between centers of tape pockets. 4. How can you determine if a tape feeder is installed correctly in the power base? - The green LED will be on, and you cannot move the feeder. Chapter 5: Turning On and Off

This completes the Tape Feeder training class.
