Bonding INTRAMOLECULAR FORCES II INTERMOLECULAR FORCES I Chemical

Bonding INTRAMOLECULAR FORCES II. INTERMOLECULAR FORCES I.

Chemical Bond A force that holds groups of 2 or more atoms together to make them function as a unit

Why? Atoms form bonds to obtain a “noble gas configuration” Octet Rule. Atoms need to have 8 valence electrons

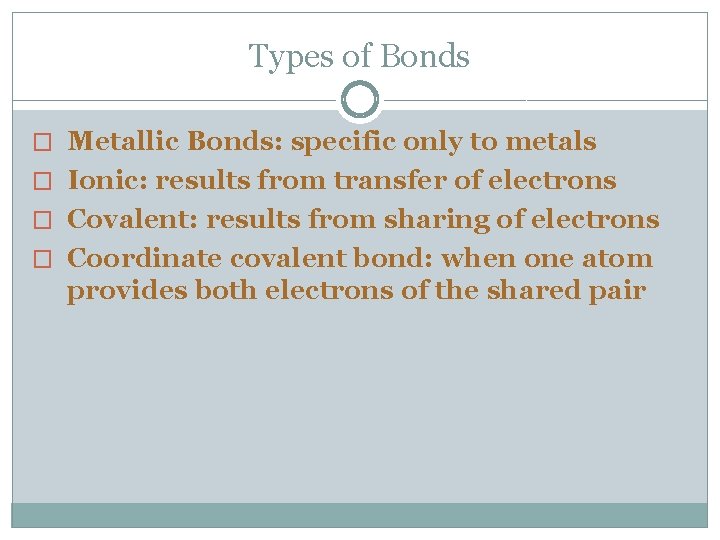

Types of Bonds � Metallic Bonds: specific only to metals � Ionic: results from transfer of electrons � Covalent: results from sharing of electrons � Coordinate covalent bond: when one atom provides both electrons of the shared pair

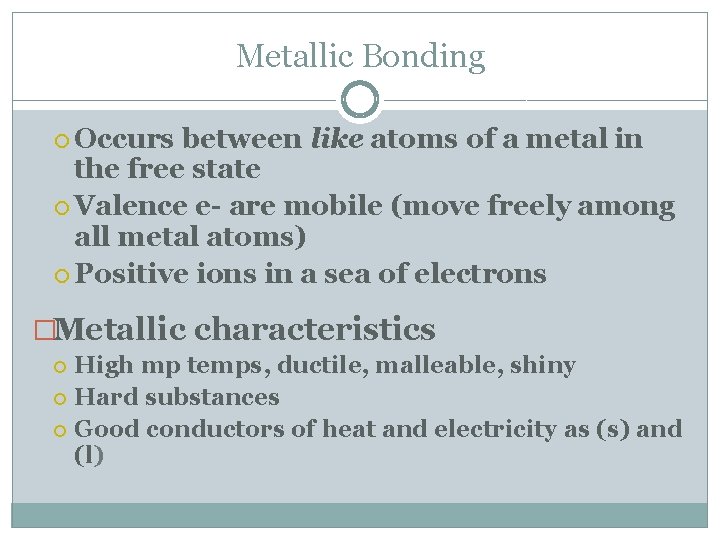

Metallic Bonding Occurs between like atoms of a metal in the free state Valence e- are mobile (move freely among all metal atoms) Positive ions in a sea of electrons �Metallic characteristics High mp temps, ductile, malleable, shiny Hard substances Good conductors of heat and electricity as (s) and (l)

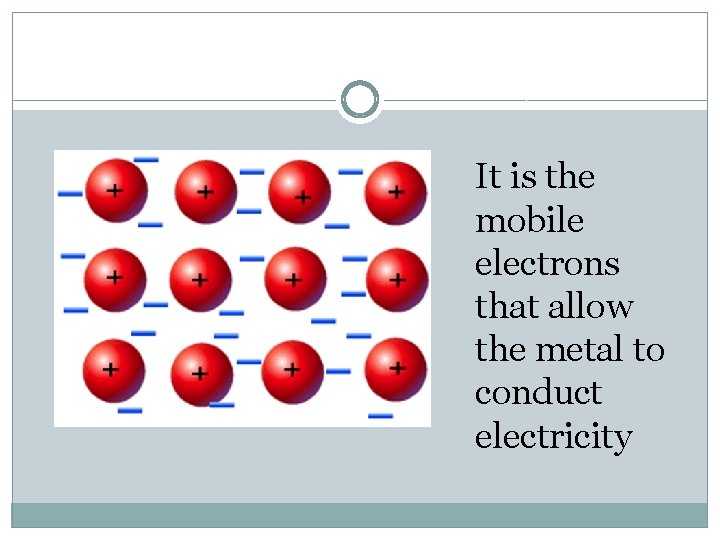

It is the mobile electrons that allow the metal to conduct electricity

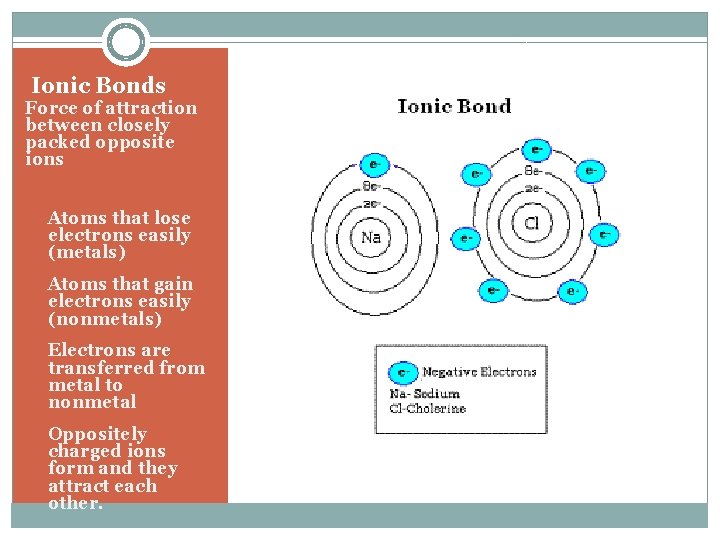

Ionic Bonds Force of attraction between closely packed opposite ions • Atoms that lose electrons easily (metals) • Atoms that gain electrons easily (nonmetals) • Electrons are transferred from metal to nonmetal • Oppositely charged ions form and they attract each other.

Ionic Compounds • The ions combine in quantities that provide the stable octet for each element involved • They are electrically neutral, so the charges must balance out to zero, as we learned in our formula writing topic.

Properties of Ionic Compounds • Hard • Poor electrical conductors (solids) • Good electrical conductors (in molten and solution) • High melting and boiling points • Dissolve in water • Form crystalline solids

Ionic Lewis Diagrams � Step 1 after checking that it is IONIC Determine which atom will be the +ion Determine which atom will be the ion � Step 2 Write the symbol for the + ion first. � NO DOTS Draw the e- dot diagram for – the ion � COMPLETE outer shell � Step 3 Enclose both in brackets and show each charge

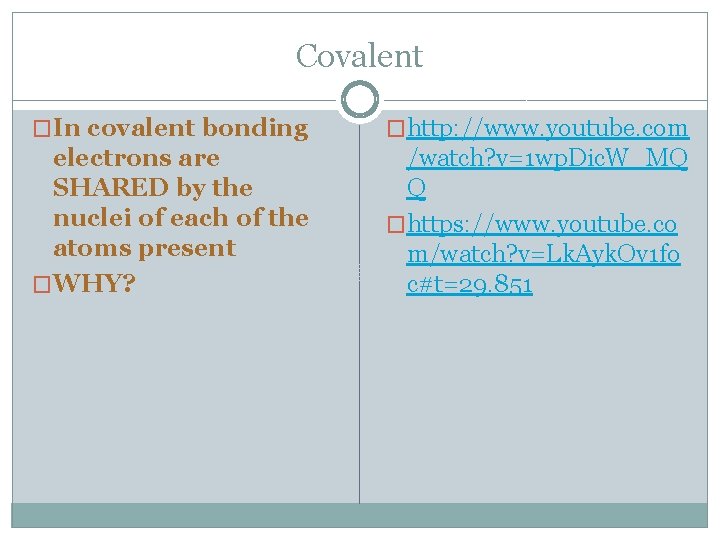

Covalent �In covalent bonding �http: //www. youtube. com electrons are SHARED by the nuclei of each of the atoms present �WHY? /watch? v=1 wp. Dic. W_MQ Q �https: //www. youtube. co m/watch? v=Lk. Ayk. Ov 1 fo c#t=29. 851

Characteristics of Covalent Compounds �Soft �Poor conductors of electricity �Poor heat conductors �Low melting point �High vapor pressures

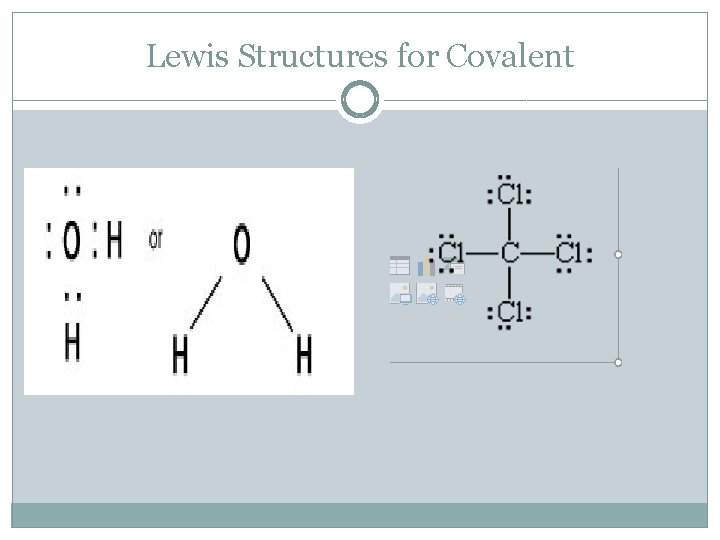

Lewis Structures for Covalent

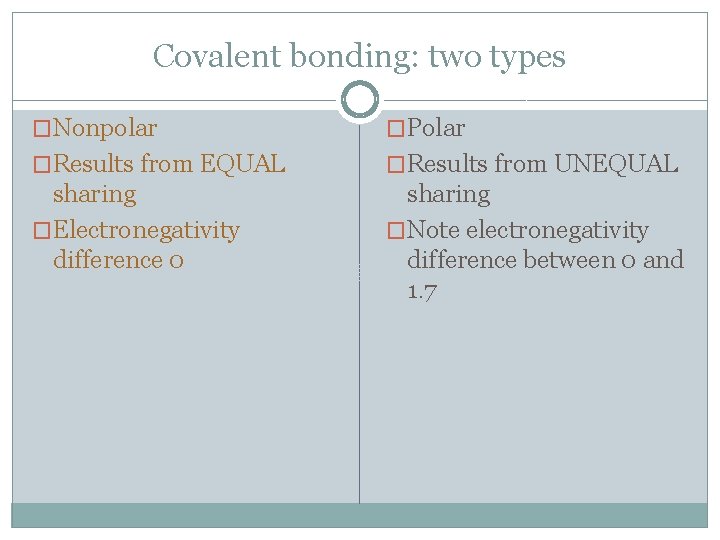

Covalent bonding: two types �Nonpolar �Polar �Results from EQUAL �Results from UNEQUAL sharing �Electronegativity difference 0 sharing �Note electronegativity difference between 0 and 1. 7

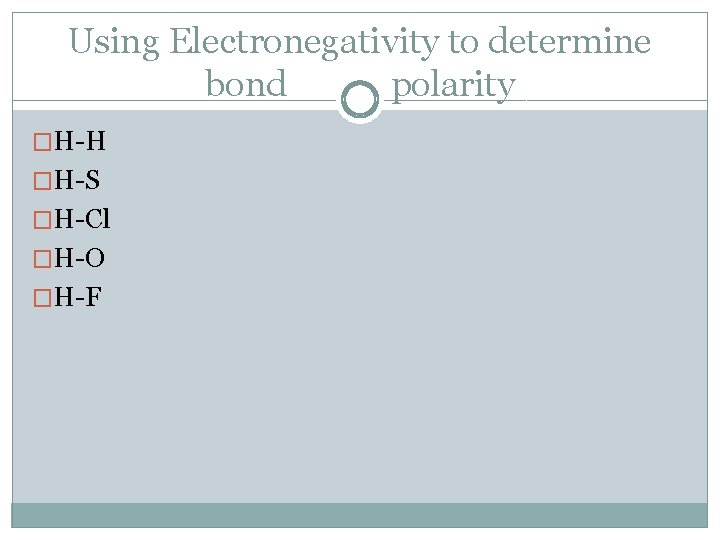

Using Electronegativity to determine bond polarity �H-H �H-S �H-Cl �H-O �H-F

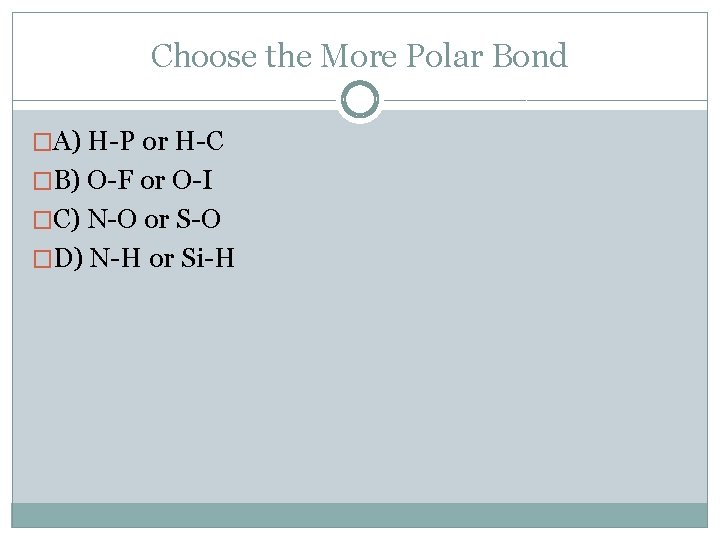

Choose the More Polar Bond �A) H-P or H-C �B) O-F or O-I �C) N-O or S-O �D) N-H or Si-H

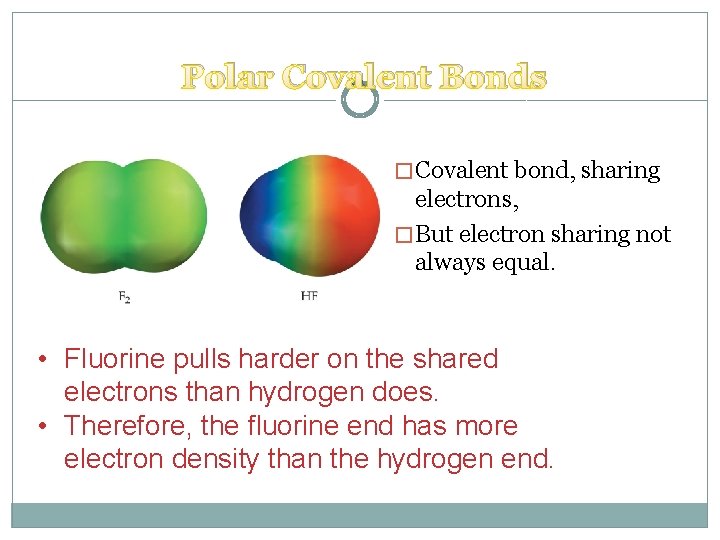

Polar Covalent Bonds � Covalent bond, sharing electrons, � But electron sharing not always equal. • Fluorine pulls harder on the shared electrons than hydrogen does. • Therefore, the fluorine end has more electron density than the hydrogen end.

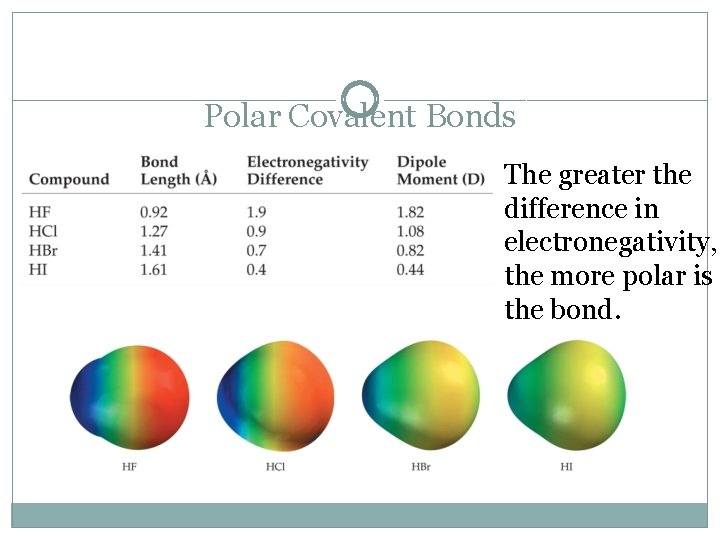

Polar Covalent Bonds The greater the difference in electronegativity, the more polar is the bond.

Coordinate Covalent Bonding �A situation in which one atom provides BOTH electrons that are in the bond.

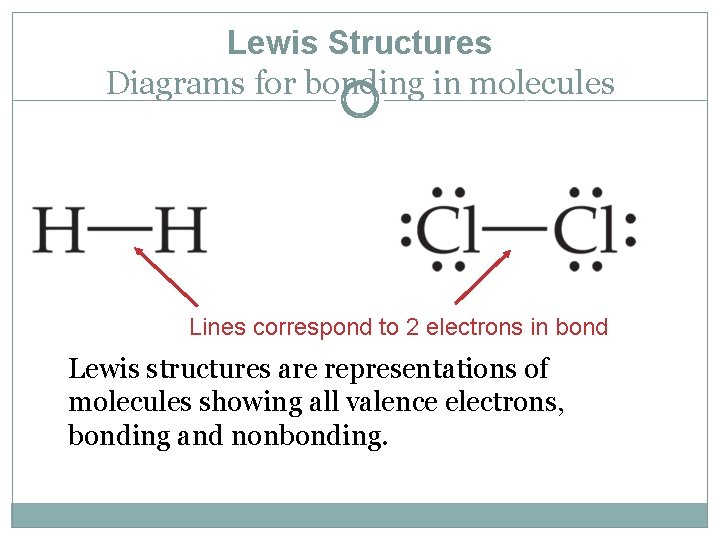

Lewis Structures Diagrams for bonding in molecules Lines correspond to 2 electrons in bond Lewis structures are representations of molecules showing all valence electrons, bonding and nonbonding.

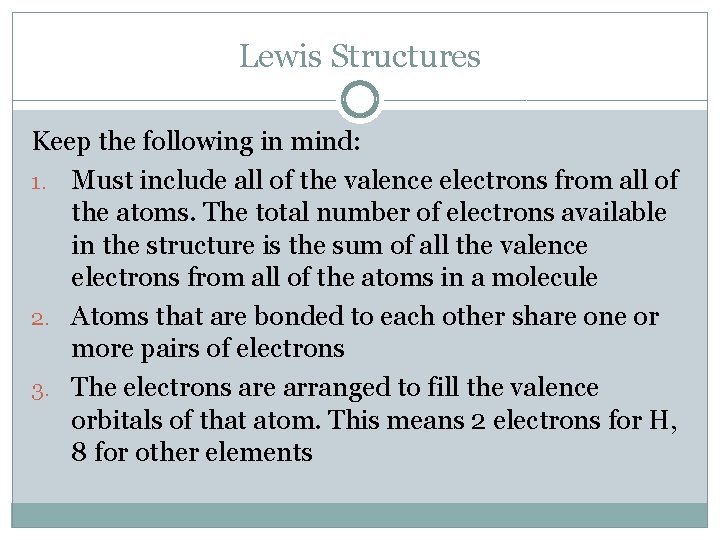

Lewis Structures Keep the following in mind: 1. Must include all of the valence electrons from all of the atoms. The total number of electrons available in the structure is the sum of all the valence electrons from all of the atoms in a molecule 2. Atoms that are bonded to each other share one or more pairs of electrons 3. The electrons are arranged to fill the valence orbitals of that atom. This means 2 electrons for H, 8 for other elements

Lewis Structures A way to keep track of those valence electrons PCl 3 5 + 3(7) = 26 1. Find the sum of valence electrons of all atoms in the substance

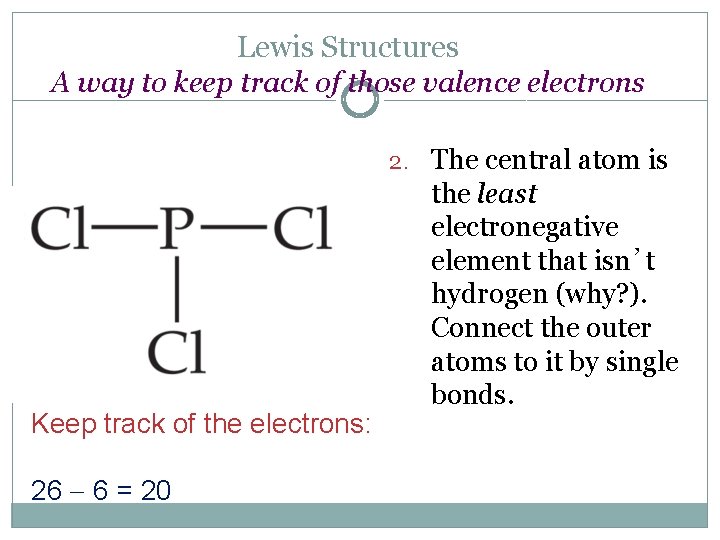

Lewis Structures A way to keep track of those valence electrons 2. The central atom is Keep track of the electrons: 26 6 = 20 the least electronegative element that isn’t hydrogen (why? ). Connect the outer atoms to it by single bonds.

Writing Lewis Structures 3. Put eight electrons around the outer atoms (“fill their octet”) Keep track of the electrons: 26 6 = 20 18 = 2

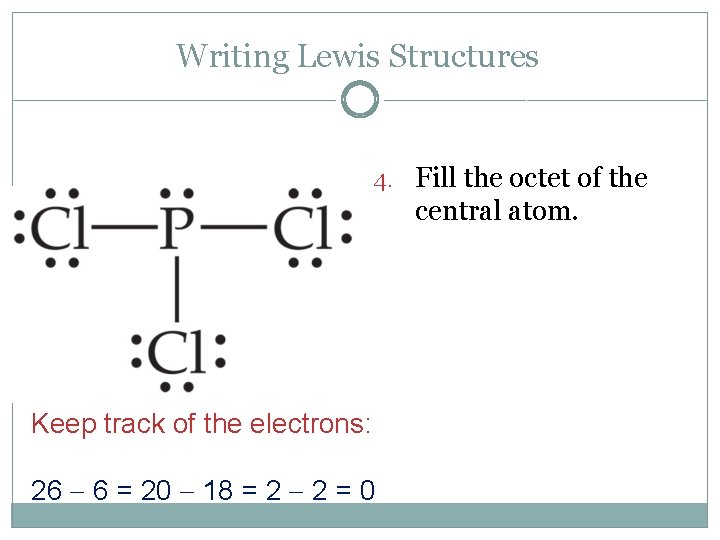

Writing Lewis Structures 4. Fill the octet of the central atom. Keep track of the electrons: 26 6 = 20 18 = 2 2 = 0

Writing Lewis Structures 5. If you run out of electrons before the central atom has an octet… …form multiple bonds until it does.

Lewis Structures �Try drawing the Lewis structure for each molecule: 1. 2. 3. 4. 5. 6. 7. NF 3 N 2 CO 2 SO 3 ‐ 2 CCl 4 O 2 H 2

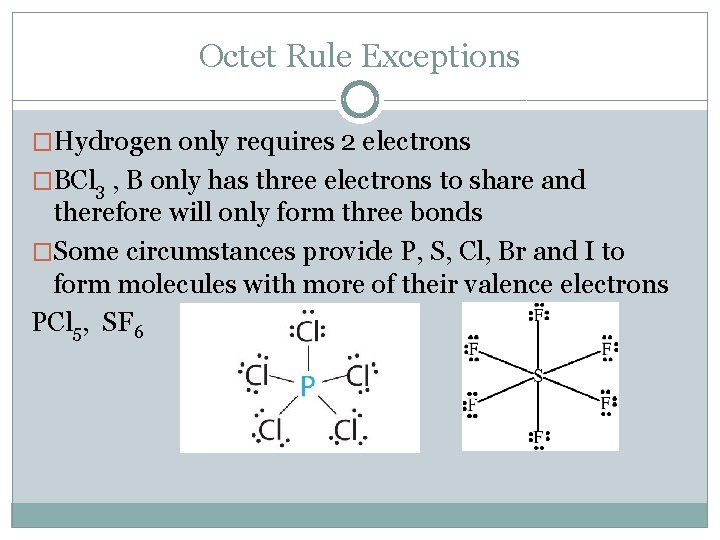

Octet Rule Exceptions �Hydrogen only requires 2 electrons �BCl 3 , B only has three electrons to share and therefore will only form three bonds �Some circumstances provide P, S, Cl, Br and I to form molecules with more of their valence electrons PCl 5, SF 6

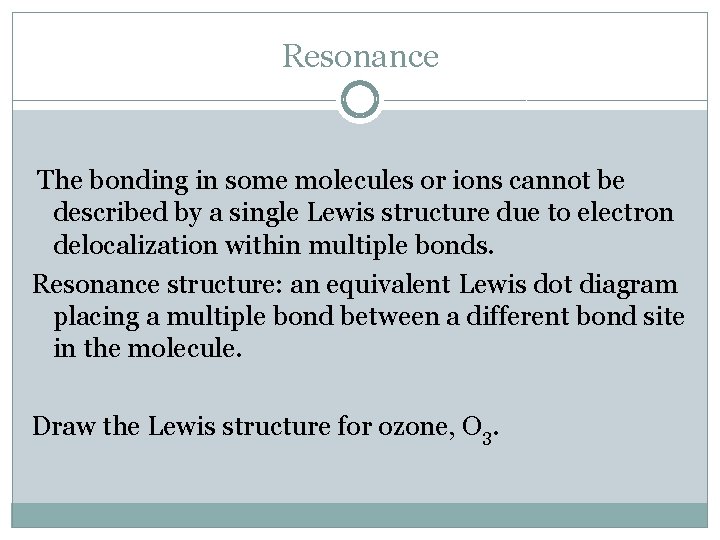

Resonance The bonding in some molecules or ions cannot be described by a single Lewis structure due to electron delocalization within multiple bonds. Resonance structure: an equivalent Lewis dot diagram placing a multiple bond between a different bond site in the molecule. Draw the Lewis structure for ozone, O 3.

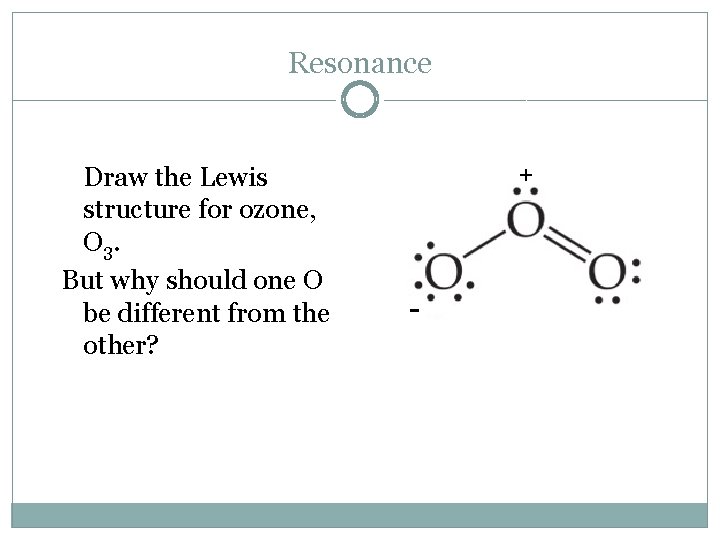

Resonance Draw the Lewis structure for ozone, O 3. But why should one O be different from the other? + -

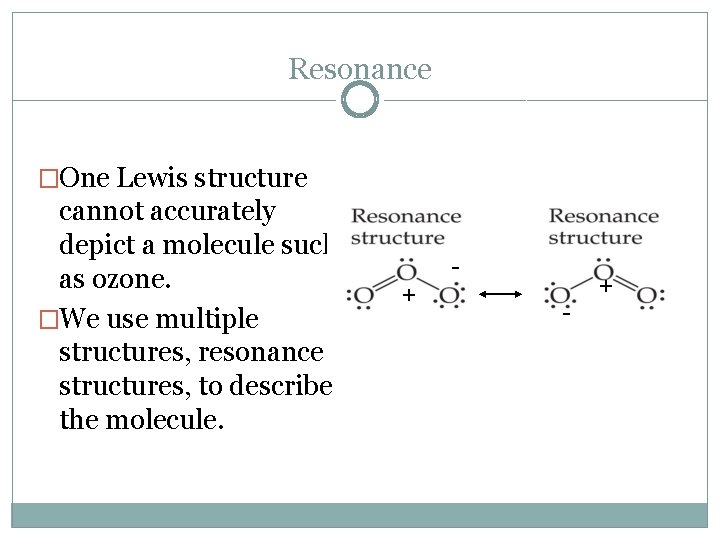

Resonance �One Lewis structure cannot accurately depict a molecule such as ozone. �We use multiple structures, resonance structures, to describe the molecule. + - +

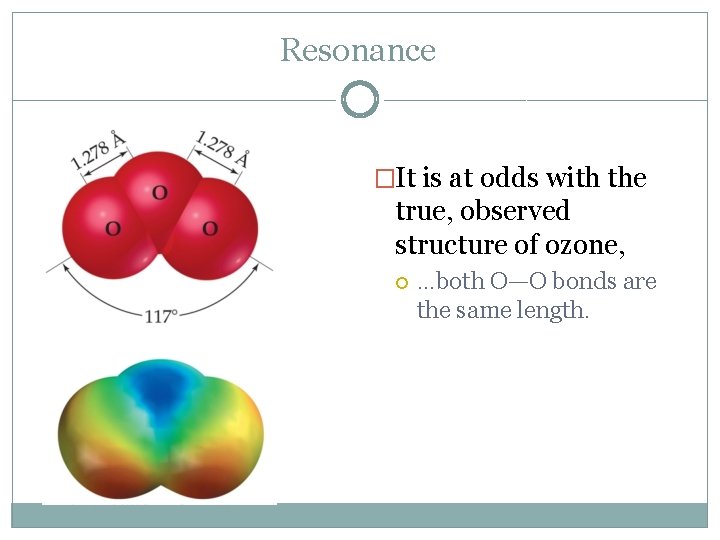

Resonance �It is at odds with the true, observed structure of ozone, …both O—O bonds are the same length.

Resonance Structures �Draw Resonance Structures for NO 3 - Structures for CO 32 -

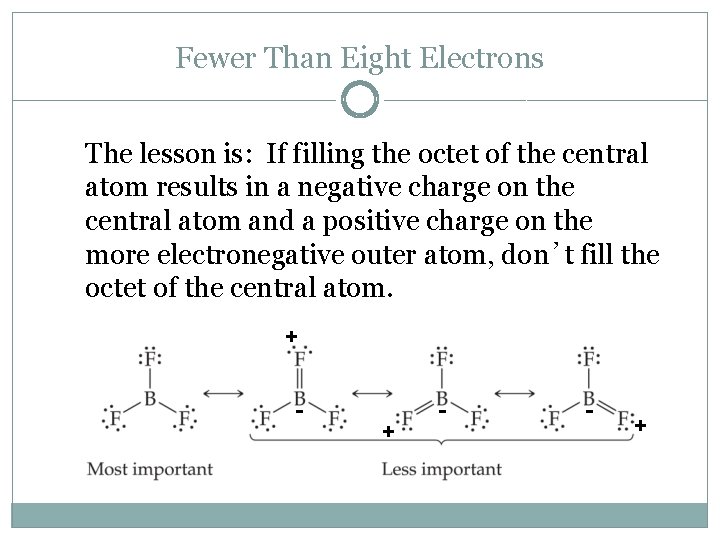

Fewer Than Eight Electrons The lesson is: If filling the octet of the central atom results in a negative charge on the central atom and a positive charge on the more electronegative outer atom, don’t fill the octet of the central atom. + - - +

VSEPR Theory and Shapes �Valence Shell Electron Pair Repulsion Theory �Three dimensional shapes of molecules can be predicted using Lewis structures �Shapes are determined by considering groups of electrons around central atom, both bonded and unbonded (lone pairs) �Electron groups are arranged to minimize the repulsion between their negative charges �Focus on central atom, number of bonds and number of lone pairs

VSEPR Theory and Shapes �Central atoms with two electron groups: minimal repulsion when electron groups are on opposite sides of central atom �LINEAR

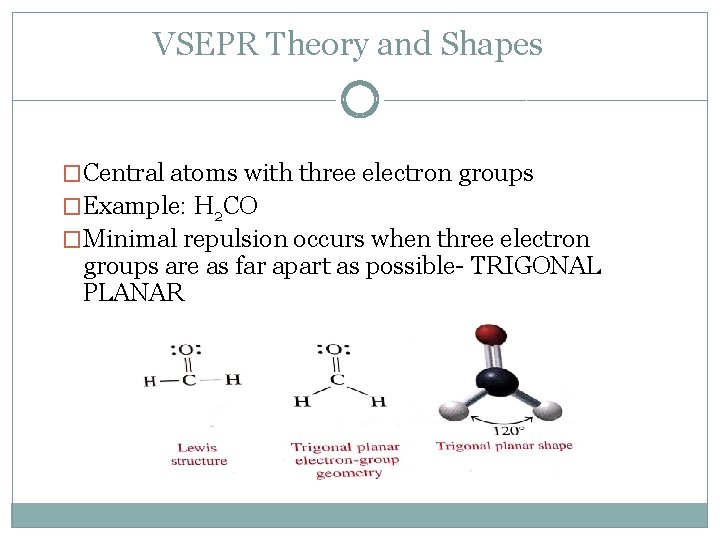

VSEPR Theory and Shapes �Central atoms with three electron groups �Example: H 2 CO �Minimal repulsion occurs when three electron groups are as far apart as possible- TRIGONAL PLANAR

VSEPR Theory and Shapes �SO 2 there are three electron groups, but one group is a lone pair, so the shape is bent

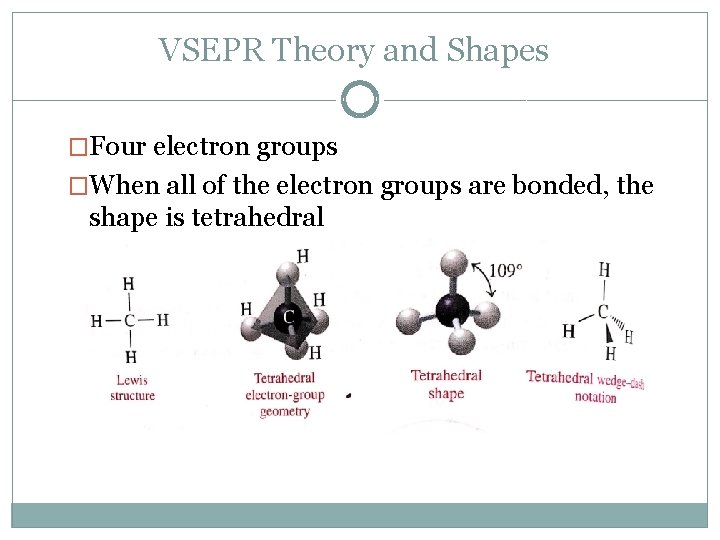

VSEPR Theory and Shapes �Four electron groups �When all of the electron groups are bonded, the shape is tetrahedral

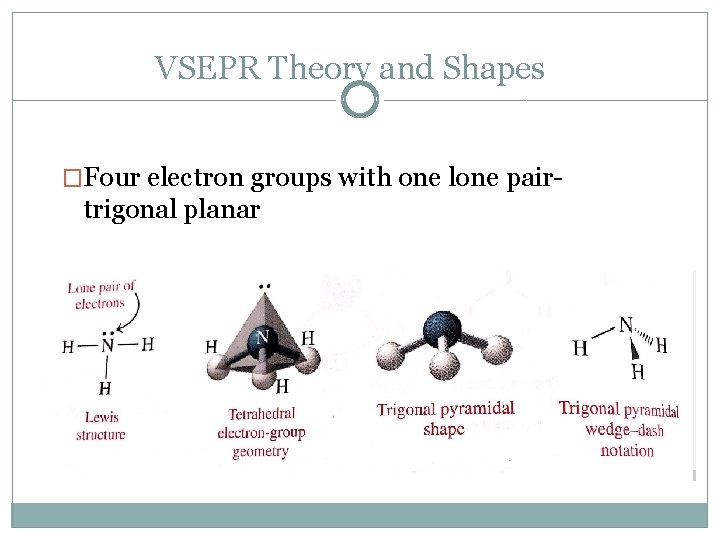

VSEPR Theory and Shapes �Four electron groups with one lone pair- trigonal planar

VSEPR Theory and Shapes �Four electron groups, two lone pairs

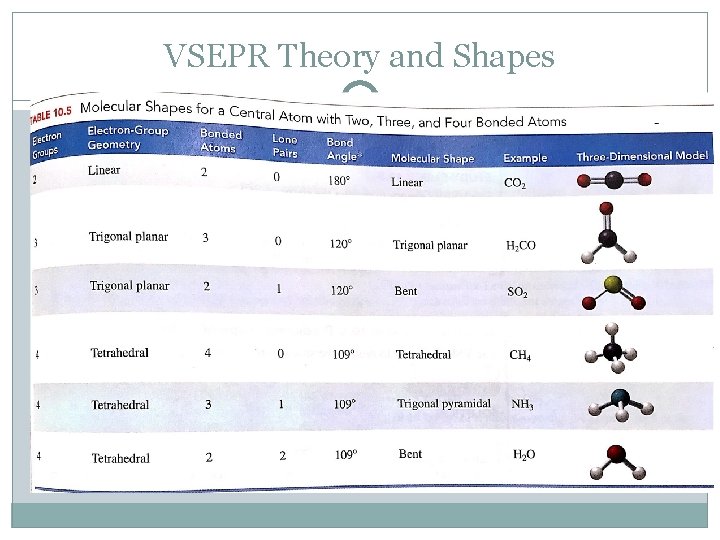

VSEPR Theory and Shapes

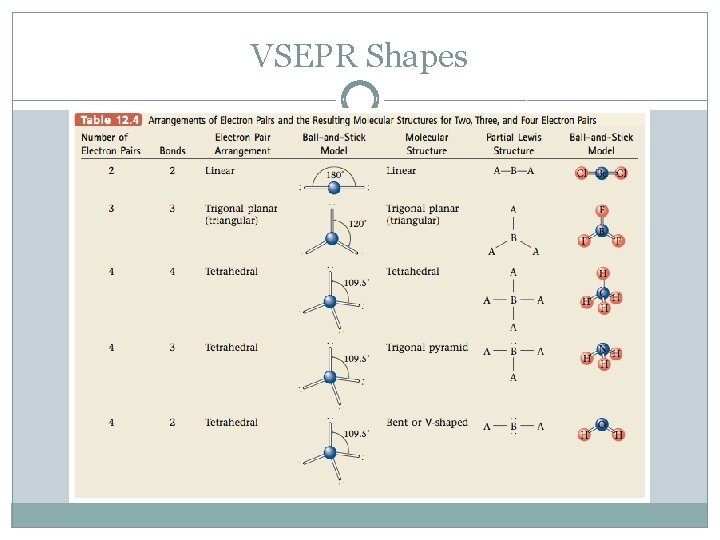

VSEPR Shapes

Summary �https: //www. youtube. com/watch? v=Kjo. QHqgzda 8 �https: //www. youtube. com/watch? v=w. YZg 1 j 7 o 2 x 4& ebc=ANy. Px. Kry. VMXWuhz 6 cg_Ux. Efw. ZHCa 7 y. ILX 5 el Cu. Thu. Vg 2 h 45 P 6 b. PRUTe_bw 3 t. O 35 e. Wdv. Zu 7 JSp. Jf 7 Tm. C 3 o 129 mv. Z 33 r 3 F Q 5 w. CA
