Bonding Grounding and the NEC Presented by The

Bonding, Grounding and the NEC Presented by The National Association of Certified Home Inspectors www. NACHI. org

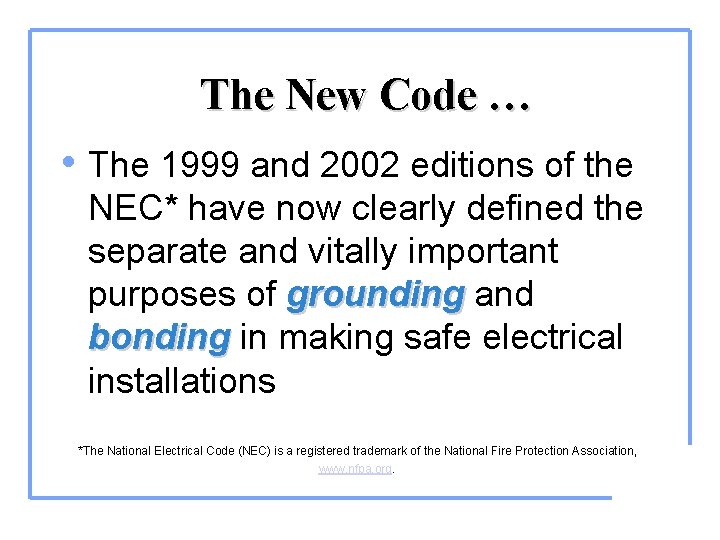

The New Code … • The 1999 and 2002 editions of the NEC* have now clearly defined the separate and vitally important purposes of grounding and bonding in making safe electrical installations *The National Electrical Code (NEC) is a registered trademark of the National Fire Protection Association, www. nfpa. org.

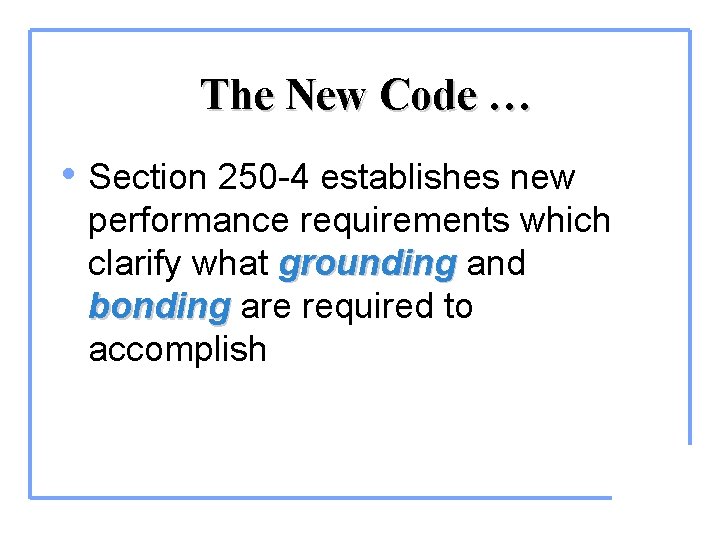

The New Code … • Section 250 -4 establishes new performance requirements which clarify what grounding and bonding are required to accomplish

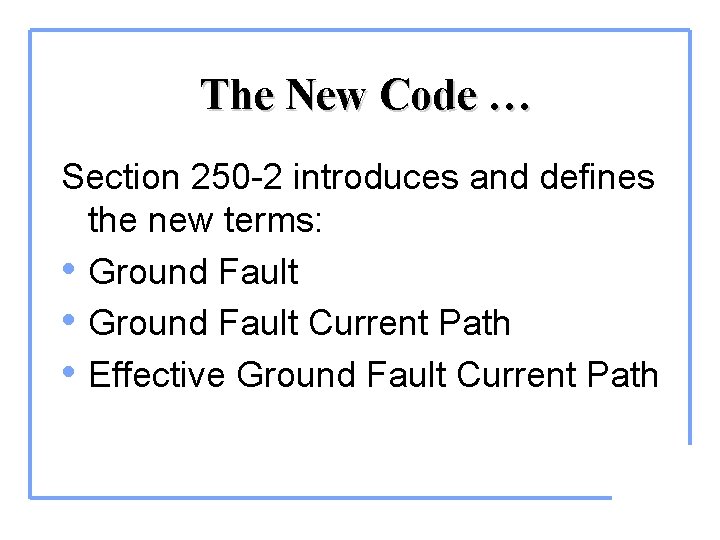

The New Code … Section 250 -2 introduces and defines the new terms: • Ground Fault Current Path • Effective Ground Fault Current Path

The New Code … • These new definitions are in addition to the two important definitions in Article 100 which apply to Section 250 -2

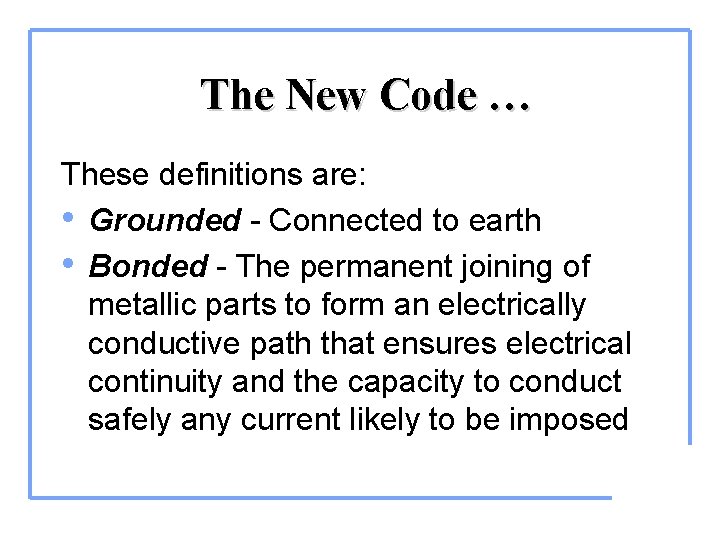

The New Code … These definitions are: • Grounded - Connected to earth • Bonded - The permanent joining of metallic parts to form an electrically conductive path that ensures electrical continuity and the capacity to conduct safely any current likely to be imposed

The New Code … • The importance of grounding • electrical equipment seems to be well understood The purpose and intent of bonding to create a low impedance ground fault return path seems to be less understood

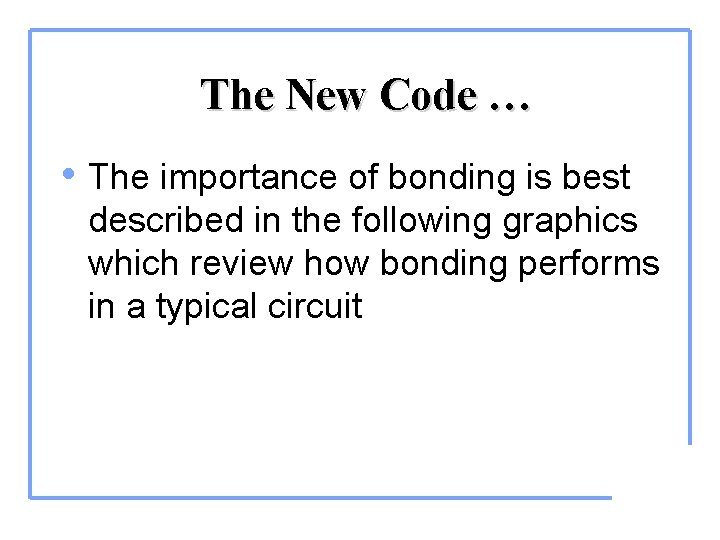

The New Code … • The importance of bonding is best described in the following graphics which review how bonding performs in a typical circuit

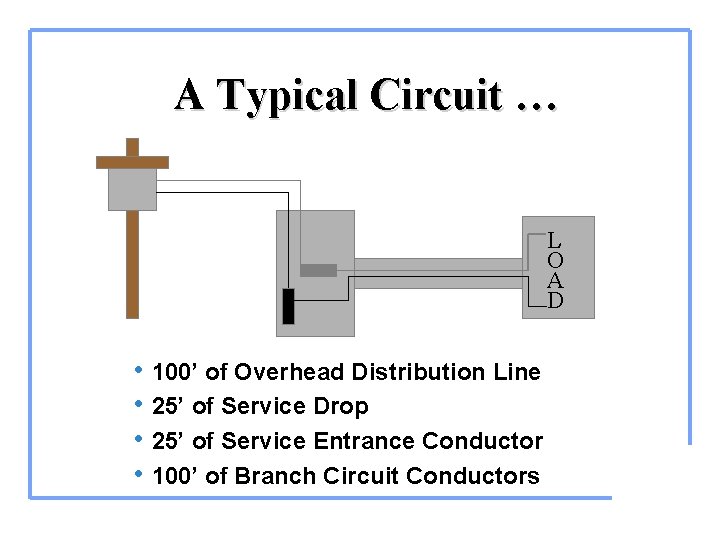

A Typical Circuit … L O A D • 100’ of Overhead Distribution Line • 25’ of Service Drop • 25’ of Service Entrance Conductor • 100’ of Branch Circuit Conductors

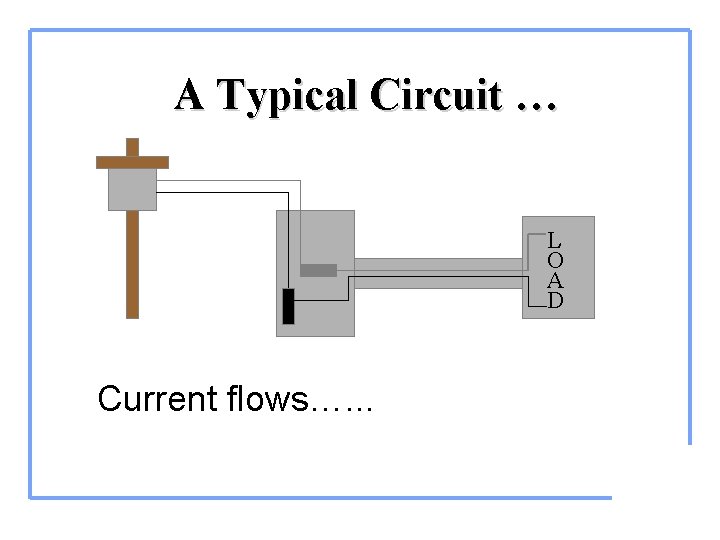

A Typical Circuit … L O A D Current flows…. . .

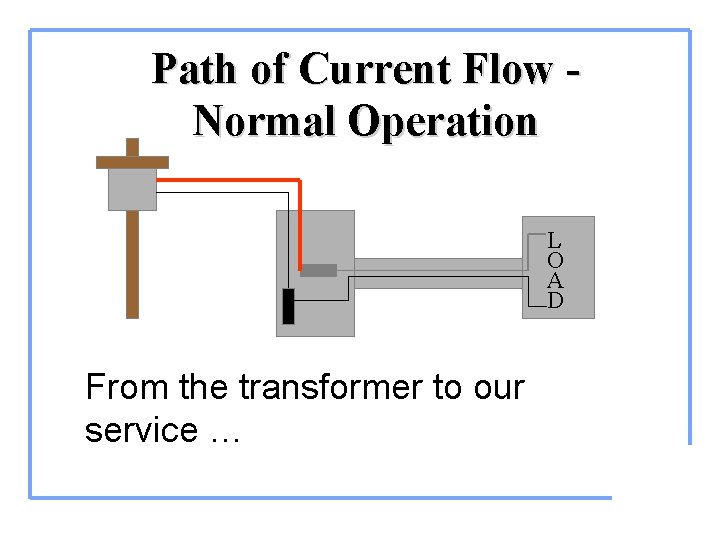

Path of Current Flow Normal Operation L O A D From the transformer to our service …

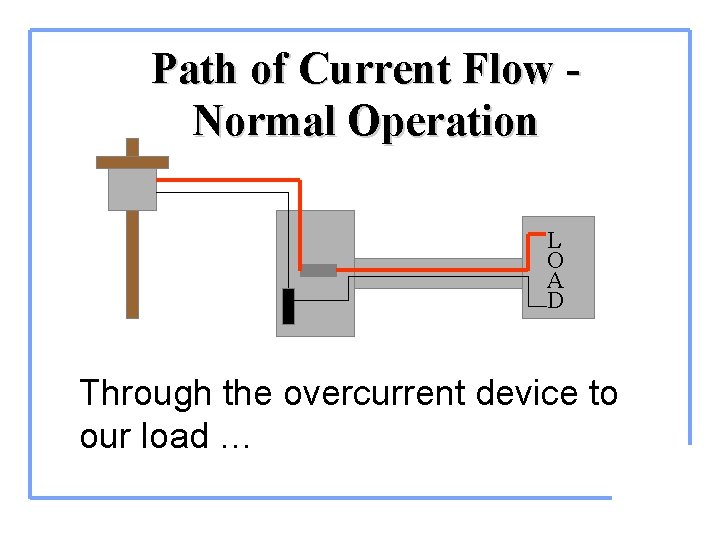

Path of Current Flow Normal Operation L O A D Through the overcurrent device to our load …

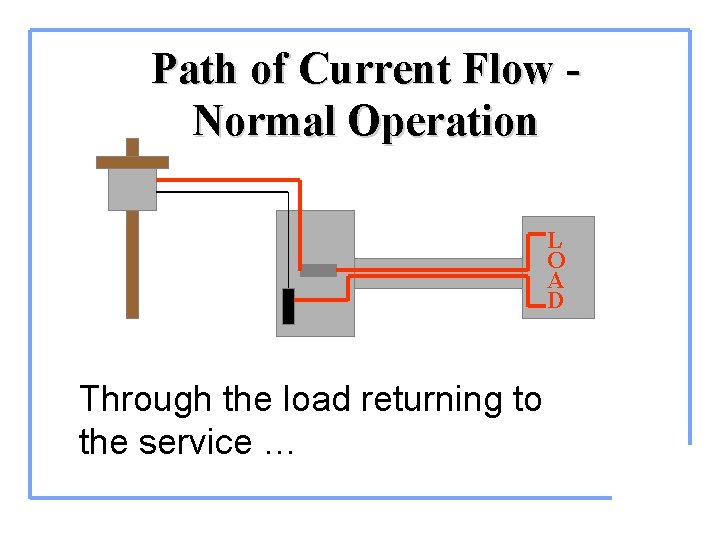

Path of Current Flow Normal Operation L O A D Through the load returning to the service …

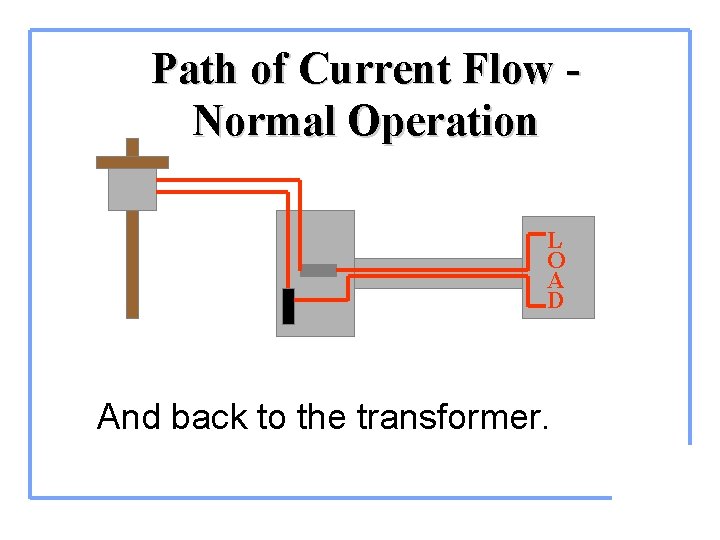

Path of Current Flow Normal Operation L O A D And back to the transformer.

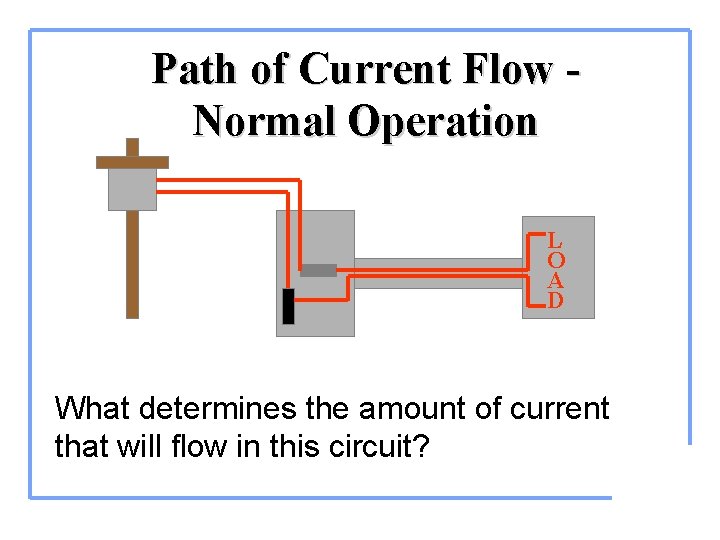

Path of Current Flow Normal Operation L O A D What determines the amount of current that will flow in this circuit?

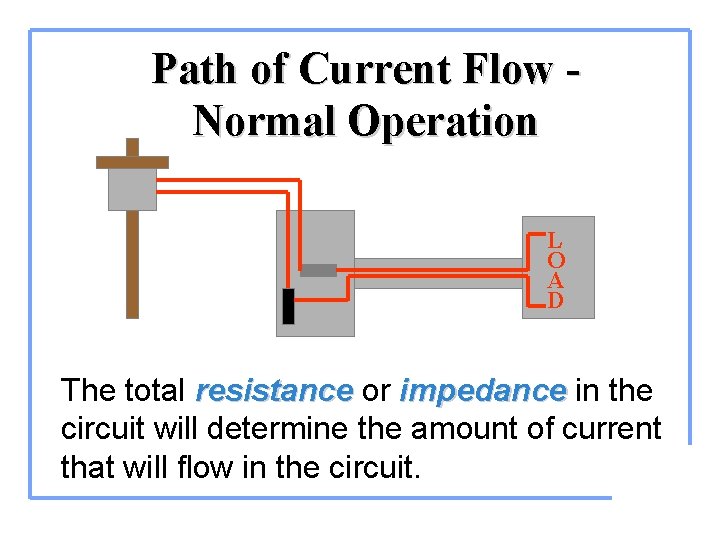

Path of Current Flow Normal Operation L O A D The total resistance or impedance in the circuit will determine the amount of current that will flow in the circuit.

Things You Can Count On … • Ohm’s Law Works – We can change the code, or – Hire a different contractor, or – Use romex instead of EMT, but • E = I x R still works!

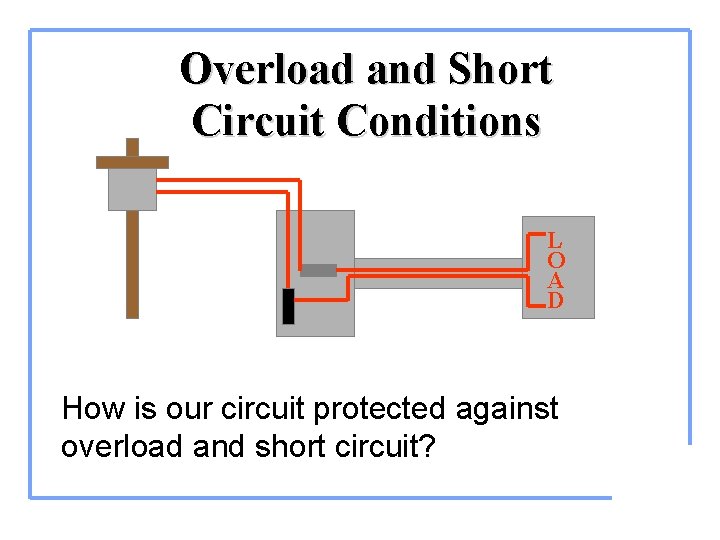

Overload and Short Circuit Conditions L O A D How is our circuit protected against overload and short circuit?

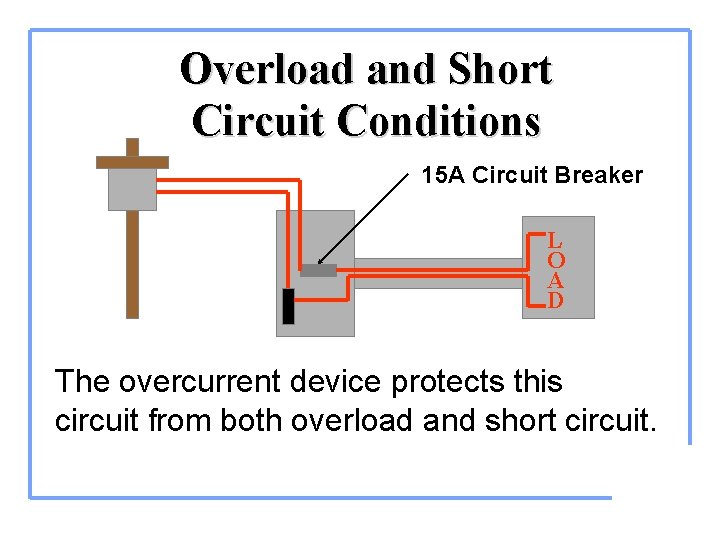

Overload and Short Circuit Conditions 15 A Circuit Breaker L O A D The overcurrent device protects this circuit from both overload and short circuit.

Ground Fault Condition • So let’s talk about a ground fault • • condition … Which certainly sounds like the one condition where grounding would be important and decide for ourselves whether … Grounding provides protection for equipment or personnel under a ground fault condition

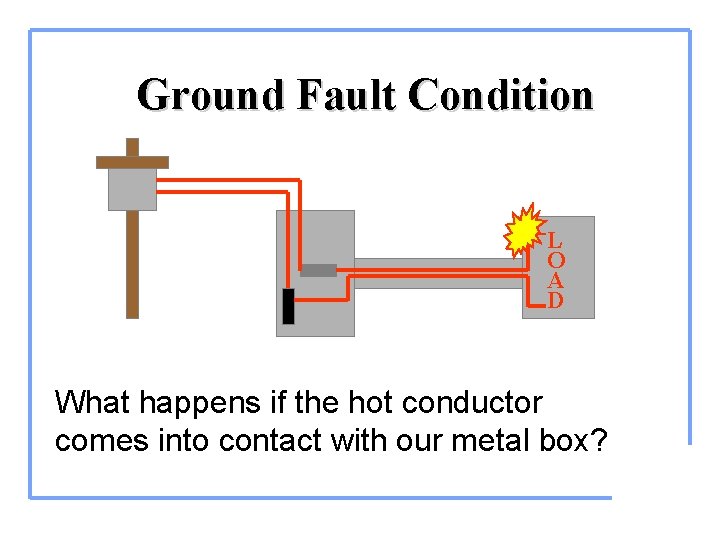

Ground Fault Condition L O A D What happens if the hot conductor comes into contact with our metal box?

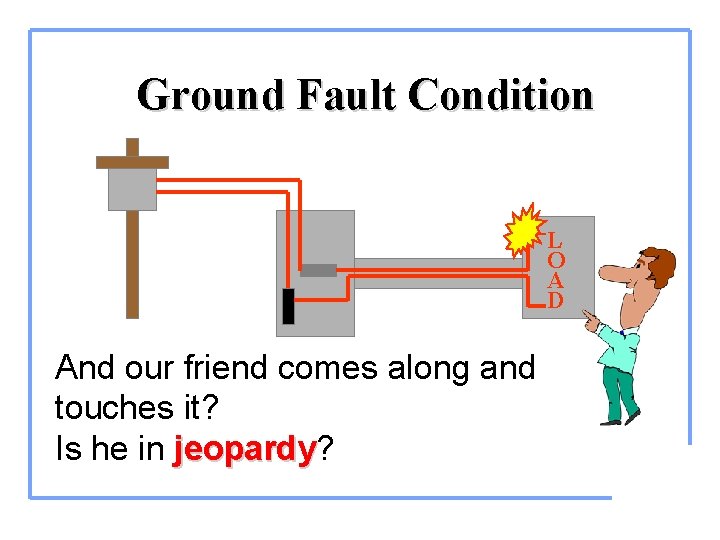

Ground Fault Condition L O A D And our friend comes along and touches it? Is he in jeopardy? jeopardy

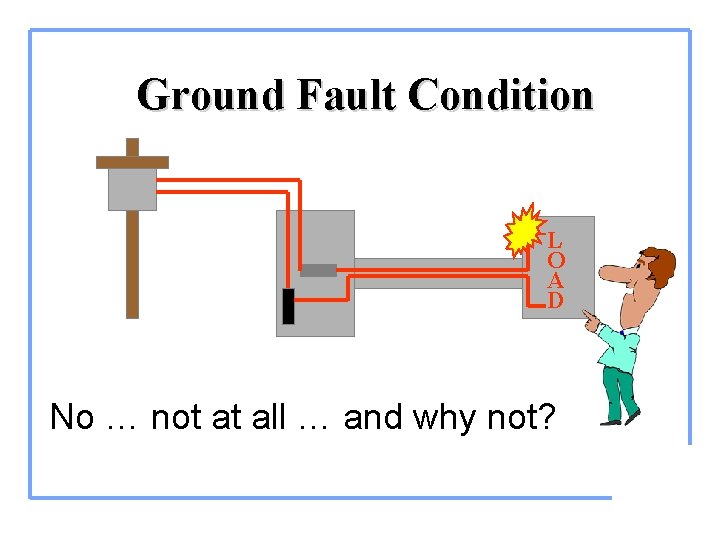

Ground Fault Condition L O A D No … not at all … and why not?

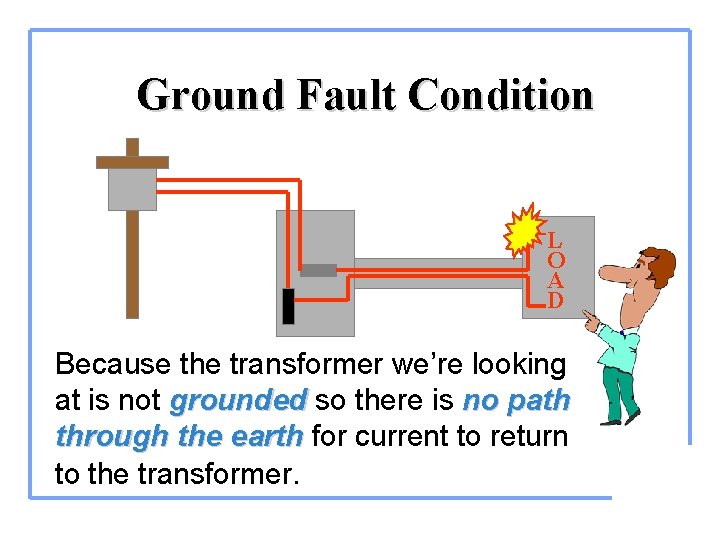

Ground Fault Condition L O A D Because the transformer we’re looking at is not grounded so there is no path through the earth for current to return to the transformer.

Ground Fault Condition L O A D Yes, that was a “trick” question … sorry about that … but the intent was to make a point.

Things You Can Count On … • No circuit – no current • Current does not flow unless there is a • continuous path from one side of the source of supply to the other Current cannot travel through the earth to return to a transformer unless the transformer is grounded

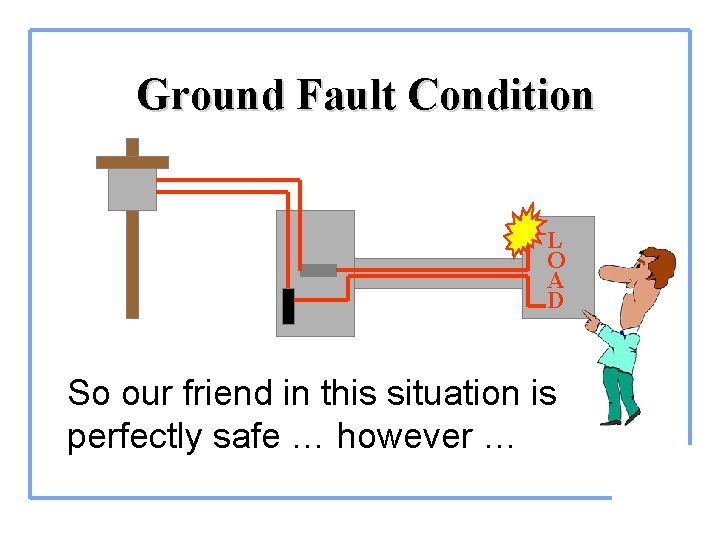

Ground Fault Condition L O A D So our friend in this situation is perfectly safe … however …

Ground Fault Condition L O A D What do we know about utility company transformers?

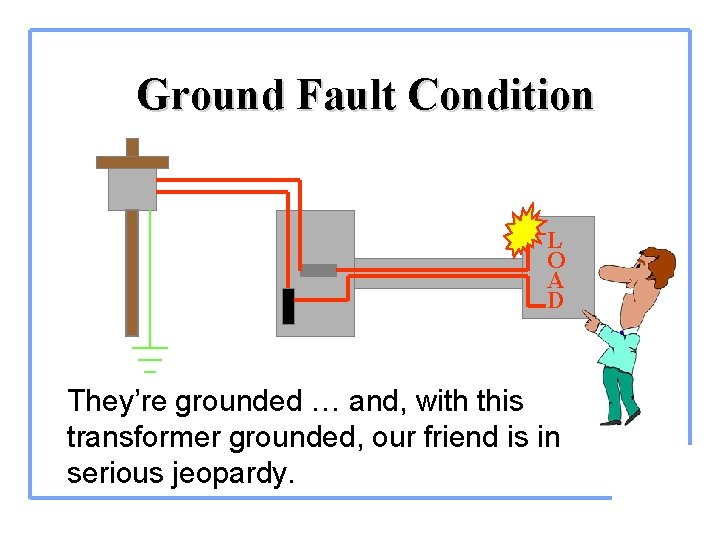

Ground Fault Condition L O A D They’re grounded … and, with this transformer grounded, our friend is in serious jeopardy.

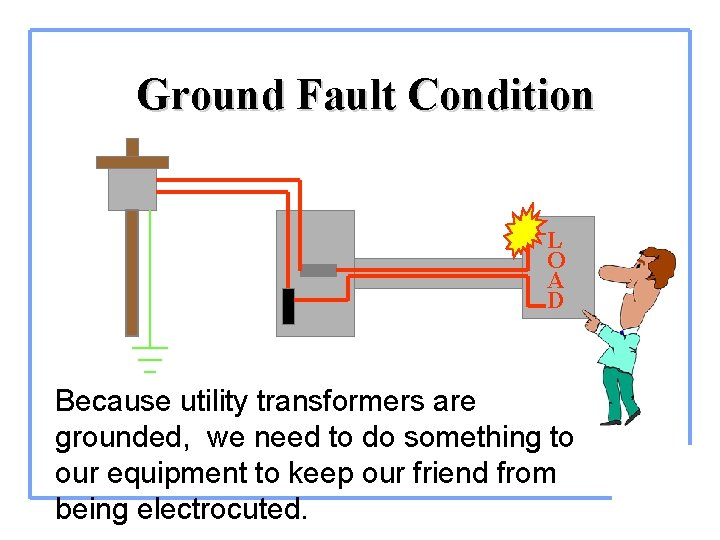

Ground Fault Condition L O A D Because utility transformers are grounded, we need to do something to our equipment to keep our friend from being electrocuted.

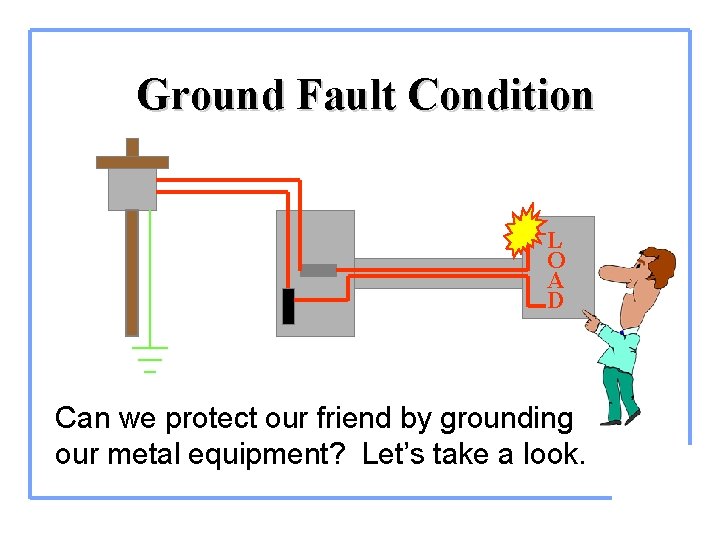

Ground Fault Condition L O A D Can we protect our friend by grounding our metal equipment? Let’s take a look.

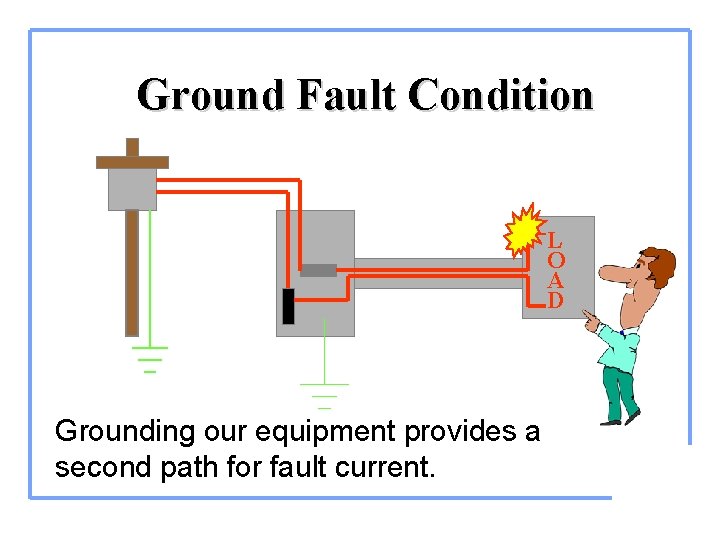

Ground Fault Condition L O A D Grounding our equipment provides a second path for fault current.

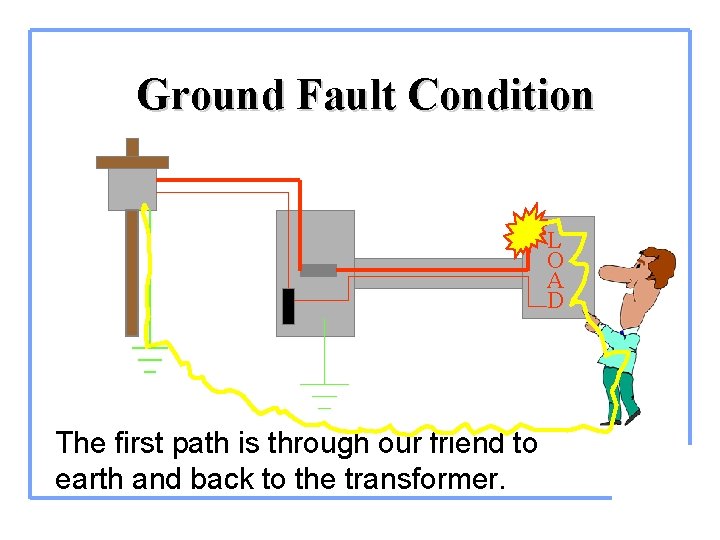

Ground Fault Condition L O A D The first path is through our friend to earth and back to the transformer.

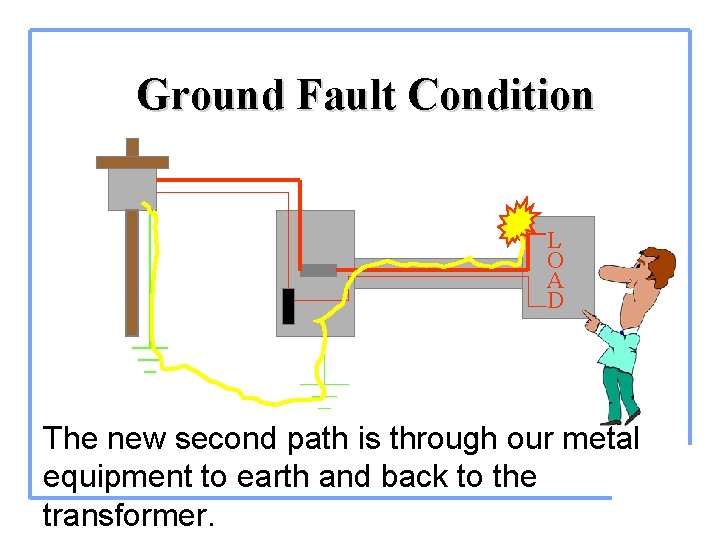

Ground Fault Condition L O A D The new second path is through our metal equipment to earth and back to the transformer.

Fault Current Path • We need to open a 15 A Circuit Breaker as quickly as possible. This will require a fault current of 60 A to 75 A (four to five times the rating of the breaker) • We can use Ohm’s Law to find out how much current will flow on our new path

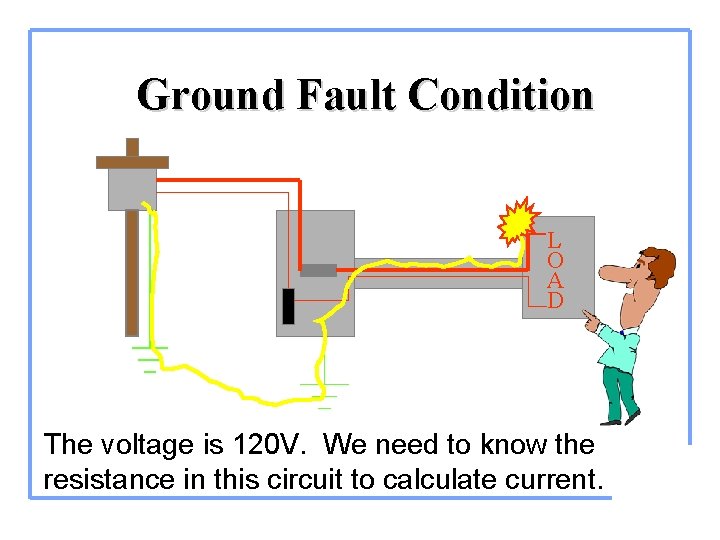

Ground Fault Condition L O A D The voltage is 120 V. We need to know the resistance in this circuit to calculate current.

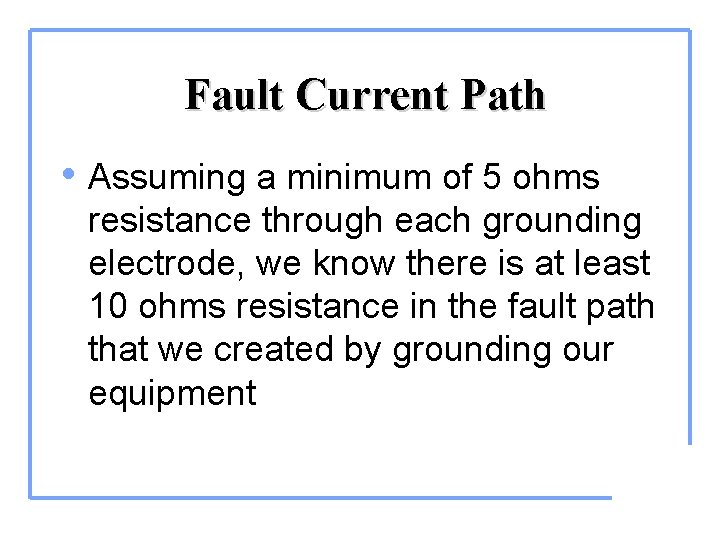

Fault Current Path • Assuming a minimum of 5 ohms resistance through each grounding electrode, we know there is at least 10 ohms resistance in the fault path that we created by grounding our equipment

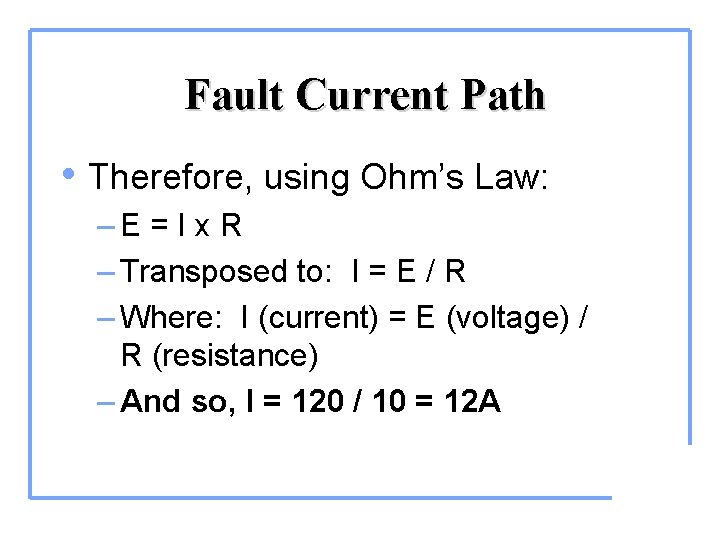

Fault Current Path • Therefore, using Ohm’s Law: –E = I x R – Transposed to: I = E / R – Where: I (current) = E (voltage) / R (resistance) – And so, I = 120 / 10 = 12 A

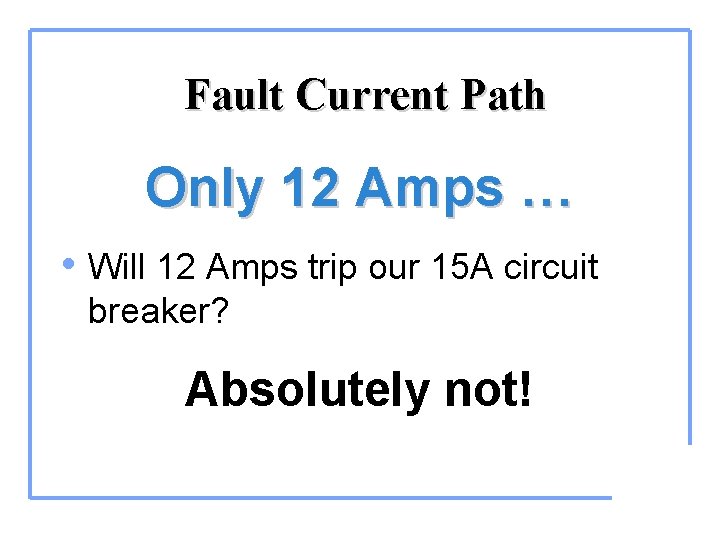

Fault Current Path Only 12 Amps … • Will 12 Amps trip our 15 A circuit breaker? Absolutely not!

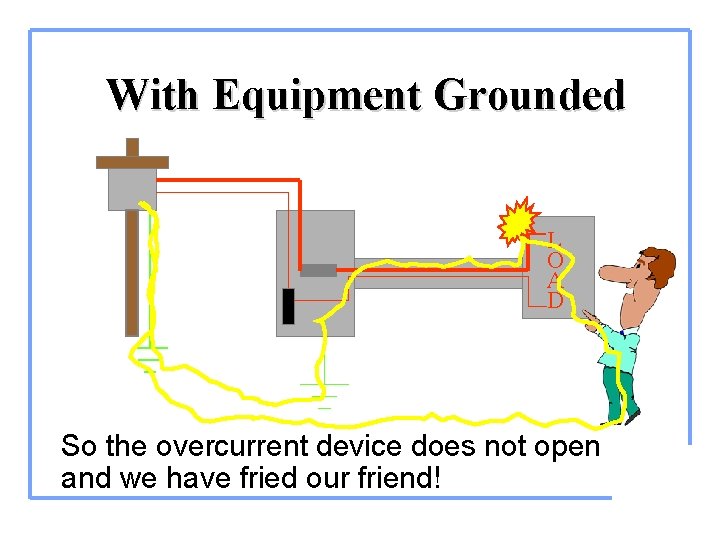

With Equipment Grounded L O A D So the overcurrent device does not open and we have fried our friend!

Conclusion … • Grounding does not protect equipment or personnel from a ground fault!

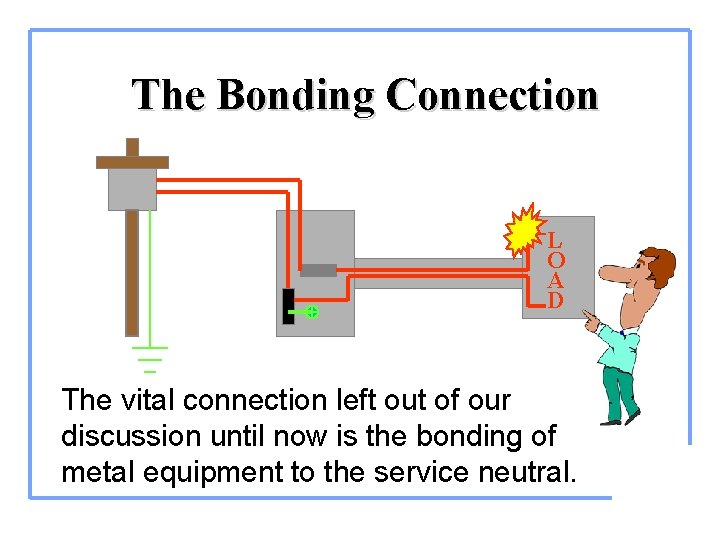

The Bonding Connection L O A D The vital connection left out of our discussion until now is the bonding of metal equipment to the service neutral.

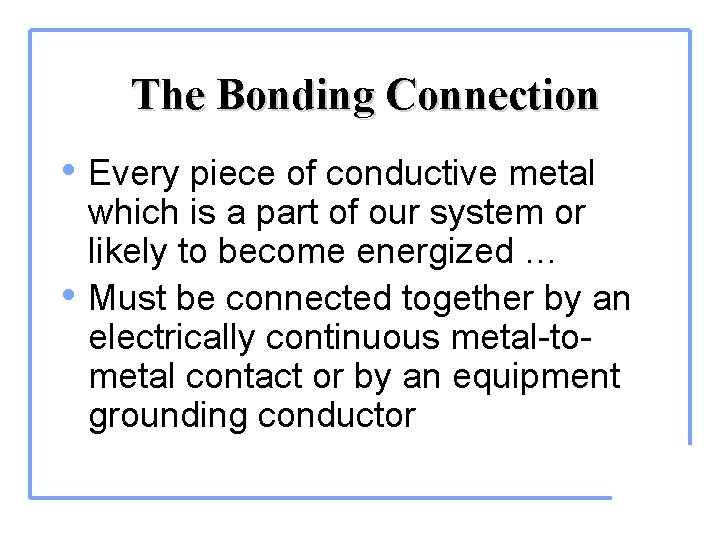

The Bonding Connection • Every piece of conductive metal • which is a part of our system or likely to become energized … Must be connected together by an electrically continuous metal-tometal contact or by an equipment grounding conductor

The Bonding Connection • These connections create an electrically • • continuous, low resistance path from every part of our system back to the service equipment At the service, these connections terminate on the neutral bus creating an: “Effective Ground Fault Current Path”

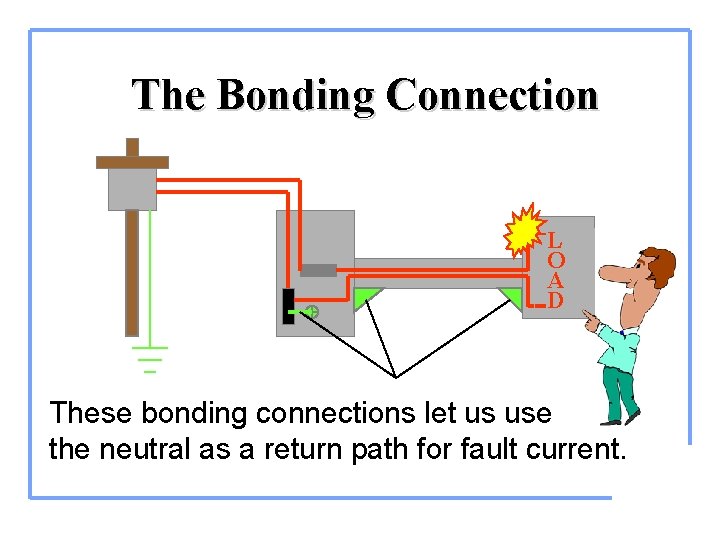

The Bonding Connection L O A D These bonding connections let us use the neutral as a return path for fault current.

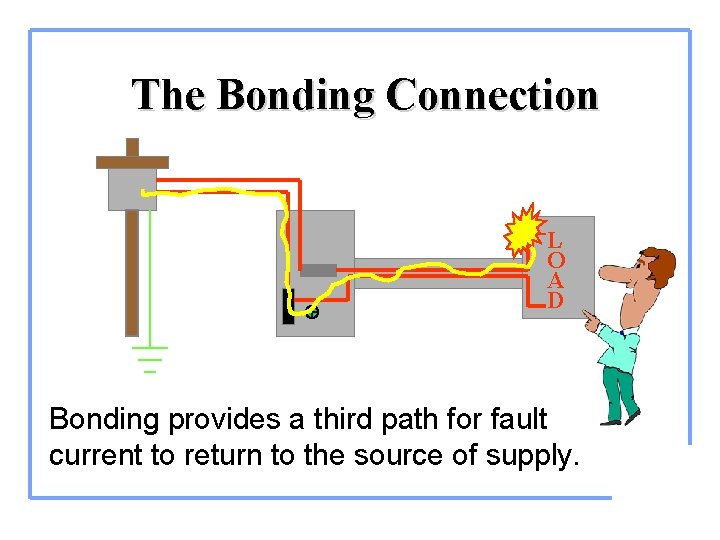

The Bonding Connection L O A D Bonding provides a third path for fault current to return to the source of supply.

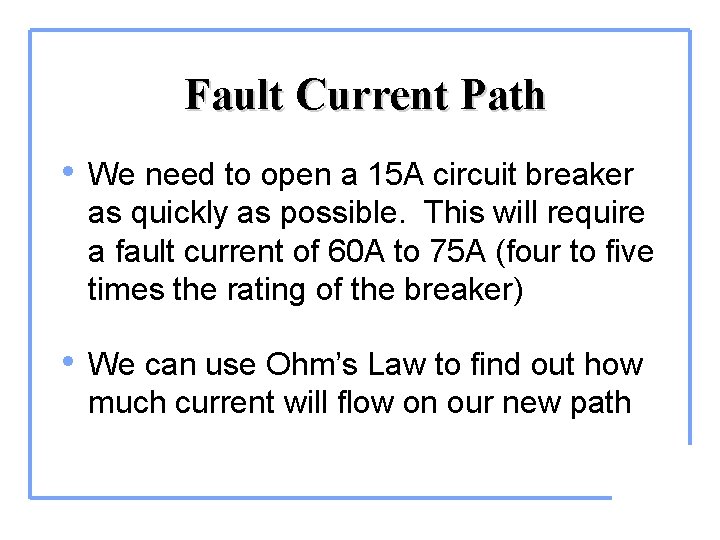

Fault Current Path • We need to open a 15 A circuit breaker as quickly as possible. This will require a fault current of 60 A to 75 A (four to five times the rating of the breaker) • We can use Ohm’s Law to find out how much current will flow on our new path

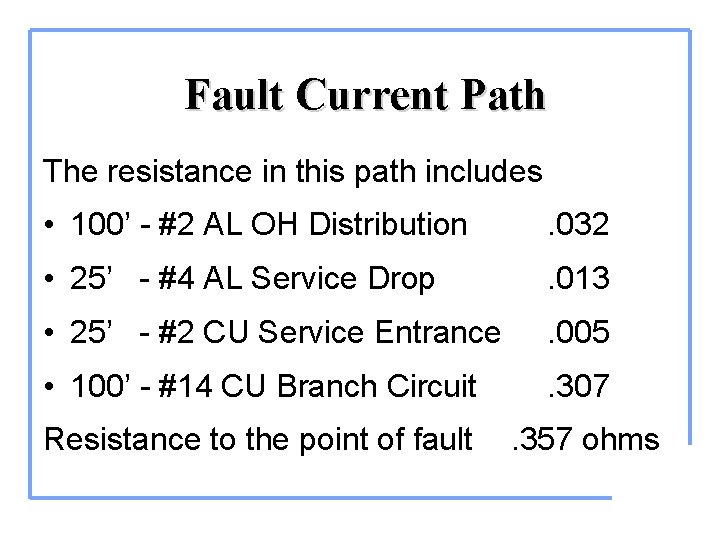

Fault Current Path The resistance in this path includes • 100’ - #2 AL OH Distribution . 032 • 25’ - #4 AL Service Drop . 013 • 25’ - #2 CU Service Entrance . 005 • 100’ - #14 CU Branch Circuit . 307 Resistance to the point of fault . 357 ohms

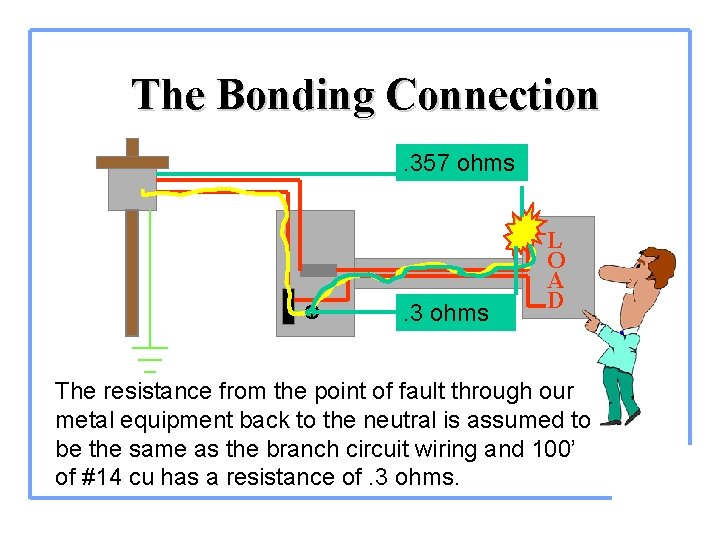

The Bonding Connection. 357 ohms . 3 ohms L O A D The resistance from the point of fault through our metal equipment back to the neutral is assumed to be the same as the branch circuit wiring and 100’ of #14 cu has a resistance of. 3 ohms.

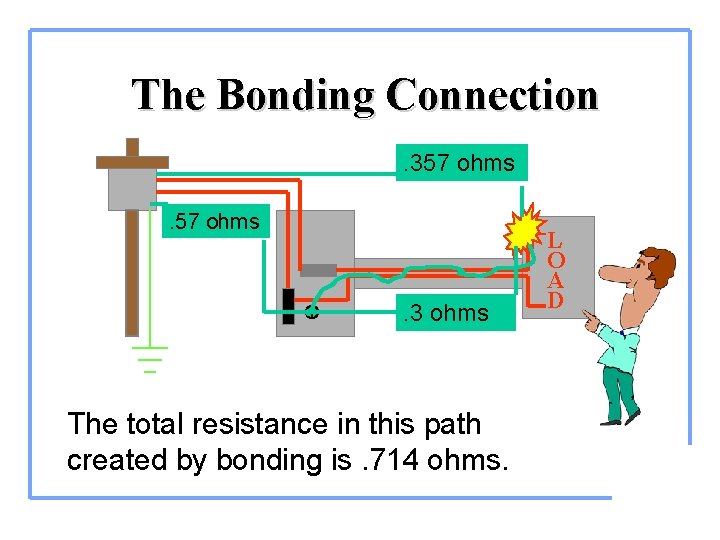

The Bonding Connection. 357 ohms . 3 ohms The total resistance in this path created by bonding is. 714 ohms. L O A D

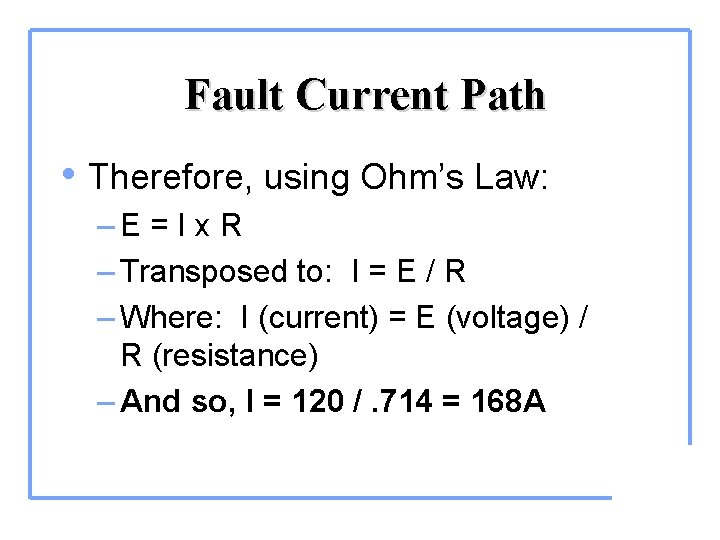

Fault Current Path • Therefore, using Ohm’s Law: –E = I x R – Transposed to: I = E / R – Where: I (current) = E (voltage) / R (resistance) – And so, I = 120 /. 714 = 168 A

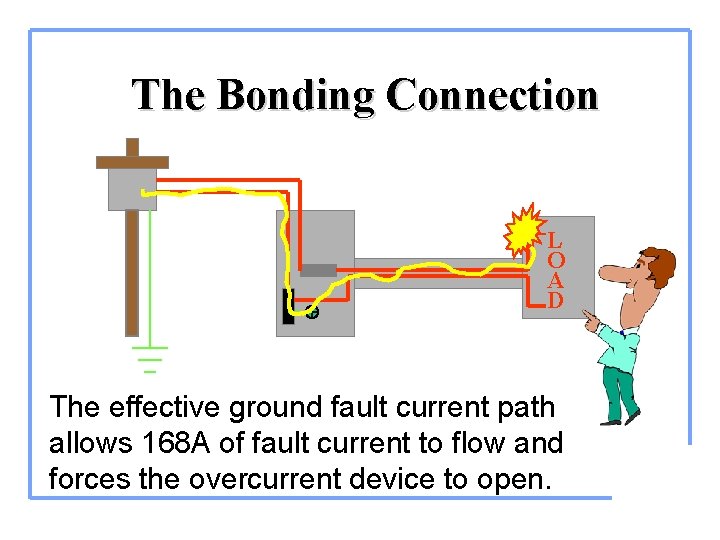

The Bonding Connection L O A D The effective ground fault current path allows 168 A of fault current to flow and forces the overcurrent device to open.

The Bonding Connection L O A D This path does not rely on grounding and works even if our system is not grounded.

Conclusion … • The overcurrent device protects against • ground fault conditions provided that … Our circuits have been installed so that all conductive metals are bonded together and to the service neutral

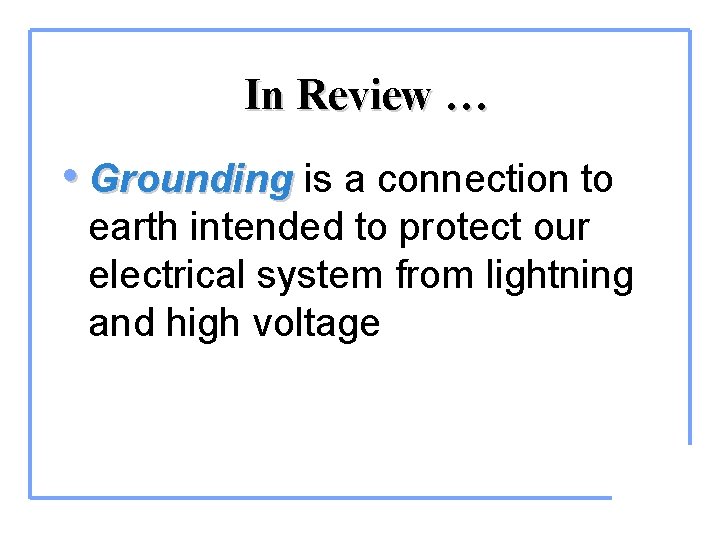

In Review … • Grounding is a connection to earth intended to protect our electrical system from lightning and high voltage

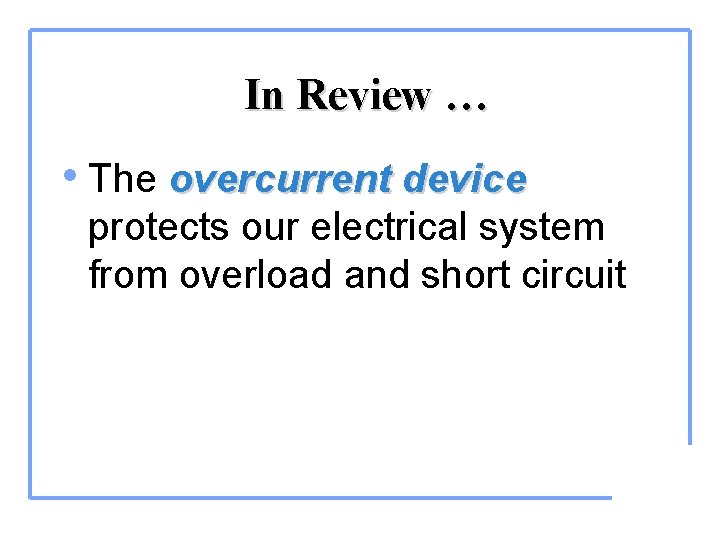

In Review … • The overcurrent device protects our electrical system from overload and short circuit

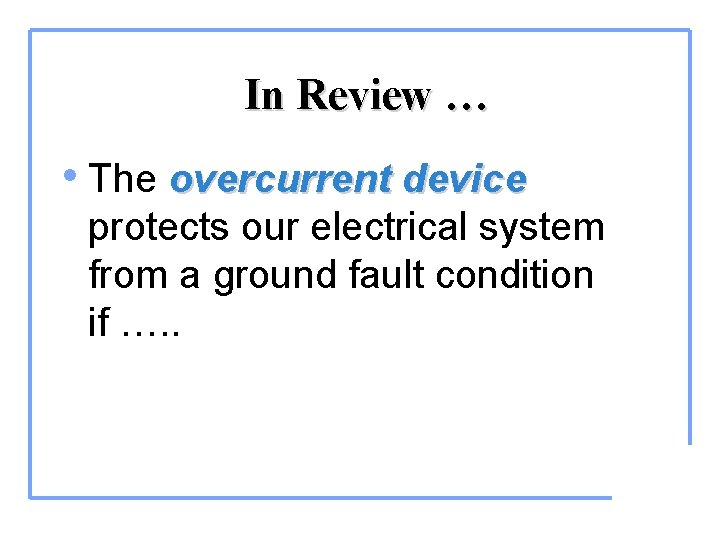

In Review … • The overcurrent device protects our electrical system from a ground fault condition if …. .

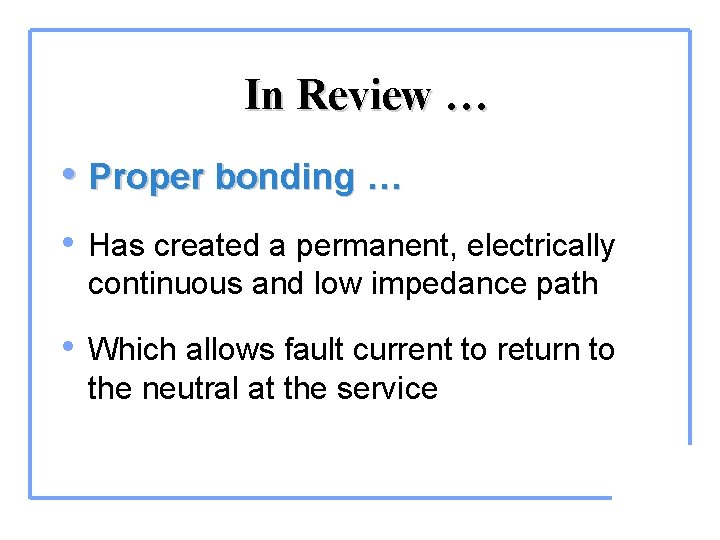

In Review … • Proper bonding … • Has created a permanent, electrically continuous and low impedance path • Which allows fault current to return to the neutral at the service

Wiring Methods Are Critical • Clearly, an effective ground-fault current path must be created throughout our wiring system • This is accomplished through the proper installation of a listed wiring method

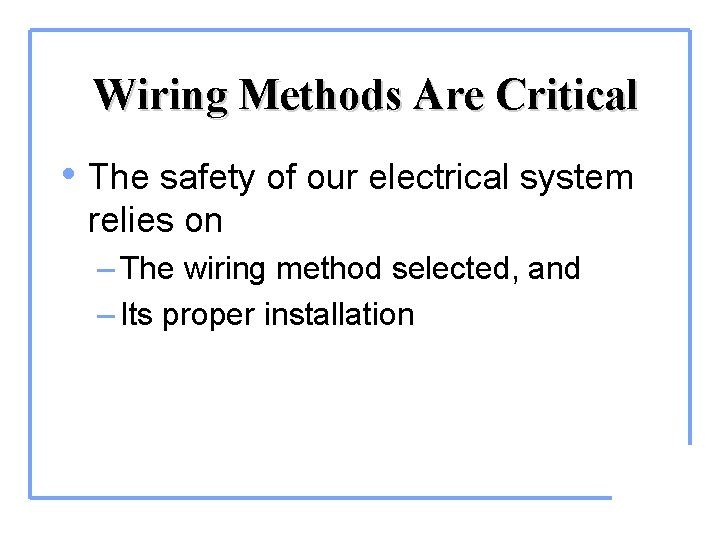

Wiring Methods Are Critical • The safety of our electrical system relies on – The wiring method selected, and – Its proper installation

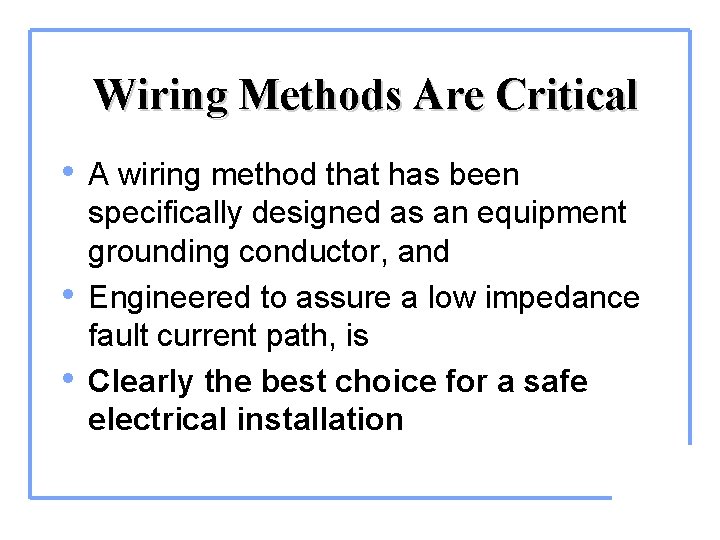

Wiring Methods Are Critical • A wiring method that has been • • specifically designed as an equipment grounding conductor, and Engineered to assure a low impedance fault current path, is Clearly the best choice for a safe electrical installation
