Bonding Dr Ron Rusay Fall 2001 Copyright 2001
Bonding Dr. Ron Rusay Fall 2001 © Copyright 2001 R. J. Rusay

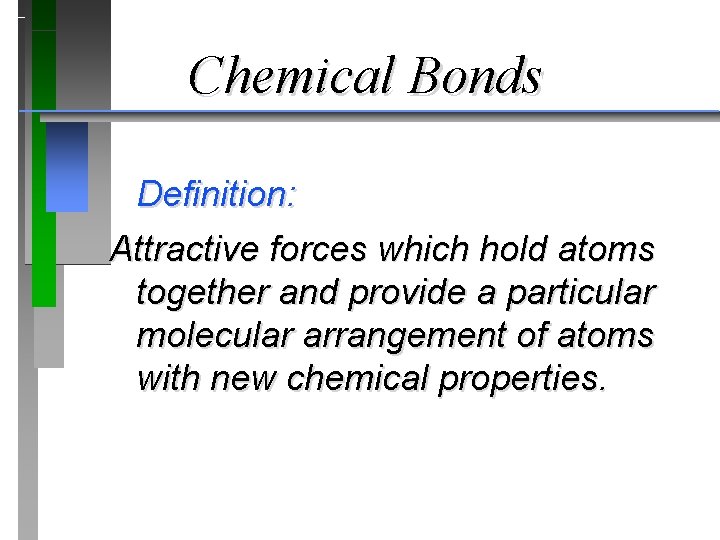

Chemical Bonds Definition: Attractive forces which hold atoms together and provide a particular molecular arrangement of atoms with new chemical properties.

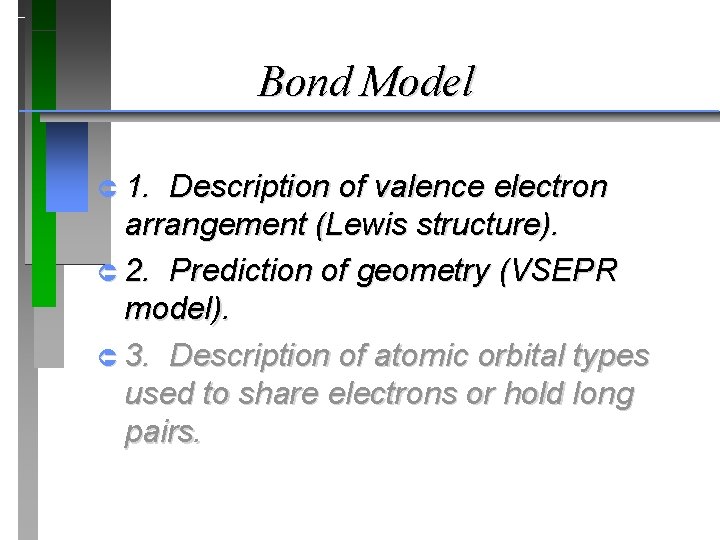

Bond Model Û 1. Description of valence electron arrangement (Lewis structure). Û 2. Prediction of geometry (VSEPR model). Û 3. Description of atomic orbital types used to share electrons or hold long pairs.

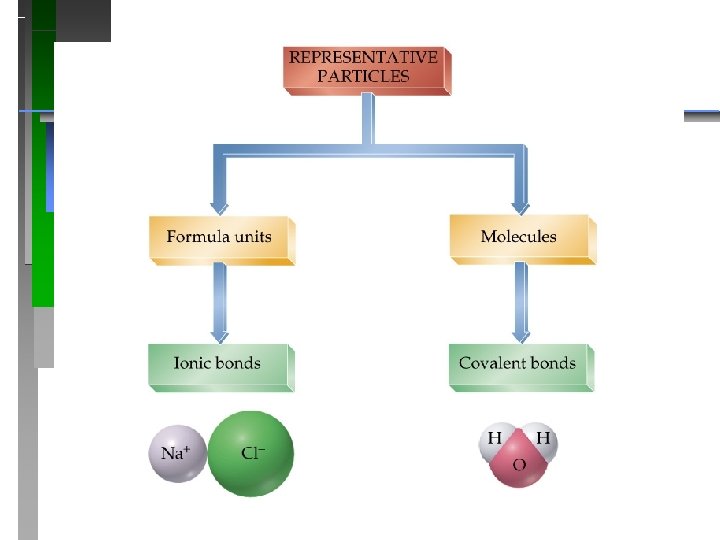

Ionic vs. Covalent Bonding

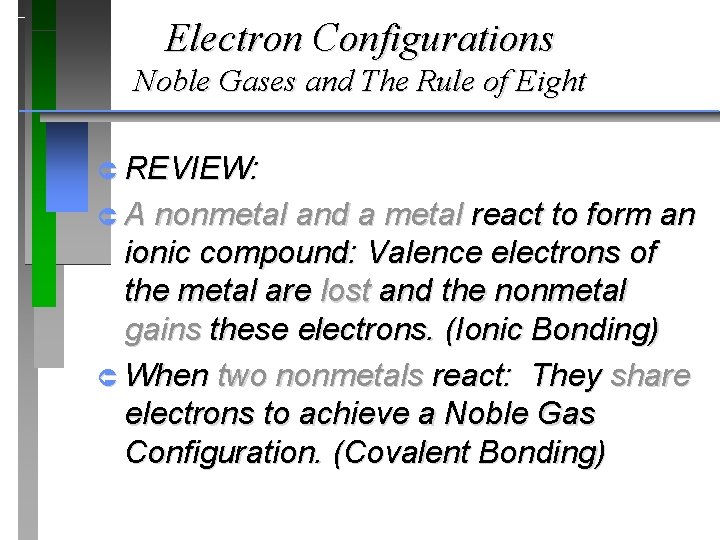

Electron Configurations Noble Gases and The Rule of Eight Û REVIEW: ÛA nonmetal and a metal react to form an ionic compound: Valence electrons of the metal are lost and the nonmetal gains these electrons. (Ionic Bonding) Û When two nonmetals react: They share electrons to achieve a Noble Gas Configuration. (Covalent Bonding)

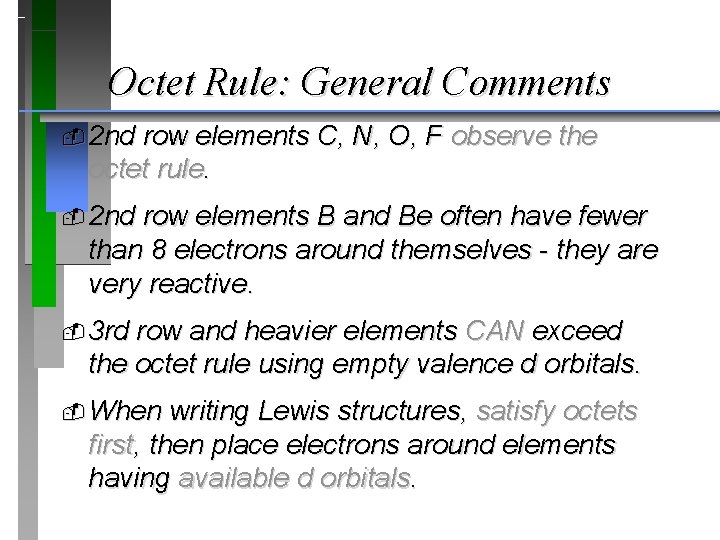

Octet Rule: General Comments 2 nd row elements C, N, O, F observe the octet rule. 2 nd row elements B and Be often have fewer than 8 electrons around themselves - they are very reactive. 3 rd row and heavier elements CAN exceed the octet rule using empty valence d orbitals. When writing Lewis structures, satisfy octets first, then place electrons around elements having available d orbitals.

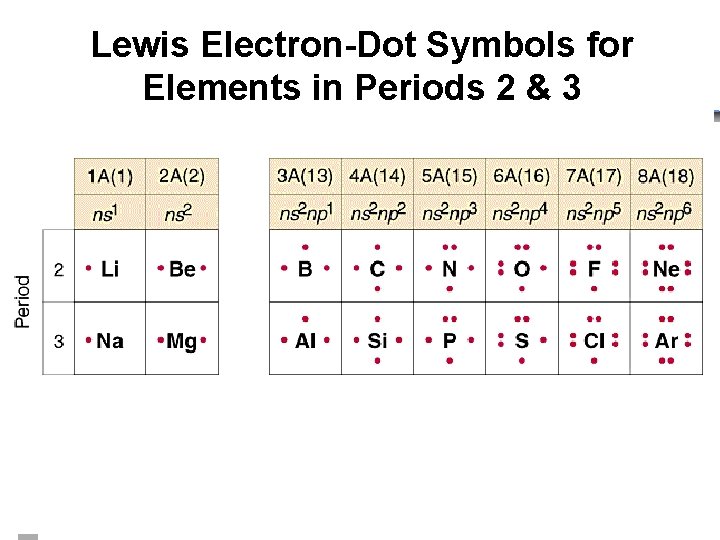

Lewis Electron-Dot Symbols for Elements in Periods 2 & 3

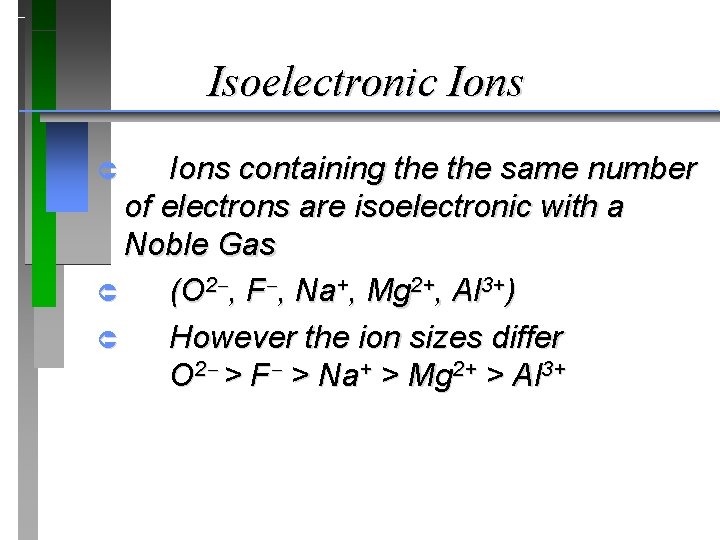

Isoelectronic Ions containing the same number of electrons are isoelectronic with a Noble Gas Û (O 2 , F , Na+, Mg 2+, Al 3+) Û However the ion sizes differ O 2 > F > Na+ > Mg 2+ > Al 3+ Û

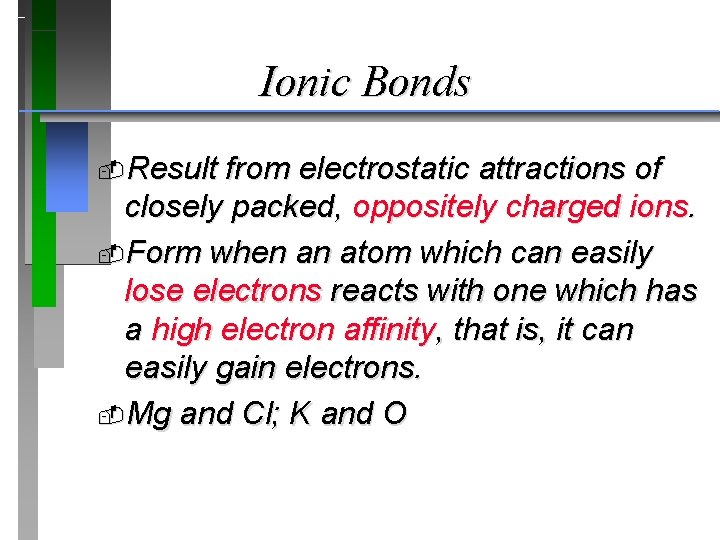

Ionic Bonds Result from electrostatic attractions of closely packed, oppositely charged ions. Form when an atom which can easily lose electrons reacts with one which has a high electron affinity, that is, it can easily gain electrons. Mg and Cl; K and O

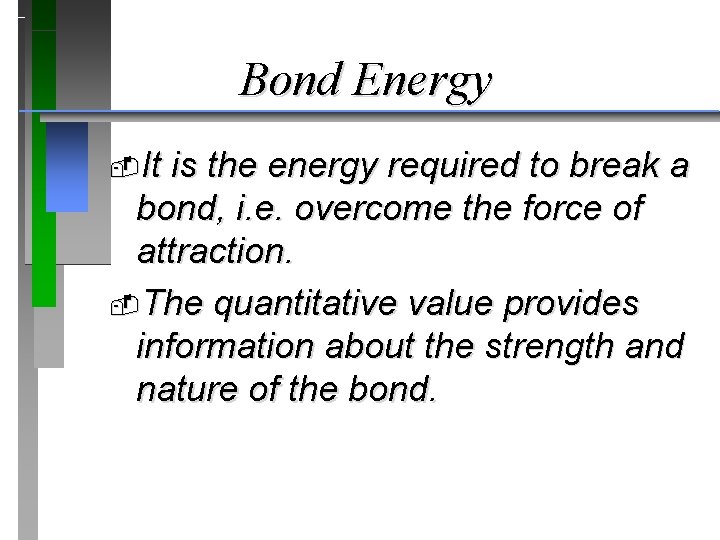

Bond Energy It is the energy required to break a bond, i. e. overcome the force of attraction. The quantitative value provides information about the strength and nature of the bond.

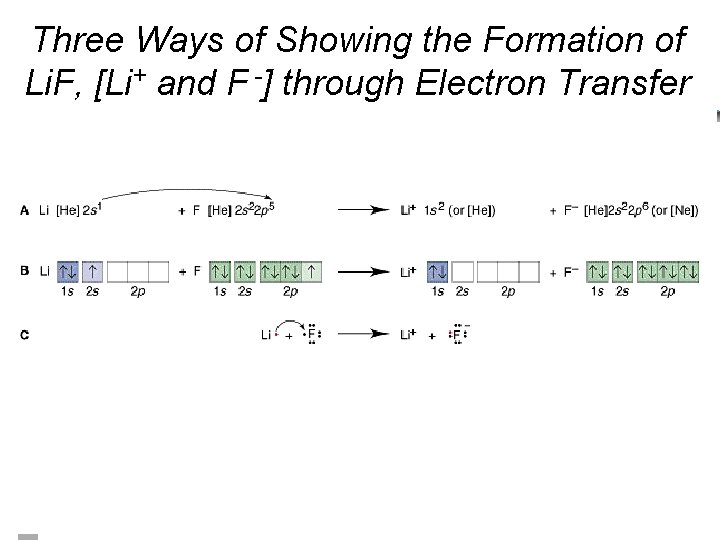

Three Ways of Showing the Formation of Li. F, [Li+ and F -] through Electron Transfer
Covalent Bond Lengths Interatomic distance. Û It is the distance where the bond energy is at a minimum value, and which is the most stable atomic form. Û • IR Tutor
Covalent Bonding & Bond Length

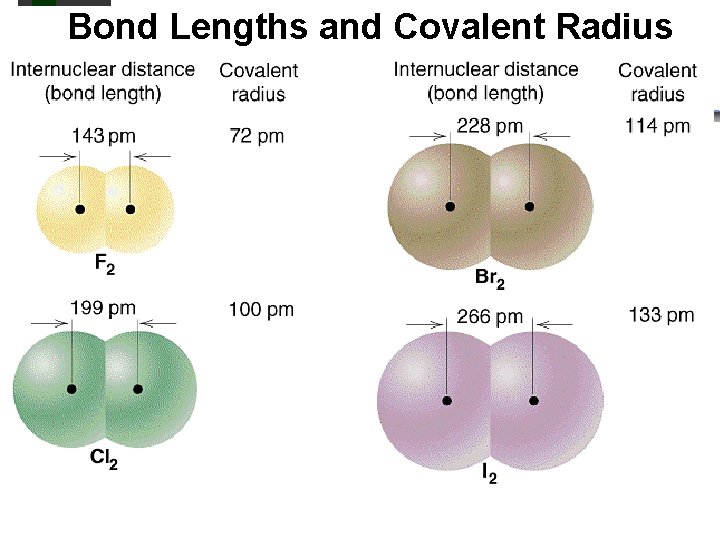

Bond Lengths and Covalent Radius

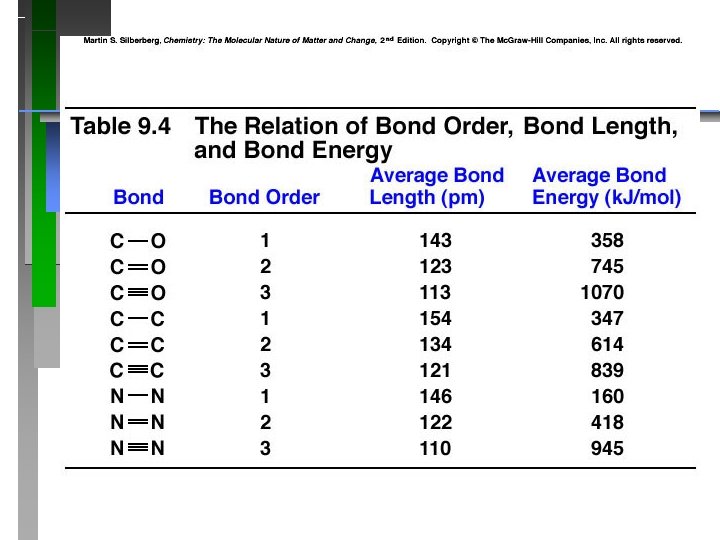

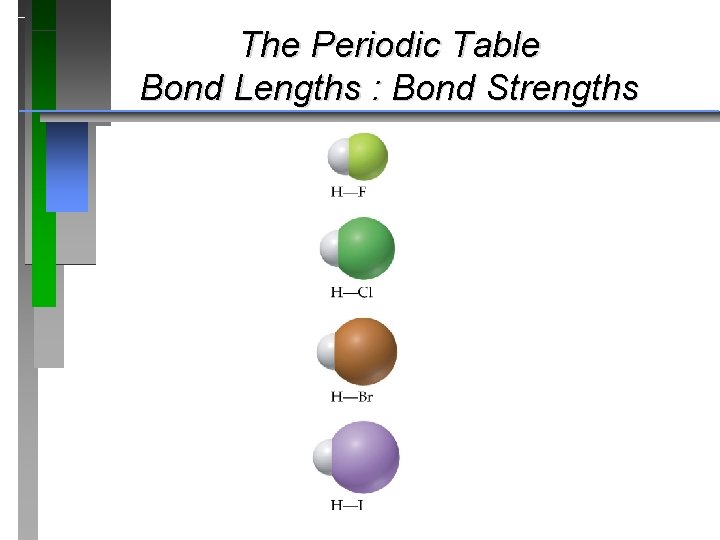

The Periodic Table Bond Lengths : Bond Strengths

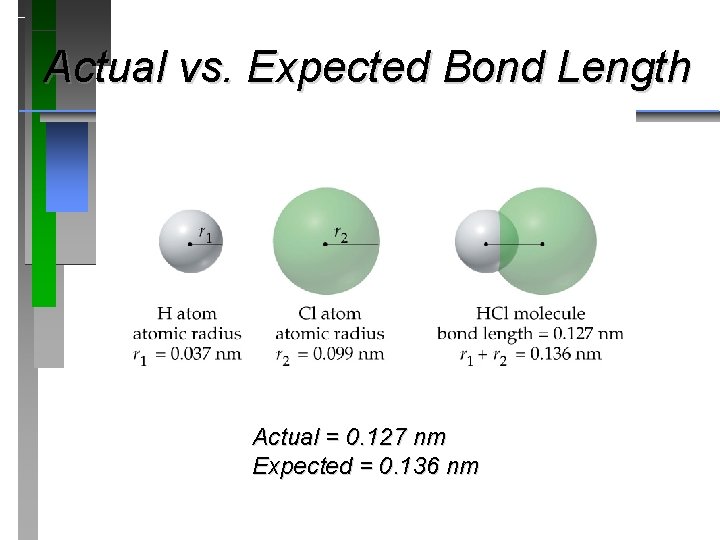

Actual vs. Expected Bond Length Actual = 0. 127 nm Expected = 0. 136 nm
Electronegativity

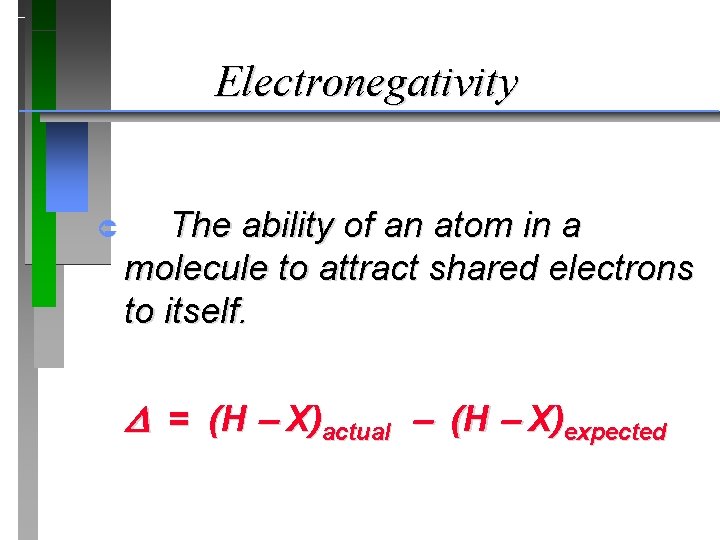

Electronegativity Û The ability of an atom in a molecule to attract shared electrons to itself. = (H X)actual (H X)expected

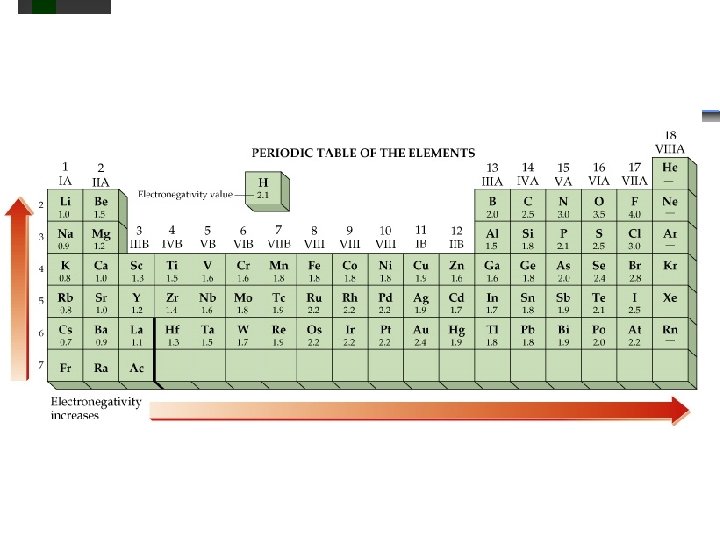

Periodic Trend
Electronegativity Differences & Polar Covalent Bonds Û A molecule with a relatively high difference in electronegativities, such as HF, has a center of positive charge and a center of negative charge. It is polar, having an experimentally measureable dipole moment.
The spectrum of bond differences: Ionic at one extreme : Non-polar covalent at the other.
Bond Shapes
Lewis Structure Shows how valence electrons are arranged among atoms in a molecule. Reflects central idea that stability of a compound relates to noble gas electron configuration.

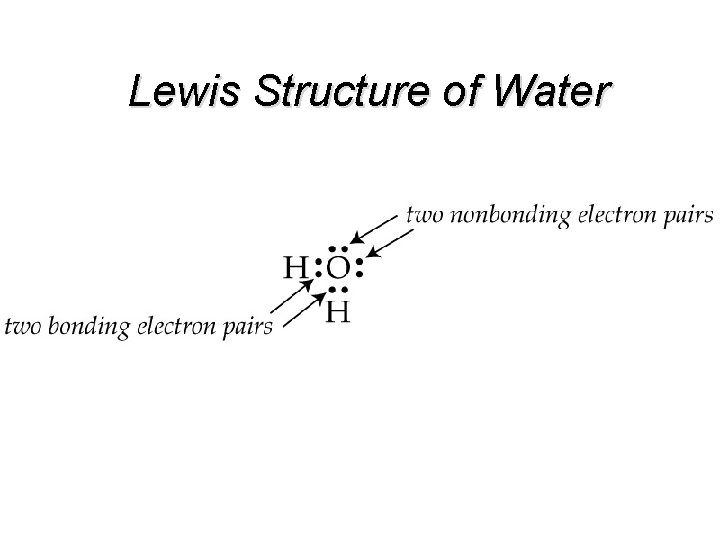

Lewis Structure of Water

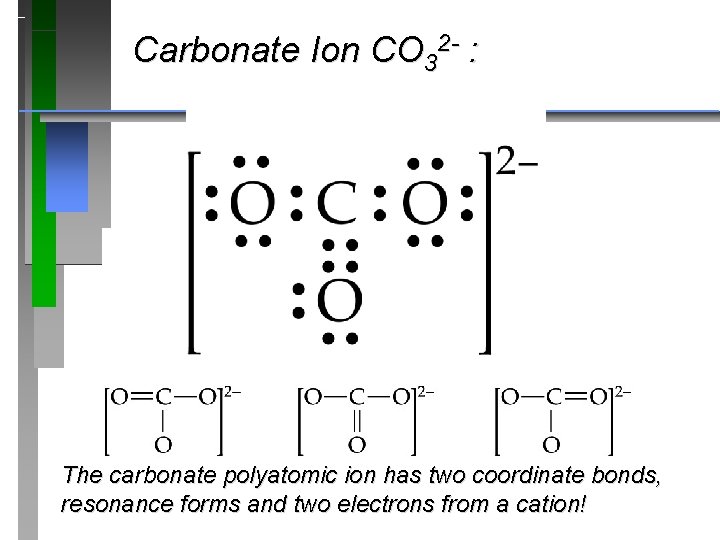

Carbonate Ion CO 32 - : The carbonate polyatomic ion has two coordinate bonds, resonance forms and two electrons from a cation!

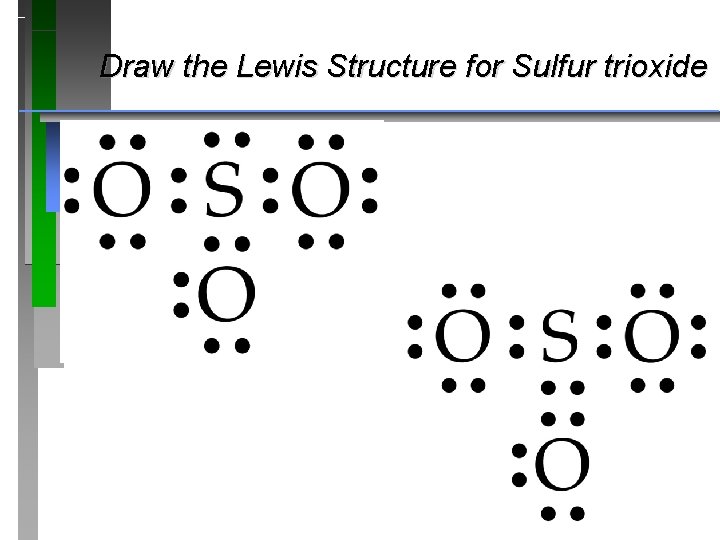

Draw the Lewis Structure for Sulfur trioxide

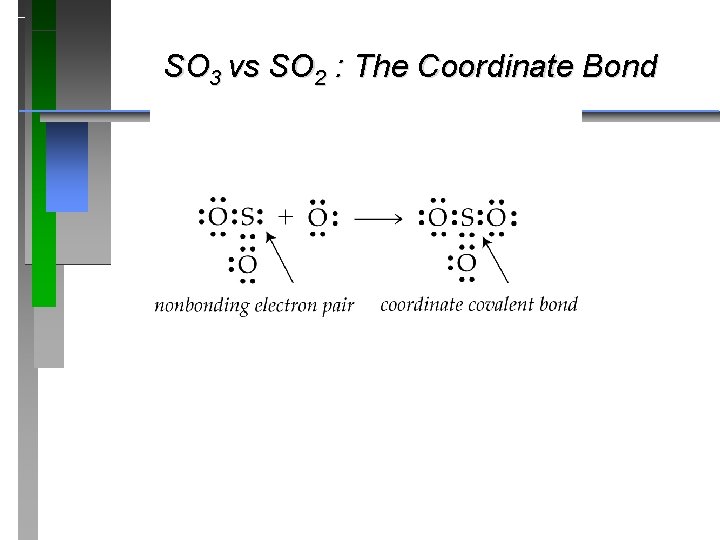

SO 3 vs SO 2 : The Coordinate Bond
Where to draw the sulfuroxygen double bond? There are three options. Simplified drawings without free pairs of electrons: Experimental data shows that each of the three sulfur-oxygen bonds are the same length.
Resonance Û Occurs when more than one valid Lewis structure can be written for a particular molecule. Û These are resonance structures. The actual structure is an average of the resonance structures.
Resonance: Delocalized Electron-Pairs . O. I O O . . Resonance Hybrid Structure . . . O. . One pair of electron’s resonates between the two locations!! . . . . O. . . Ozone : O 3 II

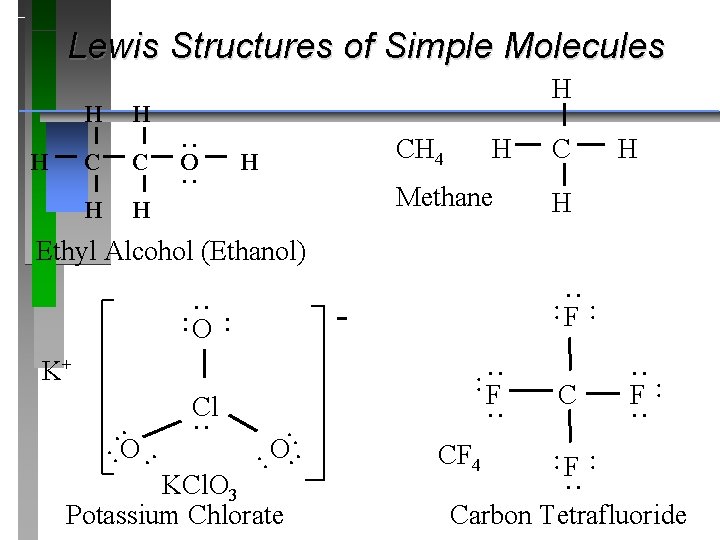

Lewis Structures of Simple Molecules C C H H . . O. . CH 4 H H Methane Ethyl Alcohol (Ethanol) H . . F . . O . . . O. . KCl. O 3 Potassium Chlorate . . F. . K+ . O. . . H . . Cl. . C C CF 4 F. . . . H H H Carbon Tetrafluoride

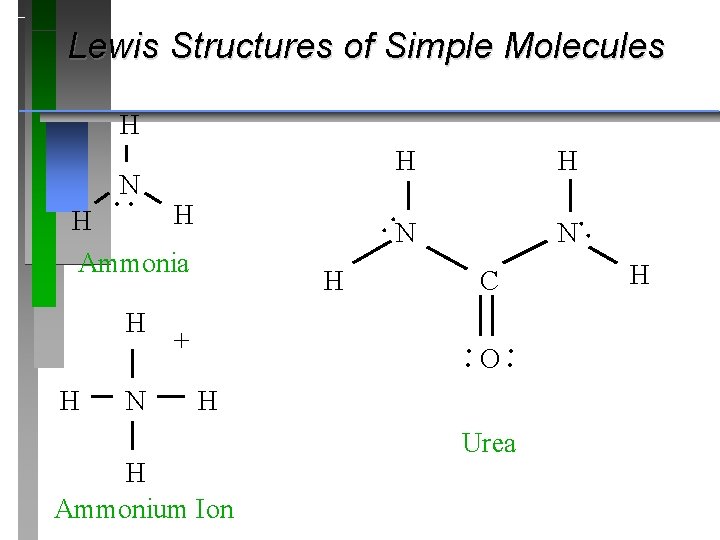

Lewis Structures of Simple Molecules H. N. H N N N H + . . C O . . H H Ammonia H H H Ammonium Ion Urea H

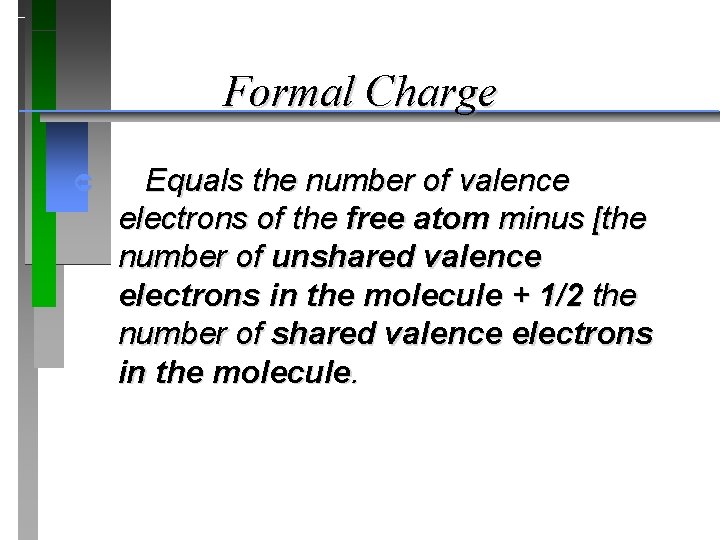

Formal Charge Û Equals the number of valence electrons of the free atom minus [the number of unshared valence electrons in the molecule + 1/2 the number of shared valence electrons in the molecule.
Resonance and Formal Charge Not as good Better
VSEPR Model Valence Shell Electron Pair Repulsion

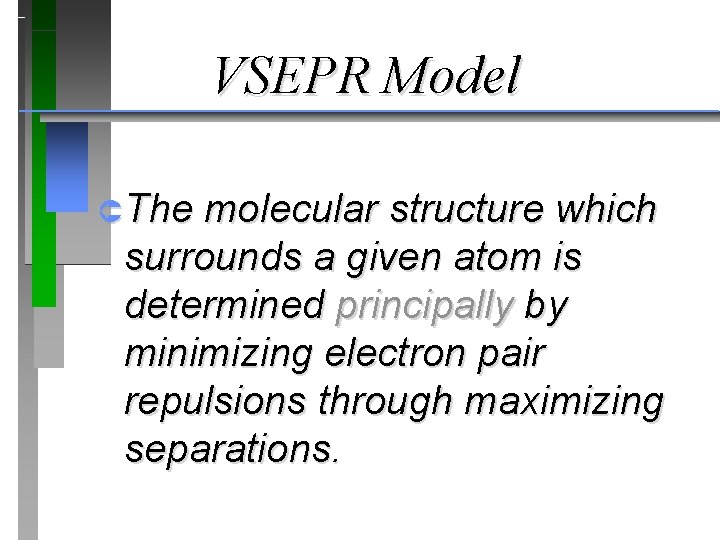

VSEPR Model ÛThe molecular structure which surrounds a given atom is determined principally by minimizing electron pair repulsions through maximizing separations.

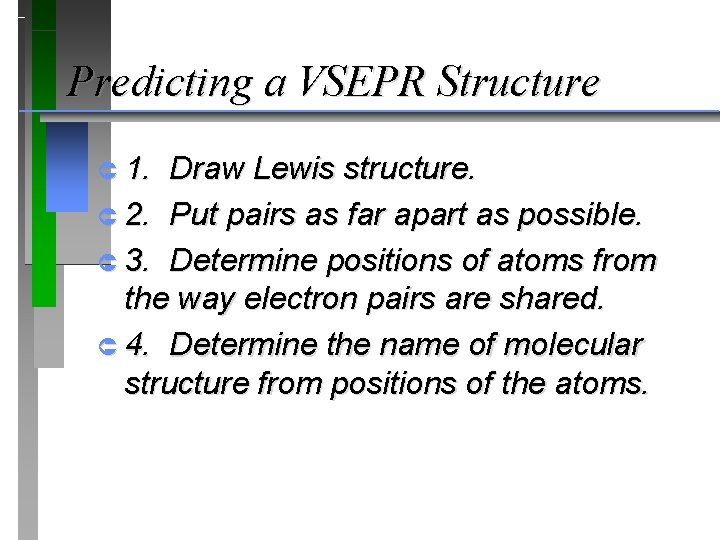

Predicting a VSEPR Structure Û 1. Draw Lewis structure. Û 2. Put pairs as far apart as possible. Û 3. Determine positions of atoms from the way electron pairs are shared. Û 4. Determine the name of molecular structure from positions of the atoms.
Molecular Models Û Computer Generated Models Ball and stick models of ammonia, water and methane. For many others see: http: //ep. llnl. gov/msds/pdb/ http: //ep. llnl. gov/msds/orgchem/Chem 226/Smell-Stereochem. html
