Bonding Chapter 5 Bonding When atoms combine they
Bonding Chapter 5
Bonding �When atoms combine they form a chemical bond �The force of attraction between two or more atoms.
Valence Electrons �Are the outer most electrons of an atom. �They play a huge role in how an atom bonds.
Lewis Structure �Is a diagram of atoms that only shows the valance electrons �Ex: Cl Na H Ar
The Octet Rule �The octet rule says that atoms tend to gain, lose or share electrons so they can have eight electrons in their outer shell. �They do this because they are more stable with a complete outer shell. �There are some situations where it does not apply. For example, hydrogen wants to take on to complete its outer shell with 2 electrons.
Oxidation Numbers �Oxidation numbers represent the charges that an ion has when it gains or loses its valence electrons. �They are listed as a + or –above each column on the periodic table.
Ion �An ion is an atom which has lost or gained one or more electrons, making it positively or negatively charged. �A negatively-charged ion, gains an electrons so it has more electrons then it has protons. �A positively-charged ion, looses electrons so it has more protons then electrons. �A polyatomic ion is an ion that is made up of more than one atom. �Poly= Many Atomic= Atoms �Ex: NH 4+ is the chemical formula for an ammonium ion. It contains two elements nitrogen and hydrogen and has a positive charge.

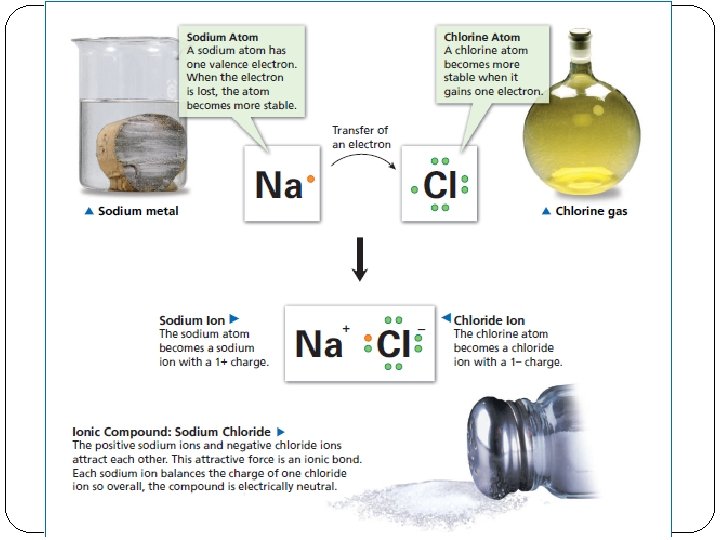

Ionic Bonds �Bonds that form as a result of the attraction between positive and negative ions. The atoms are attracted to each other because of their opposite charges �We call the compound that results from the bond an Ionic Compound. �Usually form between a metal and a nonmetal
In an IONIC bond, electrons are lost or gained, resulting in the formation of IONS in ionic compounds. K F
K F
K F
K F
K F
K F
K + F _ The compound potassium fluoride consists of potassium (K+) ions and fluoride (F-) ions
K + F _ The ionic bond is the attraction between the positive K+ ion and the negative F- ion
Formulas �Reminder: A chemical formula is the combination of symbols that show the elements in the compound. i. e. Mg. Cl 2 �If a molecule contains more than one atom of a particular element, you indicate it by using a subscript after the chemical symbol (ex: the 2 in Mg. Cl 2). �It tells you the ratio of atoms in the compound (Mg. Cl 2 has a 1: 2 ratio). �If no subscript is written the number 1 is understood( Na. Cl there is a 1: 1 ratio). �A coefficient acts as a multiplier for all of the atoms in the entire compound, it is found in front of the chemical formula
Example Mg. Cl 2 Here we have one molecule of magnesium chloride. The subscript 2 in the formula above only pertains to the chlorine in the compound. The total number of atoms in the compound is 3. Now let us put a coefficient in front of the molecule and see how that changes things. 5 Mg. Cl 2 The coefficient 5 refers to the entire molecule. It shows that there are 5 compounds of magnesium chloride. Since each molecule is made up of 3 atoms, the total number of atoms is now 15. There are 6 5 magnesium atoms and 10 chlorine atoms. 3 How many atoms are in 9 the following bond 3 Na 2 S Sodium(Na)____ Sulfur(S)____ Sodium Sulfide(3 Na 2 S) ____ = total atoms
Naming Ionic Compounds � The name of the positive ion comes first, followed by the name of the negative ion. � The metal will be the positive because it gives away electrons and the nonmetal will be the negative because it gains electrons. � If the negative ion is a single element the end of its name changes to –ide. �Ex: Na. Cl- Sodium Chloride Oxide Mg. O- Magnesium � If the negative ion is polyatomic, its name usually ends in –ate or –ite. � Ex: NH 4 NO 3 - Ammonium nitrate Potassium Sulfide � What is the name of the ionic compound with the formula K 2 S? _______
Properties of Ionic Compounds �Hard �Brittle �Crystals �High melting points- Na. Cl melts at 801˚C= 1473. 8 ˚F �When dissolved in water they are electrolytes. �An electrolyte solution is one that can conduct electricity. �Ionic bonds in solid from are poor conductors.
Covalent Bonds �The chemical bond formed when two atoms share electrons. �Usually form between nonmetals. �We call the neutral group of atoms joined by a covalent bond a molecule.
In covalent bonding, atoms still want to follow the octet rule and have a complete valance shell
In covalent bonding, atoms still want to follow the octet rule and have a complete valance shell But rather than losing or gaining electrons, atoms now share an electro
In covalent bonding, atoms still want to follow the octet rule and have a complete valance shell But rather than losing or gaining electrons, atoms now share an electron pair. The shared electron pair is called a bonding pair
Chlorine forms a covalent bond with itself Cl 2
Cl Cl How will two chlorine atoms react?
Cl Each chlorine atom wants to gain one electron to achieve a full outer shell. Cl
Cl Cl Neither atom will give up an electron. What’s the solution – what can they do to achieve an octet?
Cl Cl
Cl Cl
Cl Cl
Cl Cl

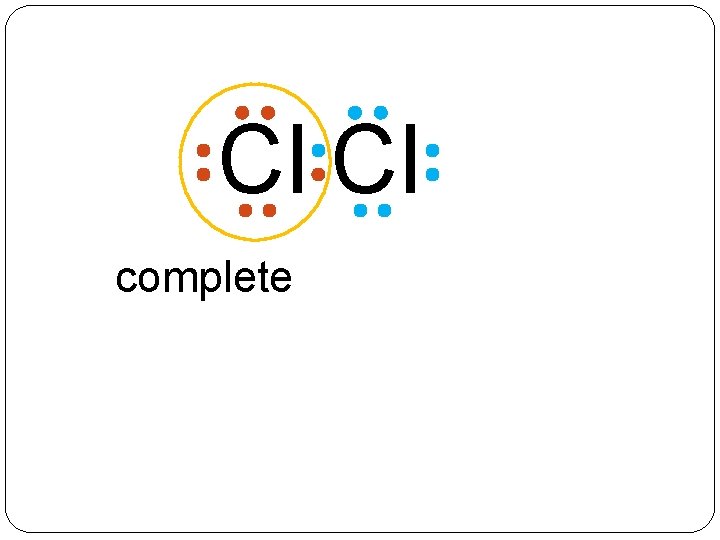

Cl Cl complete
Cl Cl complete
Cl Cl The complete outer shell is achieved by each atom sharing the electron pair in the middle
Cl Cl The complete outer shell is achieved by each atom sharing the electron pair in the middle
Cl Cl This is the bonding pair
Cl Cl It is called a SINGLE BOND
Cl Cl Single bonds are abbreviated with a dash
Cl Cl This is the chlorine molecule, Cl 2
O 2 Oxygen is also one of the diatomic molecules
O O How will two oxygen atoms bond?
O O Each atom has two unpaired electrons
O O Oxygen atoms want to gain two electrons.
O O Both electron pairs are shared.
O O 6 valence electrons plus 2 shared electrons = full valance shell
O O 6 valence electrons plus 2 shared electrons = full valance shell
O O two bonding pairs, making a double bond
O O O= O For convenience, the double bond can be shown as two dashes.
O= O This is the oxygen molecule, O 2

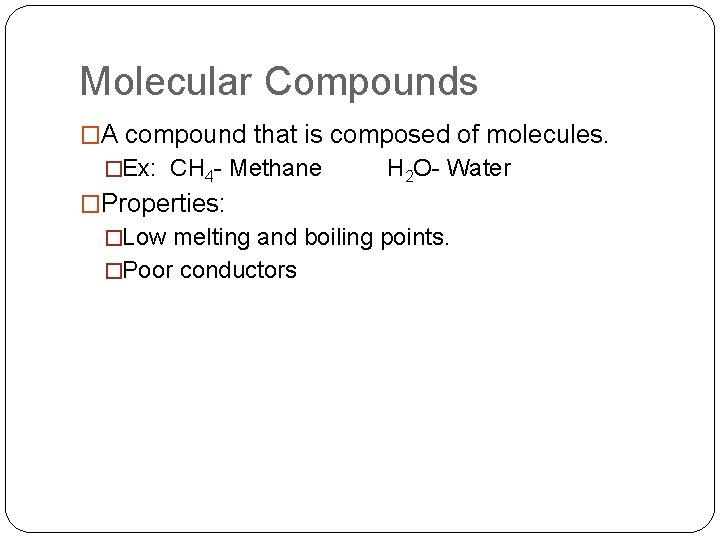

Molecular Compounds �A compound that is composed of molecules. �Ex: CH 4 - Methane H 2 O- Water �Properties: �Low melting and boiling points. �Poor conductors
Polar Bonds �A covalent bond in which electrons are shared unequally is called a polar bond. ex: water molecules �One atom pulls more strongly on a shared electron causing a slight charge. �Polar molecules tend to pull close together because the negative end of each molecule is attracted to the positive end of other molecules.
Nonpolar Bonds �If the electrons are shared equally it is called a nonpolar bond. � A molecule may contain a polar bond and still be nonpolar overall. In order for this to happen the molecule must bond in a straight line with opposite pulling. Ex: carbon dioxide � There is little attraction between non polar molecules
Why Doesn’t Oil & Water Mix? �The molecule in vegetable oil are nonpolar and have little attraction to other molecule. �Water molecules are polar and are strongly attracted to one another. �SO, the water stays with the water which leave the oil by itself. �Adding soap allows them to mix easily because the soap molecule contains one end that is an ionic bond and the other end is a nonpolar covalent bond. �The nonpolar end mixes with the oil and the charge on the ionic end attracts the water
Metallic Bonds �An attraction between a positive metal ion and the electrons surrounding it. �In other words: � Many electrons are shared by many atoms. �A metal consists of positively charged metal ions embedded in a “sea” of valence electrons.

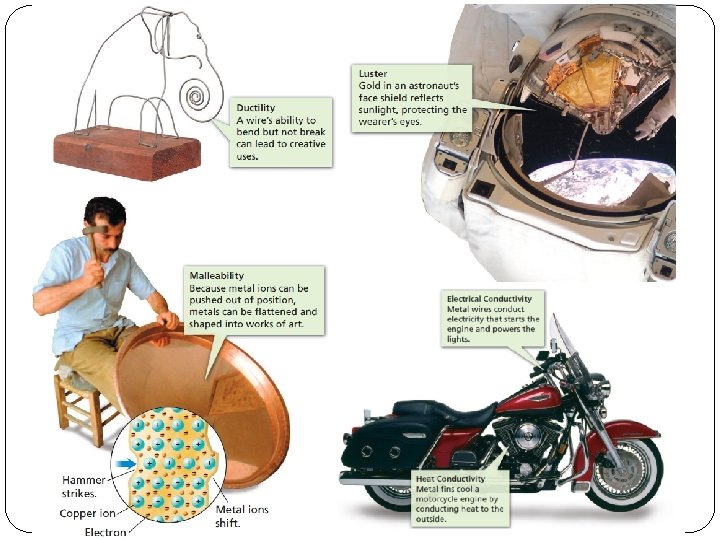

Metallic Properties �The “sea of electrons” model of solid metals explains their properties: �Heat/electrical conductivity �The free moving valance electrons make it easier for the particles to move faster. �Changes in shape �Ductile �Malleable � This happens because the ions in the metal are not attracted to each other, instead they are attracted to the loose electrons all around them. �Luster �A metals luster is due to its valance electrons. They absorb and then reflect the light which we see has shiny.
