Body Planes Directions and Cavities Health Science I

Body Planes, Directions, and Cavities Health Science I Mrs. Berry

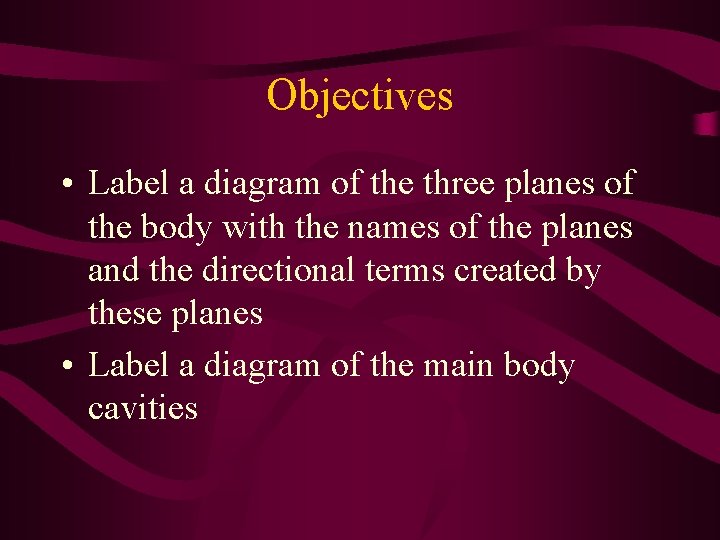

Objectives • Label a diagram of the three planes of the body with the names of the planes and the directional terms created by these planes • Label a diagram of the main body cavities

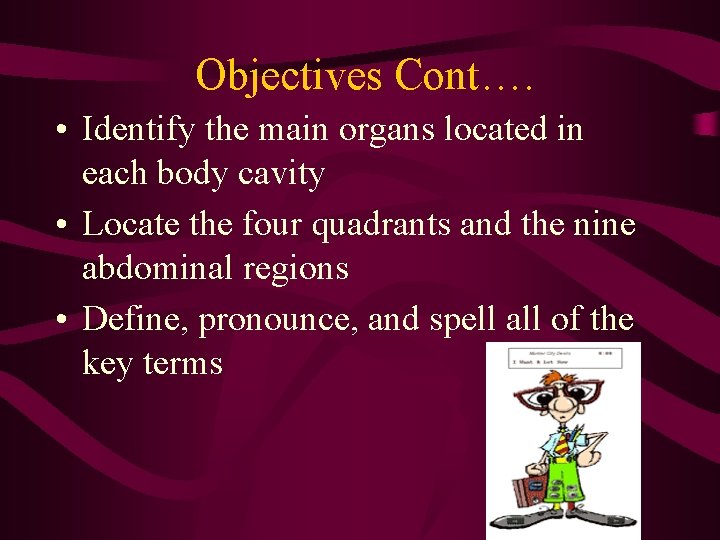

Objectives Cont…. • Identify the main organs located in each body cavity • Locate the four quadrants and the nine abdominal regions • Define, pronounce, and spell all of the key terms

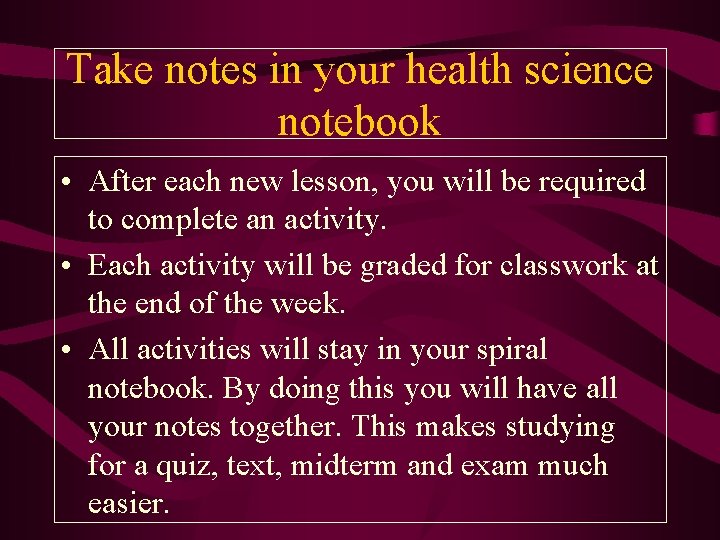

Take notes in your health science notebook • After each new lesson, you will be required to complete an activity. • Each activity will be graded for classwork at the end of the week. • All activities will stay in your spiral notebook. By doing this you will have all your notes together. This makes studying for a quiz, text, midterm and exam much easier.

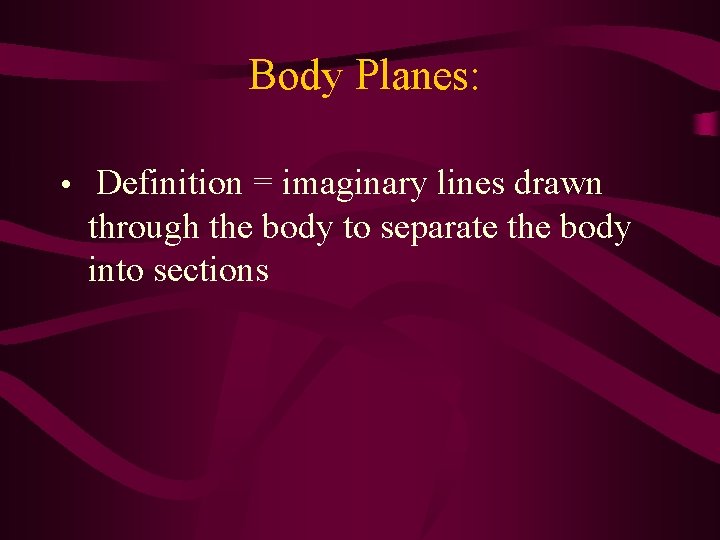

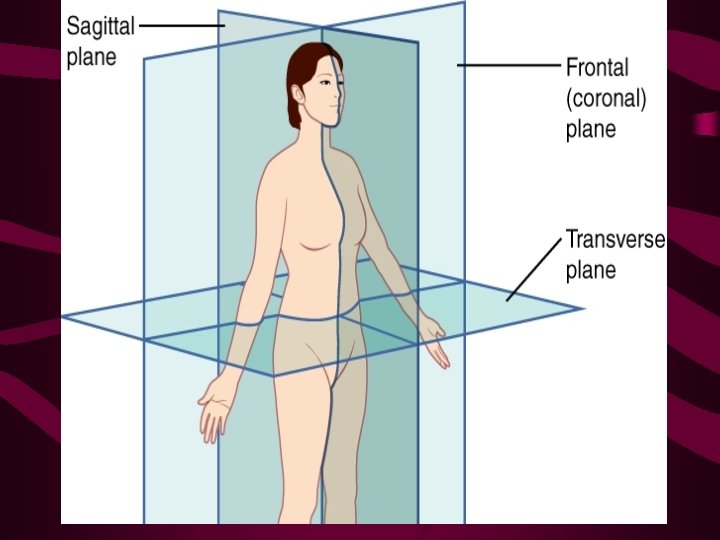

Body Planes: • Definition = imaginary lines drawn through the body to separate the body into sections

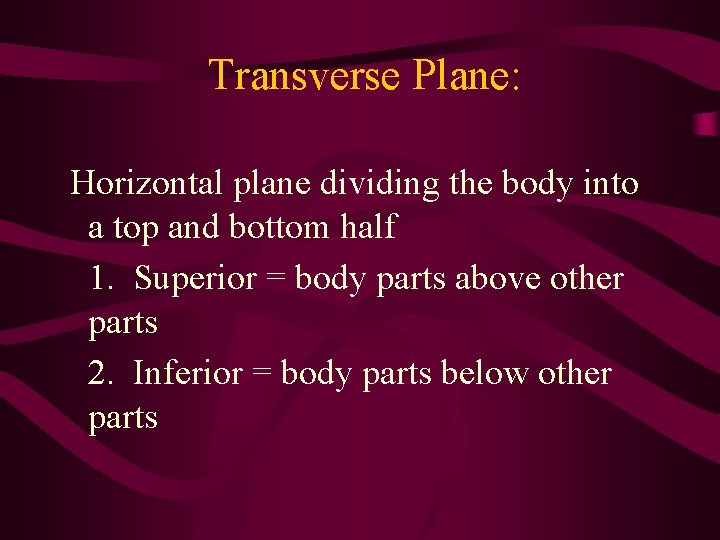

Transverse Plane: Horizontal plane dividing the body into a top and bottom half 1. Superior = body parts above other parts 2. Inferior = body parts below other parts

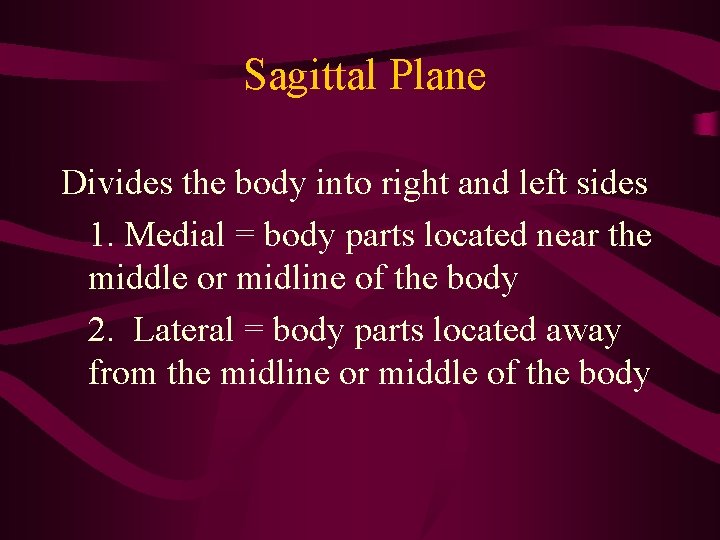

Sagittal Plane Divides the body into right and left sides 1. Medial = body parts located near the middle or midline of the body 2. Lateral = body parts located away from the midline or middle of the body

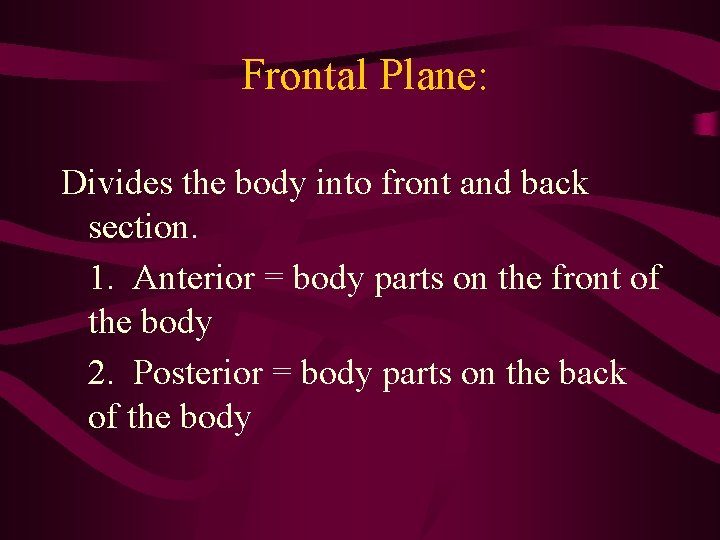

Frontal Plane: Divides the body into front and back section. 1. Anterior = body parts on the front of the body 2. Posterior = body parts on the back of the body

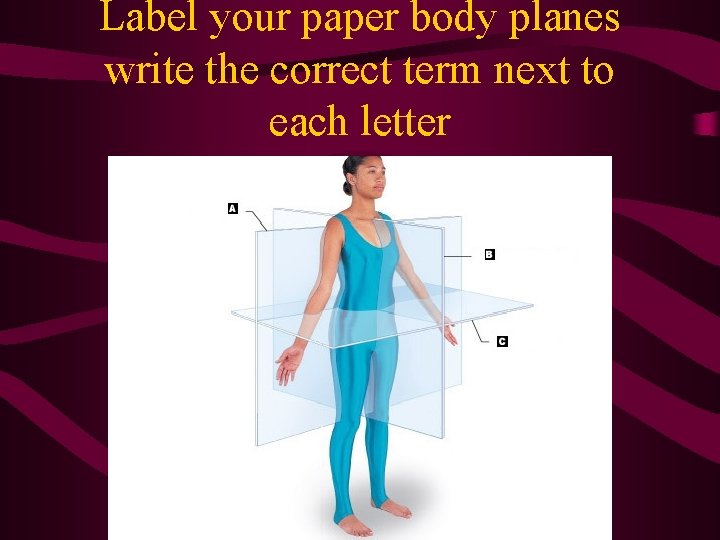

Label your paper body planes write the correct term next to each letter

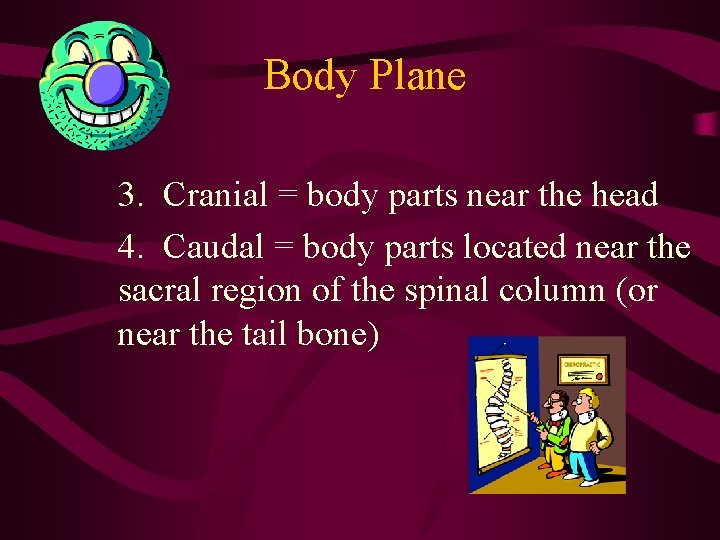

Body Plane 3. Cranial = body parts near the head 4. Caudal = body parts located near the sacral region of the spinal column (or near the tail bone)

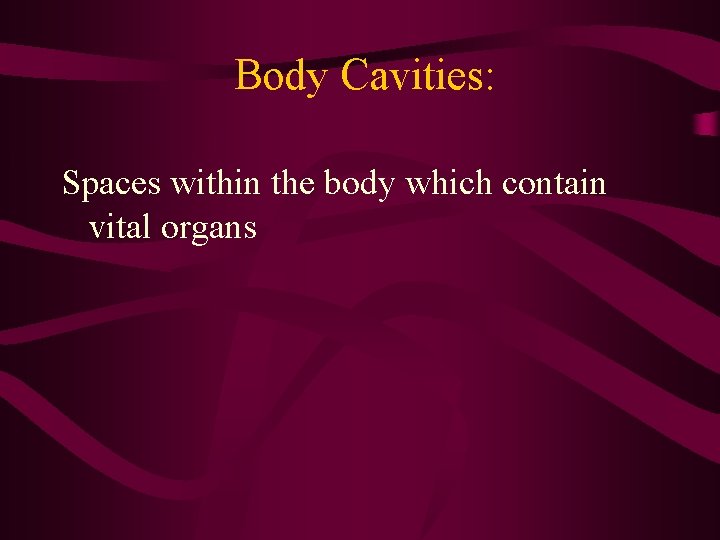

Body Cavities: Spaces within the body which contain vital organs

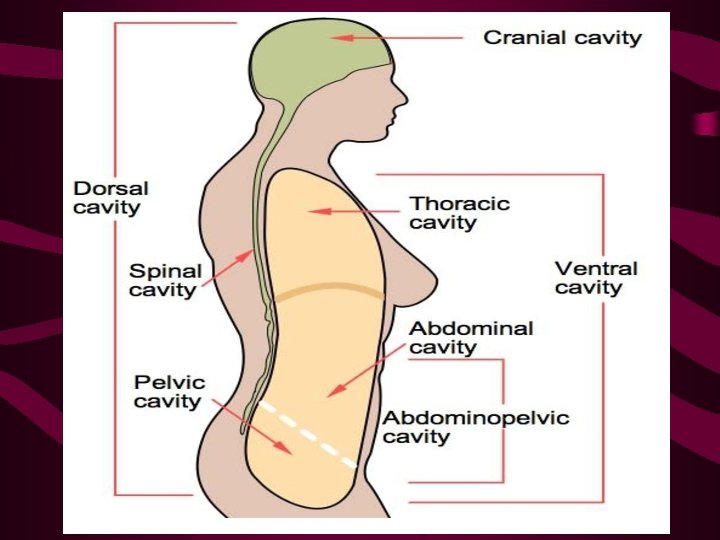

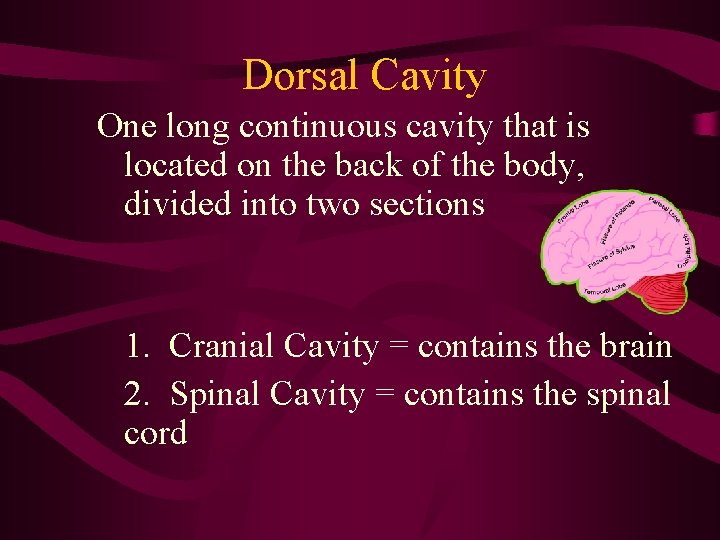

Dorsal Cavity One long continuous cavity that is located on the back of the body, divided into two sections 1. Cranial Cavity = contains the brain 2. Spinal Cavity = contains the spinal cord

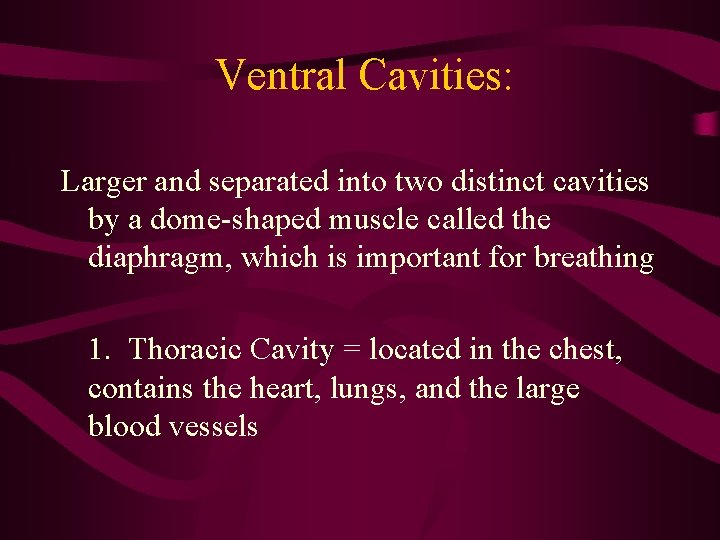

Ventral Cavities: Larger and separated into two distinct cavities by a dome-shaped muscle called the diaphragm, which is important for breathing 1. Thoracic Cavity = located in the chest, contains the heart, lungs, and the large blood vessels

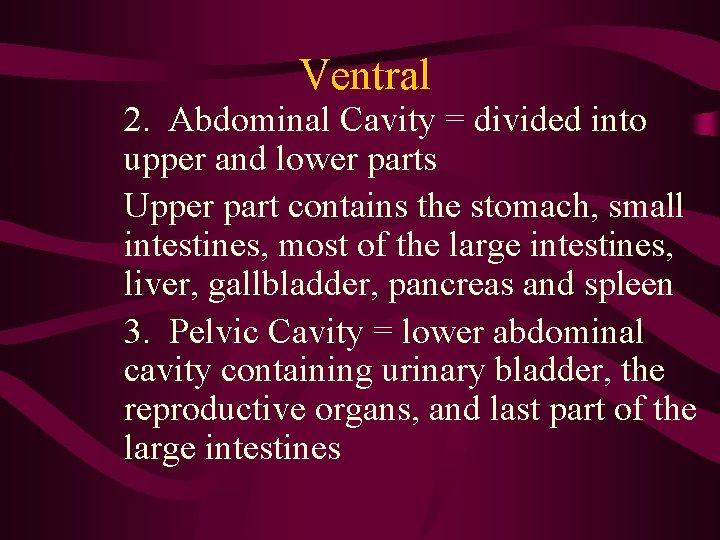

Ventral 2. Abdominal Cavity = divided into upper and lower parts Upper part contains the stomach, small intestines, most of the large intestines, liver, gallbladder, pancreas and spleen 3. Pelvic Cavity = lower abdominal cavity containing urinary bladder, the reproductive organs, and last part of the large intestines

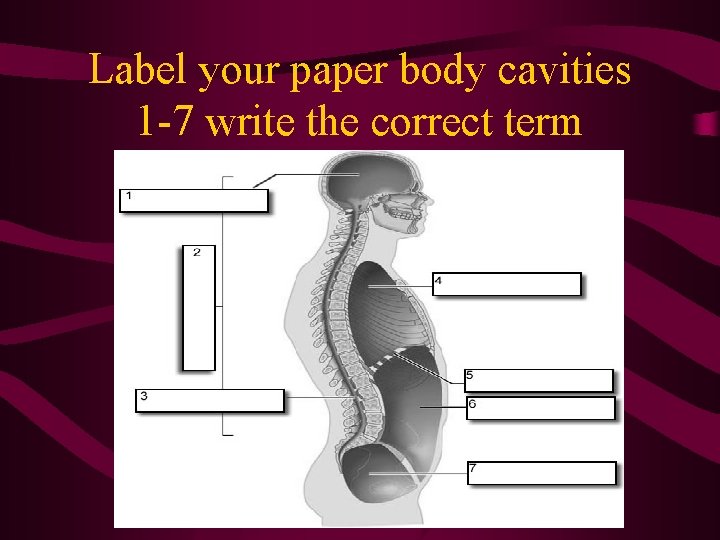

Label your paper body cavities 1 -7 write the correct term

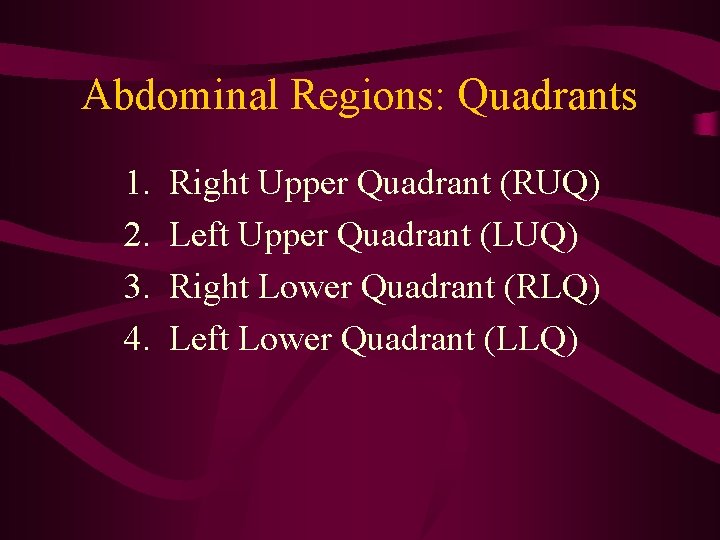

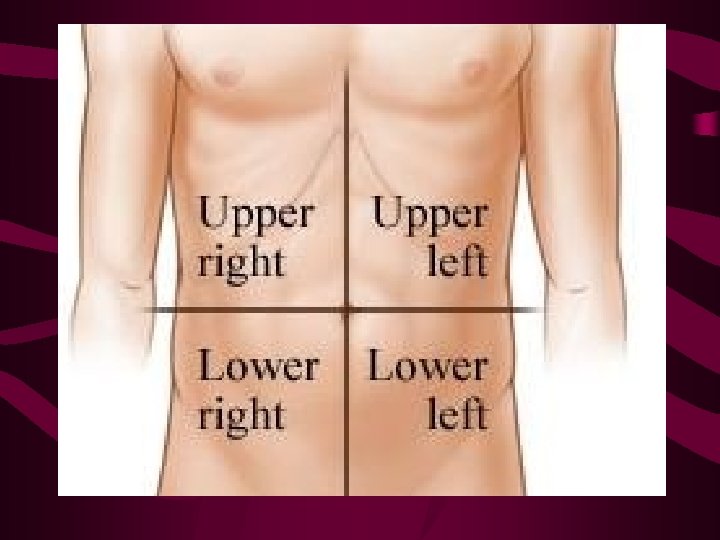

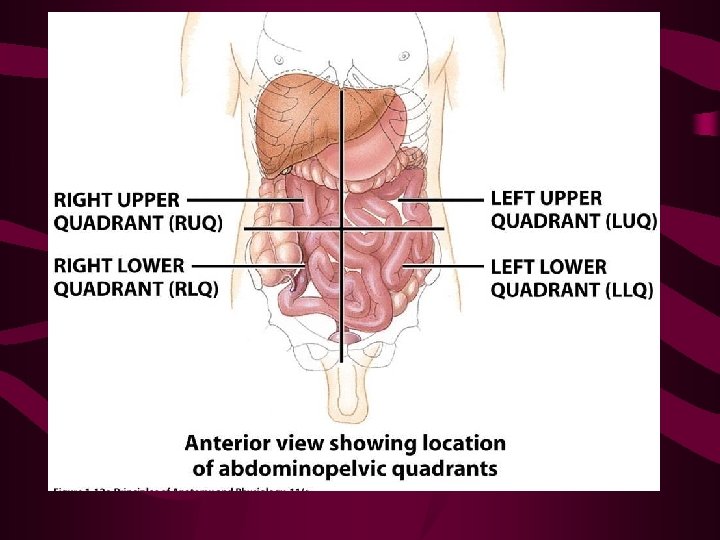

Abdominal Regions: Quadrants 1. 2. 3. 4. Right Upper Quadrant (RUQ) Left Upper Quadrant (LUQ) Right Lower Quadrant (RLQ) Left Lower Quadrant (LLQ)

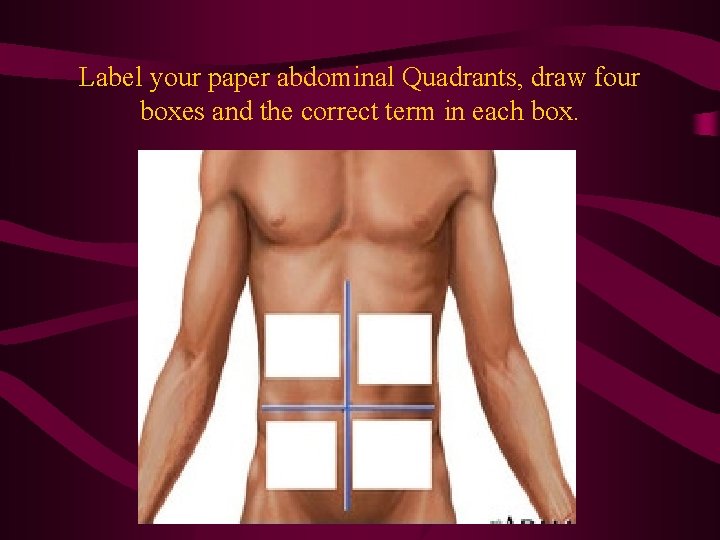

Label your paper abdominal Quadrants, draw four boxes and the correct term in each box.

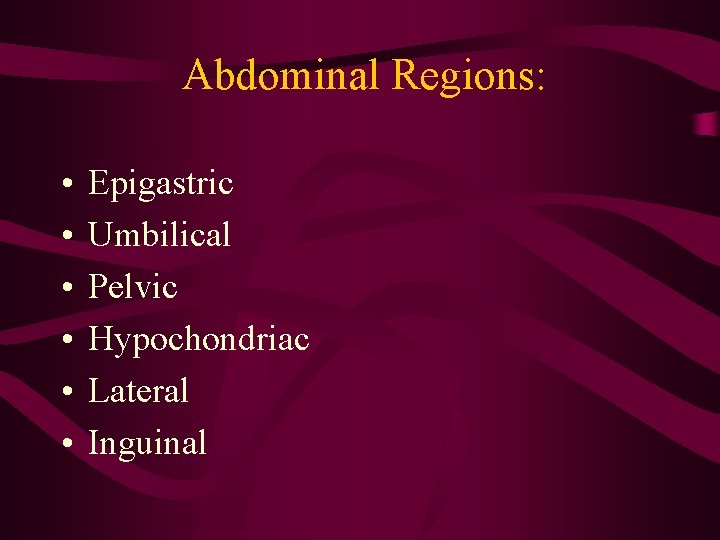

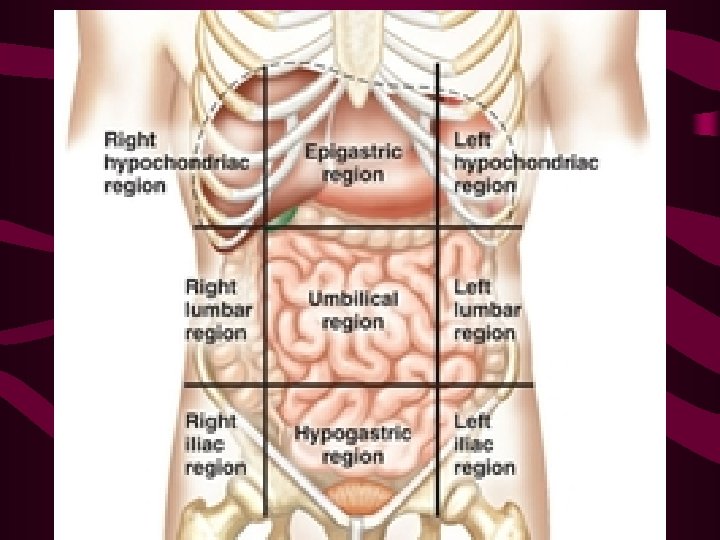

Abdominal Regions: • • • Epigastric Umbilical Pelvic Hypochondriac Lateral Inguinal

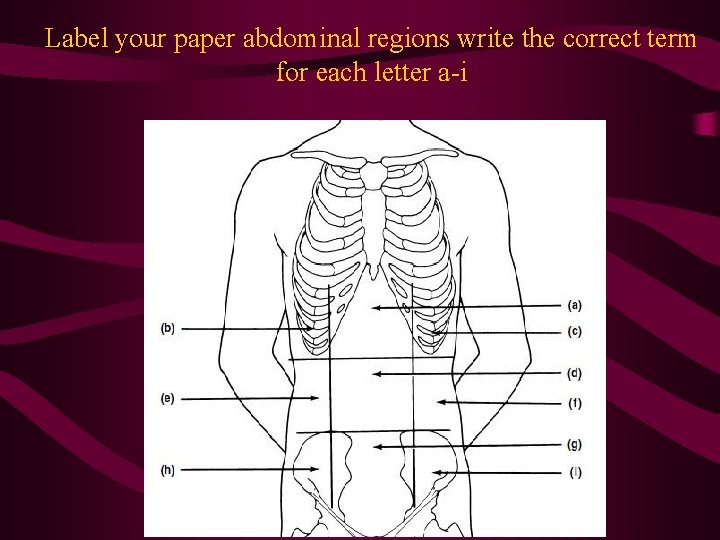

Label your paper abdominal regions write the correct term for each letter a-i

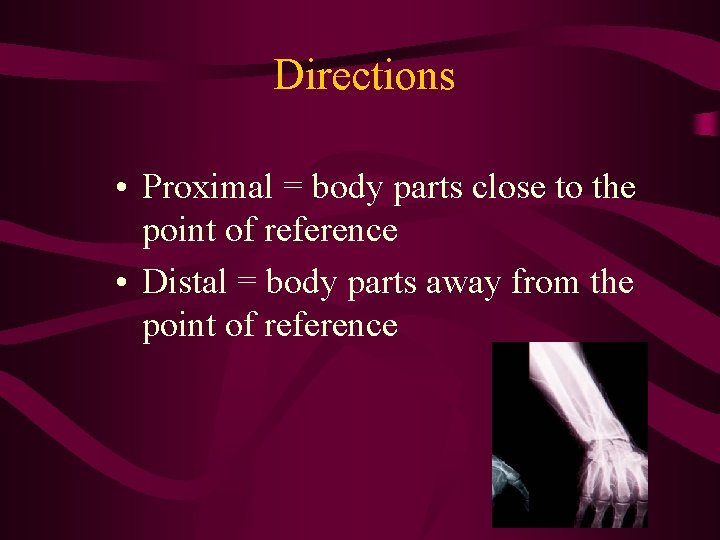

Directions • Proximal = body parts close to the point of reference • Distal = body parts away from the point of reference

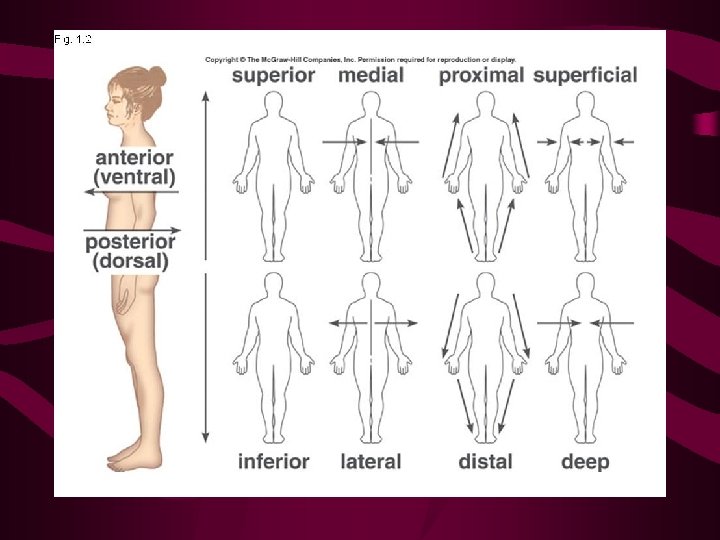

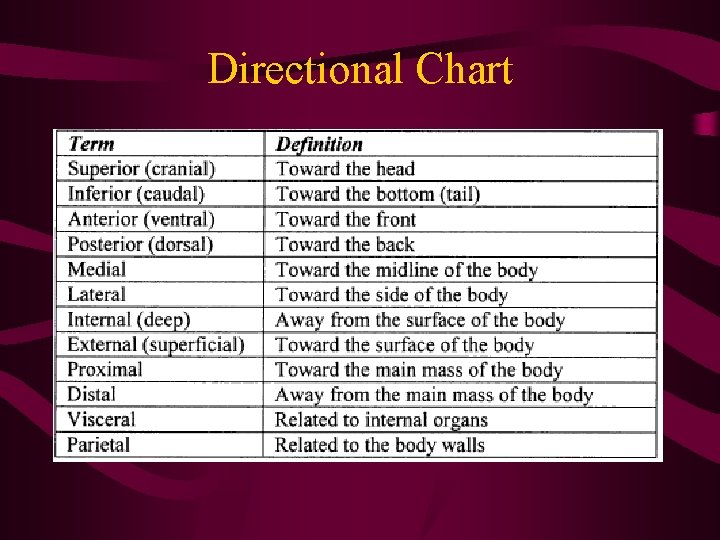

Directional Chart

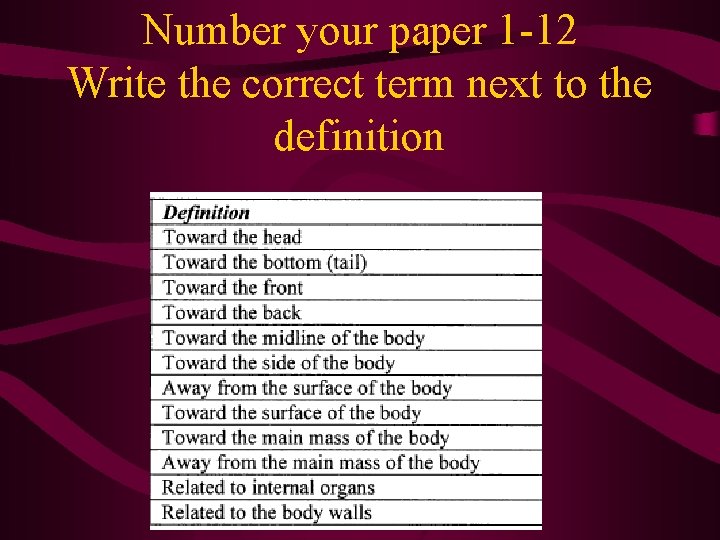

Number your paper 1 -12 Write the correct term next to the definition
